SAXSdb — 4ma7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major prion protein

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 116–229	Fragment：UNP residues 116-229	POM1 heavy chain × 1 POM1 light chain × 1 P2Z Promazine × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；25% PEG3350, 0.1 M Bis-Tris, pH 6.5, 0.2 M lithium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.97 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4MA7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AG2 PRION PROTEIN DOMAIN PRP(121-231) FROM MOUSE, NMR, 2 MINIMIZED AVERAGE STRUCTURE Deposited 1997-03-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 123–225（103 aa） Fragment：DOMAIN 121 - 231	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；293 K	Resolution not provided
1XYX mouse prion protein fragment 121-231 Deposited 2004-11-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa） Fragment：C-terminal domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；293 K；Ionic strength (raw mmCIF value) 10；Pressure ambient NMR sample composition 1mM mPrP(121-231) U-15N,13C; 10mM acetate \| 90% H2O/10% D2O	Resolution not provided
1Y15 Mouse Prion Protein with mutation N174T Deposited 2004-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa） Fragment：C-terminal domain	Mutation：N174T	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；293 K；Ionic strength (raw mmCIF value) 10；Pressure ambient NMR sample composition 1mM mPrP(121-231) U-15N,13C; 10mM acetate \| 90% H2O/10% D2O	Resolution not provided
1Y16 mouse prion protein with mutations S170N and N174T Deposited 2004-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa） Fragment：C-terminal domain	Mutation：S170N, N174T	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；293 K；Ionic strength (raw mmCIF value) 10；Pressure ambient NMR sample composition 1mM mprp(121-213) S170N,N174T U-15N,13C;10mM acetate \| 90% H2O/10% D2O	Resolution not provided
2K5O Mouse Prion Protein (121-231) with Mutation S170N Deposited 2008-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；298.2 K；Ionic strength (raw mmCIF value) 0.01；Pressure ambient NMR sample composition 0.4mM [U-99% 13C; U-99% 15N] Prion Protein, 10% D2O, 90% H2O, 10mM [U-2H] sodium acetate, 0.02% sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KFM Mouse Prion Protein (121-231) with Mutations Y225A and Y226A Deposited 2009-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa）	Mutation：Y225A,Y226A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；293.1 K；Ionic strength (raw mmCIF value) 0.01；Pressure ambient NMR sample composition 10 mM [U-100% 2H] sodium acetate-1, 2 mM [U-99% 13C; U-99% 15N] entity-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KFO Mouse Prion Protein (121-231) with Mutation V166A Deposited 2009-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa）	Mutation：V166A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；293.1 K；Ionic strength (raw mmCIF value) 0.01；Pressure ambient NMR sample composition 1.4 mM [U-99% 13C; U-99% 15N] protein, 10 mM [U-100% 2H] sodium acetate, 0.02 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KU5 Mouse Prion Protein (121-231) with mutation D167S Deposited 2010-02-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa） Fragment：UNP residues 119-231	Mutation：D167S	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 10；298 K；Pressure ambient NMR sample composition 10 mM [U-2H] sodium acetate-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KU6 Mouse Prion Protein (121-231) with mutations D167S and N173K Deposited 2010-02-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–231（112 aa） Fragment：UNP residues 119-231	Mutation：D167S, N173K	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 10；298 K；Pressure ambient NMR sample composition 10 mM [U-2H] sodium acetate-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3NVG MIHFGN segment 137-142 from mouse prion Deposited 2010-07-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 137–142（6 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100mM HEPES 7.5, vapor diffusion, hanging drop, temperature 298K	Resolution 1.48 Å R-free 0.205
3NVH MIHFGND segment 137-143 from mouse prion Deposited 2010-07-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 137–143（7 aa）	Not recorded	TFA trifluoroacetic acid × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；100mM HEPES ph 7.0, 10% PEG 1200, vapor diffusion, hanging drop, temperature 298K	Resolution 1.61 Å R-free 0.197
4H88 Structure of POM1 FAB fragment complexed with mouse PrPc Fragment 120-230 Deposited 2012-09-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 120–230（111 aa） Fragment：C-TERM FRAGMENT	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；25% PEG3350, 0.1 M BIS-TRIS, 0.2 M lithium sulphate , pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.90 Å R-free 0.234
4J8R Structure of an octapeptide repeat of the prion protein bound to the POM2 Fab antibody fragment Deposited 2013-02-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 67–82（16 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；28% PEG 1000, 0.1M HEPES, 0.2M Calcium Chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.257
4J8R Structure of an octapeptide repeat of the prion protein bound to the POM2 Fab antibody fragment Deposited 2013-02-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 67–82（16 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；28% PEG 1000, 0.1M HEPES, 0.2M Calcium Chloride, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.257
4MA8 Crystal structure of mouse prion protein complexed with Chlorpromazine Deposited 2013-08-15	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 116–229（114 aa） Fragment：UNP residues 116-229	Not recorded	Z80 3-(2-chloro-10H-phenothiazin-10-yl)-N,N-dimethylpropan-1-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；25% PEG3350, 0.1 M Bis-Tris, pH 6.5, 0.2 M lithium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.20 Å R-free 0.236
6AQ7 Structure of POM6 FAB fragment complexed with mouse PrPc Deposited 2017-08-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 127–225（99 aa） Fragment：UNP residues 127-225	Not recorded	GOL GLYCEROL × 2 TCE 3,3',3''-phosphanetriyltripropanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.2M Sodium malonate pH 7.0, 12% PEG8000 along with 5mM TCEP, 5mM Praseodymium acetate and ethanol	Resolution 1.83 Å R-free 0.230
6HER Mouse prion protein in complex with Nanobody 484 Deposited 2018-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 117–226（110 aa）	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris pH 8, 1.5 M ammonium sulfate	Resolution 1.20 Å R-free 0.195
6HHD Mouse Prion Protein in complex with Nanobody 484 Deposited 2018-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 118–225（108 aa） Chain C 118–224（107 aa）	Not recorded	CL CHLORIDE ION × 3 SO4 SULFATE ION × 4 GOL GLYCEROL × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.15 M ammonium sulfate, 0.1 M MES pH6.0, 15% w/v PEG 40000.	Resolution 2.10 Å R-free 0.245
7QIG Infectious mouse-adapted RML scrapie prion fibril purified from terminally-infected mouse brains Deposited 2021-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 94–225（132 aa） Chain B 94–225（132 aa） Chain C 94–225（132 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
7RVD Segment from the mouse/cow prion protein 168-176 QYSNQNNFV Deposited 2021-08-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 167–175（9 aa） Fragment：UNP residues 167-175	Not recorded	No recorded non-water small molecule	ELECTRON CRYSTALLOGRAPHY X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；0.5 M zinc acetate, 15% ethanol, 0.2 M MES, pH 6	Resolution 1.00 Å R-free 0.250
7TD6 aRML prion fibril Deposited 2021-12-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain 1 1–254（254 aa） Chain A 1–254（254 aa） Chain B 1–254（254 aa） Chain C 1–254（254 aa） Chain D 1–254（254 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8A00 Infectious mouse-adapted ME7 scrapie prion fibril purified from terminally-infected mouse brains Deposited 2022-05-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 94–229（136 aa） Chain B 94–229（136 aa） Chain C 94–229（136 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8DJA Cryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1) Deposited 2022-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 20 PDB declaration: eicosameric	Chain A 23–143（121 aa） Chain B 23–143（121 aa） Chain C 23–143（121 aa） Chain D 23–143（121 aa） Chain E 23–143（121 aa） Chain F 23–143（121 aa） Chain G 23–143（121 aa） Chain H 23–143（121 aa） Chain I 23–143（121 aa） Chain J 23–143（121 aa） Chain K 23–143（121 aa） Chain L 23–143（121 aa） Chain M 23–143（121 aa） Chain N 23–143（121 aa） Chain O 23–143（121 aa） Chain P 23–143（121 aa） Chain Q 23–143（121 aa） Chain R 23–143（121 aa） Chain S 23–143（121 aa） Chain T 23–143（121 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.92 Å
8EFU a22L prion fibril Deposited 2022-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 1–231（231 aa） Chain B 1–231（231 aa） Chain C 1–231（231 aa） Chain D 1–231（231 aa） Chain E 1–231（231 aa）	Mutation：S233Stop Mutation：S233Stop Mutation：S233Stop Mutation：S233Stop Mutation：S233Stop	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Sample suspended in 20 mM Tris pH 7.4, 100 mM containing 0.02% amphipol 8-35 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

23 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PRIO_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–114； UniProt 116–229

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ma7
Deposition date deposition_date	2013-08-15
Structure title title	Crystal structure of mouse prion protein complexed with Promazine
Keywords keywords	Immunoglobulin fold, Fab, Antibody, Mouse prion protein, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.39 Å
Radius of gyration Rg (electron density) rg_electron	30.23 Å
Forward intensity I(0) i0	61867100.00
Molecular weight molecular_weight	59983.0 kDa
Excluded volume excluded_volume	74116 Å³
Envelope volume envelope_volume	96309 Å³
Hydration-shell volume shell_volume	28775 Å³
Envelope diameter envelope_diameter	106.7 Å
Shell Rg shell_rg	34.61 Å
Envelope Rg envelope_rg	30.12 Å
Shape Rg shape_rg	30.21 Å
Total Rg total_rg	30.69 Å
Total atoms total_atoms	4216
Residues n_residues	541
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

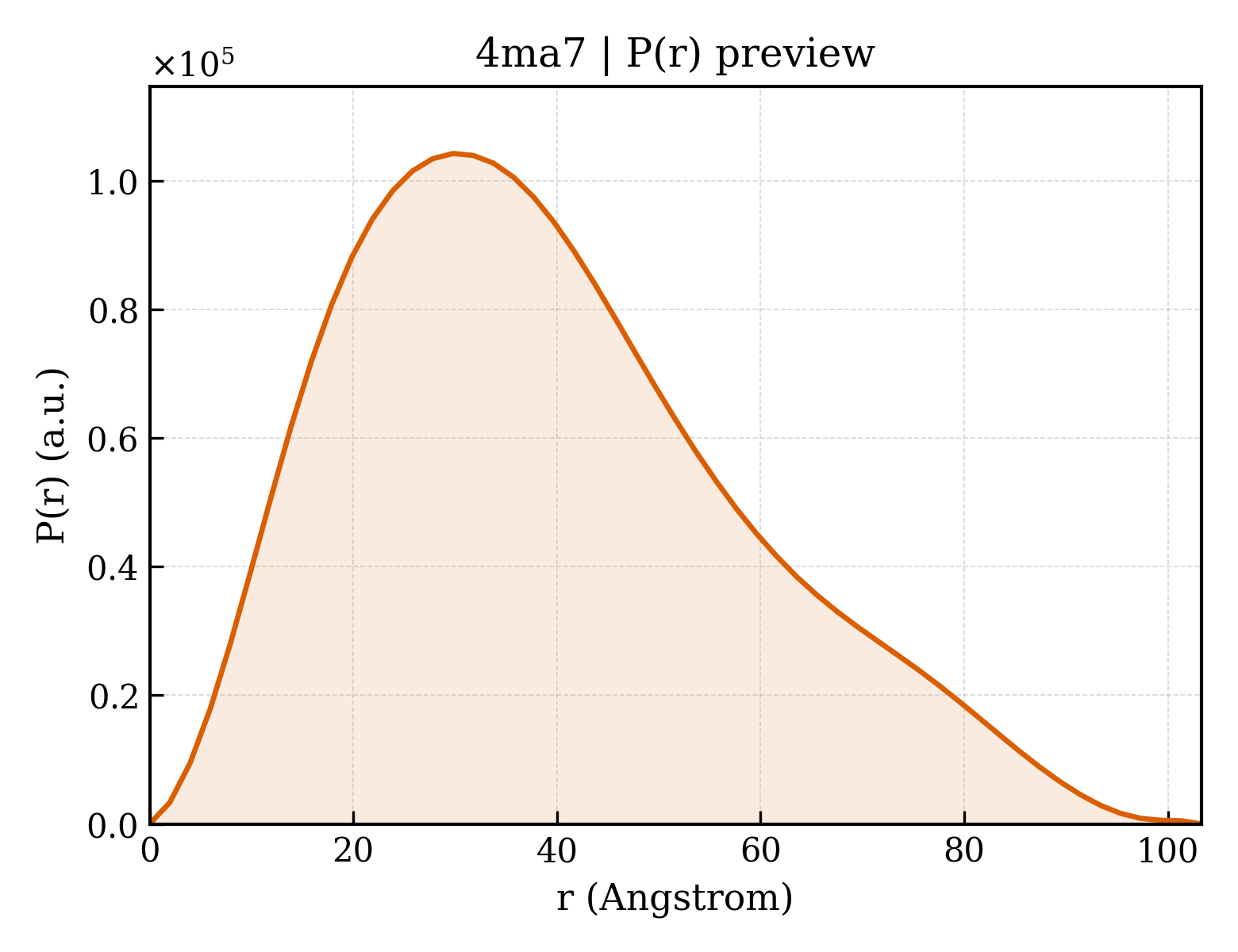

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	103.3 Å
Rg (real space) rg_real	30.67 Å
Rg uncertainty (real space) rg_real_error	0.94 Å
I(0) (real space) i0_real	6.1870e+07
I(0) uncertainty (real space) i0_real_error	1.0200e+06
Rg (reciprocal space) rg_reciprocal	30.55 Å
I(0) (reciprocal space) i0_reciprocal	61860000.0000
Solution quality estimate total_estimate	0.8438
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	29.8 Å
Skewness Skewness skewness	0.541
Kurtosis Kurtosis kurtosis	-0.286
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7623000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.804; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.766; Smooth: 0.786

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Major prion protein
Molecular weight formula_weight	13360.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4632

AAGAVVGGLGGYMLGSAMSRPMIHFGNDWEDRYYRENMYRYPNQVYYRPVDQYSNQNNFVHDCVNITIKQHTVTTTTKGENFTETDVKMMERVVEQMCVTQYQKESQAYYDGRR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	POM1 heavy chain
Molecular weight formula_weight	23397.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQSGTELVMPGASVKMSCKASGYTFTDYWMHWVKQRPGQGLEWIGSIDPSDSYTSHNEKFKGKATLTVDESSSTAYMQLSSLTSEDSAVYFCSRSGYGYYAMEYWGQGTSVTVSSAKTTPPSVYPLAPGGGATNSMVTLGCLVKGYFPEPVTVTWNSGSLSGGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 3 Entity 3 polymer

Description description	POM1 light chain
Molecular weight formula_weight	23509.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVLTQSPAILSVSPGERVSFSCRASQNIGTSIHWYQQRTNESPRLIIKYASESISGIPSRFSGSGSGTDFTLSINSVESEDIADYYCQQSNTWPYTFGGGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSETDQDSKDSTYSMSSTLTLTKDEYERHNTYTCEATHKTSTSPIVKSFNRNE

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 4 Entity 4 non-polymer

Description description	Promazine
Molecular weight formula_weight	284.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	409

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4ma7h1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d4ma7h2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d4ma7l1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d4ma7l2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	4ma7H01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4ma7H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4ma7L01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4ma7L02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	83.211 Å
Unit-cell length b length_b	106.038 Å
Unit-cell length c length_c	75.733 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.68 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.970 Å
Low-resolution limit resolution_low	34.880 Å
R factor r_factor	0.2174
R_work r_work	0.2158
R_free r_free	0.2469

fit	/app/data/saxs_computation/ma/4ma7/4ma7.fit
pddf	/app/data/pr_computation/ma/4ma7/4ma7.pr.out
profile	/app/data/saxs_computation/ma/4ma7/4ma7.dat

Crystal structure of mouse prion protein complexed with Promazine
