6hhd

Mouse Prion Protein in complex with Nanobody 484

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major prion protein

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Nanobody 484 × 1 Nanobody 484 × 1 CHLORIDE ION × 3 SULFATE ION × 4 GLYCEROL × 1 SODIUM ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRIO_MOUSE
Isoform	—
PDB entities	1, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–108； UniProt 118–225 Author chain C； PDBConstruct 1–107； UniProt 118–224

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6hhd
Deposition date deposition_date	2018-08-28
Structure title title	Mouse Prion Protein in complex with Nanobody 484
Keywords keywords	Prion, Nanobody, aggregation, B-sheet, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6hhd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6hhd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

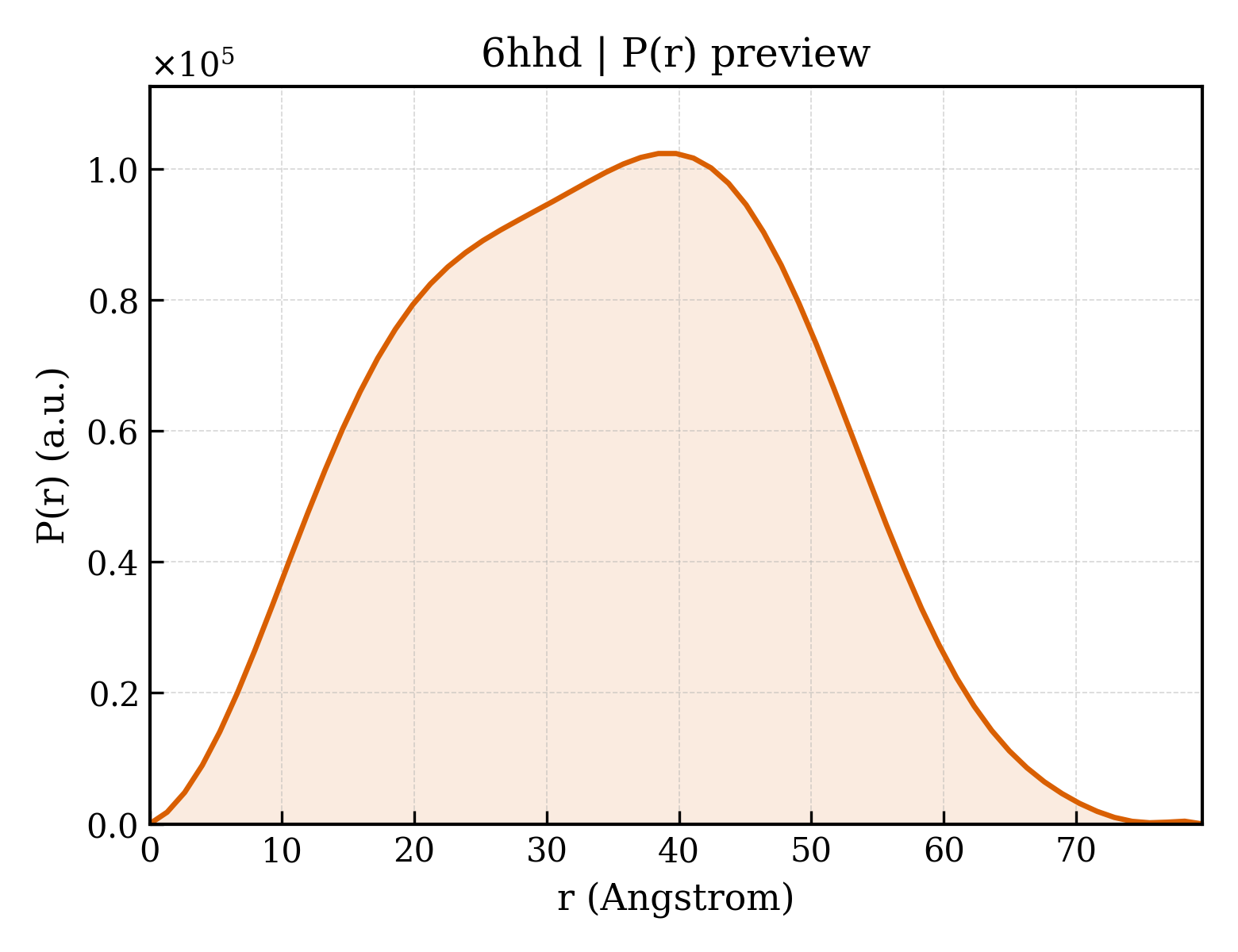

6hhd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.51 Å
Rg (electron density)	25.39 Å
Total Rg	26.30 Å
Atom count	7155
Residues	464
Excluded volume	64375 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6hhd__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Major prion protein
Molecular weight formula_weight	12732.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7520

GAVVGGLGGYMLGSAMSRPMIHFGNDWEDRYYRENMYRYPNQVYYRPVDQYSNQNNFVHDCVNITIKQHTVTTTTKGENFTETDVKMMERVVEQMCVTQYQKESQAYY

Source Source

Source organism organism	Mus musculus
Common name common_name	House Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nanobody 484
Molecular weight formula_weight	13505.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLQESGGGLVQPGGSLRLSCAASGRTFSSYNMGWFRQAPGKGREFVASITSSGDKSDYTDSVKGRFTISRDNAKNTMYLQMNNLKPEDTATYYCARGLGIYIIRARGGYDHWGQGTQVTVSS

Source Source

Source organism organism	Camelus dromedarius
Common name common_name	Arabian camel
NCBI taxonomy ID ncbi_taxonomy_id	9838
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Major prion protein
Molecular weight formula_weight	12569.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GAVVGGLGGYMLGSAMSRPMIHFGNDWEDRYYRENMYRYPNQVYYRPVDQYSNQNNFVHDCVNITIKQHTVTTTTKGENFTETDVKMMERVVEQMCVTQYQKESQAY

Source Source

Source organism organism	Mus musculus
Common name common_name	House Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Nanobody 484
Molecular weight formula_weight	13643.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

QVQLQESGGGLVQPGGSLRLSCAASGRTFSSYNMGWFRQAPGKGREFVASITSSGDKSDYTDSVKGRFTISRDNAKNTMYLQMNNLKPEDTATYYCARGLGIYIIRARGGYDHWGQGTQVTVSSH

Source Source

Source organism organism	Camelus dromedarius
Common name common_name	Arabian camel
NCBI taxonomy ID ncbi_taxonomy_id	9838
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	285

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d6hhda_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.6 — Prion-like
Superfamily Superfamily superfamily	d.6.1 — Prion-like
Family Family family	d.6.1.1 — Prion-like

Domain ID domain_id	d6hhdb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6hhdb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d6hhdc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.6 — Prion-like
Superfamily Superfamily superfamily	d.6.1 — Prion-like
Family Family family	d.6.1.1 — Prion-like

Domain ID domain_id	d6hhdd1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6hhdd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	6hhdA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	790 — Major Prion Protein
Homologous superfamily homologous superfamily	10 — Prion/Doppel protein, beta-ribbon domain

▶

Unit-cell length a length_a	59.130 Å
Unit-cell length b length_b	63.798 Å
Unit-cell length c length_c	69.792 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.96 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.102 Å
Low-resolution limit resolution_low	57.846 Å
R factor r_factor	0.2080
R_work r_work	0.2060
R_free r_free	0.2451
