SAXSdb — 4v4k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PORTAL PROTEIN

ENTEROBACTERIA PHAGE P22

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 24 PDB declaration: 24-meric（24） Consistent with protein copy count	Chain M； UniProt 1–602 Chain N； UniProt 1–602 Chain O； UniProt 1–602 Chain P； UniProt 1–602 Chain Q； UniProt 1–602 Chain R； UniProt 1–602 Chain S； UniProt 1–602 Chain T； UniProt 1–602 Chain U； UniProt 1–602 Chain V； UniProt 1–602 Chain W； UniProt 1–602 Chain X； UniProt 1–602	Fragment：UNP RESIDUES 1-602 Non-standard monomer：Yes (specific site not provided by mmCIF)	PACKAGED DNA STABILIZATION PROTEIN GP4 × 12 （P26746）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；20% PEG 8000, 0.1M (NH4)2HPO4, 0.1M MES, PH 6.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 3.25 Å R-free 0.236
2	Protein heterocomplex Heteromer Protein × 24 PDB declaration: 24-meric（24） Consistent with protein copy count	Chain A； UniProt 1–602 Chain B； UniProt 1–602 Chain C； UniProt 1–602 Chain D； UniProt 1–602 Chain E； UniProt 1–602 Chain F； UniProt 1–602 Chain G； UniProt 1–602 Chain H； UniProt 1–602 Chain I； UniProt 1–602 Chain J； UniProt 1–602 Chain K； UniProt 1–602 Chain L； UniProt 1–602	Fragment：UNP RESIDUES 1-602 Non-standard monomer：Yes (specific site not provided by mmCIF)	PACKAGED DNA STABILIZATION PROTEIN GP4 × 12 （P26746）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；20% PEG 8000, 0.1M (NH4)2HPO4, 0.1M MES, PH 6.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 3.25 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4V4K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3LJ5 Full Length Bacteriophage P22 Portal Protein Deposited 2010-01-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 1–725（725 aa） Fragment：UNP residues 1-725 Chain B 1–725（725 aa） Fragment：UNP residues 1-725 Chain C 1–725（725 aa） Fragment：UNP residues 1-725 Chain D 1–725（725 aa） Fragment：UNP residues 1-725 Chain E 1–725（725 aa） Fragment：UNP residues 1-725 Chain F 1–725（725 aa） Fragment：UNP residues 1-725 Chain G 1–725（725 aa） Fragment：UNP residues 1-725 Chain H 1–725（725 aa） Fragment：UNP residues 1-725 Chain I 1–725（725 aa） Fragment：UNP residues 1-725 Chain J 1–725（725 aa） Fragment：UNP residues 1-725 Chain K 1–725（725 aa） Fragment：UNP residues 1-725 Chain L 1–725（725 aa） Fragment：UNP residues 1-725	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；293 K；30% tert-Butanol, 70mM sodium chloride, 2.5% PEG 400, 0.1M sodium acetate, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 7.50 Å R-free 0.263
5GAI Probabilistic Structural Models of Mature P22 Bacteriophage Portal, Hub, and Tailspike proteins Deposited 2015-12-01	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain A 5–725（721 aa） Chain B 5–725（721 aa） Chain C 5–725（721 aa） Chain D 5–725（721 aa） Chain E 5–725（721 aa） Chain F 5–725（721 aa） Chain G 5–725（721 aa） Chain H 5–725（721 aa） Chain I 5–725（721 aa） Chain J 5–725（721 aa） Chain W 5–725（721 aa） Chain X 5–725（721 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Blot for 2 seconds before plunging.	Resolution 10.50 Å
5JJ1 Structure of the Immature Procapsid Conformation of P22 Portal Protein Deposited 2016-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 1–602（602 aa） Fragment：UNP residues 1-602 Chain B 1–602（602 aa） Fragment：UNP residues 1-602 Chain C 1–602（602 aa） Fragment：UNP residues 1-602 Chain D 1–602（602 aa） Fragment：UNP residues 1-602 Chain E 1–602（602 aa） Fragment：UNP residues 1-602 Chain F 1–602（602 aa） Fragment：UNP residues 1-602 Chain G 1–602（602 aa） Fragment：UNP residues 1-602 Chain H 1–602（602 aa） Fragment：UNP residues 1-602 Chain I 1–602（602 aa） Fragment：UNP residues 1-602 Chain J 1–602（602 aa） Fragment：UNP residues 1-602 Chain K 1–602（602 aa） Fragment：UNP residues 1-602 Chain L 1–602（602 aa） Fragment：UNP residues 1-602	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；5% PEG 8,000, 10 mM Cesium Chloride	Resolution 3.30 Å R-free 0.315
5JJ3 Refined Structure of the Mature Virion Conformation of P22 Portal Protein Deposited 2016-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 1–725（725 aa） Chain B 1–725（725 aa） Chain C 1–725（725 aa） Chain D 1–725（725 aa） Chain E 1–725（725 aa） Chain F 1–725（725 aa） Chain G 1–725（725 aa） Chain H 1–725（725 aa） Chain I 1–725（725 aa） Chain J 1–725（725 aa） Chain K 1–725（725 aa） Chain L 1–725（725 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；30% tert-butanol, 70 mM sodium chloride, 2.5% PEG400 in 0.1 M sodium acetate	Resolution 7.00 Å R-free 0.260
8EAO Cryo-EM structure of the in-situ gp1-gp4 complex from bacteriophage P22 Deposited 2022-08-29	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain B 6–626（621 aa） Chain D 6–626（621 aa） Chain F 6–626（621 aa） Chain H 6–626（621 aa） Chain J 6–626（621 aa） Chain L 6–626（621 aa） Chain N 6–626（621 aa） Chain P 6–626（621 aa） Chain R 6–626（621 aa） Chain T 6–626（621 aa） Chain V 6–626（621 aa） Chain X 6–626（621 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8TVU In situ cryo-EM structure of bacteriophage P22 portal protein: head-to-tail protein complex at 3.0A resolution Deposited 2023-08-18	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain A 1–725（725 aa） Chain B 1–725（725 aa） Chain D 1–725（725 aa） Chain F 1–725（725 aa） Chain H 1–725（725 aa） Chain J 1–725（725 aa） Chain L 1–725（725 aa） Chain N 1–725（725 aa） Chain P 1–725（725 aa） Chain R 1–725（725 aa） Chain T 1–725（725 aa） Chain W 1–725（725 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8U10 In situ cryo-EM structure of bacteriophage P22 gp1:gp4:gp5:gp10:gp9 N-term complex in conformation 1 at 3.2A resolution Deposited 2023-08-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric	Chain a 1–725（725 aa） Chain b 1–725（725 aa） Chain c 1–725（725 aa） Chain d 1–725（725 aa） Chain e 1–725（725 aa） Chain f 1–725（725 aa） Chain g 1–725（725 aa） Chain h 1–725（725 aa） Chain i 1–725（725 aa） Chain j 1–725（725 aa） Chain k 1–725（725 aa） Chain l 1–725（725 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8U11 In situ cryo-EM structure of bacteriophage P22 gp1:gp5:gp4: gp10: gp9 N-term complex in conformation 2 at 3.1A resolution Deposited 2023-08-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric	Chain a 1–725（725 aa） Chain b 1–725（725 aa） Chain c 1–725（725 aa） Chain d 1–725（725 aa） Chain e 1–725（725 aa） Chain f 1–725（725 aa） Chain g 1–725（725 aa） Chain h 1–725（725 aa） Chain i 1–725（725 aa） Chain j 1–725（725 aa） Chain k 1–725（725 aa） Chain l 1–725（725 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9KYW The scaffold C-loop of phage P22 Deposited 2024-12-09	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–725（725 aa） Chain L 1–725（725 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
9PDP In situ cryoEM structure of bacteriophage P22 portal barrel Deposited 2025-06-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: 12-meric	Chain A 602–710（109 aa） Chain B 602–710（109 aa） Chain C 602–710（109 aa） Chain D 602–710（109 aa） Chain E 602–710（109 aa） Chain F 602–710（109 aa） Chain G 602–710（109 aa） Chain H 602–710（109 aa） Chain I 602–710（109 aa） Chain J 602–710（109 aa） Chain K 602–710（109 aa） Chain L 602–710（109 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.83 Å
9PGG Cryo-EM structure of bacteriophage P22 gp1-gp5-gp4 complex at 2.76 angstrom Deposited 2025-07-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain Bb 1–725（725 aa） Chain Bd 1–725（725 aa） Chain Bf 1–725（725 aa） Chain Bh 1–725（725 aa） Chain Bj 1–725（725 aa） Chain Bl 1–725（725 aa） Chain Bn 1–725（725 aa） Chain Bp 1–725（725 aa） Chain Br 1–725（725 aa） Chain Bt 1–725（725 aa） Chain Bv 1–725（725 aa） Chain Bx 1–725（725 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PORTL_BPP22
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–602； UniProt 1–602 Author chain B； PDBConstruct 1–602； UniProt 1–602 Author chain C； PDBConstruct 1–602； UniProt 1–602 Author chain D； PDBConstruct 1–602； UniProt 1–602 Author chain E； PDBConstruct 1–602； UniProt 1–602 Author chain F； PDBConstruct 1–602； UniProt 1–602 Author chain G； PDBConstruct 1–602； UniProt 1–602 Author chain H； PDBConstruct 1–602； UniProt 1–602 Author chain I； PDBConstruct 1–602； UniProt 1–602 Author chain J； PDBConstruct 1–602； UniProt 1–602 Author chain K； PDBConstruct 1–602； UniProt 1–602 Author chain L； PDBConstruct 1–602； UniProt 1–602 Author chain M； PDBConstruct 1–602； UniProt 1–602 Author chain N； PDBConstruct 1–602； UniProt 1–602 Author chain O； PDBConstruct 1–602； UniProt 1–602 Author chain P； PDBConstruct 1–602； UniProt 1–602 Author chain Q； PDBConstruct 1–602； UniProt 1–602 Author chain R； PDBConstruct 1–602； UniProt 1–602 Author chain S； PDBConstruct 1–602； UniProt 1–602 Author chain T； PDBConstruct 1–602； UniProt 1–602 Author chain U； PDBConstruct 1–602； UniProt 1–602 Author chain V； PDBConstruct 1–602； UniProt 1–602 Author chain W； PDBConstruct 1–602； UniProt 1–602 Author chain X； PDBConstruct 1–602； UniProt 1–602

PACKAGED DNA STABILIZATION PROTEIN GP4

ENTEROBACTERIA PHAGE P22

UniProt P26746

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 24 PDB declaration: 24-meric（24） Consistent with protein copy count	Chain k； UniProt 1–166 Chain l； UniProt 1–166 Chain m； UniProt 1–166 Chain n； UniProt 1–166 Chain o； UniProt 1–166 Chain p； UniProt 1–166 Chain q； UniProt 1–166 Chain r； UniProt 1–166 Chain s； UniProt 1–166 Chain t； UniProt 1–166 Chain u； UniProt 1–166 Chain v； UniProt 1–166	Fragment：UNP RESIDUES 1-166 Mutation：YES	PORTAL PROTEIN × 12 （P26744）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；20% PEG 8000, 0.1M (NH4)2HPO4, 0.1M MES, PH 6.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 3.25 Å R-free 0.236
2	Protein heterocomplex Heteromer Protein × 24 PDB declaration: 24-meric（24） Consistent with protein copy count	Chain Y； UniProt 1–166 Chain Z； UniProt 1–166 Chain a； UniProt 1–166 Chain b； UniProt 1–166 Chain c； UniProt 1–166 Chain d； UniProt 1–166 Chain e； UniProt 1–166 Chain f； UniProt 1–166 Chain g； UniProt 1–166 Chain h； UniProt 1–166 Chain i； UniProt 1–166 Chain j； UniProt 1–166	Fragment：UNP RESIDUES 1-166 Mutation：YES	PORTAL PROTEIN × 12 （P26744）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；20% PEG 8000, 0.1M (NH4)2HPO4, 0.1M MES, PH 6.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 3.25 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4V4K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5GAI Probabilistic Structural Models of Mature P22 Bacteriophage Portal, Hub, and Tailspike proteins Deposited 2015-12-01	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain K 5–150（146 aa） Chain L 5–150（146 aa） Chain M 5–150（146 aa） Chain N 5–150（146 aa） Chain O 5–150（146 aa） Chain P 5–150（146 aa） Chain Q 5–150（146 aa） Chain R 5–150（146 aa） Chain S 5–150（146 aa） Chain T 5–150（146 aa） Chain U 5–150（146 aa） Chain V 5–150（146 aa）	Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A Mutation：P150A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Blot for 2 seconds before plunging.	Resolution 10.50 Å
8EAO Cryo-EM structure of the in-situ gp1-gp4 complex from bacteriophage P22 Deposited 2022-08-29	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain A 3–151（149 aa） Chain C 3–151（149 aa） Chain E 3–151（149 aa） Chain G 3–151（149 aa） Chain I 3–151（149 aa） Chain K 3–151（149 aa） Chain M 3–151（149 aa） Chain O 3–151（149 aa） Chain Q 3–151（149 aa） Chain S 3–151（149 aa） Chain U 3–151（149 aa） Chain W 3–151（149 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8EB7 Cryo-EM structure of the in-situ gp4-gp10-gp9N from bacteriophage P22 Deposited 2022-08-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain E 2–151（150 aa） Chain G 2–151（150 aa） Chain H 2–151（150 aa） Chain I 2–151（150 aa） Chain J 2–151（150 aa） Chain K 2–151（150 aa） Chain L 2–151（150 aa） Chain M 2–151（150 aa） Chain N 2–151（150 aa） Chain O 2–151（150 aa） Chain P 2–151（150 aa） Chain Q 2–151（150 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8TVU In situ cryo-EM structure of bacteriophage P22 portal protein: head-to-tail protein complex at 3.0A resolution Deposited 2023-08-18	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain C 1–166（166 aa） Chain E 1–166（166 aa） Chain G 1–166（166 aa） Chain I 1–166（166 aa） Chain K 1–166（166 aa） Chain M 1–166（166 aa） Chain O 1–166（166 aa） Chain Q 1–166（166 aa） Chain S 1–166（166 aa） Chain V 1–166（166 aa） Chain X 1–166（166 aa） Chain a 1–166（166 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8U10 In situ cryo-EM structure of bacteriophage P22 gp1:gp4:gp5:gp10:gp9 N-term complex in conformation 1 at 3.2A resolution Deposited 2023-08-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric	Chain m 1–166（166 aa） Chain n 1–166（166 aa） Chain o 1–166（166 aa） Chain p 1–166（166 aa） Chain q 1–166（166 aa） Chain r 1–166（166 aa） Chain s 1–166（166 aa） Chain t 1–166（166 aa） Chain u 1–166（166 aa） Chain v 1–166（166 aa） Chain x 1–166（166 aa） Chain y 1–166（166 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8U11 In situ cryo-EM structure of bacteriophage P22 gp1:gp5:gp4: gp10: gp9 N-term complex in conformation 2 at 3.1A resolution Deposited 2023-08-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 58 PDB declaration: 58-meric	Chain m 1–166（166 aa） Chain n 1–166（166 aa） Chain o 1–166（166 aa） Chain p 1–166（166 aa） Chain q 1–166（166 aa） Chain r 1–166（166 aa） Chain s 1–166（166 aa） Chain t 1–166（166 aa） Chain u 1–166（166 aa） Chain v 1–166（166 aa） Chain x 1–166（166 aa） Chain y 1–166（166 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9PGG Cryo-EM structure of bacteriophage P22 gp1-gp5-gp4 complex at 2.76 angstrom Deposited 2025-07-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain Ap 1–166（166 aa） Chain Aq 1–166（166 aa） Chain Ar 1–166（166 aa） Chain As 1–166（166 aa） Chain At 1–166（166 aa） Chain Au 1–166（166 aa） Chain Av 1–166（166 aa） Chain Aw 1–166（166 aa） Chain Ax 1–166（166 aa） Chain Ay 1–166（166 aa） Chain Az 1–166（166 aa） Chain Ba 1–166（166 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VG04_BPP22
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain Y； PDBConstruct 1–166； UniProt 1–166 Author chain Z； PDBConstruct 1–166； UniProt 1–166 Author chain a； PDBConstruct 1–166； UniProt 1–166 Author chain b； PDBConstruct 1–166； UniProt 1–166 Author chain c； PDBConstruct 1–166； UniProt 1–166 Author chain d； PDBConstruct 1–166； UniProt 1–166 Author chain e； PDBConstruct 1–166； UniProt 1–166 Author chain f； PDBConstruct 1–166； UniProt 1–166 Author chain g； PDBConstruct 1–166； UniProt 1–166 Author chain h； PDBConstruct 1–166； UniProt 1–166 Author chain i； PDBConstruct 1–166； UniProt 1–166 Author chain j； PDBConstruct 1–166； UniProt 1–166 Author chain k； PDBConstruct 1–166； UniProt 1–166 Author chain l； PDBConstruct 1–166； UniProt 1–166 Author chain m； PDBConstruct 1–166； UniProt 1–166 Author chain n； PDBConstruct 1–166； UniProt 1–166 Author chain o； PDBConstruct 1–166； UniProt 1–166 Author chain p； PDBConstruct 1–166； UniProt 1–166 Author chain q； PDBConstruct 1–166； UniProt 1–166 Author chain r； PDBConstruct 1–166； UniProt 1–166 Author chain s； PDBConstruct 1–166； UniProt 1–166 Author chain t； PDBConstruct 1–166； UniProt 1–166 Author chain u； PDBConstruct 1–166； UniProt 1–166 Author chain v； PDBConstruct 1–166； UniProt 1–166

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4v4k
Deposition date deposition_date	2010-04-19
Structure title title	Bacteriophage P22 Portal Protein bound to middle Tail Factor GP4. This file contain the second biological assembly
Keywords keywords	PORTAL PROTEIN, DNA EJECTION, MOLECULAR MOTOR, DNA PACKAGING, PODOVIRIDAE, VIRUS ASSEMBLY, LATE PROTEIN, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

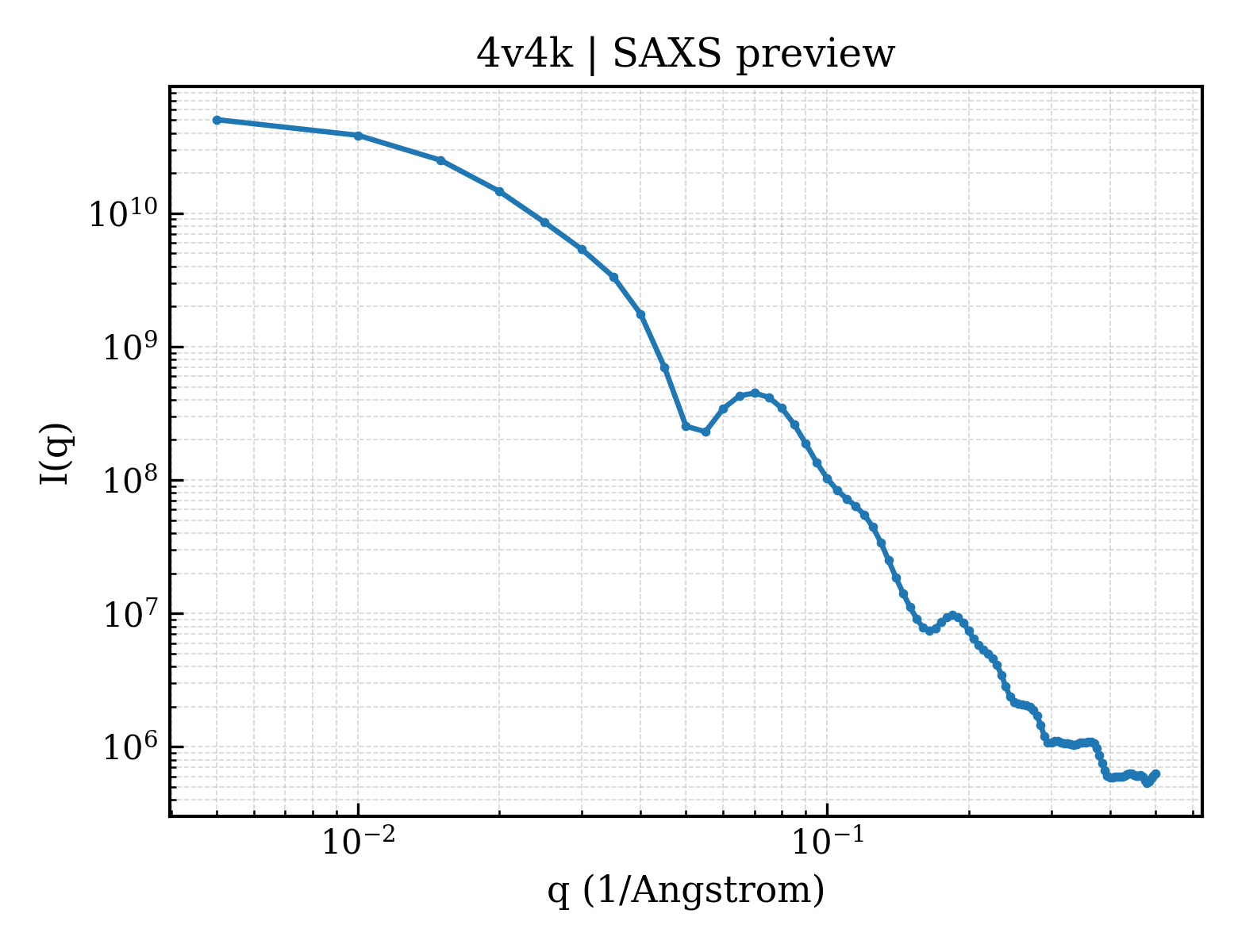

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	— Å
Radius of gyration Rg (electron density) rg_electron	104.80 Å
Forward intensity I(0) i0	55114600000.00
Molecular weight molecular_weight	1928700.0 kDa
Excluded volume excluded_volume	2372200 Å³
Envelope volume envelope_volume	3935500 Å³
Hydration-shell volume shell_volume	308470 Å³
Envelope diameter envelope_diameter	347.3 Å
Shell Rg shell_rg	97.78 Å
Envelope Rg envelope_rg	101.60 Å
Shape Rg shape_rg	104.80 Å
Total Rg total_rg	104.60 Å
Total atoms total_atoms	134604
Residues n_residues	16740
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

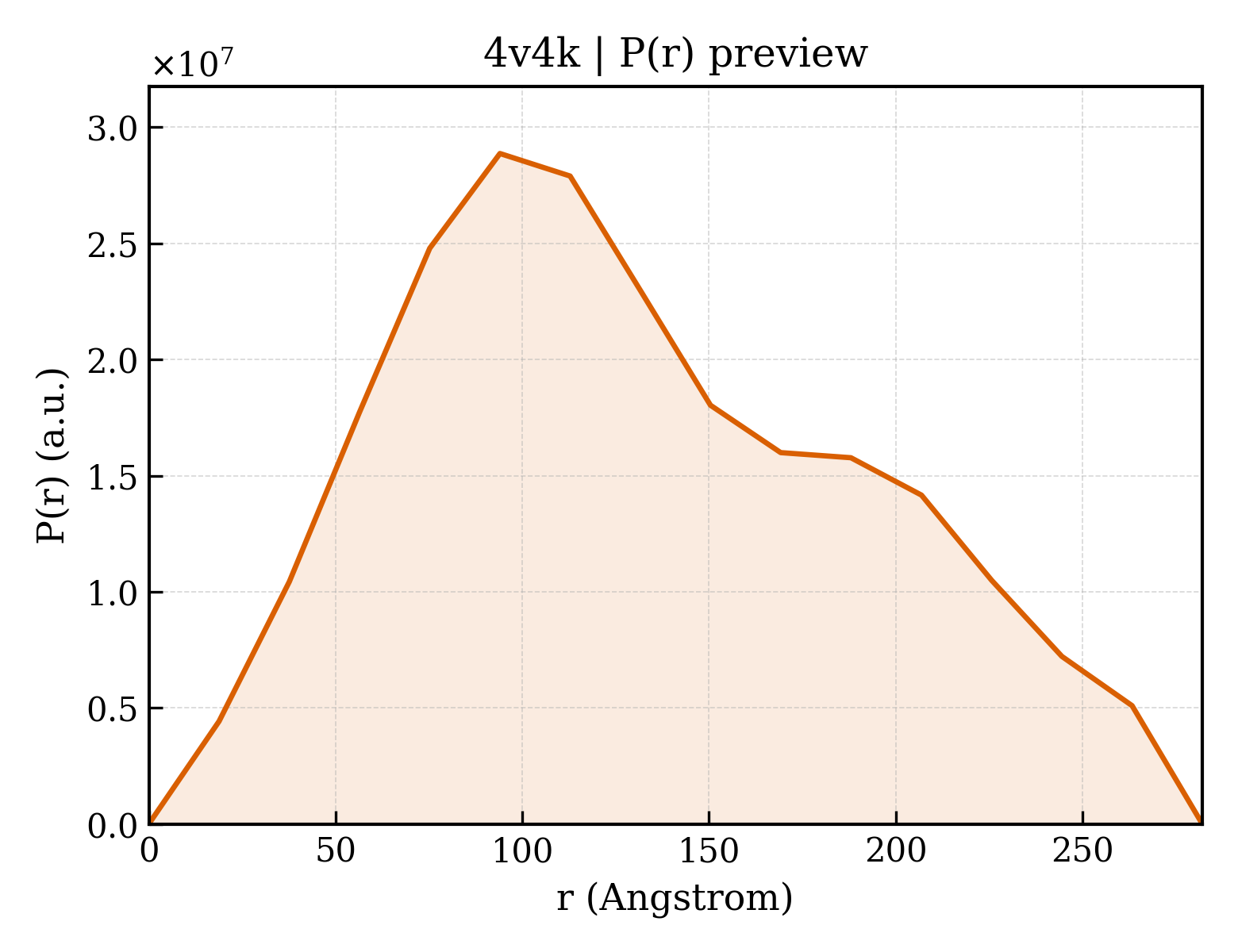

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	282.1 Å
Rg (real space) rg_real	101.00 Å
Rg uncertainty (real space) rg_real_error	0.91 Å
I(0) (real space) i0_real	5.2900e+10
I(0) uncertainty (real space) i0_real_error	1.0920e+09
Rg (reciprocal space) rg_reciprocal	99.92 Å
I(0) (reciprocal space) i0_reciprocal	54280000000.0000
Solution quality estimate total_estimate	0.9054
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	94.0 Å
Skewness Skewness skewness	0.344
Kurtosis Kurtosis kurtosis	-0.714
Angular range angular_range	— – 0.0750 Å⁻¹
Current regularization parameter α current_alpha	1.1140
Highest regularization parameter α highest_alpha	3370000000.0000
Real-space data points n_real_points	16
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 0.964; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.001

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PORTAL PROTEIN
Molecular weight formula_weight	70015.4 kDa
Source method src_method	man
Copy count entity_count	24

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O,P,Q,R,S,T,U,V,W,X,A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	135120

MADNENRLESILSRFDADWTASDEARREAKNDLFFSRVSQWDDWLSQYTTLQYRGQFDVVRPVVRKLVSEMRQNPIDVLYRPKDGARPDAADVLMGMYRTDMRHNTAKIAVNIAVREQIEAGVGAWRLVTDYEDQSPTSNNQVIRREPIHSACSHVIWDSNSKLMDKSDARHCTVIHSMSQNGWEDFAEKYDLDADDIPSFQNPNDWVFPWLTQDTIQIAEFYEVVEKKETAFIYQDPVTGEPVSYFKRDIKDVIDDLADSGFIKIAERQIKRRRVYKSIITCTAVLKDKQLIAGEHIPIVPVFGEWGFVEDKEVYEGVVRLTKDGQRLRNMIMSFNADIVARTPKKKPFFWPEQIAGFEHMYDGNDDYPYYLLNRTDENSGDLPTQPLAYYENPEVPQANAYMLEAATSAVKEVATLGVDTEAVNGGQVAFDTVNQLNMRADLETYVFQDNLATAMRRDGEIYQSIVNDIYDVPRNVTITLEDGSEKDVQLMAEVVDLATGEKQVLNDIRGRYECYTDVGPSFQSMKQQNRAEILELLGKTPQGTPEYQLLLLQYFTLLDGKGVEMMRDYANKQLIQMGVKKPETPEEQQWLVEAQQAKQG

来源 Source

来源生物 organism	ENTEROBACTERIA PHAGE P22
通用名 common_name	BACTERIOPHAGE P22
NCBI Class编号 ncbi_taxonomy_id	10754
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	PACKAGED DNA STABILIZATION PROTEIN GP4
Molecular weight formula_weight	18071.0 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	24

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	k,l,m,n,o,p,q,r,s,t,u,v,Y,Z,a,b,c,d,e,f,g,h,i,j

MQIKTKGDLVRAALRKLGVASDATLTDVEPQSMQDAVDDLEAMMAEWYQDGKGIITGYVFSDDENPPAEGDDHGLRSSAVSAVFHNLACRIAPDYALEATAKIIATAKYGKELLYKQTAISRAKRAPYPSRMPTGSGNSFPNLNEWHYFPGEQNADSTTPHDEGNG

来源 Source

来源生物 organism	ENTEROBACTERIA PHAGE P22
通用名 common_name	BACTERIOPHAGE P22
NCBI Class编号 ncbi_taxonomy_id	10754
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	516

▶

8. Citations (1)

▶

Unit-cell length a length_a	170.172 Å
Unit-cell length b length_b	253.284 Å
Unit-cell length c length_c	282.730 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.68 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.251 Å
Low-resolution limit resolution_low	19.991 Å
R factor r_factor	0.2224
R_work r_work	0.2223
R_free r_free	0.2365

fit	/app/data/saxs_computation/v4/4v4k/4v4k.fit
pddf	/app/data/pr_computation/v4/4v4k/4v4k.pr.out
profile	/app/data/saxs_computation/v4/4v4k/4v4k.dat
