1. Protein Identity and Related Structures Protein Identity & Related Structures

NPH1-1

Avena sativa

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 404–543	Fragment：UNP residues 405-543	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；Grown in dark for 3 days. Conditions: 100mM TRIS:HCl pH 8.5, 800mM Lithium Chloride, 32% PEG 4000	Resolution 1.95 Å R-free 0.244
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 404–543	Fragment：UNP residues 405-543	FMN FLAVIN MONONUCLEOTIDE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；Grown in dark for 3 days. Conditions: 100mM TRIS:HCl pH 8.5, 800mM Lithium Chloride, 32% PEG 4000	Resolution 1.95 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4WF0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2V0U n- and c-terminal helices of oat lov2 (404-546) are involved in light-induced signal transduction (cryo dark structure of lov2 (404-546)) Deposited 2007-05-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa） Fragment：LIGHT, OXYGEN, VOLTAGE DOMAIN, RESIDUES 404-546	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1 GOL GLYCEROL × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.40 Å R-free 0.197
2V0W N- and C-terminal helices of oat LOV2 (404-546) are involved in light- induced signal transduction (cryo-trapped light structure of LOV2 (404-546)) Deposited 2007-05-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa） Fragment：LIGHT, OXYGEN, VOLTAGE DOMAIN, RESIDUES 404-546	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；Reservoir: 0.07 M sodium acetate, pH 4.6, 5.6% PEG 4000, 30% glycerol	Resolution 1.70 Å R-free 0.215
2V1A N- and C-terminal helices of oat LOV2 (404-546) are involved in light-induced signal transduction (room temperature (293K) dark structure of LOV2 (404-546)) Deposited 2007-05-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa） Fragment：LIGHT, OXYGEN, VOLTAGE DOMAIN, RESIDUES 404-546	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP	Resolution 1.65 Å R-free 0.195
2V1B N- and C-terminal helices of oat LOV2 (404-546) are involved in light-induced signal transduction (room temperature (293K) light structure of LOV2 (404-546)) Deposited 2007-05-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa） Fragment：LIGHT, OXYGEN, VOLTAGE DOMAIN, RESIDUES 404-546	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.55 Å R-free 0.212
2WKP Structure of a photoactivatable Rac1 containing Lov2 Wildtype Deposited 2009-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa） Fragment：NPH1-1, RESIDUES 404-546 AND P21-RAC1, RESIDUES 4-180	Mutation：YES	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM CA ACETATE, 100 MM SODIUM CACODYLATE PH 5.5, 12 % (W/V) PEG 8000	Resolution 1.90 Å R-free 0.195
2WKQ Structure of a photoactivatable Rac1 containing the Lov2 C450A Mutant Deposited 2009-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa） Fragment：NPH1-1 RESIDUES 404-546 AND P21-RAC1, RESIDUES 4-180	Mutation：YES	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 3 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM POTASSIUM CHLORIDE, 5% (W/V) PEG 4000	Resolution 1.60 Å R-free 0.186
2WKR Structure of a photoactivatable Rac1 containing the Lov2 C450M Mutant Deposited 2009-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa） Fragment：NPH1-1, RESIDUES 404-546 AND P21-RAC1, RESIDUES 4-180	Mutation：YES	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 18 % (V/V) PEG 600	Resolution 2.20 Å R-free 0.226
5EFW Crystal structure of LOV2-Zdk1 - the complex of oat LOV2 and the affibody protein Zdark1 Deposited 2015-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 404–546（143 aa） Fragment：UNP residues 404-546	Mutation：C450A	FMN FLAVIN MONONUCLEOTIDE × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293.15 K；2 M ammonium sulfate, 0.1 M sodium citrate pH 3.5	Resolution 2.10 Å R-free 0.257
5HZH Crystal structure of photoinhibitable Rac1 containing C450A mutant LOV2 domain Deposited 2016-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa）	Mutation：Q61L,Q61L,Q61L,Q61L,Q61L,Q61L,Q61L,Q61L,Q61L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.2 M calcium acetate, 26% (w/v) PEG 3350	Resolution 2.60 Å R-free 0.255
5HZI Crystal structure of photoinhibitable Intersectin1 containing C450M mutant LOV2 domain Deposited 2016-02-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.285
5HZI Crystal structure of photoinhibitable Intersectin1 containing C450M mutant LOV2 domain Deposited 2016-02-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 404–546（143 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.285
5HZJ Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain Deposited 2016-02-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 404–546（143 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.281
5HZJ Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain Deposited 2016-02-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 404–546（143 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.281
5HZK Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain in complex with Cdc42 Deposited 2016-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 404–546（143 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；0.1 M MES, 20% (w/v) PEG 6000	Resolution 3.30 Å R-free 0.257
5HZK Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain in complex with Cdc42 Deposited 2016-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 404–546（143 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；0.1 M MES, 20% (w/v) PEG 6000	Resolution 3.30 Å R-free 0.257
6NTP PTP1B Domain of PTP1B-LOV2 Chimera Deposited 2019-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 407–546（140 aa） Fragment：residues 2-282	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES, 200 mM magnesium acetate, and 14% polyethylene glycol 8000, pH 7.5	Resolution 1.89 Å R-free 0.212
6NTP PTP1B Domain of PTP1B-LOV2 Chimera Deposited 2019-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 407–546（140 aa） Fragment：residues 2-282	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM HEPES, 200 mM magnesium acetate, and 14% polyethylene glycol 8000, pH 7.5	Resolution 1.89 Å R-free 0.212
7PGX Structure of dark-adapted AsLOV2 wild type Deposited 2021-08-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 404–546（143 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1 GOL GLYCEROL × 10 PEG DI(HYDROXYETHYL)ETHER × 2 EDO 1,2-ETHANEDIOL × 2 ACT ACETATE ION × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；295 K；0.1 M sodium acetate pH 4.6-5.0, 6-8% (w/v) PEG 4000, 30% (v/v) glycerol	Resolution 1.00 Å R-free 0.147
7PGY Structure of light-adapted AsLOV2 wild type Deposited 2021-08-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 404–546（143 aa）	Not recorded	CA CALCIUM ION × 2 CL CHLORIDE ION × 2 GOL GLYCEROL × 7 ACT ACETATE ION × 2 EDO 1,2-ETHANEDIOL × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.8；298 K；0.1 M sodium acetate pH 4.6-5.0, 6-8% (w/v) PEG 4000, 30% (v/v) glycerol	Resolution 1.09 Å R-free 0.161
7PGZ Structure of dark-adapted AsLOV2 Q513L Deposited 2021-08-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 404–546（143 aa）	Mutation：Q513L	MG MAGNESIUM ION × 2 GOL GLYCEROL × 13 EDO 1,2-ETHANEDIOL × 2 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.1 M sodium acetate pH 4.6-5.0, 6-8% (w/v) PEG 4000, 30% (v/v) glycerol	Resolution 0.90 Å R-free 0.139
7PH0 Structure of light-adapted AsLOV2 Q513L Deposited 2021-08-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 404–546（143 aa）	Not recorded	CL CHLORIDE ION × 1 FMN FLAVIN MONONUCLEOTIDE × 1 GOL GLYCEROL × 3 EDO 1,2-ETHANEDIOL × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.1 M sodium acetate pH 4.6-5.0, 6-8% (w/v) PEG 4000, 30% (v/v) glycerol	Resolution 0.98 Å R-free 0.136

17 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	O49003_AVESA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–152； UniProt 404–543 Author chain B； PDBConstruct 13–152； UniProt 404–543

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4wf0
Deposition date deposition_date	2014-09-11
Structure title title	Crystal Structure of iLID - an Improved Light-Inducible Dimer
Keywords keywords	light-inducible dimer, FLAVOPROTEIN; FLAVOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.07 Å
Radius of gyration Rg (electron density) rg_electron	21.29 Å
Forward intensity I(0) i0	21220900.00
Molecular weight molecular_weight	34296.0 kDa
Excluded volume excluded_volume	42648 Å³
Envelope volume envelope_volume	51529 Å³
Hydration-shell volume shell_volume	20643 Å³
Envelope diameter envelope_diameter	73.1 Å
Shell Rg shell_rg	27.39 Å
Envelope Rg envelope_rg	21.59 Å
Shape Rg shape_rg	21.27 Å
Total Rg total_rg	22.17 Å
Total atoms total_atoms	4771
Residues n_residues	288
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	73.5 Å
Rg (real space) rg_real	22.10 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	2.1220e+07
I(0) uncertainty (real space) i0_real_error	2.8640e+05
Rg (reciprocal space) rg_reciprocal	22.09 Å
I(0) (reciprocal space) i0_reciprocal	21220000.0000
Solution quality estimate total_estimate	0.8801
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.1 Å
Skewness Skewness skewness	0.403
Kurtosis Kurtosis kurtosis	-0.320
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	6505000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NPH1-1
Molecular weight formula_weight	18287.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5129

MRGSHHHHHHGSLATTLERIEKNFVITDPRLPDNPIIFASDSFLQLTEYSREEILGRNCRFLQGPETDRATVRKIRDAIDNQTEVTVQLINYTKSGKKFWNVFHLQPMRDYKGDVQYFIGVQLDGTERLHGAAEREAVCLIKKTAFQIAEAANDENYF

来源 Source

来源生物 organism	Avena sativa
通用名 common_name	Oat
NCBI Class编号 ncbi_taxonomy_id	4498
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	256

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4wf0A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

Domain ID domain_id	4wf0B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	62.156 Å
Unit-cell length b length_b	70.339 Å
Unit-cell length c length_c	80.378 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	31.078 Å
R factor r_factor	0.2317
R_work r_work	0.2310
R_free r_free	0.2440

fit	/app/data/saxs_computation/wf/4wf0/4wf0.fit
pddf	/app/data/pr_computation/wf/4wf0/4wf0.pr.out
profile	/app/data/saxs_computation/wf/4wf0/4wf0.dat

Crystal Structure of iLID - an Improved Light-Inducible Dimer

1. Protein Identity and Related Structures Protein Identity & Related Structures

NPH1-1

State in the Current Structure

Other States of the Same Protein in the Database

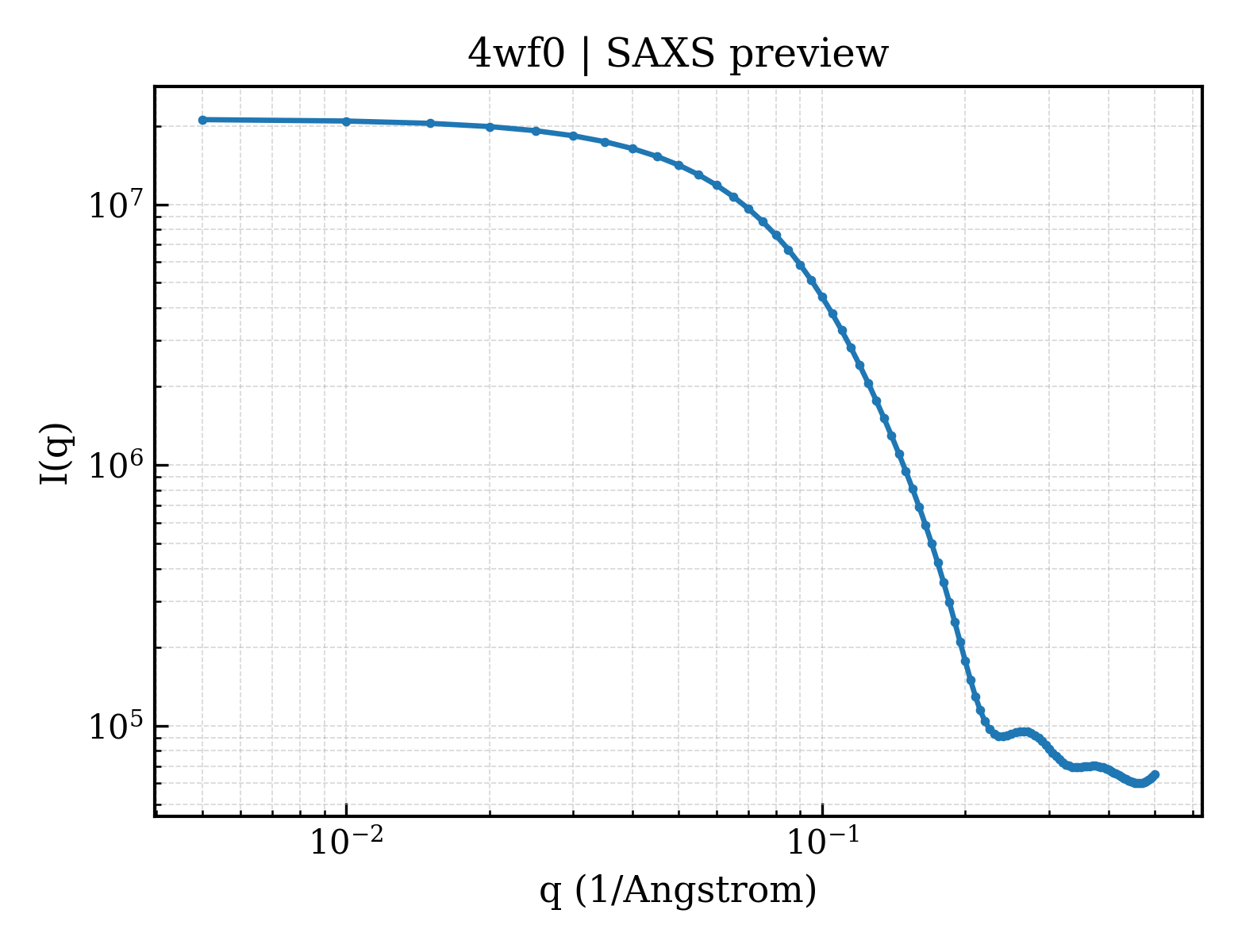

SAXS scattering curve SAXS Profile

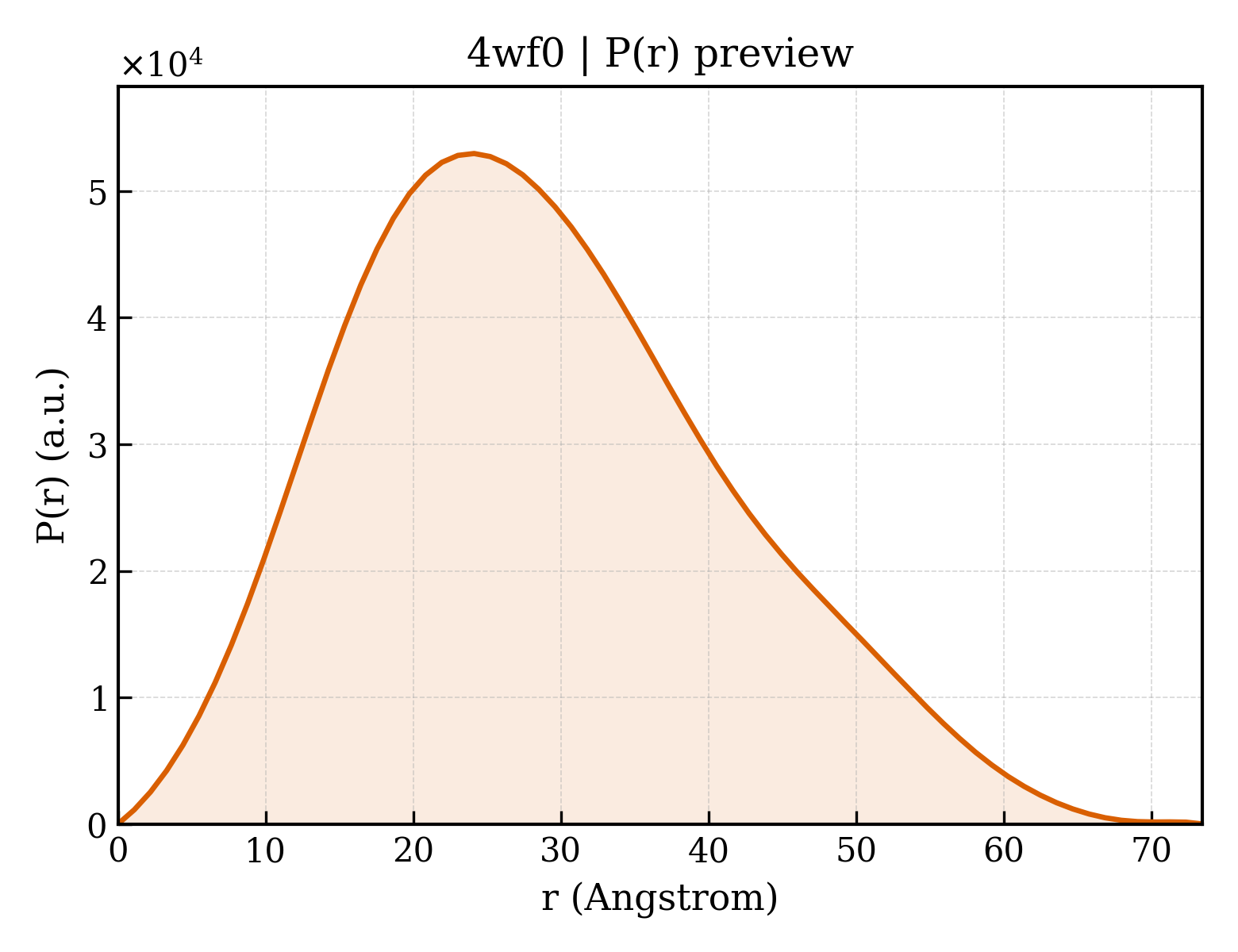

P(r) Distance Distribution P(r) Distribution
