SAXSdb — 2wkr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NPH1-1, RAS-RELATED C3 BOTULINUM TOXIN SUBSTRATE 1

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	GUANOSINE-5'-TRIPHOSPHATE × 1 FLAVIN MONONUCLEOTIDE × 1 MAGNESIUM ION × 1 CHLORIDE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O49003_AVESA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–155； UniProt 404–546

NPH1-1, RAS-RELATED C3 BOTULINUM TOXIN SUBSTRATE 1

HOMO SAPIENS

UniProt P63000

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	GUANOSINE-5'-TRIPHOSPHATE × 1 FLAVIN MONONUCLEOTIDE × 1 MAGNESIUM ION × 1 CHLORIDE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 156–332； UniProt 4–180

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wkr
Deposition date deposition_date	2009-06-16
Structure title title	Structure of a photoactivatable Rac1 containing the Lov2 C450M Mutant
Keywords keywords	;TRANSFERASE, CELL ADHESION, NUCLEOTIDE-BINDING, PROTEIN ENGINEERING, RAS SUPERFAMILY LOV2, PHOTOTROPIN1, PROTEIN DESIGN, SMALL G-PROTEIN, LIGHT-INDUCED SIGNAL TRANSDUCTION, GTPASE, RHO FAMILY, ATP-BINDING, PRENYLATION, CHIMERA, NUCLEOTIDE-BINDING PROTEIN ENGINEERING, ADP-RIBOSYLATION ;; TRANSFERASE, CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2wkr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2wkr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

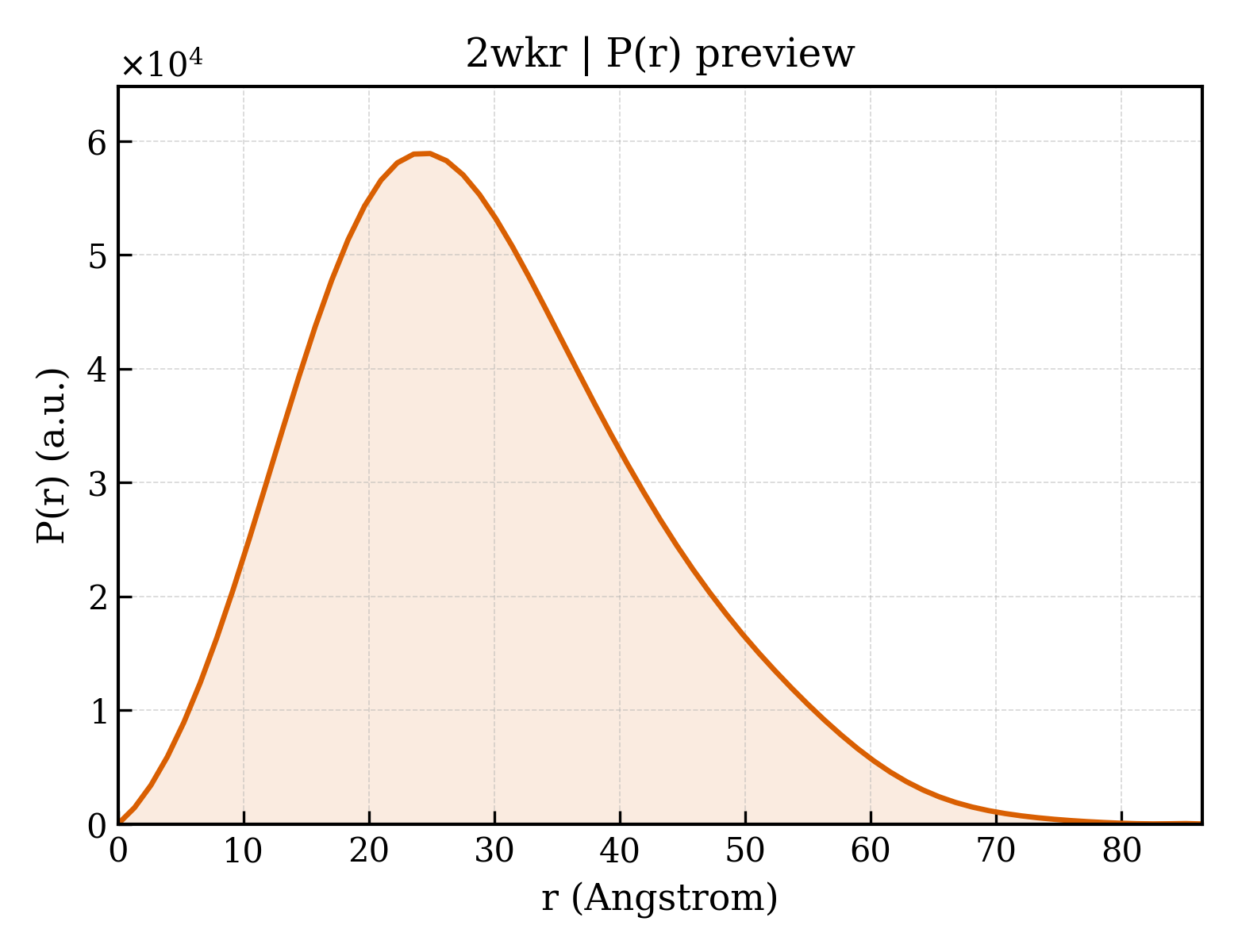

2wkr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.49 Å
Rg (electron density)	21.73 Å
Total Rg	22.60 Å
Atom count	2590
Residues	317
Excluded volume	46147 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2wkr__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	NPH1-1, RAS-RELATED C3 BOTULINUM TOXIN SUBSTRATE 1
Molecular weight formula_weight	37631.0 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2805

MRGSHHHHHHGSLATTLERIEKNFVITDPRLPDNPIIFASDSFLQLTEYSREEILGRNMRFLQGPETDRATVRKIRDAIDNQTEVTVQLINYTKSGKKFWNLFHLQPMRDQKGDVQYFIGVQLDGTEHVRDAAEREGVMLIKKTAENIDEAAKELIKCVVVGDGAVGKTCLLISYTTNAFPGEYIPTVFDNYSANVMVDGKPVNLGLWDTAGLEDYDRLRPLSYPQTDVFLICFSLVSPASFHHVRAKWYPEVRHHCPNTPIILVGTKLDLRDDKDTIEKLKEKKLTPITYPQGLAMAKEIGAVKYLECSALTQRGLKTVFDEAIRAVLCPP

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	215

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2wkrA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

Domain ID domain_id	2wkrA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	112.390 Å
Unit-cell length b length_b	112.390 Å
Unit-cell length c length_c	69.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	32.601 Å
R factor r_factor	0.1875
R_work r_work	0.1855
R_free r_free	0.2261

Structure of a photoactivatable Rac1 containing the Lov2 C450M Mutant
