SAXSdb — 5efw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NPH1-1

Avena sativa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Z-dark, a small protein based on the Z domain affibody × 2 FLAVIN MONONUCLEOTIDE × 1 SULFATE ION × 6 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O49003_AVESA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–145； UniProt 404–546

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5efw
Deposition date deposition_date	2015-10-26
Structure title title	Crystal structure of LOV2-Zdk1 - the complex of oat LOV2 and the affibody protein Zdark1
Keywords keywords	LOV domain, photoreceptor, affibody, optogenetic tool, signaling protein; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5efw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5efw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

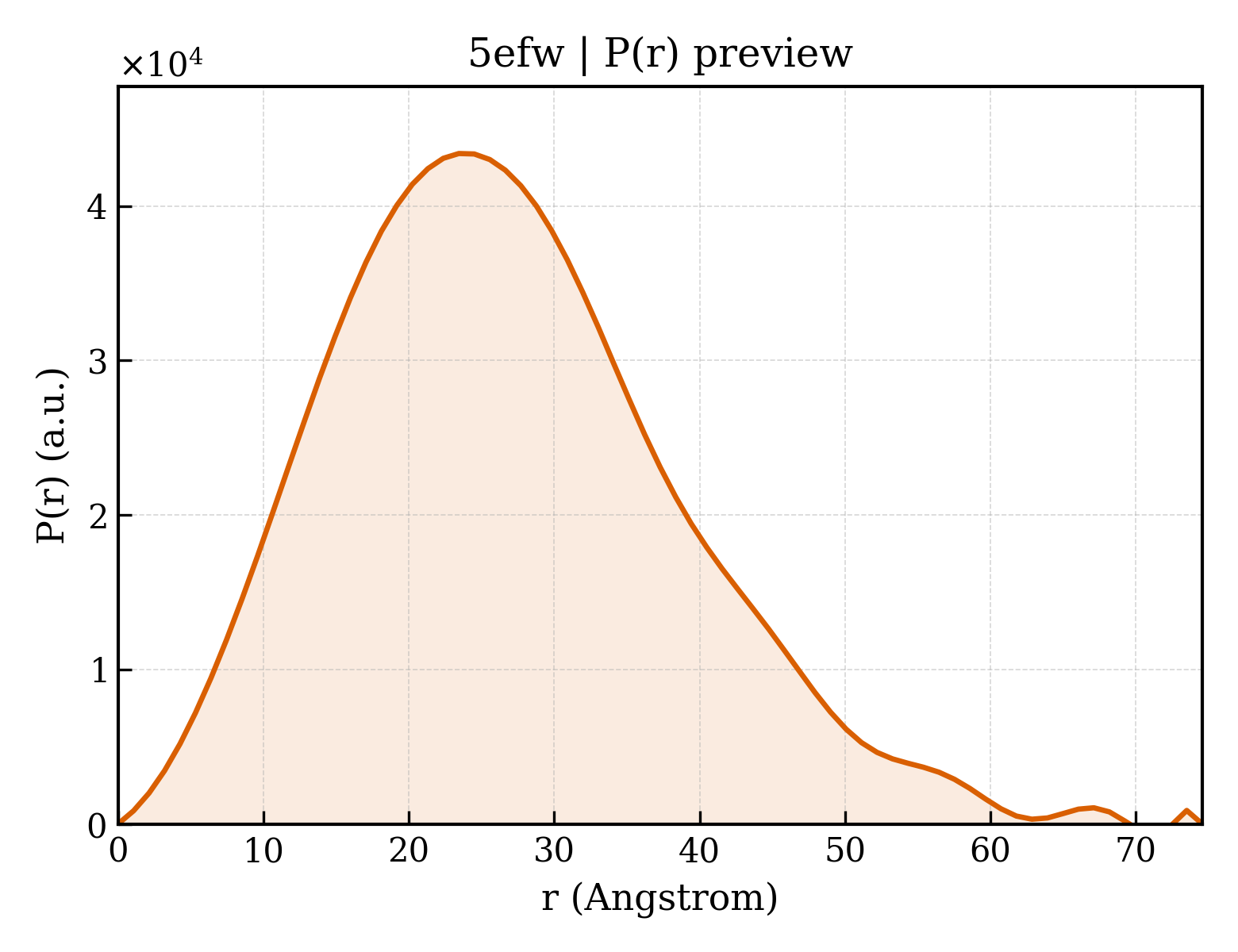

5efw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.50 Å
Rg (electron density)	19.46 Å
Total Rg	20.52 Å
Atom count	2012
Residues	245
Excluded volume	35449 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5efw__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	NPH1-1
Molecular weight formula_weight	16631.7 kDa
Mutation mutation	C450A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2114

GSLATTLERIEKNFVITDPRLPDNPIIFASDSFLQLTEYSREEILGRNARFLQGPETDRATVRKIRDAIDNQTEVTVQLINYTKSGKKFWNLFHLQPMRDQKGDVQYFIGVQLDGTEHVRDAAEREGVMLIKKTAENIDEAAKEL

Source Source

Source organism organism	Avena sativa
Common name common_name	Oat
NCBI taxonomy ID ncbi_taxonomy_id	4498
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Z-dark, a small protein based on the Z domain affibody
Molecular weight formula_weight	6565.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C

GSVDNKFNKEKTRAGAEIHSLPNLNVEQKFAFIVSLFDDPSQSANLLAEAKKLNDAQAPK

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	94

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5efwb_
Class class	a — All alpha proteins
Fold Fold fold	a.8 — immunoglobulin/albumin-binding domain-like
Superfamily Superfamily superfamily	a.8.1 — Bacterial immunoglobulin/albumin-binding domains
Family Family family	a.8.1.1 — Immunoglobulin-binding protein A modules

Domain ID domain_id	d5efwc_
Class class	a — All alpha proteins
Fold Fold fold	a.8 — immunoglobulin/albumin-binding domain-like
Superfamily Superfamily superfamily	a.8.1 — Bacterial immunoglobulin/albumin-binding domains
Family Family family	a.8.1.1 — Immunoglobulin-binding protein A modules

CATH v4.4 (3 domains)

Domain ID domain_id	5efwA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

Domain ID domain_id	5efwB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	420 — Immunoglobulin FC, subunit C

Domain ID domain_id	5efwC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	420 — Immunoglobulin FC, subunit C

▶

Unit-cell length a length_a	54.700 Å
Unit-cell length b length_b	54.700 Å
Unit-cell length c length_c	188.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	47.280 Å
R factor r_factor	0.2045
R_work r_work	0.2018
R_free r_free	0.2566
