SAXSdb — 5dka

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase RNF125

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 3 CHLORIDE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 3 CHLORIDE ION × 3 MAGNESIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RN125_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–232； UniProt 1–232 Author chain B； PDBConstruct 1–232； UniProt 1–232

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5dka
Deposition date deposition_date	2015-09-03
Structure title title	A C2HC zinc finger is essential for the activity of the RING ubiquitin ligase RNF125
Keywords keywords	RING ubiquitin ligase, ligase; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5dka__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5dka__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

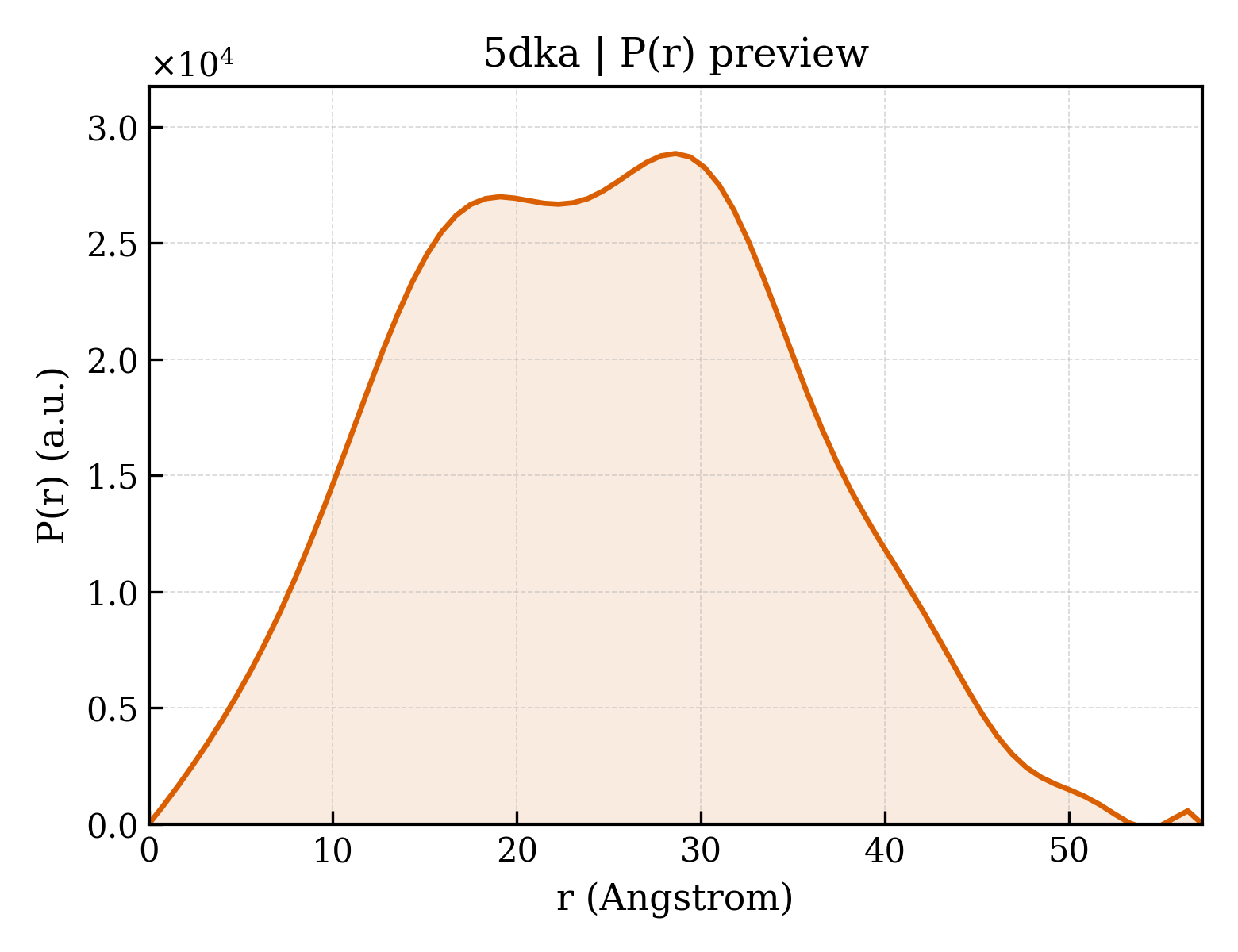

5dka__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.11 Å
Rg (electron density)	14.45 Å
Total Rg	15.26 Å
Atom count	759
Residues	96
Excluded volume	13549 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5dka__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5dka__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase RNF125
Molecular weight formula_weight	26492.3 kDa
EC 编号 ec_number	6.3.2.-
Mutation mutation	129 stop mutant
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1653

MGSVLSTDSGKSAPASATARALERRRDPELPVTSFDCAVCLEVLHQPVRTRCGHVFCRSCIATSLKNNKWTCPYCRAYLPSEGVPATDVAKRMKSEYKNCAECDTLVCLSEMRAHIRTCQKYIDKYGPLQELEETAARCVCPFCQRELYEDSLLDHCITHHRSERRPVFCPLCRLIPDENPSSFSGSLIRHLQVSHTLFYDDFIDFNIIEEALIRRVLDRSLLEYVNHSNTT

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	132

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5dkaA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	5dkaB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

▶

Unit-cell length a length_a	51.670 Å
Unit-cell length b length_b	52.320 Å
Unit-cell length c length_c	73.970 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	42.710 Å
R factor r_factor	0.2113
R_work r_work	0.2098
R_free r_free	0.2392
