SAXSdb — 5hly

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Inhibin beta A chain

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 30–426	Mutation：C35S, C38S, deletion:K259-D282 Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；25% w/v polyethylene glycol 1000, 100 mM MES pH 6.5; cryo: 15% v/v PEG 400 added	Resolution 2.30 Å R-free 0.252

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5HLY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1NYS Crystal Structure of Activin A Bound to the ECD of ActRIIB P41 Deposited 2003-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 311–426（116 aa） Fragment：Mature Domain (residues 311-426) Chain D 311–426（116 aa） Fragment：Mature Domain (residues 311-426)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 4000, sodium chloride, hepes, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.05 Å R-free 0.299
1NYU Crystal Structure of Activin A Bound to the ECD of ActRIIB Deposited 2003-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 311–426（116 aa） Fragment：Mature Domain (residues 311-426) Chain D 311–426（116 aa） Fragment：Mature Domain (residues 311-426)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 4000, sodium chloride, hepes, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.10 Å R-free 0.291
1S4Y Crystal structure of the activin/actrIIb extracellular domain Deposited 2004-01-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 311–426（116 aa） Chain D 311–426（116 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；PEG 3350, magnesium chloride, bis tris, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.286
2ARP Activin A in complex with Fs12 fragment of follistatin Deposited 2005-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 311–426（116 aa）	Not recorded	NI NICKEL (II) ION × 6 1PG 2-(2-{2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHANOL × 2 GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG-MME 2000, Nickel chloride, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.254
2ARV Structure of human Activin A Deposited 2005-08-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 311–426（116 aa） Chain B 311–426（116 aa）	Not recorded	SO4 SULFATE ION × 4 GOL GLYCEROL × 3 1PG 2-(2-{2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；298 K；Ammonium sulphate, PEG300, Na-Hepes, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.259
2B0U The Structure of the Follistatin:Activin Complex Deposited 2005-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 311–426（116 aa） Fragment：Activin (mature form) Chain B 311–426（116 aa） Fragment：Activin (mature form)	Not recorded	IR3 IRIDIUM (III) ION × 5 MLI MALONATE ION × 4 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 3350, 200 mM Malonate, pH 7.0, vapor diffusion, hanging drop, temperature 295K	Resolution 2.80 Å R-free 0.297
2P6A The structure of the Activin:Follistatin 315 complex Deposited 2007-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 311–426（116 aa） Chain B 311–426（116 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；20-23% PEG 1000, 200mM MgCl2, 3% EtOH, 20mM Trimethyl-amine HCl, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298 K	Resolution 3.40 Å R-free 0.324
3B4V X-Ray structure of Activin in complex with FSTL3 Deposited 2007-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 311–426（116 aa） Chain B 311–426（116 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；PEG 3350, ammonium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.48 Å R-free 0.279
3B4V X-Ray structure of Activin in complex with FSTL3 Deposited 2007-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 311–426（116 aa） Chain F 311–426（116 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；PEG 3350, ammonium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.48 Å R-free 0.279
5HLZ Structure of Pro-Activin A Complex at 2.85 A resolution Deposited 2016-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 30–305（276 aa） Fragment：Pro domain, UNP Residues 30-305 Chain B 311–426（116 aa） Fragment：Mature domain, UNP Residues 311-426 Chain C 30–305（276 aa） Fragment：Pro domain, UNP Residues 30-305 Chain D 311–426（116 aa） Fragment：Mature domain, UNP Residues 311-426	Mutation：;C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP) ; Mutation：;C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP) ;	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；20% w/v polyethylene glycol 3350, 0.2 M calcium chloride; cryo: 15% v/v PEG 400 added	Resolution 2.85 Å R-free 0.274
5HLZ Structure of Pro-Activin A Complex at 2.85 A resolution Deposited 2016-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain E 30–305（276 aa） Fragment：Pro domain, UNP Residues 30-305 Chain F 311–426（116 aa） Fragment：Mature domain, UNP Residues 311-426 Chain G 30–305（276 aa） Fragment：Pro domain, UNP Residues 30-305 Chain H 311–426（116 aa） Fragment：Mature domain, UNP Residues 311-426	Mutation：;C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP) ; Mutation：;C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site (RRRRR) replaced by HRV 3C protease cleavage site (LEVLFQGP),C35S, C38S, deletion of K259-D282, furin cleavage site replaced by HRV 3C protease cleavage site (LEVLFQGP) ;	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；20% w/v polyethylene glycol 3350, 0.2 M calcium chloride; cryo: 15% v/v PEG 400 added	Resolution 2.85 Å R-free 0.274
6Y6N Structure of mature activin A with small molecule 2 Deposited 2020-02-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 311–426（116 aa） Chain B 311–426（116 aa）	Not recorded	ODQ (3~{R})-3,4-dimethyl-3-propyl-1~{H}-1,4-benzodiazepine-2,5-dione × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；291 K；1.65 M (NH4)2SO4, 4 % PEG 300, 100 mM Hepes pH 7.4, 2 % DMSO	Resolution 2.03 Å R-free 0.251
6Y6O Structure of mature activin A with small molecule 42 Deposited 2020-02-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 311–426（116 aa） Chain B 311–426（116 aa）	Not recorded	SO4 SULFATE ION × 10 OCK (3~{R})-4-ethyl-3-methyl-3-propyl-1~{H}-1,4-benzodiazepine-2,5-dione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；291 K；1.65 M (NH4)2SO4, 4 % PEG 300, 100 mM Hepes pH 7.4, 2 % DMSO	Resolution 2.04 Å R-free 0.254
7OLY Structure of activin A in complex with an ActRIIB-Alk4 fusion reveal insight into activin receptor interactions Deposited 2021-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain A 311–426（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；17.7 mg/ml complex in 20 mM HEPES, 200 mM NaCl pH 7.5. 100 + 100 nl sitting drop in a MRC 3-well plate with reservoir 0.1 M Na cacodylate pH 6.5 and 17 % (w/v) PEG 4000).	Resolution 3.27 Å R-free 0.269
7U5P CRYSTAL STRUCTURE OF THE ACTIVIN RECEPTOR TYPE-2A LIGAND BINDING DOMAIN IN COMPLEX WITH ACTIVIN-A Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 311–426（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；294 K；100mM Sodium Citrate, 17%PEG 3000	Resolution 3.14 Å R-free 0.276
7U5P CRYSTAL STRUCTURE OF THE ACTIVIN RECEPTOR TYPE-2A LIGAND BINDING DOMAIN IN COMPLEX WITH ACTIVIN-A Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 311–426（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；294 K；100mM Sodium Citrate, 17%PEG 3000	Resolution 3.14 Å R-free 0.276
7U5P CRYSTAL STRUCTURE OF THE ACTIVIN RECEPTOR TYPE-2A LIGAND BINDING DOMAIN IN COMPLEX WITH ACTIVIN-A Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 311–426（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；294 K；100mM Sodium Citrate, 17%PEG 3000	Resolution 3.14 Å R-free 0.276
7U5P CRYSTAL STRUCTURE OF THE ACTIVIN RECEPTOR TYPE-2A LIGAND BINDING DOMAIN IN COMPLEX WITH ACTIVIN-A Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 311–426（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；294 K；100mM Sodium Citrate, 17%PEG 3000	Resolution 3.14 Å R-free 0.276
9I5W Structure of mature Activin A from DMSO solvent optimisation of XChem fragment screen Deposited 2025-01-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 311–426（116 aa） Chain B 311–426（116 aa）	Not recorded	DMS DIMETHYL SULFOXIDE × 6 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；294 K；1.55 M (NH4)2SO4, 100 mM Hepes pH 7.4, 8 % DMSO, 40 mM NaSO4	Resolution 1.77 Å R-free 0.235

14 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INHBA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–383； UniProt 30–426

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5hly
Deposition date deposition_date	2016-01-15
Structure title title	Structure of Pro-Activin A Precursor at 2.3 A Resolution
Keywords keywords	Growth factor, Precursor, Signalling, Signaling Protein; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.58 Å
Radius of gyration Rg (electron density) rg_electron	29.30 Å
Forward intensity I(0) i0	21207900.00
Molecular weight molecular_weight	34322.0 kDa
Excluded volume excluded_volume	42435 Å³
Envelope volume envelope_volume	60956 Å³
Hydration-shell volume shell_volume	18154 Å³
Envelope diameter envelope_diameter	92.4 Å
Shell Rg shell_rg	34.83 Å
Envelope Rg envelope_rg	28.93 Å
Shape Rg shape_rg	29.34 Å
Total Rg total_rg	29.78 Å
Total atoms total_atoms	2373
Residues n_residues	291
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

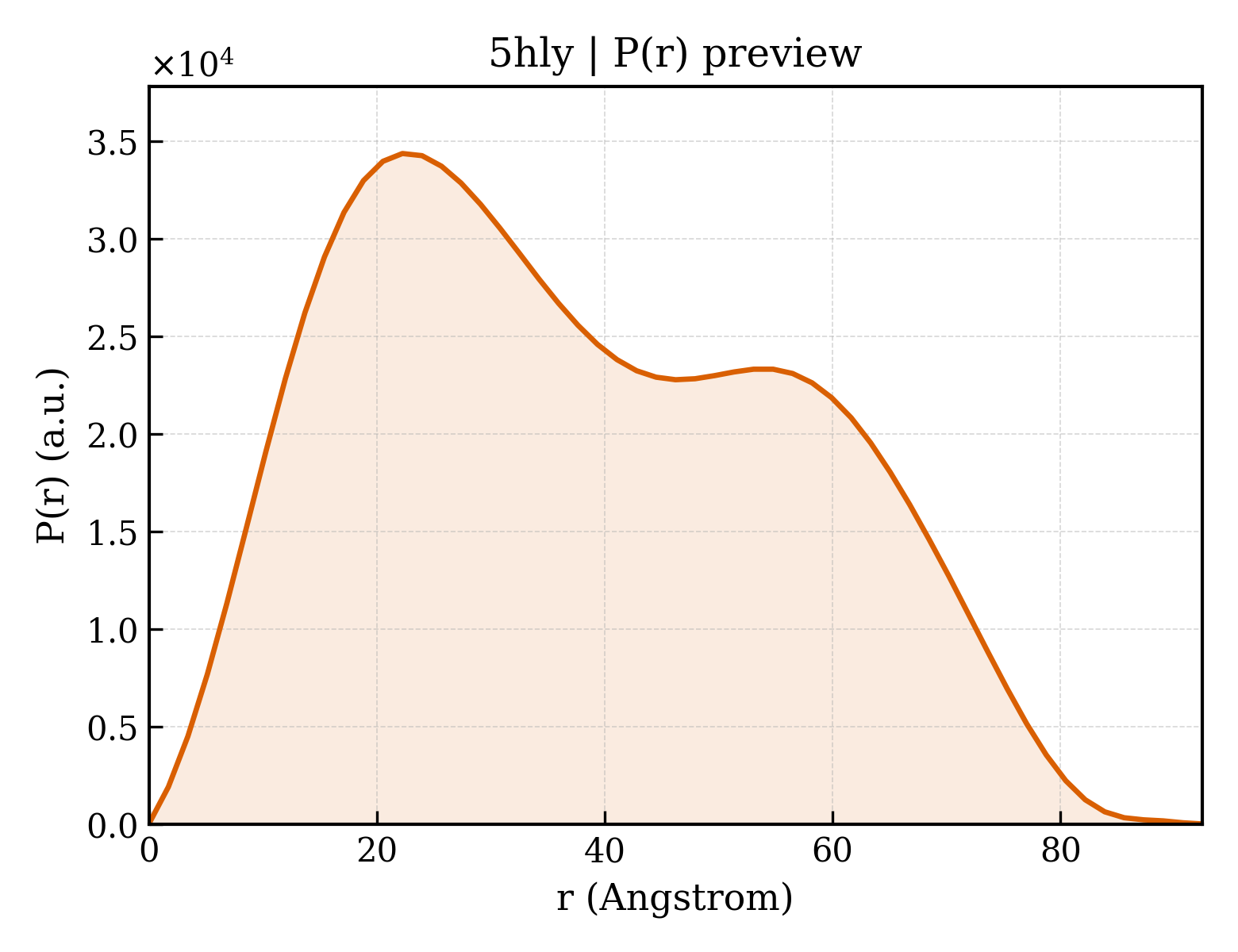

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.4 Å
Rg (real space) rg_real	29.74 Å
Rg uncertainty (real space) rg_real_error	0.74 Å
I(0) (real space) i0_real	2.1210e+07
I(0) uncertainty (real space) i0_real_error	3.0690e+05
Rg (reciprocal space) rg_reciprocal	29.68 Å
I(0) (reciprocal space) i0_reciprocal	21210000.0000
Solution quality estimate total_estimate	0.8498
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	22.2 Å
Skewness Skewness skewness	0.271
Kurtosis Kurtosis kurtosis	-0.933
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1545000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.662; Smooth: 0.894

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Inhibin beta A chain
Molecular weight formula_weight	43664.0 kDa
Mutation mutation	C35S, C38S, deletion:K259-D282
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2406

MSHHHHHHSMSAAPDSPSSALAALPKDVPNSQPEMVEAVKKHILNMLHLKKRPDVTQPVPKAALLNAIRKLHVGKVGENGYVEIEDDIGRRAEMNELMEQTSEIITFAESGTARKTLHFEISKEGSDLSVVERAEVWLFLKVPKANRTRTKVTIRLFQQQKHPQGSLDTGEEAEEVGLKGERSELLLSEKVVDARKSTWHVFPVSSSIQRLLDQGKSSLDVRIACEQCQESGASLVLLGEEKEQSHRPFLMLQARQSEDHPHRRRRRGLECDGKVNICCKKQFFVSFKDIGWNDWIIAPSGYHANYCEGECPSHIAGTSGSSLSFHSTVINHYRMRGHSPFANLKSCCVPTKLRPMSMLYYDDGQNIIKKDIQNMIVEECGCS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	25

▶

8. Citations (1)

▶

Unit-cell length a length_a	46.561 Å
Unit-cell length b length_b	46.561 Å
Unit-cell length c length_c	444.921 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.302 Å
Low-resolution limit resolution_low	74.150 Å
R factor r_factor	0.2049
R_work r_work	0.2025
R_free r_free	0.2524
