5j5f

X-Ray Crystal Structure of Acetylcholine Binding Protein (AChBP) in Complex with N4,N4-bis[(pyridin-2-yl)methyl]-6-(thiophen-3-yl)pyrimidine-2,4-diamine

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acetylcholine-binding protein

Lymnaea stagnalis

UniProt P58154

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 5 PHOSPHATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 N~4~,N~4~-bis[(pyridin-2-yl)methyl]-6-(thiophen-3-yl)pyrimidine-2,4-diamine × 5 water × 5 Consistent with protein count
2 Protein homooligomer Homooligomer Protein 5 PHOSPHATE ION × 5 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 N~4~,N~4~-bis[(pyridin-2-yl)methyl]-6-(thiophen-3-yl)pyrimidine-2,4-diamine × 5 GLYCEROL × 2 DIMETHYL SULFOXIDE × 1 water × 5 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
3wtn 3wtn 3wtn 3wtn 3wtn 3wtn 3wtn 3wtn 3wtn 3wtn

10 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers
1i9b 1i9b 1uv6 1uv6 1uw6 1uw6 1uw6 1uw6 1ux2 1ux2 2zju 2zjv

106 assemblies; showing the first 12

Heteromeric or nucleic-acid complex
1yi5 5t90 7n0w 7n0y 7n43 7ndp 7txf

7 assemblies

View Construct and Data Evidence
UniProt name ACHP_LYMST
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 9–218； UniProt 20–229 Author chain B； PDBConstruct 9–218； UniProt 20–229 Author chain C； PDBConstruct 9–218； UniProt 20–229 Author chain D； PDBConstruct 9–218； UniProt 20–229 Author chain E； PDBConstruct 9–218； UniProt 20–229 Author chain F； PDBConstruct 9–218； UniProt 20–229 Author chain G； PDBConstruct 9–218； UniProt 20–229 Author chain H； PDBConstruct 9–218； UniProt 20–229 Author chain I； PDBConstruct 9–218； UniProt 20–229 Author chain J； PDBConstruct 9–218； UniProt 20–229

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id5j5f
Deposition date deposition_date2016-04-02
Structure title titleX-Ray Crystal Structure of Acetylcholine Binding Protein (AChBP) in Complex with N4,N4-bis[(pyridin-2-yl)methyl]-6-(thiophen-3-yl)pyrimidine-2,4-diamine
Keywords keywordsAcetylcholine-Binding Protein; ACETYLCHOLINE-BINDING PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5j5f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

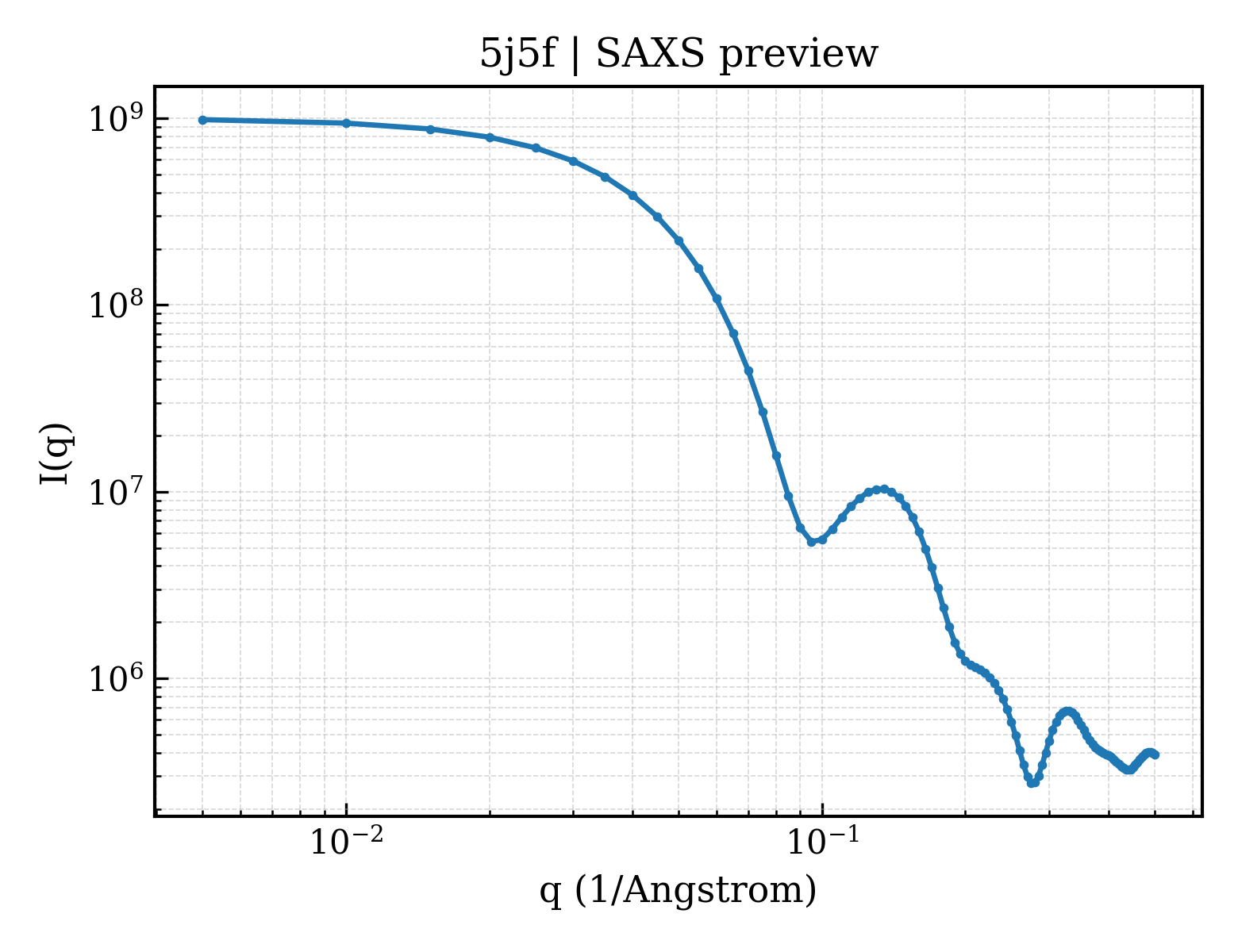

5j5f__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

5j5f__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）32.29 Å
Rg (electron density)30.55 Å
Total Rg31.40 Å
Atom count8829
Residues1072
Excluded volume154720 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 5j5f__assembly_1__model_1 pentameric （5） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 5j5f__assembly_2__model_1 pentameric （5） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

▼

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (20 domains)

Domain ID domain_idd5j5fa1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fa2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fb1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fb2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fc1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fc2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fd1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fd2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fe1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fe2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5ff1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5ff2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fg1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fg2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fh1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fh2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fi1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fi2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd5j5fj1
Class classb — All beta proteins
Fold Fold foldb.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamilyb.96.1 — Nicotinic receptor ligand binding domain-like
Family Family familyb.96.1.1 — Nicotinic receptor ligand binding domain-like
Domain ID domain_idd5j5fj2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (10 domains)

Domain ID domain_id5j5fA00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fB00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fC00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fD00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fE00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fF00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fG00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fH00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fI00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
Domain ID domain_id5j5fJ00
Class class2 — Mainly Beta
Architecture architecture70 — Distorted Sandwich
Topology topology170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily10 — Neurotransmitter-gated ion-channel ligand-binding domain
▶
