SAXSdb — 5m3x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiotensinogen

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 44–485	Mutation：N137Q, N271Q, N295Q, C232S, C308S	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；1.7M Ammonium Sulfate, 0.1M Citric Acid, pH3.6	Resolution 2.63 Å R-free 0.282
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 44–485	Mutation：N137Q, N271Q, N295Q, C232S, C308S	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；1.7M Ammonium Sulfate, 0.1M Citric Acid, pH3.6	Resolution 2.63 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5M3X	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1N9U Differences and Similarities in Solution Structures of Angiotensin I & II: Implication for Structure-Function Relationship Deposited 2002-11-26	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–43（10 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 2.5 mM; DMSO-d6 \| DMSO-d6	Resolution not provided
1N9V Differences and Similarities in Solution Structures of Angiotensin I & II: Implication for Structure-Function Relationship. Deposited 2002-11-26	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–41（8 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 2.5 mM; DMSO-d6 \| DMSO-d6	Resolution not provided
2JP8 Angiotensin 1-7 Deposited 2007-04-27	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain P 34–40（7 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 2.9；278 K；Ionic strength (raw mmCIF value) 12；Pressure ambient NMR sample composition 12.0 mM angiotensin, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2WXW Crystal structure of human angiotensinogen Deposited 2009-11-11	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–485（452 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；2-2.5N NACL, 0.2M CACL2, 0.1M TRIS-HCL, PH8	Resolution 3.30 Å R-free 0.318
2X0B Crystal structure of human angiotensinogen complexed with renin Deposited 2009-12-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 34–485（452 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.6-2.2M AS, 0.1M MES, PH6	Resolution 4.33 Å R-free 0.334
2X0B Crystal structure of human angiotensinogen complexed with renin Deposited 2009-12-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 34–485（452 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.6-2.2M AS, 0.1M MES, PH6	Resolution 4.33 Å R-free 0.334
2X0B Crystal structure of human angiotensinogen complexed with renin Deposited 2009-12-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 34–485（452 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.6-2.2M AS, 0.1M MES, PH6	Resolution 4.33 Å R-free 0.334
2X0B Crystal structure of human angiotensinogen complexed with renin Deposited 2009-12-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 34–485（452 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.6-2.2M AS, 0.1M MES, PH6	Resolution 4.33 Å R-free 0.334
4AA1 Crystal structure of ANCE in complex with Angiotensin-II Deposited 2011-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 34–41（8 aa）	Not recorded	ZN ZINC ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M HEPES 7.5, 1.3 M SODIUM CITRATE	Resolution 1.99 Å R-free 0.211
4APH Human angiotensin-converting enzyme in complex with angiotensin-II Deposited 2012-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 34–41（8 aa）	Not recorded	CL CHLORIDE ION × 2 ZN ZINC ION × 1 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ACT ACETATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.7；50MM SODIUM ACETATE PH 4.7, 16% PEG4000, 10UM ZNSO4	Resolution 1.99 Å R-free 0.240
4FYS Human aminopeptidase N (CD13) in complex with angiotensin IV Deposited 2012-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–41（6 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 SO4 SULFATE ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop vapor diffusion；pH 5；295 K；2M ammonium sulfate, 0.1M sodium acetate, 10% glycerol, pH 5.0, hanging drop vapor diffusion, temperature 295K	Resolution 2.01 Å R-free 0.198
5E2Q Structure of human DPP3 in complex with angiotensin-II Deposited 2015-10-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 34–41（8 aa） Fragment：UNP residues 34-41	Not recorded	MG MAGNESIUM ION × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.056 M sodium phosphate monobasic monohydrate, 1.344 M potassium phosphate dibasic monohydrate	Resolution 2.40 Å R-free 0.247
5M3Y Crystal structure of human glycosylated angiotensinogen Deposited 2016-10-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–485（452 aa）	Mutation：N137Q, N271Q, N295Q, C232S, C308S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；2.0M Ammonium Sulfate, 0.1M Bicine, pH9.0	Resolution 2.30 Å R-free 0.189
6I3F Crystal structure of the complex of human angiotensinogen and renin at 2.55 Angstrom Deposited 2018-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 34–485（452 aa）	Mutation：N137Q, N271Q, N295Q,C232S,C308S	SO4 SULFATE ION × 10 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293 K；1.76M Ammonium sulfate 0.1M Tris, pH7.6	Resolution 2.55 Å R-free 0.234
6I3I Crystal structure of reactive center loop (RCL) cleaved angiotensinogen Deposited 2018-11-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–485（452 aa）	Mutation：N137Q,N271Q,N295Q,C232S,C308S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.5M ammonium sulfate, 0.1M Tris pH8.5 12% glycerol	Resolution 2.97 Å R-free 0.237
6OS0 Structure of synthetic nanobody-stabilized angiotensin II type 1 receptor bound to angiotensin II Deposited 2019-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 34–41（8 aa） Fragment：residues 34-41	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7.6；293 K；Protein complex was reconstituted with a 10:1 (w/w) mixture of monoolein and cholesterol. Crystals were grown in 100 mM Tris pH 7.6, 10 mM MgCl2, 25-26% PEG 300	Resolution 2.90 Å R-free 0.318

13 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ANGT_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–442； UniProt 44–485 Author chain B； PDBConstruct 1–442； UniProt 44–485

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5m3x
Deposition date deposition_date	2016-10-17
Structure title title	Crystal structure of human angiotensin I-deleted angiotensinogen
Keywords keywords	spent angiotensinogen, angiotensin I-deleted angiotensinogen, Serine protease inhibitor; Serine protease inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.89 Å
Radius of gyration Rg (electron density) rg_electron	35.61 Å
Forward intensity I(0) i0	98875900.00
Molecular weight molecular_weight	83749.0 kDa
Excluded volume excluded_volume	106480 Å³
Envelope volume envelope_volume	136760 Å³
Hydration-shell volume shell_volume	33282 Å³
Envelope diameter envelope_diameter	121.2 Å
Shell Rg shell_rg	39.86 Å
Envelope Rg envelope_rg	35.28 Å
Shape Rg shape_rg	35.58 Å
Total Rg total_rg	36.02 Å
Total atoms total_atoms	11840
Residues n_residues	770
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

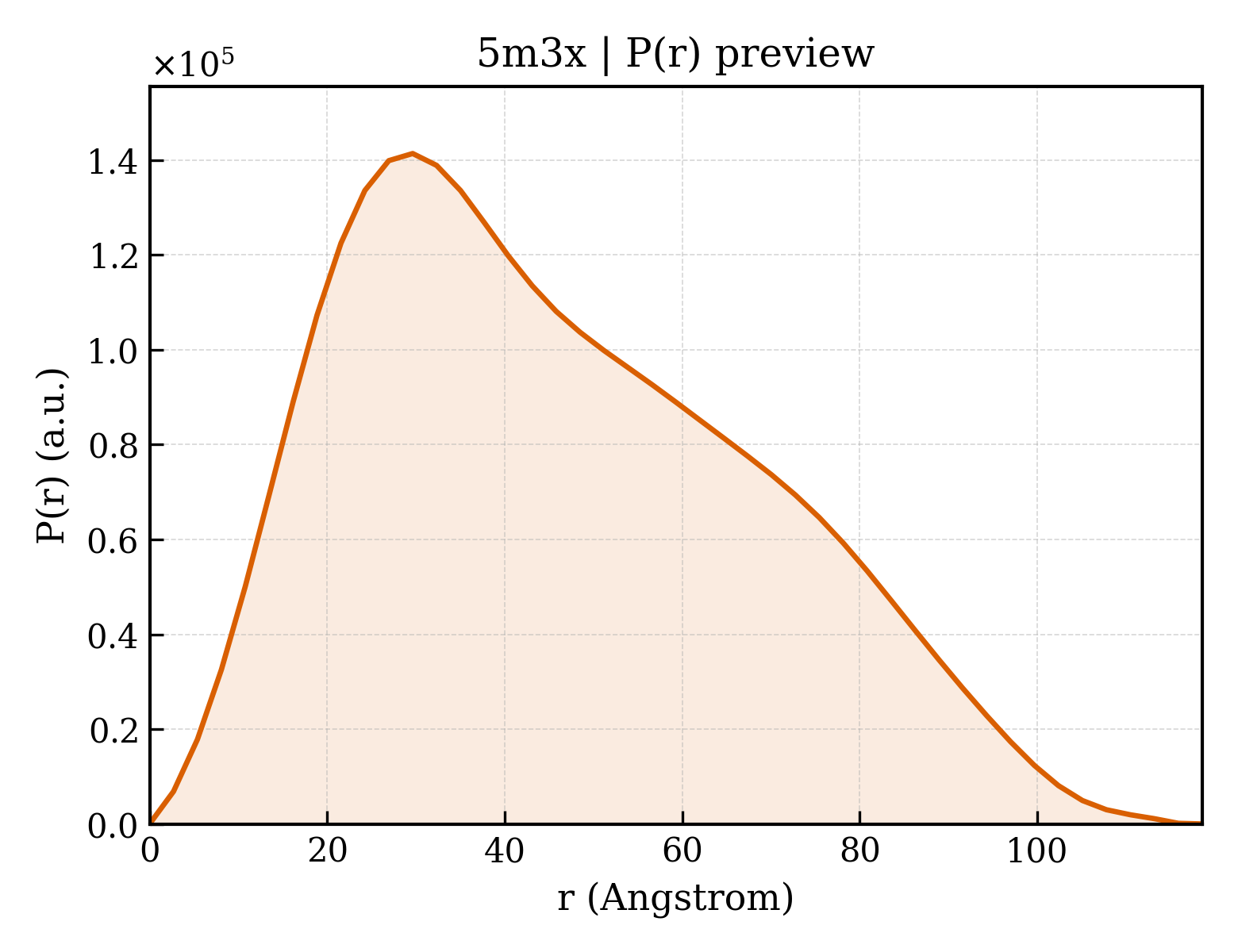

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	118.6 Å
Rg (real space) rg_real	36.16 Å
Rg uncertainty (real space) rg_real_error	1.03 Å
I(0) (real space) i0_real	9.8880e+07
I(0) uncertainty (real space) i0_real_error	1.6270e+06
Rg (reciprocal space) rg_reciprocal	36.00 Å
I(0) (reciprocal space) i0_reciprocal	98860000.0000
Solution quality estimate total_estimate	0.8260
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	29.6 Å
Skewness Skewness skewness	0.425
Kurtosis Kurtosis kurtosis	-0.634
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30200000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.771; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.719; Smooth: 0.702

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Angiotensinogen
Molecular weight formula_weight	49366.2 kDa
Mutation mutation	N137Q, N271Q, N295Q, C232S, C308S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	11847

VIHNESTCEQLAKANAGKPKDPTFIPAPIQAKTSPVDEKALQDQLVLVAAKLDTEDKLRAAMVGMLANFLGFRIYGMHSELWGVVHGATVLSPTAVFGTLASLYLGALDHTADRLQAILGVPWKDKQCTSRLDAHKVLSALQAVQGLLVAQGRADSQAQLLLSTVVGVFTAPGLHLKQPFVQGLALYTPVVLPRSLDFTELDVAAEKIDRFMQAVTGWKTGSSLMGASVDSTLAFNTYVHFQGKMKGFSLLAEPQEFWVDQSTSVSVPMLSGMGTFQHWSDIQDQFSVTQVPFTESASLLLIQPHYASDLDKVEGLTFQQNSLNWMKKLSPRTIHLTMPQLVLQGSYDLQDLLAQAELPAILHTELNLQKLSNDRIRVGEVLNSIFFELEADEREPTESTQQLNKPEVLEVTLNRPFLFAVYDQSATALHFLGRVANPLSTAHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7

▶

8. Citations (1)

▶

Unit-cell length a length_a	86.300 Å
Unit-cell length b length_b	41.040 Å
Unit-cell length c length_c	129.950 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.82 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 2 1
Space-group number int_tables_number	3
Crystal system crystal_system	—

Resolution resolution	2.630 Å
Low-resolution limit resolution_low	43.440 Å
R factor r_factor	0.2439
R_work r_work	0.2420
R_free r_free	0.2823

fit	/app/data/saxs_computation/m3/5m3x/5m3x.fit
pddf	/app/data/pr_computation/m3/5m3x/5m3x.pr.out
profile	/app/data/saxs_computation/m3/5m3x/5m3x.dat
