SAXSdb — 5oy4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycogen synthase kinase-3 beta

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Proto-oncogene FRAT1 × 1 （Q92837） SULFATE ION × 3 ~{N}-[6-[3,4-bis(oxidanyl)phenyl]-1~{H}-pyrazolo[3,4-b]pyridin-3-yl]ethanamide × 1 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Proto-oncogene FRAT1 × 1 （Q92837） SULFATE ION × 1 ~{N}-[6-[3,4-bis(oxidanyl)phenyl]-1~{H}-pyrazolo[3,4-b]pyridin-3-yl]ethanamide × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSK3B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–420； UniProt 1–420 Author chain B； PDBConstruct 1–420； UniProt 1–420

Proto-oncogene FRAT1

OrganismNot specified

UniProt Q92837

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Glycogen synthase kinase-3 beta × 1 （P49841） SULFATE ION × 3 ~{N}-[6-[3,4-bis(oxidanyl)phenyl]-1~{H}-pyrazolo[3,4-b]pyridin-3-yl]ethanamide × 1 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Glycogen synthase kinase-3 beta × 1 （P49841） SULFATE ION × 1 ~{N}-[6-[3,4-bis(oxidanyl)phenyl]-1~{H}-pyrazolo[3,4-b]pyridin-3-yl]ethanamide × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FRAT1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 1–279； UniProt 1–279 Author chain Y； PDBConstruct 1–279； UniProt 1–279

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5oy4
Deposition date deposition_date	2017-09-07
Structure title title	GSK3beta complex with N-(6-(3,4-dihydroxyphenyl)-1H-pyrazolo[3,4-b]pyridin-3-yl)acetamide
Keywords keywords	Phosphoinositide-3-kinase delta inhibitor, PI3K delta inhibitor, kinase cross-screening, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5oy4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5oy4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

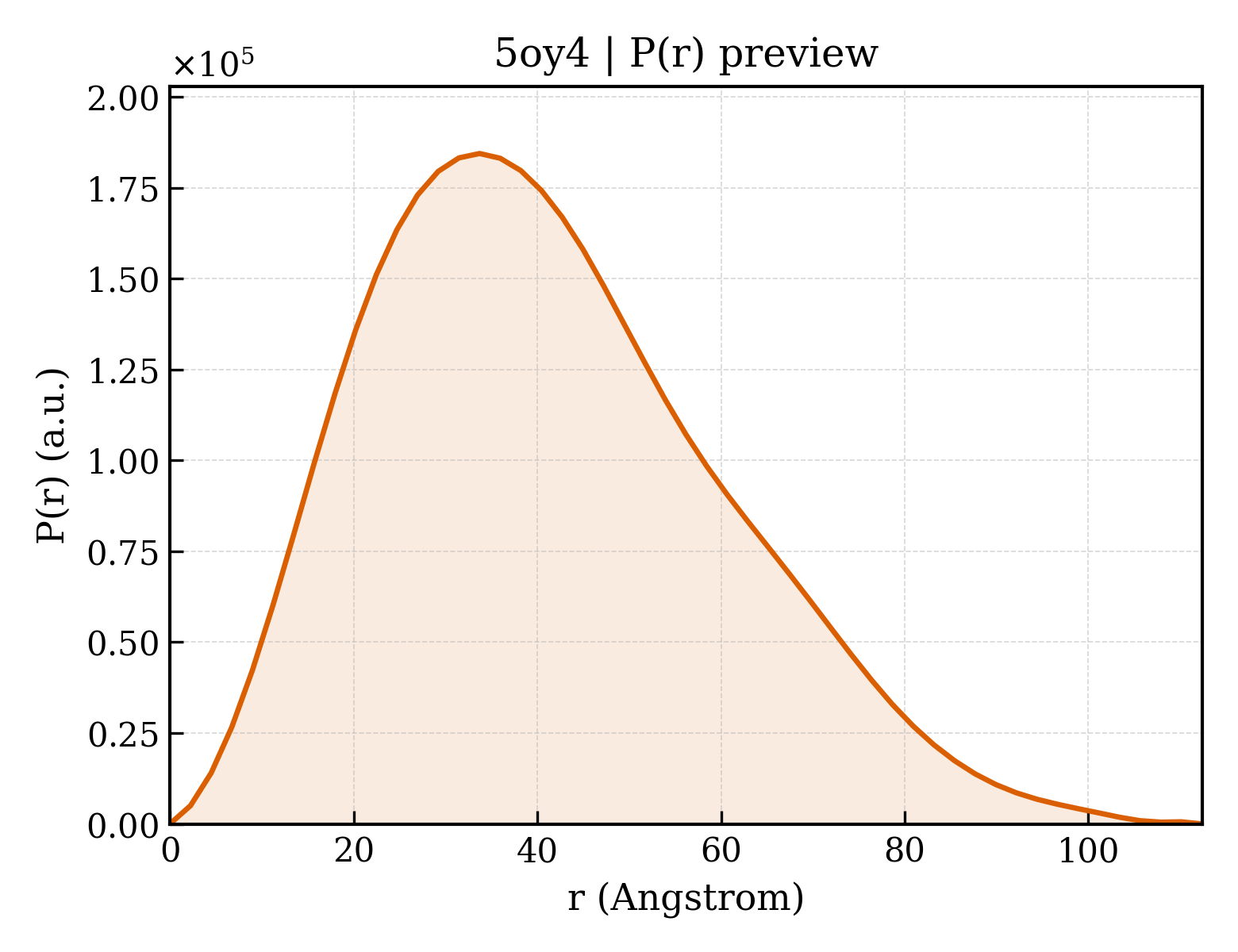

5oy4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.65 Å
Rg (electron density)	21.59 Å
Total Rg	22.49 Å
Atom count	2982
Residues	374
Excluded volume	53314 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5oy4__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5oy4__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Glycogen synthase kinase-3 beta
Molecular weight formula_weight	46881.2 kDa
EC 编号 ec_number	2.7.11.26,2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5988

MSGRPRTTSFAESCKPVQQPSAFGSMKVSRDKDGSKVTTVVATPGQGPDRPQEVSYTDTKVIGNGSFGVVYQAKLCDSGELVAIKKVLQDKRFKNRELQIMRKLDHCNIVRLRYFFYSSGEKKDEVYLNLVLDYVPETVYRVARHYSRAKQTLPVIYVKLYMYQLFRSLAYIHSFGICHRDIKPQNLLLDPDTAVLKLCDFGSAKQLVRGEPNVSYICSRYYRAPELIFGATDYTSSIDVWSAGCVLAELLLGQPIFPGDSGVDQLVEIIKVLGTPTREQIREMNPNYTEFKFPQIKAHPWTKVFRPRTPPEAIALCSRLLEYTPTARLTPLEACAHSFFDELRDPNVKLPNGRDTPALFNFTTQELSSNPPLATILIPPHARIQAAASTPTNATAASDANTGDRGQTNNAASASASNST

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Proto-oncogene FRAT1
Molecular weight formula_weight	29130.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

MPCRREEEEEAGEEAEGEEEEEDSFLLLQQSVALGSSGEVDRLVAQIGETLQLDAAQHSPASPCGPPGAPLRAPGPLAAAVPADKARSPAVPLLLPPALAETVGPAPPGVLRCALGDRGRVRGRAAPYCVAELATGPSALSPLPPQADLDGPPGAGKQGIPQPLSGPCRRGWLRGAAASRRLQQRRGSQPETRTGDDDPHRLLQQLVLSGNLIKEAVRRLHSRRLQLRAKLPQRPLLGPLSAPVHEPPSPRSPRAACSDPGASGRAQLRTGDGVLVPGS

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	~{N}-[6-[3,4-bis(oxidanyl)phenyl]-1~{H}-pyrazolo[3,4-b]pyridin-3-yl]ethanamide
Molecular weight formula_weight	284.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	6

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5oy4A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5oy4A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5oy4B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5oy4B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

Unit-cell length a length_a	152.686 Å
Unit-cell length b length_b	152.686 Å
Unit-cell length c length_c	212.290 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	0.1957
R_work r_work	0.1940
R_free r_free	0.2288

GSK3beta complex with N-(6-(3,4-dihydroxyphenyl)-1H-pyrazolo[3,4-b]pyridin-3-yl)acetamide
