5v8f

Structural basis of MCM2-7 replicative helicase loading by ORC-Cdc6 and Cdt1

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA replication licensing factor MCM2

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 2； PDBConstruct 1–868； UniProt 1–868

DNA replication licensing factor MCM3

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P24279

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM3_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain 3； PDBConstruct 1–971； UniProt 1–971

DNA replication licensing factor MCM4

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P30665

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM4_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain 4； PDBConstruct 1–933； UniProt 1–933

Minichromosome maintenance protein 5

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P29496

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM5_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain 5； PDBConstruct 1–775； UniProt 1–775

DNA replication licensing factor MCM6

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P53091

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM6_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain 6； PDBConstruct 1–1017； UniProt 1–1017

DNA replication licensing factor MCM7

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P38132

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM7_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain 7； PDBConstruct 1–800； UniProt 1–800

Cell division cycle protein CDT1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P47112

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDT1_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain 8； PDBConstruct 1–604； UniProt 1–604

Cell division control protein 6

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P09119

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC6_YEAST
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain 9； PDBConstruct 1–513； UniProt 1–513

Origin recognition complex subunit 1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P54784

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC1_YEAST
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain A； PDBConstruct 1–913； UniProt 1–913

Origin recognition complex subunit 2

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P32833

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC2_YEAST
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain B； PDBConstruct 1–620； UniProt 1–620

Origin recognition complex subunit 3

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P54790

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC3_YEAST
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain C； PDBConstruct 1–616； UniProt 1–616

Origin recognition complex subunit 5

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P50874

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 4 × 1 （P54791） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC5_YEAST
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain E； PDBConstruct 1–479； UniProt 1–479

Origin recognition complex subunit 4

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P54791

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 6 × 1 （P38826） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC4_YEAST
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain D； PDBConstruct 1–529； UniProt 1–529

Origin recognition complex subunit 6

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P38826

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	DNA replication licensing factor MCM2 × 1 （P29469） DNA replication licensing factor MCM3 × 1 （P24279） DNA replication licensing factor MCM4 × 1 （P30665） Minichromosome maintenance protein 5 × 1 （P29496） DNA replication licensing factor MCM6 × 1 （P53091） DNA replication licensing factor MCM7 × 1 （P38132） Cell division cycle protein CDT1 × 1 （P47112） Cell division control protein 6 × 1 （P09119） Origin recognition complex subunit 1 × 1 （P54784） Origin recognition complex subunit 2 × 1 （P32833） Origin recognition complex subunit 3 × 1 （P54790） Origin recognition complex subunit 5 × 1 （P50874） Origin recognition complex subunit 4 × 1 （P54791） DNA (39-MER) × 1 DNA (39-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC6_YEAST
Isoform	—
PDB entities	14
Chains and sequence ranges	Author chain F； PDBConstruct 1–435； UniProt 1–435

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5v8f
Deposition date deposition_date	2017-03-21
Structure title title	Structural basis of MCM2-7 replicative helicase loading by ORC-Cdc6 and Cdt1
Keywords keywords	DNA replication, Cryo-EM, OCCM, REPLICATION; REPLICATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5v8f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

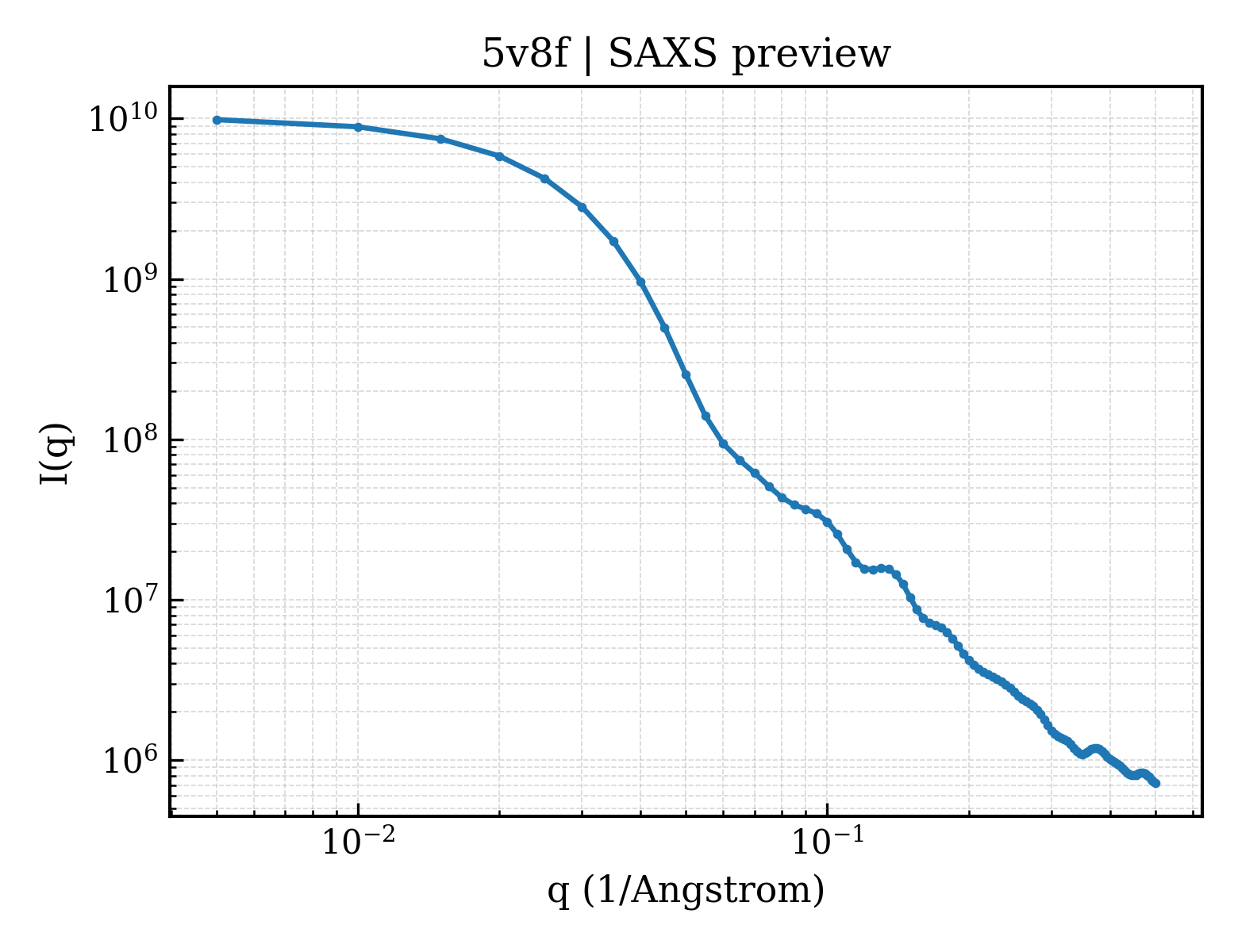

5v8f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5v8f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	64.23 Å
Rg (electron density)	64.15 Å
Total Rg	64.13 Å
Atom count	59586
Residues	7297
Excluded volume	1061400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5v8f__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (17)

Entity 1 Entity 1 polymer

Description description	DNA replication licensing factor MCM2
Molecular weight formula_weight	98911.5 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	2
Atom count atom_count	59586

MSDNRRRRREEDDSDSENELPPSSPQQHFRGGMNPVSSPIGSPDMINPEGDDNEVDDVPDIDEVEEQMNEVDLMDDNMYEDYAADHNRDRYDPDQVDDREQQELSLSERRRIDAQLNERDRLLRNVAYIDDEDEEQEGAAQLDEMGLPVQRRRRRRQYEDLENSDDDLLSDMDIDPLREELTLESLSNVKANSYSEWITQPNVSRTIARELKSFLLEYTDETGRSVYGARIRTLGEMNSESLEVNYRHLAESKAILALFLAKCPEEMLKIFDLVAMEATELHYPDYARIHSEIHVRISDFPTIYSLRELRESNLSSLVRVTGVVTRRTGVFPQLKYVKFNCLKCGSILGPFFQDSNEEIRISFCTNCKSKGPFRVNGEKTVYRNYQRVTLQEAPGTVPPGRLPRHREVILLADLVDVSKPGEEVEVTGIYKNNYDGNLNAKNGFPVFATIIEANSIKRREGNTANEGEEGLDVFSWTEEEEREFRKISRDRGIIDKIISSMAPSIYGHRDIKTAVACSLFGGVPKNVNGKHSIRGDINVLLLGDPGTAKSQILKYVEKTAHRAVFATGQGASAVGLTASVRKDPITKEWTLEGGALVLADKGVCLIDEFDKMNDQDRTSIHEAMEQQSISISKAGIVTTLQARCSIIAAANPNGGRYNSTLPLAQNVSLTEPILSRFDILCVVRDLVDEEADERLATFVVDSHVRSHPENDEDREGEELKNNGESAIEQGEDEINEQLNARQRRLQRQRKKEEEISPIPQELLMKYIHYARTKIYPKLHQMDMDKVSRVYADLRRESISTGSFPITVRHLESILRIAESFAKMRLSEFVSSYDLDRAIKVVVDSFVDAQKVSVRRQLRRSFAIYTLGH

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	DNA replication licensing factor MCM3
Molecular weight formula_weight	107653.5 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	3

MEGSTGFDGDATTFFAPDAVFGDRVRRFQEFLDTFTSYRDSVRSIQVYNSNNAANYNDDQDDADERDLLGDDDGDDLEKEKKAASSTSLNILPHRIIISLDDLREFDRSFWSGILVEPAYFIPPAEKALTDLADSMDDVPHPNASAVSSRHPWKLSFKGSFGAHALSPRTLTAQHLNKLVSVEGIVTKTSLVRPKLIRSVHYAAKTGRFHYRDYTDATTTLTTRIPTPAIYPTEDTEGNKLTTEYGYSTFIDHQRITVQEMPEMAPAGQLPRSIDVILDDDLVDKTKPGDRVNVVGVFKSLGAGGMNQSNSNTLIGFKTLILGNTVYPLHARSTGVAARQMLTDFDIRNINKLSKKKDIFDILSQSLAPSIYGHDHIKKAILLMLMGGVEKNLENGSHLRGDINILMVGDPSTAKSQLLRFVLNTASLAIATTGRGSSGVGLTAAVTTDRETGERRLEAGAMVLADRGVVCIDEFDKMTDVDRVAIHEVMEQQTVTIAKAGIHTTLNARCSVIAAANPVFGQYDVNRDPHQNIALPDSLLSRFDLLFVVTDDINEIRDRSISEHVLRTHRYLPPGYLEGEPVRERLNLSLAVGEDADINPEEHSNSGAGVENEGEDDEDHVFEKFNPLLQAGAKLAKNKGNYNGTEIPKLVTIPFLRKYVQYAKERVIPQLTQEAINVIVKNYTDLRNDDNTKKSPITARTLETLIRLATAHAKVRLSKTVNKVDAKVAANLLRFALLGEDIGNDIDEEESEYEEALSKRSPQKSPKKRQRVRQPASNSGSPIKSTPRRSTASSVNATPSSARRILRFQDDEQNAGEDDNDIMSPLPADEEAELQRRLQLGLRVSPRRREHLHAPEEGSSGPLTEVGTPRLPNVSSAGQDDEQQQSVISFDNVEPGTISTGRLSLISGIIARLMQTEIFEEESYPVASLFERINEELPEEEKFSAQEYLAGLKIMSDRNNLMVADDKVWRV

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	DNA replication licensing factor MCM4
Molecular weight formula_weight	105138.4 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	4

MSQQSSSPTKEDNNSSSPVVPNPDSVPPQLSSPALFYSSSSSQGDIYGRNNSQNLSQGEGNIRAAIGSSPLNFPSSSQRQNSDVFQSQGRQGRIRSSASASGRSRYHSDLRSDRALPTSSSSLGRNGQNRVHMRRNDIHTSDLSSPRRIVDFDTRSGVNTLDTSSSSAPPSEASEPLRIIWGTNVSIQECTTNFRNFLMSFKYKFRKILDEREEFINNTTDEELYYIKQLNEMRELGTSNLNLDARNLLAYKQTEDLYHQLLNYPQEVISIMDQTIKDCMVSLIVDNNLDYDLDEIETKFYKVRPYNVGSCKGMRELNPNDIDKLINLKGLVLRSTPVIPDMKVAFFKCNVCDHTMAVEIDRGVIQEPARCERIDCNEPNSMSLIHNRCSFADKQVIKLQETPDFVPDGQTPHSISLCVYDELVDSCRAGDRIEVTGTFRSIPIRANSRQRVLKSLYKTYVDVVHVKKVSDKRLDVDTSTIEQELMQNKVDHNEVEEVRQITDQDLAKIREVAAREDLYSLLARSIAPSIYELEDVKKGILLQLFGGTNKTFTKGGRYRGDINILLCGDPSTSKSQILQYVHKITPRGVYTSGKGSSAVGLTAYITRDVDTKQLVLESGALVLSDGGVCCIDEFDKMSDSTRSVLHEVMEQQTISIAKAGIITTLNARSSILASANPIGSRYNPNLPVTENIDLPPPLLSRFDLVYLVLDKVDEKNDRELAKHLTNLYLEDKPEHISQDDVLPVEFLTMYISYAKEHIHPIITEAAKTELVRAYVGMRKMGDDSRSDEKRITATTRQLESMIRLAEAHAKMKLKNVVELEDVQEAVRLIRSAIKDYATDPKTGKIDMNLVQTGKSVIQRKLQEDLSREIMNVLKDQASDSMSFNELIKQINEHSQDRVESSDIQEALSRLQQEDKVIVLGEGVRRSVRLNNRV

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 polymer

Description description	Minichromosome maintenance protein 5
Molecular weight formula_weight	86505.7 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	5

MSFDRPEIYSAPVLQGESPNDDDNTEIIKSFKNFILEFRLDSQFIYRDQLRNNILVKNYSLTVNMEHLIGYNEDIYKKLSDEPSDIIPLFETAITQVAKRISILSRAQSANNNDKDPENTSMDTDSLLLNSLPTFQLILNSNANQIPLRDLDSEHVSKIVRLSGIIISTSVLSSRATYLSIMCRNCRHTTSITINNFNSITGNTVSLPRSCLSTIESESSMANESNIGDESTKKNCGPDPYIIIHESSKFIDQQFLKLQEIPELVPVGEMPRNLTMTCDRYLTNKVIPGTRVTIVGIYSIYNSKNGAGSGRSGGGNGGSGVAIRTPYIKILGIQSDVETSSIWNSVTMFTEEEEEEFLQLSRNPKLYEILTNSIAPSIFGNEDIKKAIVCLLMGGSKKILPDGMRLRGDINVLLLGDPGTAKSQLLKFVEKVSPIAVYTSGKGSSAAGLTASVQRDPMTREFYLEGGAMVLADGGVVCIDEFDKMRDEDRVAIHEAMEQQTISIAKAGITTVLNSRTSVLAAANPIYGRYDDLKSPGDNIDFQTTILSRFDMIFIVKDDHNEERDISIANHVINIHTGNANAMQNQQEENGSEISIEKMKRYITYCRLKCAPRLSPQAAEKLSSNFVTIRKQLLINELESTERSSIPITIRQLEAIIRITESLAKLELSPIAQERHVDEAIRLFQASTMDAASQDPIGGLNQASGTSLSEIRRFEQELKRRLPIGWSTSYQTLRREFVDTHRFSQLALDKALYALEKHETIQLRHQGQNIYRSGV

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 5 Entity 5 polymer

Description description	DNA replication licensing factor MCM6
Molecular weight formula_weight	113110.2 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	6

MSSPFPADTPSSNRPSNSSPPPSSIGAGFGSSSGLDSQIGSRLHFPSSSQPHVSNSQTGPFVNDSTQFSSQRLQTDGSATNDMEGNEPARSFKSRALNHVKKVDDVTGEKVREAFEQFLEDFSVQSTDTGEVEKVYRAQIEFMKIYDLNTIYIDYQHLSMRENGALAMAISEQYYRFLPFLQKGLRRVVRKYAPELLNTSDSLKRSEGDEGQADEDEQQDDDMNGSSLPRDSGSSAAPGNGTSAMATRSITTSTSPEQTERVFQISFFNLPTVHRIRDIRSEKIGSLLSISGTVTRTSEVRPELYKASFTCDMCRAIVDNVEQSFKYTEPTFCPNPSCENRAFWTLNVTRSRFLDWQKVRIQENANEIPTGSMPRTLDVILRGDSVERAKPGDRCKFTGVEIVVPDVTQLGLPGVKPSSTLDTRGISKTTEGLNSGVTGLRSLGVRDLTYKISFLACHVISIGSNIGASSPDANSNNRETELQMAANLQANNVYQDNERDQEVFLNSLSSDEINELKEMVKDEHIYDKLVRSIAPAVFGHEAVKKGILLQMLGGVHKSTVEGIKLRGDINICVVGDPSTSKSQFLKYVVGFAPRSVYTSGKASSAAGLTAAVVRDEEGGDYTIEAGALMLADNGICCIDEFDKMDISDQVAIHEAMEQQTISIAKAGIHATLNARTSILAAANPVGGRYNRKLSLRGNLNMTAPIMSRFDLFFVILDDCNEKIDTELASHIVDLHMKRDEAIEPPFSAEQLRRYIKYARTFKPILTKEARSYLVEKYKELRKDDAQGFSRSSYRITVRQLESMIRLSEAIARANCVDEITPSFIAEAYDLLRQSIIRVDVDDVEMDEEFDNIESQSHAASGNNDDNDDGTGSGVITSEPPADIEEGQSEATARPGTSEKKKTTVTYDKYVSMMNMIVRKIAEVDREGAEELTAVDIVDWYLLQKENDLGSLAEYWEERRLAFKVIKRLVKDRILMEIHGTRHNLRDLENEENENNKTVYVIHPNCEVLDQLEPQDSS

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 6 Entity 6 polymer

Description description	DNA replication licensing factor MCM7
Molecular weight formula_weight	90310.9 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	7

MSAALPSIQLPVDYNNLFNEITDFLVTFKQDTLSSDATRNENEDENLDAENIEQHLLEKGPKYMAMLQKVANRELNSVIIDLDDILQYQNEKFLQGTQADDLVSAIQQNANHFTELFCRAIDNNMPLPTKEIDYKDDVLDVILNQRRLRNERMLSDRTNEIRSENLMDTTMDPPSSMNDALREVVEDETELFPPNLTRRYFLYFKPLSQNCARRYRKKAISSKPLSVRQIKGDFLGQLITVRGIITRVSDVKPAVEVIAYTCDQCGYEVFQEVNSRTFTPLSECTSEECSQNQTKGQLFMSTRASKFSAFQECKIQELSQQVPVGHIPRSLNIHVNGTLVRSLSPGDIVDVTGIFLPAPYTGFKALKAGLLTETYLEAQFVRQHKKKFASFSLTSDVEERVMELITSGDVYNRLAKSIAPEIYGNLDVKKALLLLLVGGVDKRVGDGMKIRGDINVCLMGDPGVAKSQLLKAICKISPRGVYTTGKGSSGVGLTAAVMKDPVTDEMILEGGALVLADNGICCIDEFDKMDESDRTAIHEVMEQQTISISKAGINTTLNARTSILAAANPLYGRYNPRLSPLDNINLPAALLSRFDILFLMLDIPSRDDDEKLAEHVTYVHMHNKQPDLDFTPVEPSKMREYIAYAKTKRPVMSEAVNDYVVQAYIRLRQDSKREMDSKFSFGQATPRTLLGIIRLSQALAKLRLADMVDIDDVEEALRLVRVSKESLYQETNKSKEDESPTTKIFTIIKKMLQETGKNTLSYENIVKTVRLRGFTMLQLSNCIQEYSYLNVWHLINEGNT

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 7 Entity 7 polymer

Description description	Cell division cycle protein CDT1
Molecular weight formula_weight	68486.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	8

MSGTANSRRKEVLRVPVIDLNRVSDEEQLLPVVRAILLQHDTFLLKNYANKAVLDALLAGLTTKDLPDTSQGFDANFTGTLPLEDDVWLEQYIFDTDPQLRFDRKCRNESLCSIYSRLFKLGLFFAQLCVKSVVSSAELQDCISTSHYATKLTRYFNDNGSTHDGADAGATVLPTGDDFQYLFERDYVTFLPTGVLTIFPCAKAIRYKPSTMATTDNSWVSIDEPDCLLFHTGTLLARWSQGMHTTSPLQIDPRANIVSLTIWPPLTTPISSKGEGTIANHLLEQQIKAFPKVAQQYYPRELSILRLQDAMKFVKELFTVCETVLSLNALSRSTGVPPELHVLLPQISSMMKRKIVQDDILKLLTIWSDAYVVELNSRGELTMNLPKRDNLTTLTNKSRTLAFVERAESWYQQVIASKDEIMTDVPAFKINKRRSSSNSKTVLSSKVQTKSSNANALNNSRYLANSKENFMYKEKMPDSQANLMDRLRERERRSAALLSQRQKRYQQFLAMKMTQVFDILFSLTRGQPYTETYLSSLIVDSLQDSNNPIGTKEASEILAGLQGILPMDISVHQVDGGLKVYRWNSLDKNRFSKLLQIHKSKQQD

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 8 Entity 8 polymer

Description description	Cell division control protein 6
Molecular weight formula_weight	58112.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	9

MSAIPITPTKRIRRNLFDDAPATPPRPLKRKKLQFTDVTPESSPEKLQFGSQSIFLRTKALLQKSSELVNLNSSDGALPARTAEYEQVMNFLAKAISEHRSDSLYITGPPGTGKTAQLDMIIRQKFQSLPLSLSTPRSKDVLRHTNPNLQNLSWFELPDGRLESVAVTSINCISLGEPSSIFQKIFDSFQDLNGPTLQIKNMQHLQKFLEPYHKKTTFVVVLDEMDRLLHANTSETQSVRTILELFLLAKLPTVSFVLIGMANSLDMKDRFLSRLNLDRGLLPQTIVFQPYTAEQMYEIVIQKMSSLPTIIFQPMAIKFAAKKCAGNTGDLRKLFDVLRGSIEIYELEKRFLLSPTRGSLNSAQVPLTPTTSPVKKSYPEPQGKIGLNYIAKVFSKFVNNNSTRTRIAKLNIQQKLILCTIIQSLKLNSDATIDESFDHYIKAITKTDTLAPLQRNEFLEICTILETCGLVSIKKTKCKGKTKRFVDKIDVDLDMREFYDEMTKISILKPFLH

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 9 Entity 9 polymer

Description description	Origin recognition complex subunit 1
Molecular weight formula_weight	104433.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MAKTLKDLQGWEIITTDEQGNIIDGGQKRLRRRGAKTEHYLKRSSDGIKLGRGDSVVMHNEAAGTYSVYMIQELRLNTLNNVVELWALTYLRWFEVNPLAHYRQFNPDANILNRPLNYYNKLFSETANKNELYLTAELAELQLFNFIRVANVMDGSKWEVLKGNVDPERDFTVRYICEPTGEKFVDINIEDVKAYIKKVEPREAQEYLKDLTLPSKKKEIKRGPQKKDKATQTAQISDAETRATDITDNEDGNEDESSDYESPSDIDVSEDMDSGEISADELEEEEDEEEDEDEEEKEARHTNSPRKRGRKIKLGKDDIDASVQPPPKKRGRKPKDPSKPRQMLLISSCRANNTPVIRKFTKKNVARAKKKYTPFSKRFKSIAAIPDLTSLPEFYGNSSELMASRFENKLKTTQKHQIVETIFSKVKKQLNSSYVKEEILKSANFQDYLPARENEFASIYLSAYSAIESDSATTIYVAGTPGVGKTLTVREVVKELLSSSAQREIPDFLYVEINGLKMVKPTDCYETLWNKVSGERLTWAASMESLEFYFKRVPKNKKKTIVVLLDELDAMVTKSQDIMYNFFNWTTYENAKLIVIAVANTMDLPERQLGNKITSRIGFTRIMFTGYTHEELKNIIDLRLKGLNDSFFYVDTKTGNAILIDAAGNDTTVKQTLPEDVRKVRLRMSADAIEIASRKVASVSGDARRALKVCKRAAEIAEKHYMAKHGYGYDGKTVIEDENEEQIYDDEDKDLIESNKAKDDNDDDDDNDGVQTVHITHVMKALNETLNSHVITFMTRLSFTAKLFIYALLNLMKKNGSQEQELGDIVDEIKLLIEVNGSNKFVMEIAKTLFQQGSDNISEQLRIISWDFVLNQLLDAGILFKQTMKNDRICCVKLNISVEEAKRAMNEDETLRN

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 10 Entity 10 polymer

Description description	Origin recognition complex subunit 2
Molecular weight formula_weight	71342.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MLNGEDFVEHNDILSSPAKSRNVTPKRVDPHGERQLRRIHSSKKNLLERISLVGNERKNTSPDPALKPKTPSKAPRKRGRPRKIQEELTDRIKKDEKDTISSKKKRKLDKDTSGNVNEESKTSNNKQVMEKTGIKEKREREKIQVATTTYEDNVTPQTDDNFVSNSPEPPEPATPSKKSLTTNHDFTSPLKQIIMNNLKEYKDSTSPGKLTLSRNFTPTPVPKNKKLYQTSETKSASSFLDTFEGYFDQRKIVRTNAKSRHTMSMAPDVTREEFSLVSNFFNENFQKRPRQKLFEIQKKMFPQYWFELTQGFSLLFYGVGSKRNFLEEFAIDYLSPKIAYSQLAYENELQQNKPVNSIPCLILNGYNPSCNYRDVFKEITDLLVPAELTRSETKYWGNHVILQIQKMIDFYKNQPLDIKLILVVHNLDGPSIRKNTFQTMLSFLSVIRQIAIVASTDHIYAPLLWDNMKAQNYNFVFHDISNFEPSTVESTFQDVMKMGKSDTSSGAEGAKYVLQSLTVNSKKMYKLLIETQMQNMGNLSANTGPKRGTQRTGVELKLFNHLCAADFIASNEIALRSMLREFIEHKMANITKNNSGMEIIWVPYTYAELEKLLKTVLNTL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 11 Entity 11 polymer

Description description	Origin recognition complex subunit 3
Molecular weight formula_weight	72161.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSDLNQSKKMNVSEFADAQRSHYTVYPSLPQSNKNDKHIPFVKLLSGKESEVNVEKRWELYHQLHSHFHDQVDHIIDNIEADLKAEISDLLYSETTQKRRCFNTIFLLGSDSTTKIELKDESSRYNVLIELTPKESPNVRMMLRRSMYKLYSAADAEEHPTIKYEDINDEDGDFTEQNNDVSYDLSLVENFKRLFGKDLAMVFNFKDVDSINFNTLDNFIILLKSAFKYDHVKISLIFNINTNLSNIEKNLRQSTIRLLKRNYHKLDVSSNKGFKYGNQIFQSFLDTVDGKLNLSDRFVEFILSKMANNTNHNLQLLTKMLDYSLMSYFFQNAFSVFIDPVNVDFLNDDYLKILSRCPTFMFFVEGLIKQHAPADEILSLLTNKNRGLEEFFVEFLVRENPINGHAKFVARFLEEELNITNFNLIELYHNLLIGKLDSYLDRWSACKEYKDRLHFEPIDTIFQELFTLDNRSGLLTQSIFPSYKSNIEDNLLSWEQVLPSLDKENYDTLSGDLDKIMAPVLGQLFKLYREANMTINIYDFYIAFRETLPKEEILNFIRKDPSNTKLLELAETPDAFDKVALILFMQAIFAFENMGLIKFQSTKSYDLVEKCVWRGI

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 12 Entity 12 polymer

Description description	Origin recognition complex subunit 5
Molecular weight formula_weight	55347.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MNVTTPEVAFREYQTNCLASYISADPDITPSNLILQGYSGTGKTYTLKKYFNANPNLHAVWLEPVELVSWKPLLQAIARTVQYKLKTLYPNIPTTDYDPLQVEEPFLLVKTLHNIFVQYESLQEKTCLFLILDGFDSLQDLDAALFNKYIKLNELLPKDSKINIKFIYTMLETSFLQRYSTHCIPTVMFPRYNVDEVSTILVMSRCGELMEDSCLRKRIIEEQITDCTDDQFQNVAANFIHLIVQAFHSYTGNDIFALNDLIDFKWPKYVSRITKENIFEPLALYKSAIKLFLSTDDNLSENGQGESAITTNRDDLENSQTYDLSIISKYLLIASYICSYLEPRYDASIFSRKTRIIQGRAAYGRRKKKEVNPRYLQPSLFAIERLLAIFQAIFPIQGKAESGSLSALREESLMKANIEVFQNLSELHTLKLIATTMNKNIDYLSPKVRWKVNVPWEIIKEISESVHFNISDYFSDIHE

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 13 Entity 13 polymer

Description description	Origin recognition complex subunit 4
Molecular weight formula_weight	60772.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MTISEARLSPQVNLLPIKRHSNEEVEETAAILKKRTIDNEKCKDSDPGFGSLQRRLLQQLYGTLPTDEKIIFTYLQDCQQEIDRIIKQSIIQKESHSVILVGPRQSYKTYLLDYELSLLQQSYKEQFITIRLNGFIHSEQTAINGIATQLEQQLQKIHGSEEKIDDTSLETISSGSLTEVFEKILLLLDSTTKTRNEDSGEVDRESITKITVVFIFDEIDTFAGPVRQTLLYNLFDMVEHSRVPVCIFGCTTKLNILEYLEKRVKSRFSQRVIYMPQIQNLDDMVDAVRNLLTVRSEISPWVSQWNETLEKELSDPRSNLNRHIRMNFETFRSLPTLKNSIIPLVATSKNFGSLCTAIKSCSFLDIYNKNQLSNNLTGRLQSLSDLELAILISAARVALRAKDGSFNFNLAYAEYEKMIKAINSRIPTVAPTTNVGTGQSTFSIDNTIKLWLKKDVKNVWENLVQLDFFTEKSAVGLRDNATAAFYASNYQFQGTMIPFDLRSYQMQIILQELRRIIPKSNMYYSWTQL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 14 Entity 14 polymer

Description description	Origin recognition complex subunit 6
Molecular weight formula_weight	50369.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MSMQQVQHCVAEVLRLDPQEKPDWSSGYLKKLTNATSILYNTSLNKVMLKQDEEVARCHICAYIASQKMNEKHMPDLCYYIDSIPLEPKKAKHLMNLFRQSLSNSSPMKQFAWTPSPKKNKRSPVKNGGRFTSSDPKELRNQLFGTPTKVRKSQNNDSFVIPELPPMQTNESPSITRRKLAFEEDEDEDEEEPGNDGLSLKSHSNKSITGTRNVDSDEYENHESDPTSEEEPLGVQESRSGRTKQNKAVGKPQSELKTAKALRKRGRIPNSLLVKKYCKMTTEEIIRLCNDFELPREVAYKIVDEYNINASRLVCPWQLVCGLVLNCTFIVFNERRRKDPRIDHFIVSKMCSLMLTSKVDDVIECVKLVKELIIGEKWFRDLQIRYDDFDGIRYDEIIFRKLGSMLQTTNILVTDDQYNIWKKRIEMDLALTEPL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 15 Entity 15 polymer

Description description	DNA (39-MER)
Molecular weight formula_weight	11967.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	M

TATTTAAGTATTGTTTGTGCACTTGCCTGCAGGCCTTTT

Entity 16 Entity 16 polymer

Description description	DNA (39-MER)
Molecular weight formula_weight	12035.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	N

AAAAGGCCTGCAGGCAAGTGCACAAACAATACTTAAATA

Entity 17 Entity 17 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5v8f601
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1640 — mini-chromosome maintenance (MCM) complex, chain A, domain 1
Homologous superfamily homologous superfamily	10 — mini-chromosome maintenance (MCM) complex, chain A, domain 1

Domain ID domain_id	5v8f604
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	5v8f701
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	5v8fE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Resolution resolution	3.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	304288

Structural basis of MCM2-7 replicative helicase loading by ORC-Cdc6 and Cdt1

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA replication licensing factor MCM2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA replication licensing factor MCM3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA replication licensing factor MCM4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Minichromosome maintenance protein 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA replication licensing factor MCM6

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA replication licensing factor MCM7

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Cell division cycle protein CDT1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Cell division control protein 6

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Origin recognition complex subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Origin recognition complex subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
