SAXSdb — 5v8w

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrator complex subunit 9

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 582–658	Fragment：C-terminal domain (UNP residues 582-658)	Integrator complex subunit 11 × 1 （Q5TA45）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 582–658	Fragment：C-terminal domain (UNP residues 582-658)	Integrator complex subunit 11 × 1 （Q5TA45）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 582–658	Fragment：C-terminal domain (UNP residues 582-658)	Integrator complex subunit 11 × 1 （Q5TA45）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 582–658	Fragment：C-terminal domain (UNP residues 582-658)	Integrator complex subunit 11 × 1 （Q5TA45）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5V8W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7BFP Structure of the Integrator cleavage module with INTS4/9/11 Deposited 2021-01-04	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–658（658 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；150 mM KCl, 20 mM HEPES-KOH pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.56 Å
7BFQ Structure of the Integrator cleavage module with extended INTS4 and rigid body docked INTS9/11 CTD Deposited 2021-01-04	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–658（658 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
7CUN The structure of human Integrator-PP2A complex Deposited 2020-08-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 1–658（658 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7PKS Structural basis of Integrator-mediated transcription regulation Deposited 2021-08-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 31-meric	Chain i 1–658（658 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 10 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7YCX The structure of INTAC-PEC complex Deposited 2022-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain I 1–658（658 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
8R22 INTS9-INTS11-BRAT1-WDR73 complex Deposited 2023-11-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–658（658 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.90 Å
8R23 INTS9-INTS11-BRAT1 complex Deposited 2023-11-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–658（658 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.20 Å
8R2D Integrator cleavage module assembly intermediate Deposited 2023-11-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–658（658 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.90 Å
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain i 1–658（658 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain i 1–658（658 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain i 1–658（658 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8UIB Structure of the human INTS9-INTS11-BRAT1 complex Deposited 2023-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–658（658 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
8YJB Cryo-EM structure of the human DSS1-INTAC complex Deposited 2024-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 1–658（658 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9VD9 Cryo-EM structure of the human DSS1-INTAC-PEC complex Deposited 2025-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 38-meric	Chain I 1–658（658 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT9_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–78； UniProt 582–658 Author chain C； PDBConstruct 2–78； UniProt 582–658 Author chain E； PDBConstruct 2–78； UniProt 582–658 Author chain G； PDBConstruct 2–78； UniProt 582–658

Integrator complex subunit 11

Homo sapiens

UniProt Q5TA45

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 491–600	Fragment：C-terminal domain (UNP residues 491-600)	Integrator complex subunit 9 × 1 （Q9NV88）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 491–600	Fragment：C-terminal domain (UNP residues 491-600)	Integrator complex subunit 9 × 1 （Q9NV88）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 491–600	Fragment：C-terminal domain (UNP residues 491-600)	Integrator complex subunit 9 × 1 （Q9NV88）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 491–600	Fragment：C-terminal domain (UNP residues 491-600)	Integrator complex subunit 9 × 1 （Q9NV88）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-Tris pH 6.5, 21-24% PEG 3350	Resolution 2.10 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5V8W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7BFP Structure of the Integrator cleavage module with INTS4/9/11 Deposited 2021-01-04	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–600（600 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；150 mM KCl, 20 mM HEPES-KOH pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.56 Å
7BFQ Structure of the Integrator cleavage module with extended INTS4 and rigid body docked INTS9/11 CTD Deposited 2021-01-04	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–600（600 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
7CUN The structure of human Integrator-PP2A complex Deposited 2020-08-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–600（600 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7PKS Structural basis of Integrator-mediated transcription regulation Deposited 2021-08-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 31-meric	Chain k 1–600（600 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 10 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7YCX The structure of INTAC-PEC complex Deposited 2022-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain K 1–600（600 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
8R22 INTS9-INTS11-BRAT1-WDR73 complex Deposited 2023-11-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–600（600 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.90 Å
8R23 INTS9-INTS11-BRAT1 complex Deposited 2023-11-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–600（600 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.20 Å
8R2D Integrator cleavage module assembly intermediate Deposited 2023-11-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–600（600 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.90 Å
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain k 1–600（600 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain k 1–600（600 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain k 1–600（600 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8UIB Structure of the human INTS9-INTS11-BRAT1 complex Deposited 2023-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 1–600（600 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
8YJB Cryo-EM structure of the human DSS1-INTAC complex Deposited 2024-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–600（600 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9VD9 Cryo-EM structure of the human DSS1-INTAC-PEC complex Deposited 2025-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 38-meric	Chain K 1–600（600 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT11_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–114； UniProt 491–600 Author chain D； PDBConstruct 5–114； UniProt 491–600 Author chain F； PDBConstruct 5–114； UniProt 491–600 Author chain H； PDBConstruct 5–114； UniProt 491–600

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5v8w
Deposition date deposition_date	2017-03-22
Structure title title	Crystal structure of human Integrator IntS9-IntS11 CTD complex
Keywords keywords	snRNA processing, integrator complex, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.51 Å
Radius of gyration Rg (electron density) rg_electron	35.55 Å
Forward intensity I(0) i0	96528600.00
Molecular weight molecular_weight	80032.0 kDa
Excluded volume excluded_volume	101050 Å³
Envelope volume envelope_volume	140760 Å³
Hydration-shell volume shell_volume	35023 Å³
Envelope diameter envelope_diameter	127.4 Å
Shell Rg shell_rg	39.18 Å
Envelope Rg envelope_rg	35.17 Å
Shape Rg shape_rg	35.55 Å
Total Rg total_rg	35.85 Å
Total atoms total_atoms	5636
Residues n_residues	708
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

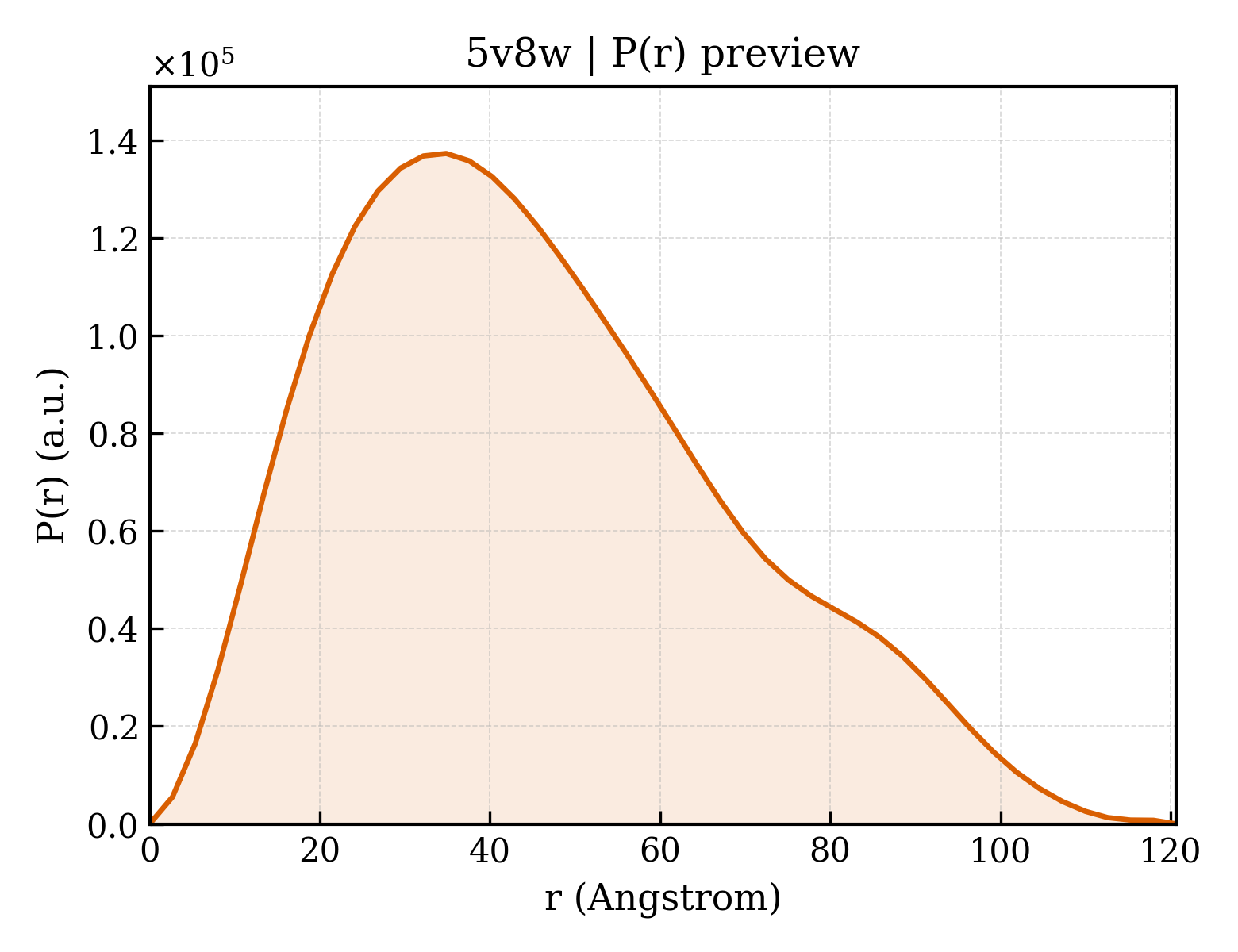

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	120.7 Å
Rg (real space) rg_real	35.81 Å
Rg uncertainty (real space) rg_real_error	1.30 Å
I(0) (real space) i0_real	9.6530e+07
I(0) uncertainty (real space) i0_real_error	1.8710e+06
Rg (reciprocal space) rg_reciprocal	35.63 Å
I(0) (reciprocal space) i0_reciprocal	96510000.0000
Solution quality estimate total_estimate	0.8443
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.9 Å
Skewness Skewness skewness	0.518
Kurtosis Kurtosis kurtosis	-0.367
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15520000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.805; Smooth: 0.765

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Integrator complex subunit 9
Molecular weight formula_weight	9003.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	6055

MKPLLSGSIPVEQFVQTLEKHGFSDIKVEDTAKGHIVLLQEAETLIQIEEDSTHIICDNDEMLRVRLRDLVLKFLQKF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Integrator complex subunit 11
Molecular weight formula_weight	12673.4 kDa
EC 编号 ec_number	3.1.27.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

GSHMRLVSSEQALKELGLAEHQLRFTCRVHLHDTRKEQETALRVYSHLKSVLKDHCVQHLPDGSVTVESVLLQAAAPSEDPGTKVLLVSWTYQDEELGSFLTSLLKKGLPQAPS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	419

▶

8. Citations (1)

▶

Unit-cell length a length_a	63.010 Å
Unit-cell length b length_b	67.780 Å
Unit-cell length c length_c	98.585 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.65 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	24.830 Å
R factor r_factor	0.1686
R_work r_work	0.1665
R_free r_free	0.2203

fit	/app/data/saxs_computation/v8/5v8w/5v8w.fit
pddf	/app/data/pr_computation/v8/5v8w/5v8w.pr.out
profile	/app/data/saxs_computation/v8/5v8w/5v8w.dat
