9vd9

Cryo-EM structure of the human DSS1-INTAC-PEC complex

Method: ELECTRON MICROSCOPY D_max: 228.5 Å Quality: EXCELLENT

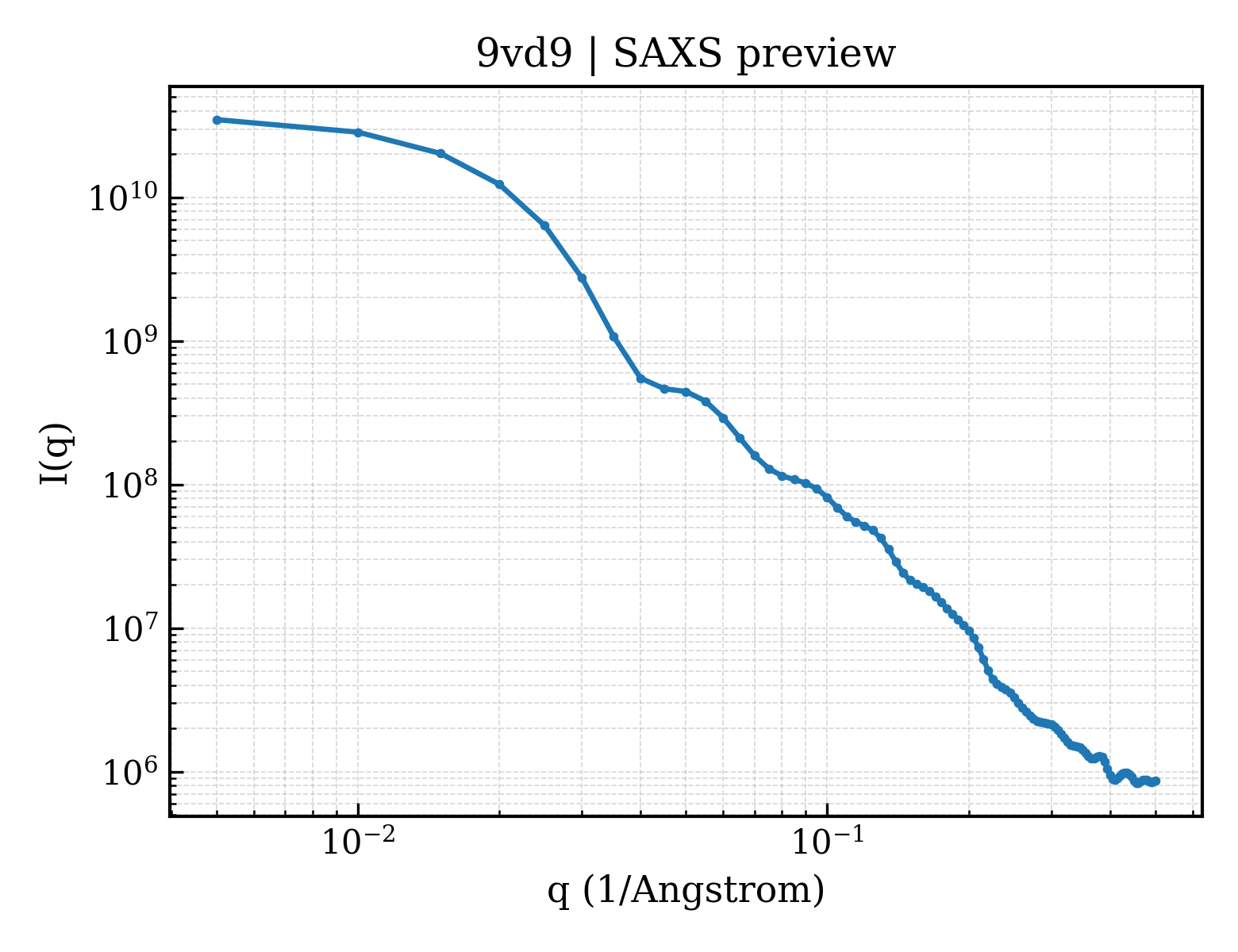

SAXS Profile

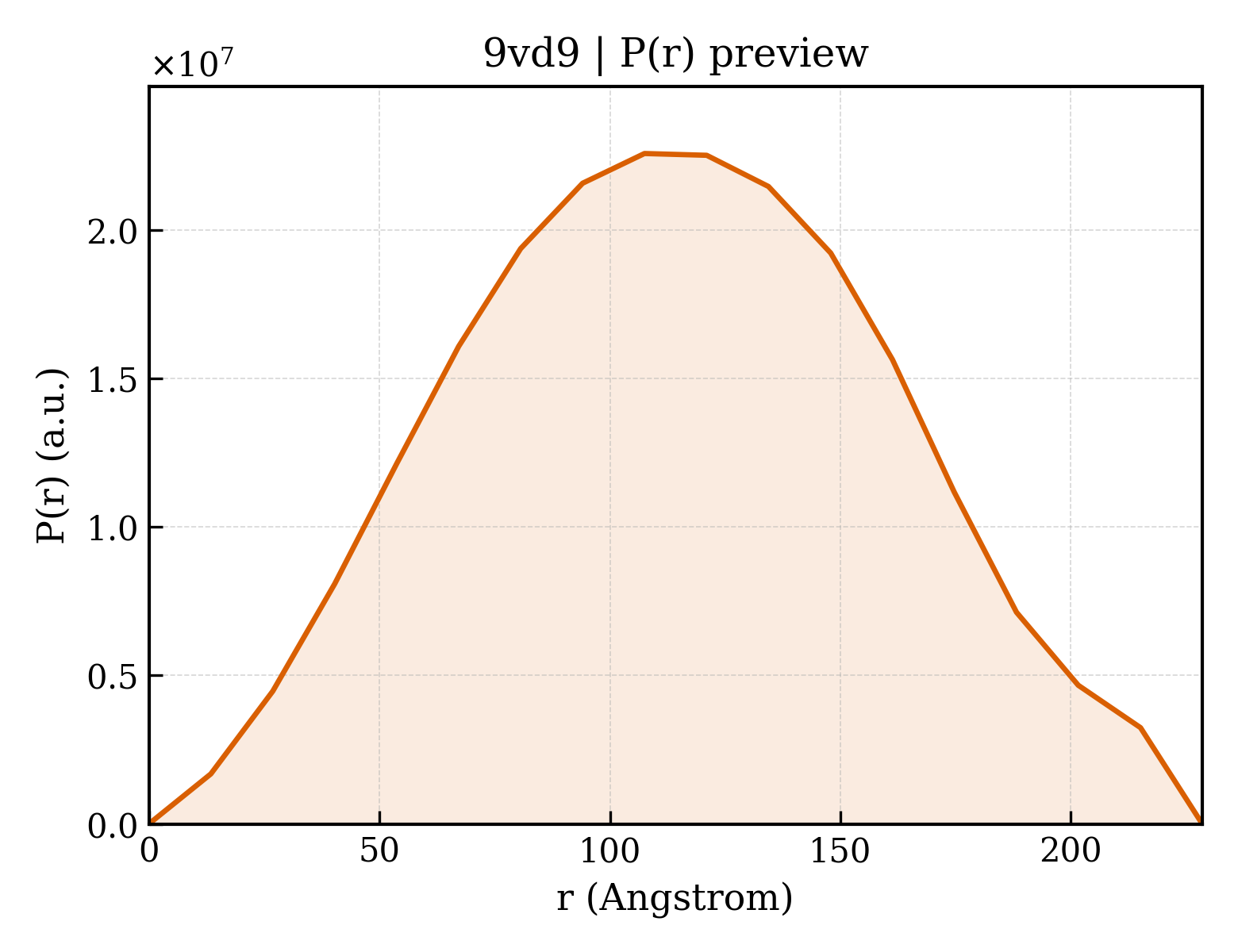

P(r) Distribution

▼

1. Structure Basics

entry_id	9vd9
deposition_date	2025-06-07
title	Cryo-EM structure of the human DSS1-INTAC-PEC complex
keywords	DSS1, Integrator, INTAC, TRANSCRIPTION; TRANSCRIPTION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	89.49 Å
rg_electron	88.72 Å
i0	37250400000.00
molecular_weight	1612500.0 kDa
excluded_volume	2003400 Å³
envelope_volume	3543000 Å³
shell_volume	318490 Å³
envelope_diameter	306.1 Å
shell_rg	95.35 Å
envelope_rg	86.05 Å
shape_rg	88.75 Å
total_rg	88.65 Å
total_atoms	113214
n_residues	14850
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	228.5 Å
rg_real	86.80 Å
rg_real_error	0.38 Å
i0_real	3.5640e+10
i0_real_error	6.3530e+08
rg_reciprocal	90.98 Å
i0_reciprocal	37420000000.0000
total_estimate	0.9134
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	107.5 Å
skewness	0.052
kurtosis	-0.602
angular_range	— – 0.0850 Å⁻¹
current_alpha	1.0290
highest_alpha	2829000000.0000
n_real_points	18
gnom_version	4.1.3
quality_criteria	AN1: 0.001; Oscil: 0.999; Stabil: 0.967; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (41)

Entity 1 polymer

description	26S proteasome complex subunit SEM1
formula_weight	8284.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	0
atom_count	113214

MSEKKQPVDLGLLEEDDEFEEFPAEDWAGLDEDEDAHVWEDNWDDDNVEDDFSNQLRAELEKHGYKMETS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Integrator complex subunit 9
formula_weight	73891.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

MKLYCLSGHPTLPCNVLKFKSTTIMLDCGLDMTSTLNFLPLPLVQSPRLSNLPGWSLKDGNAFLDKELKECSGHVFVDSVPEFCLPETELIDLSTVDVILISNYHCMMALPYITEHTGFTGTVYATEPTVQIGRLLMEELVNFIERVPKAQSASLWKNKDIQRLLPSPLKDAVEVSTWRRCYTMQEVNSALSKIQLVGYSQKIELFGAVQVTPLSSGYALGSSNWIIQSHYEKVSYVSGSSLLTTHPQPMDQASLKNSDVLVLTGLTQIPTANPDGMVGEFCSNLALTVRNGGNVLVPCYPSGVIYDLLECLYQYIDSAGLSSVPLYFISPVANSSLEFSQIFAEWLCHNKQSKVYLPEPPFPHAELIQTNKLKHYPSIHGDFSNDFRQPCVVFTGHPSLRFGDVVHFMELWGKSSLNTVIFTEPDFSYLEALAPYQPLAMKCIYCPIDTRLNFIQVSKLLKEVQPLHVVCPEQYTQPPPAQSHRMDLMIDCQPPAMSYRRAEVLALPFKRRYEKIEIMPELADSLVPMEIKPGISLATVSAVLHTKDNKHLLQPPPRPAQPTSGKKRKRVSDDVPDCKVLKPLLSGSIPVEQFVQTLEKHGFSDIKVEDTAKGHIVLLQEAETLIQIEEDSTHIICDNDEMLRVRLRDLVLKFLQKF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	Integrator complex subunit 11
formula_weight	67756.6 kDa
ec_number	3.1.27.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

MPEIRVTPLGAGQDVGRSCILVSIAGKNVMLDCGMHMGFNDDRRFPDFSYITQNGRLTDFLDCVIISHFHLDHCGALPYFSEMVGYDGPIYMTHPTQAICPILLEDYRKIAVDKKGEANFFTSQMIKDCMKKVVAVHLHQTVQVDDELEIKAYYAGHVLGAAMFQIKVGSESVVYTGDYNMTPDRHLGAAWIDKCRPNLLITESTYATTIRDSKRCRERDFLKKVHETVERGGKVLIPVFALGRAQELCILLETFWERMNLKVPIYFSTGLTEKANHYYKLFIPWTNQKIRKTFVQRNMFEFKHIKAFDRAFADNPGPMVVFATPGMLHAGQSLQIFRKWAGNEKNMVIMPGYCVQGTVGHKILSGQRKLEMEGRQVLEVKMQVEYMSFSAHADAKGIMQLVGQAEPESVLLVHGEAKKMEFLKQKIEQELRVNCYMPANGETVTLPTSPSIPVGISLGLLKREMAQGLLPEAKKPRLLHGTLIMKDSNFRLVSSEQALKELGLAEHQLRFTCRVHLHDTRKEQETALRVYSHLKSVLKDHCVQHLPDGSVTVESVLLQAAAPSEDPGTKVLLVSWTYQDEELGSFLTSLLKKGLPQAPS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 polymer

description	;RNA (5'-R(PUPAPAPCPCPGPGPAPGPAPGPGPGPAPAPCPCPCPAPCP*U)-3') ;
formula_weight	6774.1 kDa
src_method	man
entity_count	1

Polymer

type	polyribonucleotide
strand_id	c

UAACCGGAGAGGGAACCCACU

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 5 polymer

description	Integrator complex subunit 2
formula_weight	134451.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MKDQQTVIMTECTSLQFVSPFAFEAMQKVDVVCLASLSDPELRLLLPCLVRMALCAPADQSQSWAQDKKLILRLLSGVEAVNSIVALLSVDFHALEQDASKEQQLRHKLGGGSGESILVSQLQHGLTLEFEHSDSPRRLRLVLSELLAIMNKVSESNGEFFFKSSELFESPVYLEEAADVLCILQAELPSLLPIVDVAEALLHVRNGAWFLCLLVANVPDSFNEVCRGLIKNGERQDEESLGGRRRTDALRFLCKMNPSQALKVRGMVVEECHLPGLGVALTLDHTKNEACEDGVSDLVCFVSGLLLGTNAKVRTWFGTFIRNGQQRKRETSSSVLWQMRRQLLLELMGILPTVRSTRIVEEADVDMEPNVSVYSGLKEEHVVKASALLRLYCALMGIAGLKPTEEEAEQLLQLMTSRPPATPAGVRFVSLSFCMLLAFSTLVSTPEQEQLMVVWLSWMIKEEAYFESTSGVSASFGEMLLLVAMYFHSNQLSAIIDLVCSTLGMKIVIKPSSLSRMKTIFTQEIFTEQVVTAHAVRVPVTSNLSANITGFLPIHCIYQLLRSRSFTKHKVSIKDWIYRQLCETSTPLHPQLLPLIDVYINSILTPASKSNPEATNQPVTEQEILNIFQGVIGGDNIRLNQRFSITAQLLVLYYILSYEEALLANTKTLAAMQRKPKSYSSSLMDQIPIKFLIRQAQGLQQELGGLHSALLRLLATNYPHLCIVDDWICEEEITGTDALLRRMLLTNNAKNHSPKQLQEAFSAVPVNNTQVMQIIEHLTLLSASELIPYAEVLTSNMSQLLNSGVPRRILQTVNKLWMVLNTVMPRRLWVMTVNALQPSIKFVRQQKYTQNDLMIDPLIVLRCDQRVHRCPPLMDITLHMLNGYLLASKAYLSAHLKETEQDRPSQNNTIGLVGQTDAPEVTREELKNALLAAQDSAAVQILLEICLPTEEEKANGVNPDSLLRNVQSVITTSAPNKGMEEGEDNLLCNLREVQCLICCLLHQMYIADPNIAKLVHFQGYPCELLPLTVAGIPSMHICLDFIPELIAQPELEKQIFAIQLLSHLCIQYALPKSLSVARLAVNVMGTLLTVLTQAKRYAFFMPTLPSLVSFCRAFPPLYEDIMSLLIQIGQVCASDVATQTRDIDPIITRLQQIKEKPSGWSQICKDSSYKNGSRDTGSMDPDVQLCHCIERTVIEIINMSVSGI

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 6 polymer

description	Integrator complex subunit 4
formula_weight	108306.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MAAHLKKRVYEEFTKVVQPQEEIATKKLRLTKPSKSAALHIDLCKATSPADALQYLLQFARKPVEAESVEGVVRILLEHYYKENDPSVRLKIASLLGLLSKTAGFSPDCIMDDAINILQNEKSHQVLAQLLDTLLAIGTKLPENQAIQMRLVDVACKHLTDTSHGVRNKCLQLLGNLGSLEKSVTKDAEGLAARDVQKIIGDYFSDQDPRVRTAAIKAMLQLHERGLKLHQTIYNQACKLLSDDYEQVRSAAVQLIWVVSQLYPESIVPIPSSNEEIRLVDDAFGKICHMVSDGSWVVRVQAAKLLGSMEQVSSHFLEQTLDKKLMSDLRRKRTAHERAKELYSSGEFSSGRKWGDDAPKEEVDTGAVNLIESGACGAFVHGLEDEMYEVRIAAVEALCMLAQSSPSFAEKCLDFLVDMFNDEIEEVRLQSIHTMRKISNNITLREDQLDTVLAVLEDSSRDIREALHELLCCTNVSTKEGIHLALVELLKNLTKYPTDRDSIWKCLKFLGSRHPTLVLPLVPELLSTHPFFDTAEPDMDDPAYIAVLVLIFNAAKTCPTMPALFSDHTFRHYAYLRDSLSHLVPALRLPGRKLVSSAVSPSIIPQEDPSQQFLQQSLERVYSLQHLDPQGAQELLEFTIRDLQRLGELQSELAGVADFSATYLRCQLLLIKALQEKLWNVAAPLYLKQSDLASAAAKQIMEETYKMEFMYSGVENKQVVIIHHMRLQAKALQLIVTARTTRGLDPLFGMCEKFLQEVDFFQRYFIADLPHLQDSFVDKLLDLMPRLMTSKPAEVVKILQTMLRQSAFLHLPLPEQIHKASATIIEPAGESDNPLRFTSGLVVALDVDATLEHVQDPQNTVKVQVLYPDGQAQMIHPKPADFRNPGPGRHRLITQVYLSHTAWTEACQVEVRLLLAYNSSARIPKCPWMEGGEMSPQVETSIEGTIPFSKPVKVYIMPKPARR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 7 polymer

description	Integrator complex subunit 7
formula_weight	106952.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

MASNSTKSFLADAGYGEQELDANSALMELDKGLRSGKLGEQCEAVVRFPRLFQKYPFPILINSAFLKLADVFRVGNNFLRLCVLKVTQQSEKHLEKILNVDEFVKRIFSVIHSNDPVARAITLRMLGSLASIIPERKNAHHSIRQSLDSHDNVEVEAAVFAAANFSAQSKDFAVGICNKISEMIQGLATPVDLKLKLIPILQHMHHDAILASSARQLLQQLVTSYPSTKMVIVSLHTFTLLAASSLVDTPKQIQLLLQYLKNDPRKAVKRLAIQDLKLLANKTPHTWSRENIQALCECALQTPYDSLKLGMLSVLSTLSGTIAIKHYFSIVPGNVSSSPRSSDLVKLAQECCYHNNRGIAAHGVRVLTNITVSCQEKDLLALEQDAVFGLESLLVLCSQDDSPGAQATLKIALNCMVKLAKGRPHLSQSVVETLLTQLHSAQDAARILMCHCLAAIAMQLPVLGDGMLGDLMELYKVIGRSATDKQQELLVSLATVIFVASQKALSVESKAVIKQQLESVSNGWTVYRIARQASRMGNHDMAKELYQSLLTQVASEHFYFWLNSLKEFSHAEQCLTGLQEENYSSALSCIAESLKFYHKGIASLTAASTPLNPLSFQCEFVKLRIDLLQAFSQLICTCNSLKTSPPPAIATTIAMTLGNDLQRCGRISNQMKQSMEEFRSLASRYGDLYQASFDADSATLRNVELQQQSCLLISHAIEALILDPESASFQEYGSTGTAHADSEYERRMMSVYNHVLEEVESLNRKYTPVSYMHTACLCNAIIALLKVPLSFQRYFFQKLQSTSIKLALSPSPRNPAEPIAVQNNQQLALKVEGVVQHGSKPGLFRKIQSVCLNVSSTLQSKSGQDYKIPIDNMTNEMEQRVEPHNDYFSTQFLLNFAILGTHNITVESSVKDANGIVWKTGPRTTIFVKSLEDPYSQQIRLQQQQAQQPLQQQQQRNAYTRF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 8 polymer

description	DNA-directed RNA polymerase II subunit RPB1
formula_weight	1457.5 kDa
ec_number	2.7.7.6,3.1.13.-,2.7.7.48
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	m

TSPSYSPTSPSYSP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 9 polymer

description	THR-SER-PRO-SER-TYR-SER-PRO-THR
formula_weight	838.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	n

TSPSYSPT

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 10 polymer

description	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform
formula_weight	65378.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	P

MAAADGDDSLYPIAVLIDELRNEDVQLRLNSIKKLSTIALALGVERTRSELLPFLTDTIYDEDEVLLALAEQLGTFTTLVGGPEYVHCLLPPLESLATVEETVVRDKAVESLRAISHEHSPSDLEAHFVPLVKRLAGGDWFTSRTSACGLFSVCYPRVSSAVKAELRQYFRNLCSDDTPMVRRAAASKLGEFAKVLELDNVKSEIIPMFSNLASDEQDSVRLLAVEACVNIAQLLPQEDLEALVMPTLRQAAEDKSWRVRYMVADKFTELQKAVGPEITKTDLVPAFQNLMKDCEAEVRAAASHKVKEFCENLSADCRENVIMSQILPCIKELVSDANQHVKSALASVIMGLSPILGKDNTIEHLLPLFLAQLKDECPEVRLNIISNLDCVNEVIGIRQLSQSLLPAIVELAEDAKWRVRLAIIEYMPLLAGQLGVEFFDEKLNSLCMAWLVDHVYAIREAATSNLKKLVEKFGKEWAHATIIPKVLAMSGDPNYLHRMTTLFCINVLSEVCGQDITTKHMLPTVLRMAGDPVANVRFNVAKSLQKIGPILDNSTLQSEVKPILEKLTQDQDVDVKYFAQEALTVLSLA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 11 polymer

description	Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform
formula_weight	35636.2 kDa
ec_number	3.1.3.16
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Q

MDEKVFTKELDQWIEQLNECKQLSESQVKSLCEKAKEILTKESNVQEVRCPVTVCGDVHGQFHDLMELFRIGGKSPDTNYLFMGDYVDRGYYSVETVTLLVALKVRYRERITILRGNHESRQITQVYGFYDECLRKYGNANVWKYFTDLFDYLPLTALVDGQIFCLHGGLSPSIDTLDHIRALDRLQEVPHEGPMCDLLWSDPDDRGGWGISPRGAGYTFGQDISETFNHANGLTLVSRAHQLVMEGYNWCHDRNVVTIFSAPNYCYRCGNQAAIMELDDTLKYSFLQFDPAPRRGEPHVTRRTPDYFL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 12 polymer

description	DNA-directed RNA polymerase II subunit RPB1
formula_weight	217420.0 kDa
ec_number	2.7.7.6,3.1.13.-,2.7.7.48
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	1

MHGGGPPSGDSACPLRTIKRVQFGVLSPDELKRMSVTEGGIKYPETTEGGRPKLGGLMDPRQGVIERTGRCQTCAGNMTECPGHFGHIELAKPVFHVGFLVKTMKVLRCVCFFCSKLLVDSNNPKIKDILAKSKGQPKKRLTHVYDLCKGKNICEGGEEMDNKFGVEQPEGDEDLTKEKGHGGCGRYQPRIRRSGLELYAEWKHVNEDSQEKKILLSPERVHEIFKRISDEECFVLGMEPRYARPEWMIVTVLPVPPLSVRPAVVMQGSARNQDDLTHKLADIVKINNQLRRNEQNGAAAHVIAEDVKLLQFHVATMVDNELPGLPRAMQKSGRPLKSLKQRLKGKEGRVRGNLMGKRVDFSARTVITPDPNLSIDQVGVPRSIAANMTFAEIVTPFNIDRLQELVRRGNSQYPGAKYIIRDNGDRIDLRFHPKPSDLHLQTGYKVERHMCDGDIVIFNRQPTLHKMSMMGHRVRILPWSTFRLNLSVTTPYNADFDGDEMNLHLPQSLETRAEIQELAMVPRMIVTPQSNRPVMGIVQDTLTAVRKFTKRDVFLERGEVMNLLMFLSTWDGKVPQPAILKPRPLWTGKQIFSLIIPGHINCIRTHSTHPDDEDSGPYKHISPGDTKVVVENGELIMGILCKKSLGTSAGSLVHISYLEMGHDITRLFYSNIQTVINNWLLIEGHTIGIGDSIADSKTYQDIQNTIKKAKQDVIEVIEKAHNNELEPTPGNTLRQTFENQVNRILNDARDKTGSSAQKSLSEYNNFKSMVVSGAKGSKINISQVIAVVGQQNVEGKRIPFGFKHRTLPHFIKDDYGPESRGFVENSYLAGLTPTEFFFHAMGGREGLIDTAVKTAETGYIQRRLIKSMESVMVKYDATVRNSINQVVQLRYGEDGLAGESVEFQNLATLKPSNKAFEKKFRFDYTNERALRRTLQEDLVKDVLSNAHIQNELEREFERMREDREVLRVIFPTGDSKVVLPCNLLRMIWNAQKIFHINPRLPSDLHPIKVVEGVKELSKKLVIVNGDDPLSRQAQENATLLFNIHLRSTLCSRRMAEEFRLSGEAFDWLLGEIESKFNQAIAHPGEMVGALAAQSLGEPATQMTLNTFHYAGVSAKNVTLGVPRLKELINISKKPKTPSLTVFLLGQSARDAERAKDILCRLEHTTLRKVTANTAIYYDPNPQSTVVAEDQEWVNVYYEMPDFDVARISPWLLRVELDRKHMTDRKLTMEQIAEKINAGFGDDLNCIFNDDNAEKLVLRIRIMNSDENKMQEEEEVVDKMDDDVFLRCIESNMLTDMTLQGIEQISKVYMHLPQTDNKKKIIITEDGEFKALQEWILETDGVSLMRVLSEKDVDPVRTTSNDIVEIFTVLGIEAVRKALERELYHVISFDGSYVNYRHLALLCDTMTCRGHLMAITRHGVNRQDTGPLMKCSFEETVDVLMEAAAHGESDPMKGVSENIMLGQLAPAGTGCFDLLLDAEKCKYGMEIPTNIPGLGAAGPTGMFFGSAPSPMGGISPAMTPWNQGATPAYGAWSPSVGSGMTPGAAGFSPSAASDASGFSPGYSPAWSPTPGSPGSPGPSSPYIPSPGGAMSPSYSPTSPAYEPRSPGGYTPQSPSYSPTSPSYSPTSPSYSPTSPNYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPNYSPTSPNYTPTSPSYSPTSPSYSPTSPNYTPTSPNYSPTSPSYSPTSPSYSPTSPSYSPSSPRYTPQSPTYTPSSPSYSPSSPSYSPASPKYTPTSPSYSPSSPEYTPTSPKYSPTSPKYSPTSPKYSPTSPTYSPTTPKYSPTSPTYSPTSPVYTPTSPKYSPTSPTYSPTSPKYSPTSPTYSPTSPKGSTYSPTSPGYSPTSPTYSLTSPAISPDDSDEEN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 13 polymer

description	DNA-directed RNA polymerase subunit beta,DNA-directed RNA polymerase II subunit RPB2
formula_weight	147938.6 kDa
ec_number	2.7.7.6,2.7.7.6,3.1.13.-,2.7.7.48
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	2

MKPLRPENPPKAELKGLLFVQQHCKTRLHSVAVTRPRGAATEESTPKLRMCSTNLSQALAYFRAGANLTAASLWAGFRGSRRIFWERRKRKSLCLALRPGGACWRWLLAVSCVSLRGLGAPGSCANMYDADEDMQYDEDDDEITPDLWQEACWIVISSYFDEKGLVRQQLDSFDEFIQMSVQRIVEDAPPIDLQAEAQHASGEVEEPPRYLLKFEQIYLSKPTHWERDGAPSPMMPNEARLRNLTYSAPLYVDITKTVIKEGEEQLQTQHQKTFIGKIPIMLRSTYCLLNGLTDRDLCELNECPLDPGGYFIINGSEKVLIAQEKMATNTVYVFAKKDSKYAYTGECRSCLENSSRPTSTIWVSMLARGGQGAKKSAIGQRIVATLPYIKQEVPIIIVFRALGFVSDRDILEHIIYDFEDPEMMEMVKPSLDEAFVIQEQNVALNFIGSRGAKPGVTKEKRIKYAKEVLQKEMLPHVGVSDFCETKKAYFLGYMVHRLLLAALGRRELDDRDHYGNKRLDLAGPLLAFLFRGMFKNLLKEVRIYAQKFIDRGKDFNLELAIKTRIISDGLKYSLATGNWGDQKKAHQARAGVSQVLNRLTFASTLSHLRRLNSPIGRDGKLAKPRQLHNTLWGMVCPAETPEGHAVGLVKNLALMAYISVGSQPSPILEFLEEWSMENLEEISPAAIADATKIFVNGCWVGIHKDPEQLMNTLRKLRRQMDIIVSEVSMIRDIREREIRIYTDAGRICRPLLIVEKQKLLLKKRHIDQLKEREYNNYSWQDLVASGVVEYIDTLEEETVMLAMTPDDLQEKEVAYCSTYTHCEIHPSMILGVCASIIPFPDHNQSPRNTYQSAMGKQAMGVYITNFHVRMDTLAHVLYYPQKPLVTTRSMEYLRFRELPAGINSIVAIASYTGYNQEDSVIMNRSAVDRGFFRSVFYRSYKEQESKKGFDQEEVFEKPTRETCQGMRHAIYDKLDDDGLIAPGVRVSGDDVIIGKTVTLPENEDELEGTNRRYTKRDCSTFLRTSETGIVDQVMVTLNQEGYKFCKIRVRSVRIPQIGDKFASRHGQKGTCGIQYRQEDMPFTCEGITPDIIINPHAIPSRMTIGHLIECLQGKVSANKGEIGDATPFNDAVNVQKISNLLSDYGYHLRGNEVLYNGFTGRKITSQIFIGPTYYQRLKHMVDDKIHSRARGPIQILNRQPMEGRSRDGGLRFGEMERDCQIAHGAAQFLRERLFEASDPYQVHVCNLCGIMAIANTRTHTYECRGCRNKTQISLVRMPYACKLLFQELMSMSIAPRMMSV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 14 polymer

description	DNA-directed RNA polymerase II subunit RPB3
formula_weight	31439.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	3

MPYANQPTVRITELTDENVKFIIENTDLAVANSIRRVFIAEVPIIAIDWVQIDANSSVLHDEFIAHRLGLIPLTSDDIVDKLQYSRDCTCEEFCPECSVEFTLDVRCNEDQTRHVTSRDLISNSPRVIPVTSRNRDNDPSDYVEQDDILIVKLRKGQELRLRAYAKKGFGKEHAKWNPTAGVAFEYDPDNALRHTVYPKPEEWPKSEYSELDEDESQAPYDPNGKPERFYYNVESCGSLRPETIVLSALSGLKKKLSDLQTQLSHEIQSDVLTIN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 15 polymer

description	DNA-directed RNA polymerases I, II, and III subunit RPABC1
formula_weight	24644.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	4

MDDEEETYRLWKIRKTIMQLCHDRGYLVTQDELDQTLEEFKAQFGDKPSEGRPRRTDLTVLVAHNDDPTDQMFVFFPEEPKVGIKTIKVYCQRMQEENITRALIVVQQGMTPSAKQSLVDMAPKYILEQFLQQELLINITEHELVPEHVVMTKEEVTELLARYKLRENQLPRIQAGDPVARYFGIKRGQVVKIIRPSETAGRYITYRLVQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 16 polymer

description	DNA-directed RNA polymerases I, II, and III subunit RPABC2
formula_weight	14477.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	5

MSDNEDNFDGDDFDDVEEDEGLDDLENAEEEGQENVEILPSGERPQANQKRITTPYMTKYERARVLGTRALQIAMCAPVMVELEGETDPLLIAMKELKARKIPIIIRRYLPDGSYEDWGVDELIISD

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 17 polymer

description	DNA-directed RNA polymerases I, II, and III subunit RPABC3
formula_weight	17162.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	6

MAGILFEDIFDVKDIDPEGKKFDRVSRLHCESESFKMDLILDVNIQIYPVDLGDKFRLVIASTLYEDGTLDDGEYNPTDDRPSRADQFEYVMYGKVYRIEGDETSTEAATRLSAYVSYGGLLMRLQGDANNLHGFEVDSRVYLLMKKLAF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 18 polymer

description	DNA-directed RNA polymerase II subunit RPB9
formula_weight	14541.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	7

MEPDGTYEPGFVGIRFCQECNNMLYPKEDKENRILLYACRNCDYQQEADNSCIYVNKITHEVDELTQIIADVSQDPTLPRTEDHPCQKCGHKEAVFFQSHSARAEDAMRLYYVCTAPHCGHRWTE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 19 polymer

description	DNA-directed RNA polymerases I, II, and III subunit RPABC5
formula_weight	7655.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	8

MIIPVRCFTCGKIVGNKWEAYLGLLQAEYTEGDALDALGLKRYCCRRMLLAHVDLIEKLLNYAPLEK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 20 polymer

description	DNA-directed RNA polymerase II subunit RPB11-a
formula_weight	13310.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	9

MNAPPAFESFLLFEGEKKITINKDTKVPNACLFTINKEDHTLGNIIKSQLLKDPQVLFAGYKVPHPLEHKIIIRVQTTPDYSPQEAFTNAITDLISELSLLEERFRVAIKDKQEGIE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 21 polymer

description	DNA-directed RNA polymerases I, II, and III subunit RPABC4
formula_weight	7018.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	a

MDTQKDVQPPKQQPMIYICGECHTENEIKSRDPIRCRECGYRIMYKKRTKRLVVFDAR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 22 polymer

description	DNA (48-MER)
formula_weight	14932.5 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	b

CCATTGAGAGCGGCACTTGTGTTCCGGAGCCAGCAGGGAGCTGGGAGC

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 23 polymer

description	DNA (45-MER)
formula_weight	13694.7 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	d

GCTCCCAGCTCCCTGCTGGCTCCGAGTGGGTTCCGCCGCTCTCAA

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 24 polymer

description	Negative elongation factor A
formula_weight	57343.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	e

MASMRESDTGLWLHNKLGATDELWAPPSIASLLTAAVIDNIRLCFHGLSSAVKLKLLLGTLHLPRRTVDEMKGALMEIIQLASLDSDPWVLMVADILKSFPDTGSLNLELEEQNPNVQDILGELREKVGECEASAMLPLECQYLNKNALTTLAGPLTPPVKHFQLKRKPKSATLRAELLQKSTETAQQLKRSAGVPFHAKGRGLLRKMDTTTPLKGIPKQAPFRSPTAPSVFSPTGNRTPIPPSRTLLRKERGVKLLDISELDMVGAGREAKRRRKTLDAEVVEKPAKEETVVENATPDYAAGLVSTQKLGSLNNEPALPSTSYLPSTPSVVPASSYIPSSETPPAPSSREASRPPEEPSAPSPTLPAQFKQRAPMYNSGLSPATPTPAAPTSPLTPTTPPAVAPTTQTPPVAMVAPQTQAPAQQQPKKNLSLTREQMFAAQEMFKTANKVTRPEKALILGFMAGSRENPCQEQGDVIQIKLSEHTEDLPKADGQGSTTMLVDTVFEMNYATGQWTRFKKYKPMTNVS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 25 polymer

description	Negative elongation factor B
formula_weight	65779.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	f

MFAGLQDLGVANGEDLKETLTNCTEPLKAIEQFQTENGVLLPSLQSALPFLDLHGTPRLEFHQSVFDELRDKLLERVSAIASEGKAEERYKKLEDLLEKSFSLVKMPSLQPVVMCVMKHLPKVPEKKLKLVMADKELYRACAVEVKRQIWQDNQALFGDEVSPLLKQYILEKESALFSTELSVLHNFFSPSPKTRRQGEVVQRLTRMVGKNVKLYDMVLQFLRTLFLRTRNVHYCTLRAELLMSLHDLDVGEICTVDPCHKFTWCLDACIRERFVDSKRARELQGFLDGVKKGQEQVLGDLSMILCDPFAINTLALSTVRHLQELVGQETLPRDSPDLLLLLRLLALGQGAWDMIDSQVFKEPKMEVELITRFLPMLMSFLVDDYTFNVDQKLPAEEKAPVSYPNTLPESFTKFLQEQRMACEVGLYYVLHITKQRNKNALLRLLPGLVETFGDLAFGDIFLHLLTGNLALLADEFALEDFCSSLFDGFFLTASPRKENVHRHALRLLIHLHPRVAPSKLEALQKALEPTGQSGEAVKELYSQLGEKLEQLDHRKPSPAQAAETPALELPLPSVPAPAPL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 26 polymer

description	Negative elongation factor C/D
formula_weight	66315.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	g

MAGAVPGAIMDEDYYGSAAEWGDEADGGQQEDDSGEGEDDAEVQQECLHKFSTRDYIMEPSIFNTLKRYFQAGGSPENVIQLLSENYTAVAQTVNLLAEWLIQTGVEPVQVQETVENHLKSLLIKHFDPRKADSIFTEEGETPAWLEQMIAHTTWRDLFYKLAEAHPDCLMLNFTVKLISDAGYQGEITSVSTACQQLEVFSRVLRTSLATILDGGEENLEKNLPEFAKMVCHGEHTYLFAQAMMSVLAQEEQGGSAVRRIAQEVQRFAQEKGHDASQITLALGTAASYPRACQALGAMLSKGALNPADITVLFKMFTSMDPPPVELIRVPAFLDLFMQSLFKPGARINQDHKHKYIHILAYAASVVETWKKNKRVSINKDELKSTSKAVETVHNLCCNENKGASELVAELSTLYQCIRFPVVAMGVLKWVDWTVSEPRYFQLQTDHTPVHLALLDEISTCHQLLHPQVLQLLVKLFETEHSQLDVMEQLELKKTLLDRMVHLLSRGYVLPVVSYIRKCLEKLDTDISLIRYFVTEVLDVIAPPYTSDFVQLFLPILENDSIAGTIKTEGEHDPVTEFIAHCKSNFIMVN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 27 polymer

description	Negative elongation factor E
formula_weight	1890.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	h

XXXXXXXXXXXXXXXXXXXXXX

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 28 polymer

description	Transcription elongation factor SPT4
formula_weight	13210.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	i

MALETVPKDLRHLRACLLCSLVKTIDQFEYDGCDNCDAYLQMKGNREMVYDCTSSSFDGIIAMMSPEDSWVSKWQRVSNFKPGVYAVSVTGRLPQGIVRELKSRGVAYKSRDTAIKT

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 29 polymer

description	Transcription elongation factor SPT5
formula_weight	121145.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	j

MSDSEDSNFSEEEDSERSSDGEEAEVDEERRSAAGSEKEEEPEDEEEEEEEEEYDEEEEEEDDDRPPKKPRHGGFILDEADVDDEYEDEDQWEDGAEDILEKEEIEASNIDNVVLDEDRSGARRLQNLWRDQREEELGEYYMKKYAKSSVGETVYGGSDELSDDITQQQLLPGVKDPNLWTVKCKIGEERATAISLMRKFIAYQFTDTPLQIKSVVAPEHVKGYIYVEAYKQTHVKQAIEGVGNLRLGYWNQQMVPIKEMTDVLKVVKEVANLKPKSWVRLKRGIYKDDIAQVDYVEPSQNTISLKMIPRIDYDRIKARMSLKDWFAKRKKFKRPPQRLFDAEKIRSLGGDVASDGDFLIFEGNRYSRKGFLFKSFAMSAVITEGVKPTLSELEKFEDQPEGIDLEVVTESTGKEREHNFQPGDNVEVCEGELINLQGKILSVDGNKITIMPKHEDLKDMLEFPAQELRKYFKMGDHVKVIAGRFEGDTGLIVRVEENFVILFSDLTMHELKVLPRDLQLCSETASGVDVGGQHEWGELVQLDPQTVGVIVRLERETFQVLNMYGKVVTVRHQAVTRKKDNRFAVALDSEQNNIHVKDIVKVIDGPHSGREGEIRHLFRSFAFLHCKKLVENGGMFVCKTRHLVLAGGSKPRDVTNFTVGGFAPMSPRISSPMHPSAGGQRGGFGSPGGGSGGMSRGRGRRDNELIGQTVRISQGPYKGYIGVVKDATESTARVELHSTCQTISVDRQRLTTVGSRRPGGMTSTYGRTPMYGSQTPMYGSGSRTPMYGSQTPLQDGSRTPHYGSQTPLHDGSRTPAQSGAWDPNNPNTPSRAEEEYEYAFDDEPTPSPQAYGGTPNPQTPGYPDPSSPQVNPQYNPQTPGTPAMYNTDQFSPYAAPSPQGSYQPSPSPQSYHQVAPSPAGYQNTHSPASYHPTPSPMAYQASPSPSPVGYSPMTPGAPSPGGYNPHTPGSGIEQNSSDWVTTDIQVKVRDTYLDTQVVGQTGVIRSVTGGMCSVYLKDSEKVVSISSEHLEPITPTKNNKVKVILGEDREATGVLLSIDGEDGIVRMDLDEQLKILNLRFLGKLLEA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 30 polymer

description	DNA-directed RNA polymerase II subunit RPB7
formula_weight	19314.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	k

MFYHISLEHEILLHPRYFGPNLLNTVKQKLFTEVEGTCTGKYGFVIAVTTIDNIGAGVIQPGRGFVLYPVKYKAIVFRPFKGEVVDAVVTQVNKVGLFTEIGPMSCFISRHSIPSEMEFDPNSNPPCYKTMDEDIVIQQDDEIRLKIVGTRVDKNDIFAIGSLMDDYLGLVS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 31 polymer

description	DNA-directed RNA polymerase II subunit RPB4
formula_weight	16331.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	l

MAAGGSDPRAGDVEEDASQLIFPKEFETAETLLNSEVHMLLEHRKQQNESAEDEQELSEVFMKTLNYTARFSRFKNRETIASVRSLLLQKKLHKFELACLANLCPETAEESKALIPSLEGRFEDEELQQILDDIQTKRSFQY

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 32 polymer

description	Integrator complex subunit 1
formula_weight	244574.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MNRAKPTTVRRPSAAAKPSGHPPPGDFIALGSKGQANESKTASTLLKPAPSGLPSERKRDAAAALSSASALTGLTKRPKLSSTPPLSALGRLAEAAVAEKRAISPSIKEPSVVPIEVLPTVLLDEIEAAELEGNDDRIEGVLCGAVKQLKVTRAKPDSTLYLSLMYLAKIKPNIFATEGVIEALCSLLRRDASINFKAKGNSLVSVLACNLLMAAYEEDENWPEIFVKVYIEDSLGERIWVDSPHCKTFVDNIQTAFNTRMPPRSVLLQGEAGRVAGDLGAGSSPHPSLTEEEDSQTELLIAEEKLSPEQEGQLMPRYEELAESVEEYVLDMLRDQLNRRQPIDNVSRNLLRLLTSTCGYKEVRLLAVQKLEMWLQNPKLTRPAQDLLMSVCMNCNTHGSEDMDVISHLIKIRLKPKVLLNHFMLCIRELLSAHKDNLGTTIKLVIFNELSSARNPNNMQVLYTALQHSSELAPKFLAMVFQDLLTNKDDYLRASRALLREIIKQTKHEINFQAFCLGLMQERKEPQYLEMEFKERFVVHITDVLAVSMMLGITAQVKEAGIAWDKGEKRNLEVLRSFQNQIAAIQRDAVWWLHTVVPSISKLAPKDYVHCLHKVLFTEQPETYYKWDNWPPESDRNFFLRLCSEVPILEDTLMRILVIGLSRELPLGPADAMELADHLVKRAAAVQADDVEVLKVGRTQLIDAVLNLCTYHHPENIQLPPGYQPPNLAISTLYWKAWPLLLVVAAFNPENIGLAAWEEYPTLKMLMEMVMTNNYSYPPCTLTDEETRTEMLNRELQTAQREKQEILAFEGHLAAASTKQTITESSSLLLSQLTSLDPQGPPRRPPPHILDQVKSLNQSLRLGHLLCRSRNPDFLLHIIQRQASSQSMPWLADLVQSSEGSLDVLPVQCLCEFLLHDAVDDAASGEEDDEGESKEQKAKKRQRQQKQRQLLGRLQDLLLGPKADEQTTCEVLDYFLRRLGSSQVASRVLAMKGLSLVLSEGSLRDGEEKEPPMEEDVGDTDVLQGYQWLLRDLPRLPLFDSVRSTTALALQQAIHMETDPQTISAYLIYLSQHTPVEEQAQHSDLALDVARLVVERSTIMSHLFSKLSPSAASDAVLSALLSIFSRYVRRMRQSKEGEEVYSWSESQDQVFLRWSSGETATMHILVVHAMVILLTLGPPRADDSEFQALLDIWFPEEKPLPTAFLVDTSEEALLLPDWLKLRMIRSEVLRLVDAALQDLEPQQLLLFVQSFGIPVSSMSKLLQFLDQAVAHDPQTLEQNIMDKNYMAHLVEVQHERGASGGQTFHSLLTASLPPRRDSTEAPKPKSSPEQPIGQGRIRVGTQLRVLGPEDDLAGMFLQIFPLSPDPRWQSSSPRPVALALQQALGQELARVVQGSPEVPGITVRVLQALATLLSSPHGGALVMSMHRSHFLACPLLRQLCQYQRCVPQDTGFSSLFLKVLLQMLQWLDSPGVEGGPLRAQLRMLASQASAGRRLSDVRGGLLRLAEALAFRQDLEVVSSTVRAVIATLRSGEQCSVEPDLISKVLQGLIEVRSPHLEELLTAFFSATADAASPFPACKPVVVVSSLLLQEEEPLAGGKPGADGGSLEAVRLGPSSGLLVDWLEMLDPEVVSSCPDLQLRLLFSRRKGKGQAQVPSFRPYLLTLFTHQSSWPTLHQCIRVLLGKSREQRFDPSASLDFLWACIHVPRIWQGRDQRTPQKRREELVLRVQGPELISLVELILAEAETRSQDGDTAACSLIQARLPLLLSCCCGDDESVRKVTEHLSGCIQQWGDSVLGRRCRDLLLQLYLQRPELRVPVPEVLLHSEGAASSSVCKLDGLIHRFITLLADTSDSRALENRGADASMACRKLAVAHPLLLLRHLPMIAALLHGRTHLNFQEFRQQNHLSCFLHVLGLLELLQPHVFRSEHQGALWDCLLSFIRLLLNYRKSSRHLAAFINKFVQFIHKYITYNAPAAISFLQKHADPLHDLSFDNSDLVMLKSLLAGLSLPSRDDRTDRGLDEEGEEESSAGSLPLVSVSLFTPLTAAEMAPYMKRLSRGQTVEDLLEVLSDIDEMSRRRPEILSFFSTNLQRLMSSAEECCRNLAFSLALRSMQNSPSIAAAFLPTFMYCLGSQDFEVVQTALRNLPEYALLCQEHAAVLLHRAFLVGMYGQMDPSAQISEALRILHMEAVM

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 33 polymer

description	Integrator complex subunit 5
formula_weight	108115.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MSALCDPPGAPGPPGPAPATHGPAPLSAQELSQEIKAFLTGVDPILGHQLSAREHARCGLLLLRSLPPARAAVLDHLRGVFDESVRAHLAALDETPVAGPPHLRPPPPSHVPAGGPGLEDVVQEVQQVLSEFIRANPKAWAPVISAWSIDLMGQLSSTYSGQHQRVPHATGALNELLQLWMGCRATRTLMDIYVQCLSALIGSCPDACVDALLDTSVQHSPHFDWVVAHIGSSFPGTIISRVLSCGLKDFCVHGGAGGGAGSSGGSSSQTPSTDPFPGSPAIPAEKRVPKIASVVGILGHLASRHGDSIRRELLRMFHDSLAGGSGGRSGDPSLQATVPFLLQLAVMSPALLGTVSGELVDCLKPPAVLSQLQQHLQGFPREELDNMLNLAVHLVSQASGAGAYRLLQFLVDTAMPASVITTQGLAVPDTVREACDRLIQLLLLHLQKLVHHRGGSPGEGVLGPPPPPRLVPFLDALKNHVGELCGETLRLERKRFLWQHQLLGLLSVYTRPSCGPEALGHLLSRARSPEELSLATQLYAGLVVSLSGLLPLAFRSCLARVHAGTLQPPFTARFLRNLALLVGWEQQGGEGPAALGAHFGESASAHLSDLAPLLLHPEEEVAEAAASLLAICPFPSEALSPSQLLGLVRAGVHRFFASLRLHGPPGVASACQLLTRLSQTSPAGLKAVLQLLVEGALHRGNTELFGGQVDGDNETLSVVSASLASASLLDTNRRHTAAVPGPGGIWSVFHAGVIGRGLKPPKFVQSRNQQEVIYNTQSLLSLLVHCCSAPGGTECGECWGAPILSPEAAKAVAVTLVESVCPDAAGAELAWPPEEHARATVERDLRIGRRFREQPLLFELLKLVAAAPPALCYCSVLLRGLLAALLGHWEASRHPDTTHSPWHLEASCTLVAVMAEGSLLPPALGNMHEVFSQLAPFEVRLLLLSVWGFLREHGPLPQKFIFQSERGRFIRDFSREGGGEGGPHLAVLHSVLHRNIDRLGLFSGRFQAPSPSTLLRQGT

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 34 polymer

description	Integrator complex subunit 6
formula_weight	100527.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MPILLFLIDTSASMNQRSHLGTTYLDTAKGAVETFMKLRARDPASRGDRYMLVTFEEPPYAIKAGWKENHATFMNELKNLQAEGLTTLGQSLRTAFDLLNLNRLVTGIDNYGQGRNPFFLEPAIIITITDGSKLTTTSGVQDELHLPLNSPLPGSELTKEPFRWDQRLFALVLRLPGTMSVESEQLTGVPLDDSAITPMCEVTGGRSYSVCSPRMLNQCLESLVQKVQSGVVINFEKAGPDPSPVEDGQPDISRPFGSQPWHSCHKLIYVRPNPKTGVPIGHWPVPESFWPDQNSPTLPPRTSHPVVKFSCTDCEPMVIDKLPFDKYELEPSPLTQFILERKSPQTCWQVYVSNSAKYSELGHPFGYLKASTALNCVNLFVMPYNYPVLLPLLDDLFKVHKAKPTLKWRQSFESYLKTMPPYYLGPLKKAVRMMGAPNLIADSMEYGLSYSVISYLKKLSQQAKIESDRVIGSVGKKVVQETGIKVRSRSHGLSMAYRKDFQQLLQGISEDVPHRLLDLNMKEYTGFQVALLNKDLKPQTFRNAYDIPRRNLLDHLTRMRSNLLKSTRRFLKGQDEDQVHSVPIAQMGNYQEYLKQVPSPLRELDPDQPRRLHTFGNPFKLDKKGMMIDEADEFVAGPQNKHKRPGEPNMQGIPKRRRCMSPLLRGRQQNPVVNNHIGGKGPPAPTTQAQPDLIKPLPLHKISETTNDSIIHDVVENHVADQLSSDITPNAMDTEFSASSPASLLERPTNHMEALGHDHLGTNDLTVGGFLENHEEPRDKEQCAEENIPASSLNKGKKLMHCRSHEEVNTELKAQIMKEIRKPGRKYERIFTLLKHVQGSLQTRLIFLQNVIKEASRFKKRMLIEQLENFLDEIHRRANQINHINSN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 35 polymer

description	Integrator complex subunit 8
formula_weight	113219.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

MSAEAADREAATSSRPCTPPQTCWFEFLLEESLLEKHLRKPCPDPAPVQLIVQFLEQASKPSVNEQNQVQPPPDNKRNRILKLLALKVAAHLKWDLDILEKSLSVPVLNMLLNELLCISKVPPGTKHVDMDLATLPPTTAMAVLLYNRWAIRTIVQSSFPVKQAKPGPPQLSVMNQMQQEKELTENILKVLKEQAADSILVLEAALKLNKDLYVHTMRTLDLLAMEPGMVNGETESSTAGLKVKTEEMQCQVCYDLGAAYFQQGSTNSAVYENAREKFFRTKELIAEIGSLSLHCTIDEKRLAGYCQACDVLVPSSDSTSQQLTPYSQVHICLRSGNYQEVIQIFIEDNLTLSLPVQFRQSVLRELFKKAQQGNEALDEICFKVCACNTVRDILEGRTISVQFNQLFLRPNKEKIDFLLEVCSRSVNLEKASESLKGNMAAFLKNVCLGLEDLQYVFMISSHELFITLLKDEERKLLVDQMRKRSPRVNLCIKPVTSFYDIPASASVNIGQLEHQLILSVDPWRIRQILIELHGMTSERQFWTVSNKWEVPSVYSGVILGIKDNLTRDLVYILMAKGLHCSTVKDFSHAKQLFAACLELVTEFSPKLRQVMLNEMLLLDIHTHEAGTGQAGERPPSDLISRVRGYLEMRLPDIPLRQVIAEECVAFMLNWRENEYLTLQVPAFLLQSNPYVKLGQLLAATCKELPGPKESRRTAKDLWEVVVQICSVSSQHKRGNDGRVSLIKQRESTLGIMYRSELLSFIKKLREPLVLTIILSLFVKLHNVREDIVNDITAEHISIWPSSIPNLQSVDFEAVAITVKELVRYTLSINPNNHSWLIIQADIYFATNQYSAALHYYLQAGAVCSDFFNKAVPPDVYTDQVIKRMIKCCSLLNCHTQVAILCQFLREIDYKTAFKSLQEQNSHDAMDSYYDYIWDVTILEYLTYLHHKRGETDKRQIAIKAIGQTELNASNPEEVLQLAAQRRKKKFLQAMAKLYF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 36 polymer

description	Unknown2
formula_weight	1464.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M

XXXXXXXXXXXXXXXXX

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 37 polymer

description	SER-PRO-THR-SER
formula_weight	390.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	p

SPTS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 38 polymer

description	SER-PRO-LYS-TYR-SER-PRO-THR-SER
formula_weight	866.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	o

SPKYSPTS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 39 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	10

Entity 40 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	2

Entity 41 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	4.60 Å
resolution_method	—
num_particles	26882

fit	/app/data/saxs_computation/vd/9vd9/9vd9.fit
pddf	/app/data/pr_computation/vd/9vd9/9vd9.pr.out
profile	/app/data/saxs_computation/vd/9vd9/9vd9.dat

Cryo-EM structure of the human DSS1-INTAC-PEC complex

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

EM 3D

5. Entities & Polymer Info (41)

Entity 1 polymer

Polymer

Source

Entity 2 polymer

Polymer

Source

Entity 3 polymer

Polymer

Source

Entity 4 polymer

Polymer

Source

Entity 5 polymer

Polymer

Source

Entity 6 polymer

Polymer

Source

Entity 7 polymer

Polymer

Source

Entity 8 polymer

Polymer

Source

Entity 9 polymer

Polymer

Source

Entity 10 polymer

Polymer

Source

Entity 11 polymer

Polymer

Source

Entity 12 polymer

Polymer

Source

Entity 13 polymer

Polymer

Source

Entity 14 polymer

Polymer

Source

Entity 15 polymer

Polymer

Source

Entity 16 polymer

Polymer

Source

Entity 17 polymer

Polymer

Source

Entity 18 polymer

Polymer

Source

Entity 19 polymer

Polymer

Source

Entity 20 polymer

Polymer

Source

Entity 21 polymer

Polymer

Source

Entity 22 polymer

Polymer

Source

Entity 23 polymer

Polymer
