1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrator complex subunit 15

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–449	Not recorded	Integrator complex subunit 10 × 1 （Q9NVR2） Integrator complex subunit 8 × 1 （Q75QN2） Integrator complex subunit 5 × 1 （Q6P9B9）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EOF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain o 1–449（449 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain o 1–449（449 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain o 1–449（449 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–391（391 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9EP4 Structure of Integrator subcomplex INTS5/8/15 Deposited 2024-03-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–449（449 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–449（449 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA7 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 3) Deposited 2024-05-10	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–449（449 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT15_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–449； UniProt 1–449

Integrator complex subunit 10

Homo sapiens

UniProt Q9NVR2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 1–710	Not recorded	Integrator complex subunit 15 × 1 （Q96N11） Integrator complex subunit 8 × 1 （Q75QN2） Integrator complex subunit 5 × 1 （Q6P9B9）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EOF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain j 1–710（710 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain j 1–710（710 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain j 1–710（710 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EOC Structure of the Integrator arm module containing INTS10/13/14 subunits Deposited 2024-03-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–710（710 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–710（710 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–710（710 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA7 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 3) Deposited 2024-05-10	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–710（710 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT10_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–710； UniProt 1–710

Integrator complex subunit 8

Homo sapiens

UniProt Q75QN2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain F； UniProt 1–995	Not recorded	Integrator complex subunit 15 × 1 （Q96N11） Integrator complex subunit 10 × 1 （Q9NVR2） Integrator complex subunit 5 × 1 （Q6P9B9）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EOF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7CUN The structure of human Integrator-PP2A complex Deposited 2020-08-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 1–995（995 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7PKS Structural basis of Integrator-mediated transcription regulation Deposited 2021-08-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 31-meric	Chain h 1–995（995 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 10 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7YCX The structure of INTAC-PEC complex Deposited 2022-07-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain H 1–995（995 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain h 1–995（995 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain h 1–995（995 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain h 1–995（995 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8YJB Cryo-EM structure of the human DSS1-INTAC complex Deposited 2024-03-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 1–995（995 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9EP4 Structure of Integrator subcomplex INTS5/8/15 Deposited 2024-03-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–995（995 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9VD9 Cryo-EM structure of the human DSS1-INTAC-PEC complex Deposited 2025-06-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 38-meric	Chain H 1–995（995 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT8_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–995； UniProt 1–995

Integrator complex subunit 5

Homo sapiens

UniProt Q6P9B9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain G； UniProt 1–1019	Not recorded	Integrator complex subunit 15 × 1 （Q96N11） Integrator complex subunit 10 × 1 （Q9NVR2） Integrator complex subunit 8 × 1 （Q75QN2）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EOF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7CUN The structure of human Integrator-PP2A complex Deposited 2020-08-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain E 1–1019（1019 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7PKS Structural basis of Integrator-mediated transcription regulation Deposited 2021-08-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 31-meric	Chain e 1–1019（1019 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 10 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7YCX The structure of INTAC-PEC complex Deposited 2022-07-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain E 1–1019（1019 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain e 1–1019（1019 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain e 1–1019（1019 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain e 1–1019（1019 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8YJB Cryo-EM structure of the human DSS1-INTAC complex Deposited 2024-03-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain E 1–1019（1019 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9EP4 Structure of Integrator subcomplex INTS5/8/15 Deposited 2024-03-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–1019（1019 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9VD9 Cryo-EM structure of the human DSS1-INTAC-PEC complex Deposited 2025-06-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 38-meric	Chain E 1–1019（1019 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT5_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–1019； UniProt 1–1019

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9eof
Deposition date deposition_date	2024-03-14
Structure title title	Structure of the human INTS5/8/10/15 subcomplex
Keywords keywords	Integrator complex, RNA polymerase II transcription termination, transcription factors, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	87.35 Å
Radius of gyration Rg (electron density) rg_electron	89.17 Å
Forward intensity I(0) i0	1048870000.00
Molecular weight molecular_weight	278130.0 kDa
Excluded volume excluded_volume	349710 Å³
Envelope volume envelope_volume	686240 Å³
Hydration-shell volume shell_volume	70967 Å³
Envelope diameter envelope_diameter	306.5 Å
Shell Rg shell_rg	70.93 Å
Envelope Rg envelope_rg	87.36 Å
Shape Rg shape_rg	89.21 Å
Total Rg total_rg	88.75 Å
Total atoms total_atoms	19577
Residues n_residues	2613
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

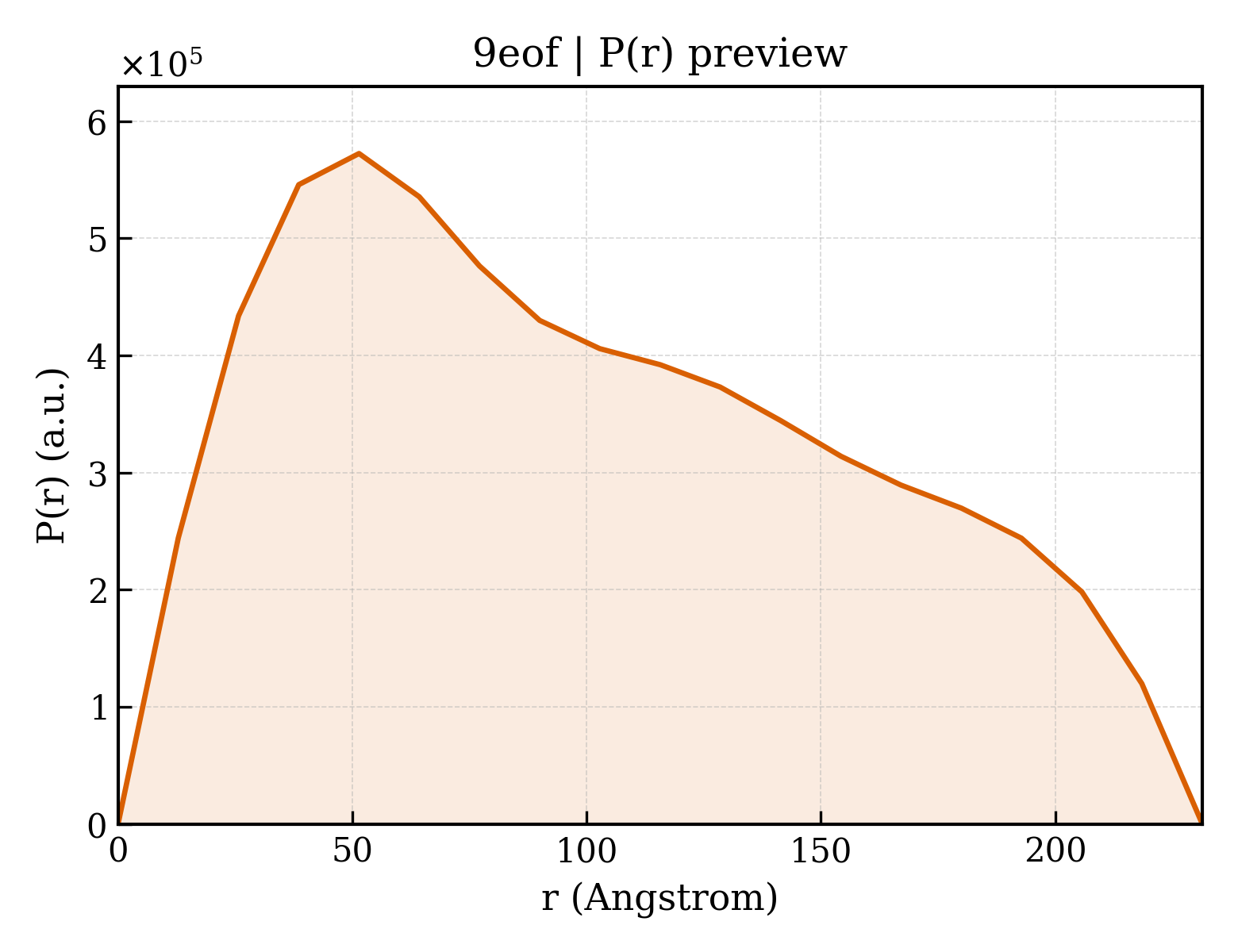

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	231.4 Å
Rg (real space) rg_real	81.01 Å
Rg uncertainty (real space) rg_real_error	1.09 Å
I(0) (real space) i0_real	9.9960e+08
I(0) uncertainty (real space) i0_real_error	2.0880e+07
Rg (reciprocal space) rg_reciprocal	80.68 Å
I(0) (reciprocal space) i0_reciprocal	1029000000.0000
Solution quality estimate total_estimate	0.8430
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	51.4 Å
Skewness Skewness skewness	0.352
Kurtosis Kurtosis kurtosis	-0.951
Angular range angular_range	— – 0.0900 Å⁻¹
Current regularization parameter α current_alpha	0.7294
Highest regularization parameter α highest_alpha	24130000.0000
Real-space data points n_real_points	19
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.822; Stabil: 0.954; Sysdev: 1.000; Positv: 1.000; Valcen: 0.634; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Integrator complex subunit 15
Molecular weight formula_weight	50102.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	19577

MSDIRHSLLRRDALSAAKEVLYHLDIYFSSQLQSAPLPIVDKGPVELLEEFVFQVPKERSAQPKRLNSLQELQLLEIMCNYFQEQTKDSVRQIIFSSLFSPQGNKADDSRMSLLGKLVSMAVAVCRIPVLECAASWLQRTPVVYCVRLAKALVDDYCCLVPGSIQTLKQIFSASPRFCCQFITSVTALYDLSSDDLIPPMDLLEMIVTWIFEDPRLILITFLNTPIAANLPIGFLELTPLVGLIRWCVKAPLAYKRKKKPPLSNGHVSNKVTKDPGVGMDRDSHLLYSKLHLSVLQVLMTLQLHLTEKNLYGRLGLILFDHMVPLVEEINRLADELNPLNASQEIELSLDRLAQALQVAMASGALLCTRDDLRTLCSRLPHNNLLQLVISGPVQQSPHAALPPGFYPHIHTPPLGYGAVPAHPAAHPALPTHPGHTFISGVTFPFRPIR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Integrator complex subunit 10
Molecular weight formula_weight	82339.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSAQGDCEFLVQRARELVPQDLWAAKAWLITARSLYPADFNIQYEMYTIERNAERTATAGRLLYDMFVNFPDQPVVWREISIITSALRNDSQDKQTQFLRSLFETLPGRVQCEMLLKVTEQCFNTLERSEMLLLLLRRFPETVVQHGVGLGEALLEAETIEEQESPVNCFRKLFVCDVLPLIINNHDVRLPANLLYKYLNKAAEFYINYVTRSTQIENQHQGAQDTSDLMSPSKRSSQKYIIEGLTEKSSQIVDPWERLFKILNVVGMRCEWQMDKGRRSYGDILHRMKDLCRYMNNFDSEAHAKYKNQVVYSTMLVFFKNAFQYVNSIQPSLFQGPNAPSQVPLVLLEDVSNVYGDVEIDRNKHIHKKRKLAEGREKTMSSDDEDCSAKGRNRHIVVNKAELANSTEVLESFKLARESWELLYSLEFLDKEFTRICLAWKTDTWLWLRIFLTDMIIYQGQYKKAIASLHHLAALQGSISQPQITGQGTLEHQRALIQLATCHFALGEYRMTCEKVLDLMCYMVLPIQDGGKSQEEPSKVKPKFRKGSDLKLLPCTSKAIMPYCLHLMLACFKLRAFTDNRDDMALGHVIVLLQQEWPRGENLFLKAVNKICQQGNFQYENFFNYVTNIDMLEEFAYLRTQEGGKIHLELLPNQGMLIKHHTVTRGITKGVKEDFRLAMERQVSRCGENLMVVLHRFCINEKILLLQTLT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Integrator complex subunit 8
Molecular weight formula_weight	113219.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MSAEAADREAATSSRPCTPPQTCWFEFLLEESLLEKHLRKPCPDPAPVQLIVQFLEQASKPSVNEQNQVQPPPDNKRNRILKLLALKVAAHLKWDLDILEKSLSVPVLNMLLNELLCISKVPPGTKHVDMDLATLPPTTAMAVLLYNRWAIRTIVQSSFPVKQAKPGPPQLSVMNQMQQEKELTENILKVLKEQAADSILVLEAALKLNKDLYVHTMRTLDLLAMEPGMVNGETESSTAGLKVKTEEMQCQVCYDLGAAYFQQGSTNSAVYENAREKFFRTKELIAEIGSLSLHCTIDEKRLAGYCQACDVLVPSSDSTSQQLTPYSQVHICLRSGNYQEVIQIFIEDNLTLSLPVQFRQSVLRELFKKAQQGNEALDEICFKVCACNTVRDILEGRTISVQFNQLFLRPNKEKIDFLLEVCSRSVNLEKASESLKGNMAAFLKNVCLGLEDLQYVFMISSHELFITLLKDEERKLLVDQMRKRSPRVNLCIKPVTSFYDIPASASVNIGQLEHQLILSVDPWRIRQILIELHGMTSERQFWTVSNKWEVPSVYSGVILGIKDNLTRDLVYILMAKGLHCSTVKDFSHAKQLFAACLELVTEFSPKLRQVMLNEMLLLDIHTHEAGTGQAGERPPSDLISRVRGYLEMRLPDIPLRQVIAEECVAFMLNWRENEYLTLQVPAFLLQSNPYVKLGQLLAATCKELPGPKESRRTAKDLWEVVVQICSVSSQHKRGNDGRVSLIKQRESTLGIMYRSELLSFIKKLREPLVLTIILSLFVKLHNVREDIVNDITAEHISIWPSSIPNLQSVDFEAVAITVKELVRYTLSINPNNHSWLIIQADIYFATNQYSAALHYYLQAGAVCSDFFNKAVPPDVYTDQVIKRMIKCCSLLNCHTQVAILCQFLREIDYKTAFKSLQEQNSHDAMDSYYDYIWDVTILEYLTYLHHKRGETDKRQIAIKAIGQTELNASNPEEVLQLAAQRRKKKFLQAMAKLYF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Integrator complex subunit 5
Molecular weight formula_weight	108115.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MSALCDPPGAPGPPGPAPATHGPAPLSAQELSQEIKAFLTGVDPILGHQLSAREHARCGLLLLRSLPPARAAVLDHLRGVFDESVRAHLAALDETPVAGPPHLRPPPPSHVPAGGPGLEDVVQEVQQVLSEFIRANPKAWAPVISAWSIDLMGQLSSTYSGQHQRVPHATGALNELLQLWMGCRATRTLMDIYVQCLSALIGSCPDACVDALLDTSVQHSPHFDWVVAHIGSSFPGTIISRVLSCGLKDFCVHGGAGGGAGSSGGSSSQTPSTDPFPGSPAIPAEKRVPKIASVVGILGHLASRHGDSIRRELLRMFHDSLAGGSGGRSGDPSLQATVPFLLQLAVMSPALLGTVSGELVDCLKPPAVLSQLQQHLQGFPREELDNMLNLAVHLVSQASGAGAYRLLQFLVDTAMPASVITTQGLAVPDTVREACDRLIQLLLLHLQKLVHHRGGSPGEGVLGPPPPPRLVPFLDALKNHVGELCGETLRLERKRFLWQHQLLGLLSVYTRPSCGPEALGHLLSRARSPEELSLATQLYAGLVVSLSGLLPLAFRSCLARVHAGTLQPPFTARFLRNLALLVGWEQQGGEGPAALGAHFGESASAHLSDLAPLLLHPEEEVAEAAASLLAICPFPSEALSPSQLLGLVRAGVHRFFASLRLHGPPGVASACQLLTRLSQTSPAGLKAVLQLLVEGALHRGNTELFGGQVDGDNETLSVVSASLASASLLDTNRRHTAAVPGPGGIWSVFHAGVIGRGLKPPKFVQSRNQQEVIYNTQSLLSLLVHCCSAPGGTECGECWGAPILSPEAAKAVAVTLVESVCPDAAGAELAWPPEEHARATVERDLRIGRRFREQPLLFELLKLVAAAPPALCYCSVLLRGLLAALLGHWEASRHPDTTHSPWHLEASCTLVAVMAEGSLLPPALGNMHEVFSQLAPFEVRLLLLSVWGFLREHGPLPQKFIFQSERGRFIRDFSREGGGEGGPHLAVLHSVLHRNIDRLGLFSGRFQAPSPSTLLRQGT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	7.70 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	65387

fit	/app/data/saxs_computation/eo/9eof/9eof.fit
pddf	/app/data/pr_computation/eo/9eof/9eof.pr.out
profile	/app/data/saxs_computation/eo/9eof/9eof.dat
