1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrator complex subunit 15

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–449	Not recorded	Integrator complex subunit 10 × 1 （Q9NVR2） Integrator complex subunit 13 × 1 （Q9NVM9） Integrator complex subunit 14 × 1 （Q96SY0）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9FA7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain o 1–449（449 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain o 1–449（449 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain o 1–449（449 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EOF Structure of the human INTS5/8/10/15 subcomplex Deposited 2024-03-14	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–449（449 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.70 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Different construct	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–391（391 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9EP4 Structure of Integrator subcomplex INTS5/8/15 Deposited 2024-03-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–449（449 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–449（449 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT15_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–449； UniProt 1–449

Integrator complex subunit 10

Homo sapiens

UniProt Q9NVR2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 1–710	Not recorded	Integrator complex subunit 15 × 1 （Q96N11） Integrator complex subunit 13 × 1 （Q9NVM9） Integrator complex subunit 14 × 1 （Q96SY0）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9FA7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain j 1–710（710 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain j 1–710（710 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain j 1–710（710 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EOC Structure of the Integrator arm module containing INTS10/13/14 subunits Deposited 2024-03-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–710（710 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EOF Structure of the human INTS5/8/10/15 subcomplex Deposited 2024-03-14	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–710（710 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.70 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–710（710 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–710（710 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT10_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–710； UniProt 1–710

Integrator complex subunit 13

Homo sapiens

UniProt Q9NVM9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–706	Not recorded	Integrator complex subunit 15 × 1 （Q96N11） Integrator complex subunit 10 × 1 （Q9NVR2） Integrator complex subunit 14 × 1 （Q96SY0）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9FA7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6SN1 Crystal structure of the human INTS13-INTS14 complex Deposited 2019-08-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–706（706 aa）	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；0.1 M Bis-Tris (pH 6.0), 0.75 M AmSO4 and 1% (w/v) PEG 3350	Resolution 2.54 Å R-free 0.244
8PK5 INTS13-INTS14 complex with ZNF609 Deposited 2023-06-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–706（706 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Hepes-NaOH pH 6.5 0.9 M Na-Malonate 0.25 % (v/v) Jeffamine ED-2003	Resolution 2.50 Å R-free 0.214
8PK6 INTS13 complex with ZNF655 Deposited 2023-06-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–27（27 aa） Chain A 48–256（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100 mM MES pH 6.0, 100 mM MgCl2 and 8% (w/v) polyethylene glycol 6,000	Resolution 3.21 Å R-free 0.333
8PK6 INTS13 complex with ZNF655 Deposited 2023-06-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–27（27 aa） Chain C 48–256（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100 mM MES pH 6.0, 100 mM MgCl2 and 8% (w/v) polyethylene glycol 6,000	Resolution 3.21 Å R-free 0.333
8PK6 INTS13 complex with ZNF655 Deposited 2023-06-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–27（27 aa） Chain E 48–256（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100 mM MES pH 6.0, 100 mM MgCl2 and 8% (w/v) polyethylene glycol 6,000	Resolution 3.21 Å R-free 0.333
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain m 1–706（706 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain m 1–706（706 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain m 1–706（706 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EOC Structure of the Integrator arm module containing INTS10/13/14 subunits Deposited 2024-03-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–706（706 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Different construct	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–564（564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–706（706 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT13_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–706； UniProt 1–706

Integrator complex subunit 14

Homo sapiens

UniProt Q96SY0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–518	Not recorded	Integrator complex subunit 15 × 1 （Q96N11） Integrator complex subunit 10 × 1 （Q9NVR2） Integrator complex subunit 13 × 1 （Q9NVM9）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9FA7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6SN1 Crystal structure of the human INTS13-INTS14 complex Deposited 2019-08-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–518（518 aa）	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；0.1 M Bis-Tris (pH 6.0), 0.75 M AmSO4 and 1% (w/v) PEG 3350	Resolution 2.54 Å R-free 0.244
8PK5 INTS13-INTS14 complex with ZNF609 Deposited 2023-06-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–518（518 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Hepes-NaOH pH 6.5 0.9 M Na-Malonate 0.25 % (v/v) Jeffamine ED-2003	Resolution 2.50 Å R-free 0.214
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain n 1–518（518 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain n 1–518（518 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain n 1–518（518 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EOC Structure of the Integrator arm module containing INTS10/13/14 subunits Deposited 2024-03-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–518（518 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–518（518 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–518（518 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT14_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 1–518； UniProt 1–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9fa7
Deposition date deposition_date	2024-05-10
Structure title title	Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 3)
Keywords keywords	Integrator complex assembly, RNA polymerase II transcription termination, transcription factors, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	69.57 Å
Radius of gyration Rg (electron density) rg_electron	69.98 Å
Forward intensity I(0) i0	601473000.00
Molecular weight molecular_weight	209210.0 kDa
Excluded volume excluded_volume	262910 Å³
Envelope volume envelope_volume	496280 Å³
Hydration-shell volume shell_volume	62152 Å³
Envelope diameter envelope_diameter	225.2 Å
Shell Rg shell_rg	66.66 Å
Envelope Rg envelope_rg	66.11 Å
Shape Rg shape_rg	69.97 Å
Total Rg total_rg	69.95 Å
Total atoms total_atoms	14712
Residues n_residues	1961
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

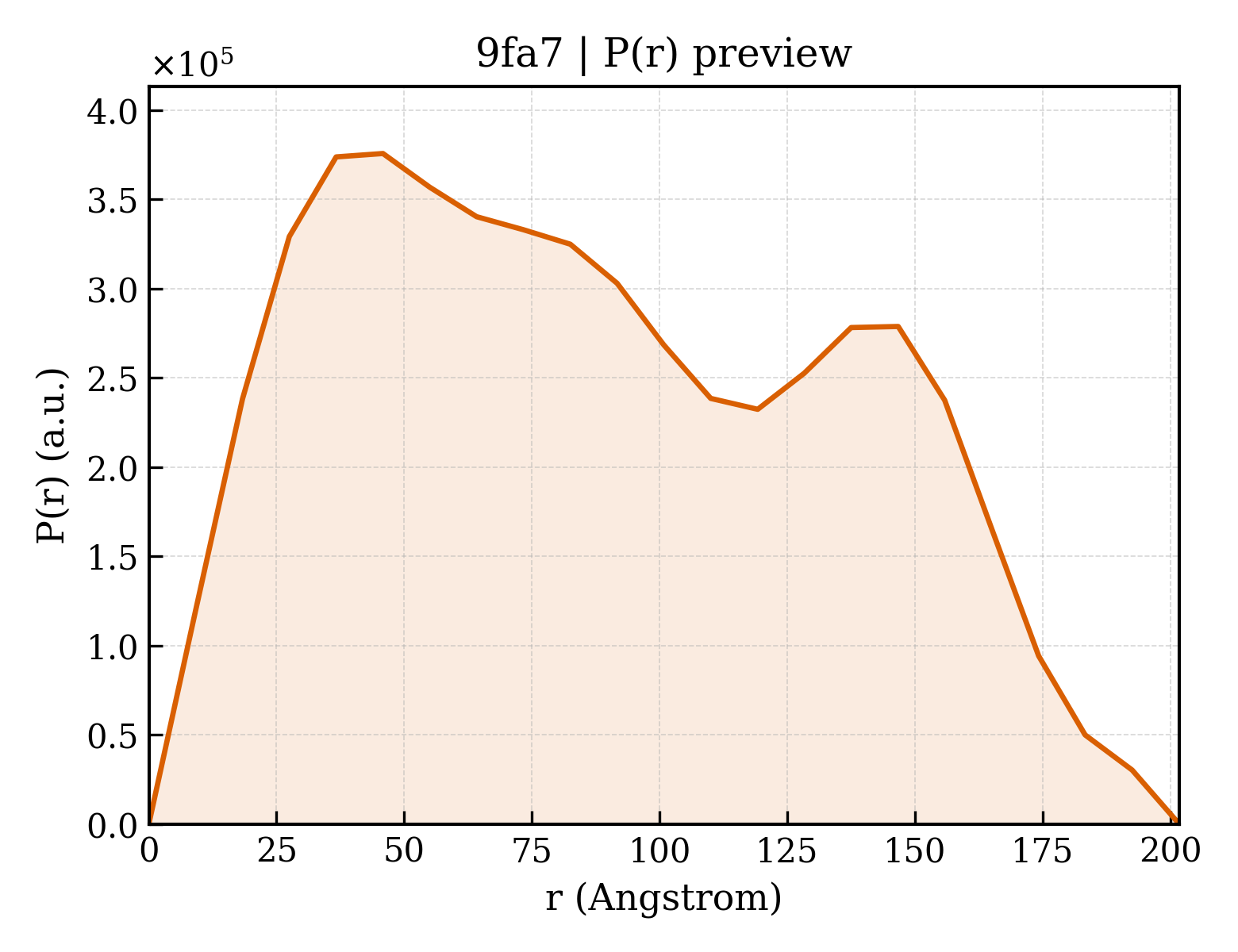

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	201.7 Å
Rg (real space) rg_real	69.83 Å
Rg uncertainty (real space) rg_real_error	1.48 Å
I(0) (real space) i0_real	6.0120e+08
I(0) uncertainty (real space) i0_real_error	1.1510e+07
Rg (reciprocal space) rg_reciprocal	68.12 Å
I(0) (reciprocal space) i0_reciprocal	599400000.0000
Solution quality estimate total_estimate	0.7615
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	45.8 Å
Skewness Skewness skewness	0.243
Kurtosis Kurtosis kurtosis	-1.032
Angular range angular_range	— – 0.1100 Å⁻¹
Current regularization parameter α current_alpha	0.0027
Highest regularization parameter α highest_alpha	13340000.0000
Real-space data points n_real_points	23
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.809; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.468; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Integrator complex subunit 15
Molecular weight formula_weight	50102.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	14712

MSDIRHSLLRRDALSAAKEVLYHLDIYFSSQLQSAPLPIVDKGPVELLEEFVFQVPKERSAQPKRLNSLQELQLLEIMCNYFQEQTKDSVRQIIFSSLFSPQGNKADDSRMSLLGKLVSMAVAVCRIPVLECAASWLQRTPVVYCVRLAKALVDDYCCLVPGSIQTLKQIFSASPRFCCQFITSVTALYDLSSDDLIPPMDLLEMIVTWIFEDPRLILITFLNTPIAANLPIGFLELTPLVGLIRWCVKAPLAYKRKKKPPLSNGHVSNKVTKDPGVGMDRDSHLLYSKLHLSVLQVLMTLQLHLTEKNLYGRLGLILFDHMVPLVEEINRLADELNPLNASQEIELSLDRLAQALQVAMASGALLCTRDDLRTLCSRLPHNNLLQLVISGPVQQSPHAALPPGFYPHIHTPPLGYGAVPAHPAAHPALPTHPGHTFISGVTFPFRPIR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Integrator complex subunit 10
Molecular weight formula_weight	82339.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSAQGDCEFLVQRARELVPQDLWAAKAWLITARSLYPADFNIQYEMYTIERNAERTATAGRLLYDMFVNFPDQPVVWREISIITSALRNDSQDKQTQFLRSLFETLPGRVQCEMLLKVTEQCFNTLERSEMLLLLLRRFPETVVQHGVGLGEALLEAETIEEQESPVNCFRKLFVCDVLPLIINNHDVRLPANLLYKYLNKAAEFYINYVTRSTQIENQHQGAQDTSDLMSPSKRSSQKYIIEGLTEKSSQIVDPWERLFKILNVVGMRCEWQMDKGRRSYGDILHRMKDLCRYMNNFDSEAHAKYKNQVVYSTMLVFFKNAFQYVNSIQPSLFQGPNAPSQVPLVLLEDVSNVYGDVEIDRNKHIHKKRKLAEGREKTMSSDDEDCSAKGRNRHIVVNKAELANSTEVLESFKLARESWELLYSLEFLDKEFTRICLAWKTDTWLWLRIFLTDMIIYQGQYKKAIASLHHLAALQGSISQPQITGQGTLEHQRALIQLATCHFALGEYRMTCEKVLDLMCYMVLPIQDGGKSQEEPSKVKPKFRKGSDLKLLPCTSKAIMPYCLHLMLACFKLRAFTDNRDDMALGHVIVLLQQEWPRGENLFLKAVNKICQQGNFQYENFFNYVTNIDMLEEFAYLRTQEGGKIHLELLPNQGMLIKHHTVTRGITKGVKEDFRLAMERQVSRCGENLMVVLHRFCINEKILLLQTLT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Integrator complex subunit 13
Molecular weight formula_weight	80345.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MKIFSESHKTVFVVDHCPYMAESCRQHVEFDMLVKNRTQGIIPLAPISKSLWTCSVESSMEYCRIMYDIFPFKKLVNFIVSDSGAHVLNSWTQEDQNLQELMAALAAVGPPNPRADPECCSILHGLVAAVETLCKITEYQHEARTLLMENAERVGNRGRIICITNAKSDSHVRMLEDCVQETIHEHNKLAANSDHLMQIQKCELVLIHTYPVGEDSLVSDRSKKELSPVLTSEVHSVRAGRHLATKLNILVQQHFDLASTTITNIPMKEEQHANTSANYDVELLHHKDAHVDFLKSGDSHLGGGSREGSFKETITLKWCTPRTNNIELHYCTGAYRISPVDVNSRPSSCLTNFLLNGRSVLLEQPRKSGSKVISHMLSSHGGEIFLHVLSSSRSILEDPPSISEGCGGRVTDYRITDFGEFMRENRLTPFLDPRYKIDGSLEVPLERAKDQLEKHTRYWPMIISQTTIFNMQAVVPLASVIVKESLTEEDVLNCQKTIYNLVDMERKNDPLPISTVGTRGKGPKRDEQYRIMWNELETLVRAHINNSEKHQRVLECLMACRSKPPEEEERKKRGRKREDKEDKSEKAVKDYEQEKSWQDSERLKGILERGKEELAEAEIIKDSPDSPEPPNKKPLVEMDETPQVEKSKGPVSLLSLWSNRINTANSRKHQEFAGRLNSVNNRAELYQHLKEENGMETTENGKASRQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Integrator complex subunit 14
Molecular weight formula_weight	57526.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MPTVVVMDVSLSMTRPVSIEGSEEYQRKHLAAHGLTMLFEHMATNYKLEFTALVVFSSLWELMVPFTRDYNTLQEALSNMDDYDKTCLESALVGVCNIVQQEWGGAIPCQVVLVTDGCLGIGRGSLRHSLATQNQRSESNRFPLPFPFPSKLYIMCMANLEELQSTDSLECLERLIDLNNGEGQIFTIDGPLCLKNVQSMFGKLIDLAYTPFHAVLKCGHLTADVQVFPRPEPFVVDEEIDPIPKVINTDLEIVGFIDIADISSPPVLSRHLVLPIALNKEGDEVGTGITDDNEDENSANQIAGKIPNFCVLLHGSLKVEGMVAIVQLGPEWHGMLYSQADSKKKSNLMMSLFEPGPEPLPWLGKMAQLGPISDAKENPYGEDDNKSPFPLQPKNKRSYAQNVTVWIKPSGLQTDVQKILRNARKLPEKTQTFYKELNRLRKAALAFGFLDLLKGVADMLERECTLLPETAHPDAAFQLTHAAQQLKLASTGTSEYAAYDQNITPLHTDFSGSSTERI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.00 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	62939

fit	/app/data/saxs_computation/fa/9fa7/9fa7.fit
pddf	/app/data/pr_computation/fa/9fa7/9fa7.pr.out
profile	/app/data/saxs_computation/fa/9fa7/9fa7.dat
