SAXSdb — 8pk5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrator complex subunit 13

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Integrator complex subunit 14,Zinc finger protein 609 × 1 （O15014,Q96SY0） MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INT13_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–718； UniProt 1–706

Integrator complex subunit 14,Zinc finger protein 609

Homo sapiens

UniProt O15014

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Integrator complex subunit 13 × 1 （Q9NVM9） MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ZN609_HUMAN
Isoform	O15014-1
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 522–538； UniProt 25–41

Integrator complex subunit 14,Zinc finger protein 609

Homo sapiens

UniProt Q96SY0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Integrator complex subunit 13 × 1 （Q9NVM9） MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INT14_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–518； UniProt 1–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8pk5
Deposition date deposition_date	2023-06-25
Structure title title	INTS13-INTS14 complex with ZNF609
Keywords keywords	Protein Complex, RNA BINDING, STRUCTURAL PROTEIN, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8pk5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8pk5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

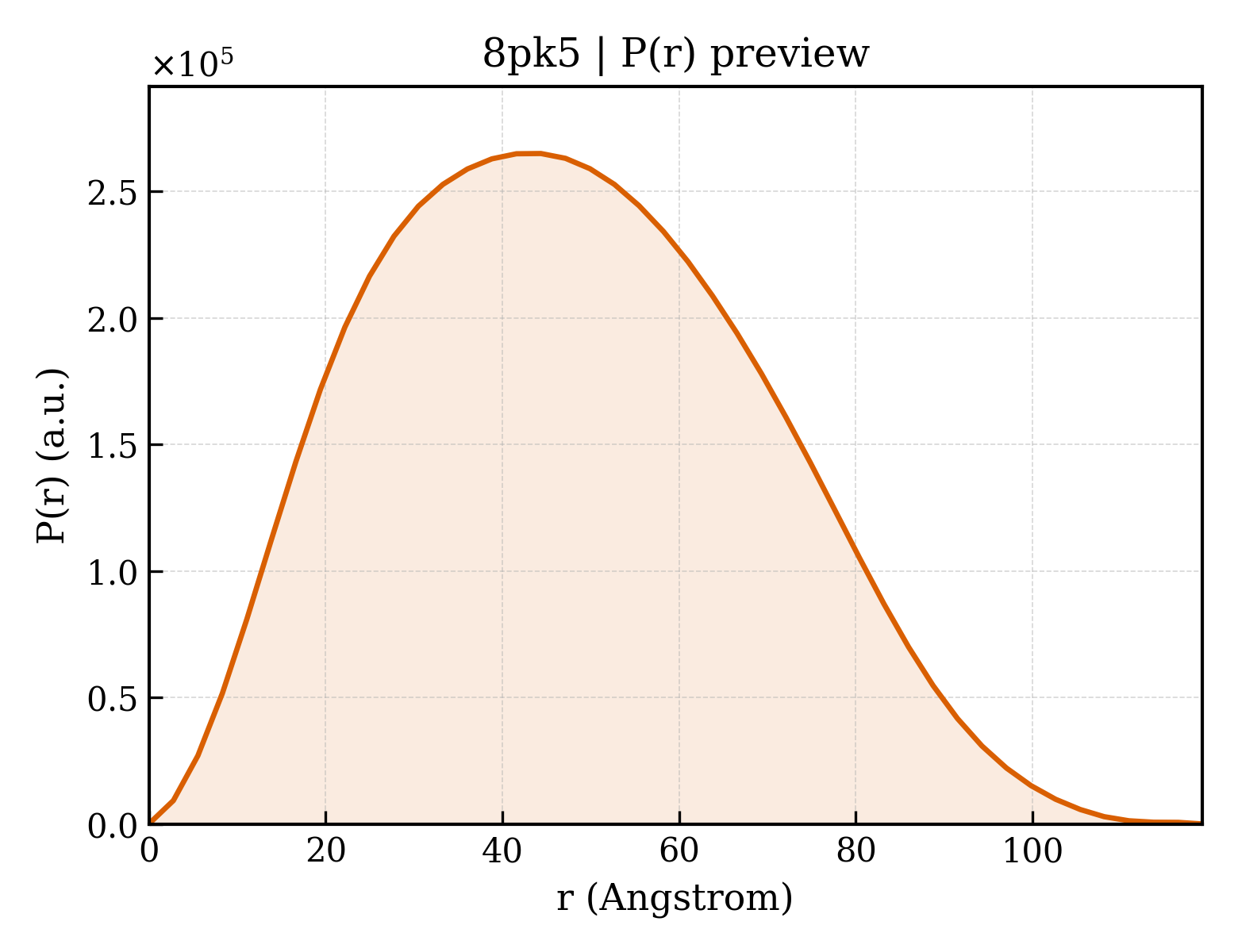

8pk5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.79 Å
Rg (electron density)	36.08 Å
Total Rg	36.53 Å
Atom count	7968
Residues	1030
Excluded volume	141970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8pk5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Integrator complex subunit 13
Molecular weight formula_weight	81586.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8017

GPSDPGPKRAEFMKIFSESHKTVFVVDHCPYMAESCRQHVEFDMLVKNRTQGIIPLAPISKSLWTCSVESSMEYCRIMYDIFPFKKLVNFIVSDSGAHVLNSWTQEDQNLQELMAALAAVGPPNPRADPECCSILHGLVAAVETLCKITEYQHEARTLLMENAERVGNRGRIICITNAKSDSHVRMLEDCVQETIHEHNKLAANSDHLMQIQKCELVLIHTYPVGEDSLVSDRSKKELSPVLTSEVHSVRAGRHLATKLNILVQQHFDLASTTITNIPMKEEQHANTSANYDVELLHHKDAHVDFLKSGDSHLGGGSREGSFKETITLKWCTPRTNNIELHYCTGAYRISPVDVNSRPSSCLTNFLLNGRSVLLEQPRKSGSKVISHMLSSHGGEIFLHVLSSSRSILEDPPSISEGCGGRVTDYRITDFGEFMRENRLTPFLDPRYKIDGSLEVPLERAKDQLEKHTRYWPMIISQTTIFNMQAVVPLASVIVKESLTEEDVLNCQKTIYNLVDMERKNDPLPISTVGTRGKGPKRDEQYRIMWNELETLVRAHINNSEKHQRVLECLMACRSKPPEEEERKKRGRKREDKEDKSEKAVKDYEQEKSWQDSERLKGILERGKEELAEAEIIKDSPDSPEPPNKKPLVEMDETPQVEKSKGPVSLLSLWSNRINTANSRKHQEFAGRLNSVNNRAELYQHLKEENGMETTENGKASRQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Integrator complex subunit 14,Zinc finger protein 609
Molecular weight formula_weight	59612.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MPTVVVMDVSLSMTRPVSIEGSEEYQRKHLAAHGLTMLFEHMATNYKLEFTALVVFSSLWELMVPFTRDYNTLQEALSNMDDYDKTCLESALVGVCNIVQQEWGGAIPCQVVLVTDGCLGIGRGSLRHSLATQNQRSESNRFPLPFPFPSKLYIMCMANLEELQSTDSLECLERLIDLNNGEGQIFTIDGPLCLKNVQSMFGKLIDLAYTPFHAVLKCGHLTADVQVFPRPEPFVVDEEIDPIPKVINTDLEIVGFIDIADISSPPVLSRHLVLPIALNKEGDEVGTGITDDNEDENSANQIAGKIPNFCVLLHGSLKVEGMVAIVQLGPEWHGMLYSQADSKKKSNLMMSLFEPGPEPLPWLGKMAQLGPISDAKENPYGEDDNKSPFPLQPKNKRSYAQNVTVWIKPSGLQTDVQKILRNARKLPEKTQTFYKELNRLRKAALAFGFLDLLKGVADMLERECTLLPETAHPDAAFQLTHAAQQLKLASTGTSEYAAYDQNITPLHTDFSGSSTERISGSDEWDIGVGNLIIDLDAD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	49

▶

Unit-cell length a length_a	189.065 Å
Unit-cell length b length_b	115.629 Å
Unit-cell length c length_c	147.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	orthorhombic

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	47.940 Å
R factor r_factor	0.1913
R_work r_work	0.1901
R_free r_free	0.2143
