SAXSdb — 6sn1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrator complex subunit 13

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–706	Not recorded	Integrator complex subunit 14 × 1 （Q96SY0） SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；0.1 M Bis-Tris (pH 6.0), 0.75 M AmSO4 and 1% (w/v) PEG 3350	Resolution 2.54 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6SN1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8PK5 INTS13-INTS14 complex with ZNF609 Deposited 2023-06-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–706（706 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Hepes-NaOH pH 6.5 0.9 M Na-Malonate 0.25 % (v/v) Jeffamine ED-2003	Resolution 2.50 Å R-free 0.214
8PK6 INTS13 complex with ZNF655 Deposited 2023-06-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–27（27 aa） Chain A 48–256（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100 mM MES pH 6.0, 100 mM MgCl2 and 8% (w/v) polyethylene glycol 6,000	Resolution 3.21 Å R-free 0.333
8PK6 INTS13 complex with ZNF655 Deposited 2023-06-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–27（27 aa） Chain C 48–256（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100 mM MES pH 6.0, 100 mM MgCl2 and 8% (w/v) polyethylene glycol 6,000	Resolution 3.21 Å R-free 0.333
8PK6 INTS13 complex with ZNF655 Deposited 2023-06-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–27（27 aa） Chain E 48–256（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100 mM MES pH 6.0, 100 mM MgCl2 and 8% (w/v) polyethylene glycol 6,000	Resolution 3.21 Å R-free 0.333
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain m 1–706（706 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain m 1–706（706 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain m 1–706（706 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EOC Structure of the Integrator arm module containing INTS10/13/14 subunits Deposited 2024-03-14	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–706（706 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–564（564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–706（706 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA7 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 3) Deposited 2024-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–706（706 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT13_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 58–763； UniProt 1–706

Integrator complex subunit 14

Homo sapiens

UniProt Q96SY0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–518	Not recorded	Integrator complex subunit 13 × 1 （Q9NVM9） SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；0.1 M Bis-Tris (pH 6.0), 0.75 M AmSO4 and 1% (w/v) PEG 3350	Resolution 2.54 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6SN1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8PK5 INTS13-INTS14 complex with ZNF609 Deposited 2023-06-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–518（518 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Hepes-NaOH pH 6.5 0.9 M Na-Malonate 0.25 % (v/v) Jeffamine ED-2003	Resolution 2.50 Å R-free 0.214
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain n 1–518（518 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain n 1–518（518 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain n 1–518（518 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EOC Structure of the Integrator arm module containing INTS10/13/14 subunits Deposited 2024-03-14	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–518（518 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EP1 Structure of the Integrator arm module containing INTS10/13/14/15 subunits (state 2) Deposited 2024-03-16	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–518（518 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA4 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 1) Deposited 2024-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–518（518 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9FA7 Structure of the Integrator arm module containing subunits INTS10/13/14/15 (state 3) Deposited 2024-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–518（518 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INT14_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–518； UniProt 1–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6sn1
Deposition date deposition_date	2019-08-23
Structure title title	Crystal structure of the human INTS13-INTS14 complex
Keywords keywords	Integrator, Interlocked chains, VWA, pseudosymmetrical heterodimer, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.93 Å
Radius of gyration Rg (electron density) rg_electron	36.27 Å
Forward intensity I(0) i0	199959000.00
Molecular weight molecular_weight	113070.0 kDa
Excluded volume excluded_volume	141070 Å³
Envelope volume envelope_volume	187700 Å³
Hydration-shell volume shell_volume	44771 Å³
Envelope diameter envelope_diameter	126.6 Å
Shell Rg shell_rg	40.97 Å
Envelope Rg envelope_rg	36.00 Å
Shape Rg shape_rg	36.24 Å
Total Rg total_rg	36.70 Å
Total atoms total_atoms	7925
Residues n_residues	1020
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	120.0 Å
Rg (real space) rg_real	36.91 Å
Rg uncertainty (real space) rg_real_error	0.85 Å
I(0) (real space) i0_real	2.0000e+08
I(0) uncertainty (real space) i0_real_error	3.1010e+06
Rg (reciprocal space) rg_reciprocal	36.92 Å
I(0) (reciprocal space) i0_reciprocal	200000000.0000
Solution quality estimate total_estimate	0.8995
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	41.9 Å
Skewness Skewness skewness	0.234
Kurtosis Kurtosis kurtosis	-0.618
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0002
Highest regularization parameter α highest_alpha	35030000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.918

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Integrator complex subunit 13
Molecular weight formula_weight	86069.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8015

MASAWSHPQFEKGGGSGGGSGGSAWSHPQFEKSSGSGSGLEVLFQGPSDPGPKRAEFMKIFSESHKTVFVVDHCPYMAESCRQHVEFDMLVKNRTQGIIPLAPISKSLWTCSVESSMEYCRIMYDIFPFKKLVNFIVSDSGAHVLNSWTQEDQNLQELMAALAAVGPPNPRADPECCSILHGLVAAVETLCKITEYQHEARTLLMENAERVGNRGRIICITNAKSDSHVRMLEDCVQETIHEHNKLAANSDHLMQIQKCELVLIHTYPVGEDSLVSDRSKKELSPVLTSEVHSVRAGRHLATKLNILVQQHFDLASTTITNIPMKEEQHANTSANYDVELLHHKDAHVDFLKSGDSHLGGGSREGSFKETITLKWCTPRTNNIELHYCTGAYRISPVDVNSRPSSCLTNFLLNGRSVLLEQPRKSGSKVISHMLSSHGGEIFLHVLSSSRSILEDPPSISEGCGGRVTDYRITDFGEFMRENRLTPFLDPRYKIDGSLEVPLERAKDQLEKHTRYWPMIISQTTIFNMQAVVPLASVIVKESLTEEDVLNCQKTIYNLVDMERKNDPLPISTVGTRGKGPKRDEQYRIMWNELETLVRAHINNSEKHQRVLECLMACRSKPPEEEERKKRGRKREDKEDKSEKAVKDYEQEKSWQDSERLKGILERGKEELAEAEIIKDSPDSPEPPNKKPLVEMDETPQVEKSKGPVSLLSLWSNRINTANSRKHQEFAGRLNSVNNRAELYQHLKEENGMETTENGKASRQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Integrator complex subunit 14
Molecular weight formula_weight	57526.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MPTVVVMDVSLSMTRPVSIEGSEEYQRKHLAAHGLTMLFEHMATNYKLEFTALVVFSSLWELMVPFTRDYNTLQEALSNMDDYDKTCLESALVGVCNIVQQEWGGAIPCQVVLVTDGCLGIGRGSLRHSLATQNQRSESNRFPLPFPFPSKLYIMCMANLEELQSTDSLECLERLIDLNNGEGQIFTIDGPLCLKNVQSMFGKLIDLAYTPFHAVLKCGHLTADVQVFPRPEPFVVDEEIDPIPKVINTDLEIVGFIDIADISSPPVLSRHLVLPIALNKEGDEVGTGITDDNEDENSANQIAGKIPNFCVLLHGSLKVEGMVAIVQLGPEWHGMLYSQADSKKKSNLMMSLFEPGPEPLPWLGKMAQLGPISDAKENPYGEDDNKSPFPLQPKNKRSYAQNVTVWIKPSGLQTDVQKILRNARKLPEKTQTFYKELNRLRKAALAFGFLDLLKGVADMLERECTLLPETAHPDAAFQLTHAAQQLKLASTGTSEYAAYDQNITPLHTDFSGSSTERI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	90

▶

8. Citations (1)

▶

Unit-cell length a length_a	190.987 Å
Unit-cell length b length_b	115.354 Å
Unit-cell length c length_c	147.819 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	orthorhombic

Resolution resolution	2.540 Å
Low-resolution limit resolution_low	45.470 Å
R factor r_factor	0.2252
R_work r_work	0.2241
R_free r_free	0.2437

fit	/app/data/saxs_computation/sn/6sn1/6sn1.fit
pddf	/app/data/pr_computation/sn/6sn1/6sn1.pr.out
profile	/app/data/saxs_computation/sn/6sn1/6sn1.dat

Crystal structure of the human INTS13-INTS14 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrator complex subunit 13

State in the Current Structure

Other States of the Same Protein in the Database

Integrator complex subunit 14

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

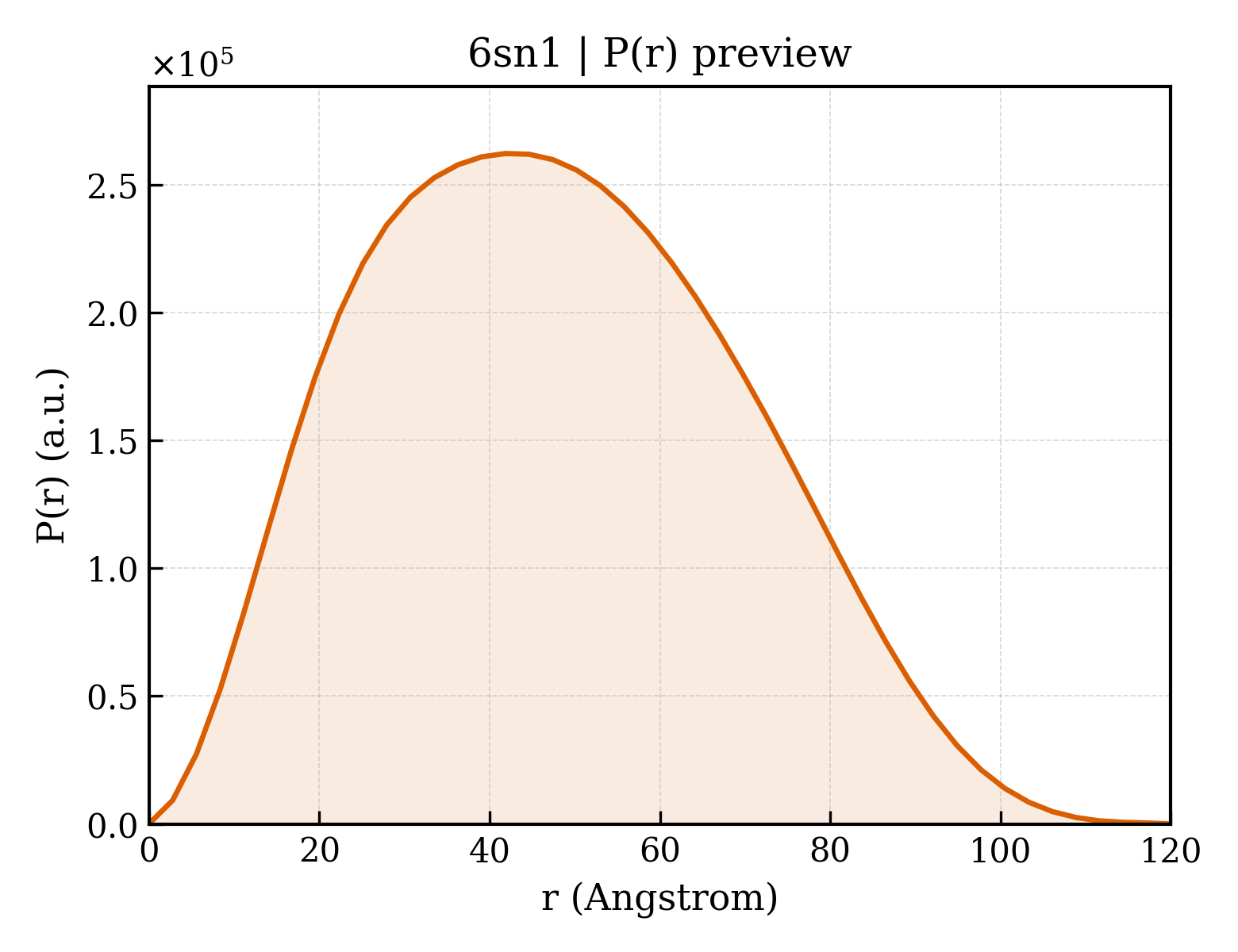

P(r) Distance Distribution P(r) Distribution
