8rc4

Structure of Integrator-PP2A complex

Method: ELECTRON MICROSCOPY D_max: 229.1 Å Quality: EXCELLENT

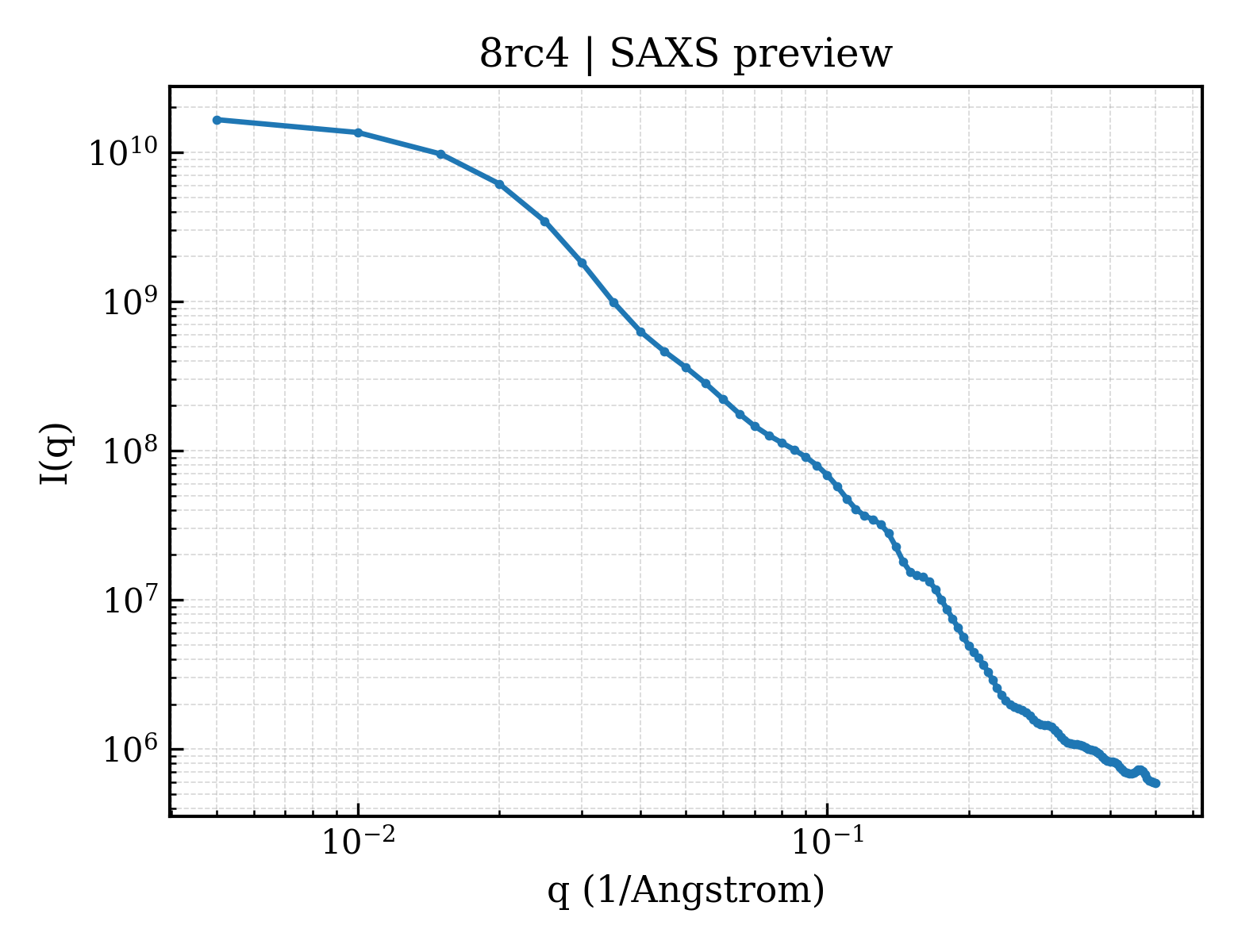

SAXS 散射曲线 SAXS Profile

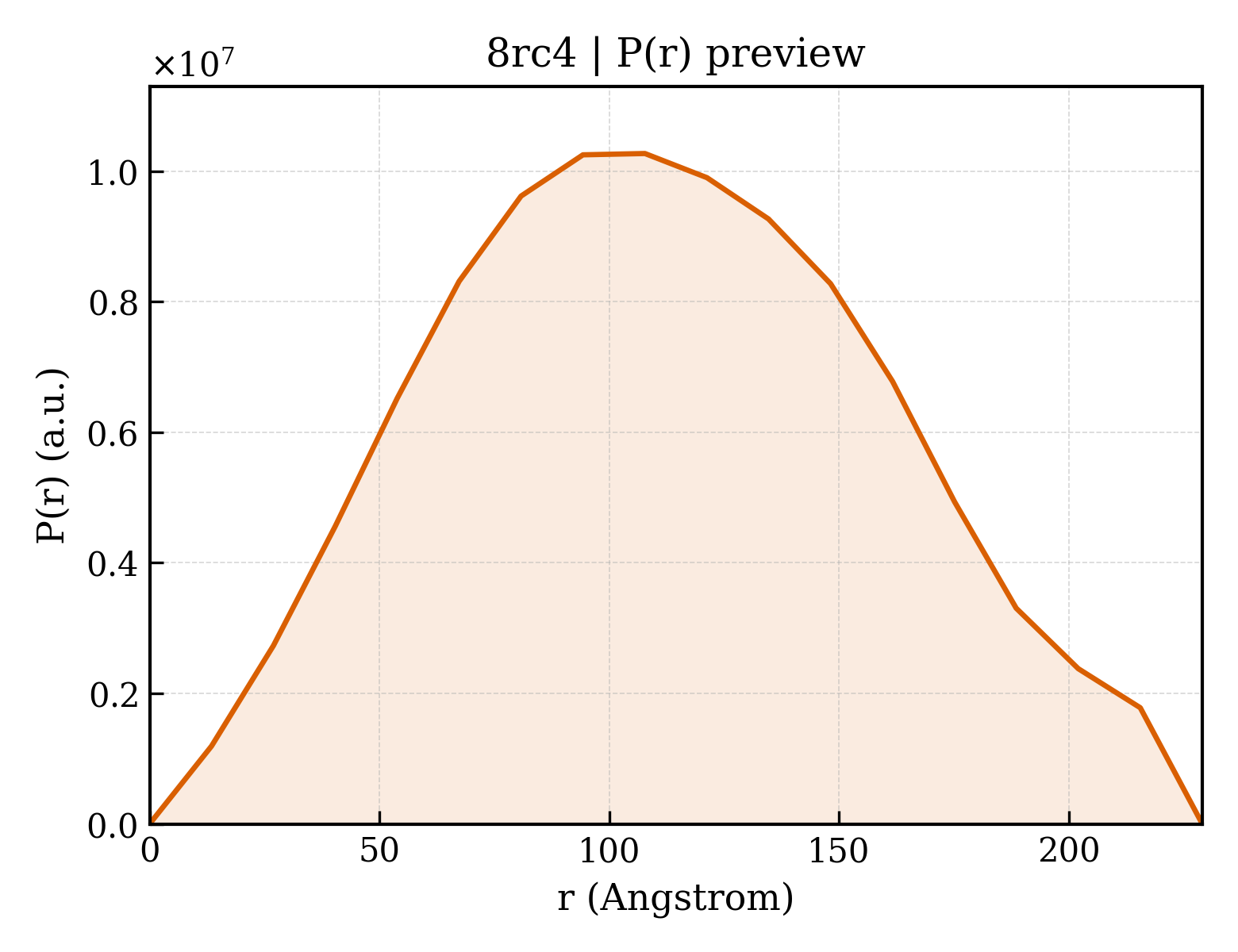

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rc4
沉积日期 deposition_date	2023-12-06
结构标题 title	Structure of Integrator-PP2A complex
关键词 keywords	Integrator complex, Post-termination complex, RNA Polymerase II, Pol II, RNAPII, TRANSCRIPTION; TRANSCRIPTION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	89.07 Å
回转半径 Rg (电子) rg_electron	87.86 Å
零角强度 I(0) i0	17685900000.00
分子量 molecular_weight	1110600.0 kDa
排除体积 excluded_volume	1379200 Å³
包络体积 envelope_volume	2550800 Å³
水化壳体积 shell_volume	237550 Å³
包络直径 envelope_diameter	305.8 Å
壳层 Rg shell_rg	88.44 Å
包络 Rg envelope_rg	86.65 Å
形状 Rg shape_rg	88.01 Å
总 Rg total_rg	87.35 Å
总原子数 total_atoms	78273
残基数 n_residues	11105
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	229.1 Å
Rg (实空间) rg_real	85.44 Å
Rg 误差 (实空间) rg_real_error	0.54 Å
I(0) (实空间) i0_real	1.6940e+10
I(0) 误差 (实空间) i0_real_error	2.9730e+08
Rg (倒空间) rg_reciprocal	89.04 Å
I(0) (倒空间) i0_reciprocal	17680000000.0000
解质量估计 total_estimate	0.9162
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	107.8 Å
偏度 Skewness skewness	0.123
峰度 Kurtosis kurtosis	-0.641
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.6323
最高正则化参数 α highest_alpha	760000000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.002; Oscil: 0.997; Stabil: 0.978; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (18)

Entity 1 polymer

描述 description	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform
分子量 formula_weight	65579.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p
原子数 atom_count	78273

SNMAAADGDDSLYPIAVLIDELRNEDVQLRLNSIKKLSTIALALGVERTRSELLPFLTDTIYDEDEVLLALAEQLGTFTTLVGGPEYVHCLLPPLESLATVEETVVRDKAVESLRAISHEHSPSDLEAHFVPLVKRLAGGDWFTSRTSACGLFSVCYPRVSSAVKAELRQYFRNLCSDDTPMVRRAAASKLGEFAKVLELDNVKSEIIPMFSNLASDEQDSVRLLAVEACVNIAQLLPQEDLEALVMPTLRQAAEDKSWRVRYMVADKFTELQKAVGPEITKTDLVPAFQNLMKDCEAEVRAAASHKVKEFCENLSADCRENVIMSQILPCIKELVSDANQHVKSALASVIMGLSPILGKDNTIEHLLPLFLAQLKDECPEVRLNIISNLDCVNEVIGIRQLSQSLLPAIVELAEDAKWRVRLAIIEYMPLLAGQLGVEFFDEKLNSLCMAWLVDHVYAIREAATSNLKKLVEKFGKEWAHATIIPKVLAMSGDPNYLHRMTTLFCINVLSEVCGQDITTKHMLPTVLRMAGDPVANVRFNVAKSLQKIGPILDNSTLQSEVKPILEKLTQDQDVDVKYFAQEALTVLSLA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform
分子量 formula_weight	35836.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

SNMDEKVFTKELDQWIEQLNECKQLSESQVKSLCEKAKEILTKESNVQEVRCPVTVCGDVHGQFHDLMELFRIGGKSPDTNYLFMGDYVNRGYYSVETVTLLVALKVRYRERITILRGNHESRQITQVYGFYDECLRKYGNANVWKYFTDLFDYLPLTALVDGQIFCLHGGLSPSIDTLDHIRALDRLQEVPHEGPMCDLLWSDPDDRGGWGISPRGAGYTFGQDISETFNHANGLTLVSRAHQLVMEGYNWCHDRNVVTIFSAPNYCYRCGNQAAIMELDDTLKYSFLQFDPAPRRGEPHVTRRTPDYFL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 polymer

描述 description	DSS1
分子量 formula_weight	3754.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

AAADVSVWEENWEDDIVQDDFNQQLRLEMER

Entity 4 polymer

描述 description	Integrator complex subunit 1
分子量 formula_weight	244776.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

SNMNRAKPTTVRRPSAAAKPSGHPPPGDFIALGSKGQANESKTASTLLKPAPSGLPSERKRDAAAALSSASALTGLTKRPKLSSTPPLSALGRLAEAAVAEKRAISPSIKEPSVVPIEVLPTVLLDEIEAAELEGNDDRIEGVLCGAVKQLKVTRAKPDSTLYLSLMYLAKIKPNIFATEGVIEALCSLLRRDASINFKAKGNSLVSVLACNLLMAAYEEDENWPEIFVKVYIEDSLGERIWVDSPHCKTFVDNIQTAFNTRMPPRSVLLQGEAGRVAGDLGAGSSPHPSLTEEEDSQTELLIAEEKLSPEQEGQLMPRYEELAESVEEYVLDMLRDQLNRRQPIDNVSRNLLRLLTSTCGYKEVRLLAVQKLEMWLQNPKLTRPAQDLLMSVCMNCNTHGSEDMDVISHLIKIRLKPKVLLNHFMLCIRELLSAHKDNLGTTIKLVIFNELSSARNPNNMQVLYTALQHSSELAPKFLAMVFQDLLTNKDDYLRASRALLREIIKQTKHEINFQAFCLGLMQERKEPQYLEMEFKERFVVHITDVLAVSMMLGITAQVKEAGIAWDKGEKRNLEVLRSFQNQIAAIQRDAVWWLHTVVPSISKLAPKDYVHCLHKVLFTEQPETYYKWDNWPPESDRNFFLRLCSEVPILEDTLMRILVIGLSRELPLGPADAMELADHLVKRAAAVQADDVEVLKVGRTQLIDAVLNLCTYHHPENIQLPPGYQPPNLAISTLYWKAWPLLLVVAAFNPENIGLAAWEEYPTLKMLMEMVMTNNYSYPPCTLTDEETRTEMLNRELQTAQREKQEILAFEGHLAAASTKQTITESSSLLLSQLTSLDPQGPPRRPPPHILDQVKSLNQSLRLGHLLCRSRNPDFLLHIIQRQASSQSMPWLADLVQSSEGSLDVLPVQCLCEFLLHDAVDDAASGEEDDEGESKEQKAKKRQRQQKQRQLLGRLQDLLLGPKADEQTTCEVLDYFLRRLGSSQVASRVLAMKGLSLVLSEGSLRDGEEKEPPMEEDVGDTDVLQGYQWLLRDLPRLPLFDSVRSTTALALQQAIHMETDPQTISAYLIYLSQHTPVEEQAQHSDLALDVARLVVERSTIMSHLFSKLSPSAASDAVLSALLSIFSRYVRRMRQSKEGEEVYSWSESQDQVFLRWSSGETATMHILVVHAMVILLTLGPPRADDSEFQALLDIWFPEEKPLPTAFLVDTSEEALLLPDWLKLRMIRSEVLRLVDAALQDLEPQQLLLFVQSFGIPVSSMSKLLQFLDQAVAHDPQTLEQNIMDKNYMAHLVEVQHERGASGGQTFHSLLTASLPPRRDSTEAPKPKSSPEQPIGQGRIRVGTQLRVLGPEDDLAGMFLQIFPLSPDPRWQSSSPRPVALALQQALGQELARVVQGSPEVPGITVRVLQALATLLSSPHGGALVMSMHRSHFLACPLLRQLCQYQRCVPQDTGFSSLFLKVLLQMLQWLDSPGVEGGPLRAQLRMLASQASAGRRLSDVRGGLLRLAEALAFRQDLEVVSSTVRAVIATLRSGEQCSVEPDLISKVLQGLIEVRSPHLEELLTAFFSATADAASPFPACKPVVVVSSLLLQEEEPLAGGKPGADGGSLEAVRLGPSSGLLVDWLEMLDPEVVSSCPDLQLRLLFSRRKGKGQAQVPSFRPYLLTLFTHQSSWPTLHQCIRVLLGKSREQRFDPSASLDFLWACIHVPRIWQGRDQRTPQKRREELVLRVQGPELISLVELILAEAETRSQDGDTAACSLIQARLPLLLSCCCGDDESVRKVTEHLSGCIQQWGDSVLGRRCRDLLLQLYLQRPELRVPVPEVLLHSEGAASSSVCKLDGLIHRFITLLADTSDSRALENRGADASMACRKLAVAHPLLLLRHLPMIAALLHGRTHLNFQEFRQQNHLSCFLHVLGLLELLQPHVFRSEHQGALWDCLLSFIRLLLNYRKSSRHLAAFINKFVQFIHKYITYNAPAAISFLQKHADPLHDLSFDNSDLVMLKSLLAGLSLPSRDDRTDRGLDEEGEEESSAGSLPLVSVSLFTPLTAAEMAPYMKRLSRGQTVEDLLEVLSDIDEMSRRRPEILSFFSTNLQRLMSSAEECCRNLAFSLALRSMQNSPSIAAAFLPTFMYCLGSQDFEVVQTALRNLPEYALLCQEHAAVLLHRAFLVGMYGQMDPSAQISEALRILHMEAVM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 5 polymer

描述 description	Integrator complex subunit 2
分子量 formula_weight	134451.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MKDQQTVIMTECTSLQFVSPFAFEAMQKVDVVCLASLSDPELRLLLPCLVRMALCAPADQSQSWAQDKKLILRLLSGVEAVNSIVALLSVDFHALEQDASKEQQLRHKLGGGSGESILVSQLQHGLTLEFEHSDSPRRLRLVLSELLAIMNKVSESNGEFFFKSSELFESPVYLEEAADVLCILQAELPSLLPIVDVAEALLHVRNGAWFLCLLVANVPDSFNEVCRGLIKNGERQDEESLGGRRRTDALRFLCKMNPSQALKVRGMVVEECHLPGLGVALTLDHTKNEACEDGVSDLVCFVSGLLLGTNAKVRTWFGTFIRNGQQRKRETSSSVLWQMRRQLLLELMGILPTVRSTRIVEEADVDMEPNVSVYSGLKEEHVVKASALLRLYCALMGIAGLKPTEEEAEQLLQLMTSRPPATPAGVRFVSLSFCMLLAFSTLVSTPEQEQLMVVWLSWMIKEEAYFESTSGVSASFGEMLLLVAMYFHSNQLSAIIDLVCSTLGMKIVIKPSSLSRMKTIFTQEIFTEQVVTAHAVRVPVTSNLSANITGFLPIHCIYQLLRSRSFTKHKVSIKDWIYRQLCETSTPLHPQLLPLIDVYINSILTPASKSNPEATNQPVTEQEILNIFQGVIGGDNIRLNQRFSITAQLLVLYYILSYEEALLANTKTLAAMQRKPKSYSSSLMDQIPIKFLIRQAQGLQQELGGLHSALLRLLATNYPHLCIVDDWICEEEITGTDALLRRMLLTNNAKNHSPKQLQEAFSAVPVNNTQVMQIIEHLTLLSASELIPYAEVLTSNMSQLLNSGVPRRILQTVNKLWMVLNTVMPRRLWVMTVNALQPSIKFVRQQKYTQNDLMIDPLIVLRCDQRVHRCPPLMDITLHMLNGYLLASKAYLSAHLKETEQDRPSQNNTIGLVGQTDAPEVTREELKNALLAAQDSAAVQILLEICLPTEEEKANGVNPDSLLRNVQSVITTSAPNKGMEEGEDNLLCNLREVQCLICCLLHQMYIADPNIAKLVHFQGYPCELLPLTVAGIPSMHICLDFIPELIAQPELEKQIFAIQLLSHLCIQYALPKSLSVARLAVNVMGTLLTVLTQAKRYAFFMPTLPSLVSFCRAFPPLYEDIMSLLIQIGQVCASDVATQTRDIDPIITRLQQIKEKPSGWSQICKDSSYKNGSRDTGSMDPDVQLCHCIERTVIEIINMSVSGI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 6 polymer

描述 description	Integrator complex subunit 4
分子量 formula_weight	108306.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MAAHLKKRVYEEFTKVVQPQEEIATKKLRLTKPSKSAALHIDLCKATSPADALQYLLQFARKPVEAESVEGVVRILLEHYYKENDPSVRLKIASLLGLLSKTAGFSPDCIMDDAINILQNEKSHQVLAQLLDTLLAIGTKLPENQAIQMRLVDVACKHLTDTSHGVRNKCLQLLGNLGSLEKSVTKDAEGLAARDVQKIIGDYFSDQDPRVRTAAIKAMLQLHERGLKLHQTIYNQACKLLSDDYEQVRSAAVQLIWVVSQLYPESIVPIPSSNEEIRLVDDAFGKICHMVSDGSWVVRVQAAKLLGSMEQVSSHFLEQTLDKKLMSDLRRKRTAHERAKELYSSGEFSSGRKWGDDAPKEEVDTGAVNLIESGACGAFVHGLEDEMYEVRIAAVEALCMLAQSSPSFAEKCLDFLVDMFNDEIEEVRLQSIHTMRKISNNITLREDQLDTVLAVLEDSSRDIREALHELLCCTNVSTKEGIHLALVELLKNLTKYPTDRDSIWKCLKFLGSRHPTLVLPLVPELLSTHPFFDTAEPDMDDPAYIAVLVLIFNAAKTCPTMPALFSDHTFRHYAYLRDSLSHLVPALRLPGRKLVSSAVSPSIIPQEDPSQQFLQQSLERVYSLQHLDPQGAQELLEFTIRDLQRLGELQSELAGVADFSATYLRCQLLLIKALQEKLWNVAAPLYLKQSDLASAAAKQIMEETYKMEFMYSGVENKQVVIIHHMRLQAKALQLIVTARTTRGLDPLFGMCEKFLQEVDFFQRYFIADLPHLQDSFVDKLLDLMPRLMTSKPAEVVKILQTMLRQSAFLHLPLPEQIHKASATIIEPAGESDNPLRFTSGLVVALDVDATLEHVQDPQNTVKVQVLYPDGQAQMIHPKPADFRNPGPGRHRLITQVYLSHTAWTEACQVEVRLLLAYNSSARIPKCPWMEGGEMSPQVETSIEGTIPFSKPVKVYIMPKPARR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 7 polymer

描述 description	Integrator complex subunit 5
分子量 formula_weight	108316.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

SNMSALCDPPGAPGPPGPAPATHGPAPLSAQELSQEIKAFLTGVDPILGHQLSAREHARCGLLLLRSLPPARAAVLDHLRGVFDESVRAHLAALDETPVAGPPHLRPPPPSHVPAGGPGLEDVVQEVQQVLSEFIRANPKAWAPVISAWSIDLMGQLSSTYSGQHQRVPHATGALNELLQLWMGCRATRTLMDIYVQCLSALIGSCPDACVDALLDTSVQHSPHFDWVVAHIGSSFPGTIISRVLSCGLKDFCVHGGAGGGAGSSGGSSSQTPSTDPFPGSPAIPAEKRVPKIASVVGILGHLASRHGDSIRRELLRMFHDSLAGGSGGRSGDPSLQATVPFLLQLAVMSPALLGTVSGELVDCLKPPAVLSQLQQHLQGFPREELDNMLNLAVHLVSQASGAGAYRLLQFLVDTAMPASVITTQGLAVPDTVREACDRLIQLLLLHLQKLVHHRGGSPGEGVLGPPPPPRLVPFLDALKNHVGELCGETLRLERKRFLWQHQLLGLLSVYTRPSCGPEALGHLLSRARSPEELSLATQLYAGLVVSLSGLLPLAFRSCLARVHAGTLQPPFTARFLRNLALLVGWEQQGGEGPAALGAHFGESASAHLSDLAPLLLHPEEEVAEAAASLLAICPFPSEALSPSQLLGLVRAGVHRFFASLRLHGPPGVASACQLLTRLSQTSPAGLKAVLQLLVEGALHRGNTELFGGQVDGDNETLSVVSASLASASLLDTNRRHTAAVPGPGGIWSVFHAGVIGRGLKPPKFVQSRNQQEVIYNTQSLLSLLVHCCSAPGGTECGECWGAPILSPEAAKAVAVTLVESVCPDAAGAELAWPPEEHARATVERDLRIGRRFREQPLLFELLKLVAAAPPALCYCSVLLRGLLAALLGHWEASRHPDTTHSPWHLEASCTLVAVMAEGSLLPPALGNMHEVFSQLAPFEVRLLLLSVWGFLREHGPLPQKFIFQSERGRFIRDFSREGGGEGGPHLAVLHSVLHRNIDRLGLFSGRFQAPSPSTLLRQGT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 8 polymer

描述 description	Integrator complex subunit 6
分子量 formula_weight	101166.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

YFQSNMPILLFLIDTSASMNQRSHLGTTYLDTAKGAVETFMKLRARDPASRGDRYMLVTFEEPPYAIKAGWKENHATFMNELKNLQAEGLTTLGQSLRTAFDLLNLNRLVTGIDNYGQGRNPFFLEPAIIITITDGSKLTTTSGVQDELHLPLNSPLPGSELTKEPFRWDQRLFALVLRLPGTMSVESEQLTGVPLDDSAITPMCEVTGGRSYSVCSPRMLNQCLESLVQKVQSGVVINFEKAGPDPSPVEDGQPDISRPFGSQPWHSCHKLIYVRPNPKTGVPIGHWPVPESFWPDQNSPTLPPRTSHPVVKFSCTDCEPMVIDKLPFDKYELEPSPLTQFILERKSPQTCWQVYVSNSAKYSELGHPFGYLKASTALNCVNLFVMPYNYPVLLPLLDDLFKVHKAKPTLKWRQSFESYLKTMPPYYLGPLKKAVRMMGAPNLIADSMEYGLSYSVISYLKKLSQQAKIESDRVIGSVGKKVVQETGIKVRSRSHGLSMAYRKDFQQLLQGISEDVPHRLLDLNMKEYTGFQVALLNKDLKPQTFRNAYDIPRRNLLDHLTRMRSNLLKSTRRFLKGQDEDQVHSVPIAQMGNYQEYLKQVPSPLRELDPDQPRRLHTFGNPFKLDKKGMMIDEADEFVAGPQNKHKRPGEPNMQGIPKRRRCMSPLLRGRQQNPVVNNHIGGKGPPAPTTQAQPDLIKPLPLHKISETTNDSIIHDVVENHVADQLSSDITPNAMDTEFSASSPASLLERPTNHMEALGHDHLGTNDLTVGGFLENHEEPRDKEQCAEENIPASSLNKGKKLMHCRSHEEVNTELKAQIMKEIRKPGRKYERIFTLLKHVQGSLQTRLIFLQNVIKEASRFKKRMLIEQLENFLDEIHRRANQINHINSN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia

Entity 9 polymer

描述 description	Integrator complex subunit 7
分子量 formula_weight	107153.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

SNMASNSTKSFLADAGYGEQELDANSALMELDKGLRSGKLGEQCEAVVRFPRLFQKYPFPILINSAFLKLADVFRVGNNFLRLCVLKVTQQSEKHLEKILNVDEFVKRIFSVIHSNDPVARAITLRMLGSLASIIPERKNAHHSIRQSLDSHDNVEVEAAVFAAANFSAQSKDFAVGICNKISEMIQGLATPVDLKLKLIPILQHMHHDAILASSARQLLQQLVTSYPSTKMVIVSLHTFTLLAASSLVDTPKQIQLLLQYLKNDPRKAVKRLAIQDLKLLANKTPHTWSRENIQALCECALQTPYDSLKLGMLSVLSTLSGTIAIKHYFSIVPGNVSSSPRSSDLVKLAQECCYHNNRGIAAHGVRVLTNITVSCQEKDLLALEQDAVFGLESLLVLCSQDDSPGAQATLKIALNCMVKLAKGRPHLSQSVVETLLTQLHSAQDAARILMCHCLAAIAMQLPVLGDGMLGDLMELYKVIGRSATDKQQELLVSLATVIFVASQKALSVESKAVIKQQLESVSNGWTVYRIARQASRMGNHDMAKELYQSLLTQVASEHFYFWLNSLKEFSHAEQCLTGLQEENYSSALSCIAESLKFYHKGIASLTAASTPLNPLSFQCEFVKLRIDLLQAFSQLICTCNSLKTSPPPAIATTIAMTLGNDLQRCGRISNQMKQSMEEFRSLASRYGDLYQASFDADSATLRNVELQQQSCLLISHAIEALILDPESASFQEYGSTGTAHADSEYERRMMSVYNHVLEEVESLNRKYTPVSYMHTACLCNAIIALLKVPLSFQRYFFQKLQSTSIKLALSPSPRNPAEPIAVQNNQQLALKVEGVVQHGSKPGLFRKIQSVCLNVSSTLQSKSGQDYKIPIDNMTNEMEQRVEPHNDYFSTQFLLNFAILGTHNITVESSVKDANGIVWKTGPRTTIFVKSLEDPYSQQIRLQQQQAQQPLQQQQQRNAYTRF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 10 polymer

描述 description	Integrator complex subunit 8
分子量 formula_weight	113219.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MSAEAADREAATSSRPCTPPQTCWFEFLLEESLLEKHLRKPCPDPAPVQLIVQFLEQASKPSVNEQNQVQPPPDNKRNRILKLLALKVAAHLKWDLDILEKSLSVPVLNMLLNELLCISKVPPGTKHVDMDLATLPPTTAMAVLLYNRWAIRTIVQSSFPVKQAKPGPPQLSVMNQMQQEKELTENILKVLKEQAADSILVLEAALKLNKDLYVHTMRTLDLLAMEPGMVNGETESSTAGLKVKTEEMQCQVCYDLGAAYFQQGSTNSAVYENAREKFFRTKELIAEIGSLSLHCTIDEKRLAGYCQACDVLVPSSDSTSQQLTPYSQVHICLRSGNYQEVIQIFIEDNLTLSLPVQFRQSVLRELFKKAQQGNEALDEICFKVCACNTVRDILEGRTISVQFNQLFLRPNKEKIDFLLEVCSRSVNLEKASESLKGNMAAFLKNVCLGLEDLQYVFMISSHELFITLLKDEERKLLVDQMRKRSPRVNLCIKPVTSFYDIPASASVNIGQLEHQLILSVDPWRIRQILIELHGMTSERQFWTVSNKWEVPSVYSGVILGIKDNLTRDLVYILMAKGLHCSTVKDFSHAKQLFAACLELVTEFSPKLRQVMLNEMLLLDIHTHEAGTGQAGERPPSDLISRVRGYLEMRLPDIPLRQVIAEECVAFMLNWRENEYLTLQVPAFLLQSNPYVKLGQLLAATCKELPGPKESRRTAKDLWEVVVQICSVSSQHKRGNDGRVSLIKQRESTLGIMYRSELLSFIKKLREPLVLTIILSLFVKLHNVREDIVNDITAEHISIWPSSIPNLQSVDFEAVAITVKELVRYTLSINPNNHSWLIIQADIYFATNQYSAALHYYLQAGAVCSDFFNKAVPPDVYTDQVIKRMIKCCSLLNCHTQVAILCQFLREIDYKTAFKSLQEQNSHDAMDSYYDYIWDVTILEYLTYLHHKRGETDKRQIAIKAIGQTELNASNPEEVLQLAAQRRKKKFLQAMAKLYF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia

Entity 11 polymer

描述 description	Integrator complex subunit 9
分子量 formula_weight	73891.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MKLYCLSGHPTLPCNVLKFKSTTIMLDCGLDMTSTLNFLPLPLVQSPRLSNLPGWSLKDGNAFLDKELKECSGHVFVDSVPEFCLPETELIDLSTVDVILISNYHCMMALPYITEHTGFTGTVYATEPTVQIGRLLMEELVNFIERVPKAQSASLWKNKDIQRLLPSPLKDAVEVSTWRRCYTMQEVNSALSKIQLVGYSQKIELFGAVQVTPLSSGYALGSSNWIIQSHYEKVSYVSGSSLLTTHPQPMDQASLKNSDVLVLTGLTQIPTANPDGMVGEFCSNLALTVRNGGNVLVPCYPSGVIYDLLECLYQYIDSAGLSSVPLYFISPVANSSLEFSQIFAEWLCHNKQSKVYLPEPPFPHAELIQTNKLKHYPSIHGDFSNDFRQPCVVFTGHPSLRFGDVVHFMELWGKSSLNTVIFTEPDFSYLEALAPYQPLAMKCIYCPIDTRLNFIQVSKLLKEVQPLHVVCPEQYTQPPPAQSHRMDLMIDCQPPAMSYRRAEVLALPFKRRYEKIEIMPELADSLVPMEIKPGISLATVSAVLHTKDNKHLLQPPPRPAQPTSGKKRKRVSDDVPDCKVLKPLLSGSIPVEQFVQTLEKHGFSDIKVEDTAKGHIVLLQEAETLIQIEEDSTHIICDNDEMLRVRLRDLVLKFLQKF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 12 polymer

描述 description	Integrator complex subunit 11
分子量 formula_weight	67956.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

SNMPEIRVTPLGAGQDVGRSCILVSIAGKNVMLDCGMHMGFNDDRRFPDFSYITQNGRLTDFLDCVIISHFHLDHCGALPYFSEMVGYDGPIYMTHPTQAICPILLEDYRKIAVDKKGEANFFTSQMIKDCMKKVVAVHLHQTVQVDDELEIKAYYAGHVLGAAMFQIKVGSESVVYTGDYNMTPDRHLGAAWIDKCRPNLLITQSTYATTIRDSKRCRERDFLKKVHETVERGGKVLIPVFALGRAQELCILLETFWERMNLKVPIYFSTGLTEKANHYYKLFIPWTNQKIRKTFVQRNMFEFKHIKAFDRAFADNPGPMVVFATPGMLHAGQSLQIFRKWAGNEKNMVIMPGYCVQGTVGHKILSGQRKLEMEGRQVLEVKMQVEYMSFSAHADAKGIMQLVGQAEPESVLLVHGEAKKMEFLKQKIEQELRVNCYMPANGETVTLPTSPSIPVGISLGLLKREMAQGLLPEAKKPRLLHGTLIMKDSNFRLVSSEQALKELGLAEHQLRFTCRVHLHDTRKEQETALRVYSHLKSVLKDHCVQHLPDGSVTVESVLLQAAAPSEDPGTKVLLVSWTYQDEELGSFLTSLLKKGLPQAPS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 13 polymer

描述 description	Integrator complex subunit 13
分子量 formula_weight	80345.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MKIFSESHKTVFVVDHCPYMAESCRQHVEFDMLVKNRTQGIIPLAPISKSLWTCSVESSMEYCRIMYDIFPFKKLVNFIVSDSGAHVLNSWTQEDQNLQELMAALAAVGPPNPRADPECCSILHGLVAAVETLCKITEYQHEARTLLMENAERVGNRGRIICITNAKSDSHVRMLEDCVQETIHEHNKLAANSDHLMQIQKCELVLIHTYPVGEDSLVSDRSKKELSPVLTSEVHSVRAGRHLATKLNILVQQHFDLASTTITNIPMKEEQHANTSANYDVELLHHKDAHVDFLKSGDSHLGGGSREGSFKETITLKWCTPRTNNIELHYCTGAYRISPVDVNSRPSSCLTNFLLNGRSVLLEQPRKSGSKVISHMLSSHGGEIFLHVLSSSRSILEDPPSISEGCGGRVTDYRITDFGEFMRENRLTPFLDPRYKIDGSLEVPLERAKDQLEKHTRYWPMIISQTTIFNMQAVVPLASVIVKESLTEEDVLNCQKTIYNLVDMERKNDPLPISTVGTRGKGPKRDEQYRIMWNELETLVRAHINNSEKHQRVLECLMACRSKPPEEEERKKRGRKREDKEDKSEKAVKDYEQEKSWQDSERLKGILERGKEELAEAEIIKDSPDSPEPPNKKPLVEMDETPQVEKSKGPVSLLSLWSNRINTANSRKHQEFAGRLNSVNNRAELYQHLKEENGMETTENGKASRQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 14 polymer

描述 description	Integrator complex subunit 10
分子量 formula_weight	82339.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MSAQGDCEFLVQRARELVPQDLWAAKAWLITARSLYPADFNIQYEMYTIERNAERTATAGRLLYDMFVNFPDQPVVWREISIITSALRNDSQDKQTQFLRSLFETLPGRVQCEMLLKVTEQCFNTLERSEMLLLLLRRFPETVVQHGVGLGEALLEAETIEEQESPVNCFRKLFVCDVLPLIINNHDVRLPANLLYKYLNKAAEFYINYVTRSTQIENQHQGAQDTSDLMSPSKRSSQKYIIEGLTEKSSQIVDPWERLFKILNVVGMRCEWQMDKGRRSYGDILHRMKDLCRYMNNFDSEAHAKYKNQVVYSTMLVFFKNAFQYVNSIQPSLFQGPNAPSQVPLVLLEDVSNVYGDVEIDRNKHIHKKRKLAEGREKTMSSDDEDCSAKGRNRHIVVNKAELANSTEVLESFKLARESWELLYSLEFLDKEFTRICLAWKTDTWLWLRIFLTDMIIYQGQYKKAIASLHHLAALQGSISQPQITGQGTLEHQRALIQLATCHFALGEYRMTCEKVLDLMCYMVLPIQDGGKSQEEPSKVKPKFRKGSDLKLLPCTSKAIMPYCLHLMLACFKLRAFTDNRDDMALGHVIVLLQQEWPRGENLFLKAVNKICQQGNFQYENFFNYVTNIDMLEEFAYLRTQEGGKIHLELLPNQGMLIKHHTVTRGITKGVKEDFRLAMERQVSRCGENLMVVLHRFCINEKILLLQTLT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 15 polymer

描述 description	Integrator complex subunit 14
分子量 formula_weight	57526.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MPTVVVMDVSLSMTRPVSIEGSEEYQRKHLAAHGLTMLFEHMATNYKLEFTALVVFSSLWELMVPFTRDYNTLQEALSNMDDYDKTCLESALVGVCNIVQQEWGGAIPCQVVLVTDGCLGIGRGSLRHSLATQNQRSESNRFPLPFPFPSKLYIMCMANLEELQSTDSLECLERLIDLNNGEGQIFTIDGPLCLKNVQSMFGKLIDLAYTPFHAVLKCGHLTADVQVFPRPEPFVVDEEIDPIPKVINTDLEIVGFIDIADISSPPVLSRHLVLPIALNKEGDEVGTGITDDNEDENSANQIAGKIPNFCVLLHGSLKVEGMVAIVQLGPEWHGMLYSQADSKKKSNLMMSLFEPGPEPLPWLGKMAQLGPISDAKENPYGEDDNKSPFPLQPKNKRSYAQNVTVWIKPSGLQTDVQKILRNARKLPEKTQTFYKELNRLRKAALAFGFLDLLKGVADMLERECTLLPETAHPDAAFQLTHAAQQLKLASTGTSEYAAYDQNITPLHTDFSGSSTERI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 16 polymer

描述 description	Integrator complex subunit 15
分子量 formula_weight	50303.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

SNMSDIRHSLLRRDALSAAKEVLYHLDIYFSSQLQSAPLPIVDKGPVELLEEFVFQVPKERSAQPKRLNSLQELQLLEIMCNYFQEQTKDSVRQIIFSSLFSPQGNKADDSRMSLLGKLVSMAVAVCRIPVLECAASWLQRTPVVYCVRLAKALVDDYCCLVPGSIQTLKQIFSASPRFCCQFITSVTALYDLSSDDLIPPMDLLEMIVTWIFEDPRLILITFLNTPIAANLPIGFLELTPLVGLIRWCVKAPLAYKRKKKPPLSNGHVSNKVTKDPGVGMDRDSHLLYSKLHLSVLQVLMTLQLHLTEKNLYGRLGLILFDHMVPLVEEINRLADELNPLNASQEIELSLDRLAQALQVAMASGALLCTRDDLRTLCSRLPHNNLLQLVISGPVQQSPHAALPPGFYPHIHTPPLGYGAVPAHPAAHPALPTHPGHTFISGVTFPFRPIR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 17 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 18 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	2335349

fit	/app/data/saxs_computation/rc/8rc4/8rc4.fit
pddf	/app/data/pr_computation/rc/8rc4/8rc4.pr.out
profile	/app/data/saxs_computation/rc/8rc4/8rc4.dat
