SAXSdb — 2iae

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform × 1 （Q13362） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） microcystin-LR × 1 MANGANESE (II) ION × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform × 1 （Q13362） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） microcystin-LR × 1 MANGANESE (II) ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	2AAA_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–589； UniProt 0–588 Author chain D； PDBConstruct 1–589； UniProt 0–588

Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform

Homo sapiens

UniProt Q13362

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （Q76MZ3） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） microcystin-LR × 1 MANGANESE (II) ION × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （Q76MZ3） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） microcystin-LR × 1 MANGANESE (II) ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	2A5G_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–407； UniProt 30–436 Author chain E； PDBConstruct 1–407； UniProt 30–436

Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform

Homo sapiens

UniProt P67775

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （Q76MZ3） Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform × 1 （Q13362） microcystin-LR × 1 MANGANESE (II) ION × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （Q76MZ3） Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform × 1 （Q13362） microcystin-LR × 1 MANGANESE (II) ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PP2AA_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–309； UniProt 1–309 Author chain F； PDBConstruct 1–309； UniProt 1–309

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2iae
Deposition date deposition_date	2006-09-07
Structure title title	Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme.
Keywords keywords	;Protein phosphorylation, phosphatase, PP2A, B56, tumor suppressor, methylation, HYDROLASE, TOXIN, HYDROLASE-HYDROLASE INHIBITOR complex ;; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2iae__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2iae__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

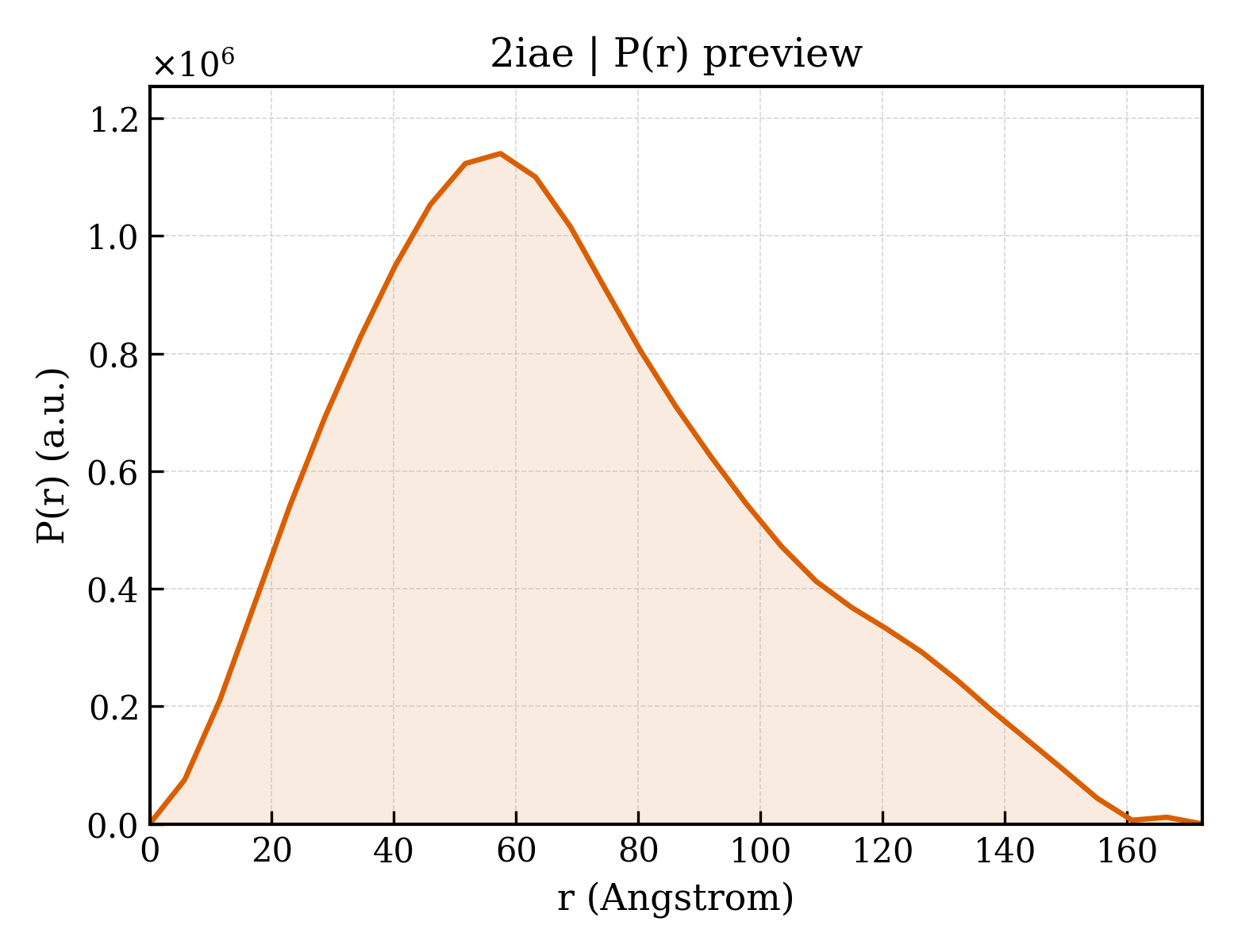

2iae__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.56 Å
Rg (electron density)	35.91 Å
Total Rg	36.48 Å
Atom count	10018
Residues	1266
Excluded volume	179320 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2iae__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2iae__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform
Molecular weight formula_weight	65392.4 kDa
EC 编号 ec_number	3.1.3.16
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	19955

MAAADGDDSLYPIAVLIDELRNEDVQLRLNSIKKLSTIALALGVERTRSELLPFLTDTIYDEDEVLLALAEQLGTFTTLVGGPEYVHCLLPPLESLATVEETVVRDKAVESLRAISHEHSPSDLEAHFVPLVKRLAGGDWFTSRTSACGLFSVCYPRVSSAVKAELRQYFRNLCSDDTPMVRRAAASKLGEFAKVLELDNVKSEIIPMFSNLASDEQDSVRLLAVEACVNIAQLLPQEDLEALVMPTLRQAAEDKSWRVRYMVADKFTELQKAVGPEITKTDLVPAFQNLMKDCEAEVRAAASHKVKEFCENLSADCRENVIMTQILPCIKELVSDANQHVKSALASVIMGLSPILGKDNTIEHLLPLFLAQLKDECPEVRLNIISNLDCVNEVIGIRQLSQSLLPAIVELAEDAKWRVRLAIIEYMPLLAGQLGVEFFDEKLNSLCMAWLVDHVYAIREAATSNLKKLVEKFGKEWAHATIIPKVLAMSGDPNYLHRMTTLFCINVLSEVCGQDITTKHMLPTVLRMAGDPVANVRFNVAKSLQKIGPILDNSTLQSEVKPILEKLTQDQDVDVKYFAQEALTVLSLA

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform
Molecular weight formula_weight	48186.9 kDa
EC 编号 ec_number	3.1.3.16
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

IRDVPPADQEKLFIQKLRQCCVLFDFVSDPLSDLKWKEVKRAALSEMVEYITHNRNVITEPIYPEVVHMFAVNMFRTLPPSSNPTGAEFDPEEDEPTLEAAWPHLQLVYEFFLRFLESPDFQPNIAKKYIDQKFVLQLLELFDSEDPRERDFLKTTLHRIYGKFLGLRAYIRKQINNIFYRFIYETEHHNGIAELLEILGSIINGFALPLKEEHKIFLLKVLLPLHKVKSLSVYHPQLAYCVVQFLEKDSTLTEPVVMALLKYWPKTHSPKEVMFLNELEEILDVIEPSEFVKIMEPLFRQLAKCVSSPHFQVAERALYYWNNEYIMSLISDNAAKILPIMFPSLYRNSKTHWNKTIHGLIYNALKLFMEMNQKLFDDCTQQFKAEKLKEKLKMKEREEAWVKIENL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform
Molecular weight formula_weight	35649.2 kDa
EC 编号 ec_number	3.1.3.16
Mutation mutation	D88N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

MDEKVFTKELDQWIEQLNECKQLSESQVKSLCEKAKEILTKESNVQEVRCPVTVCGDVHGQFHDLMELFRIGGKSPDTNYLFMGDYVNRGYYSVETVTLLVALKVRYRERITILRGNHESRQITQVYGFYDECLRKYGNANVWKYFTDLFDYLPLTALVDGQIFCLHGGLSPSIDTLDHIRALDRLQEVPHEGPMCDLLWSDPDDRGGWGISPRGAGYTFGQDISETFNHANGLTLVSRAHQLVMEGYNWCHDRNVVTIFSAPNYCYRCGNQAAIMELDDTLKYSFLQFDPAPRRGEPHVTRRTPDYFL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	microcystin-LR
Molecular weight formula_weight	1014.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N

ALDRXEX

Entity 5 Entity 5 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	2iaeA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2iaeB01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2iaeC00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
Homologous superfamily homologous superfamily	10 — Metallo-dependent phosphatases

Domain ID domain_id	2iaeD01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2iaeE01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2iaeF00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
Homologous superfamily homologous superfamily	10 — Metallo-dependent phosphatases

▶

Unit-cell length a length_a	265.301 Å
Unit-cell length b length_b	265.301 Å
Unit-cell length c length_c	265.301 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 3
Space-group number int_tables_number	198
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2598
R_work r_work	0.2568
R_free r_free	0.3155

Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme.
