SAXSdb — 6toq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pol protein

Human T-cell leukemia virus type I

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain CCC； UniProt 766–863	Not recorded	Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform × 1 （Q13362）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293.15 K；0.1 M Na/KPO4 pH 6.2, 20-% 1,2-propanediol, 10% glycerol	Resolution 3.16 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	A0A1Y1CAL3_9DELA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain CCC； PDBConstruct 1–98； UniProt 766–863

Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform

Homo sapiens

UniProt Q13362

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain AAA； UniProt 11–380	Not recorded	Pol protein × 1 （A0A1Y1CAL3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；293.15 K；0.1 M Na/KPO4 pH 6.2, 20-% 1,2-propanediol, 10% glycerol	Resolution 3.16 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6TOQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IAE Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme. Deposited 2006-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 30–436（407 aa） Fragment：B56gamma1 subunit, residues 30-436	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M MES, pH 7.0, 50mM NaCl, 1.4M ammonium sulfate, 0.2M LiCl, 2% 1,6-diaminohexane, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.50 Å R-free 0.316
2IAE Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme. Deposited 2006-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 30–436（407 aa） Fragment：B56gamma1 subunit, residues 30-436	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M MES, pH 7.0, 50mM NaCl, 1.4M ammonium sulfate, 0.2M LiCl, 2% 1,6-diaminohexane, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.50 Å R-free 0.316
2JAK Human PP2A regulatory subunit B56g Deposited 2006-11-29	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–380（370 aa） Fragment：RESIDUES 11-380	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 29% MPD 0.1M TRIS, PH 8.0 20MM L-PROLINE	Resolution 2.60 Å R-free 0.260
2NPP Structure of the Protein Phosphatase 2A Holoenzyme Deposited 2006-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–439（439 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.5 K；15% PEG 8000, 0.1 M Tris-Cl pH 8.5, and 0.2 M magnesium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277.5K	Resolution 3.30 Å R-free 0.299
2NPP Structure of the Protein Phosphatase 2A Holoenzyme Deposited 2006-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–439（439 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.5 K；15% PEG 8000, 0.1 M Tris-Cl pH 8.5, and 0.2 M magnesium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277.5K	Resolution 3.30 Å R-free 0.299
2NYL Crystal structure of Protein Phosphatase 2A (PP2A) holoenzyme with the catalytic subunit carboxyl terminus truncated Deposited 2006-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 38–425（388 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.80 Å R-free 0.335
2NYL Crystal structure of Protein Phosphatase 2A (PP2A) holoenzyme with the catalytic subunit carboxyl terminus truncated Deposited 2006-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 38–425（388 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.80 Å R-free 0.335
2NYM Crystal Structure of Protein Phosphatase 2A (PP2A) with C-terminus truncated catalytic subunit Deposited 2006-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 38–425（388 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.60 Å R-free 0.331
2NYM Crystal Structure of Protein Phosphatase 2A (PP2A) with C-terminus truncated catalytic subunit Deposited 2006-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 38–425（388 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.60 Å R-free 0.331
3FGA Structural Basis of PP2A and Sgo interaction Deposited 2008-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 34–436（403 aa） Fragment：sequence database residues 34-436	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7；295 K；0.2 M SCTD, 20% w/v Polyethylene glycol 3,350, pH 7, EVAPORATION, temperature 295K	Resolution 2.70 Å R-free 0.277
5JJA Crystal structure of a PP2A B56gamma/BubR1 complex Deposited 2016-04-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–380（351 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M HEPES pH 7.5 and 20% PEG 3350	Resolution 2.35 Å R-free 0.204
5JJA Crystal structure of a PP2A B56gamma/BubR1 complex Deposited 2016-04-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 30–380（351 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M HEPES pH 7.5 and 20% PEG 3350	Resolution 2.35 Å R-free 0.204
5K6S The structure of the PP2A B56 subunit BubR1 complex Deposited 2016-05-25	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 62–411（350 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.75；298 K；8% PEG 6K, 0.8 M HEPES, 0.8 M LiCl	Resolution 2.79 Å R-free 0.227
5SW9 The structure of the PP2A B56 subunit RepoMan complex Deposited 2016-08-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 62–411（350 aa） Fragment：UNP residues 62-411	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.75；298 K；8% PEG 8K, 0.8 M HEPES, 0.8 M LiCl	Resolution 2.85 Å R-free 0.227
5SWF The structure of the PP2A B56 subunit double phosphorylated BubR1 complex Deposited 2016-08-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 62–411（350 aa） Fragment：UNP residues 62-411	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.75；298 K；8% PEG 8k, 0.8 M HEPES, 0.8 M LiCl	Resolution 2.82 Å R-free 0.231
6OYL The structure of the PP2A B56 subunit KIF4A complex Deposited 2019-05-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 62–411（350 aa） Fragment：UNP residues 62-411	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.75；298 K；0.1 M HEPES, pH 7.75, 0.8 M lithium chloride, 8% PEG8000	Resolution 3.15 Å R-free 0.231
6VOY Cryo-EM structure of HTLV-1 instasome Deposited 2020-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: dodecameric	Chain E 30–372（343 aa） Chain F 30–372（343 aa）	Not recorded	ZN ZINC ION × 4 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.70 Å
6VRO The structure of the PP2A B56 subunit AIM1 complex Deposited 2020-02-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 62–411（350 aa） Fragment：UNP residues 62-411	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M Tris, pH 8.0, 9% PEG8000, 0.9 M lithium chloride	Resolution 2.45 Å R-free 0.235
7OUF Structure of the STLV intasome:B56 complex bound to the strand-transfer inhibitor XZ450 Deposited 2021-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: decameric	Chain C 11–380（370 aa） Chain F 11–380（370 aa）	Not recorded	ZN ZINC ION × 4 MG MAGNESIUM ION × 4 1L0 4-azanyl-~{N}-[[2,4-bis(fluoranyl)phenyl]methyl]-6-[3-(dimethylamino)-3-oxidanylidene-propyl]-1-oxidanyl-2-oxidanylidene-1,8-naphthyridine-3-carboxamide × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7OUG STLV-1 intasome:B56 in complex with the strand-transfer inhibitor raltegravir Deposited 2021-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: decameric	Chain C 11–380（370 aa） Chain F 11–380（370 aa）	Not recorded	ZN ZINC ION × 4 MG MAGNESIUM ION × 4 RLT N-(4-fluorobenzyl)-5-hydroxy-1-methyl-2-(1-methyl-1-{[(5-methyl-1,3,4-oxadiazol-2-yl)carbonyl]amino}ethyl)-6-oxo-1,6-di hydropyrimidine-4-carboxamide × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7PEL CryoEM structure of simian T-cell lymphotropic virus intasome in complex with PP2A regulatory subunit B56 gamma Deposited 2021-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: decameric	Chain C 11–380（370 aa） Chain F 11–380（370 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
7SOY The structure of the PP2A-B56gamma1 holoenzyme-PME-1 complex Deposited 2021-11-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–449（449 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9GNJ Crystal structure of a PP2A B56gamma double phosphorylated BRCA2 complex Deposited 2024-09-03	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–380（351 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18% de PEG3350, 100mM Bis-Tris propane, 200 mM de Sodium Citrate	Resolution 2.85 Å R-free 0.229
9MF5 CryoEM structure of the Protein Phosphatase 2A (Abeta-B56gamma-Calpha) holoenzyme complex Deposited 2024-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–524（524 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9MIP CryoEM structure of the Protein Phasphatase 2A (Aalpha-B56gamma-Calpha) holoenzyme complex Deposited 2024-12-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–524（524 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

20 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	2A5G_HUMAN
Isoform	Q13362-3
PDB entities	2
Chains and sequence ranges	Author chain AAA； PDBConstruct 1–370； UniProt 11–380

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6toq
Deposition date deposition_date	2019-12-11
Structure title title	Crystal structure of a PP2A B56y/HTLV-1 integrase complex
Keywords keywords	Phosphatase, integrase, complex, SLiM, dephosphorylation, cell signalling, motif mimicry, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.41 Å
Radius of gyration Rg (electron density) rg_electron	24.81 Å
Forward intensity I(0) i0	20667800.00
Molecular weight molecular_weight	37784.0 kDa
Excluded volume excluded_volume	48548 Å³
Envelope volume envelope_volume	58418 Å³
Hydration-shell volume shell_volume	21153 Å³
Envelope diameter envelope_diameter	90.9 Å
Shell Rg shell_rg	30.28 Å
Envelope Rg envelope_rg	24.93 Å
Shape Rg shape_rg	24.77 Å
Total Rg total_rg	25.65 Å
Total atoms total_atoms	2674
Residues n_residues	336
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	89.3 Å
Rg (real space) rg_real	25.59 Å
Rg uncertainty (real space) rg_real_error	0.90 Å
I(0) (real space) i0_real	2.0670e+07
I(0) uncertainty (real space) i0_real_error	3.0250e+05
Rg (reciprocal space) rg_reciprocal	25.54 Å
I(0) (reciprocal space) i0_reciprocal	20670000.0000
Solution quality estimate total_estimate	0.8295
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.1 Å
Skewness Skewness skewness	0.508
Kurtosis Kurtosis kurtosis	-0.350
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6253000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.681; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.749; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Pol protein
Molecular weight formula_weight	11171.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	CCC
Atom count atom_count	2720

CHKTRWQLHHSPRLQPIPETHSLSNKQTHWYYFKLPGLNSRQWKGPQEALQEAAGAALIPVSASSAQWIPWRLLKRAACPRPVGGPADPKEKDHQHHG

来源 Source

来源生物 organism	Human T-cell leukemia virus type I
NCBI Class编号 ncbi_taxonomy_id	11908
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform
Molecular weight formula_weight	43301.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA

MVVDAANSNGPFQPVVLLHIRDVPPADQEKLFIQKLRQCCVLFDFVSDPLSDLKWKEVKRAALSEMVEYITHNRNVITEPIYPEVVHMFAVNMFRTLPPSSNPTGAEFDPEEDEPTLEAAWPHLQLVYEFFLRFLESPDFQPNIAKKYIDQKFVLQLLELFDSEDPRERDFLKTTLHRIYGKFLGLRAYIRKQINNIFYRFIYETEHHNGIAELLEILGSIINGFALPLKEEHKIFLLKVLLPLHKVKSLSVYHPQLAYCVVQFLEKDSTLTEPVVMALLKYWPKTHSPKEVMFLNELEEILDVIEPSEFVKIMEPLFRQLAKCVSSPHFQVAERALYYWNNEYIMSLISDNAAKILPIMFPSLYRNSKT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	46

▶

8. Citations (1)

▶

Unit-cell length a length_a	58.770 Å
Unit-cell length b length_b	58.770 Å
Unit-cell length c length_c	321.150 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	3.164 Å
Low-resolution limit resolution_low	80.290 Å
R factor r_factor	—
R_work r_work	0.2270
R_free r_free	0.2941

fit	/app/data/saxs_computation/to/6toq/6toq.fit
pddf	/app/data/pr_computation/to/6toq/6toq.pr.out
profile	/app/data/saxs_computation/to/6toq/6toq.dat

Crystal structure of a PP2A B56y/HTLV-1 integrase complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pol protein

State in the Current Structure

Other States of the Same Protein in the Database

Serine/threonine-protein phosphatase 2A 56 kDa regulatory subunit gamma isoform

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

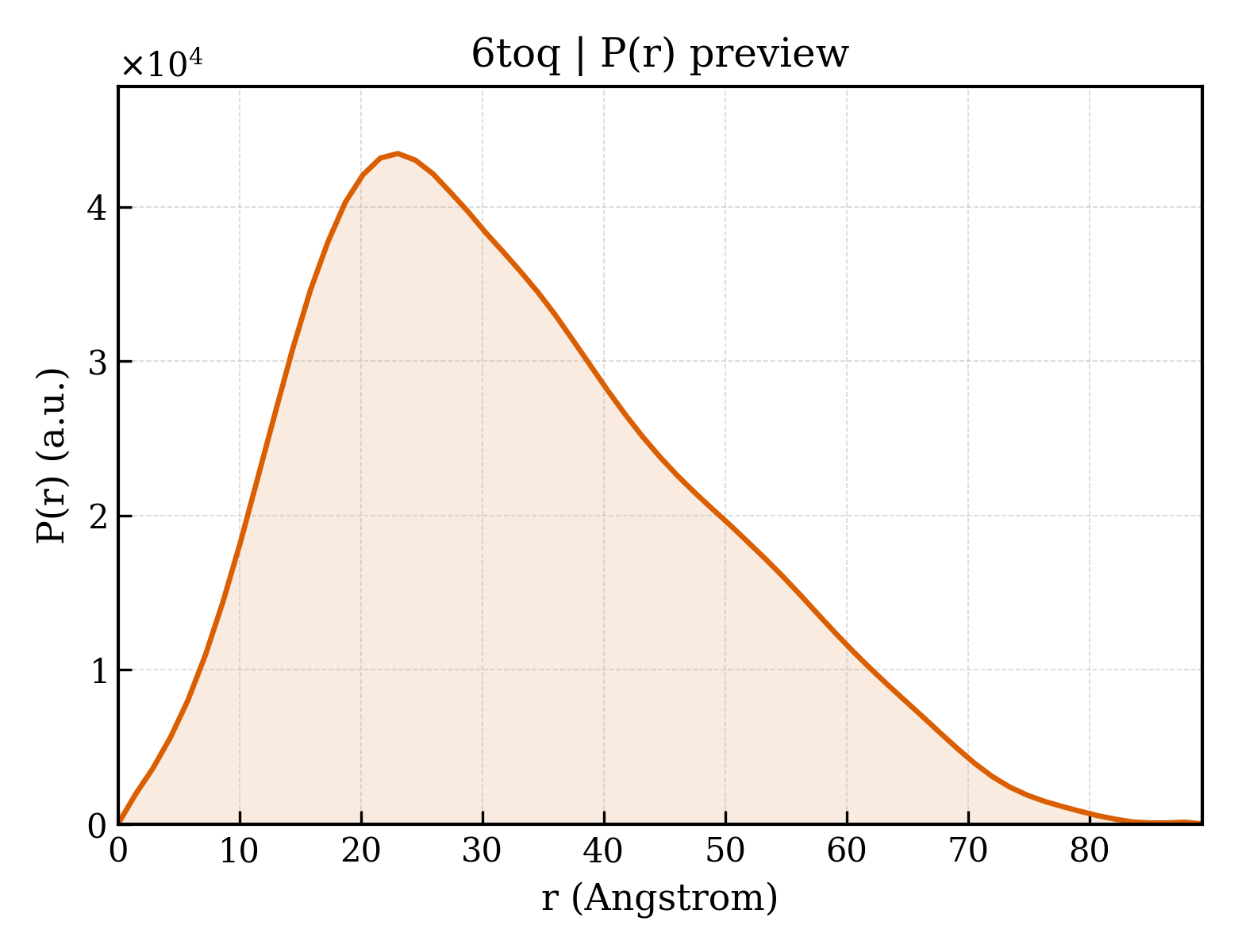

P(r) Distance Distribution P(r) Distribution
