7k36

Cryo-EM structure of STRIPAK complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Striatin-3 × 5 （Q13033） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） MOB-like protein phocein × 1 （Q9Y3A3） Striatin-interacting protein 1 × 1 （Q5VSL9） MANGANESE (II) ION × 2 ZINC ION × 2 INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	2AAA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–589； UniProt 1–589

Striatin-3

Homo sapiens

UniProt Q13033

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （P30153） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） MOB-like protein phocein × 1 （Q9Y3A3） Striatin-interacting protein 1 × 1 （Q5VSL9） MANGANESE (II) ION × 2 ZINC ION × 2 INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STRN3_HUMAN
Isoform	Q13033-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–713； UniProt 1–713 Author chain D； PDBConstruct 1–713； UniProt 1–713 Author chain E； PDBConstruct 1–713； UniProt 1–713 Author chain F； PDBConstruct 1–713； UniProt 1–713 Author chain G； PDBConstruct 1–713； UniProt 1–713

Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform

Homo sapiens

UniProt P67775

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （P30153） Striatin-3 × 5 （Q13033） MOB-like protein phocein × 1 （Q9Y3A3） Striatin-interacting protein 1 × 1 （Q5VSL9） MANGANESE (II) ION × 2 ZINC ION × 2 INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PP2AA_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–309； UniProt 1–309

MOB-like protein phocein

Homo sapiens

UniProt Q9Y3A3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （P30153） Striatin-3 × 5 （Q13033） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） Striatin-interacting protein 1 × 1 （Q5VSL9） MANGANESE (II) ION × 2 ZINC ION × 2 INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHOCN_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–225； UniProt 1–225

Striatin-interacting protein 1

Homo sapiens

UniProt Q5VSL9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform × 1 （P30153） Striatin-3 × 5 （Q13033） Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775） MOB-like protein phocein × 1 （Q9Y3A3） MANGANESE (II) ION × 2 ZINC ION × 2 INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STRP1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–837； UniProt 1–837

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7k36
Deposition date deposition_date	2020-09-10
Structure title title	Cryo-EM structure of STRIPAK complex
Keywords keywords	phosphorylation, complex, PP2A, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7k36__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7k36__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

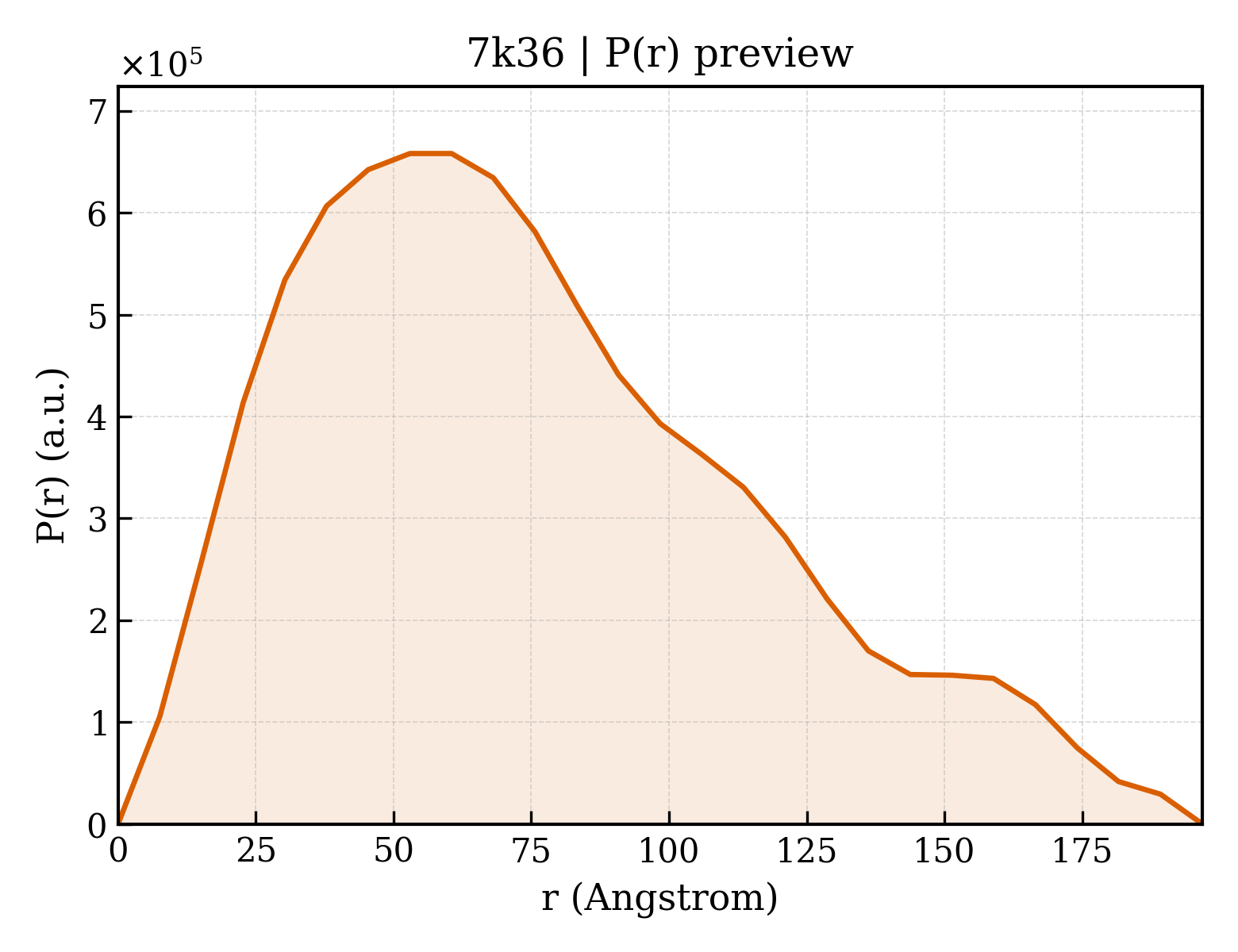

7k36__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	59.34 Å
Rg (electron density)	59.81 Å
Total Rg	59.25 Å
Atom count	16613
Residues	2183
Excluded volume	294520 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7k36__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform
Molecular weight formula_weight	65378.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	16613

MAAADGDDSLYPIAVLIDELRNEDVQLRLNSIKKLSTIALALGVERTRSELLPFLTDTIYDEDEVLLALAEQLGTFTTLVGGPEYVHCLLPPLESLATVEETVVRDKAVESLRAISHEHSPSDLEAHFVPLVKRLAGGDWFTSRTSACGLFSVCYPRVSSAVKAELRQYFRNLCSDDTPMVRRAAASKLGEFAKVLELDNVKSEIIPMFSNLASDEQDSVRLLAVEACVNIAQLLPQEDLEALVMPTLRQAAEDKSWRVRYMVADKFTELQKAVGPEITKTDLVPAFQNLMKDCEAEVRAAASHKVKEFCENLSADCRENVIMSQILPCIKELVSDANQHVKSALASVIMGLSPILGKDNTIEHLLPLFLAQLKDECPEVRLNIISNLDCVNEVIGIRQLSQSLLPAIVELAEDAKWRVRLAIIEYMPLLAGQLGVEFFDEKLNSLCMAWLVDHVYAIREAATSNLKKLVEKFGKEWAHATIIPKVLAMSGDPNYLHRMTTLFCINVLSEVCGQDITTKHMLPTVLRMAGDPVANVRFNVAKSLQKIGPILDNSTLQSEVKPILEKLTQDQDVDVKYFAQEALTVLSLA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 2 Entity 2 polymer

Description description	Striatin-3
Molecular weight formula_weight	77833.5 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,E,F,G

MDELAGGGGGGPGMAAPPRQQQGPGGNLGLSPGGNGAAGGGGPPASEGAGPAAGPELSRPQQYTIPGILHYIQHEWARFEMERAHWEVERAELQARIAFLQGERKGQENLKKDLVRRIKMLEYALKQERAKYHKLKYGTELNQGDLKMPTFESEETKDTEAPTAPQNSQLTWKQGRQLLRQYLQEVGYTDTILDVRSQRVRSLLGLSNSEPNGSVETKNLEQILNGGESPKQKGQEIKRSSGDVLETFNFLENADDSDEDEENDMIEGIPEGKDKHRMNKHKIGNEGLAADLTDDPDTEEALKEFDFLVTAEDGEGAGEARSSGDGTEWAEPITFPSGGGKSFIMGSDDVLLSVLGLGDLADLTVTNDADYSYDLPANKDAFRKTWNPKYTLRSHFDGVRALAFHPVEPVLVTASEDHTLKLWNLQKTVPAKKSASLDVEPIYTFRAHIGPVLSLAISSNGEQCFSGGIDATIQWWNMPSPSVDPYDTYEPNVLAGTLVGHTDAVWGLAYSGIKNQLLSCSADGTVRLWNPQEKLPCICTYNGDKKHGIPTSVDFIGCDPAHMVTSFNTGSAVIYDLETSQSLVILSSQVDSGLQSNNHINRVVSHPTLPVTITAHEDRHIKFFDNKTGKMIHSMVAHLDAVTSLAVDPNGIYLMSGSHDCSIRLWNLDSKTCVQEITAHRKKLDESIYDVAFHSSKAYIASAGADALAKVFV

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 3 Entity 3 polymer

Description description	Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform
Molecular weight formula_weight	35636.2 kDa
EC 编号 ec_number	3.1.3.16
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MDEKVFTKELDQWIEQLNECKQLSESQVKSLCEKAKEILTKESNVQEVRCPVTVCGDVHGQFHDLMELFRIGGKSPDTNYLFMGDYVDRGYYSVETVTLLVALKVRYRERITILRGNHESRQITQVYGFYDECLRKYGNANVWKYFTDLFDYLPLTALVDGQIFCLHGGLSPSIDTLDHIRALDRLQEVPHEGPMCDLLWSDPDDRGGWGISPRGAGYTFGQDISETFNHANGLTLVSRAHQLVMEGYNWCHDRNVVTIFSAPNYCYRCGNQAAIMELDDTLKYSFLQFDPAPRRGEPHVTRRTPDYFL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 4 Entity 4 polymer

Description description	MOB-like protein phocein
Molecular weight formula_weight	26064.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MVMAEGTAVLRRNRPGTKAQDFYNWPDESFDEMDSTLAVQQYIQQNIRADCSNIDKILEPPEGQDEGVWKYEHLRQFCLELNGLAVKLQSECHPDTCTQMTATEQWIFLCAAHKTPKECPAIDYTRHTLDGAACLLNSNKYFPSRVSIKESSVAKLGSVCRRIYRIFSHAYFHHRQIFDEYENETFLCHRFTKFVMKYNLMSKDNLIVPILEEEVQNSVSGESEA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 5 Entity 5 polymer

Description description	Striatin-interacting protein 1
Molecular weight formula_weight	95695.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MEPAVGGPGPLIVNNKQPQPPPPPPPAAAQPPPGAPRAAAGLLPGGKAREFNRNQRKDSEGYSESPDLEFEYADTDKWAAELSELYSYTEGPEFLMNRKCFEEDFRIHVTDKKWTELDTNQHRTHAMRLLDGLEVTAREKRLKVARAILYVAQGTFGECSSEAEVQSWMRYNIFLLLEVGTFNALVELLNMEIDNSAACSSAVRKPAISLADSTDLRVLLNIMYLIVETVHQECEGDKAEWRTMRQTFRAELGSPLYNNEPFAIMLFGMVTKFCSGHAPHFPMKKVLLLLWKTVLCTLGGFEELQSMKAEKRSILGLPPLPEDSIKVIRNMRAASPPASASDLIEQQQKRGRREHKALIKQDNLDAFNERDPYKADDSREEEEENDDDNSLEGETFPLERDEVMPPPLQHPQTDRLTCPKGLPWAPKVREKDIEMFLESSRSKFIGYTLGSDTNTVVGLPRPIHESIKTLKQHKYTSIAEVQAQMEEEYLRSPLSGGEEEVEQVPAETLYQGLLPSLPQYMIALLKILLAAAPTSKAKTDSINILADVLPEEMPTTVLQSMKLGVDVNRHKEVIVKAISAVLLLLLKHFKLNHVYQFEYMAQHLVFANCIPLILKFFNQNIMSYITAKNSISVLDYPHCVVHELPELTAESLEAGDSNQFCWRNLFSCINLLRILNKLTKWKHSRTMMLVVFKSAPILKRALKVKQAMMQLYVLKLLKVQTKYLGRQWRKSNMKTMSAIYQKVRHRLNDDWAYGNDLDARPWDFQAEECALRANIERFNARRYDRAHSNPDFLPVDNCLQSVLGQRVDLPEDFQMNYDLWLEREVFSKPISWEELLQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 6 Entity 6 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	INOSITOL HEXAKISPHOSPHATE
Molecular weight formula_weight	660.0 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	7k36A01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	7k36C01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
Homologous superfamily homologous superfamily	10 — Metallo-dependent phosphatases

Domain ID domain_id	7k36H01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	30 — MOB kinase activator

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	87779
