SAXSdb — 6akl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Suppressor of IKBKE 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Striatin-3 × 1 （Q13033） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIKE1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–54； UniProt 72–121 Author chain B； PDBConstruct 5–54； UniProt 72–121

Striatin-3

OrganismNot specified

UniProt Q13033

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Suppressor of IKBKE 1 × 2 （Q9BRV8） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STRN3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–26； UniProt 165–190

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6akl
Deposition date deposition_date	2018-09-02
Structure title title	Crystal structure of Striatin3 in complex with SIKE1 Coiled-coil domain
Keywords keywords	Coiled-coil domain, heterotrimer, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6akl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6akl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

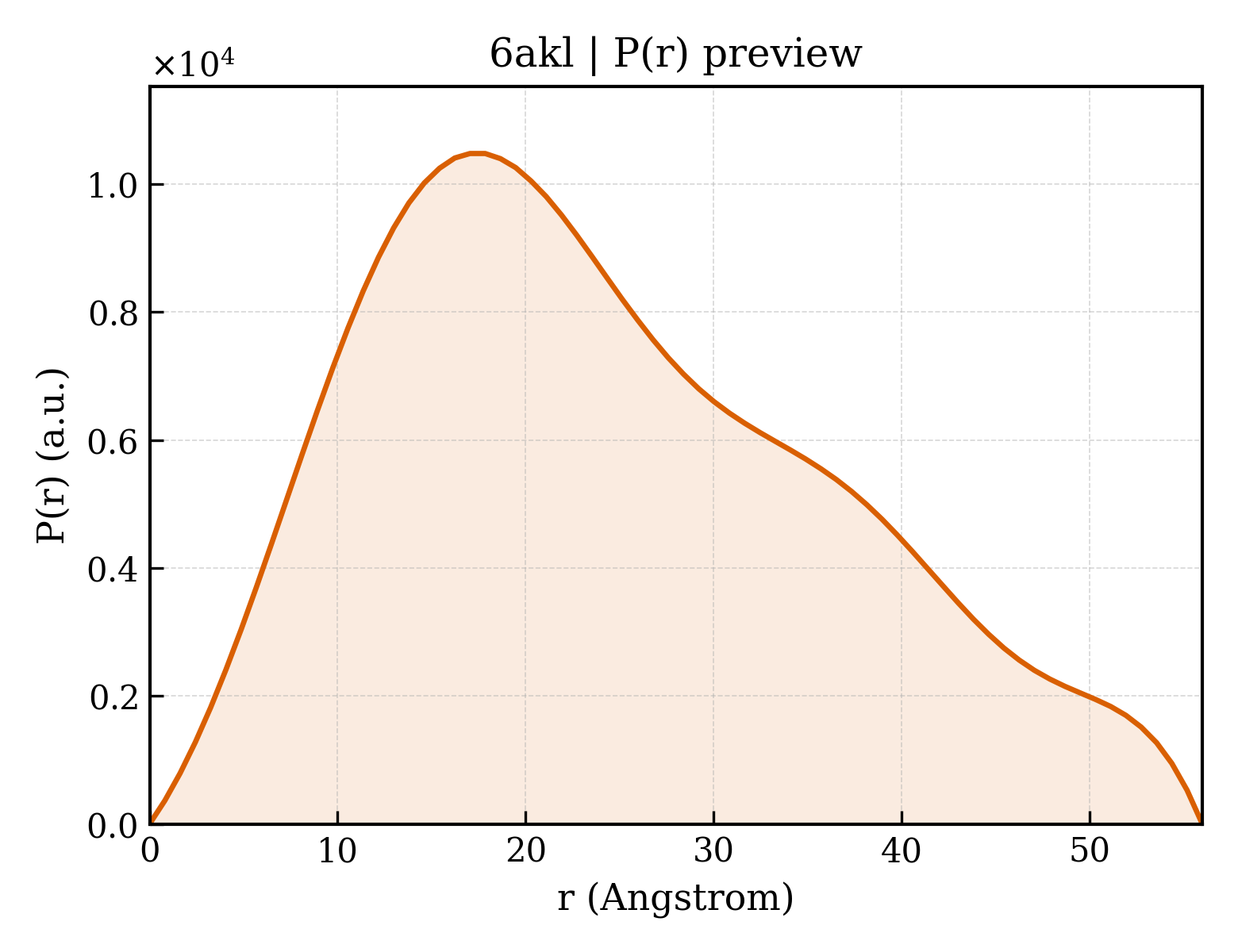

6akl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.54 Å
Rg (electron density)	20.41 Å
Total Rg	21.23 Å
Atom count	976
Residues	118
Excluded volume	17293 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6akl__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Suppressor of IKBKE 1
Molecular weight formula_weight	6440.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1167

STMALLSQENTQIRDLQQENRELWISLEEHQDALELIMSKYRKQMLQLMVAKKA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Striatin-3
Molecular weight formula_weight	3153.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

PQNSQLTWKQGRQLLRQYLQEVGYTD

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	121

▶

Unit-cell length a length_a	39.282 Å
Unit-cell length b length_b	42.382 Å
Unit-cell length c length_c	91.228 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	31.048 Å
R factor r_factor	0.1893
R_work r_work	0.1866
R_free r_free	0.2133
