6akm

Crystal structure of SLMAP-SIKE1 complex

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Suppressor of IKBKE 1

Homo sapiens

UniProt Q9BRV8

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 4 Sarcolemmal membrane-associated protein × 2 (Q14BN4) GLYCEROL × 2 water × 4 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name SIKE1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 5–65; UniProt 5–65

Sarcolemmal membrane-associated protein

Homo sapiens

UniProt Q14BN4

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 4 Suppressor of IKBKE 1 × 2 (Q9BRV8) GLYCEROL × 2 water × 4 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name SLMAP_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B; PDBConstruct 5–64; UniProt 167–226

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6akm
Deposition date deposition_date2018-09-02
Structure title titleCrystal structure of SLMAP-SIKE1 complex
Keywords keywordsCoiled-coil domain, heterotetramer, PROTEIN BINDING; PROTEIN BINDING
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6akm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

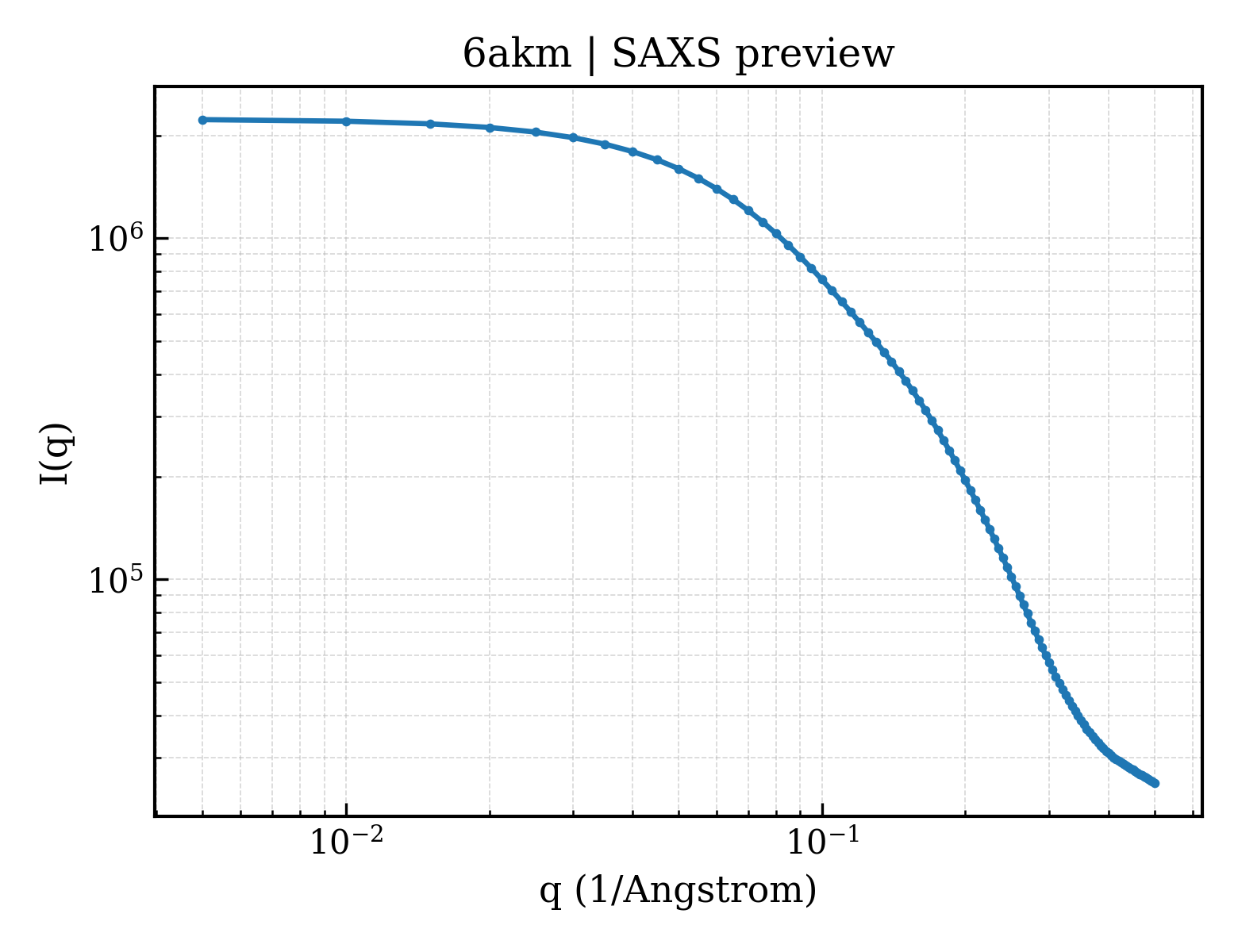

6akm__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

6akm__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)20.92 Å
Rg (electron density)20.74 Å
Total Rg21.54 Å
Atom count1408
Residues186
Excluded volume24856 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 6akm__assembly_1__model_1 tetrameric (4) Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▶

7. Citations (1)
