4iyp

structure of the nPP2Ac-alpha4 complex

Method: X-RAY DIFFRACTION D_max: 95.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Immunoglobulin-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–234	Non-standard monomer：Yes (specific site not provided by mmCIF)	Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform × 1 （P67775）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；12-15% PEG3350 (v/v), 0.3 M Na/K tartrate, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.222

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	IGBP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–222； UniProt 2–234

Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform

Homo sapiens

UniProt P67775

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 6–153	Non-standard monomer：Yes (specific site not provided by mmCIF)	Immunoglobulin-binding protein 1 × 1 （P78318）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；12-15% PEG3350 (v/v), 0.3 M Na/K tartrate, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.80 Å R-free 0.222

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 4IYP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IAE Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme. Deposited 2006-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa） Fragment：Calpha subunit	Mutation：D88N Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M MES, pH 7.0, 50mM NaCl, 1.4M ammonium sulfate, 0.2M LiCl, 2% 1,6-diaminohexane, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.50 Å R-free 0.316
2IAE Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme. Deposited 2006-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–309（309 aa） Fragment：Calpha subunit	Mutation：D88N Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M MES, pH 7.0, 50mM NaCl, 1.4M ammonium sulfate, 0.2M LiCl, 2% 1,6-diaminohexane, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.50 Å R-free 0.316
2IE3 Structure of the Protein Phosphatase 2A Core Enzyme Bound to Tumor-inducing Toxins Deposited 2006-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa） Fragment：catalytic subunit	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.2 mM lithium sulfate, 1.5 M ammonium sulfate, 0.1 M Tris-Cl pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.264
2IE4 Structure of the Protein Phosphatase 2A Core Enzyme Bound to okadaic acid Deposited 2006-09-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–309（309 aa） Fragment：catalytic subunit	Not recorded	MN MANGANESE (II) ION × 2 OKA OKADAIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.2 mM lithium sulfate, 1.5 M ammonium sulfate, 0.1 M Tris-Cl pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.230
2NPP Structure of the Protein Phosphatase 2A Holoenzyme Deposited 2006-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–309（309 aa） Fragment：catalytic subunit	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.5 K；15% PEG 8000, 0.1 M Tris-Cl pH 8.5, and 0.2 M magnesium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277.5K	Resolution 3.30 Å R-free 0.299
2NPP Structure of the Protein Phosphatase 2A Holoenzyme Deposited 2006-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa） Fragment：catalytic subunit	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.5 K；15% PEG 8000, 0.1 M Tris-Cl pH 8.5, and 0.2 M magnesium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277.5K	Resolution 3.30 Å R-free 0.299
2NYL Crystal structure of Protein Phosphatase 2A (PP2A) holoenzyme with the catalytic subunit carboxyl terminus truncated Deposited 2006-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–294（293 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.80 Å R-free 0.335
2NYL Crystal structure of Protein Phosphatase 2A (PP2A) holoenzyme with the catalytic subunit carboxyl terminus truncated Deposited 2006-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 2–294（293 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.80 Å R-free 0.335
2NYM Crystal Structure of Protein Phosphatase 2A (PP2A) with C-terminus truncated catalytic subunit Deposited 2006-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–294（293 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.60 Å R-free 0.331
2NYM Crystal Structure of Protein Phosphatase 2A (PP2A) with C-terminus truncated catalytic subunit Deposited 2006-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 2–294（293 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10-15% PEG8000, 0.1 M Tris-Cl, 0.2 M magnesium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.60 Å R-free 0.331
3C5W Complex between PP2A-specific methylesterase PME-1 and PP2A core enzyme Deposited 2008-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；290 K；25% w/v PEG3350, 100 mM ammonium citrate, and 5 mM DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.80 Å R-free 0.263
3DW8 Structure of a Protein Phosphatase 2A Holoenzyme with B55 subunit Deposited 2008-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；290 K；7-10% PEG 35000, 0.10-0.15 M Sodium citrate pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.85 Å R-free 0.285
3DW8 Structure of a Protein Phosphatase 2A Holoenzyme with B55 subunit Deposited 2008-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；290 K；7-10% PEG 35000, 0.10-0.15 M Sodium citrate pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.85 Å R-free 0.285
3FGA Structural Basis of PP2A and Sgo interaction Deposited 2008-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–309（309 aa）	Mutation：D88N	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7；295 K；0.2 M SCTD, 20% w/v Polyethylene glycol 3,350, pH 7, EVAPORATION, temperature 295K	Resolution 2.70 Å R-free 0.277
3K7V Protein phosphatase 2A core complex bound to dinophysistoxin-1 Deposited 2009-10-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–309（309 aa）	Not recorded	SO4 SULFATE ION × 3 XT1 (2R)-3-[(2S,5R,6R,8S)-8-{(1R,2E)-3-[(2R,4a'R,5R,6'S,8'R,8a'S)-6'-{(1S,3S)-3-[(2S,3R,6R,11R)-3,11-dimethyl-1,7-dioxaspiro[5.5]undec-2-yl]-1-hydroxybutyl}-8'-hydroxy-7'-methylideneoctahydro-3H,3'H-spiro[furan-2,2'-pyrano[3,2-b]pyran]-5-yl]-1-methylprop-2-en-1-yl}-5-hydroxy-10-methyl-1,7-dioxaspiro[5.5]undec-10-en-2-yl]-2-hydroxy-2-methylpropanoic acid × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.2 M LITHIUM SULFATE, 1.5 M AMMONIUM SULFATE, 0.1 M TRIS-CL, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.85 Å R-free 0.262
3K7W Protein phosphatase 2A core complex bound to dinophysistoxin-2 Deposited 2009-10-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–309（309 aa）	Not recorded	SO4 SULFATE ION × 3 XT2 (2R)-2-hydroxy-3-[(2S,5R,6R,8S)-5-hydroxy-8-{(1R,2E)-3-[(2R,4a'R,5R,6'S,8'R,8a'S)-8'-hydroxy-6'-{(1S,3S)-1-hydroxy-3-[( 2S,6R,11S)-11-methyl-1,7-dioxaspiro[5.5]undec-2-yl]butyl}-7'-methylideneoctahydro-3H,3'H-spiro[furan-2,2'-pyrano[3,2-b]p yran]-5-yl]-1-methylprop-2-en-1-yl}-10-methyl-1,7-dioxaspiro[5.5]undec-10-en-2-yl]-2-methylpropanoic acid × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.2 M LITHIUM SULFATE, 1.5 M AMMONIUM SULFATE, 0.1 M TRIS-CL, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.96 Å R-free 0.263
3P71 Crystal structure of the complex of LCMT-1 and PP2A Deposited 2010-10-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–309（309 aa） Fragment：CATALYTIC SUBUNIT ALPHA ISOFORM	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 AN6 5'-{[(3S)-3-amino-3-carboxypropyl](ethyl)amino}-5'-deoxyadenosine × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；291 K；PROTEIN COMPLEX (~5 MG/ML), 100MM TRIS-HCL, 22-26% V/V PEG 4000, 200 MM SODIUM ACETATE, 5 MM DTT, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.70 Å R-free 0.249
4I5L Structural mechanism of trimeric PP2A holoenzyme involving PR70: insight for Cdc6 dephosphorylation Deposited 2012-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 8 CA CALCIUM ION × 2 MN MANGANESE (II) ION × 2 MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；292 K；0.1M Na Malonate, 12% PEG 3350 + 6.2mg/mL protein in buffer Tris, 150mM NaCl , pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.43 Å R-free 0.228
4I5L Structural mechanism of trimeric PP2A holoenzyme involving PR70: insight for Cdc6 dephosphorylation Deposited 2012-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–309（309 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 3 CA CALCIUM ION × 2 MN MANGANESE (II) ION × 2 MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；292 K；0.1M Na Malonate, 12% PEG 3350 + 6.2mg/mL protein in buffer Tris, 150mM NaCl , pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.43 Å R-free 0.228
4I5N Structural mechanism of trimeric PP2A holoenzyme involving PR70: insight for Cdc6 dephosphorylation Deposited 2012-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Not recorded	CA CALCIUM ION × 2 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.75；296 K；0.03M Succinic acid with 7% PEG 3350. Protein (6.2mg/mL) in 10mM tris pH 8.0, 150mM NaCl, 5mM DTT, 1mM CaCl2, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.80 Å R-free 0.250
4I5N Structural mechanism of trimeric PP2A holoenzyme involving PR70: insight for Cdc6 dephosphorylation Deposited 2012-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–309（309 aa）	Not recorded	CA CALCIUM ION × 2 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.75；296 K；0.03M Succinic acid with 7% PEG 3350. Protein (6.2mg/mL) in 10mM tris pH 8.0, 150mM NaCl, 5mM DTT, 1mM CaCl2, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.80 Å R-free 0.250
4LAC Crystal Structure of Protein Phosphatase 2A (PP2A) and PP2A phosphatase activator (PTPA) complex with ATPgammaS Deposited 2013-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 MN MANGANESE (II) ION × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1M MES at pH6.5 and 10-12% PEG20,000, 1mM ATPgammaS, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.82 Å R-free 0.242
4NY3 Human PTPA in complex with peptide Deposited 2013-12-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 304–309（6 aa） Fragment：UNP Residues 304-309	Not recorded	SO4 SULFATE ION × 5 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；2 M (NH4)2SO4 and 0.1 M HEPES pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.80 Å R-free 0.185
4NY3 Human PTPA in complex with peptide Deposited 2013-12-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 304–309（6 aa） Fragment：UNP Residues 304-309	Not recorded	SO4 SULFATE ION × 5 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；2 M (NH4)2SO4 and 0.1 M HEPES pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.80 Å R-free 0.185
5W0W Crystal structure of Protein Phosphatase 2A bound to TIPRL Deposited 2017-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；292 K；0.1M citric acid pH 5.2, 9% PEG4000, 0.2M sodium acetate	Resolution 3.80 Å R-free 0.246
5W0W Crystal structure of Protein Phosphatase 2A bound to TIPRL Deposited 2017-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；292 K；0.1M citric acid pH 5.2, 9% PEG4000, 0.2M sodium acetate	Resolution 3.80 Å R-free 0.246
5W0W Crystal structure of Protein Phosphatase 2A bound to TIPRL Deposited 2017-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；292 K；0.1M citric acid pH 5.2, 9% PEG4000, 0.2M sodium acetate	Resolution 3.80 Å R-free 0.246
5W0W Crystal structure of Protein Phosphatase 2A bound to TIPRL Deposited 2017-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；292 K；0.1M citric acid pH 5.2, 9% PEG4000, 0.2M sodium acetate	Resolution 3.80 Å R-free 0.246
6NTS Protein Phosphatase 2A (Aalpha-B56alpha-Calpha) holoenzyme in complex with a Small Molecule Activator of PP2A (SMAP) Deposited 2019-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–301（301 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	L2J N-[(1R,2R,3S)-2-hydroxy-3-(10H-phenoxazin-10-yl)cyclohexyl]-4-(trifluoromethoxy)benzene-1-sulfonamide × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.02 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.63 Å
7CUN The structure of human Integrator-PP2A complex Deposited 2020-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain Q 1–309（309 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7K36 Cryo-EM structure of STRIPAK complex Deposited 2020-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7PKS Structural basis of Integrator-mediated transcription regulation Deposited 2021-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 31-meric	Chain q 1–309（309 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 10 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7SOY The structure of the PP2A-B56gamma1 holoenzyme-PME-1 complex Deposited 2021-11-01	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7YCX The structure of INTAC-PEC complex Deposited 2022-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain Q 1–309（309 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
8RBX Structure of Integrator-PP2A bound to a paused RNA polymerase II-DSIF-NELF-nucleosome complex Deposited 2023-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 43 PDB declaration: 46-meric	Chain q 1–309（309 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8RBZ Structure of Integrator-PP2A-SOSS-CTD post-termination complex Deposited 2023-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric	Chain q 1–309（309 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8RC4 Structure of Integrator-PP2A complex Deposited 2023-12-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain q 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8SO0 Cryo-EM structure of the PP2A:B55-FAM122A complex Deposited 2023-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FE FE (III) ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8；CHAPSO was added only immediately prior to vitrification cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8TTB Cryo-EM structure of the PP2A:B55-ARPP19 complex Deposited 2023-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FE FE (III) ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8；CHAPSO was added only immediately prior to vitrification cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.77 Å
8TWE Cryo-EM structure of the PP2A:B55-FAM122A complex, B55 body Deposited 2023-08-21	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；CHAPSO was added only immediately prior to vitrification cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.55 Å
8TWI Cryo-EM structure of the PP2A:B55-FAM122A complex, PP2Ac body Deposited 2023-08-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FE FE (III) ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8；CHAPSO was added only immediately prior to vitrification cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.69 Å
8U1X The structure of the PP2A-B56Delta holoenzyme mutant - E197K Deposited 2023-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8U89 The structure of the PP2A-B56Delta holoenzyme mutant - E197K Deposited 2023-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8UO5 Protein Phosphatase 2A B55 subunit in complex with IER5 Deposited 2023-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Not recorded	FE FE (III) ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.27 Å
8UWB Crystal structure of PP2A PPP2R1A-PPP2CA-PPP2R5E phosphatase. Deposited 2023-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa） Chain F 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.77；297 K；23% (w/v) PEG 20k, 0.1 M BIS-TRIS pH 5.77	Resolution 3.15 Å R-free 0.263
8UWB Crystal structure of PP2A PPP2R1A-PPP2CA-PPP2R5E phosphatase. Deposited 2023-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa） Chain F 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.77；297 K；23% (w/v) PEG 20k, 0.1 M BIS-TRIS pH 5.77	Resolution 3.15 Å R-free 0.263
8YJB Cryo-EM structure of the human DSS1-INTAC complex Deposited 2024-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain Q 1–309（309 aa）	Not recorded	ZN ZINC ION × 2 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9C6B PP2A:B55-p107 substrate complex Deposited 2024-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FE2 FE (II) ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
9C7T PP2A:B55-Eya3 substrate complex Deposited 2024-06-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FE2 FE (II) ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9J5I Pathogen effector forms a phosphatase holoenzyme complex with host core enzyme to promote disease Deposited 2024-08-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–309（309 aa） Chain F 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
9J5K Pathogen effector forms a phosphatase holoenzyme complex with host core enzyme to promote disease Deposited 2024-08-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–309（309 aa） Chain F 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
9J5N Pathogen effector forms a phosphatase holoenzyme complex with host core enzyme to promote disease Deposited 2024-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9J5R Pathogen effector forms a phosphatase holoenzyme complex with host core enzyme to promote disease Deposited 2024-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9MF5 CryoEM structure of the Protein Phosphatase 2A (Abeta-B56gamma-Calpha) holoenzyme complex Deposited 2024-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9MIP CryoEM structure of the Protein Phasphatase 2A (Aalpha-B56gamma-Calpha) holoenzyme complex Deposited 2024-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9MZW PP2A-B55 holoenzyme Deposited 2025-01-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–309（309 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
9N0Y PP2A-B55 Holoenzyme with Eya3 Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.71 Å
9N0Z PP2A-B55 Holoenzyme with B55i Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–309（309 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9O04 CryoEM structure of the FBXO42-CCDC6-PP2Ac degradasome Deposited 2025-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric	Chain D 1–309（309 aa） Chain E 1–309（309 aa） Chain I 1–309（309 aa） Chain J 1–309（309 aa） Chain K 1–309（309 aa） Chain L 1–309（309 aa） Chain M 1–309（309 aa） Chain N 1–309（309 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 16	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 200 mM NaCl, 1 mM TCEP pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9O0L CryoEM structure of the CCDC6-PP2Ac multimer Deposited 2025-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain D 1–309（309 aa） Chain E 1–309（309 aa） Chain F 1–309（309 aa） Chain G 1–309（309 aa） Chain I 1–309（309 aa） Chain J 1–309（309 aa） Chain K 1–309（309 aa） Chain L 1–309（309 aa）	Not recorded	MN MANGANESE (II) ION × 16	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 200 mM NaCl, 1 mM TCEP pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9VD9 Cryo-EM structure of the human DSS1-INTAC-PEC complex Deposited 2025-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 38-meric	Chain Q 1–309（309 aa）	Not recorded	ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å

49 other PDB entries and 61 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PP2AA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 4–151； UniProt 6–153

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4iyp
Deposition date deposition_date	2013-01-29
Structure title title	structure of the nPP2Ac-alpha4 complex
Keywords keywords	alpha4, PP2A, latency, helix motif, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.84 Å
Radius of gyration Rg (electron density) rg_electron	22.87 Å
Forward intensity I(0) i0	25480700.00
Molecular weight molecular_weight	38307.0 kDa
Excluded volume excluded_volume	47774 Å³
Envelope volume envelope_volume	62519 Å³
Hydration-shell volume shell_volume	23429 Å³
Envelope diameter envelope_diameter	99.9 Å
Shell Rg shell_rg	29.07 Å
Envelope Rg envelope_rg	23.71 Å
Shape Rg shape_rg	22.79 Å
Total Rg total_rg	23.90 Å
Total atoms total_atoms	2674
Residues n_residues	317
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

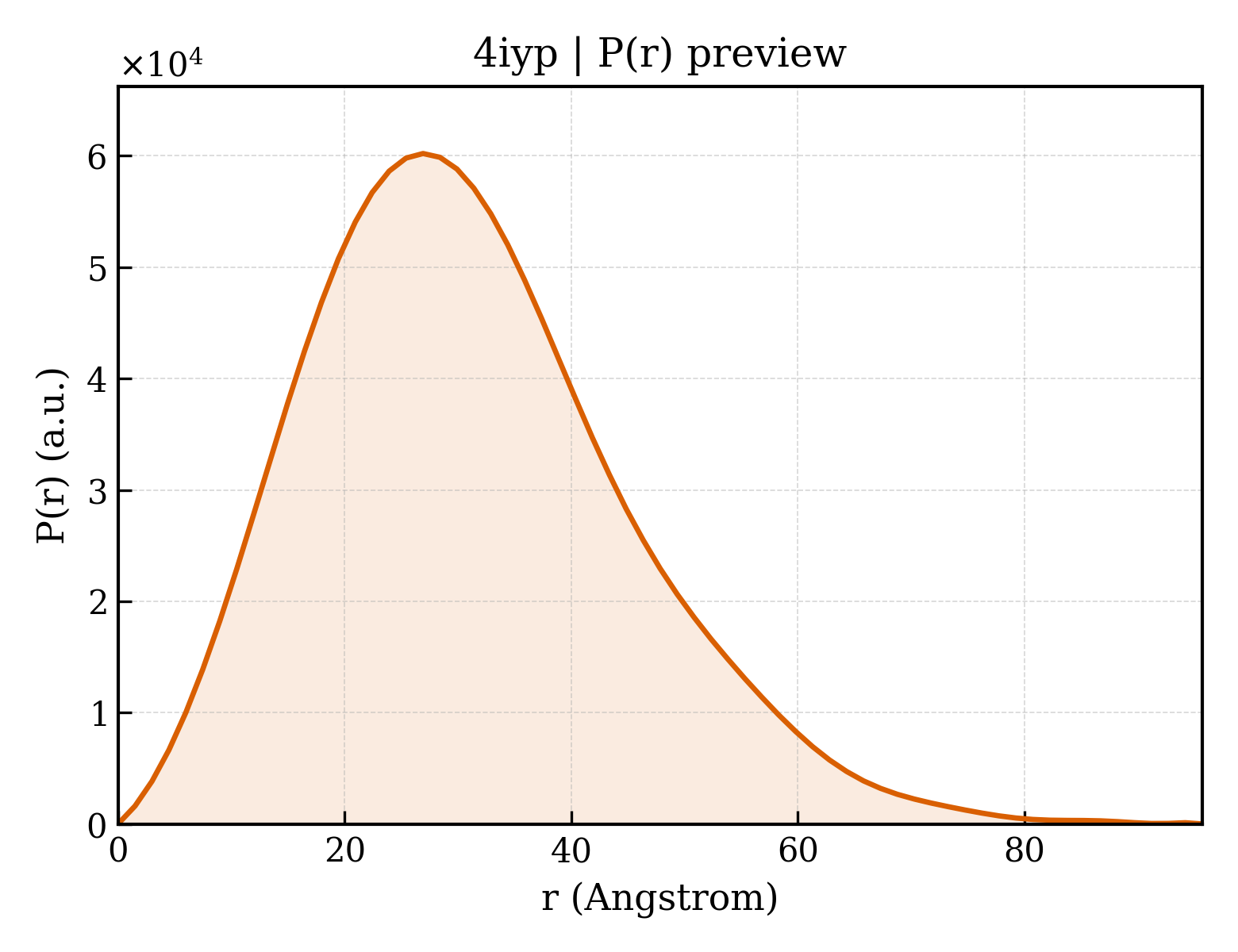

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.7 Å
Rg (real space) rg_real	23.95 Å
Rg uncertainty (real space) rg_real_error	1.02 Å
I(0) (real space) i0_real	2.5480e+07
I(0) uncertainty (real space) i0_real_error	3.4660e+05
Rg (reciprocal space) rg_reciprocal	23.92 Å
I(0) (reciprocal space) i0_reciprocal	25480000.0000
Solution quality estimate total_estimate	0.7608
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.9 Å
Skewness Skewness skewness	0.569
Kurtosis Kurtosis kurtosis	0.259
Angular range angular_range	— – 0.3350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5863000.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.419; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.641; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Immunoglobulin-binding protein 1
Molecular weight formula_weight	25926.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2708

GSMAAEDELQLPRLPELFETGRQLLDEVEVATEPAGSRIVQEKVFKGLDLLEKAAEMLSQLDLFSRNEDLEEIASTDLKYLLVPAFQGALTMKQVNPSKRLDHLQRAREHFINYLTQCHCYHVAEFELPSMAYPSLVAMASQRQAKIQRYKQKKELEHRLSAMKSAVESGQADDERVREYYLLHLQRWIDISLEEIESIDQEIKILRERDSSREASTSNSSR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform
Molecular weight formula_weight	17896.8 kDa
EC 编号 ec_number	3.1.3.16
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GSMFTKELDQWIEQLNECKQLSESQVKSLCEKAKEILTKESNVQEVRCPVTVCGDVHGQFHDLMELFRIGGKSPDTNYLFMGDYVDRGYYSVETVTLLVALKVRYRERITILRGNHESRQITQVYGFYDECLRKYGNANVWKYFTDLFDYL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	34

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4iypA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	540 — TAP42-like family

▶

8. Citations (1)

▶

Unit-cell length a length_a	116.127 Å
Unit-cell length b length_b	116.127 Å
Unit-cell length c length_c	81.230 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.797 Å
Low-resolution limit resolution_low	34.428 Å
R factor r_factor	0.1807
R_work r_work	0.1787
R_free r_free	0.2224

fit	/app/data/saxs_computation/iy/4iyp/4iyp.fit
pddf	/app/data/pr_computation/iy/4iyp/4iyp.pr.out
profile	/app/data/saxs_computation/iy/4iyp/4iyp.dat

structure of the nPP2Ac-alpha4 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Immunoglobulin-binding protein 1

State in the Current Structure

Other States of the Same Protein in the Database

Serine/threonine-protein phosphatase 2A catalytic subunit alpha isoform

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
