6ef4

Crystal structure of mouse PP2A Aalpha P179R mutant

Method: X-RAY DIFFRACTION Dmax: 101.3 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine/threonine-protein phosphatase 2A 65 kDa regulatory subunit A alpha isoform

Mus musculus

UniProt Q76MZ3

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–589 Mutation：P179R No other associated polymer X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Sodium malonate pH 7.0, 20% w/v Polyethylene glycol 3,350 Resolution 3.40 Å R-free 0.235

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6EF4 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2IAE Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme. Deposited 2006-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 0–588（589 aa） Fragment：Aalpha subunit
Not recorded MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M MES, pH 7.0, 50mM NaCl, 1.4M ammonium sulfate, 0.2M LiCl, 2% 1,6-diaminohexane, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.50 Å R-free 0.316
2IAE Crystal structure of a protein phosphatase 2A (PP2A) holoenzyme. Deposited 2006-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 0–588（589 aa） Fragment：Aalpha subunit
Not recorded MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M MES, pH 7.0, 50mM NaCl, 1.4M ammonium sulfate, 0.2M LiCl, 2% 1,6-diaminohexane, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.50 Å R-free 0.316
2PF4 Crystal structure of the full-length simian virus 40 small t antigen complexed with the protein phosphatase 2A Aalpha subunit Deposited 2007-04-03 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–589（589 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；298 K；16% PEG 3350, 0.2 M Ammonium formate, 30 mM spermine, 6% 6-aminocaproic acid, 10 mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 8.00
Resolution 3.10 Å R-free 0.304
2PF4 Crystal structure of the full-length simian virus 40 small t antigen complexed with the protein phosphatase 2A Aalpha subunit Deposited 2007-04-03 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–589（589 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；298 K；16% PEG 3350, 0.2 M Ammonium formate, 30 mM spermine, 6% 6-aminocaproic acid, 10 mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 8.00
Resolution 3.10 Å R-free 0.304
2PF4 Crystal structure of the full-length simian virus 40 small t antigen complexed with the protein phosphatase 2A Aalpha subunit Deposited 2007-04-03 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–589（589 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；298 K；16% PEG 3350, 0.2 M Ammonium formate, 30 mM spermine, 6% 6-aminocaproic acid, 10 mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 8.00
Resolution 3.10 Å R-free 0.304
2PF4 Crystal structure of the full-length simian virus 40 small t antigen complexed with the protein phosphatase 2A Aalpha subunit Deposited 2007-04-03 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–589（589 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；298 K；16% PEG 3350, 0.2 M Ammonium formate, 30 mM spermine, 6% 6-aminocaproic acid, 10 mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 8.00
Resolution 3.10 Å R-free 0.304
3FGA Structural Basis of PP2A and Sgo interaction Deposited 2008-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 2–589（588 aa）
Not recorded MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7；295 K；0.2 M SCTD, 20% w/v Polyethylene glycol 3,350, pH 7, EVAPORATION, temperature 295K
Resolution 2.70 Å R-free 0.277

3 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name 2AAA_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–590； UniProt 1–589

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 6ef4

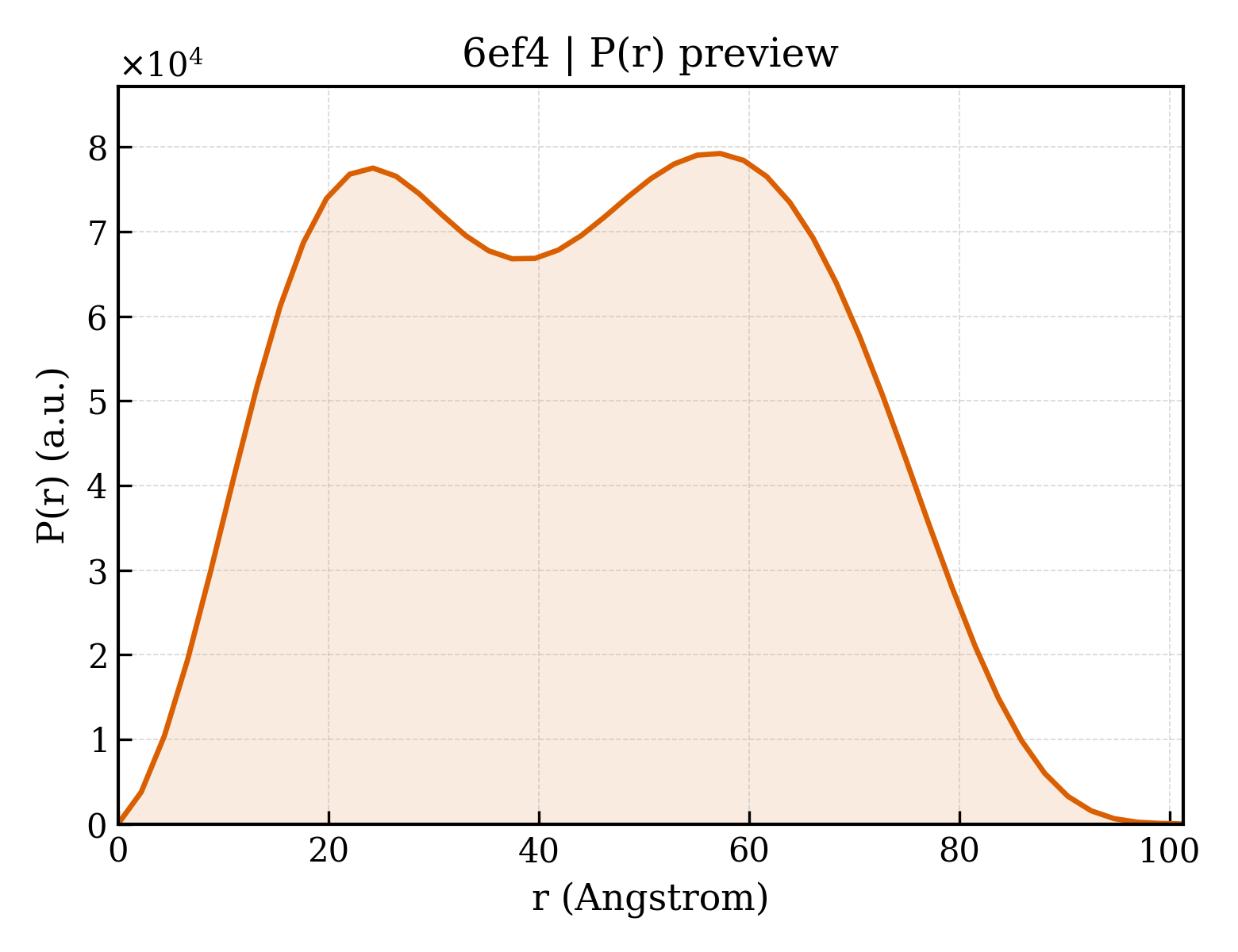

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6ef4
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6ef4
Deposition date deposition_date2018-08-16
Structure title titleCrystal structure of mouse PP2A Aalpha P179R mutant
Keywords keywordsPP2A, Aalpha, PROTEIN BINDING; PROTEIN BINDING
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier34.33 Å
Radius of gyration Rg (electron density) rg_electron33.60 Å
Forward intensity I(0) i061966800.00
Molecular weight molecular_weight63670.0 kDa
Excluded volume excluded_volume80343 ų
Envelope volume envelope_volume115030 ų
Hydration-shell volume shell_volume28767 ų
Envelope diameter envelope_diameter100.8 Å
Shell Rg shell_rg40.58 Å
Envelope Rg envelope_rg31.92 Å
Shape Rg shape_rg33.61 Å
Total Rg total_rg34.17 Å
Total atoms total_atoms4465
Residues n_residues572
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax101.3 Å
Rg (real space) rg_real34.30 Å
Rg uncertainty (real space) rg_real_error0.65 Å
I(0) (real space) i0_real6.1970e+07
I(0) uncertainty (real space) i0_real_error9.6010e+05
Rg (reciprocal space) rg_reciprocal34.33 Å
I(0) (reciprocal space) i0_reciprocal61970000.0000
Solution quality estimate total_estimate0.8548
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary57.3 Å
Skewness Skewness skewness0.047
Kurtosis Kurtosis kurtosis-0.996
Angular range angular_range— – 0.2300 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha6843000.0000
Real-space data points n_real_points47
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.865; Smooth: 0.569
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id6ef4A00
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily10 — Leucine-rich Repeat Variant
▶

8. Citations (1)

▶

9. Files and Curves (10)
