SAXSdb — 5vbn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase epsilon subunit 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–527	Not recorded	DNA polymerase epsilon catalytic subunit A × 1 （Q07864） SO4 SULFATE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；295 K；50 mM sodium citrate, pH5.6, 0.70 M ammonium sulfate and 2 mM TCEP	Resolution 2.35 Å R-free 0.264
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 1–527	Not recorded	DNA polymerase epsilon catalytic subunit A × 1 （Q07864） SO4 SULFATE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；295 K；50 mM sodium citrate, pH5.6, 0.70 M ammonium sulfate and 2 mM TCEP	Resolution 2.35 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5VBN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2V6Z Solution Structure of Amino-Terminal Domain of Human DNA Polymerase Epsilon Subunit B Deposited 2007-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain M 1–75（75 aa） Fragment：AMINO TERMINAL DOMAIN, RESIDUES 1-75	Mutation：YES	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.62；298 K；Pressure 1.0 NMR sample composition 0.7 MM PROTEIN NMR sample composition 155 MM NACL NMR sample composition 25 MM TRIS-HCL NMR sample composition 25 MM IMIDAZOLE NMR sample composition 1.25 MM EDTA NMR sample composition 93% H2O, 7% D2O	Resolution not provided
7PFO Core human replisome Deposited 2021-08-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric	Chain A 1–527（527 aa）	Not recorded	ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric	Chain A 1–527（527 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DPOE2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–527； UniProt 1–527 Author chain E； PDBConstruct 1–527； UniProt 1–527

DNA polymerase epsilon catalytic subunit A

Homo sapiens

UniProt Q07864

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2142–2286	Fragment：UNP residues 2142-2286	DNA polymerase epsilon subunit 2 × 1 （P56282） SO4 SULFATE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；295 K；50 mM sodium citrate, pH5.6, 0.70 M ammonium sulfate and 2 mM TCEP	Resolution 2.35 Å R-free 0.264
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 2142–2286	Fragment：UNP residues 2142-2286	DNA polymerase epsilon subunit 2 × 1 （P56282） SO4 SULFATE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；295 K；50 mM sodium citrate, pH5.6, 0.70 M ammonium sulfate and 2 mM TCEP	Resolution 2.35 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5VBN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7PFO Core human replisome Deposited 2021-08-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric	Chain B 1–2286（2286 aa）	Not recorded	ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric	Chain B 1–2286（2286 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9B8S Human polymerase epsilon bound to PCNA and DNA in the nucleotide exchange state Deposited 2024-03-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–2286（2286 aa）	Mutation：D275A, E277A	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.01 Å
9F6D Human DNA polymerase epsilon bound to DNA and PCNA (open conformation) Deposited 2024-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1200（1200 aa）	Mutation：D275A E277A	SF4 IRON/SULFUR CLUSTER × 1 DDS 2',3'-dideoxyadenosine triphosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9F6E Human DNA polymerase epsilon bound to DNA and PCNA (ajar conformation) Deposited 2024-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1200（1200 aa）	Mutation：D275A E277A	SF4 IRON/SULFUR CLUSTER × 1 DDS 2',3'-dideoxyadenosine triphosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.74 Å
9F6F Human DNA polymerase epsilon bound to DNA and PCNA (closed conformation) Deposited 2024-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1200（1200 aa）	Mutation：D275A E277A	SF4 IRON/SULFUR CLUSTER × 1 DDS 2',3'-dideoxyadenosine triphosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.75 Å
9F6I Human DNA Polymerase epsilon bound to T-C mismatched DNA (Post-Insertion state) Deposited 2024-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 DDS 2',3'-dideoxyadenosine triphosphate × 1 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9F6J Human DNA Polymerase epsilon bound to T-C mismatched DNA (Polymerase Arrest state) Deposited 2024-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9F6K Human DNA Polymerase epsilon bound to T-C mismatched DNA (Frayed Substrate state) Deposited 2024-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
9F6L Human DNA Polymerase epsilon bound to T-C mismatched DNA (Mismatch Excision state) Deposited 2024-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 CA CALCIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9NE6 Human polymerase epsilon bound to PCNA and DNA with an in-situ-generated mismatch in the mismatch-editing state Deposited 2025-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
9NE7 Human polymerase epsilon bound to PCNA and DNA with an in-situ-generated mismatch in the Pol-backtracking state Deposited 2025-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
9NE8 Human polymerase epsilon bound to PCNA and DNA with an in-situ-generated mismatch in the mismatch-locking state Deposited 2025-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9NE9 Human polymerase epsilon bound to PCNA and DNA with a pre-existing mismatch in the blocked conformation I Deposited 2025-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 27–1198（1172 aa）	Not recorded	MG MAGNESIUM ION × 2 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.88 Å
9NEA Human polymerase epsilon bound to PCNA and DNA with a pre-existing mismatch in the blocked conformation II Deposited 2025-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–2286（2286 aa）	Not recorded	MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.81 Å
9SRI Human DNA polymerase epsilon bound to DNA blunt end Deposited 2025-09-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1200（1200 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DPOE1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–145； UniProt 2142–2286 Author chain F； PDBConstruct 1–145； UniProt 2142–2286

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5vbn
Deposition date deposition_date	2017-03-29
Structure title title	Crystal Structure of human DNA polymerase epsilon B-subunit in complex with C-terminal domain of catalytic subunit
Keywords keywords	replication, DNA replication, polymerase, DNA polymerase, DNA polymerase epsilon, B-subunit, catalytic subunit, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.43 Å
Radius of gyration Rg (electron density) rg_electron	37.74 Å
Forward intensity I(0) i0	228160000.00
Molecular weight molecular_weight	125930.0 kDa
Excluded volume excluded_volume	158540 Å³
Envelope volume envelope_volume	203930 Å³
Hydration-shell volume shell_volume	44474 Å³
Envelope diameter envelope_diameter	123.2 Å
Shell Rg shell_rg	44.15 Å
Envelope Rg envelope_rg	37.62 Å
Shape Rg shape_rg	37.67 Å
Total Rg total_rg	38.37 Å
Total atoms total_atoms	8846
Residues n_residues	1104
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

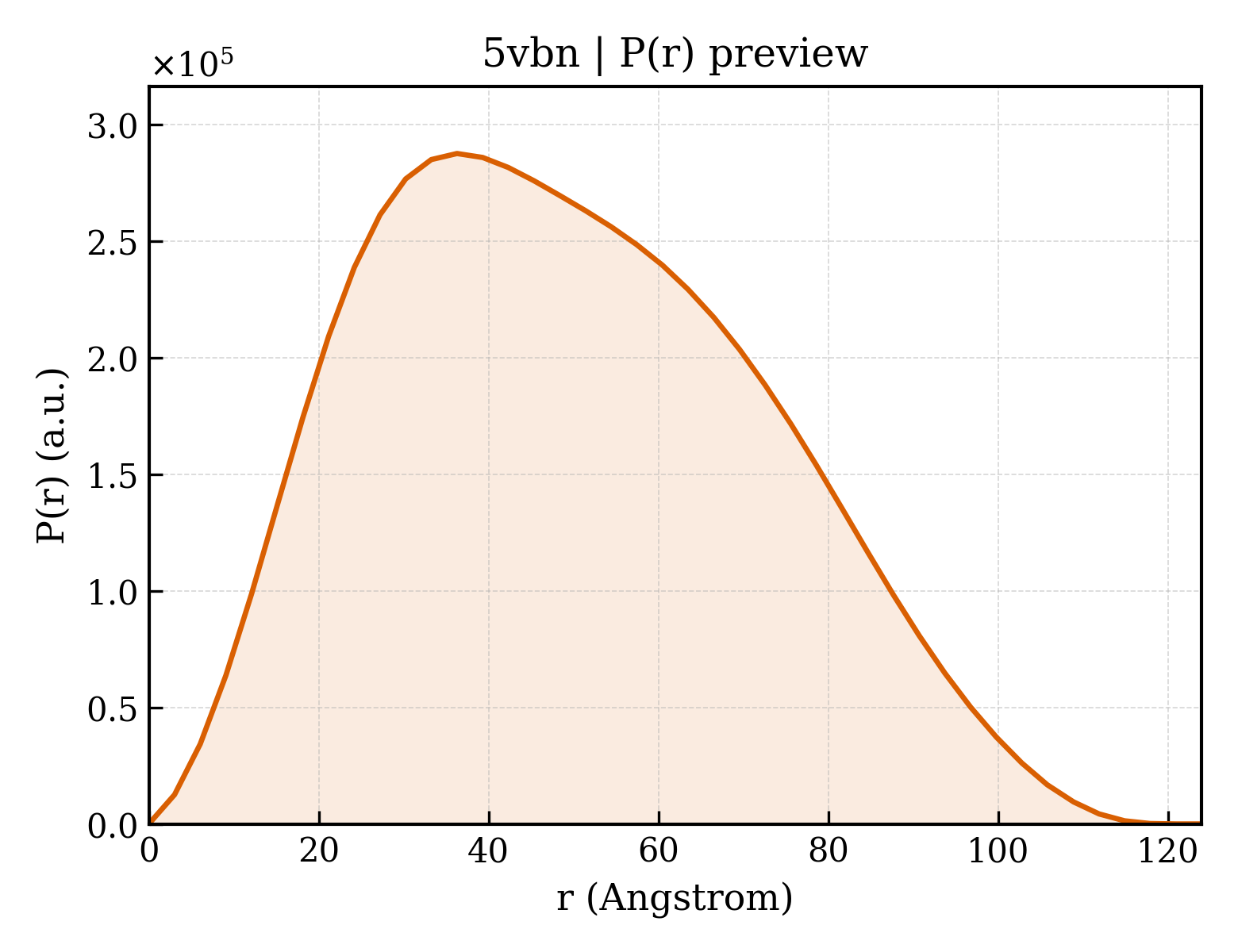

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	124.0 Å
Rg (real space) rg_real	38.49 Å
Rg uncertainty (real space) rg_real_error	1.10 Å
I(0) (real space) i0_real	2.2820e+08
I(0) uncertainty (real space) i0_real_error	4.3060e+06
Rg (reciprocal space) rg_reciprocal	38.46 Å
I(0) (reciprocal space) i0_reciprocal	228200000.0000
Solution quality estimate total_estimate	0.8854
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	36.3 Å
Skewness Skewness skewness	0.279
Kurtosis Kurtosis kurtosis	-0.655
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	42090000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.742

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA polymerase epsilon subunit 2
Molecular weight formula_weight	59600.9 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	9058

MAPERLRSRALSAFKLRGLLLRGEAIKYLTEALQSISELELEDKLEKIINAVEKQPLSSNMIERSVVEAAVQECSQSVDETIEHVFNIIGAFDIPRFVYNSERKKFLPLLMTNHPAPNLFGTPRDKAEMFRERYTILHQRTHRHELFTPPVIGSHPDESGSKFQLKTIETLLGSTTKIGDAIVLGMITQLKEGKFFLEDPTGTVQLDLSKAQFHSGLYTEACFVLAEGWFEDQVFHVNAFGFPPTEPSSTTRAYYGNINFFGGPSNTSVKTSAKLKQLEEENKDAMFVFLSDVWLDQVEVLEKLRIMFAGYSPAPPTCFILCGNFSSAPYGKNQVQALKDSLKTLADIICEYPDIHQSSRFVFVPGPEDPGFGSILPRPPLAESITNEFRQRVPFSVFTTNPCRIQYCTQEITVFREDLVNKMCRNCVRFPSSNLAIPNHFVKTILSQGHLTPLPLYVCPVYWAYDYALRVYPVPDLLVIADKYDPFTTTNTECLCINPGSFPRSGFSFKVFYPSNKTVEDSKLQGF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	DNA polymerase epsilon catalytic subunit A
Molecular weight formula_weight	16517.1 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

AQFRDPCRSYVLPEVICRSCNFCRDLDLCKDSSFSEDGAVLPQWLCSNCQAPYDSSAIEMTLVEVLQKKLMAFTLQDLVCLKCRGVKETSMPVYCSCAGDFALTIHTQVFMEQIGIFRNIAQHYGMSYLLETLEWLLQKNPQLGH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	212

▶

8. Citations (1)

▶

Unit-cell length a length_a	92.260 Å
Unit-cell length b length_b	201.459 Å
Unit-cell length c length_c	78.336 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	39.750 Å
R factor r_factor	0.2250
R_work r_work	0.2250
R_free r_free	0.2640

fit	/app/data/saxs_computation/vb/5vbn/5vbn.fit
pddf	/app/data/pr_computation/vb/5vbn/5vbn.pr.out
profile	/app/data/saxs_computation/vb/5vbn/5vbn.dat
