1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase epsilon catalytic subunit A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	Proliferating cell nuclear antigen × 3 （P12004） ;DNA (5'-D(PGPTPGPAPTPGPCPTPTPTPAPGPAPTPTPTPTPTPC)-3') ; × 1 ;DNA (5'-D(PAPAPAPGPTPGPAPAPAPAPAPTPCPTPAPAPAPGPCPAPTPCPAP*C)-3') ; × 1 IRON/SULFUR CLUSTER × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPOE1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–2286； UniProt 1–2286

Proliferating cell nuclear antigen

Homo sapiens

UniProt P12004

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	DNA polymerase epsilon catalytic subunit A × 1 （Q07864） ;DNA (5'-D(PGPTPGPAPTPGPCPTPTPTPAPGPAPTPTPTPTPTPC)-3') ; × 1 ;DNA (5'-D(PAPAPAPGPTPGPAPAPAPAPAPTPCPTPAPAPAPGPCPAPTPCPAP*C)-3') ; × 1 IRON/SULFUR CLUSTER × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–261； UniProt 1–261 Author chain C； PDBConstruct 1–261； UniProt 1–261 Author chain D； PDBConstruct 1–261； UniProt 1–261

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9b8s
Deposition date deposition_date	2024-03-31
Structure title title	Human polymerase epsilon bound to PCNA and DNA in the nucleotide exchange state
Keywords keywords	DNA polymerase, DNA, DNA Binding Protein-DNA complex; DNA Binding Protein/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9b8s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

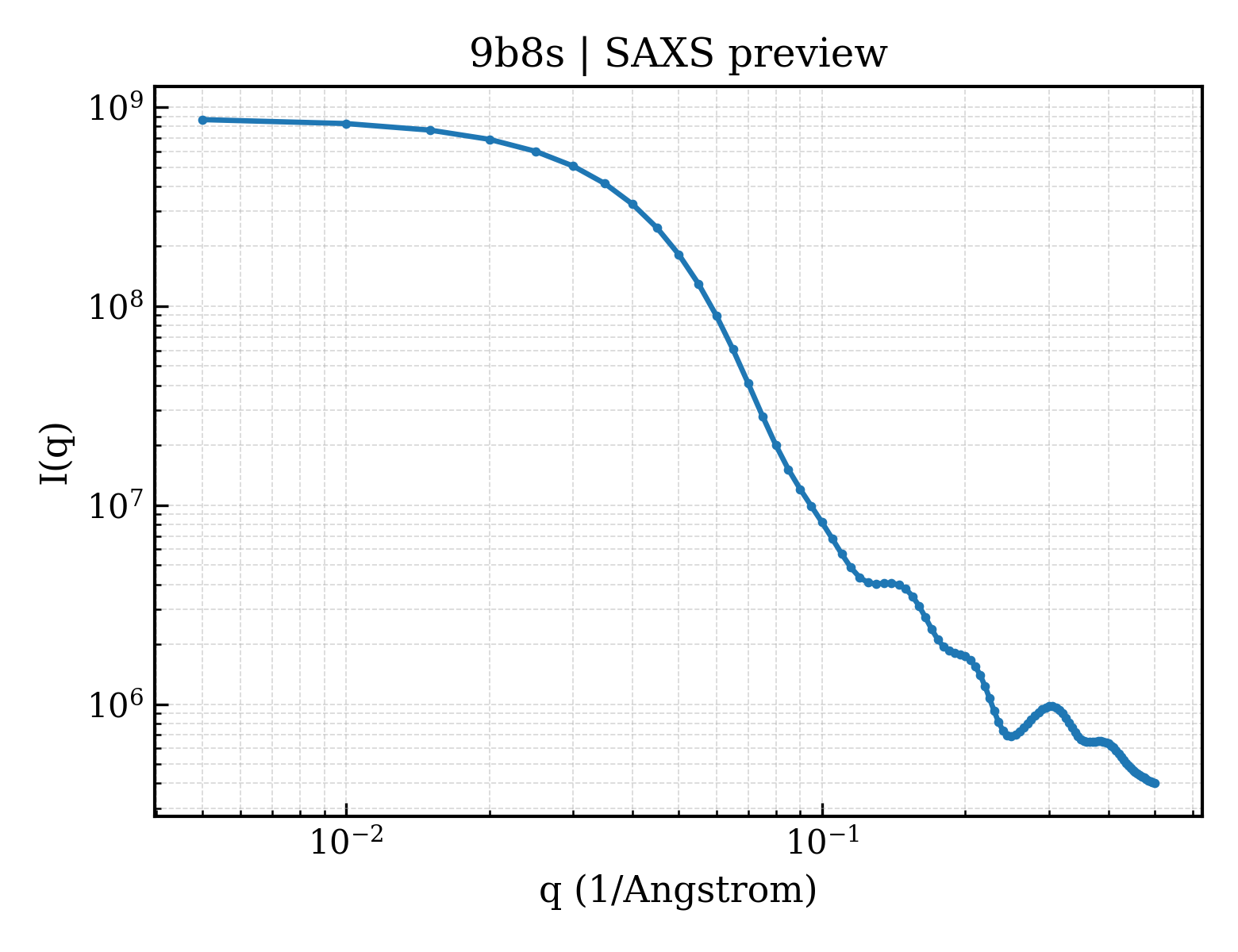

9b8s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9b8s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.68 Å
Rg (electron density)	42.43 Å
Total Rg	42.72 Å
Atom count	16364
Residues	1978
Excluded volume	288920 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9b8s__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA polymerase epsilon catalytic subunit A
Molecular weight formula_weight	261753.2 kDa
EC 编号 ec_number	2.7.7.7,3.1.11.-
Mutation mutation	D275A, E277A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	16364

MSLRSGGRRRADPGADGEASRDDGATSSVSALKRLERSQWTDKMDLRFGFERLKEPGEKTGWLINMHPTEILDEDKRLGSAVDYYFIQDDGSRFKVALPYKPYFYIATRKGCEREVSSFLSKKFQGKIAKVETVPKEDLDLPNHLVGLKRNYIRLSFHTVEDLVKVRKEISPAVKKNREQDHASDAYTALLSSVLQRGGVITDEEETSKKIADQLDNIVDMREYDVPYHIRLSIDLKIHVAHWYNVRYRGNAFPVEITRRDDLVERPDPVVLAFAIATTKLPLKFPDAETDQIMMISYMIDGQGYLITNREIVSEDIEDFEFTPKPEYEGPFCVFNEPDEAHLIQRWFEHVQETKPTIMVTYNGDFFDWPFVEARAAVHGLSMQQEIGFQKDSQGEYKAPQCIHMDCLRWVKRDSYLPVGSHNLKAAAKAKLGYDPVELDPEDMCRMATEQPQTLATYSVSDAVATYYLYMKYVHPFIFALCTIIPMEPDEVLRKGSGTLCEALLMVQAFHANIIFPNKQEQEFNKLTDDGHVLDSETYVGGHVEALESGVFRSDIPCRFRMNPAAFDFLLQRVEKTLRHALEEEEKVPVEQVTNFEEVCDEIKSKLASLKDVPSRIECPLIYHLDVGAMYPNIILTNRLQPSAMVDEATCAACDFNKPGANCQRKMAWQWRGEFMPASRSEYHRIQHQLESEKFPPLFPEGPARAFHELSREEQAKYEKRRLADYCRKAYKKIHITKVEERLTTICQRENSFYVDTVRAFRDRRYEFKGLHKVWKKKLSAAVEVGDAAEVKRCKNMEVLYDSLQLAHKCILNSFYGYVMRKGARWYSMEMAGIVCFTGANIITQARELIEQIGRPLELDTDGIWCVLPNSFPENFVFKTTNVKKPKVTISYPGAMLNIMVKEGFTNDQYQELAEPSSLTYVTRSENSIFFEVDGPYLAMILPASKEEGKKLKKRYAVFNEDGSLAELKGFEVKRRGELQLIKIFQSSVFEAFLKGSTLEEVYGSVAKVADYWLDVLYSKAANMPDSELFELISENRSMSRKLEDYGEQKSTSISTAKRLAEFLGDQMVKDAGLSCRYIISRKPEGSPVTERAIPLAIFQAEPTVRKHFLRKWLKSSSLQDFDIRAILDWDYYIERLGSAIQKIITIPAALQQVKNPVPRVKHPDWLHKKLLEKNDVYKQKKISELFTLEGRRQVTMAEASEDSPRPSAPDMEDFGLVKLPHPAAPVTVKRKRVLWESQEESQDLTPTVPWQEILGQPPALGTSQEEWLVWLRFHKKKWQLQARQRLARRKRQRLESAEGVLRPGAIRDGPATGLGSFLRRTARSILDLPWQIVQISETSQAGLFRLWALVGSDLHCIRLSIPRVFYVNQRVAKAEEGASYRKVNRVLPRSNMVYNLYEYSVPEDMYQEHINEINAELSAPDIEGVYETQVPLLFRALVHLGCVCVVNKQLVRHLSGWEAETFALEHLEMRSLAQFSYLEPGSIRHIYLYHHAQAHKALFGIFIPSQRRASVFVLDTVRSNQMPSLGALYSAEHGLLLEKVGPELLPPPKHTFEVRAETDLKTICRAIQRFLLAYKEERRGPTLIAVQSSWELKRLASEIPVLEEFPLVPICVADKINYGVLDWQRHGARRMIRHYLNLDTCLSQAFEMSRYFHIPIGNLPEDISTFGSDLFFARHLQRHNHLLWLSPTARPDLGGKEADDNCLVMEFDDQATVEINSSGCYSTVCVELDLQNLAVNTILQSHHVNDMEGADSMGISFDVIQQASLEDMITGGQAASAPASYDETALCSNTFRILKSMVVGWVKEITQYHNIYADNQVMHFYRWLRSPSSLLHDPALHRTLHNMMKKLFLQLIAEFKRLGSSVIYANFNRIILCTKKRRVEDAIAYVEYITSSIHSKETFHSLTISFSRCWEFLLWMDPSNYGGIKGKVSSRIHCGLQDSQKAGGAEDEQENEDDEEERDGEEEEEAEESNVEDLLENNWNILQFLPQAASCQNYFLMIVSAYIVAVYHCMKDGLRRSAPGSTPVRRRGASQLSQEAEGAVGALPGMITFSQDYVANELTQSFFTITQKIQKKVTGSRNSTELSEMFPVLPGSHLLLNNPALEFIKYVCKVLSLDTNITNQVNKLNRDLLRLVDVGEFSEEAQFRDPCRSYVLPEVICRSCNFCRDLDLCKDSSFSEDGAVLPQWLCSNCQAPYDSSAIEMTLVEVLQKKLMAFTLQDLVCLKCRGVKETSMPVYCSCAGDFALTIHTQVFMEQIGIFRNIAQHYGMSYLLETLEWLLQKNPQLGH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 2 Entity 2 polymer

Description description	Proliferating cell nuclear antigen
Molecular weight formula_weight	28795.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,D

MFEARLVQGSILKKVLEALKDLINEACWDISSSGVNLQSMDSSHVSLVQLTLRSEGFDTYRCDRNLAMGVNLTSMSKILKCAGNEDIITLRAEDNADTLALVFEAPNQEKVSDYEMKLMDLDVEQLGIPEQEYSCVVKMPSGEFARICRDLSHIGDAVVISCAKDGVKFSASGELGNGNIKLSQTSNVDKEEEAVTIEMNEPVQLTFALRYLNFFTKATPLSSTVTLSMSADVPLVVEYKIADMGHLKYYLAPKIEDEEGS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(PGPTPGPAPTPGPCPTPTPTPAPGPAPTPTPTPTPTP*C)-3') ;
Molecular weight formula_weight	10824.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P

TGAGGTTCAGCAAGGTGATGCTTTAGATTTTTCAC

Source Source

Source organism organism	DNA molecule
NCBI taxonomy ID ncbi_taxonomy_id	2853804
Host organism host_organism	DNA molecule

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(PAPAPAPGPTPGPAPAPAPAPAPTPCPTPAPAPAPGPCPAPTPCPAPC)-3') ;
Molecular weight formula_weight	18136.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

GCCACGCTGAGAGCCAGCAGCAAAGTGAAAAATCTAAAGCATCACCTTGCTGAACCTCA

Source Source

Source organism organism	DNA molecule
NCBI taxonomy ID ncbi_taxonomy_id	2853804
Host organism host_organism	DNA molecule

Entity 5 Entity 5 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	5.01 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	71210

Human polymerase epsilon bound to PCNA and DNA in the nucleotide exchange state
