5xoj

Crystal structure of Xpo1p-PKI-Nup42p-Gsp1p-GTP complex

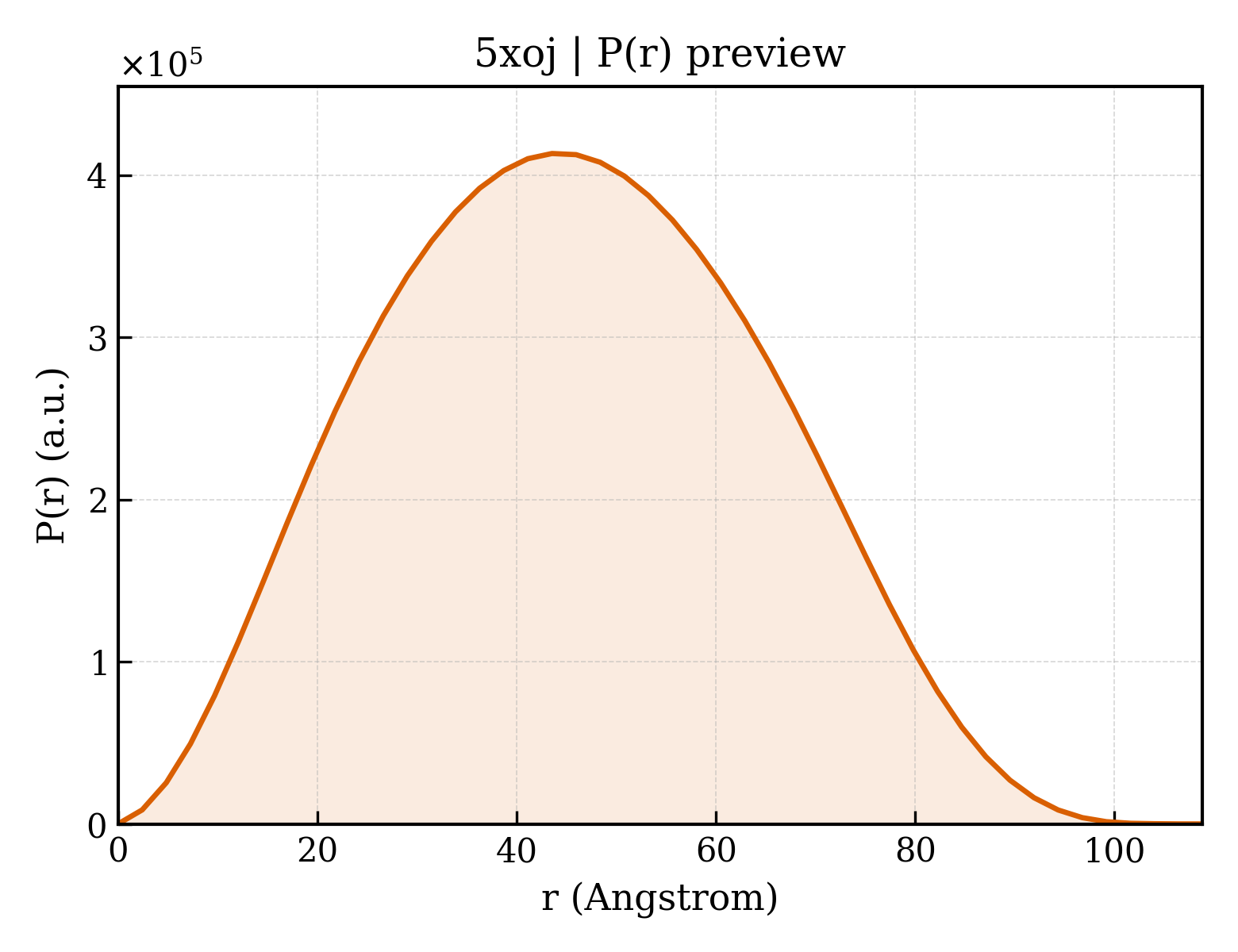

Method: X-RAY DIFFRACTION Dmax: 108.8 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-binding nuclear protein

Saccharomyces cerevisiae (strain AWRI796)

UniProt E7KFU1

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain A； UniProt 1–182 Fragment：UNP residues 1-182 Mutation：Q71L Exportin-1 × 1 （P30822） cAMP-dependent protein kinase inhibitor alpha × 1 （P61925） Nup42p × 3 （E7Q297） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.7；293 K；PEG20000, Tris-HCl Resolution 2.20 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5XOJ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3WYF Crystal structure of Xpo1p-Yrb2p-Gsp1p-GTP complex Deposited 2014-08-26 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–219（219 aa）
Mutation：Q71L GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；0.1M CITRATE, 17% PEG6000, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 2.22 Å R-free 0.214
3WYF Crystal structure of Xpo1p-Yrb2p-Gsp1p-GTP complex Deposited 2014-08-26 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–219（219 aa）
Mutation：Q71L GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；0.1M CITRATE, 17% PEG6000, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 2.22 Å R-free 0.214
3WYG Crystal structure of Xpo1p-PKI-Gsp1p-GTP complex Deposited 2014-08-26 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–182（182 aa） Fragment：UNP residues 1-182
Mutation：Q71L GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；0.1M TRIS, 15% PEG20000, PH 7.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 2.15 Å R-free 0.220

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name E7KFU1_YEASA
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–182； UniProt 1–182

Exportin-1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P30822

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain C； UniProt 1–1084 Mutation：residues 377-413 deleted GTP-binding nuclear protein × 1 （E7KFU1） cAMP-dependent protein kinase inhibitor alpha × 1 （P61925） Nup42p × 3 （E7Q297） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.7；293 K；PEG20000, Tris-HCl Resolution 2.20 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5XOJ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3M1I Crystal structure of yeast CRM1 (Xpo1p) in complex with yeast RanBP1 (Yrb1p) and yeast RanGTP (Gsp1pGTP) Deposited 2010-03-05 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1084（1084 aa）
Mutation：A deletion mutant (residues 377-413 deleted) GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；293 K；0.1M Bis-Tris, 0.2M ammonium nitrate, 18% PEG3350, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.00 Å R-free 0.220
3VYC Crystal structure of unliganded Saccharomyces cerevisiae CRM1 (Xpo1p) Deposited 2012-09-22 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1084（1084 aa）
Mutation：a deletion mutant in which residues 377-413 and 971-984 are deleted No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.2M KF, 16% PEG3350, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.217
3WYF Crystal structure of Xpo1p-Yrb2p-Gsp1p-GTP complex Deposited 2014-08-26 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1084（1084 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；0.1M CITRATE, 17% PEG6000, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 2.22 Å R-free 0.214
3WYF Crystal structure of Xpo1p-Yrb2p-Gsp1p-GTP complex Deposited 2014-08-26 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1084（1084 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；0.1M CITRATE, 17% PEG6000, PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 2.22 Å R-free 0.214
3WYG Crystal structure of Xpo1p-PKI-Gsp1p-GTP complex Deposited 2014-08-26 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1084（1084 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；0.1M TRIS, 15% PEG20000, PH 7.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 2.15 Å R-free 0.220
4GMX Crystal structure of KPT185 in complex with CRM1-Ran-RanBP1 Deposited 2012-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa） Fragment：UNP residues 1-1058
Mutation：T539C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 2 K85 propan-2-yl 3-{3-[3-methoxy-5-(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}propanoate × 1 GOL GLYCEROL × 6 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.197
4GPT Crystal structure of KPT251 in complex with CRM1-Ran-RanBP1 Deposited 2012-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa） Fragment：UNP residues 1-1058
Mutation：T539C,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 2 CL CHLORIDE ION × 5 51K 2-(2-{3-[3,5-bis(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}ethyl)-1,3,4-oxadiazole × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.22 Å R-free 0.210
4HAT Crystal structure of CRM1 inhibitor Leptomycin B in complex with CRM1-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,Y1022C Mutation：T539C,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 3 LMB Leptomycin B, bound form × 1 GOL GLYCEROL × 2 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.78 Å R-free 0.173
4HAU Crystal structure of CRM1 inhibitor Ratjadone A in complex with CRM1-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,Y1022C Mutation：T539C,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 4 RJA Ratjadone A, bound form × 1 GOL GLYCEROL × 3 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.207
4HAV Crystal structure of CRM1 inhibitor Anguinomycin A in complex with CRM1-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,Y1022C Mutation：T539C,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 4 AA8 Anguinomycin A, bound form × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.220
4HAW Crystal structure of CRM1 inhibitor Leptomycin B in complex with CRM1(K548A)-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,K548A,Y1022C Mutation：T539C,K548A,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 GOL GLYCEROL × 3 EDO 1,2-ETHANEDIOL × 2 LMB Leptomycin B, bound form × 1 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.209
4HAX Crystal structure of CRM1 inhibitor Ratjadone A in complex with CRM1(K579A)-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,K579A,Y1022C Mutation：T539C,K579A,Y1022C RJA Ratjadone A, bound form × 1 GOL GLYCEROL × 3 EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 3 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.28 Å R-free 0.216
4HAY Crystal structure of CRM1 inhibitor Leptomycin B in complex with CRM1(K548E,K579Q)-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,K548E,K579Q,Y1022C Mutation：T539C,K548E,K579Q,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 5 LMB Leptomycin B, bound form × 1 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.230
4HAZ Crystal structure of CRM1 inhibitor Leptomycin B in complex with CRM1(R543S,K548E,K579Q)-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,R543S,K548E,K579Q,Y1022C Mutation：T539C,R543S,K548E,K579Q,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 5 LBF Leptomycin B × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.209
4HB0 Crystal structure of CRM1 inhibitor Leptomycin B in complex with CRM1(K541Q,K542Q,R543S,K545Q,K548Q,K579Q)-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,K541Q,K542Q,R543S,K545Q,K548Q,K579Q,Y1022C Mutation：T539C,K541Q,K542Q,R543S,K545Q,K548Q,K579Q,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 LBF Leptomycin B × 1 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.225
4HB2 Crystal structure of CRM1-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539C,Y1022C Mutation：T539C,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 4 EDO 1,2-ETHANEDIOL × 2 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.80 Å R-free 0.201
4HB3 Crystal structure of CRM1(T539S)-Ran-RanBP1 with weakly bound unmodeled Leptomycin B Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：T539S,Y1022C Mutation：T539S,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.276
4HB4 Crystal structure of CRM1 inhibitor Leptomycin B in complex with CRM1(537DLTVK541/GLCEQ)-Ran-RanBP1 Deposited 2012-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：SEE REMARK 999
Chain C 414–1058（645 aa） Fragment：SEE REMARK 999
Mutation：537DLTVK541 to GLCEQ, Y1022C Mutation：537DLTVK541 to GLCEQ, Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 2 LMB Leptomycin B, bound form × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200 mM ammonium nitrate, 100 mM Bis-Tris, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.05 Å R-free 0.218
5DH9 Crystal Structure of PKI NES Flip Mutant Peptide in complex with CRM1-Ran-RanBP1 Deposited 2015-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：V441D,D536G,T539C,V540E,K541Q,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；17% PEG3350, 100mM Bis-Tris pH6.4, 200mM NH4NO3, 10mM Spermine HCl
Resolution 2.55 Å R-free 0.226
5DHA Crystal Structure of CPEB4 NES Reverse Mutant Peptide in complex with CRM1-Ran-RanBP1 Deposited 2015-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：V441D,D536G,T539C,V540E,K541Q,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；17% PEG3350, 100mM Bis-Tris, 10mM Spermine HCl
Resolution 2.95 Å R-free 0.240
5DHF Crystal Structure of hRio2 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2015-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：V441D,D536G,T539C,V540E,K541Q,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 4 CL CHLORIDE ION × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；17% PEG3350, 100mM Bis-Tris pH6.4, 200mM NH4NO3, 10mM Spermine HCl
Resolution 2.29 Å R-free 0.218
5DI9 Crystal Structure of hRio2 NES Reverse Mutant Peptide in complex with CRM1-Ran-RanBP1 Deposited 2015-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：V441D,D536G,T539C,V540E,K541Q,Y1022C, delta 377-413 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 4 ZN ZINC ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；17% PEG3350, 100mM Bis-Tris pH6.4, 200mM NH4NO3, 10mM Spermine HCl
Resolution 2.28 Å R-free 0.211
5DIF Crystal Structure of CPEB4 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2015-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：V441D,D536G,T539C,V540E,K541Q,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 7 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；17% PEG3350, 100mM Bis-Tris pH6.4, 200mM NH4NO3, 10mM Spermine HCl
Resolution 2.09 Å R-free 0.208
5JLJ Crystal Structure of KPT8602 in complex with CRM1-Ran-RanBP1 Deposited 2016-04-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：T539C,Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 5 CL CHLORIDE ION × 1 6L8 (2R)-3-{3-[3,5-bis(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}-2-(pyrimidin-5-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；298 K；17% PEG3350, 100mM Bis-Tris pH6.6, 200mM Ammounium Nitrate
Resolution 2.50 Å R-free 0.232
5UWH Crystal Structure of Paxillin NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；16% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 20 mM HCl
Resolution 2.26 Å R-free 0.218
5UWI Crystal Structure of HDAC5 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；17% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 10 mM spermine-HCl, 16 mM HCl
Resolution 2.14 Å R-free 0.218
5UWJ Crystal Structure of FMRP NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；17% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 10 mM spermine-HCl, 4 mM HCl
Resolution 2.22 Å R-free 0.213
5UWO Crystal Structure of Engineered FMRP-1b NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；16% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 12 mM HCl
Resolution 2.35 Å R-free 0.223
5UWP Crystal Structure of mDia2 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；16% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 8 mM HCl
Resolution 2.05 Å R-free 0.213
5UWQ Crystal Structure of CDC7 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；16% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 8 mM HCl
Resolution 2.28 Å R-free 0.225
5UWR Crystal Structure of CDC7 NES Peptide (extended) in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；17% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 10 mM spermine-HCl
Resolution 2.24 Å R-free 0.222
5UWS Crystal Structure of X11L2 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；17% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 10 mM spermine-HCl
Resolution 2.40 Å R-free 0.222
5UWT Crystal Structure of Hxk2 Peptide in complex with CRM1 K579A mutant-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；17% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 20 mM HCl
Resolution 2.34 Å R-free 0.227
5UWU Crystal Structure of SMAD4 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；16% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 16 mM HCl
Resolution 2.24 Å R-free 0.211
5UWW Crystal Structure of DEAF1 Peptide in complex with CRM1 K579A mutant-Ran-RanBP1 Deposited 2017-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；16% PEG3350, 100 mM Bis-Tris, pH 6.4, 200 mM ammonium nitrate, 16 mM HCl
Resolution 2.15 Å R-free 0.226
5YRO RanL182A in complex with RanBP1-CRM1 Deposited 2017-11-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Mutation：D537G, T539C, V540E, K541Q Mutation：D537G, T539C, V540E, K541Q GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG 3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH 6.6
Resolution 2.40 Å R-free 0.245
5YST RanM189D in complex with RanBP1-CRM1 Deposited 2017-11-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa） Fragment：lacking C-terminal inhibitory tail,lacking C-terminal inhibitory tail
Chain C 414–1052（639 aa） Fragment：lacking C-terminal inhibitory tail,lacking C-terminal inhibitory tail
Mutation：D537G, T539C, V540E, K541Q Mutation：D537G, T539C, V540E, K541Q GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 6 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG 3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH 6.6
Resolution 2.04 Å R-free 0.238
5YSU Plumbagin in complex with CRM1-RanM189D-RanBP1 Deposited 2017-11-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Mutation：D537G,T539C,V540E,K541Q,Y1022C Mutation：D537G,T539C,V540E,K541Q,Y1022C GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 2 NO3 NITRATE ION × 4 F2X (2~{R})-2-methyl-5-oxidanyl-2,3-dihydronaphthalene-1,4-dione × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG 3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH 6.6
Resolution 2.30 Å R-free 0.257
5YTB RanY197A in complex with RanBP1-CRM1 Deposited 2017-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa）
Chain C 414–1052（639 aa）
Mutation：D537G, T539C, V540E, K541Q, Y1022C Mutation：D537G, T539C, V540E, K541Q, Y1022C GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 7 GOL GLYCEROL × 3 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG 3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH 6.6
Resolution 2.30 Å R-free 0.229
5ZPU LFS829 in complex with CRM1-Ran-RanBP1 Deposited 2018-04-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Mutation：D537G, T539C, V540E, K541Q, Y1022C,D537G, T539C, V540E, K541Q, Y1022C Mutation：D537G, T539C, V540E, K541Q, Y1022C,D537G, T539C, V540E, K541Q, Y1022C GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 D29 (Z)-{[(3E)-4-{(R)-[3,5-bis(trifluoromethyl)phenyl]sulfinyl}but-3-en-1-yl]imino}methanethiol × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH6.6
Resolution 2.60 Å R-free 0.259
6A38 MVM NS2 NES in complex with CRM1-Ran-RanBP1 Deposited 2018-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa） Fragment：lacking C-terminal inhibitory tail and H9 loop
Mutation：D537G, T539C, V540E, K541Q, Y1022C, 377-413 deletion, 441-461 deletion GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH6.6
Resolution 2.69 Å R-free 0.256
6A3A MVM NES mutant Nm2 in complex with CRM1-Ran-RanBP1 Deposited 2018-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa） Fragment：lacking C-terminal inhibitory tail and H9 loop
Mutation：D537G, T539C, V540E, K541Q, Y1022C, 377-413 deletion, 441-461 deletion GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH6.6
Resolution 2.30 Å R-free 0.246
6A3B MVM NES mutant Nm13 in complex with CRM1-Ran-RanBP1 Deposited 2018-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：D537G, T539C, V540E, K541Q, Y1022C, 377-413 deletion, 441-461 deletion GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH6.6
Resolution 2.51 Å R-free 0.254
6A3C MVM NES mutant Nm12 in complex with CRM1-Ran-RanBP1 Deposited 2018-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa） Fragment：lacking C-terminal inhibitory tail and H9 loop
Mutation：D537G, T539C, V540E, K541Q, Y1022C, 377-413 deletion, 441-461 deletion GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 2 CL CHLORIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH6.6
Resolution 2.35 Å R-free 0.266
6A3E MVM NES mutant Nm15 in complex with CRM1-Ran-RanBP1 Deposited 2018-06-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：D537G, T539C, V540E, K541Q, Y1022C, 377-413 deletion, 441-461 deletion GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18% PEG3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH6.6
Resolution 2.70 Å R-free 0.241
6CIT Crystal Structure of MVM NS2 NES Peptide in complex with CRM1-Ran-RanBP1 Deposited 2018-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–376（376 aa）
Chain C 414–1058（645 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 6 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；17% PEG3350, 100 MM Bis-Tris, pH 6.4, 200 mM ammonium nitrate
Resolution 2.03 Å R-free 0.215
6LQ9 S109 in complex with CRM1-Ran-RanBP1 Deposited 2020-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa） Fragment：lacking C-terminal inhibitory tail and H9 loop
Mutation：del 377-413, D537G, T539C, V540E, K541Q, Y1022C, GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 NO3 NITRATE ION × 5 CL CHLORIDE ION × 1 EQF (3~{R},4~{S})-1-[[6-chloranyl-5-(trifluoromethyl)pyridin-2-yl]amino]-3,4-dimethyl-pyrrolidine-2,5-dione × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；18% PEG3350, 200mM Ammonium Nitrate, 100mM Bis-Tris pH6.6
Resolution 2.50 Å R-free 0.228
6M60 Plumbagin in complex with CRM1#-Ran-RanBP1 Deposited 2020-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：S27E , Q49E, del377-413, del441-461, D522K, D537G, T539C, V540E, K541Q, S553R, Q561E, A741T, Y1022C MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 NO3 NITRATE ION × 9 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 3 DMS DIMETHYL SULFOXIDE × 3 F2X (2~{R})-2-methyl-5-oxidanyl-2,3-dihydronaphthalene-1,4-dione × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.12 M Monosaccharides (20 mM D-Glucose; 20 mM D-Mannose; 20 mM D-Galactose; 20 mM L-Fucose; 20 mM D-Xylose; 20 mM N-Acetyl-D-Glucosamine), 0.1 M buffer system 1 pH 6.5 (sodium HEPES and MOPS), and 50 % Precipitant Mix 2 (40% v/v Ethylene glycol; 20 % w/v PEG 8000)
Resolution 2.17 Å R-free 0.213
6M6X Oridonin in complex with CRM1#-Ran-RanBP1 Deposited 2020-03-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：S27E , Q49E, del377-413, del441-461, D522K, D537G, T539C, V540E, K541Q, S553R, Q561E, A741T, Y1022C MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 4 ODN (1beta,6beta,7beta,8alpha,9beta,10alpha,13alpha,14R,16beta)-1,6,7,14-tetrahydroxy-7,20-epoxykauran-15-one × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.12 M Monosaccharides (20 mM D-Glucose; 20 mM D-Mannose; 20 mM D-Galactose; 20 mM L-Fucose; 20 mM D-Xylose; 20 mM N-Acetyl-D-Glucosamine), 0.1 M buffer system 1 pH 6.5 (sodium HEPES and MOPS), and 50 % Precipitant Mix 2 (40% v/v Ethylene glycol; 20 % w/v PEG 8000)
Resolution 2.88 Å R-free 0.233
6X2M Crystal Structure of unliganded CRM1-Ran-RanBP1 Deposited 2020-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：377-413 deleted GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.35 Å R-free 0.261
6X2O Crystal Structure of unliganded CRM1(E571K)-Ran-RanBP1 Deposited 2020-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：E582K GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.55 Å R-free 0.254
6X2P Crystal Structure of the Mek1NES peptide bound to CRM1 Deposited 2020-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.40 Å R-free 0.252
6X2R Crystal Structure of the 4E-TNES peptide bound to CRM1 Deposited 2020-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.30 Å R-free 0.257
6X2S Crystal Structure of Mek1(NQ)NES peptide bound to CRM Deposited 2020-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.50 Å R-free 0.246
6X2U Crystal Structure of PKINES peptide bound to CRM1 Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.20 Å R-free 0.240
6X2V Crystal Structure of PKI(DE)NES peptide bound to CRM1 Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.82 Å R-free 0.262
6X2W Crystal Structure of PKINES peptide bound to CRM1(E571K) Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：E582K GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 3.00 Å R-free 0.253
6X2X Crystal Structure of Mek1NES peptide bound to CRM1(E571K) Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：E582K GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.46 Å R-free 0.250
6X2Y Crystal Structure of mDia2NES peptide bound to CRM1(E571K) Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Mutation：E582K GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.30 Å R-free 0.256
6XJP Crystal Structure of KPT-185 bound to CRM1 (537-DLTVK-541 to GLCEQ) Deposited 2020-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：537-DLTVK-541 to GLCEQ GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 K85 propan-2-yl 3-{3-[3-methoxy-5-(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}propanoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.80 Å R-free 0.260
6XJR Crystal Structure of KPT-185 bound to CRM1 (E582K, 537-DLTVK-541 to GLCEQ) Deposited 2020-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：E582K, 537-DLTVK-541 to GLCEQ GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 K85 propan-2-yl 3-{3-[3-methoxy-5-(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}propanoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 1.94 Å R-free 0.226
6XJS Crystal Structure of KPT-330 bound to CRM1 (E582K, 537-DLTVK-541 to GLCEQ) Deposited 2020-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：E582K, 537-DLTVK-541 to GLCEQ GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 V6A selinexor, bound form × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 1.94 Å R-free 0.240
6XJT Crystal Structure of KPT-8602 bound to CRM1 (537-DLTVK-541 to GLCEQ) Deposited 2020-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：537-DLTVK-541 to GLCEQ GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 6L8 (2R)-3-{3-[3,5-bis(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}-2-(pyrimidin-5-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.41 Å R-free 0.246
6XJU Crystal Structure of KPT-8602 bound to CRM1 (E582K, 537-DLTVK-541 to GLCEQ) Deposited 2020-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：E582K, 537-DLTVK-541 to GLCEQ GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 6L8 (2R)-3-{3-[3,5-bis(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}-2-(pyrimidin-5-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.19 Å R-free 0.225
7L5E Crystal Structure of KPT-330 bound to CRM1 (537-DLTVK-541 to GLCEQ) Deposited 2020-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 1 V6A selinexor, bound form × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 1.94 Å R-free 0.245
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1084（1084 aa）
Mutation：del(377-413) GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate
Resolution 3.00 Å R-free 0.247
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–1084（1084 aa）
Mutation：del(377-413) GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate
Resolution 3.00 Å R-free 0.247
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1084（1084 aa）
Mutation：del(377-413) GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate
Resolution 3.00 Å R-free 0.247
8QYZ Crystal structure of hiNES2 in complex with Xpo1 and RanGTP Deposited 2023-10-26 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 1–1084（1084 aa）
Mutation：del(377-413) GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Tris, PEG 20K, magnesium acetate
Resolution 3.00 Å R-free 0.247
9OGN Crystal Structure of KPT396 in complex with CRM1-Ran-RanBP1 Deposited 2025-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：T539C, Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 CL CHLORIDE ION × 3 A1CBD 3-(3-{3-[(but-2-yn-1-yl)oxy]-5-(trifluoromethyl)phenyl}-1H-1,2,4-triazol-1-yl)-N-(piperidin-1-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；17% PEG3350, 100 mM Bis-Tris (pH 6.6) and 200 mM ammonium nitrate
Resolution 2.41 Å R-free 0.224
9OGO Crystal Structure of KPT185 in complex with CRM1(EH mutant)-Ran-RanBP1 Deposited 2025-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：V529E, T539C, F572H, Y1022C GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 K85 propan-2-yl 3-{3-[3-methoxy-5-(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}propanoate × 1 CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；298 K；17% PEG3350, 100 mM Bis-Tris (pH 6.6) and 200 mM ammonium nitrate
Resolution 2.37 Å R-free 0.236
9VM1 MVM NS2 mutant Nm42 in complex with CRM1-Ran-RanBP1 Deposited 2025-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–1058（1058 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 1 NA SODIUM ION × 1 NO3 NITRATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；0.12 M Monosaccharides (20 mM D-Glucose; 20 mM D-Mannose; 20 mM D-Galactose; 20 mM L-Fucose; 20 mM D-Xylose; 20 mM N-Acetyl-D-Glucosamine), 0.1 M buffer system 1 pH 6.5 (sodium HEPES and MOPS), and 50 % Precipitant Mix 2 (40% v/v Ethylene glycol; 20 % w/v PEG 8000)
Resolution 2.45 Å R-free 0.235
9X7O Lansoprazole derivative in complex with CRM1-Ran-RanBP1 Deposited 2025-10-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–1058（1058 aa）
Mutation：S27E/Q49E/A51V/D537G/T539C/V540E/K541Q/S553R/Q561E/A741T/Y1022C No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.218

69 other PDB entries and 73 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name XPO1_YEAST
Isoform —
PDB entities 2
Chains and sequence ranges Author chain C； PDBConstruct 1–1047； UniProt 1–1084

cAMP-dependent protein kinase inhibitor alpha

Homo sapiens

UniProt P61925

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain D； UniProt 1–76 Mutation：S35L GTP-binding nuclear protein × 1 （E7KFU1） Exportin-1 × 1 （P30822） Nup42p × 3 （E7Q297） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.7；293 K；PEG20000, Tris-HCl Resolution 2.20 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5XOJ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1CDK CAMP-DEPENDENT PROTEIN KINASE CATALYTIC SUBUNIT (E.C.2.7.1.37) (PROTEIN KINASE A) COMPLEXED WITH PROTEIN KINASE INHIBITOR PEPTIDE FRAGMENT 5-24 (PKI(5-24) ISOELECTRIC VARIANT CA) AND MN2+ ADENYLYL IMIDODIPHOSPHATE (MNAMP-PNP) AT PH 5.6 AND 7C AND 4C Deposited 1994-07-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded MN MANGANESE (II) ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；280 K；pH 5.6, temperature 280K
Resolution 2.00 Å
1CDK CAMP-DEPENDENT PROTEIN KINASE CATALYTIC SUBUNIT (E.C.2.7.1.37) (PROTEIN KINASE A) COMPLEXED WITH PROTEIN KINASE INHIBITOR PEPTIDE FRAGMENT 5-24 (PKI(5-24) ISOELECTRIC VARIANT CA) AND MN2+ ADENYLYL IMIDODIPHOSPHATE (MNAMP-PNP) AT PH 5.6 AND 7C AND 4C Deposited 1994-07-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 6–25（20 aa）
Not recorded MN MANGANESE (II) ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；280 K；pH 5.6, temperature 280K
Resolution 2.00 Å
1CMK CRYSTAL STRUCTURES OF THE MYRISTYLATED CATALYTIC SUBUNIT OF CAMP-DEPENDENT PROTEIN KINASE REVEAL OPEN AND CLOSED CONFORMATIONS Deposited 1993-11-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 6–27（22 aa）
Not recorded MYR MYRISTIC ACID × 6 IOD IODIDE ION × 12 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å
1CTP STRUCTURE OF THE MAMMALIAN CATALYTIC SUBUNIT OF CAMP-DEPENDENT PROTEIN KINASE AND AN INHIBITOR PEPTIDE DISPLAYS AN OPEN CONFORMATION Deposited 1993-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 6–25（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MYR MYRISTIC ACID × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å
1XH4 Crystal Structures of Protein Kinase B Selective Inhibitors in Complex with Protein Kinase A and Mutants Deposited 2004-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–24（20 aa） Fragment：PKI(residues 5-24)
Not recorded R69 N-[4-({4-[5-(DIMETHYLAMINO)-2-HYDROXYBENZOYL]BENZOYL}AMINO)AZEPAN-3-YL]ISONICOTINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, MEGA-8, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.45 Å R-free 0.242
1XH5 Crystal Structures of Protein Kinase B Selective Inhibitors in Complex with Protein Kinase A and Mutants Deposited 2004-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–24（20 aa） Fragment：PKI(residues 5-24)
Not recorded R68 N-{4-[(4-{3-[(2R)-3,3-DIMETHYLPIPERIDIN-2-YL]-2-FLUORO-6-HYDROXYBENZOYL}BENZOYL)AMINO]AZEPAN-3-YL}ISONICOTINAMIDE × 1 BU3 (R,R)-2,3-BUTANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, MEGA-8, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.05 Å R-free 0.236
1XH6 Crystal Structures of Protein Kinase B Selective Inhibitors in Complex with Protein Kinase A and Mutants Deposited 2004-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–24（20 aa） Fragment：PKI(residues 5-24)
Not recorded R94 N-(4-{[4-(2-HYDROXY-5-PIPERIDIN-1-YLBENZOYL)BENZOYL]AMINO}AZEPAN-3-YL)ISONICOTINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, MEGA-8, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 1.90 Å R-free 0.249
1XH7 Crystal Structures of Protein Kinase B Selective Inhibitors in Complex with Protein Kinase A and Mutants Deposited 2004-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–24（20 aa） Fragment：PKI(residues 5-24)
Not recorded R96 N-[4-({4-[5-(3,3-DIMETHYLPIPERIDIN-1-YL)-2-HYDROXYBENZOYL]BENZOYL}AMINO)AZEPAN-3-YL]ISONICOTINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, MEGA-8, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.47 Å R-free 0.254
1XH8 Crystal Structures of Protein Kinase B Selective Inhibitors in Complex with Protein Kinase A and Mutants Deposited 2004-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–24（20 aa） Fragment：PKI(residues 5-24)
Not recorded R55 N-[4-({4-[5-(4,4-DIMETHYLPIPERIDIN-1-YL)-2-HYDROXYBENZOYL]BENZOYL}AMINO)AZEPAN-3-YL]ISONICOTINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, MEGA-8, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 1.60 Å R-free 0.236
1XH9 Crystal Structures of Protein Kinase B Selective Inhibitors in Complex with Protein Kinase A and Mutants Deposited 2004-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–24（20 aa） Fragment：PKI(residues 5-24)
Not recorded R69 N-[4-({4-[5-(DIMETHYLAMINO)-2-HYDROXYBENZOYL]BENZOYL}AMINO)AZEPAN-3-YL]ISONICOTINAMIDE × 1 BU3 (R,R)-2,3-BUTANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, MEGA-8, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 1.64 Å R-free 0.199
1XHA Crystal Structures of Protein Kinase B Selective Inhibitors in Complex with Protein Kinase A and Mutants Deposited 2004-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–24（20 aa） Fragment：PKI(residues 5-24)
Not recorded R68 N-{4-[(4-{3-[(2R)-3,3-DIMETHYLPIPERIDIN-2-YL]-2-FLUORO-6-HYDROXYBENZOYL}BENZOYL)AMINO]AZEPAN-3-YL}ISONICOTINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, MEGA-8, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.46 Å R-free 0.272
1YDR STRUCTURE OF CAMP-DEPENDENT PROTEIN KINASE, ALPHA-CATALYTIC SUBUNIT IN COMPLEX WITH H7 PROTEIN KINASE INHIBITOR 1-(5-ISOQUINOLINESULFONYL)-2-METHYLPIPERAZINE Deposited 1996-07-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa）
Not recorded IQP 1-(5-ISOQUINOLINESULFONYL)-2-METHYLPIPERAZINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；15 % METHANOL, 70 MILLIMOLAR SODIUM SULFATE, 20 MILLIMOLAR MES-BIS-TRIS PH 6.5, 279K USING HANGING DROP DIFFUSION., vapor diffusion - hanging drop
Resolution 2.20 Å
2C1A Structure of cAMP-dependent protein kinase complexed with Isoquinoline-5-sulfonic acid (2-(2-(4-chlorobenzyloxy)ethylamino) ethyl)amide Deposited 2005-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa）
Not recorded I5S ISOQUINOLINE-5-SULFONIC ACID (2-(2-(4-CHLOROBENZYLOXY)ETHYLAMINO)ETHYL)AMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.230
2C1B Structure of cAMP-dependent protein kinase complexed with (4R,2S)-5'-(4-(4-Chlorobenzyloxy)pyrrolidin-2-ylmethanesulfonyl)isoquinoline Deposited 2005-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa）
Not recorded CQP (4R,2S)-5'-(4-(4-CHLOROBENZYLOXY)PYRROLIDIN-2-YLMETHANESULFONYL)ISOQUINOLINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.211
2JDS Structure of cAMP-dependent protein kinase complexed with A-443654 Deposited 2007-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded L20 (2S)-1-(1H-INDOL-3-YL)-3-{[5-(3-METHYL-1H-INDAZOL-5-YL)PYRIDIN-3-YL]OXY}PROPAN-2-AMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.272
2JDT Structure of PKA-PKB chimera complexed with ISOQUINOLINE-5-SULFONIC ACID (2-(2-(4-CHLOROBENZYLOXY) ETHYLAMINO)ETHYL)AMIDE Deposited 2007-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded I5S ISOQUINOLINE-5-SULFONIC ACID (2-(2-(4-CHLOROBENZYLOXY)ETHYLAMINO)ETHYL)AMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.15 Å R-free 0.259
2JDV Structure of PKA-PKB chimera complexed with A-443654 Deposited 2007-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded L20 (2S)-1-(1H-INDOL-3-YL)-3-{[5-(3-METHYL-1H-INDAZOL-5-YL)PYRIDIN-3-YL]OXY}PROPAN-2-AMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.08 Å R-free 0.276
2L1L NMR Solution Structure of the Phi0 PKI NES Peptide in Complex with CRM1-RanGTP Deposited 2010-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 30–54（25 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 50；Pressure ambient
NMR sample composition 200 uM [U-13C; U-15N; U-2H; ILV-1H] Phi0 PKI-NES-1, 200 uM [U-13C; U-15N; U-2H; ILV-1H, Ala-1H/12C/14N] Phi0 PKI-NES-2, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2UVX Structure of PKA-PKB chimera complexed with 7-azaindole Deposited 2007-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVH 1H-PYRROLO[2,3-B]PYRIDINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.237
2UVY Structure of PKA-PKB chimera complexed with methyl-(4-(9H-purin-6-yl)- benzyl)-amine Deposited 2007-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVI N-METHYL-1-[4-(9H-PURIN-6-YL)PHENYL]METHANAMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.253
2UVZ Structure of PKA-PKB chimera complexed with C-Phenyl-C-(4-(9H-purin-6- yl)-phenyl)-methylamine Deposited 2007-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVJ (S)-1-PHENYL-1-[4-(9H-PURIN-6-YL)PHENYL]METHANAMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.94 Å R-free 0.245
2UW0 Structure of PKA-PKB chimera complexed with 6-(4-(4-(4-Chloro-phenyl) -piperidin-4-yl)-phenyl)-9H-purine Deposited 2007-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVK 6-{4-[4-(4-CHLOROPHENYL)PIPERIDIN-4-YL]PHENYL}-9H-PURINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.248
2UW3 Structure of PKA-PKB chimera complexed with 5-methyl-4-phenyl-1H- pyrazole Deposited 2007-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVG 3-METHYL-4-PHENYL-1H-PYRAZOLE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.19 Å R-free 0.252
2UW4 Structure of PKA-PKB chimera complexed with 2-(4-(5-methyl-1H-pyrazol- 4-yl)-phenyl)-ethylamine Deposited 2007-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded L15 2-[4-(3-METHYL-1H-PYRAZOL-4-YL)PHENYL]ETHANAMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.274
2UW5 Structure of PKA-PKB chimera complexed with (R)-2-(4-chloro-phenyl)- 2-(4-1H-pyrazol-4-yl)-phenyl)-ethylamine Deposited 2007-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVN (2R)-2-(4-CHLOROPHENYL)-2-[4-(1H-PYRAZOL-4-YL)PHENYL]ETHANAMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.14 Å R-free 0.259
2UW6 Structure of PKA-PKB chimera complexed with (S)-2-(4-chloro-phenyl)- 2-(4-1H-pyrazol-4-yl)-phenyl)-ethylamine Deposited 2007-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVO (2S)-2-(4-CHLOROPHENYL)-2-[4-(1H-PYRAZOL-4-YL)PHENYL]ETHANAMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.23 Å R-free 0.244
2UW7 Structure of PKA-PKB chimera complexed with 4-(4-chloro-phenyl)-4-(4- (1H-pyrazol-4-yl)-phenyl)-piperidine Deposited 2007-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVP 4-(4-CHLOROPHENYL)-4-[4-(1H-PYRAZOL-4-YL)PHENYL]PIPERIDINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.318
2UW8 Structure of PKA-PKB chimera complexed with 2-(4-chloro-phenyl)-2- phenyl-ethylamine Deposited 2007-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 5–24（20 aa） Fragment：RESIDUES 5-24
Not recorded GVQ (2R)-2-(4-CHLOROPHENYL)-2-PHENYLETHANAMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.233
2VNW Structure of PKA-PKB chimera complexed with (1-(9H-Purin-6-yl) piperidin-4-yl)methanamine Deposited 2008-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：RESIDUES 6-25
Not recorded M01 1-[1-(9H-purin-6-yl)piperidin-4-yl]methanamine × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.09 Å R-free 0.247
2VNY Structure of PKA-PKB chimera complexed with (1-(9H-Purin-6-yl) piperidin-4-yl)amine Deposited 2008-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：RESIDUES 6-25
Not recorded M02 1-(9H-purin-6-yl)piperidin-4-amine × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.96 Å R-free 0.292
2VO0 Structure of PKA-PKB chimera complexed with C-(4-(4-Chlorophenyl)-1-(7H-pyrrolo(2,3-d)pyrimidin-4-yl)piperidin-4-yl)methylamine Deposited 2008-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：RESIDUES 6-25
Not recorded CL CHLORIDE ION × 1 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 EDO 1,2-ETHANEDIOL × 2 M03 1-[4-(4-chlorophenyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-yl]methanamine × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.94 Å R-free 0.216
2VO3 Structure of PKA-PKB chimera complexed with C-(4-(4-Chlorophenyl)-1-(7H-pyrrolo(2,3-d)pyrimidin-4-yl)piperidin-4-yl)methylamine Deposited 2008-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：RESIDUES 6-25
Not recorded CL CHLORIDE ION × 1 M04 1-[4-(4-chlorobenzyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-yl]methanamine × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.98 Å R-free 0.246
2VO6 Structure of PKA-PKB chimera complexed with 4-(4-Chlorobenzyl)-1-(7H- pyrrolo(2,3-d)pyrimidin-4-yl)piperidin-4-ylamine Deposited 2008-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：RESIDUES 6-25
Not recorded CL CHLORIDE ION × 1 M05 4-(4-chlorobenzyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-aminium × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.97 Å R-free 0.229
2VO7 Structure of PKA complexed with 4-(4-Chlorobenzyl)-1-(7H-pyrrolo(2,3- d)pyrimidin-4-yl)piperidin-4-ylamine Deposited 2008-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：RESIDUES 6-25
Not recorded M05 4-(4-chlorobenzyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-aminium × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.98 Å R-free 0.241
3AMA Protein kinase A sixfold mutant model of Aurora B with inhibitor JNJ-7706621 Deposited 2010-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP residues 6-25
Not recorded SKE 4-({5-amino-1-[(2,6-difluorophenyl)carbonyl]-1H-1,2,4-triazol-3-yl}amino)benzenesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；25mM Tris-HCl, 25mM NaCl, 1.5mM octanoyl-N-methylglucamide, 1mM (5-24)-PKI,12-20% (v/v) methanol, 2-methyl 2,4-pentanediol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.75 Å R-free 0.223
3AMB Protein kinase A sixfold mutant model of Aurora B with inhibitor VX-680 Deposited 2010-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP residues 6-25
Not recorded VX6 CYCLOPROPANECARBOXYLIC ACID {4-[4-(4-METHYL-PIPERAZIN-1-YL)-6-(5-METHYL-2H-PYRAZOL-3-YLAMINO)-PYRIMIDIN-2-YLSULFANYL]-PHENYL}-AMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；25mM Tris-HCl, 25mM NaCl, 1.5mM octanoyl-N-methylglucamide, 1mM (5-24)-PKI, 12-20% (v/v) methanol, 2-methyl-2,4-pentanediol 30%, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.25 Å R-free 0.256
3L9L Crystal structure of pka with compound 36 Deposited 2010-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 6–25（20 aa） Fragment：sequence database residues 6-25
Not recorded L9L 5-[2-({(2S)-2-amino-3-[4-(trifluoromethyl)phenyl]propyl}amino)-1,3-thiazol-5-yl]-1,3-dihydro-2H-indol-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.262
3L9L Crystal structure of pka with compound 36 Deposited 2010-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 6–25（20 aa） Fragment：sequence database residues 6-25
Not recorded L9L 5-[2-({(2S)-2-amino-3-[4-(trifluoromethyl)phenyl]propyl}amino)-1,3-thiazol-5-yl]-1,3-dihydro-2H-indol-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.262
3L9M Crystal structure of PKAB3 (pka triple mutant V123A, L173M, Q181K) with compound 18 Deposited 2010-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 6–25（20 aa） Fragment：sequence database residues 6-25
Not recorded L9M (2S)-N~1~-[5-(3-methyl-1H-indazol-5-yl)-1,3,4-thiadiazol-2-yl]-3-(4-methylphenyl)propane-1,2-diamine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.270
3L9M Crystal structure of PKAB3 (pka triple mutant V123A, L173M, Q181K) with compound 18 Deposited 2010-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 6–25（20 aa） Fragment：sequence database residues 6-25
Not recorded L9M (2S)-N~1~-[5-(3-methyl-1H-indazol-5-yl)-1,3,4-thiadiazol-2-yl]-3-(4-methylphenyl)propane-1,2-diamine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.270
3L9N crystal structure of PKAB3 (pka triple mutant V123A, L173M, Q181K) with compound 27 Deposited 2010-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 6–25（20 aa） Fragment：sequence database residues 6-25
Not recorded L9N (2S)-N~1~-[5-(1H-indazol-5-yl)-1,3,4-thiadiazol-2-yl]-3-(4-methylphenyl)propane-1,2-diamine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.257
3MVJ Human cyclic AMP-dependent protein kinase PKA inhibitor complex Deposited 2010-05-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 6–25（20 aa）
Not recorded XFE (3R)-1-(5-methyl-7H-pyrrolo[2,3-d]pyrimidin-4-yl)pyrrolidin-3-amine × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.49 Å R-free 0.304
3MVJ Human cyclic AMP-dependent protein kinase PKA inhibitor complex Deposited 2010-05-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 6–25（20 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.49 Å R-free 0.304
3MVJ Human cyclic AMP-dependent protein kinase PKA inhibitor complex Deposited 2010-05-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded XFE (3R)-1-(5-methyl-7H-pyrrolo[2,3-d]pyrimidin-4-yl)pyrrolidin-3-amine × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.49 Å R-free 0.304
3NX8 human cAMP dependent protein kinase in complex with phenol Deposited 2010-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：residues 5-24
Not recorded IPH PHENOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.00 Å R-free 0.288
3OOG human cAMP-dependent protein kinase in complex with a small fragment Deposited 2010-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：residues 5-24
Not recorded YTP 1-(4-hydroxy-3-methylphenyl)ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.00 Å R-free 0.276
3OVV Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：residues 5-24
Not recorded 1SB N'-[(1E)-(4-hydroxyphenyl)methylidene]-2-(3-methoxyphenyl)acetohydrazide × 1 BUD (2S,3S)-butane-2,3-diol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.58 Å R-free 0.232
3OWP Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：residues 5-24
Not recorded 2SB (2S)-2-amino-N'-[(1E)-(3-bromo-4-hydroxyphenyl)methylidene]-2-phenylethanehydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.88 Å R-free 0.211
3OXT Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：residues 5-24
Not recorded 3SB (2S)-2-amino-N'-[(1E)-(2,4-dihydroxy-6-methylphenyl)methylidene]-2-phenylethanehydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.20 Å R-free 0.239
3P0M Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：residues 5-24
Not recorded 4SB (2R)-4-amino-N'-[(1E)-(3-bromo-4-hydroxyphenyl)methylidene]-2-phenylbutanehydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.03 Å R-free 0.205
3POO human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：unp residues 6-25
Not recorded S69 N'-[(E)-(2,4-dihydroxy-6-methylphenyl)methylidene]-2-(3-methoxyphenyl)acetohydrazide × 1 BUD (2S,3S)-butane-2,3-diol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；5mM MES, 5mM BisTris-propane, 75mM LiCl, 1ml DTT, 0.1mM EDTA equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K, temperature 289K
Resolution 1.60 Å R-free 0.212
3VQH Bromine SAD partially resolves multiple binding modes for PKA inhibitor H-89 Deposited 2012-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP resodues 6-25
Not recorded IQB N-[2-(4-BROMOCINNAMYLAMINO)ETHYL]-5-ISOQUINOLINE SULFONAMIDE × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；10mg/ml protein, 25mM BisTris/MES pH6.9, 50mM KCl, 1.5mM octanoyl-N-methylglucamide, 1mM Protein kinase inhibitor peptide, 5mM H-89 in MeOH', VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.95 Å R-free 0.234
3WYG Crystal structure of Xpo1p-PKI-Gsp1p-GTP complex Deposited 2014-08-26 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–76（76 aa）
Mutation：S35L GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.7；0.1M TRIS, 15% PEG20000, PH 7.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 2.15 Å R-free 0.220
4AXA Structure of PKA-PKB chimera complexed with (1S)-2-amino-1-(4- chlorophenyl)-1-(4-(1H-pyrazol-4-yl)phenyl)ethan-1-ol Deposited 2012-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：RESIDUES 6-25
Not recorded RKD (2S)-2-(4-chlorophenyl)-2-hydroxy-2-[4-(1H-pyrazol-4-yl)phenyl]ethanaminium × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 1.90 Å R-free 0.256
4IE9 Bovine PKA C-alpha in complex with 3-pyridylmethyl-5-methyl-1H-pyrazole-3-carboxylate Deposited 2012-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：UNP residues 6-25
Not recorded PZX pyridin-3-ylmethyl 5-methyl-1H-pyrazole-3-carboxylate × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.4；278 K；pH 6.4, VAPOR DIFFUSION, temperature 278K
Resolution 1.92 Å R-free 0.232
4IJ9 Bovine PKA C-alpha in complex with 2-[[5-(4-pyridyl)-1H-1,2,4-triazol-3-yl]sulfanyl]-1-(2-thiophenyl)ethanone Deposited 2012-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa） Fragment：UNP residues 6-25
Not recorded PTV 2-[[5-(4-pyridyl)-1H-1,2,4-triazol-3-yl]sulfanyl]-1-(2-thiophenyl)ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；278 K；LiCl, MesBisTris, methanol, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.55 Å R-free 0.247
4O21 Product complex of metal-free PKAc, ATP-gamma-S and SP20. Deposited 2013-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain S 6–25（20 aa） Fragment：UNP residues 6-25
Mutation：N20A, A21S Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM MES pH 6.5, 5 mM DTT, 15-20% PEG 4000., VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.95 Å R-free 0.215
4O22 Binary complex of metal-free PKAc with SP20. Deposited 2013-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain S 6–25（20 aa） Fragment：UNP residues 6-25
Mutation：N20A, A21S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM MES pH 6.5, 5 mM DTT, 15-20% PEG 3350., VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.70 Å R-free 0.219
4UJ1 Protein Kinase A in complex with an Inhibitor Deposited 2015-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP RESIDUES 6-25
Not recorded NVX 7-[(3S,4R)-4-(3-chlorophenyl)carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K
Resolution 1.77 Å R-free 0.201
4UJ2 Protein Kinase A in complex with an Inhibitor Deposited 2015-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP RESIDUES 6-25
Not recorded NVV 7-[(3S,4R)-4-(3-iodanylphenyl)carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K
Resolution 2.02 Å R-free 0.209
4UJ9 Protein Kinase A in complex with an Inhibitor Deposited 2015-04-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded S3N 7-[(3S,4R)-4-[4-(trifluoromethyl)phenyl]carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K
Resolution 1.87 Å R-free 0.206
4Z83 PKAB3 in complex with pyrrolidine inhibitor 47a Deposited 2015-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded 4L7 7-{(3S,4R)-4-[(5-bromothiophen-2-yl)carbonyl]pyrrolidin-3-yl}quinazolin-4(3H)-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；The droplets, containing 16 mg/ml PKAB3, 25 mM Bis-Tris-HCl, pH 7.0, 150 mM KCl, 1.5mM octanoyl-N-methylglucamide and 0.8 mM PKI peptide, were equilibrated against 12-26 % (v/v) methanol.
Resolution 1.80 Å R-free 0.217
4Z84 PKAB3 in complex with pyrrolidine inhibitor 34a Deposited 2015-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded NVX 7-[(3S,4R)-4-(3-chlorophenyl)carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MOH METHANOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；The droplets, containing 16 mg/ml protein 25 mM Bis-Tris-HCl, pH 7.0, 150 mM KCl, 1.5mM octanoyl-N-methylglucamide, 0.8 mM PKI peptide and 1mM of the pyrrolidine inhibitor 34a, were equilibrated against 12-26 % (v/v) methanol.
Resolution 1.55 Å R-free 0.234
5BX6 PKA in complex with a halogenated phthalazinone fragment compound. Deposited 2015-06-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP residues 6-25
Not recorded 495 4-chlorophthalazin-1(2H)-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；The droplets, containing 10 mg/ml PKA. 25 mM Bis-Tris-HCl, pH 7.0, 150 mM KCl, 1.5mM octanoyl-N-methylglucamide and 0.8 mM PKI peptide, were equilibrated against 12-26 % (v/v) methanol.
Resolution 1.89 Å R-free 0.218
5BX7 PKA in complex with a benzothiophene fragment compound. Deposited 2015-06-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP residues 6-25
Not recorded 4W1 1-benzothiophen-3-ylmethanol × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；The droplets, containing 10 mg/ml PKA. 25 mM Bis-Tris-HCl, pH 7.0, 150 mM KCl, 1.5mM octanoyl-N-methylglucamide and 0.8 mM PKI peptide, were equilibrated against 12-26 % (v/v) methanol.
Resolution 1.89 Å R-free 0.226
5LCP Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with Fasudil (M77) Deposited 2016-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded M77 5-(1,4-DIAZEPAN-1-SULFONYL)ISOQUINOLINE × 1 MOH METHANOL × 5 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 18% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.43 Å R-free 0.166
5LCQ Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with long-chain Fasudil-derivative (Ligand 05) Deposited 2016-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded 6TV ~{N}-[2-(propylamino)ethyl]isoquinoline-5-sulfonamide × 1 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 MOH METHANOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 18% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.42 Å R-free 0.171
5LCR Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with open-chain Fasudil-derivative (Ligand 04) Deposited 2016-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded 6TX 2-[isoquinolin-5-ylsulfonyl(propyl)amino]ethylazanium × 1 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 MOH METHANOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (100 mM Stock) Reservoir: 14% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.56 Å R-free 0.197
5LCT Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with a R-methyl-piperazine substituted Fasudil-derivative (Ligand 02) Deposited 2016-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded 6TY 5-[(2~{R})-2-methylpiperazin-1-yl]sulfonylisoquinoline × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 MOH METHANOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 19% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.61 Å R-free 0.174
5LCU Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with a S-methyl-piperazine substituted Fasudil-derivative (Ligand 01) Deposited 2016-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded IQP 1-(5-ISOQUINOLINESULFONYL)-2-METHYLPIPERAZINE × 1 MOH METHANOL × 3 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 16% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.58 Å R-free 0.192
5M0B Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with a short-chained N-(2-aminoethyl)isoquinoline-5-sulfonamide) Fasudil-derivative (Ligand 03) Deposited 2016-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded IQU N-(2-AMINOETHYL)ISOQUINOLINE-5-SULFONAMIDE × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 MOH METHANOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 18% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.51 Å R-free 0.159
5M0C Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with the Fasudil-fragment isoquinoline-5-sulfonamide Deposited 2016-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded 7CB isoquinoline-5-sulfonamide × 1 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 0.12 mM ligand solved in DMSO (100 mM Stock) Reservoir: 14% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.73 Å R-free 0.200
5M0L Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with the methylated Fasudil-derived fragment N-methylisoquinoline-5-sulfonamide (Ligand 02) Deposited 2016-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded 7CT ~{N}-methylisoquinoline-5-sulfonamide × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (100 mM Stock) Reservoir: 16% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.47 Å R-free 0.173
5M0U Apostructure structure of cAMP-dependent Protein Kinase (PKA) from CHO cells with a peptidic inhibitor fragment Deposited 2016-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded MOH METHANOL × 9 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) Reservoir: 23% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.67 Å R-free 0.189
5M6V Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with a double methylated Fasudil-derivative Deposited 2016-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP residues 6-25
Not recorded H52 (S)-2-METHYL-1-[(4-METHYL-5-ISOQUINOLINE)SULFONYL]-HOMOPIPERAZINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 18% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.42 Å R-free 0.174
5M6Y Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with a methylisoquinoline Fasudil-derivative Deposited 2016-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa） Fragment：UNP Residues 6-25
Not recorded 7KB 5-(1,4-diazepan-1-ylsulfonyl)-4-methyl-isoquinoline × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 20% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.37 Å R-free 0.166
5M71 Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with an (R)-methyl substitued Fasudil-derivative. Deposited 2016-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded 7K7 5-[[(2~{R})-2-methyl-1,4-diazepan-4-ium-1-yl]sulfonyl]isoquinoline × 1 MOH METHANOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 19% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.49 Å R-free 0.176
5M75 Cocrystal structure of cAMP-dependent Protein Kinase (PKA) in complex with a (S)-methyl substitued Fasudil-derivative Deposited 2016-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded DMS DIMETHYL SULFOXIDE × 1 9K6 5-[[(2~{S})-2-methyl-1,4-diazepan-1-yl]sulfonyl]isoquinoline × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277.15 K；Drop: 10 mg/ml PKA (0.240 mM) 30 mM MBT (MES/Bis-Tris Puffer pH 6.9) 1 mM DTT 0.1 mM EDTA 75 mM LiCl 0.03 mM Mega 8 0.07mM PKI (Sigma: P7739) 1.2 mM ligand solved in DMSO (50 mM Stock) Reservoir: 18% Methanol 0.003 mL drop volume, 0.4 mL reservoir volume
Resolution 1.54 Å R-free 0.174
5N23 Protein kinase A mutants as surrogate model for Aurora B with AT9283 inhibitor Deposited 2017-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded 35R 1-cyclopropyl-3-{3-[5-(morpholin-4-ylmethyl)-1H-benzimidazol-2-yl]-1H-pyrazol-4-yl}urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；12-26 % (v/v) methanol
Resolution 2.09 Å R-free 0.239
6E99 Crystal structure of Protein Kinase A in complex with the PKI peptide and an amino-pyridinylbenzamide based inhibitor. Deposited 2018-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–23（18 aa）
Not recorded J0G 2-[(2-aminoethyl)amino]-N-[(1R)-1-(3-methoxyphenyl)ethyl]-4-(pyridin-4-yl)benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；5 to 27% methanol
Resolution 1.88 Å R-free 0.230
6E9L Crystal structure of Protein Kinase A in complex with the PKI peptide and a pyridinylbenzamide based inhibitor Deposited 2018-08-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–23（18 aa）
Not recorded J0P N-[(2,3-dihydro-1,4-benzodioxin-5-yl)methyl]-4-(pyridin-4-yl)benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；5 to 27% Methanol
Resolution 2.80 Å R-free 0.271
6FRX PKA variant as Aurora B mimic in complex with a dianilinopyrimidine inhibitor Deposited 2018-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded E3Z ~{N}-[3-[(5-chloranyl-2-phenylazanyl-pyrimidin-4-yl)amino]phenyl]prop-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PKA-AU6 at 10mg/ml in 25mM BisTRIS/HCl (pH7.0), 150mM KCl, 1.5mM octanoyl-N-methylglucamide and 0.8mM PKI was equilibrated against 12-26% (v/v) methanol.
Resolution 1.88 Å R-free 0.226
6QJ7 Difluorophenyl diacylhydrazides: Potent inhibitors of Serum- and Glucocorticoid-inducible Kinase 1 (SGK1) Deposited 2019-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–25（20 aa）
Not recorded J4B ~{N}'-[(2~{S})-2-[3,5-bis(fluoranyl)phenyl]-2-oxidanyl-ethanoyl]-2-ethyl-3-methyl-4-oxidanyl-benzohydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5mM MES, 5mM Bis-Tris-propane, 75mM LiCl, 1mM DTT, 0.1mM EDTA, 1.4mM PKA-peptide, 1.4mM MEGA-8, 14% Et-OH as well solution
Resolution 1.69 Å R-free 0.214
6X2U Crystal Structure of PKINES peptide bound to CRM1 Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 34–49（16 aa） Fragment：residues 34-49
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.20 Å R-free 0.240
6X2V Crystal Structure of PKI(DE)NES peptide bound to CRM1 Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 34–49（16 aa） Fragment：residues 34-49
Mutation：N48D, K49E GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 2.82 Å R-free 0.262
6X2W Crystal Structure of PKINES peptide bound to CRM1(E571K) Deposited 2020-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 35–49（15 aa） Fragment：residues 35-49
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
Resolution 3.00 Å R-free 0.253
7UJX Structure of cAMP-dependent protein kinase using a MD-MX procedure, produced using 2.4 Angstrom data Deposited 2022-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–24（19 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；20% PEG 4000, 0.05 M MES pH 5.2, 0.05 M MgCl2, and 0.005 M DTT
Resolution 2.40 Å R-free 0.176
7V0G Structure of cAMP-dependent protein kinase using a MD-MX procedure, produced using 1.63 Angstrom data Deposited 2022-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–24（19 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；20% PEG 4000, 0.05 M MES pH 5.2, 0.05 M MgCl2, and 0.005 M DTT
Resolution 1.63 Å R-free 0.163
8FE2 Structure of J-PKAc chimera complexed with Aplithianine A Deposited 2022-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded XTI 6-[(6M)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-9H-purine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 20% PEG 3350
Resolution 2.34 Å R-free 0.251
8FE2 Structure of J-PKAc chimera complexed with Aplithianine A Deposited 2022-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 6–25（20 aa）
Not recorded XTI 6-[(6M)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-9H-purine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 20% PEG 3350
Resolution 2.34 Å R-free 0.251
8FE5 Structure of J-PKAc chimera complexed with Aplithianine B Deposited 2022-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded XTT 6-[(6P)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7,9-dihydro-8H-purin-8-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium Sulfate, 100 mM HEPES 7.5, 25% PEG 3350
Resolution 2.51 Å R-free 0.243
8FE5 Structure of J-PKAc chimera complexed with Aplithianine B Deposited 2022-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 6–25（20 aa）
Not recorded XTT 6-[(6P)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7,9-dihydro-8H-purin-8-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium Sulfate, 100 mM HEPES 7.5, 25% PEG 3350
Resolution 2.51 Å R-free 0.243
8FEC Structure of J-PKAc chimera complexed with Aplithianine derivative Deposited 2022-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded XU0 6-[(6P)-6-(4-bromo-1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7H-purine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 25% PEG 3350
Resolution 2.70 Å R-free 0.287
8FEC Structure of J-PKAc chimera complexed with Aplithianine derivative Deposited 2022-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 6–25（20 aa）
Not recorded XU0 6-[(6P)-6-(4-bromo-1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7H-purine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 25% PEG 3350
Resolution 2.70 Å R-free 0.287
9DC6 Structure of J-PKAc chimera in complex with Aplithianine e1 Deposited 2024-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded A1A3I N-(2-aminoethyl)-4-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazine-6-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM Hepes pH 7.5, 20 % PEG 3350
Resolution 2.70 Å R-free 0.311
9DC6 Structure of J-PKAc chimera in complex with Aplithianine e1 Deposited 2024-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 6–25（20 aa）
Not recorded A1A3I N-(2-aminoethyl)-4-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazine-6-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM Hepes pH 7.5, 20 % PEG 3350
Resolution 2.70 Å R-free 0.311
9DCD Structure of J-PKAc chimera in complex with Aplithianine d2 Deposited 2024-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–25（20 aa）
Not recorded A1A3J N-(2-aminoethyl)-4-(7H-purin-6-yl)-3,4-dihydro-2H-1,4-thiazine-6-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；277.15 K；0.2 M LiCl, 0.1 M Mes pH:6.0, 20% PEG 6000
Resolution 2.70 Å R-free 0.191
9NFS Structure of J-PKAc chimera in complex with Aplithianine j1 Deposited 2025-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 6–25（20 aa）
Not recorded A1BX1 (4P)-4-[4-(pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazin-6-yl]-1H-pyrrolo[2,3-b]pyridine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；277.15 K；0.2 M LiCl, 0.1 M hopes, pH 7.6, 25% PEG 3350
Resolution 2.45 Å R-free 0.334
9NFS Structure of J-PKAc chimera in complex with Aplithianine j1 Deposited 2025-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 6–25（20 aa）
Not recorded A1BX1 (4P)-4-[4-(pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazin-6-yl]-1H-pyrrolo[2,3-b]pyridine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；277.15 K；0.2 M LiCl, 0.1 M hopes, pH 7.6, 25% PEG 3350
Resolution 2.45 Å R-free 0.334
9PC1 Co-crystal structure of the cAMP-dependent protein kinase catalytic subunit alpha with the inhibitor BLU0588 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 6–24（19 aa）
Not recorded MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 A1CHQ (6M)-N-[(1R,2R)-2-(pyrrolidin-1-yl)-2,3-dihydro-1H-inden-1-yl]-6-(1H-pyrrolo[2,3-b]pyridin-4-yl)pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10% MPD, Hepes pH7, 10% Methanol
Resolution 1.55 Å R-free 0.214

90 other PDB entries and 100 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name IPKA_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain D； PDBConstruct 1–76； UniProt 1–76

Nup42p

OrganismNot specified

UniProt E7Q297

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain E； UniProt 88–122 Chain F； UniProt 88–122 Chain G； UniProt 88–122 Not recorded GTP-binding nuclear protein × 1 （E7KFU1） Exportin-1 × 1 （P30822） cAMP-dependent protein kinase inhibitor alpha × 1 （P61925） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.7；293 K；PEG20000, Tris-HCl Resolution 2.20 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence
UniProt name E7Q297_YEASB
Isoform —
PDB entities 4
Chains and sequence ranges Author chain E； PDBConstruct 1–35； UniProt 88–122 Author chain F； PDBConstruct 1–35； UniProt 88–122 Author chain G； PDBConstruct 1–35； UniProt 88–122

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 5xoj

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 5xoj
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id5xoj
Deposition date deposition_date2017-05-29
Structure title titleCrystal structure of Xpo1p-PKI-Nup42p-Gsp1p-GTP complex
Keywords keywordsexportin, nucleoporin, GTP BINDING PROTEIN; GTP BINDING PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier35.10 Å
Radius of gyration Rg (electron density) rg_electron34.27 Å
Forward intensity I(0) i0272562000.00
Molecular weight molecular_weight138470.0 kDa
Excluded volume excluded_volume175520 ų
Envelope volume envelope_volume223100 ų
Hydration-shell volume shell_volume52533 ų
Envelope diameter envelope_diameter107.8 Å
Shell Rg shell_rg42.68 Å
Envelope Rg envelope_rg33.61 Å
Shape Rg shape_rg34.27 Å
Total Rg total_rg34.88 Å
Total atoms total_atoms9756
Residues n_residues1212
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax108.8 Å
Rg (real space) rg_real34.92 Å
Rg uncertainty (real space) rg_real_error0.79 Å
I(0) (real space) i0_real2.7260e+08
I(0) uncertainty (real space) i0_real_error4.1160e+06
Rg (reciprocal space) rg_reciprocal35.03 Å
I(0) (reciprocal space) i0_reciprocal272600000.0000
Solution quality estimate total_estimate0.9096
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary43.5 Å
Skewness Skewness skewness0.101
Kurtosis Kurtosis kurtosis-0.636
Angular range angular_range— – 0.2250 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha51620000.0000
Real-space data points n_real_points46
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.952; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.974
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id5xojA00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
▶

8. Citations (1)

▶

9. Files and Curves (10)
