SAXSdb — 5xtz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

YEATS domain-containing protein 4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	THR-LYS-ALA-ALA-ARG-ALY-SER-ALA-PRO-ALA × 1 ACETATE ION × 2 water × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 5	THR-LYS-ALA-ALA-ARG-ALY-SER-ALA-PRO-ALA × 1 ACETATE ION × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YETS4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 19–163； UniProt 15–159 Author chain B； PDBConstruct 19–163； UniProt 15–159 Author chain C； PDBConstruct 19–163； UniProt 15–159 Author chain D； PDBConstruct 19–163； UniProt 15–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5xtz
Deposition date deposition_date	2017-06-21
Structure title title	Crystal structure of GAS41 YEATS bound to H3K27ac peptide
Keywords keywords	epigenetic, histone acetylation, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5xtz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

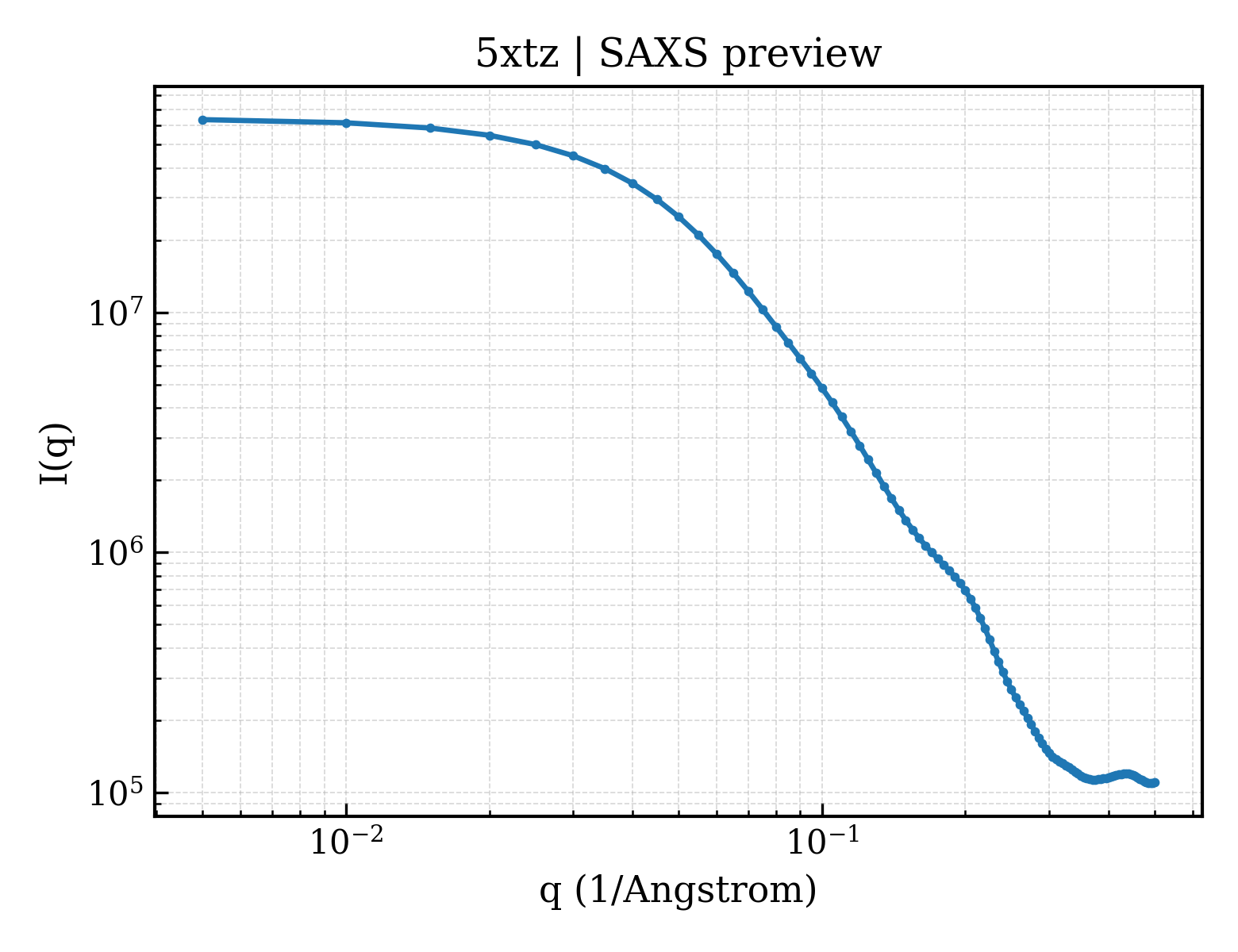

5xtz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5xtz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.55 Å
Rg (electron density)	34.38 Å
Total Rg	35.00 Å
Atom count	4720
Residues	569
Excluded volume	84939 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5xtz__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5xtz__assembly_2__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	YEATS domain-containing protein 4
Molecular weight formula_weight	18800.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4868

GSHMASMTGGQQMGRGSGRVKGVTIVKPIVYGNVARYFGKKREEDGHTHQWTVYVKPYRNEDMSAYVKKIQFKLHESYGNPLRVVTKPPYEITETGWGEFEIIIKIFFIDPNERPVTLYHLLKLFQSDTNAMLGKKTVVSEFYDEMIFQDPTAMMQQLLTTSR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli K-12

Entity 2 Entity 2 polymer

Description description	THR-LYS-ALA-ALA-ARG-ALY-SER-ALA-PRO-ALA
Molecular weight formula_weight	1044.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

TKAARKSAPA

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	148

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5xtzA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1970 — YEATS domain

Domain ID domain_id	5xtzB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1970 — YEATS domain

Domain ID domain_id	5xtzC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1970 — YEATS domain

Domain ID domain_id	5xtzD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1970 — YEATS domain

▶

Unit-cell length a length_a	75.864 Å
Unit-cell length b length_b	80.663 Å
Unit-cell length c length_c	107.028 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.105 Å
Low-resolution limit resolution_low	49.103 Å
R factor r_factor	0.1955
R_work r_work	0.1935
R_free r_free	0.2327

Crystal structure of GAS41 YEATS bound to H3K27ac peptide
