SAXSdb — 5xx8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pancreatic trypsin inhibitor

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BPT1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–58； UniProt 36–93 Author chain B； PDBConstruct 1–58； UniProt 36–93

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5xx8
Deposition date deposition_date	2017-07-01
Structure title title	Hetero-micro-seeding: Crystal structure of BPTI-[555]C14GA38I variant using micro-seeds from -C14GA38L variant
Keywords keywords	HYDROLASE INHIBITOR, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5xx8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

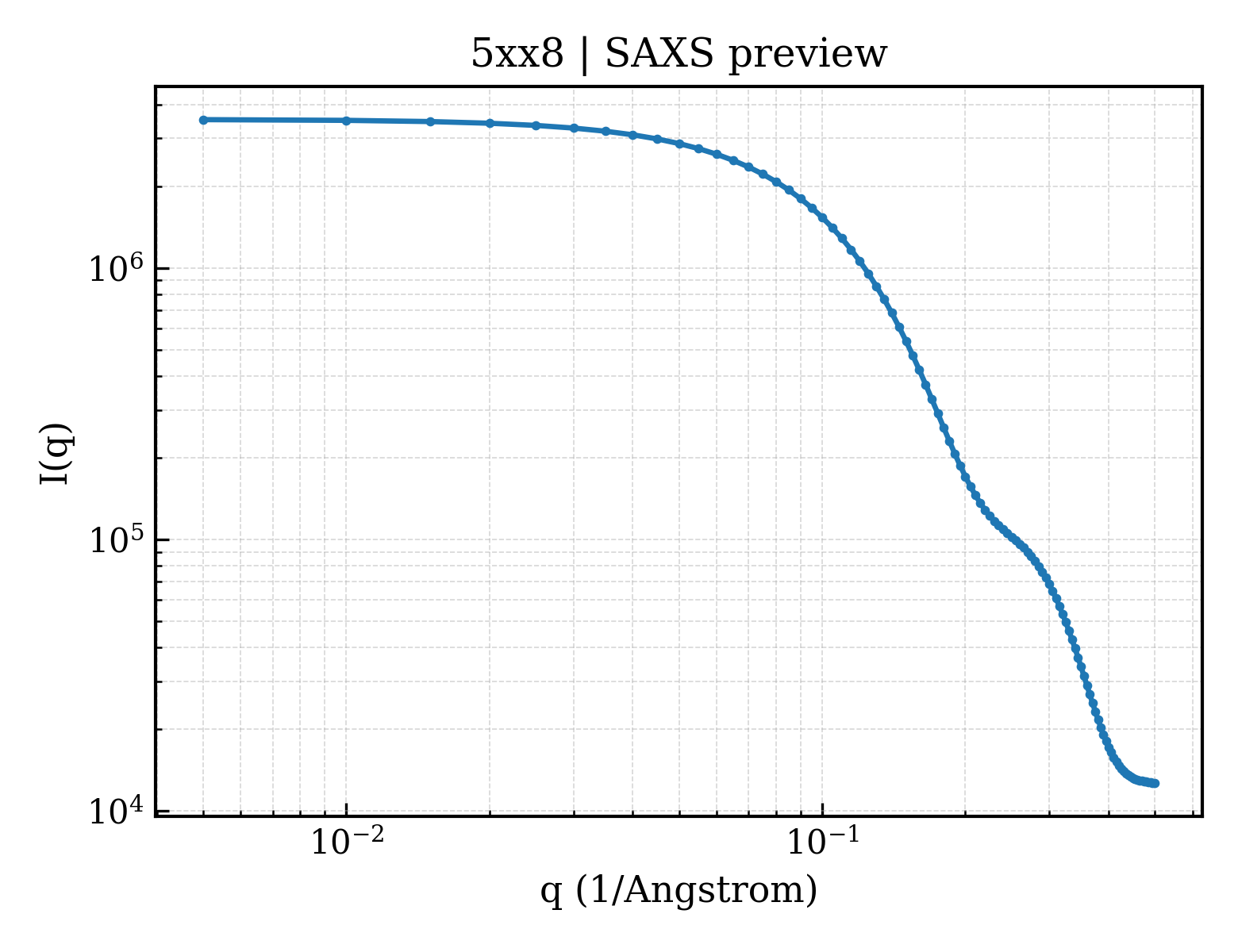

5xx8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5xx8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	12.21 Å
Rg (electron density)	11.06 Å
Total Rg	12.69 Å
Atom count	456
Residues	58
Excluded volume	8051 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5xx8__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5xx8__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Pancreatic trypsin inhibitor
Molecular weight formula_weight	6409.3 kDa
Mutation mutation	A14G, A38I
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1227

RPDFCLEPPYTGPGKARIIRYFYNAKAGLAQTFVYGGIRAKRNNFKSAEDALRTCGGA

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	309

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5xx8a_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d5xx8b_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

CATH v4.4 (2 domains)

Domain ID domain_id	5xx8A00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	5xx8B00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

▶

Unit-cell length a length_a	25.279 Å
Unit-cell length b length_b	41.479 Å
Unit-cell length c length_c	53.971 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.35 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	53.250 Å
R factor r_factor	0.1647
R_work r_work	0.1623
R_free r_free	0.2065
