SAXSdb — 6j8y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell cycle checkpoint control protein RAD9A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–270	Not recorded	Checkpoint protein HUS1 × 1 （O60921） Cell cycle checkpoint protein RAD1 × 1 （O60671） RAD9, HUS1, RAD1-interacting nuclear orphan protein 1 × 1 （Q9BSD3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Sodium citrate, Bis-tris propane pH 7.5	Resolution 2.40 Å R-free 0.258

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6J8Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3A1J Crystal structure of the human Rad9-Hus1-Rad1 complex Deposited 2009-04-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–266（266 aa） Fragment：N-terminal domain, residues 1-266	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；296 K；15% PEG 3350, 0.18M KCl, 0.16M guanidine hydrochloride, 0.33M ZWITTERGENT 3-08, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.50 Å R-free 0.282
3G65 Crystal Structure of the Human Rad9-Rad1-Hus1 DNA Damage Checkpoint Complex Deposited 2009-02-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–270（270 aa） Fragment：UNP residues 1-270	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Tris-HCl, 17% PEG 2000-Mme, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.272
3GGR Crystal Structure of the Human Rad9-Hus1-Rad1 complex Deposited 2009-03-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–270（270 aa） Fragment：truncated hRad9 (residues 1-270)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；8% PEG 2000 MME, 100mM Tris-HCl,200mM Trimethylamine N-oxide dihydrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.306
6HM5 Crystal structure of TOPBP1 BRCT0,1,2 in complex with a RAD9 phosphopeptide Deposited 2018-09-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 380–390（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；287.15 K；100 mM bicine/Trizma base pH 8.5, 300 mM diethyleneglycol, 300 mM triethyleneglycol, 300 mM tetraethyleneglycol, 300 mM pentaethyleneglycol, 10% w/v PEG 20000 and 20% v/v PEG MME 550	Resolution 2.33 Å R-free 0.241
7Z6H Structure of DNA-bound human RAD17-RFC clamp loader and 9-1-1 checkpoint clamp Deposited 2022-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–391（391 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.59 Å
8GNN Crystal structure of the human RAD9-RAD1-HUS1-RAD17 complex Deposited 2022-08-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–270（270 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；Bis-Tris propane pH 7.5, sodium citrate, PEG 3350	Resolution 2.12 Å R-free 0.263
8JZY RPA70N-RAD9 fusion Deposited 2023-07-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 296–314（19 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 3350, sodium phosphate	Resolution 1.50 Å R-free 0.200
8WU8 Crystal structure of the human RAD9-RAD1(F64A/M256A/F266A)-HUS1-RHINO(88-99) complex Deposited 2023-10-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–270（270 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Potassium iodine	Resolution 2.81 Å R-free 0.267

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAD9A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–270； UniProt 1–270

Checkpoint protein HUS1

Homo sapiens

UniProt O60921

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 2–280	Not recorded	Cell cycle checkpoint control protein RAD9A × 1 （Q99638） Cell cycle checkpoint protein RAD1 × 1 （O60671） RAD9, HUS1, RAD1-interacting nuclear orphan protein 1 × 1 （Q9BSD3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Sodium citrate, Bis-tris propane pH 7.5	Resolution 2.40 Å R-free 0.258

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6J8Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3A1J Crystal structure of the human Rad9-Hus1-Rad1 complex Deposited 2009-04-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–280（280 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；296 K；15% PEG 3350, 0.18M KCl, 0.16M guanidine hydrochloride, 0.33M ZWITTERGENT 3-08, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.50 Å R-free 0.282
3G65 Crystal Structure of the Human Rad9-Rad1-Hus1 DNA Damage Checkpoint Complex Deposited 2009-02-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–280（280 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Tris-HCl, 17% PEG 2000-Mme, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.272
3GGR Crystal Structure of the Human Rad9-Hus1-Rad1 complex Deposited 2009-03-02	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–280（279 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；8% PEG 2000 MME, 100mM Tris-HCl,200mM Trimethylamine N-oxide dihydrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.306
7Z6H Structure of DNA-bound human RAD17-RFC clamp loader and 9-1-1 checkpoint clamp Deposited 2022-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: decameric	Chain C 1–280（280 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.59 Å
8GNN Crystal structure of the human RAD9-RAD1-HUS1-RAD17 complex Deposited 2022-08-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 2–280（279 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；Bis-Tris propane pH 7.5, sodium citrate, PEG 3350	Resolution 2.12 Å R-free 0.263
8WU8 Crystal structure of the human RAD9-RAD1(F64A/M256A/F266A)-HUS1-RHINO(88-99) complex Deposited 2023-10-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 2–280（279 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Potassium iodine	Resolution 2.81 Å R-free 0.267

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HUS1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 8–286； UniProt 2–280

Cell cycle checkpoint protein RAD1

Homo sapiens

UniProt O60671

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–282	Not recorded	Cell cycle checkpoint control protein RAD9A × 1 （Q99638） Checkpoint protein HUS1 × 1 （O60921） RAD9, HUS1, RAD1-interacting nuclear orphan protein 1 × 1 （Q9BSD3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Sodium citrate, Bis-tris propane pH 7.5	Resolution 2.40 Å R-free 0.258

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6J8Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3A1J Crystal structure of the human Rad9-Hus1-Rad1 complex Deposited 2009-04-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 13–275（263 aa） Fragment：residues 13-275	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；296 K；15% PEG 3350, 0.18M KCl, 0.16M guanidine hydrochloride, 0.33M ZWITTERGENT 3-08, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.50 Å R-free 0.282
3G65 Crystal Structure of the Human Rad9-Rad1-Hus1 DNA Damage Checkpoint Complex Deposited 2009-02-06	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–282（282 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Tris-HCl, 17% PEG 2000-Mme, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.272
3GGR Crystal Structure of the Human Rad9-Hus1-Rad1 complex Deposited 2009-03-02	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–282（282 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；8% PEG 2000 MME, 100mM Tris-HCl,200mM Trimethylamine N-oxide dihydrate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.306
7Z6H Structure of DNA-bound human RAD17-RFC clamp loader and 9-1-1 checkpoint clamp Deposited 2022-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–282（282 aa） Chain K 1–282（282 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.59 Å
8GNN Crystal structure of the human RAD9-RAD1-HUS1-RAD17 complex Deposited 2022-08-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–282（282 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；Bis-Tris propane pH 7.5, sodium citrate, PEG 3350	Resolution 2.12 Å R-free 0.263
8WU8 Crystal structure of the human RAD9-RAD1(F64A/M256A/F266A)-HUS1-RHINO(88-99) complex Deposited 2023-10-20	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–282（282 aa）	Mutation：F64A, M256A, F266A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Potassium iodine	Resolution 2.81 Å R-free 0.267

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAD1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–282； UniProt 1–282

RAD9, HUS1, RAD1-interacting nuclear orphan protein 1

Homo sapiens

UniProt Q9BSD3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 45–64	Not recorded	Cell cycle checkpoint control protein RAD9A × 1 （Q99638） Checkpoint protein HUS1 × 1 （O60921） Cell cycle checkpoint protein RAD1 × 1 （O60671）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Sodium citrate, Bis-tris propane pH 7.5	Resolution 2.40 Å R-free 0.258

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6J8Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8WU8 Crystal structure of the human RAD9-RAD1(F64A/M256A/F266A)-HUS1-RHINO(88-99) complex Deposited 2023-10-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 88–99（12 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 3350, Potassium iodine	Resolution 2.81 Å R-free 0.267

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RHNO1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–20； UniProt 45–64

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6j8y
Deposition date deposition_date	2019-01-21
Structure title title	Crystal structure of the human RAD9-HUS1-RAD1-RHINO complex
Keywords keywords	dna damage, checkpoint, dna repair, dna binding clamp, cell cycle, exonuclease, hydrolase, nuclease, nucleus, phosphoprotein, pcna; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.63 Å
Radius of gyration Rg (electron density) rg_electron	32.46 Å
Forward intensity I(0) i0	118370000.00
Molecular weight molecular_weight	88391.0 kDa
Excluded volume excluded_volume	111470 Å³
Envelope volume envelope_volume	149750 Å³
Hydration-shell volume shell_volume	37312 Å³
Envelope diameter envelope_diameter	101.5 Å
Shell Rg shell_rg	40.89 Å
Envelope Rg envelope_rg	31.37 Å
Shape Rg shape_rg	32.48 Å
Total Rg total_rg	33.09 Å
Total atoms total_atoms	6199
Residues n_residues	786
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

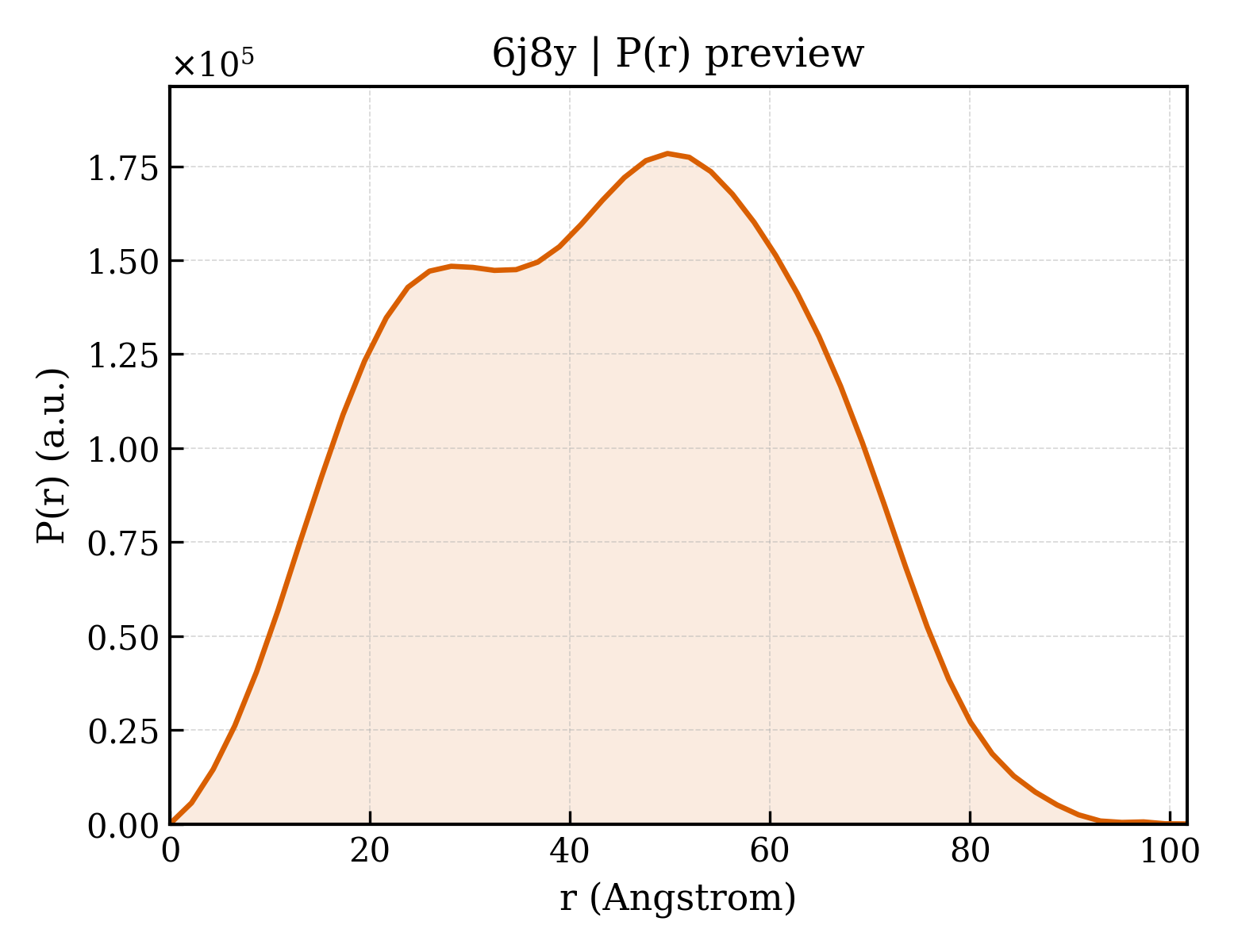

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.7 Å
Rg (real space) rg_real	33.49 Å
Rg uncertainty (real space) rg_real_error	0.82 Å
I(0) (real space) i0_real	1.1840e+08
I(0) uncertainty (real space) i0_real_error	1.9200e+06
Rg (reciprocal space) rg_reciprocal	33.58 Å
I(0) (reciprocal space) i0_reciprocal	118400000.0000
Solution quality estimate total_estimate	0.9028
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	49.8 Å
Skewness Skewness skewness	0.007
Kurtosis Kurtosis kurtosis	-0.808
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	74490000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.928; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.953

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cell cycle checkpoint control protein RAD9A
Molecular weight formula_weight	29746.4 kDa
EC 编号 ec_number	3.1.11.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6267

MKCLVTGGNVKVLGKAVHSLSRIGDELYLEPLEDGLSLRTVNSSRSAYACFLFAPLFFQQYQAATPGQDLLRCKILMKSFLSVFRSLAMLEKTVEKCCISLNGRSSRLVVQLHCKFGVRKTHNLSFQDCESLQAVFDPASCPHMLRAPARVLGEAVLPFSPALAEVTLGIGRGRRVILRSYHEEEADSTAKAMVTEMCLGEEDFQQLQAQEGVAITFCLKEFRGLLSFAESANLNLSIHFDAPGRPAIFTIKDSLLDGHFVLATLSDTDS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Checkpoint protein HUS1
Molecular weight formula_weight	32560.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MHHHHHHKFRAKIVDGACLNHFTRISNMIAKLAKTCTLRISPDKLNFILCDKLANGGVSMWCELEQENFFNEFQMEGVSAENNEIYLELTSENLSRALKTAQNARALKIKLTNKHFPCLTVSVELLSMSSSSRIVTHDIPIKVIPRKLWKDLQEPVVPDPDVSIYLPVLKTMKSVVEKMKNISNHLVIEANLDGELNLKIETELVCVTTHFKDLGNPPLASESTHEDRNVEHMAEVHIDIRKLLQFLAGQQVNPTKALCNIVNNKMVHFDLLHEDVSLQYFIPALS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Cell cycle checkpoint protein RAD1
Molecular weight formula_weight	31854.2 kDa
EC 编号 ec_number	3.1.11.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MPLLTQQIQDEDDQYSLVASLDNVRNLSTILKAIHFREHATCFATKNGIKVTVENAKCVQANAFIQAGIFQEFKVQEESVTFRINLTVLLDCLSIFGSSPMPGTLTALRMCYQGYGYPLMLFLEEGGVVTVCKINTQEPEETLDFDFCSTNVINKIILQSEGLREAFSELDMTSEVLQITMSPDKPYFRLSTFGNAGSSHLDYPKDSDLMEAFHCNQTQVNRYKISLLKPSTKALVLSCKVSIRTDNRGFLSLQYMIRNEDGQICFVEYYCCPDEEVPESES

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	RAD9, HUS1, RAD1-interacting nuclear orphan protein 1
Molecular weight formula_weight	2206.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

SKPIDHSTITSWVSPDFDTA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	68

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	6j8yA00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6j8yB00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6j8yC00
Class class	3 — Alpha Beta
Architecture architecture	70 — Box
Topology topology	10 — Proliferating Cell Nuclear Antigen
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	52.937 Å
Unit-cell length b length_b	136.190 Å
Unit-cell length c length_c	154.043 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	19.802 Å
R factor r_factor	0.2205
R_work r_work	0.2184
R_free r_free	0.2581

fit	/app/data/saxs_computation/j8/6j8y/6j8y.fit
pddf	/app/data/pr_computation/j8/6j8y/6j8y.pr.out
profile	/app/data/saxs_computation/j8/6j8y/6j8y.dat

Crystal structure of the human RAD9-HUS1-RAD1-RHINO complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell cycle checkpoint control protein RAD9A

State in the Current Structure

Other States of the Same Protein in the Database

Checkpoint protein HUS1

State in the Current Structure

Other States of the Same Protein in the Database

Cell cycle checkpoint protein RAD1

State in the Current Structure

Other States of the Same Protein in the Database

RAD9, HUS1, RAD1-interacting nuclear orphan protein 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
