SAXSdb — 8gnn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell cycle checkpoint control protein RAD9A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Checkpoint protein HUS1 × 1 （O60921） Cell cycle checkpoint protein RAD1 × 1 （O60671） Cell cycle checkpoint protein RAD17 × 1 （O75943） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD9A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–270； UniProt 1–270

Checkpoint protein HUS1

Homo sapiens

UniProt O60921

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cell cycle checkpoint control protein RAD9A × 1 （Q99638） Cell cycle checkpoint protein RAD1 × 1 （O60671） Cell cycle checkpoint protein RAD17 × 1 （O75943） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HUS1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 8–286； UniProt 2–280

Cell cycle checkpoint protein RAD1

Homo sapiens

UniProt O60671

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cell cycle checkpoint control protein RAD9A × 1 （Q99638） Checkpoint protein HUS1 × 1 （O60921） Cell cycle checkpoint protein RAD17 × 1 （O75943） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–282； UniProt 1–282

Cell cycle checkpoint protein RAD17

OrganismNot specified

UniProt O75943

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cell cycle checkpoint control protein RAD9A × 1 （Q99638） Checkpoint protein HUS1 × 1 （O60921） Cell cycle checkpoint protein RAD1 × 1 （O60671） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD17_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–11； UniProt 16–26

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8gnn
Deposition date deposition_date	2022-08-24
Structure title title	Crystal structure of the human RAD9-RAD1-HUS1-RAD17 complex
Keywords keywords	DNA damage, checkpoint, DNA repair, DNA binding clamp, Cell cycle; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8gnn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8gnn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

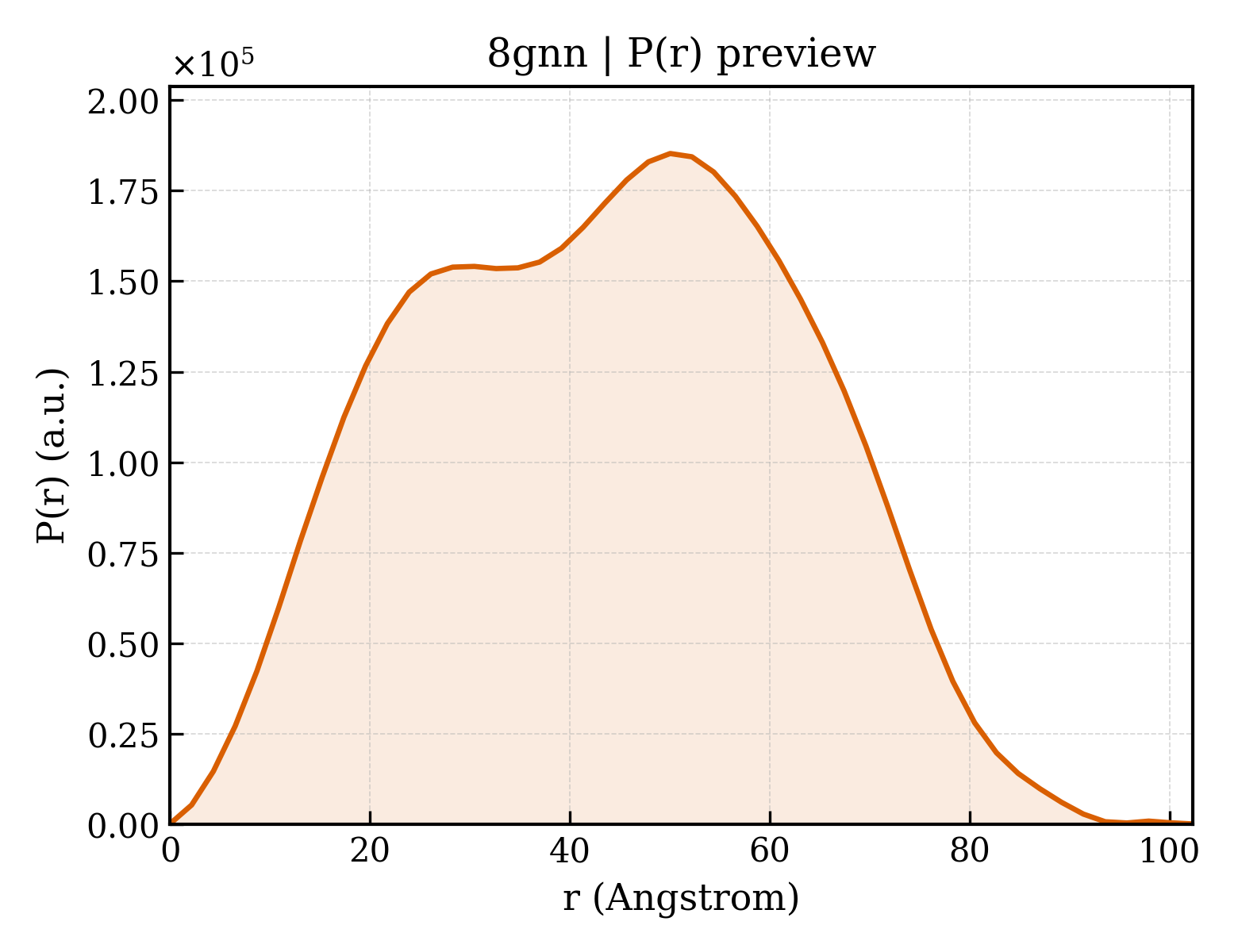

8gnn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.82 Å
Rg (electron density)	32.59 Å
Total Rg	33.20 Å
Atom count	6294
Residues	798
Excluded volume	112890 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8gnn__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cell cycle checkpoint control protein RAD9A
Molecular weight formula_weight	29746.4 kDa
EC 编号 ec_number	3.1.11.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6546

MKCLVTGGNVKVLGKAVHSLSRIGDELYLEPLEDGLSLRTVNSSRSAYACFLFAPLFFQQYQAATPGQDLLRCKILMKSFLSVFRSLAMLEKTVEKCCISLNGRSSRLVVQLHCKFGVRKTHNLSFQDCESLQAVFDPASCPHMLRAPARVLGEAVLPFSPALAEVTLGIGRGRRVILRSYHEEEADSTAKAMVTEMCLGEEDFQQLQAQEGVAITFCLKEFRGLLSFAESANLNLSIHFDAPGRPAIFTIKDSLLDGHFVLATLSDTDS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Checkpoint protein HUS1
Molecular weight formula_weight	32560.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MHHHHHHKFRAKIVDGACLNHFTRISNMIAKLAKTCTLRISPDKLNFILCDKLANGGVSMWCELEQENFFNEFQMEGVSAENNEIYLELTSENLSRALKTAQNARALKIKLTNKHFPCLTVSVELLSMSSSSRIVTHDIPIKVIPRKLWKDLQEPVVPDPDVSIYLPVLKTMKSVVEKMKNISNHLVIEANLDGELNLKIETELVCVTTHFKDLGNPPLASESTHEDRNVEHMAEVHIDIRKLLQFLAGQQVNPTKALCNIVNNKMVHFDLLHEDVSLQYFIPALS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Cell cycle checkpoint protein RAD1
Molecular weight formula_weight	31854.2 kDa
EC 编号 ec_number	3.1.11.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MPLLTQQIQDEDDQYSLVASLDNVRNLSTILKAIHFREHATCFATKNGIKVTVENAKCVQANAFIQAGIFQEFKVQEESVTFRINLTVLLDCLSIFGSSPMPGTLTALRMCYQGYGYPLMLFLEEGGVVTVCKINTQEPEETLDFDFCSTNVINKIILQSEGLREAFSELDMTSEVLQITMSPDKPYFRLSTFGNAGSSHLDYPKDSDLMEAFHCNQTQVNRYKISLLKPSTKALVLSCKVSIRTDNRGFLSLQYMIRNEDGQICFVEYYCCPDEEVPESES

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Cell cycle checkpoint protein RAD17
Molecular weight formula_weight	1343.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

TDWVDPSFDDF

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	252

▶

Unit-cell length a length_a	53.188 Å
Unit-cell length b length_b	136.303 Å
Unit-cell length c length_c	154.046 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.119 Å
Low-resolution limit resolution_low	19.806 Å
R factor r_factor	0.2188
R_work r_work	0.2174
R_free r_free	0.2625
