6l6r

Crystal structure of LRP6 E1E2-SOST complex

Method: X-RAY DIFFRACTION D_max: 156.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Low-density lipoprotein receptor-related protein 6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 21–630	Not recorded	Sclerostin × 1 （Q9BQB4） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-L-fucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MG MAGNESIUM ION × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；301 K；PEG 8000, magnesium acetate, sodium citrate, HEPES	Resolution 3.80 Å R-free 0.256
2	Other combination Heteromer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 21–630	Not recorded	Sclerostin × 1 （Q9BQB4） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-L-fucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；301 K；PEG 8000, magnesium acetate, sodium citrate, HEPES	Resolution 3.80 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6L6R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
21KR A Wnt3a/Fzd8-CRD/LRP6-E3E4 complex with FKBP Deposited 2025-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 630–1245（616 aa） Chain F 630–1245（616 aa）	Mutation：C715S Mutation：C715S	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.90 Å
21KS A Wnt3a/Fzd8-CRD/LRP6-E3E4-LA complex with FKBP Deposited 2025-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 630–1370（741 aa） Chain F 630–1370（741 aa）	Mutation：C840S Mutation：C840S	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.01 Å
21KT Wnt3a signalosome extracellular complex Deposited 2025-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 630–1245（616 aa） Chain F 630–1245（616 aa）	Mutation：C715S Mutation：C715S	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.33 Å
3S2K Structural basis of Wnt signaling inhibition by Dickkopf binding to LRP5/6. Deposited 2011-05-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 630–1246（617 aa） Fragment：ectodomain repeats 3, 4 UNP residues 630-1246 Chain B 630–1246（617 aa） Fragment：ectodomain repeats 3, 4 UNP residues 630-1246	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；10-15% PEG3350, 100 mM Tris-Cl (pH 8.5), 100 mM Lithium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.80 Å R-free 0.251
3S8V Crystal structure of LRP6-Dkk1 complex Deposited 2011-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 629–1243（615 aa） Fragment：E3E4, residues 629-1243	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；298 K；20mM citric acid, 80mM Bis-tris propane pH 8.8, 19-20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.292
3S8V Crystal structure of LRP6-Dkk1 complex Deposited 2011-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 629–1243（615 aa） Fragment：E3E4, residues 629-1243	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；298 K；20mM citric acid, 80mM Bis-tris propane pH 8.8, 19-20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.292
3S8Z Crystal structure of LRP6-E3E4 Deposited 2011-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 629–1243（615 aa） Fragment：E3E4, residues 629-1243	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；100mM ADA pH 6.5, 100mM MgCl2, 12% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.282
3S94 Crystal structure of LRP6-E1E2 Deposited 2011-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–630（611 aa） Fragment：E1E2, residues 20-630	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；80mM sodium citrate pH 5.5, 20-21% PEG3350, 40mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.296
3S94 Crystal structure of LRP6-E1E2 Deposited 2011-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 20–630（611 aa） Fragment：E1E2, residues 20-630	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；80mM sodium citrate pH 5.5, 20-21% PEG3350, 40mM KSCN, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.296
3SOB The structure of the first YWTD beta propeller domain of LRP6 in complex with a FAB Deposited 2011-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–335（316 aa） Fragment：UNP residues 20-335	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.2 M NaCl, 0.1 M Tris pH 8, 25% (w/v) PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.90 Å R-free 0.212
3SOQ The structure of the first YWTD beta propeller domain of LRP6 in complex with a DKK1 peptide Deposited 2011-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–326（307 aa） Fragment：UNP residues 20-335	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1 GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.1M potassium thiocyanate and 30% (w/v) PEG MME 2000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.90 Å R-free 0.221
3SOV The structure of a beta propeller domain in complex with peptide S Deposited 2011-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–326（307 aa） Fragment：UNP residues 20-335	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 FUC alpha-L-fucopyranose × 4 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.1M potassium thiocyanate and 30% (w/v) PEG MME 2000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.27 Å R-free 0.180
4A0P Crystal structure of LRP6P3E3P4E4 Deposited 2011-09-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 629–1244（616 aa） Fragment：P3E3P4E4, RESIDUES 629-1244	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 3 CL CHLORIDE ION × 3 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.211
4DG6 Crystal structure of domains 1 and 2 of LRP6 Deposited 2012-01-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–635（616 aa） Fragment：UNP residues 20-635	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop；pH 5.9；292 K；20% PEG 8000, 20mM ammonium sulfate, pH 5.9, hanging drop, temperature 292K	Resolution 2.90 Å R-free 0.313
5AIR Structural analysis of mouse GSK3beta fused with LRP6 peptide. Deposited 2015-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1565–1575（11 aa） Fragment：;RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420,RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420,RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420,RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420 ; Chain B 1565–1575（11 aa） Fragment：;RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420,RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420,RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420,RESIDUES 1565-1574, KINASE DOMAIN, RESIDUES 6-420 ;	Not recorded	MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；290 K；200 MM SODIUM MALONATE, 20 % (V/V) PEG 3350, pH 7	Resolution 2.53 Å R-free 0.260
5FWW Wnt modulator Kremen in complex with DKK1 (CRD2) and LRP6 (PE3PE4) Deposited 2016-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 630–1246（617 aa） Fragment：PE3PE4, RESIDUES 630-1246	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；20 %W/V PEG3350 0.2 M NA/K-PHOSPHATE, pH 7.5	Resolution 3.50 Å R-free 0.355
5GJE Three-dimensional reconstruction of human LRP6 ectodomain complexed with Dkk1 Deposited 2016-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 20–630（611 aa） Fragment：UNP residues 20-630 Chain B 631–1246（616 aa） Fragment：UNP residues 631-1246	Mutation：V1062I	PO4 PHOSPHATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2	Resolution 21.00 Å
6H15 Structure of LRP6 P3E3P4E4 in complex with VHH L-P2-B10 Deposited 2018-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 630–1244（615 aa） Chain B 630–1244（615 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CL CHLORIDE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.1 M sodium citrate, 0.2 M sodium acetate trihydrate pH 5.5, 10 % PEG w/v 4000	Resolution 2.60 Å R-free 0.247
6H16 Structure of LRP6 P3E3P4E4 in complex with VHH L-P2-D07 Deposited 2018-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 630–1244（615 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.1 M MES pH 5.0, 10 % w/v PEG 6000	Resolution 2.90 Å R-free 0.252
7NAM LRP6_E1 in complex with Lr-EET-3.5 Deposited 2021-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–326（307 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20% w/v PEG 3350, 0.2 M Na malate, pH 7.0	Resolution 1.60 Å R-free 0.193
8CTG Extracellular architecture of an engineered canonical Wnt signaling ternary complex Deposited 2022-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 20–629（610 aa）	Not recorded	PAM PALMITOLEIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；3 s blotting before plunging	Resolution 3.80 Å
8DVL Crystal structure of LRP6 E3E4 in complex with disulfide constrained peptide E3.18 Deposited 2022-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 631–1253（623 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 3 EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；0.1 M Bis-Tris 6.3, 18% PEG 10K	Resolution 2.50 Å R-free 0.245
8DVM Crystal structure of LRP6 E3E4 in complex with disulfide constrained peptide E3.6 Deposited 2022-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 631–1253（623 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 3 EDO 1,2-ETHANEDIOL × 14 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；100 mM MES pH 6.3, 12% PEG 20K	Resolution 2.00 Å R-free 0.221
8DVN Crystal structure of LRP6 E3E4 in complex with disulfide constrained peptide E3.10 Deposited 2022-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 631–1253（623 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG3350, 0.2 M KSCN	Resolution 2.53 Å R-free 0.246
8FFE Crystal structure of LRP6 E1E2 domains bound to YW210.09 Fab and engineered XWnt8 peptide Deposited 2022-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 20–631（612 aa）	Not recorded	GOL GLYCEROL × 7 NA SODIUM ION × 3 SIN SUCCINIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；100 mM SPG (succinate/phosphate/glycine buffer), 25% PEG 1500	Resolution 1.72 Å R-free 0.231
8S7C Ternary Complex of Cachd1, FZD5 and LRP6 Deposited 2024-02-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 629–1244（616 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.5；296 K；0.1 M Calcium Acetate 0.1 M Sodium Acetate 10% PEG 4000 pH 4.5	Resolution 4.70 Å R-free 0.261
8S7C Ternary Complex of Cachd1, FZD5 and LRP6 Deposited 2024-02-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 629–1244（616 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 11	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.5；296 K；0.1 M Calcium Acetate 0.1 M Sodium Acetate 10% PEG 4000 pH 4.5	Resolution 4.70 Å R-free 0.261
8S7C Ternary Complex of Cachd1, FZD5 and LRP6 Deposited 2024-02-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 629–1244（616 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.5；296 K；0.1 M Calcium Acetate 0.1 M Sodium Acetate 10% PEG 4000 pH 4.5	Resolution 4.70 Å R-free 0.261
9FIW MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRHFA Deposited 2024-05-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1516–1521（6 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol	Resolution 2.82 Å R-free 0.246
9FIX MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRPYSYRHFA Deposited 2024-05-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1516–1526（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol	Resolution 2.78 Å R-free 0.233
9FIY MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRHFA Deposited 2024-05-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1521–1526（6 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol	Resolution 2.88 Å R-free 0.242

27 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LRP6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–612； UniProt 21–630 Author chain B； PDBConstruct 3–612； UniProt 21–630

Sclerostin

Homo sapiens

UniProt Q9BQB4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 24–177	Not recorded	Low-density lipoprotein receptor-related protein 6 × 1 （O75581） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-L-fucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MG MAGNESIUM ION × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；301 K；PEG 8000, magnesium acetate, sodium citrate, HEPES	Resolution 3.80 Å R-free 0.256
2	Other combination Heteromer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 24–177	Not recorded	Low-density lipoprotein receptor-related protein 6 × 1 （O75581） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-L-fucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；301 K；PEG 8000, magnesium acetate, sodium citrate, HEPES	Resolution 3.80 Å R-free 0.256

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6L6R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2K8P Characterisation of the structural features and interactions of sclerostin: molecular insight into a key regulator of Wnt-mediated bone formation Deposited 2008-09-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–213（189 aa） Fragment：UNP residues 25 to 213	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；308 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 310 uM entity, 5 % D2O, 95 % H2O, 25 mM sodium phosphate, 100 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 250 uM [U-15N] entity, 5 % D2O, 95 % H2O, 25 mM sodium phosphate, 100 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 200 uM [U-13C; U-15N] entity, 5 % D2O, 95 % H2O, 25 mM sodium phosphate, 100 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
3SOV The structure of a beta propeller domain in complex with peptide S Deposited 2011-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Z 115–121（7 aa） Fragment：UNP residues 115-121	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 FUC alpha-L-fucopyranose × 4 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.1M potassium thiocyanate and 30% (w/v) PEG MME 2000, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.27 Å R-free 0.180

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SOST_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 5–158； UniProt 24–177 Author chain D； PDBConstruct 5–158； UniProt 24–177

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6l6r
Deposition date deposition_date	2019-10-29
Structure title title	Crystal structure of LRP6 E1E2-SOST complex
Keywords keywords	LRP6, Sclerostin, Wnt signaling, inhibitor, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	44.36 Å
Radius of gyration Rg (electron density) rg_electron	44.17 Å
Forward intensity I(0) i0	397496000.00
Molecular weight molecular_weight	160890.0 kDa
Excluded volume excluded_volume	200360 Å³
Envelope volume envelope_volume	285870 Å³
Hydration-shell volume shell_volume	56196 Å³
Envelope diameter envelope_diameter	169.0 Å
Shell Rg shell_rg	46.27 Å
Envelope Rg envelope_rg	43.82 Å
Shape Rg shape_rg	44.09 Å
Total Rg total_rg	44.55 Å
Total atoms total_atoms	11314
Residues n_residues	1404
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

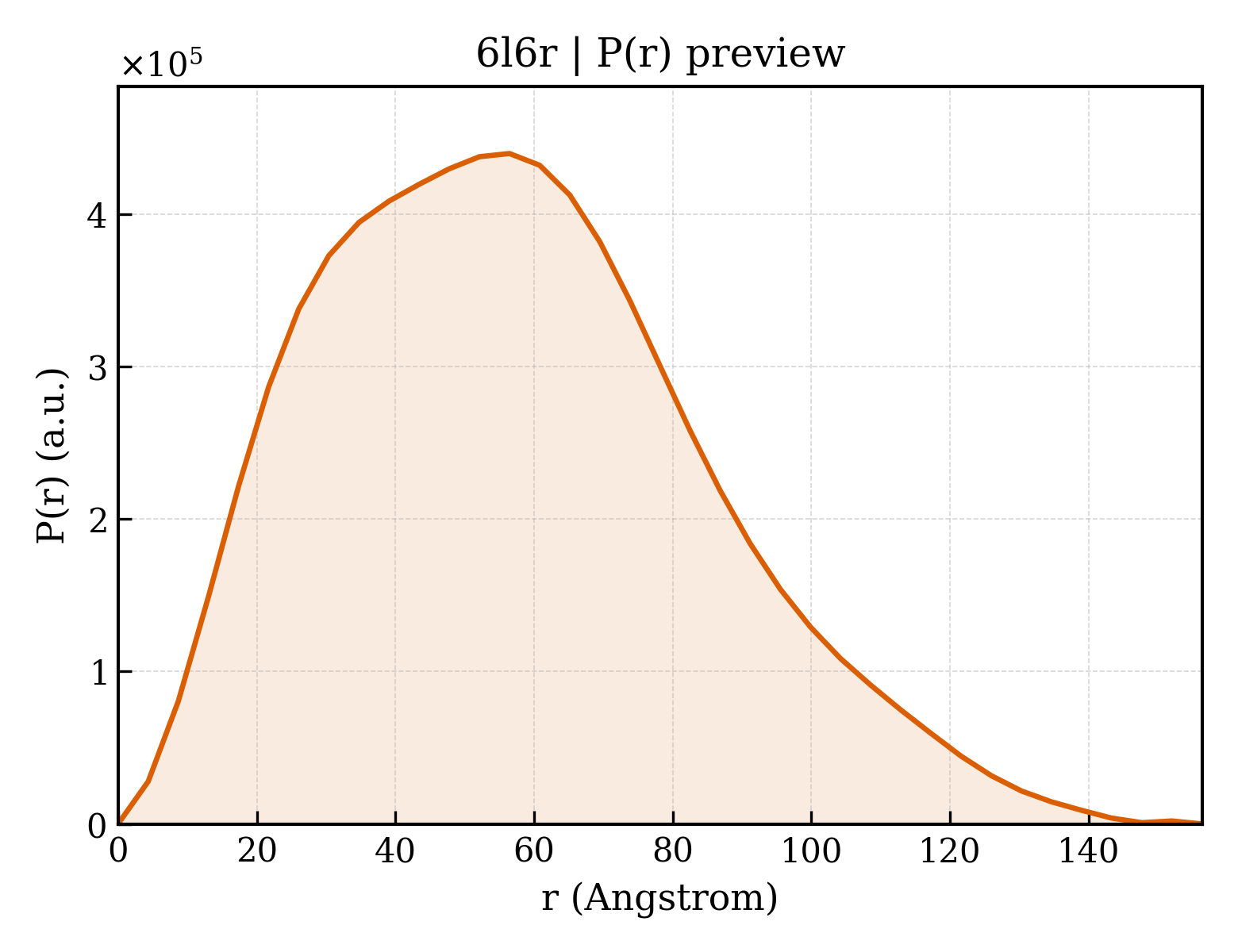

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	156.4 Å
Rg (real space) rg_real	44.57 Å
Rg uncertainty (real space) rg_real_error	1.93 Å
I(0) (real space) i0_real	3.9750e+08
I(0) uncertainty (real space) i0_real_error	7.4330e+06
Rg (reciprocal space) rg_reciprocal	44.36 Å
I(0) (reciprocal space) i0_reciprocal	397400000.0000
Solution quality estimate total_estimate	0.8543
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	56.5 Å
Skewness Skewness skewness	0.437
Kurtosis Kurtosis kurtosis	-0.246
Angular range angular_range	— – 0.1800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	48580000.0000
Real-space data points n_real_points	37
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.888; Smooth: 0.813

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Low-density lipoprotein receptor-related protein 6
Molecular weight formula_weight	70531.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	11314

ADPLLLYANRRDLRLVDATNGKENATIVVGGLEDAAAVDFVFSHGLIYWSDVSEEAIKRTEFNKTESVQNVVVSGLLSPDGLACDWLGEKLYWTDSETNRIEVSNLDGSLRKVLFWQELDQPRAIALDPSSGFMYWTDWGEVPKIERAGMDGSSRFIIINSEIYWPNGLTLDYEEQKLYWADAKLNFIHKSNLDGTNRQAVVKGSLPHPFALTLFEDILYWTDWSTHSILACNKYTGEGLREIHSDIFSPMDIHAFSQQRQPNATNPCGIDNGGCSHLCLMSPVKPFYQCACPTGVKLLENGKTCKDGATELLLLARRTDLRRISLDTPDFTDIVLQLEDIRHAIAIDYDPVEGYIYWTDDEVRAIRRSFIDGSGSQFVVTAQIAHPDGIAVDWVARNLYWTDTGTDRIEVTRLNGTMRKILISEDLEEPRAIVLDPMVGYMYWTDWGEIPKIERAALDGSDRVVLVNTSLGWPNGLALDYDEGKIYWGDAKTDKIEVMNTDGTGRRVLVEDKIPHIFGFTLLGDYVYWTDWQRRSIERVHKRSAEREVIIDQLPDLMGLKATNVHRVIGSNPCAEENGGCSHLCLYRPQGLRCACPIGFELISDMKTCIVPHHHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Sclerostin
Molecular weight formula_weight	17912.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GPSRQGWQAFKNDATEIIPELGEYPEPPPELENNKTMNRAENGGRPPHHPFETKDVSEYSCRELHFTRYVTDGPCRSAKPVTELVCSGQCGPARLLPNAIGRGKWWRPSGPDFRCIPDRYRAQRVQLLCPGGEAPRARKVRLVASCKCKRLTRFHNQS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 branched

Description description	alpha-L-fucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	513.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	252.792 Å
Unit-cell length b length_b	252.792 Å
Unit-cell length c length_c	86.286 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64
Space-group number int_tables_number	172
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	29.861 Å
R factor r_factor	0.2108
R_work r_work	0.2069
R_free r_free	0.2564

fit	/app/data/saxs_computation/l6/6l6r/6l6r.fit
pddf	/app/data/pr_computation/l6/6l6r/6l6r.pr.out
profile	/app/data/saxs_computation/l6/6l6r/6l6r.dat
