6m5e

Human serum albumin with cyclic peptide dalbavancin

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serum albumin

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	dalbavancin × 1 ;O-(O-(2-AMINOPROPYL)-O'-(2-METHOXYETHYL)POLYPROPYLENE GLYCOL 500) ; × 2 (2S,5S)-5-azanyl-3,4,6-tris(oxidanyl)oxane-2-carboxylic acid × 1 10-METHYLUNDECANOIC ACID × 1 alpha-D-mannopyranose × 1 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	dalbavancin × 1 dalbavancin × 1 ;O-(O-(2-AMINOPROPYL)-O'-(2-METHOXYETHYL)POLYPROPYLENE GLYCOL 500) ; × 2 (2S,5S)-5-azanyl-3,4,6-tris(oxidanyl)oxane-2-carboxylic acid × 1 10-METHYLUNDECANOIC ACID × 2 alpha-D-mannopyranose × 1 2-amino-2-deoxy-beta-D-altropyranuronic acid × 1 beta-L-allopyranose × 1 water × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	dalbavancin × 1 dalbavancin × 1 ;O-(O-(2-AMINOPROPYL)-O'-(2-METHOXYETHYL)POLYPROPYLENE GLYCOL 500) ; × 2 (2S,5S)-5-azanyl-3,4,6-tris(oxidanyl)oxane-2-carboxylic acid × 1 10-METHYLUNDECANOIC ACID × 2 alpha-D-mannopyranose × 1 2-amino-2-deoxy-beta-D-altropyranuronic acid × 1 beta-L-allopyranose × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALBU_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–582； UniProt 26–606 Author chain B； PDBConstruct 2–582； UniProt 26–606 Author chain C； PDBConstruct 2–582； UniProt 26–606

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6m5e
Deposition date deposition_date	2020-03-10
Structure title title	Human serum albumin with cyclic peptide dalbavancin
Keywords keywords	Transporter, Cyclic peptide, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6m5e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6m5e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

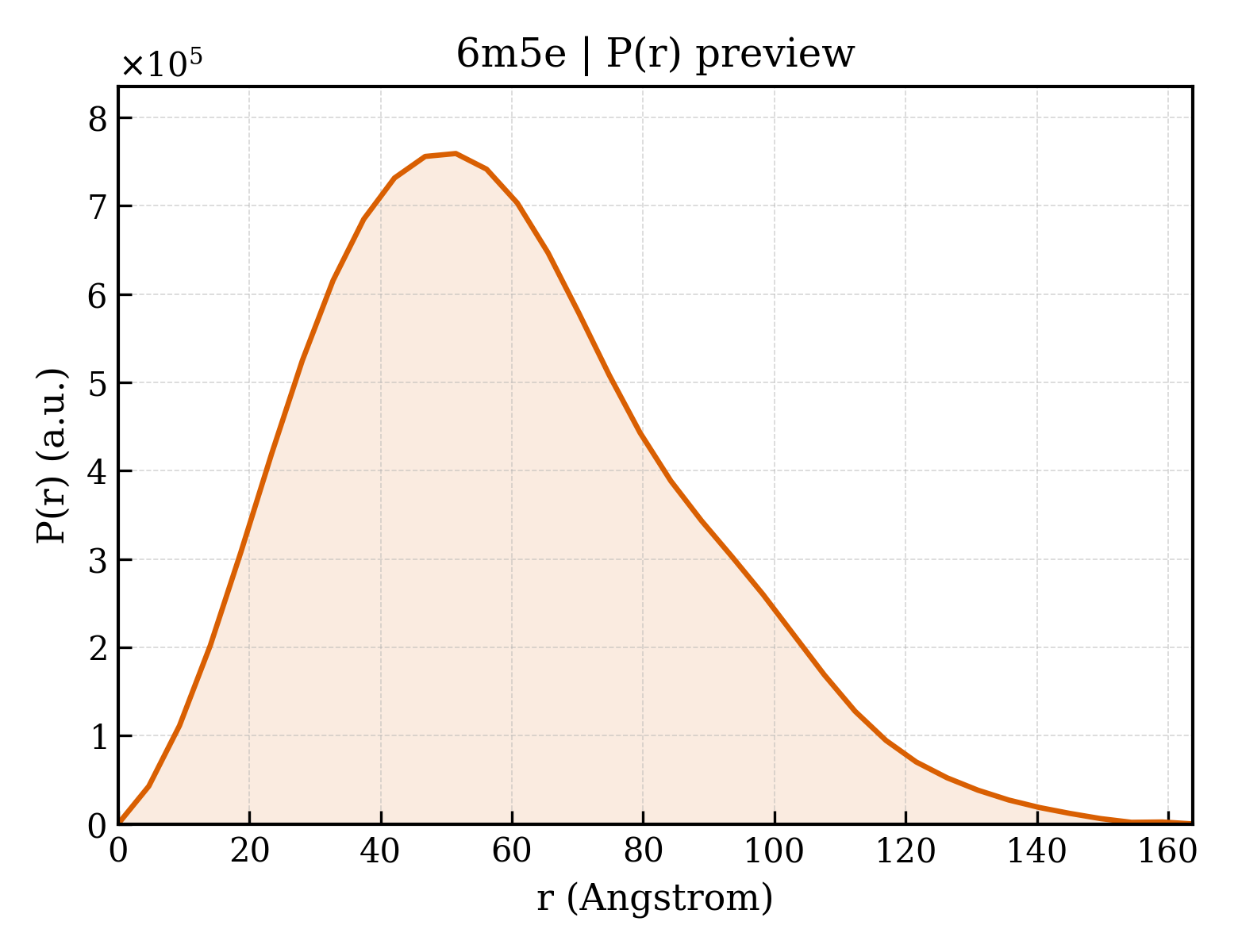

6m5e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.22 Å
Rg (electron density)	27.23 Å
Total Rg	27.94 Å
Atom count	4780
Residues	582
Excluded volume	85411 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6m5e__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`6m5e__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`6m5e__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Serum albumin
Molecular weight formula_weight	66571.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	14585

DAHKSEVAHRFKDLGEENFKALVLIAFAQYLQQCPFEDHVKLVNEVTEFAKTCVADESAENCDKSLHTLFGDKLCTVATLRETYGEMADCCAKQEPERNECFLQHKDDNPNLPRLVRPEVDVMCTAFHDNEETFLKKYLYEIARRHPYFYAPELLFFAKRYKAAFTECCQAADKAACLLPKLDELRDEGKASSAKQRLKCASLQKFGERAFKAWAVARLSQRFPKAEFAEVSKLVTDLTKVHTECCHGDLLECADDRADLAKYICENQDSISSKLKECCEKPLLEKSHCIAEVENDEMPADLPSLAADFVESKDVCKNYAEAKDVFLGMFLYEYARRHPDYSVVLLLRLAKTYETTLEKCCAAADPHECYAKVFDEFKPLVEEPQNLIKQNCELFEQLGEYKFQNALLVRYTKKVPQVSTPTLVEVSRNLGKVGSKCCKHPEAKRMPCAEDYLSVVLNQLCVLHEKTPVSDRVTKCCTESLVNRRPCFSALEVDETYVPKEFNAETFTFHADICTLSEKERQIKKQTALVELVKHKPKATKEQLKAVMDDFAAFVEKCCKADDKETCFAEEGKKLVAASQAALGL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	dalbavancin
Molecular weight formula_weight	1305.2 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H

GYXXXXGX

Entity 3 Entity 3 polymer

Description description	dalbavancin
Molecular weight formula_weight	1305.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

GYXXXXGX

Entity 4 Entity 4 non-polymer

Description description	;O-(O-(2-AMINOPROPYL)-O'-(2-METHOXYETHYL)POLYPROPYLENE GLYCOL 500) ;
Molecular weight formula_weight	597.8 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	(2S,5S)-5-azanyl-3,4,6-tris(oxidanyl)oxane-2-carboxylic acid
Molecular weight formula_weight	193.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	10-METHYLUNDECANOIC ACID
Molecular weight formula_weight	200.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 7 Entity 7 non-polymer

Description description	alpha-D-mannopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	2-amino-2-deoxy-beta-D-altropyranuronic acid
Molecular weight formula_weight	193.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	beta-L-allopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3

▼

6. Fold Classification (SCOP + CATH) 15 domains

CATH v4.4 (15 domains)

Domain ID domain_id	6m5eA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eA05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eB04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eB05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eC03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eC04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	6m5eC05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	197.050 Å
Unit-cell length b length_b	125.680 Å
Unit-cell length c length_c	125.740 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.32 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	45.780 Å
R factor r_factor	0.1824
R_work r_work	0.1799
R_free r_free	0.2276
