SAXSdb — 6oxl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-2 complex subunit beta

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AP-2 complex subunit alpha-2 × 1 AP-2 complex subunit mu × 1 （P84091） AP-2 complex subunit sigma × 1 （P62744） Adaptin ear-binding coat-associated protein 2 × 1 （Q9D1J1） Unknown region of Adaptin ear-binding coat-associated protein 2 Ex-domain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP2B1_MOUSE
Isoform	Q9DBG3-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–591； UniProt 1–591

AP-2 complex subunit mu

Mus musculus

UniProt P84091

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AP-2 complex subunit alpha-2 × 1 AP-2 complex subunit beta × 1 （Q9DBG3） AP-2 complex subunit sigma × 1 （P62744） Adaptin ear-binding coat-associated protein 2 × 1 （Q9D1J1） Unknown region of Adaptin ear-binding coat-associated protein 2 Ex-domain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP2M1_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 1–435； UniProt 1–435

AP-2 complex subunit sigma

Rattus norvegicus

UniProt P62744

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AP-2 complex subunit alpha-2 × 1 AP-2 complex subunit beta × 1 （Q9DBG3） AP-2 complex subunit mu × 1 （P84091） Adaptin ear-binding coat-associated protein 2 × 1 （Q9D1J1） Unknown region of Adaptin ear-binding coat-associated protein 2 Ex-domain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP2S1_RAT
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–142； UniProt 1–142

Adaptin ear-binding coat-associated protein 2

Mus musculus

UniProt Q9D1J1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	AP-2 complex subunit alpha-2 × 1 AP-2 complex subunit beta × 1 （Q9DBG3） AP-2 complex subunit mu × 1 （P84091） AP-2 complex subunit sigma × 1 （P62744） Unknown region of Adaptin ear-binding coat-associated protein 2 Ex-domain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NECP2_MOUSE
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain N； PDBConstruct 1–266； UniProt 1–266

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6oxl
Deposition date deposition_date	2019-05-13
Structure title title	CRYO-EM STRUCTURE OF PHOSPHORYLATED AP-2 (mu E302K) BOUND TO NECAP IN THE PRESENCE OF SS DNA
Keywords keywords	AP2, NECAP2 PROTEIN, CYTOPLASMIC VESICLE, ENDOCYTOSIS, LIPID-BINDING, ADAPTOR, MEMBRANE, TRANSPORT, PHOSPHORYLATION; ENDOCYTOSIS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6oxl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6oxl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

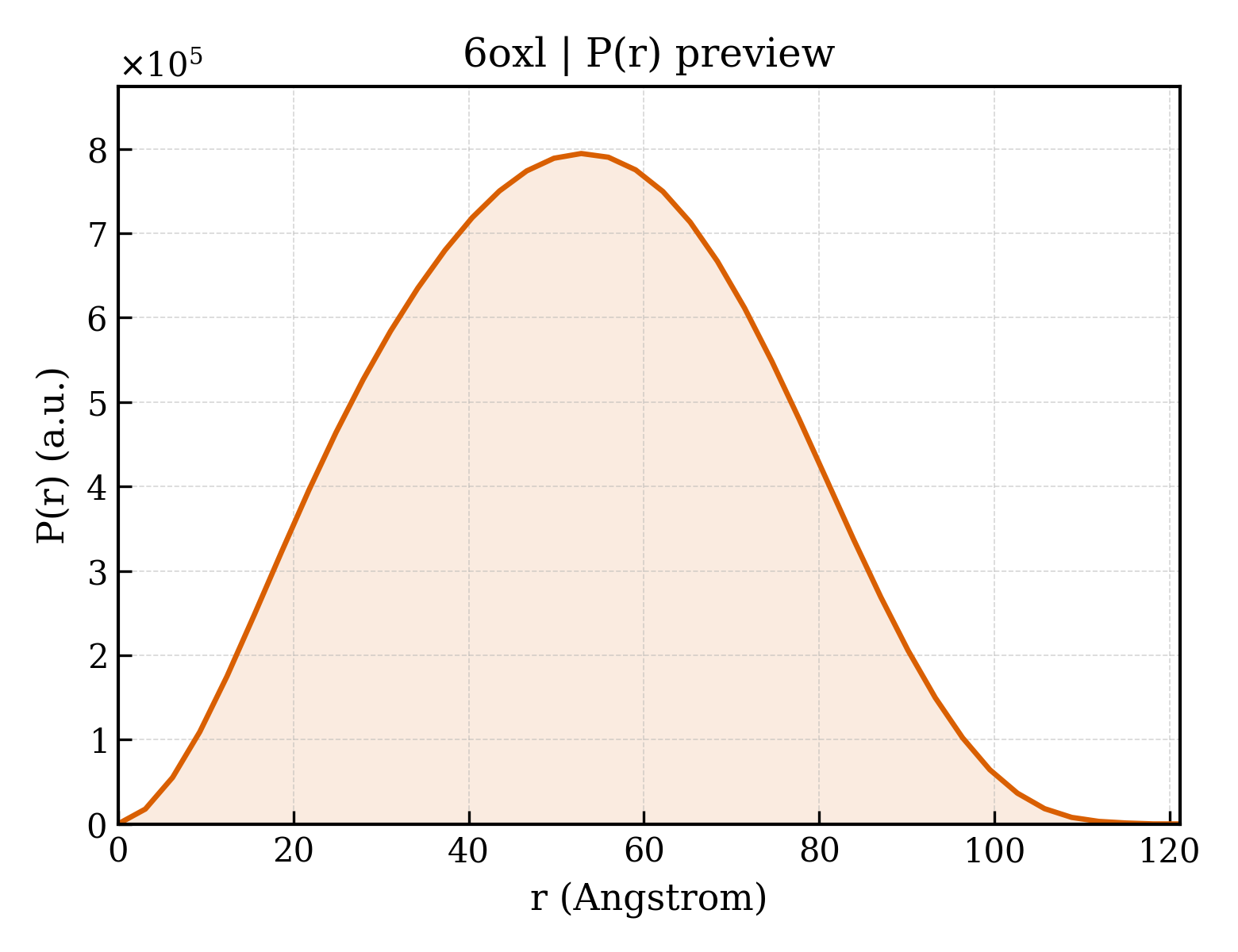

6oxl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.01 Å
Rg (electron density)	39.16 Å
Total Rg	39.63 Å
Atom count	14413
Residues	1814
Excluded volume	259450 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6oxl__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	AP-2 complex subunit alpha-2
Molecular weight formula_weight	69656.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14413

MPAVSKGEGMRGLAVFISDIRNCKSKEAEIKRINKELANIRSKFKGDKALDGYSKKKYVCKLLFIFLLGHDIDFGHMEAVNLLSSNRYTEKQIGYLFISVLVNSNSELIRLINNAIKNDLASRNPTFMGLALHCIANVGSREMAEAFAGEIPKILVAGDTMDSVKQSAALCLLRLYRTSPDLVPMGDWTSRVVHLLNDQHLGVVTAATSLITTLAQKNPEEFKTSVSLAVSRLSRIVTSASTDLQDYTYYFVPAPWLSVKLLRLLQCYPPPEDPAVRGRLTECLETILNKAQEPPKSKKVQHSNAKNAVLFEAISLIIHHDSEPNLLVRACNQLGQFLQHRETNLRYLALESMCTLASSEFSHEAVKTHIETVINALKTERDVSVRQRAVDLLYAMCDRSNAQQIVAEMLSYLETADYSIREEIVLKVAILAEKYAVDYTWYVDTILNLIRIAGDYVSEEVWYRVIQIVINRDDVQGYAAKTVFEALQAPACHENLVKVGGYILGEFGNLIAGDPRSSPLIQFNLLHSKFHLCSVPTRALLLSTYIKFVNLFPEVKATIQDVLRSDSQLKNADVELQQRAVEYLRLSTVASTDILATVLEEMPPFPERESSILAKLKKKKG

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	AP-2 complex subunit beta
Molecular weight formula_weight	66953.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MTDSKYFTTNKKGEIFELKAELNNEKKEKRKEAVKKVIAAMTVGKDVSSLFPDVVNCMQTDNLELKKLVYLYLMNYAKSQPDMAIMAVNSFVKDCEDPNPLIRALAVRTMGCIRVDKITEYLCEPLRKCLKDEDPYVRKTAAVCVAKLHDINAQMVEDQGFLDSLRDLIADSNPMVVANAVAALSEISESHPNSNLLDLNPQNINKLLTALNECTEWGQIFILDCLSNYNPKDDREAQSICERVTPRLSHANSAVVLSAVKVLMKFLELLPKDSDYYNMLLKKLAPPLVTLLSGEPEVQYVALRNINLIVQKRPEILKQEIKVFFVKYNDPIYVKLEKLDIMIRLASQANIAQVLAELKEYATEVDVDFVRKAVRAIGRCAIKVEQSAERCVSTLLDLIQTKVNYVVQEAIVVIRDIFRKYPNKYESIIATLCENLDSLDEPDARAAMIWIVGEYAERIDNADELLESFLEGFHDESTQVQLTLLTAIVKLFLKKPSETQELVQQVLSLATQDSDNPDLRDRGYIYWRLLSTDPVTAKEVVLSEKPLISEETDLIEPTLLDELICHIGSLASVYHKPPNAFVEGSHGIHRK

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	AP-2 complex subunit mu
Molecular weight formula_weight	49806.7 kDa
Mutation mutation	E302K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MIGGLFIYNHKGEVLISRVYRDDIGRNAVDAFRVNVIHARQQVRSPVTNIARTSFFHVKRSNIWLAAVTKQNVNAAMVFEFLYKMCDVMAAYFGKISEENIKNNFVLIYELLDEILDFGYPQNSETGALKTFITQQGIKSQHQTKEEQSQITSQVTGQIGWRREGIKYRRNELFLDVLESVNLLMSPQGQVLSAHVSGRVVMKSYLSGMPECKFGMNDKIVIEKQGKGTADETSKSGKQSIAIDDCTFHQCVRLSKFDSERSISFIPPDGEFELMRYRTTKDIILPFRVIPLVREVGRTKLKVKVVIKSNFKPSLLAQKIEVRIPTPLNTSGVQVICMKGKAKYKASENAIVWKIKRMAGMKESQISAEIELLPTNDKKKWARPPISMNFEVPFAPSGLKVRYLKVFEPKLNYSDHDVIKWVRYIGRSGIYETRC

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	AP-2 complex subunit sigma
Molecular weight formula_weight	17038.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MIRFILIQNRAGKTRLAKWYMQFDDDEKQKLIEEVHAVVTVRDAKHTNFVEFRNFKIIYRRYAGLYFCICVDVNDNNLAYLEAIHNFVEVLNEYFHNVCELDLVFNFYKVYTVVDEMFLAGEIRETSQTKVLKQLLMLQSLE

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	Adaptin ear-binding coat-associated protein 2
Molecular weight formula_weight	28629.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MEESEYESVLCVKPEVHVYRIPPRATNRGYRASEWQLDQPSWSGRLRITAKGKVAYIKLEDRTSGELFAQAPVDQFPGTAVESVTDSSRYFVIRIEDGNGRRAFIGLGFGDRGDAFDFNVALQDHFKWVKQQCEFAKQAQNPDEGPKLDLGFKDGQTIKINIANMRKKEGAAGTPRARPTSAGGLSLLPPPPGGKSSTVIPPSGEQLSVGGSLVQPAVVSGSGGATELWPQSKPAAAATADIWGDFTKSTGSPSSQSQPGTGWVQF

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	Unknown region of Adaptin ear-binding coat-associated protein 2 Ex-domain
Molecular weight formula_weight	613.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	n

XXXXXXX

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

▼

6. Fold Classification (SCOP + CATH) 7 domains

CATH v4.4 (7 domains)

Domain ID domain_id	6oxlA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	6oxlB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	6oxlM01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	6oxlM02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1170 — Mu homology domain, subdomain B

Domain ID domain_id	6oxlM03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1170 — Mu homology domain, subdomain B

Domain ID domain_id	6oxlN01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

Domain ID domain_id	6oxlS00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	60 —

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	324922

CRYO-EM STRUCTURE OF PHOSPHORYLATED AP-2 (mu E302K) BOUND TO NECAP IN THE PRESENCE OF SS DNA
