SAXSdb — 7rw9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-2 complex subunit alpha-2

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–620	Not recorded	AP-2 complex subunit beta × 1 （Q9DBG3） AP-2 complex subunit mu × 1 （P84091） AP-2 complex subunit sigma × 1 （P62743）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RW9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B9K ALPHA-ADAPTIN APPENDAGE DOMAIN, FROM CLATHRIN ADAPTOR AP2 Deposited 1999-02-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 701–938（238 aa） Fragment：APPENDAGE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG 4000, 10% ISOPROPANOL, 100MM NA CITRATE PH 6.0, 10MM DTT, 6MG/ML PROTEIN	Resolution 1.90 Å R-free 0.221
1KY6 AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPSIN DPW PEPTIDE Deposited 2002-02-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.245
1KY7 THE AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH AMPHIPHYSIN FXDXF Deposited 2002-02-03	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.15 Å R-free 0.252
1KYD AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPSIN DPW PEPTIDE Deposited 2002-02-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR), RESIDUES 701-938	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.228
1KYF AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPS15 DPF PEPTIDE Deposited 2002-02-04	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.22 Å R-free 0.211
1KYU AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPS15 DPF PEPTIDE Deposited 2002-02-05	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å R-free 0.223
1QTP CRYSTAL STRUCTURE OF THE AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE Deposited 1999-06-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 692–938（247 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938	Mutation：SELENOMETHIONINE SUBSTITUTED PROTEIN Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；1.5 M MAGNESIUM SULFATE, 100 MM MES, 10MM SPERMINE TETRA-HCL, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.211
1QTS CRYSTAL STRUCTURE OF THE AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE Deposited 1999-06-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 692–938（247 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；1.3 M AMMONIUM SULFATE, 80 MM HEPES, 8% DIOXANE, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.40 Å R-free 0.209
1W80 Crystal structure of the alpha-adaptin appendage domain, from the AP2 adaptor complex, bound to 2 peptides from Synaptojanin170 Deposited 2004-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 695–938（244 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 695-938	Not recorded	BEN BENZAMIDINE × 1 CO3 CARBONATE ION × 3 DTD DITHIANE DIOL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.2M AMMONIUM SULFATE, 3% ISOPROPANOL, 0.05M SODIUM CITRATE, pH 6.50	Resolution 1.90 Å R-free 0.224
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–271（271 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620 Chain A 272–620（349 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620	Not recorded	SO4 SULFATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain L 1–271（271 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620 Chain L 272–620（349 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620	Not recorded	SO4 SULFATE ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 2.98 Å R-free 0.260
2JKT AP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant Deposited 2008-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–271（271 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620 Chain A 272–620（349 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620	Not recorded	SO4 SULFATE ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 3.40 Å R-free 0.256
2JKT AP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant Deposited 2008-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain L 1–271（271 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620 Chain L 272–620（349 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620	Not recorded	SO4 SULFATE ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 3.40 Å R-free 0.256
2VJ0 Crystal structure of the alpha-adaptin appendage domain, from the AP2 adaptor complex, in complex with an FXDNF peptide from amphiphysin1 and a WVXF peptide from synaptojanin P170 Deposited 2007-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 693–938（246 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 693-938	Not recorded	BEN BENZAMIDINE × 1 DTD DITHIANE DIOL × 1 SO4 SULFATE ION × 3 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.2M AMMONIUM SULPHATE, 3% ISOPROPANOL AND 0.05M SODIUM CITRATE PH 6.5	Resolution 1.60 Å R-free 0.208
7OHI FCHO1-peptide-AP2 alpha ear complex Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 695–938（244 aa）	Not recorded	SO4 SULFATE ION × 5 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；1.6M Magnesium sulfate heptahydrate 0.1M MES pH 6.5. The crystal were subsequently cryo-protected with ~20% glycerol final.	Resolution 1.41 Å R-free 0.215
7RW8 AP2 bound to heparin in the closed conformation Deposited 2021-08-19	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–620（620 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.50 Å
7RWA AP2 bound to heparin and Tgn38 tyrosine cargo peptide Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–620（620 aa） Chain a 1–620（620 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 4.70 Å
7RWB AP2 bound to the APA domain of SGIP in the presence of heparin Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–620（620 aa） Chain a 1–620（620 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å
7RWC AP2 bound to the APA domain of SGIP and heparin; partial signal subtraction and symmetry expansion Deposited 2021-08-19	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–620（620 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.80 Å
8T1O AP2 bound to MSP2N2 nanodisc with Tgn38 cargo peptide; composite map Deposited 2023-06-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–620（620 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Two applications of sample.	Resolution 3.30 Å
9PPP Structure of Alpha Appendage of AP2 bound to the extended FxDxF motif derived of CCDC32 Deposited 2025-07-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 695–938（244 aa）	Not recorded	1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM SPG pH 8.0, 25% PEG 1500	Resolution 2.10 Å R-free 0.205
9PPP Structure of Alpha Appendage of AP2 bound to the extended FxDxF motif derived of CCDC32 Deposited 2025-07-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 695–938（244 aa）	Not recorded	1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM SPG pH 8.0, 25% PEG 1500	Resolution 2.10 Å R-free 0.205
9PUE Structure of Alpha Appendage of AP2 bound to the FxDxF motif derived of CCDC32 Deposited 2025-07-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 695–938（244 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；40% isopropanol, 100 mM imidazole pH 6.5, 15% PEG 8000	Resolution 1.91 Å R-free 0.230
9PWA Closed AP-2 clathrin adaptor complex in solution Deposited 2025-08-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–620（620 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.55 Å
9PWB Structure of AP-2 bound to the dileucine motif of CCDC32; combined map Deposited 2025-08-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 9–620（612 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.64 Å
9PWC Composite structure of AP-2 bound to the dileucine motif and WxxPhi motif of CCDC32 Deposited 2025-08-04	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–620（620 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.00 Å

23 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP2A2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–621； UniProt 1–620

AP-2 complex subunit beta

Mus musculus

UniProt Q9DBG3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–591	Not recorded	AP-2 complex subunit alpha-2 × 1 （P17427） AP-2 complex subunit mu × 1 （P84091） AP-2 complex subunit sigma × 1 （P62743）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RW9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6OWO CRYO-EM STRUCTURE OF PHOSPHORYLATED AP-2 CORE BOUND TO NECAP Deposited 2019-05-10	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；4 UL OF SAMPLE/GRID WAS BLOTTED FOR 4 SECONDS AND PLUNGE FROZEN IN LIQUID-NITROGEN COOLED ETHANE	Resolution 3.20 Å
6OXL CRYO-EM STRUCTURE OF PHOSPHORYLATED AP-2 (mu E302K) BOUND TO NECAP IN THE PRESENCE OF SS DNA Deposited 2019-05-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；4 UL OF SAMPLE/GRID WAS BLOTTED FOR 4 SECONDS AND PLUNGE FROZEN IN LIQUID-NITROGEN COOLED ETHANE	Resolution 3.50 Å
7RW8 AP2 bound to heparin in the closed conformation Deposited 2021-08-19	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.50 Å
7RWA AP2 bound to heparin and Tgn38 tyrosine cargo peptide Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain B 1–591（591 aa） Chain b 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 4.70 Å
7RWB AP2 bound to the APA domain of SGIP in the presence of heparin Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–591（591 aa） Chain b 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å
7RWC AP2 bound to the APA domain of SGIP and heparin; partial signal subtraction and symmetry expansion Deposited 2021-08-19	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.80 Å
8T1O AP2 bound to MSP2N2 nanodisc with Tgn38 cargo peptide; composite map Deposited 2023-06-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–591（591 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Two applications of sample.	Resolution 3.30 Å
9PWA Closed AP-2 clathrin adaptor complex in solution Deposited 2025-08-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.55 Å
9PWB Structure of AP-2 bound to the dileucine motif of CCDC32; combined map Deposited 2025-08-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 26–582（557 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.64 Å
9PWC Composite structure of AP-2 bound to the dileucine motif and WxxPhi motif of CCDC32 Deposited 2025-08-04	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–591（591 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.00 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP2B1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–591； UniProt 1–591

AP-2 complex subunit mu

Mus musculus

UniProt P84091

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain M； UniProt 1–435	Not recorded	AP-2 complex subunit alpha-2 × 1 （P17427） AP-2 complex subunit beta × 1 （Q9DBG3） AP-2 complex subunit sigma × 1 （P62743）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RW9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6OWO CRYO-EM STRUCTURE OF PHOSPHORYLATED AP-2 CORE BOUND TO NECAP Deposited 2019-05-10	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；4 UL OF SAMPLE/GRID WAS BLOTTED FOR 4 SECONDS AND PLUNGE FROZEN IN LIQUID-NITROGEN COOLED ETHANE	Resolution 3.20 Å
6OXL CRYO-EM STRUCTURE OF PHOSPHORYLATED AP-2 (mu E302K) BOUND TO NECAP IN THE PRESENCE OF SS DNA Deposited 2019-05-13	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain M 1–435（435 aa）	Mutation：E302K Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；4 UL OF SAMPLE/GRID WAS BLOTTED FOR 4 SECONDS AND PLUNGE FROZEN IN LIQUID-NITROGEN COOLED ETHANE	Resolution 3.50 Å
7RW8 AP2 bound to heparin in the closed conformation Deposited 2021-08-19	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.50 Å
7RWA AP2 bound to heparin and Tgn38 tyrosine cargo peptide Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain M 1–435（435 aa） Chain m 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 4.70 Å
7RWB AP2 bound to the APA domain of SGIP in the presence of heparin Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain M 1–435（435 aa） Chain m 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å
7RWC AP2 bound to the APA domain of SGIP and heparin; partial signal subtraction and symmetry expansion Deposited 2021-08-19	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.80 Å
8T1O AP2 bound to MSP2N2 nanodisc with Tgn38 cargo peptide; composite map Deposited 2023-06-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Two applications of sample.	Resolution 3.30 Å
9PWA Closed AP-2 clathrin adaptor complex in solution Deposited 2025-08-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.55 Å
9PWB Structure of AP-2 bound to the dileucine motif of CCDC32; combined map Deposited 2025-08-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–135（135 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.64 Å
9PWC Composite structure of AP-2 bound to the dileucine motif and WxxPhi motif of CCDC32 Deposited 2025-08-04	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.00 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP2M1_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 1–435； UniProt 1–435

AP-2 complex subunit sigma

Mus musculus

UniProt P62743

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain S； UniProt 1–142	Not recorded	AP-2 complex subunit alpha-2 × 1 （P17427） AP-2 complex subunit beta × 1 （Q9DBG3） AP-2 complex subunit mu × 1 （P84091）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RW9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	SO4 SULFATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 1–142（142 aa）	Not recorded	SO4 SULFATE ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 2.98 Å R-free 0.260
2JKT AP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant Deposited 2008-08-29	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	SO4 SULFATE ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 3.40 Å R-free 0.256
2JKT AP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant Deposited 2008-08-29	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 1–142（142 aa）	Not recorded	SO4 SULFATE ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 3.40 Å R-free 0.256
2VGL AP2 CLATHRIN ADAPTOR CORE Deposited 2007-11-14	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；18% PEG, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6	Resolution 2.60 Å R-free 0.339
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL	Resolution 3.10 Å R-free 0.285
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL	Resolution 3.10 Å R-free 0.285
4UQI AP2 controls clathrin polymerization with a membrane-activated switch Deposited 2014-06-23	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	CL CHLORIDE ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；18% PEG1000, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6	Resolution 2.79 Å R-free 0.259
6QH5 AP2 clathrin adaptor mu2T156-phosphorylated core in closed conformation Deposited 2019-01-15	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；289 K；20% PEG 1000; 100 mM Na+/K+ phosphate buffer (pH 7.2), 200 mM NaCl, and 10 mM DTT	Resolution 2.56 Å R-free 0.257
6QH6 AP2 clathrin adaptor core with two cargo peptides in open+ conformation Deposited 2019-01-15	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride	Resolution 5.00 Å R-free 0.285
6QH7 AP2 clathrin adaptor mu2T156-phosphorylated core with two cargo peptides in open+ conformation Deposited 2019-01-15	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride	Resolution 3.40 Å R-free 0.248
6YAE AP2 core in physiological buffer Deposited 2020-03-12	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6YAF AP2 on a membrane containing tyrosine-based cargo peptide Deposited 2020-03-12	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.	Resolution 9.10 Å
6YAH AP2 in clathrin coats assembled on a membrane containing dileucine- and tyrosine-based cargo peptides Deposited 2020-03-12	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.	Resolution 10.20 Å
7OG1 AP2 clathrin adaptor core in complex with cargo peptide and FCHO2 Deposited 2021-05-05	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain SSS 1–142（142 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；Crystals of AP-2 in complex with FCHO2 linker and TGN38 peptide, supplemented with 10mM K Na Tartrate, grew in sitting drops with reservoir 0.1M Mg formate dehydrate, 10% to 15% PEG 3350. The crystals were cryo-protected with 0.1M Mg formate dehydrate, 13% PEG 3350, 18-24% Glycerol and 1mg/ml of peptide.	Resolution 3.25 Å R-free 0.306
7OHO Crystal structure of AP2 FCHO2 chimera Deposited 2021-05-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain SSS 1–142（142 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；18% PEG 12000 0.1M Na/K phosphate pH 6.2 0.2M NaCl 4mM DTT in the presence of 3-fold molar excess of IP6.	Resolution 2.88 Å R-free 0.273
7RW8 AP2 bound to heparin in the closed conformation Deposited 2021-08-19	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.50 Å
7RWA AP2 bound to heparin and Tgn38 tyrosine cargo peptide Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 1–142（142 aa） Chain s 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 4.70 Å
7RWB AP2 bound to the APA domain of SGIP in the presence of heparin Deposited 2021-08-19	Different construct Different mutation/modification Different oligomeric state	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain S 1–142（142 aa） Chain s 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.90 Å
7RWC AP2 bound to the APA domain of SGIP and heparin; partial signal subtraction and symmetry expansion Deposited 2021-08-19	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample	Resolution 3.80 Å
7Z5C Chimera of AP2 with FCHO2 linker domain as a fusion on Cmu2 subunit Deposited 2022-03-09	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；50% HKT buffer (10mM Hepes, 10mM Tris 120mM potassium acetate pH 7.2) and 50% Core buffer (10mM Tris, 250mM NaCl, pH 8) cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.16 Å
8T1O AP2 bound to MSP2N2 nanodisc with Tgn38 cargo peptide; composite map Deposited 2023-06-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Two applications of sample.	Resolution 3.30 Å
9PWA Closed AP-2 clathrin adaptor complex in solution Deposited 2025-08-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.55 Å
9PWC Composite structure of AP-2 bound to the dileucine motif and WxxPhi motif of CCDC32 Deposited 2025-08-04	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–142（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.00 Å

21 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP2S1_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–142； UniProt 1–142

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7rw9
Deposition date deposition_date	2021-08-19
Structure title title	AP2 bound to heparin in the bowl conformation
Keywords keywords	AP2, clathrin vesicle, endocytosis, lipid-binding, adaptor, membrane, transport; ENDOCYTOSIS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.22 Å
Radius of gyration Rg (electron density) rg_electron	37.35 Å
Forward intensity I(0) i0	305875000.00
Molecular weight molecular_weight	146720.0 kDa
Excluded volume excluded_volume	185780 Å³
Envelope volume envelope_volume	263740 Å³
Hydration-shell volume shell_volume	57569 Å³
Envelope diameter envelope_diameter	117.0 Å
Shell Rg shell_rg	44.86 Å
Envelope Rg envelope_rg	36.28 Å
Shape Rg shape_rg	37.35 Å
Total Rg total_rg	37.86 Å
Total atoms total_atoms	10365
Residues n_residues	1456
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

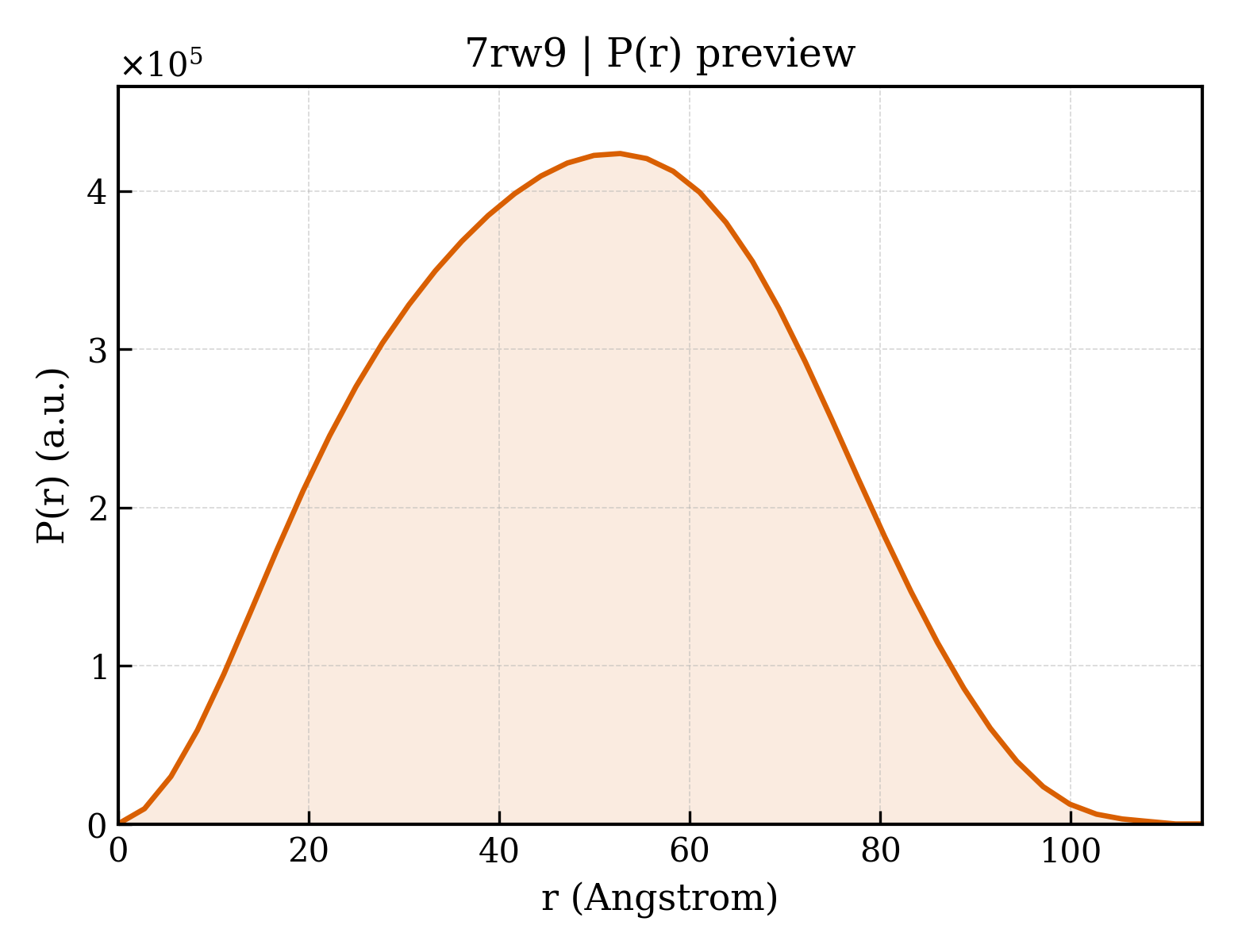

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	113.8 Å
Rg (real space) rg_real	37.96 Å
Rg uncertainty (real space) rg_real_error	0.73 Å
I(0) (real space) i0_real	3.0590e+08
I(0) uncertainty (real space) i0_real_error	4.7650e+06
Rg (reciprocal space) rg_reciprocal	38.13 Å
I(0) (reciprocal space) i0_reciprocal	305900000.0000
Solution quality estimate total_estimate	0.8402
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	52.7 Å
Skewness Skewness skewness	0.045
Kurtosis Kurtosis kurtosis	-0.667
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	63780000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.976; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	AP-2 complex subunit alpha-2
Molecular weight formula_weight	70573.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10365

MPAVSKGDGMRGLAVFISDIRNCKSKEAEIKRINKELANIRSKFKGDKALDGYSKKKYVCKLLFIFLLGHDIDFGHMEAVNLLSSNRYTEKQIGYLFISVLVNSNSELIRLINNAIKNDLASRNPTFMGLALHCIANVGSREMAEAFAGEIPKILVAGDTMDSVKQSAALCLLRLYRTSPDLVPMGDWTSRVVHLLNDQHLGVVTAATSLITTLAQKNPEEFKTSVSLAVSRLSRIVTSASTDLQDYTYYFVPAPWLSVKLLRLLQCYPPPEDPAVRGRLTECLETILNKAQEPPKSKKVQHSNAKNAVLFEAISLIIHHDSEPNLLVRACNQLGQFLQHRETNLRYLALESMCTLASSEFSHEAVKTHIETVINALKTERDVSVRQRAVDLLYAMCDRSNAQQIVAEMLSYLETADYSIREEIVLKVAILAEKYAVDYTWYVDTILNLIRIAGDYVSEEVWYRVIQIVINRDDVQGYAAKTVFEALQAPACHENLVKVGGYILGEFGNLIAGDPRSSPLIQFNLLHSKFHLCSVPTRALLLSTYIKFVNLFPEVKATIQDVLRSDSQLKNADVELQQRAVEYLRLSTVASTDILATVLEEMPPFPERESSILAKLKKKKGGSGLEVLFQ

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	AP-2 complex subunit beta
Molecular weight formula_weight	66953.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MTDSKYFTTNKKGEIFELKAELNNEKKEKRKEAVKKVIAAMTVGKDVSSLFPDVVNCMQTDNLELKKLVYLYLMNYAKSQPDMAIMAVNSFVKDCEDPNPLIRALAVRTMGCIRVDKITEYLCEPLRKCLKDEDPYVRKTAAVCVAKLHDINAQMVEDQGFLDSLRDLIADSNPMVVANAVAALSEISESHPNSNLLDLNPQNINKLLTALNECTEWGQIFILDCLSNYNPKDDREAQSICERVTPRLSHANSAVVLSAVKVLMKFLELLPKDSDYYNMLLKKLAPPLVTLLSGEPEVQYVALRNINLIVQKRPEILKQEIKVFFVKYNDPIYVKLEKLDIMIRLASQANIAQVLAELKEYATEVDVDFVRKAVRAIGRCAIKVEQSAERCVSTLLDLIQTKVNYVVQEAIVVIRDIFRKYPNKYESIIATLCENLDSLDEPDARAAMIWIVGEYAERIDNADELLESFLEGFHDESTQVQLTLLTAIVKLFLKKPSETQELVQQVLSLATQDSDNPDLRDRGYIYWRLLSTDPVTAKEVVLSEKPLISEETDLIEPTLLDELICHIGSLASVYHKPPNAFVEGSHGIHRK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	AP-2 complex subunit mu
Molecular weight formula_weight	49726.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MIGGLFIYNHKGEVLISRVYRDDIGRNAVDAFRVNVIHARQQVRSPVTNIARTSFFHVKRSNIWLAAVTKQNVNAAMVFEFLYKMCDVMAAYFGKISEENIKNNFVLIYELLDEILDFGYPQNSETGALKTFITQQGIKSQHQTKEEQSQITSQVTGQIGWRREGIKYRRNELFLDVLESVNLLMSPQGQVLSAHVSGRVVMKSYLSGMPECKFGMNDKIVIEKQGKGTADETSKSGKQSIAIDDCTFHQCVRLSKFDSERSISFIPPDGEFELMRYRTTKDIILPFRVIPLVREVGRTKLEVKVVIKSNFKPSLLAQKIEVRIPTPLNTSGVQVICMKGKAKYKASENAIVWKIKRMAGMKESQISAEIELLPTNDKKKWARPPISMNFEVPFAPSGLKVRYLKVFEPKLNYSDHDVIKWVRYIGRSGIYETRC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	AP-2 complex subunit sigma
Molecular weight formula_weight	17038.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MIRFILIQNRAGKTRLAKWYMQFDDDEKQKLIEEVHAVVTVRDAKHTNFVEFRNFKIIYRRYAGLYFCICVDVNDNNLAYLEAIHNFVEVLNEYFHNVCELDLVFNFYKVYTVVDEMFLAGEIRETSQTKVLKQLLMLQSLE

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	7rw9A01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	7rw9B01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	7rw9M01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	60 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	151164

fit	/app/data/saxs_computation/rw/7rw9/7rw9.fit
pddf	/app/data/pr_computation/rw/7rw9/7rw9.pr.out
profile	/app/data/saxs_computation/rw/7rw9/7rw9.dat

AP2 bound to heparin in the bowl conformation

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-2 complex subunit alpha-2

State in the Current Structure

Other States of the Same Protein in the Database

AP-2 complex subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

AP-2 complex subunit mu

State in the Current Structure

Other States of the Same Protein in the Database

AP-2 complex subunit sigma

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
