2jkt

AP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant

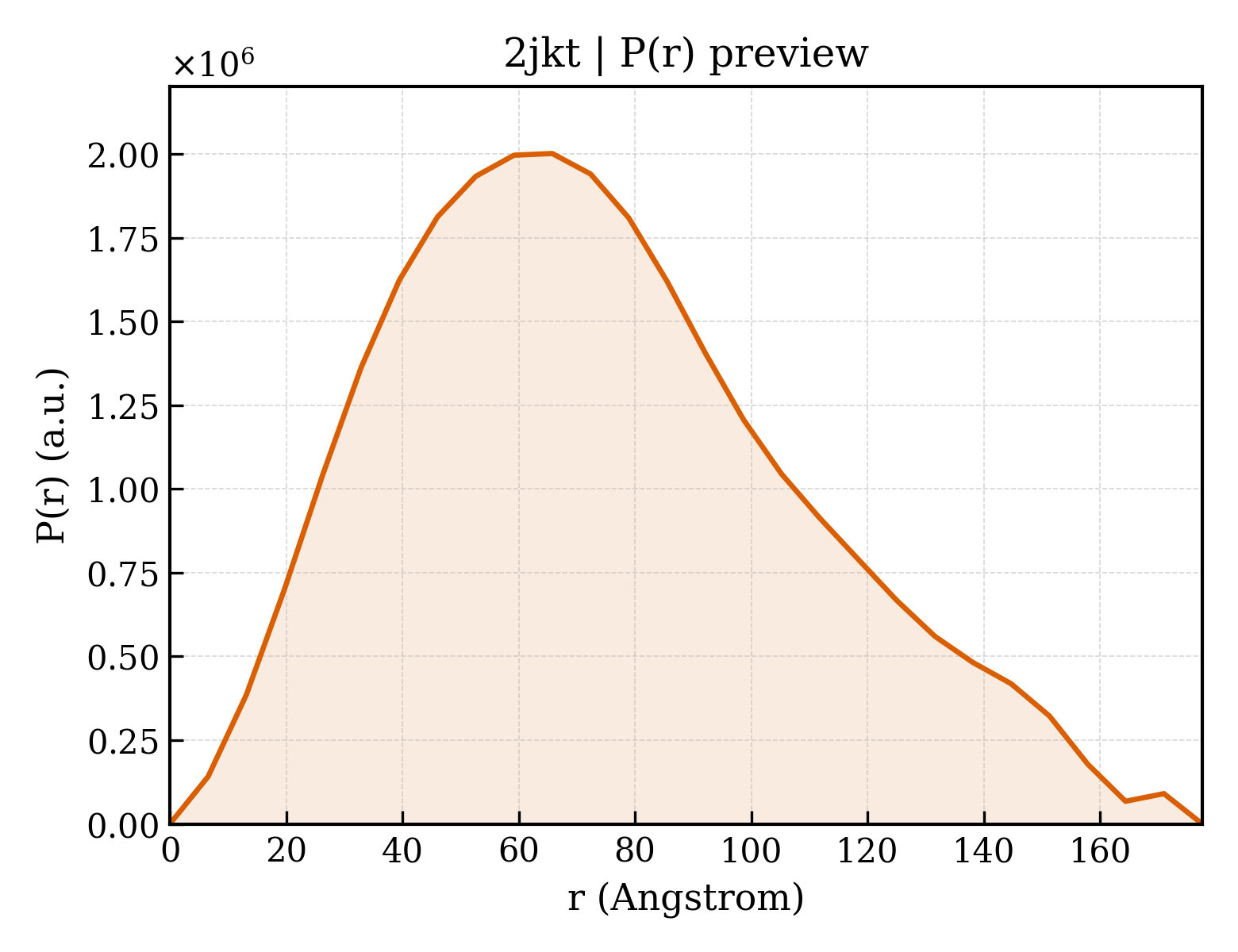

Method: X-RAY DIFFRACTION Dmax: 177.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-2 COMPLEX SUBUNIT ALPHA-2

MUS MUSCULUS

UniProt P17427

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain A； UniProt 1–271 Chain A； UniProt 272–620 Fragment：ALPHA CHAIN, RESIDUES 1-620 AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256
2 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain L； UniProt 1–271 Chain L； UniProt 272–620 Fragment：ALPHA CHAIN, RESIDUES 1-620 AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 16 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JKT Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1B9K ALPHA-ADAPTIN APPENDAGE DOMAIN, FROM CLATHRIN ADAPTOR AP2 Deposited 1999-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 701–938（238 aa） Fragment：APPENDAGE DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；20% PEG 4000, 10% ISOPROPANOL, 100MM NA CITRATE PH 6.0, 10MM DTT, 6MG/ML PROTEIN
Resolution 1.90 Å R-free 0.221
1KY6 AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPSIN DPW PEPTIDE Deposited 2002-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.245
1KY7 THE AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH AMPHIPHYSIN FXDXF Deposited 2002-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.15 Å R-free 0.252
1KYD AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPSIN DPW PEPTIDE Deposited 2002-02-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR), RESIDUES 701-938
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.228
1KYF AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPS15 DPF PEPTIDE Deposited 2002-02-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.22 Å R-free 0.211
1KYU AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE IN COMPLEX WITH EPS15 DPF PEPTIDE Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 701–938（238 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.223
1QTP CRYSTAL STRUCTURE OF THE AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE Deposited 1999-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 692–938（247 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938
Mutation：SELENOMETHIONINE SUBSTITUTED PROTEIN Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；1.5 M MAGNESIUM SULFATE, 100 MM MES, 10MM SPERMINE TETRA-HCL, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.60 Å R-free 0.211
1QTS CRYSTAL STRUCTURE OF THE AP-2 CLATHRIN ADAPTOR ALPHA-APPENDAGE Deposited 1999-06-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 692–938（247 aa） Fragment：C-TERMINAL APPENDAGE (EAR) RESIDUES 701-938
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；1.3 M AMMONIUM SULFATE, 80 MM HEPES, 8% DIOXANE, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.40 Å R-free 0.209
1W80 Crystal structure of the alpha-adaptin appendage domain, from the AP2 adaptor complex, bound to 2 peptides from Synaptojanin170 Deposited 2004-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 695–938（244 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 695-938
Not recorded BEN BENZAMIDINE × 1 CO3 CARBONATE ION × 3 DTD DITHIANE DIOL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.2M AMMONIUM SULFATE, 3% ISOPROPANOL, 0.05M SODIUM CITRATE, pH 6.50
Resolution 1.90 Å R-free 0.224
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–271（271 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620
Chain A 272–620（349 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620
Not recorded SO4 SULFATE ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain L 1–271（271 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620
Chain L 272–620（349 aa） Fragment：ALPHA CHAIN, RESIDUES 1-620
Not recorded SO4 SULFATE ION × 17 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2VJ0 Crystal structure of the alpha-adaptin appendage domain, from the AP2 adaptor complex, in complex with an FXDNF peptide from amphiphysin1 and a WVXF peptide from synaptojanin P170 Deposited 2007-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 693–938（246 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 693-938
Not recorded BEN BENZAMIDINE × 1 DTD DITHIANE DIOL × 1 SO4 SULFATE ION × 3 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.2M AMMONIUM SULPHATE, 3% ISOPROPANOL AND 0.05M SODIUM CITRATE PH 6.5
Resolution 1.60 Å R-free 0.208
7OHI FCHO1-peptide-AP2 alpha ear complex Deposited 2021-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 695–938（244 aa）
Not recorded SO4 SULFATE ION × 5 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；1.6M Magnesium sulfate heptahydrate 0.1M MES pH 6.5. The crystal were subsequently cryo-protected with ~20% glycerol final.
Resolution 1.41 Å R-free 0.215
7RW8 AP2 bound to heparin in the closed conformation Deposited 2021-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.50 Å
7RW9 AP2 bound to heparin in the bowl conformation Deposited 2021-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.90 Å
7RWA AP2 bound to heparin and Tgn38 tyrosine cargo peptide Deposited 2021-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–620（620 aa）
Chain a 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 4.70 Å
7RWB AP2 bound to the APA domain of SGIP in the presence of heparin Deposited 2021-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–620（620 aa）
Chain a 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.90 Å
7RWC AP2 bound to the APA domain of SGIP and heparin; partial signal subtraction and symmetry expansion Deposited 2021-08-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.80 Å
8T1O AP2 bound to MSP2N2 nanodisc with Tgn38 cargo peptide; composite map Deposited 2023-06-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–620（620 aa）
Not recorded PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Two applications of sample.
Resolution 3.30 Å
9PPP Structure of Alpha Appendage of AP2 bound to the extended FxDxF motif derived of CCDC32 Deposited 2025-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 695–938（244 aa）
Not recorded 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM SPG pH 8.0, 25% PEG 1500
Resolution 2.10 Å R-free 0.205
9PPP Structure of Alpha Appendage of AP2 bound to the extended FxDxF motif derived of CCDC32 Deposited 2025-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 695–938（244 aa）
Not recorded 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM SPG pH 8.0, 25% PEG 1500
Resolution 2.10 Å R-free 0.205
9PUE Structure of Alpha Appendage of AP2 bound to the FxDxF motif derived of CCDC32 Deposited 2025-07-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 695–938（244 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；40% isopropanol, 100 mM imidazole pH 6.5, 15% PEG 8000
Resolution 1.91 Å R-free 0.230
9PWA Closed AP-2 clathrin adaptor complex in solution Deposited 2025-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.55 Å
9PWB Structure of AP-2 bound to the dileucine motif of CCDC32; combined map Deposited 2025-08-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 9–620（612 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.64 Å
9PWC Composite structure of AP-2 bound to the dileucine motif and WxxPhi motif of CCDC32 Deposited 2025-08-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å

23 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name AP2A2_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–271； UniProt 1–271 Author chain A； PDBConstruct 273–621； UniProt 272–620 Author chain L； PDBConstruct 1–271； UniProt 1–271 Author chain L； PDBConstruct 273–621； UniProt 272–620

AP-2 COMPLEX SUBUNIT BETA-1

HOMO SAPIENS

UniProt P63010

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain B； UniProt 1–591 Fragment：BETA2 CHAIN, RESIDUES 1-591 AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256
2 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain E； UniProt 1–591 Fragment：BETA2 CHAIN, RESIDUES 1-591 AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 16 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JKT Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1E42 Beta2-adaptin appendage domain, from clathrin adaptor AP2 Deposited 2000-06-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 701–937（237 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 701-937
Not recorded DTD DITHIANE DIOL × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.8；WELL SOLUTION: 1.6 - 2.0M MGCL2, 0.1M BICINE PH 8.7 - 9.0, 15% GLYCEROL, 1MM DTT. PROTEIN: 40MG/ML, 5MM HEPES, 50MM NACL, 4MM DTT, 1:1 MIXTURE
Resolution 1.70 Å R-free 0.246
1E42 Beta2-adaptin appendage domain, from clathrin adaptor AP2 Deposited 2000-06-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 701–937（237 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 701-937
Not recorded DTD DITHIANE DIOL × 1 MG MAGNESIUM ION × 3 CL CHLORIDE ION × 2 GOL GLYCEROL × 1 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.8；WELL SOLUTION: 1.6 - 2.0M MGCL2, 0.1M BICINE PH 8.7 - 9.0, 15% GLYCEROL, 1MM DTT. PROTEIN: 40MG/ML, 5MM HEPES, 50MM NACL, 4MM DTT, 1:1 MIXTURE
Resolution 1.70 Å R-free 0.246
2G30 beta appendage of AP2 complexed with ARH peptide Deposited 2006-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 701–937（237 aa） Fragment：residues 701-937
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；18% PEG 8000, 100mM HEPES pH 7.5, 4mM DTT, VAPOR DIFFUSION, SITTING DROP, temperature 289K
Resolution 1.60 Å R-free 0.243
2IV8 beta appendage in complex with b-arrestin peptide Deposited 2006-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 700–937（238 aa） Fragment：RESIDUES 700-937
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.4；0.2M MG FORMATE 30% PEG 3350 OTHER REMARKS: THIS WAS THE ONLY CRYSTAL OBTAINED DESPITE HEROIC ATTEMPTS. THE CRYSTAL WAS HIGHLY MOSAIC, AND EPITAXIALLY SPLIT, LIMITING THE AMOUNT OF DATA WHICH COULD BE COLLECTED., pH 7.40
Resolution 2.80 Å R-free 0.369
2IV9 B2-appendage from AP2 in complex with Eps15 peptide Deposited 2006-06-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 700–937（238 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 700-937
Chain B 700–937（238 aa） Fragment：APPENDAGE DOMAIN, RESIDUES 700-937
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.5；2M AMMONIUM SULPHATE, 0.1M AMMONIUM ACETATE PH 4.5
Resolution 1.90 Å R-free 0.267
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–591（591 aa） Fragment：BETA2 CHAIN, RESIDUES 1-591
Not recorded SO4 SULFATE ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–591（591 aa） Fragment：BETA2 CHAIN, RESIDUES 1-591
Not recorded SO4 SULFATE ION × 17 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2VGL AP2 CLATHRIN ADAPTOR CORE Deposited 2007-11-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–591（591 aa） Fragment：1-591
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；18% PEG, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6
Resolution 2.60 Å R-free 0.339
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–592（592 aa） Fragment：BETA CHAIN, RESIDUES 1-592
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL
Resolution 3.10 Å R-free 0.285
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–592（592 aa） Fragment：BETA CHAIN, RESIDUES 1-592
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL
Resolution 3.10 Å R-free 0.285
4UQI AP2 controls clathrin polymerization with a membrane-activated switch Deposited 2014-06-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–651（651 aa） Fragment：BETA 2 SUBUNIT EXTENDED TRUNK DOMAIN, RESIDUES 1-651
Not recorded CL CHLORIDE ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；18% PEG1000, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6
Resolution 2.79 Å R-free 0.259
5M5R Clathrin heavy chain N-terminal domain bound to beta2 adaptin clathrin box motif Deposited 2016-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 629–637（9 aa） Fragment：UNP Residues 629-637
Chain D 629–637（9 aa） Fragment：UNP Residues 629-637
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；293 K；1 uL protein plus peptide mix (14 mg/mL NTD and 3.4 mM peptide) plus 2 uL reservoir equilibrated against a 200 uL reservoir of 0.94 M sodium malonate pH 6.7
Resolution 1.76 Å R-free 0.205
6QH5 AP2 clathrin adaptor mu2T156-phosphorylated core in closed conformation Deposited 2019-01-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–592（592 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；289 K；20% PEG 1000; 100 mM Na+/K+ phosphate buffer (pH 7.2), 200 mM NaCl, and 10 mM DTT
Resolution 2.56 Å R-free 0.257
6QH6 AP2 clathrin adaptor core with two cargo peptides in open+ conformation Deposited 2019-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–592（592 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride
Resolution 5.00 Å R-free 0.285
6QH7 AP2 clathrin adaptor mu2T156-phosphorylated core with two cargo peptides in open+ conformation Deposited 2019-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–592（592 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride
Resolution 3.40 Å R-free 0.248
6URI HIV-1 Nef in complex with the CD4 cytoplasmic domain and the AP2 clathrin adaptor complex Deposited 2019-10-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–591（591 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.9；298 K；15% Peg 4000, 0.2M potassium chloride, ~10% 1,6-hexanediol, 0.1M HEPES
Resolution 3.00 Å R-free 0.277
6YAE AP2 core in physiological buffer Deposited 2020-03-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–591（591 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6YAF AP2 on a membrane containing tyrosine-based cargo peptide Deposited 2020-03-12 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–937（937 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.
Resolution 9.10 Å
6YAH AP2 in clathrin coats assembled on a membrane containing dileucine- and tyrosine-based cargo peptides Deposited 2020-03-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–937（937 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.
Resolution 10.20 Å
6YAI Clathrin with bound beta2 appendage of AP2 Deposited 2020-03-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain F 719–951（233 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.
Resolution 9.20 Å
7OG1 AP2 clathrin adaptor core in complex with cargo peptide and FCHO2 Deposited 2021-05-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain BBB 1–591（591 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；Crystals of AP-2 in complex with FCHO2 linker and TGN38 peptide, supplemented with 10mM K Na Tartrate, grew in sitting drops with reservoir 0.1M Mg formate dehydrate, 10% to 15% PEG 3350. The crystals were cryo-protected with 0.1M Mg formate dehydrate, 13% PEG 3350, 18-24% Glycerol and 1mg/ml of peptide.
Resolution 3.25 Å R-free 0.306
7OHO Crystal structure of AP2 FCHO2 chimera Deposited 2021-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain BBB 1–542（542 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；18% PEG 12000 0.1M Na/K phosphate pH 6.2 0.2M NaCl 4mM DTT in the presence of 3-fold molar excess of IP6.
Resolution 2.88 Å R-free 0.273
7OM8 Beta2 appendage domain of AP2 bound to terminal domains beneath the hub of the 28 triskelia mini clathrin coat complex, class 15 Deposited 2021-05-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 719–951（233 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 uL of sample applied to a grid and blotted for 4.5 s before plunging
Resolution 10.50 Å
7Z5C Chimera of AP2 with FCHO2 linker domain as a fusion on Cmu2 subunit Deposited 2022-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–591（591 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；50% HKT buffer (10mM Hepes, 10mM Tris 120mM potassium acetate pH 7.2) and 50% Core buffer (10mM Tris, 250mM NaCl, pH 8)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.16 Å

21 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name AP2B1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–591； UniProt 1–591 Author chain E； PDBConstruct 1–591； UniProt 1–591

AP-2 COMPLEX SUBUNIT SIGMA-1

MUS MUSCULUS

UniProt P62743

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain S； UniProt 1–142 Not recorded AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256
2 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain I； UniProt 1–142 Not recorded AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 16 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JKT Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–142（142 aa）
Not recorded SO4 SULFATE ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain I 1–142（142 aa）
Not recorded SO4 SULFATE ION × 17 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2VGL AP2 CLATHRIN ADAPTOR CORE Deposited 2007-11-14 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；18% PEG, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6
Resolution 2.60 Å R-free 0.339
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–142（142 aa）
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL
Resolution 3.10 Å R-free 0.285
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL
Resolution 3.10 Å R-free 0.285
4UQI AP2 controls clathrin polymerization with a membrane-activated switch Deposited 2014-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded CL CHLORIDE ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；18% PEG1000, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6
Resolution 2.79 Å R-free 0.259
6QH5 AP2 clathrin adaptor mu2T156-phosphorylated core in closed conformation Deposited 2019-01-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–142（142 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；289 K；20% PEG 1000; 100 mM Na+/K+ phosphate buffer (pH 7.2), 200 mM NaCl, and 10 mM DTT
Resolution 2.56 Å R-free 0.257
6QH6 AP2 clathrin adaptor core with two cargo peptides in open+ conformation Deposited 2019-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride
Resolution 5.00 Å R-free 0.285
6QH7 AP2 clathrin adaptor mu2T156-phosphorylated core with two cargo peptides in open+ conformation Deposited 2019-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride
Resolution 3.40 Å R-free 0.248
6YAE AP2 core in physiological buffer Deposited 2020-03-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6YAF AP2 on a membrane containing tyrosine-based cargo peptide Deposited 2020-03-12 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.
Resolution 9.10 Å
6YAH AP2 in clathrin coats assembled on a membrane containing dileucine- and tyrosine-based cargo peptides Deposited 2020-03-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.
Resolution 10.20 Å
7OG1 AP2 clathrin adaptor core in complex with cargo peptide and FCHO2 Deposited 2021-05-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain SSS 1–142（142 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；Crystals of AP-2 in complex with FCHO2 linker and TGN38 peptide, supplemented with 10mM K Na Tartrate, grew in sitting drops with reservoir 0.1M Mg formate dehydrate, 10% to 15% PEG 3350. The crystals were cryo-protected with 0.1M Mg formate dehydrate, 13% PEG 3350, 18-24% Glycerol and 1mg/ml of peptide.
Resolution 3.25 Å R-free 0.306
7OHO Crystal structure of AP2 FCHO2 chimera Deposited 2021-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain SSS 1–142（142 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；18% PEG 12000 0.1M Na/K phosphate pH 6.2 0.2M NaCl 4mM DTT in the presence of 3-fold molar excess of IP6.
Resolution 2.88 Å R-free 0.273
7RW8 AP2 bound to heparin in the closed conformation Deposited 2021-08-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.50 Å
7RW9 AP2 bound to heparin in the bowl conformation Deposited 2021-08-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.90 Å
7RWA AP2 bound to heparin and Tgn38 tyrosine cargo peptide Deposited 2021-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain S 1–142（142 aa）
Chain s 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 4.70 Å
7RWB AP2 bound to the APA domain of SGIP in the presence of heparin Deposited 2021-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain S 1–142（142 aa）
Chain s 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.90 Å
7RWC AP2 bound to the APA domain of SGIP and heparin; partial signal subtraction and symmetry expansion Deposited 2021-08-19 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Blot force -10, 4 second blot, 4 uL sample
Resolution 3.80 Å
7Z5C Chimera of AP2 with FCHO2 linker domain as a fusion on Cmu2 subunit Deposited 2022-03-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；50% HKT buffer (10mM Hepes, 10mM Tris 120mM potassium acetate pH 7.2) and 50% Core buffer (10mM Tris, 250mM NaCl, pH 8)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.16 Å
8T1O AP2 bound to MSP2N2 nanodisc with Tgn38 cargo peptide; composite map Deposited 2023-06-02 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–142（142 aa）
Not recorded PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；Two applications of sample.
Resolution 3.30 Å
9PWA Closed AP-2 clathrin adaptor complex in solution Deposited 2025-08-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.55 Å
9PWC Composite structure of AP-2 bound to the dileucine motif and WxxPhi motif of CCDC32 Deposited 2025-08-04 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–142（142 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å

21 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name AP2S1_MOUSE
Isoform —
PDB entities 3
Chains and sequence ranges Author chain I； PDBConstruct 1–142； UniProt 1–142 Author chain S； PDBConstruct 1–142； UniProt 1–142

AP-2 COMPLEX SUBUNIT MU-1

RATTUS NORVEGICUS

UniProt P84092

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain M； UniProt 1–435 Not recorded AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256
2 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain U； UniProt 1–435 Not recorded AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） CD4 PEPTIDE × 1 （B0AZV7） SO4 SULFATE ION × 16 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JKT Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BW8 MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH EGFR INTERNALIZATION PEPTIDE FYRALM Deposited 1998-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 122–435（314 aa） Fragment：INTERNALIZATION SIGNAL BINDING DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；HANGING DROP, 2.2M NACL, 0.4M NA/K PHOSPHATE, 10MM DTT 0.1M MES PH 7.1, 15% GLYCEROL, 16DEGREES, MOLAR RATIO OF PEPTIDE TO PROTEIN 3:1, vapor diffusion - hanging drop
Resolution 2.65 Å R-free 0.296
1BXX MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH TGN38 INTERNALIZATION PEPTIDE DYQRLN Deposited 1998-10-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa） Fragment：INTERNALIZATION SIGNAL BINDING DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；289 K；HANGING DROP, 2.2M NACL, 0.4M NA/K PHOSPHATE, 10MM DTT 0.1M MES PH 7.1, 15% GLYCEROL, 16DEGREES, MOLAR RATIO OF PEPTIDE TO PROTEIN 3:1, vapor diffusion - hanging drop, temperature 289K
Resolution 2.70 Å R-free 0.325
1I31 MU2 ADAPTIN SUBUNIT (AP50) OF AP2 CLATHRIN ADAPTOR, COMPLEXED WITH EGFR INTERNALIZATION PEPTIDE FYRALM AT 2.5 A RESOLUTION Deposited 2001-02-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 122–435（314 aa） Fragment：RESIDUES 122-435
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291 K；SODIUM FORMATE, SODIUM ACETATE, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.50 Å R-free 0.255
2BP5 MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH NON-CANONICAL INTERNALIZATION PEPTIDE VEDYEQGLSG Deposited 2005-04-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 1–435（435 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.1；289 K；2.2M NACL, 0.4M NA/K PHOSPHATE PH 7.1, 10MM DTT, 0.1M MES, 15% GLYCEROL, 16 DEGREES
Resolution 2.80 Å R-free 0.251
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain M 1–435（435 aa）
Not recorded SO4 SULFATE ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different ligand/ion Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain U 1–435（435 aa）
Not recorded SO4 SULFATE ION × 17 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2PR9 Mu2 adaptin subunit (AP50) of AP2 adaptor (second domain), complexed with GABAA receptor-gamma2 subunit-derived internalization peptide DEEYGYECL Deposited 2007-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa） Fragment：second domain (residues 158-435)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；2.0 M sodium formate, 0.1 M Na-acetate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.51 Å R-free 0.240
2VGL AP2 CLATHRIN ADAPTOR CORE Deposited 2007-11-14 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–435（435 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；18% PEG, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6
Resolution 2.60 Å R-free 0.339
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain M 1–236（236 aa）
Chain M 237–435（199 aa）
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL
Resolution 3.10 Å R-free 0.285
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–236（236 aa）
Chain M 237–435（199 aa）
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL
Resolution 3.10 Å R-free 0.285
3H85 Molecular basis for the association of PIPKI gamma-p90 with the clathrin adaptor AP-2 Deposited 2009-04-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa） Fragment：UNP residues 158-435
Not recorded NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.4M sodium formate, 50mM NiCl, 0.1M Na-acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K
Resolution 2.60 Å R-free 0.263
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain C 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain D 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain E 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain F 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.50 Å R-free 0.335
4UQI AP2 controls clathrin polymerization with a membrane-activated switch Deposited 2014-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–435（435 aa）
Not recorded CL CHLORIDE ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；18% PEG1000, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6
Resolution 2.79 Å R-free 0.259
5C7Z AP2 Mu2 adaptin C-terminal domain complexed with integrin alpha-4 peptide Deposited 2015-06-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 159–435（277 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；293 K；2.2M NaCl, 0.4M Na/K phosphate, 10MM DTT 0.1M MES pH 7.1, 15% glycerol, molar ratio of peptide to protein 3:1
Resolution 2.77 Å R-free 0.224
5FPI Mu2 adaptin subunit of the AP2 adaptor (C-terminal domain) complexed with Integrin alpha4 internalisation peptide QYKSILQE Deposited 2015-11-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–435（435 aa） Fragment：INTERNALISATION SIGNAL BINDING DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；2.2M NACL, 0.4M NAKPHOSPHATE, 20% V/V GLYCEROL, 0.1M MES PH6.5, 5MM DTT
Resolution 2.77 Å R-free 0.224
5WRK Mu2 subunit of the clathrin adaptor complex AP2 in complex with IRS-1 Y608 peptide Deposited 2016-12-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–223（66 aa） Fragment：UNP residues 158-223,UNP residues 261-435
Chain A 261–435（175 aa） Fragment：UNP residues 158-223,UNP residues 261-435
Not recorded NI NICKEL (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.4M Na formate, 0.05M NiCl, 0.1M Na acetate pH 6.0
Resolution 2.62 Å R-free 0.223
5WRL Mu2 subunit of the clathrin adaptor complex AP2 in complex with IRS-1 Y628 peptide Deposited 2016-12-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa） Fragment：UNP residues 158-435
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；2.2M NaCl, 0.4M Na/K Phosphate, 0.01M DTT, 15% Glycerol, 0.1M MES pH 6.5
Resolution 3.10 Å R-free 0.251
5WRM Mu2 subunit of the clathrin adaptor complex AP2 in complex with IRS-1 Y658 peptide Deposited 2016-12-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa） Fragment：UNP residues 158-435
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2.3M NaCl, 0.4M Na/K Phosphate, 0.01M DTT, 15% Glycerol, 0.1M MES pH 6.5
Resolution 2.60 Å R-free 0.227
6QH5 AP2 clathrin adaptor mu2T156-phosphorylated core in closed conformation Deposited 2019-01-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain M 1–435（435 aa）
Chain N 1–435（435 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) IHP INOSITOL HEXAKISPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；289 K；20% PEG 1000; 100 mM Na+/K+ phosphate buffer (pH 7.2), 200 mM NaCl, and 10 mM DTT
Resolution 2.56 Å R-free 0.257
6QH6 AP2 clathrin adaptor core with two cargo peptides in open+ conformation Deposited 2019-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain N 1–435（435 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride
Resolution 5.00 Å R-free 0.285
6RH6 Solution structure and 1H, 13C and 15N chemical shift assignments for the complex of NECAP1 PHear domain with phosphorylated AP2 mu2 148-163 Deposited 2019-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 149–163（15 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 70；Pressure 1
NMR sample composition 0.5 mM [U-98% 13C; U-98% 15N] NECAP1 1-133, 0.5 mM AP2 mu2 148-163, 70 mM [U-2H] sodium acetate, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 0.5 mM [U-98% 13C; U-98% 15N] NECAP1, 0.5 mM [U-98% 13C; U-98% 15N] AP2 mu2 148-163, 70 mM [U-2H] sodium acetate, 100% D2O | 100% D2O
Resolution not provided
6YAE AP2 core in physiological buffer Deposited 2020-03-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–435（435 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6YAF AP2 on a membrane containing tyrosine-based cargo peptide Deposited 2020-03-12 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain M 1–435（435 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.
Resolution 9.10 Å
6YAH AP2 in clathrin coats assembled on a membrane containing dileucine- and tyrosine-based cargo peptides Deposited 2020-03-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–435（435 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.
Resolution 10.20 Å
7OFP Apo Structure of Mu2 Adaptin Subunit (Ap50) Of AP2 Clathrin Adaptor Deposited 2021-05-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 158–435（278 aa）
Not recorded GOL GLYCEROL × 6 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；Protein (10 mg/ml) and peptide (DVDEEGYSIKPETNQNDTKENHFYSS) (2mg/ml) were equilibrated against 1.5M Ammonium Sulphate 0.1M Hepes pH 7.0. Crystals were cryo-protected by soaking in mother liquor supplemented with 20% glycerol and peptide (peptide did not crystallise).
Resolution 1.92 Å R-free 0.210
7OFP Apo Structure of Mu2 Adaptin Subunit (Ap50) Of AP2 Clathrin Adaptor Deposited 2021-05-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 158–435（278 aa）
Not recorded GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；Protein (10 mg/ml) and peptide (DVDEEGYSIKPETNQNDTKENHFYSS) (2mg/ml) were equilibrated against 1.5M Ammonium Sulphate 0.1M Hepes pH 7.0. Crystals were cryo-protected by soaking in mother liquor supplemented with 20% glycerol and peptide (peptide did not crystallise).
Resolution 1.92 Å R-free 0.210
7OG1 AP2 clathrin adaptor core in complex with cargo peptide and FCHO2 Deposited 2021-05-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain CCC 1–435（435 aa）
Chain MMM 1–435（435 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；Crystals of AP-2 in complex with FCHO2 linker and TGN38 peptide, supplemented with 10mM K Na Tartrate, grew in sitting drops with reservoir 0.1M Mg formate dehydrate, 10% to 15% PEG 3350. The crystals were cryo-protected with 0.1M Mg formate dehydrate, 13% PEG 3350, 18-24% Glycerol and 1mg/ml of peptide.
Resolution 3.25 Å R-free 0.306
7OHO Crystal structure of AP2 FCHO2 chimera Deposited 2021-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain MMM 1–435（435 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；18% PEG 12000 0.1M Na/K phosphate pH 6.2 0.2M NaCl 4mM DTT in the presence of 3-fold molar excess of IP6.
Resolution 2.88 Å R-free 0.273
7OHZ Crystal structure of AP2 Mu2 - FCHO2 chimera (His6-tagged) Deposited 2021-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: trimeric
Chain B 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；20% w/v PEG 3,350 0.2 M DL-Malic acid pH 7.0. The crystals were cryo-protected by soaking in mother liquor supplemented with 30-32% glycerol.
Resolution 2.27 Å R-free 0.314
7OHZ Crystal structure of AP2 Mu2 - FCHO2 chimera (His6-tagged) Deposited 2021-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: trimeric
Chain A 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；20% w/v PEG 3,350 0.2 M DL-Malic acid pH 7.0. The crystals were cryo-protected by soaking in mother liquor supplemented with 30-32% glycerol.
Resolution 2.27 Å R-free 0.314
7OI5 Crystal structure of AP2 Mu2 - FCHO2 chimera (GST cleaved) Deposited 2021-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 158–435（278 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.1；289 K；20% w/v PEG 3350, 0.2 M Sodium phosphate dibasic dehydrate pH 9.1. The crystal was cryo-protected by soaking in mother liquor supplemented with 25% glycerol.
Resolution 2.61 Å R-free 0.297
7OI5 Crystal structure of AP2 Mu2 - FCHO2 chimera (GST cleaved) Deposited 2021-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain D 158–435（278 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.1；289 K；20% w/v PEG 3350, 0.2 M Sodium phosphate dibasic dehydrate pH 9.1. The crystal was cryo-protected by soaking in mother liquor supplemented with 25% glycerol.
Resolution 2.61 Å R-free 0.297
7OIQ Crystal structure of AP2 Mu2 in complex with FCHO2 WxxPhi motif (C2 crystal form) Deposited 2021-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain AAA 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；30mM Magnesium chloride hexahydrate, 30mM Calcium chloride dihydrate, 100mM Sodium HEPES MOPS (acid) pH 7.5, 20% v/v Ethylene glycol; 10 % w/v PEG 8000
Resolution 1.85 Å R-free 0.209
7OIQ Crystal structure of AP2 Mu2 in complex with FCHO2 WxxPhi motif (C2 crystal form) Deposited 2021-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain BBB 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；30mM Magnesium chloride hexahydrate, 30mM Calcium chloride dihydrate, 100mM Sodium HEPES MOPS (acid) pH 7.5, 20% v/v Ethylene glycol; 10 % w/v PEG 8000
Resolution 1.85 Å R-free 0.209
7Z5C Chimera of AP2 with FCHO2 linker domain as a fusion on Cmu2 subunit Deposited 2022-03-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–435（435 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；50% HKT buffer (10mM Hepes, 10mM Tris 120mM potassium acetate pH 7.2) and 50% Core buffer (10mM Tris, 250mM NaCl, pH 8)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.16 Å
9FIW MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRHFA Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol
Resolution 2.82 Å R-free 0.246
9FIX MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRPYSYRHFA Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol
Resolution 2.78 Å R-free 0.233
9FIY MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRHFA Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol
Resolution 2.88 Å R-free 0.242
9UUJ Crystal structure of the mu2 subunit of the clathrin-adaptor protein 2 (AP2) bound to HPV16 E7(residues 22-39) Deposited 2025-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2.0 M sodium formate and 100 mM sodium acetate trihydrate (pH 4.6)
Resolution 3.70 Å R-free 0.234
9UUK Crystal structure of the mu2 subunit of the clathrin-adaptor protein 2 (AP2) bound to HPV16 E7(residues 22-32; S31E and S32E) Deposited 2025-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2.5 M sodium chloride and 100 mM potassium phosphate monobasic/sodium phosphate dibasic (pH 6.2)
Resolution 3.20 Å R-free 0.244
9UUL Crystal structure of the mu2 subunit of the clathrin-adaptor protein 2 (AP2) bound to HPV16 E7(residues 22-39; S31E and S32E) Deposited 2025-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 158–435（278 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；3.5 M ammonium chloride and 100 mM sodium acetate trihydrate (pH 4.5)
Resolution 3.30 Å R-free 0.225

35 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name AP2M1_RAT
Isoform —
PDB entities 4
Chains and sequence ranges Author chain M； PDBConstruct 1–435； UniProt 1–435 Author chain U； PDBConstruct 1–435； UniProt 1–435

CD4 PEPTIDE

OrganismNot specified

UniProt B0AZV7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain P； UniProt 252–262 Fragment：RESIDUES 252-262 Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） SO4 SULFATE ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256
2 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain Q； UniProt 252–262 Fragment：RESIDUES 252-262 Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) AP-2 COMPLEX SUBUNIT ALPHA-2 × 1 （P17427） AP-2 COMPLEX SUBUNIT BETA-1 × 1 （P63010） AP-2 COMPLEX SUBUNIT SIGMA-1 × 1 （P62743） AP-2 COMPLEX SUBUNIT MU-1 × 1 （P84092） SO4 SULFATE ION × 16 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE Resolution 3.40 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JKT Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain P 252–262（11 aa） Fragment：RESIDUES 252-262
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29 Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain Q 252–262（11 aa） Fragment：RESIDUES 252-262
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 17 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE
Resolution 2.98 Å R-free 0.260

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name B0AZV7_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain P； PDBConstruct 1–11； UniProt 252–262 Author chain Q； PDBConstruct 1–11； UniProt 252–262

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2jkt

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2jkt
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2jkt
Deposition date deposition_date2008-08-29
Structure title titleAP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant
Keywords keywords;ALTERNATIVE SPLICING, PHOSPHOPROTEIN, PHOSPHORYLATION, PROTEIN TRANSPORT, ADAPTOR, MEMBRANE, TRANSPORT, COATED PIT, ENDOCYTOSIS, CELL MEMBRANE, LIPID-BINDING ;; ENDOCYTOSIS
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier57.27 Å
Radius of gyration Rg (electron density) rg_electron57.41 Å
Forward intensity I(0) i02191660000.00
Molecular weight molecular_weight400610.0 kDa
Excluded volume excluded_volume505200 ų
Envelope volume envelope_volume709110 ų
Hydration-shell volume shell_volume104200 ų
Envelope diameter envelope_diameter194.1 Å
Shell Rg shell_rg57.88 Å
Envelope Rg envelope_rg56.61 Å
Shape Rg shape_rg57.37 Å
Total Rg total_rg57.54 Å
Total atoms total_atoms28101
Residues n_residues3502
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax177.6 Å
Rg (real space) rg_real57.50 Å
Rg uncertainty (real space) rg_real_error1.72 Å
I(0) (real space) i0_real2.1920e+09
I(0) uncertainty (real space) i0_real_error4.5140e+07
Rg (reciprocal space) rg_reciprocal57.06 Å
I(0) (reciprocal space) i0_reciprocal2190000000.0000
Solution quality estimate total_estimate0.8333
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary65.8 Å
Skewness Skewness skewness0.448
Kurtosis Kurtosis kurtosis-0.367
Angular range angular_range— – 0.1350 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha159900000.0000
Real-space data points n_real_points28
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.015
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▼

7. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id2jktA01
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily10 — Leucine-rich Repeat Variant
Domain ID domain_id2jktB00
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily10 — Leucine-rich Repeat Variant
Domain ID domain_id2jktE00
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily10 — Leucine-rich Repeat Variant
Domain ID domain_id2jktI00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology450 — Beta-Lactamase
Homologous superfamily homologous superfamily60 —
Domain ID domain_id2jktL01
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily10 — Leucine-rich Repeat Variant
Domain ID domain_id2jktM01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology450 — Beta-Lactamase
Homologous superfamily homologous superfamily60 —
Domain ID domain_id2jktM02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily1170 — Mu homology domain, subdomain B
Domain ID domain_id2jktM03
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily1170 — Mu homology domain, subdomain B
Domain ID domain_id2jktS00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology450 — Beta-Lactamase
Homologous superfamily homologous superfamily60 —
Domain ID domain_id2jktU01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology450 — Beta-Lactamase
Homologous superfamily homologous superfamily60 —
Domain ID domain_id2jktU02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily1170 — Mu homology domain, subdomain B
Domain ID domain_id2jktU03
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily1170 — Mu homology domain, subdomain B
▶

8. Citations (1)

▶

9. Files and Curves (10)
