Crystal structure of AP2 Mu2 - FCHO2 chimera (GST cleaved)

Method: X-RAY DIFFRACTION D_max: 118.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-2 complex subunit mu,F-BAR domain only protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 158–435	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.1；289 K；20% w/v PEG 3350, 0.2 M Sodium phosphate dibasic dehydrate pH 9.1. The crystal was cryo-protected by soaking in mother liquor supplemented with 25% glycerol.	Resolution 2.61 Å R-free 0.297
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 158–435	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.1；289 K；20% w/v PEG 3350, 0.2 M Sodium phosphate dibasic dehydrate pH 9.1. The crystal was cryo-protected by soaking in mother liquor supplemented with 25% glycerol.	Resolution 2.61 Å R-free 0.297

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7OI5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BW8 MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH EGFR INTERNALIZATION PEPTIDE FYRALM Deposited 1998-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 122–435（314 aa） Fragment：INTERNALIZATION SIGNAL BINDING DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；HANGING DROP, 2.2M NACL, 0.4M NA/K PHOSPHATE, 10MM DTT 0.1M MES PH 7.1, 15% GLYCEROL, 16DEGREES, MOLAR RATIO OF PEPTIDE TO PROTEIN 3:1, vapor diffusion - hanging drop	Resolution 2.65 Å R-free 0.296
1BXX MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH TGN38 INTERNALIZATION PEPTIDE DYQRLN Deposited 1998-10-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa） Fragment：INTERNALIZATION SIGNAL BINDING DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；289 K；HANGING DROP, 2.2M NACL, 0.4M NA/K PHOSPHATE, 10MM DTT 0.1M MES PH 7.1, 15% GLYCEROL, 16DEGREES, MOLAR RATIO OF PEPTIDE TO PROTEIN 3:1, vapor diffusion - hanging drop, temperature 289K	Resolution 2.70 Å R-free 0.325
1I31 MU2 ADAPTIN SUBUNIT (AP50) OF AP2 CLATHRIN ADAPTOR, COMPLEXED WITH EGFR INTERNALIZATION PEPTIDE FYRALM AT 2.5 A RESOLUTION Deposited 2001-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 122–435（314 aa） Fragment：RESIDUES 122-435	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291 K；SODIUM FORMATE, SODIUM ACETATE, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.50 Å R-free 0.255
2BP5 MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH NON-CANONICAL INTERNALIZATION PEPTIDE VEDYEQGLSG Deposited 2005-04-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.1；289 K；2.2M NACL, 0.4M NA/K PHOSPHATE PH 7.1, 10MM DTT, 0.1M MES, 15% GLYCEROL, 16 DEGREES	Resolution 2.80 Å R-free 0.251
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa）	Not recorded	SO4 SULFATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 2.98 Å R-free 0.260
2JKR AP2 CLATHRIN ADAPTOR CORE with Dileucine peptide RM(phosphoS)QIKRLLSE Deposited 2008-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain U 1–435（435 aa）	Not recorded	SO4 SULFATE ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 2.98 Å R-free 0.260
2JKT AP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant Deposited 2008-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa）	Not recorded	SO4 SULFATE ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 3.40 Å R-free 0.256
2JKT AP2 CLATHRIN ADAPTOR CORE with CD4 Dileucine peptide RM(phosphoS) EIKRLLSE Q to E mutant Deposited 2008-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain U 1–435（435 aa）	Not recorded	SO4 SULFATE ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.7-2.2M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH6 .5 AND 5MM DTT FROM A MIXTURE OF 10MG/ML AP2 CORE AND 7MG/ML PEPTIDE. CRYOPROTECTED WITH 1.8-2.3M AMMONIUM SULPHATE, 100MM SODIUM CITRATE PH 6.5, 17% GLYCEROL AND 7MG/ ML CD4 DILEUCINE PEPTIDE	Resolution 3.40 Å R-free 0.256
2PR9 Mu2 adaptin subunit (AP50) of AP2 adaptor (second domain), complexed with GABAA receptor-gamma2 subunit-derived internalization peptide DEEYGYECL Deposited 2007-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa） Fragment：second domain (residues 158-435)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；2.0 M sodium formate, 0.1 M Na-acetate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.51 Å R-free 0.240
2VGL AP2 CLATHRIN ADAPTOR CORE Deposited 2007-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–435（435 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；18% PEG, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6	Resolution 2.60 Å R-free 0.339
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–236（236 aa） Chain M 237–435（199 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL	Resolution 3.10 Å R-free 0.285
2XA7 AP2 clathrin adaptor core in active complex with cargo peptides Deposited 2010-03-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–236（236 aa） Chain M 237–435（199 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.6-0.8M LISO4, 0.6-0.7M NH4SO4, 100MM NA CITRATE PH 6.5; CRYOPROTECTANT 20% GLYCEROL	Resolution 3.10 Å R-free 0.285
3H85 Molecular basis for the association of PIPKI gamma-p90 with the clathrin adaptor AP-2 Deposited 2009-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa） Fragment：UNP residues 158-435	Not recorded	NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.4M sodium formate, 50mM NiCl, 0.1M Na-acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K	Resolution 2.60 Å R-free 0.263
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain E 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.335
3ML6 a complex between Dishevelled2 and clathrin adaptor AP-2 Deposited 2010-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain F 170–435（266 aa） Fragment：PROTEIN Dishevelled2 (UNP RESIDUES 417-510), AP-2 COMPLEX 2 MU SUBUNIT (UNP RESIDUES 170-435)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.7 M K/Na tartrate, 0.1 M sodium citrate, pH 5.5, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.335
4UQI AP2 controls clathrin polymerization with a membrane-activated switch Deposited 2014-06-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–435（435 aa）	Not recorded	CL CHLORIDE ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；18% PEG1000, 10MM NA/K PHOSPHATE PH 6.2, 200MM NACL, 4MM DTT, IP6	Resolution 2.79 Å R-free 0.259
5C7Z AP2 Mu2 adaptin C-terminal domain complexed with integrin alpha-4 peptide Deposited 2015-06-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 159–435（277 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；293 K；2.2M NaCl, 0.4M Na/K phosphate, 10MM DTT 0.1M MES pH 7.1, 15% glycerol, molar ratio of peptide to protein 3:1	Resolution 2.77 Å R-free 0.224
5FPI Mu2 adaptin subunit of the AP2 adaptor (C-terminal domain) complexed with Integrin alpha4 internalisation peptide QYKSILQE Deposited 2015-11-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–435（435 aa） Fragment：INTERNALISATION SIGNAL BINDING DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；2.2M NACL, 0.4M NAKPHOSPHATE, 20% V/V GLYCEROL, 0.1M MES PH6.5, 5MM DTT	Resolution 2.77 Å R-free 0.224
5WRK Mu2 subunit of the clathrin adaptor complex AP2 in complex with IRS-1 Y608 peptide Deposited 2016-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–223（66 aa） Fragment：UNP residues 158-223,UNP residues 261-435 Chain A 261–435（175 aa） Fragment：UNP residues 158-223,UNP residues 261-435	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.4M Na formate, 0.05M NiCl, 0.1M Na acetate pH 6.0	Resolution 2.62 Å R-free 0.223
5WRL Mu2 subunit of the clathrin adaptor complex AP2 in complex with IRS-1 Y628 peptide Deposited 2016-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa） Fragment：UNP residues 158-435	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；2.2M NaCl, 0.4M Na/K Phosphate, 0.01M DTT, 15% Glycerol, 0.1M MES pH 6.5	Resolution 3.10 Å R-free 0.251
5WRM Mu2 subunit of the clathrin adaptor complex AP2 in complex with IRS-1 Y658 peptide Deposited 2016-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa） Fragment：UNP residues 158-435	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2.3M NaCl, 0.4M Na/K Phosphate, 0.01M DTT, 15% Glycerol, 0.1M MES pH 6.5	Resolution 2.60 Å R-free 0.227
6QH5 AP2 clathrin adaptor mu2T156-phosphorylated core in closed conformation Deposited 2019-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa） Chain N 1–435（435 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；289 K；20% PEG 1000; 100 mM Na+/K+ phosphate buffer (pH 7.2), 200 mM NaCl, and 10 mM DTT	Resolution 2.56 Å R-free 0.257
6QH6 AP2 clathrin adaptor core with two cargo peptides in open+ conformation Deposited 2019-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain N 1–435（435 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；7.5% PVA, 9% 1-propanol, 90 mM Hepes pH 7.4, 100 mM guanidine hydrochloride	Resolution 5.00 Å R-free 0.285
6RH6 Solution structure and 1H, 13C and 15N chemical shift assignments for the complex of NECAP1 PHear domain with phosphorylated AP2 mu2 148-163 Deposited 2019-04-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 149–163（15 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 70；Pressure 1 NMR sample composition 0.5 mM [U-98% 13C; U-98% 15N] NECAP1 1-133, 0.5 mM AP2 mu2 148-163, 70 mM [U-2H] sodium acetate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.5 mM [U-98% 13C; U-98% 15N] NECAP1, 0.5 mM [U-98% 13C; U-98% 15N] AP2 mu2 148-163, 70 mM [U-2H] sodium acetate, 100% D2O \| 100% D2O	Resolution not provided
6YAE AP2 core in physiological buffer Deposited 2020-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6YAF AP2 on a membrane containing tyrosine-based cargo peptide Deposited 2020-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.	Resolution 9.10 Å
6YAH AP2 in clathrin coats assembled on a membrane containing dileucine- and tyrosine-based cargo peptides Deposited 2020-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；The sample was supplemented with 10 nm nanogold fiducials, and 3 ul of the mixture was backside blotted for 3 seconds.	Resolution 10.20 Å
7OFP Apo Structure of Mu2 Adaptin Subunit (Ap50) Of AP2 Clathrin Adaptor Deposited 2021-05-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 158–435（278 aa）	Not recorded	GOL GLYCEROL × 6 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；Protein (10 mg/ml) and peptide (DVDEEGYSIKPETNQNDTKENHFYSS) (2mg/ml) were equilibrated against 1.5M Ammonium Sulphate 0.1M Hepes pH 7.0. Crystals were cryo-protected by soaking in mother liquor supplemented with 20% glycerol and peptide (peptide did not crystallise).	Resolution 1.92 Å R-free 0.210
7OFP Apo Structure of Mu2 Adaptin Subunit (Ap50) Of AP2 Clathrin Adaptor Deposited 2021-05-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 158–435（278 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；Protein (10 mg/ml) and peptide (DVDEEGYSIKPETNQNDTKENHFYSS) (2mg/ml) were equilibrated against 1.5M Ammonium Sulphate 0.1M Hepes pH 7.0. Crystals were cryo-protected by soaking in mother liquor supplemented with 20% glycerol and peptide (peptide did not crystallise).	Resolution 1.92 Å R-free 0.210
7OG1 AP2 clathrin adaptor core in complex with cargo peptide and FCHO2 Deposited 2021-05-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain CCC 1–435（435 aa） Chain MMM 1–435（435 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；Crystals of AP-2 in complex with FCHO2 linker and TGN38 peptide, supplemented with 10mM K Na Tartrate, grew in sitting drops with reservoir 0.1M Mg formate dehydrate, 10% to 15% PEG 3350. The crystals were cryo-protected with 0.1M Mg formate dehydrate, 13% PEG 3350, 18-24% Glycerol and 1mg/ml of peptide.	Resolution 3.25 Å R-free 0.306
7OHO Crystal structure of AP2 FCHO2 chimera Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain MMM 1–435（435 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；18% PEG 12000 0.1M Na/K phosphate pH 6.2 0.2M NaCl 4mM DTT in the presence of 3-fold molar excess of IP6.	Resolution 2.88 Å R-free 0.273
7OHZ Crystal structure of AP2 Mu2 - FCHO2 chimera (His6-tagged) Deposited 2021-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: trimeric	Chain B 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；20% w/v PEG 3,350 0.2 M DL-Malic acid pH 7.0. The crystals were cryo-protected by soaking in mother liquor supplemented with 30-32% glycerol.	Resolution 2.27 Å R-free 0.314
7OHZ Crystal structure of AP2 Mu2 - FCHO2 chimera (His6-tagged) Deposited 2021-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: trimeric	Chain A 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；20% w/v PEG 3,350 0.2 M DL-Malic acid pH 7.0. The crystals were cryo-protected by soaking in mother liquor supplemented with 30-32% glycerol.	Resolution 2.27 Å R-free 0.314
7OIQ Crystal structure of AP2 Mu2 in complex with FCHO2 WxxPhi motif (C2 crystal form) Deposited 2021-05-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain AAA 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；30mM Magnesium chloride hexahydrate, 30mM Calcium chloride dihydrate, 100mM Sodium HEPES MOPS (acid) pH 7.5, 20% v/v Ethylene glycol; 10 % w/v PEG 8000	Resolution 1.85 Å R-free 0.209
7OIQ Crystal structure of AP2 Mu2 in complex with FCHO2 WxxPhi motif (C2 crystal form) Deposited 2021-05-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain BBB 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；30mM Magnesium chloride hexahydrate, 30mM Calcium chloride dihydrate, 100mM Sodium HEPES MOPS (acid) pH 7.5, 20% v/v Ethylene glycol; 10 % w/v PEG 8000	Resolution 1.85 Å R-free 0.209
7Z5C Chimera of AP2 with FCHO2 linker domain as a fusion on Cmu2 subunit Deposited 2022-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；50% HKT buffer (10mM Hepes, 10mM Tris 120mM potassium acetate pH 7.2) and 50% Core buffer (10mM Tris, 250mM NaCl, pH 8) cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.16 Å
9FIW MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRHFA Deposited 2024-05-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol	Resolution 2.82 Å R-free 0.246
9FIX MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRPYSYRHFA Deposited 2024-05-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol	Resolution 2.78 Å R-free 0.233
9FIY MU2 ADAPTIN SUBUNIT (AP50) OF AP2 ADAPTOR (SECOND DOMAIN), COMPLEXED WITH LRP6 INTERNALIZATION PEPTIDE SYRHFA Deposited 2024-05-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0-2.2 M NaCl 0.4M Na/K phosphate 0.1M MES PH 7.1 15-20% glycerol	Resolution 2.88 Å R-free 0.242
9UUJ Crystal structure of the mu2 subunit of the clathrin-adaptor protein 2 (AP2) bound to HPV16 E7(residues 22-39) Deposited 2025-05-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2.0 M sodium formate and 100 mM sodium acetate trihydrate (pH 4.6)	Resolution 3.70 Å R-free 0.234
9UUK Crystal structure of the mu2 subunit of the clathrin-adaptor protein 2 (AP2) bound to HPV16 E7(residues 22-32; S31E and S32E) Deposited 2025-05-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2.5 M sodium chloride and 100 mM potassium phosphate monobasic/sodium phosphate dibasic (pH 6.2)	Resolution 3.20 Å R-free 0.244
9UUL Crystal structure of the mu2 subunit of the clathrin-adaptor protein 2 (AP2) bound to HPV16 E7(residues 22-39; S31E and S32E) Deposited 2025-05-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 158–435（278 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；3.5 M ammonium chloride and 100 mM sodium acetate trihydrate (pH 4.5)	Resolution 3.30 Å R-free 0.225

35 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP2M1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 6–283； UniProt 158–435 Author chain D； PDBConstruct 6–283； UniProt 158–435

AP-2 complex subunit mu,F-BAR domain only protein 2

Homo sapiens

UniProt Q0JRZ9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 316–351	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.1；289 K；20% w/v PEG 3350, 0.2 M Sodium phosphate dibasic dehydrate pH 9.1. The crystal was cryo-protected by soaking in mother liquor supplemented with 25% glycerol.	Resolution 2.61 Å R-free 0.297
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 316–351	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.1；289 K；20% w/v PEG 3350, 0.2 M Sodium phosphate dibasic dehydrate pH 9.1. The crystal was cryo-protected by soaking in mother liquor supplemented with 25% glycerol.	Resolution 2.61 Å R-free 0.297

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7OI5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7OG1 AP2 clathrin adaptor core in complex with cargo peptide and FCHO2 Deposited 2021-05-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain DDD 314–444（131 aa） Chain GGG 314–444（131 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；Crystals of AP-2 in complex with FCHO2 linker and TGN38 peptide, supplemented with 10mM K Na Tartrate, grew in sitting drops with reservoir 0.1M Mg formate dehydrate, 10% to 15% PEG 3350. The crystals were cryo-protected with 0.1M Mg formate dehydrate, 13% PEG 3350, 18-24% Glycerol and 1mg/ml of peptide.	Resolution 3.25 Å R-free 0.306
7OHO Crystal structure of AP2 FCHO2 chimera Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain BBB 358–444（87 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；18% PEG 12000 0.1M Na/K phosphate pH 6.2 0.2M NaCl 4mM DTT in the presence of 3-fold molar excess of IP6.	Resolution 2.88 Å R-free 0.273
7OHZ Crystal structure of AP2 Mu2 - FCHO2 chimera (His6-tagged) Deposited 2021-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: trimeric	Chain B 316–351（36 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；20% w/v PEG 3,350 0.2 M DL-Malic acid pH 7.0. The crystals were cryo-protected by soaking in mother liquor supplemented with 30-32% glycerol.	Resolution 2.27 Å R-free 0.314
7OHZ Crystal structure of AP2 Mu2 - FCHO2 chimera (His6-tagged) Deposited 2021-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: trimeric	Chain A 316–351（36 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；20% w/v PEG 3,350 0.2 M DL-Malic acid pH 7.0. The crystals were cryo-protected by soaking in mother liquor supplemented with 30-32% glycerol.	Resolution 2.27 Å R-free 0.314
7OIQ Crystal structure of AP2 Mu2 in complex with FCHO2 WxxPhi motif (C2 crystal form) Deposited 2021-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain DDD 422–432（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；30mM Magnesium chloride hexahydrate, 30mM Calcium chloride dihydrate, 100mM Sodium HEPES MOPS (acid) pH 7.5, 20% v/v Ethylene glycol; 10 % w/v PEG 8000	Resolution 1.85 Å R-free 0.209
7OIQ Crystal structure of AP2 Mu2 in complex with FCHO2 WxxPhi motif (C2 crystal form) Deposited 2021-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain CCC 422–432（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；30mM Magnesium chloride hexahydrate, 30mM Calcium chloride dihydrate, 100mM Sodium HEPES MOPS (acid) pH 7.5, 20% v/v Ethylene glycol; 10 % w/v PEG 8000	Resolution 1.85 Å R-free 0.209
7OIT Crystal structure of AP2 Mu2 in complex with FCHO2 WxxPhi motif (P3221 crystal form) Deposited 2021-05-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain BBB 422–432（11 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；20mM Sodium formate; 20mM Ammonium acetate; 20mM Sodium citrate tribasic dihydrate; 20mM Sodium potassium tartrate tetrahydrate; 20mM Sodium oxamate, 100mM Imidazole MES monohydrate pH6.5 , 20% v/v Glycerol; 10% w/v PEG 4000	Resolution 1.65 Å R-free 0.202

5 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FCHO2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 324–359； UniProt 316–351 Author chain D； PDBConstruct 324–359； UniProt 316–351

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

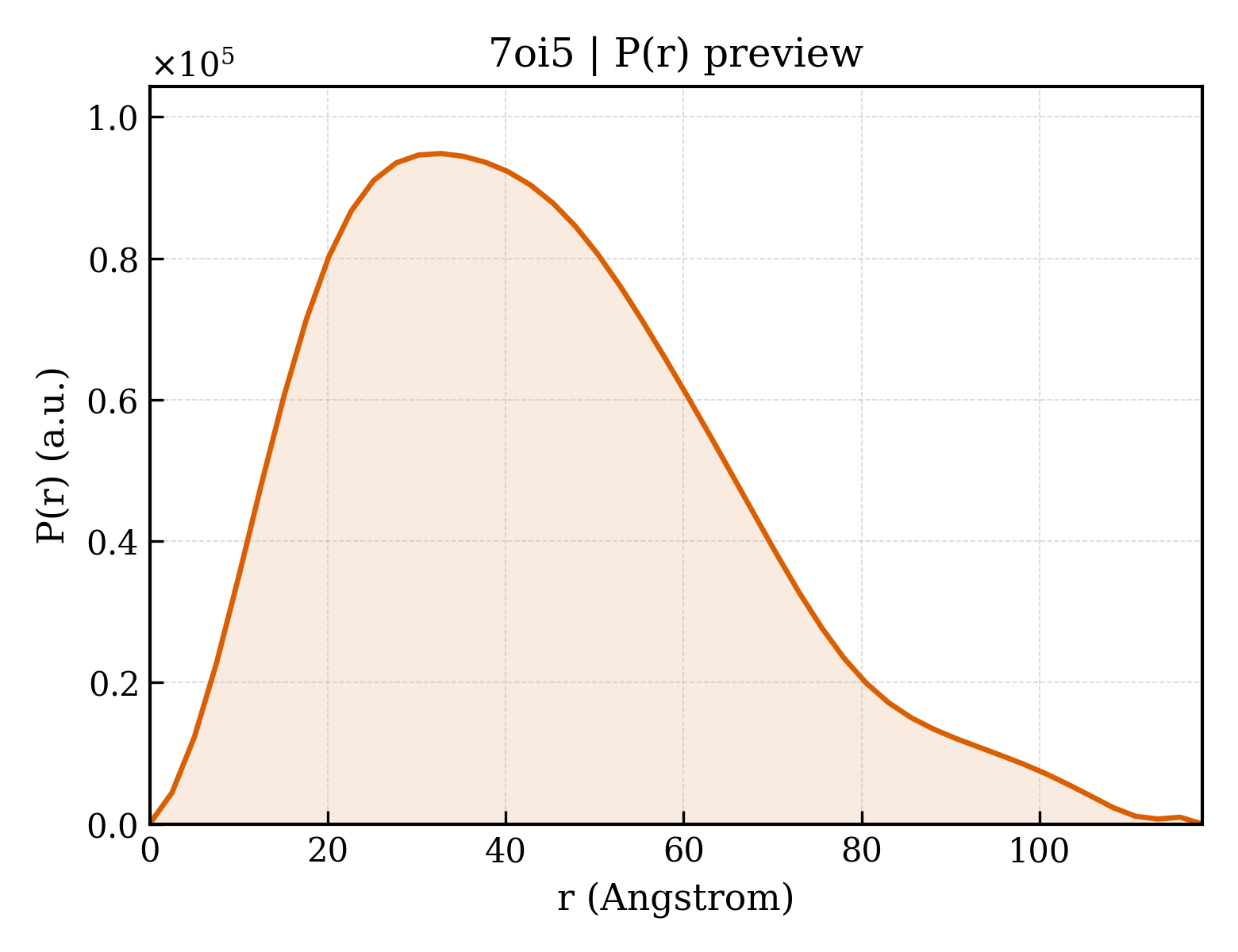

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7oi5
Deposition date deposition_date	2021-05-11
Structure title title	Crystal structure of AP2 Mu2 - FCHO2 chimera (GST cleaved)
Keywords keywords	clathrin-mediated endocytosis (CME), protein recycling, plasma membrane, ENDOCYTOSIS; ENDOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.67 Å
Radius of gyration Rg (electron density) rg_electron	33.41 Å
Forward intensity I(0) i0	66180300.00
Molecular weight molecular_weight	66267.0 kDa
Excluded volume excluded_volume	83945 Å³
Envelope volume envelope_volume	115890 Å³
Hydration-shell volume shell_volume	31074 Å³
Envelope diameter envelope_diameter	124.9 Å
Shell Rg shell_rg	36.61 Å
Envelope Rg envelope_rg	33.75 Å
Shape Rg shape_rg	33.47 Å
Total Rg total_rg	33.49 Å
Total atoms total_atoms	4653
Residues n_residues	573
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	118.3 Å
Rg (real space) rg_real	33.95 Å
Rg uncertainty (real space) rg_real_error	1.35 Å
I(0) (real space) i0_real	6.6180e+07
I(0) uncertainty (real space) i0_real_error	1.0600e+06
Rg (reciprocal space) rg_reciprocal	33.78 Å
I(0) (reciprocal space) i0_reciprocal	66170000.0000
Solution quality estimate total_estimate	0.8199
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.7 Å
Skewness Skewness skewness	0.559
Kurtosis Kurtosis kurtosis	-0.088
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10370000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.775; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.655; Smooth: 0.676

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	AP-2 complex subunit mu,F-BAR domain only protein 2
Molecular weight formula_weight	39374.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D
Atom count atom_count	4669

PGIHMQIGWRREGIKYRRNELFLDVLESVNLLMSPQGQVLSAHVSGRVVMKSYLSGMPECKFGMNDKIVIEKQGKGTADETSKSGKQSIAIDDCTFHQCVRLSKFDSERSISFIPPDGEFELMRYRTTKDIILPFRVIPLVREVGRTKLEVKVVIKSNFKPSLLAQKIEVRIPTPLNTSGVQVICMKGKAKYKASENAIVWKIKRMAGMKESQISAEIELLPTNDKKKWARPPISMNFEVPFAPSGLKVRYLKVFEPKLNYSDHDVIKWVRYIGRSGIYETRCGASGSAGSAGPSGAGSAGSAGPSAGSAGSAGSGSAGSAPGPDVDEEGYSIKPETNQNDTKENHFYSSSDSDSEDEE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	16

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	7oi5B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1170 — Mu homology domain, subdomain B

Domain ID domain_id	7oi5D01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1170 — Mu homology domain, subdomain B

▶

8. Citations (2)

▶

Unit-cell length a length_a	116.046 Å
Unit-cell length b length_b	55.380 Å
Unit-cell length c length_c	167.735 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.05 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	2.610 Å
Low-resolution limit resolution_low	79.270 Å
R factor r_factor	0.2414
R_work r_work	0.2384
R_free r_free	0.2972

fit	/app/data/saxs_computation/oi/7oi5/7oi5.fit
pddf	/app/data/pr_computation/oi/7oi5/7oi5.pr.out
profile	/app/data/saxs_computation/oi/7oi5/7oi5.dat
