SAXSdb — 6uph

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3-like centromeric protein CSE4

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain A； UniProt 1–229 Chain E； UniProt 1–229	Not recorded	Histone H4 × 2 （Q6CMU6） Histone H2A × 2 （Q6CK59） Histone H2B.1 × 2 （Q6CK60） DNA (119-MER) × 1 DNA (119-MER) × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6UPH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2L5A Structural basis for recognition of centromere specific histone H3 variant by nonhistone Scm3 Deposited 2010-10-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 151–228（78 aa） Fragment：Cse4(151-228), Scm3(93-172), H4(42-103)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.4；308 K；Ionic strength (raw mmCIF value) 0.00；Pressure ambient NMR sample composition 0.8-1.0 mM [U-100% 15N] scCSH-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-100% 15N] scCSH-2, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-13C methyl; U-15N; U-2H] scCSH-3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-13C ; U-15N; 35%-2H] scCSH-4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-13C ; U-15N] scCSH-5, 100% D2O \| 100% D2O NMR sample composition 0.8-0.85 mM scCSH-6, 100% D2O \| 100% D2O	Resolution not provided
6QLD Structure of inner kinetochore CCAN-Cenp-A complex Deposited 2019-01-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain a 137–226（90 aa） Chain e 112–226（115 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
8OW0 Cryo-EM structure of CBF1-CCAN bound topologically to a centromeric CENP-A nucleosome Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric	Chain a 1–229（229 aa） Chain e 1–229（229 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain a 1–229（229 aa） Chain e 1–229（229 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8T0P Structure of Cse4 bound to Ame1 and Okp1 Deposited 2023-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 32–49（18 aa） Fragment：residues 32-49	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；19% PEG 8000, 0.55 M Lithium sulfate	Resolution 1.73 Å R-free 0.236

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CENPA_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–229； UniProt 1–229 Author chain E； PDBConstruct 1–229； UniProt 1–229

Histone H4

Kluyveromyces lactis (strain ATCC 8585 / CBS 2359 / DSM 70799 / NBRC 1267 / NRRL Y-1140 / WM37)

UniProt Q6CMU6

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain B； UniProt 1–103 Chain F； UniProt 1–103	Not recorded	Histone H3-like centromeric protein CSE4 × 2 （P36012） Histone H2A × 2 （Q6CK59） Histone H2B.1 × 2 （Q6CK60） DNA (119-MER) × 1 DNA (119-MER) × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6UPH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2YFV The heterotrimeric complex of Kluyveromyces lactis Scm3, Cse4 and H4 Deposited 2011-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 25–98（74 aa） Fragment：RESIDUES 25-98	Not recorded	IOD IODIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；0.1 M SODIUM CITRATE, PH4.5, 6% PEG 4000, AND 0.1 M SODIUM IODIDE	Resolution 2.32 Å R-free 0.257
2YFW Heterotetramer structure of Kluyveromyces lactis Cse4,H4 Deposited 2011-04-08	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–103（103 aa） Chain H 1–103（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL, PH8.5, 0.2 M NACL, AND 25% PEG 3350	Resolution 2.60 Å R-free 0.276
2YFW Heterotetramer structure of Kluyveromyces lactis Cse4,H4 Deposited 2011-04-08	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL, PH8.5, 0.2 M NACL, AND 25% PEG 3350	Resolution 2.60 Å R-free 0.276

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q6CMU6_KLULA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 16–118； UniProt 1–103 Author chain F； PDBConstruct 16–118； UniProt 1–103

Histone H2A

Kluyveromyces lactis (strain ATCC 8585 / CBS 2359 / DSM 70799 / NBRC 1267 / NRRL Y-1140 / WM37)

UniProt Q6CK59

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain C； UniProt 1–130 Chain G； UniProt 1–130	Not recorded	Histone H3-like centromeric protein CSE4 × 2 （P36012） Histone H4 × 2 （Q6CMU6） Histone H2B.1 × 2 （Q6CK60） DNA (119-MER) × 1 DNA (119-MER) × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	H2A_KLULA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 16–145； UniProt 1–130 Author chain G； PDBConstruct 16–145； UniProt 1–130

Histone H2B.1

Kluyveromyces lactis (strain ATCC 8585 / CBS 2359 / DSM 70799 / NBRC 1267 / NRRL Y-1140 / WM37)

UniProt Q6CK60

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain D； UniProt 1–132 Chain H； UniProt 1–132	Not recorded	Histone H3-like centromeric protein CSE4 × 2 （P36012） Histone H4 × 2 （Q6CMU6） Histone H2A × 2 （Q6CK59） DNA (119-MER) × 1 DNA (119-MER) × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	H2B1_KLULA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 16–147； UniProt 1–132 Author chain H； PDBConstruct 16–147； UniProt 1–132

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6uph
Deposition date deposition_date	2019-10-17
Structure title title	Structure of a Yeast Centromeric Nucleosome at 2.7 Angstrom resolution
Keywords keywords	Histones, Nucleosome, Centromere, Kinetochore, Yeast, CELL CYCLE; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.33 Å
Radius of gyration Rg (electron density) rg_electron	36.46 Å
Forward intensity I(0) i0	635210000.00
Molecular weight molecular_weight	156110.0 kDa
Excluded volume excluded_volume	174960 Å³
Envelope volume envelope_volume	267260 Å³
Hydration-shell volume shell_volume	60137 Å³
Envelope diameter envelope_diameter	117.7 Å
Shell Rg shell_rg	43.76 Å
Envelope Rg envelope_rg	35.61 Å
Shape Rg shape_rg	36.28 Å
Total Rg total_rg	37.24 Å
Total atoms total_atoms	10677
Residues n_residues	970
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

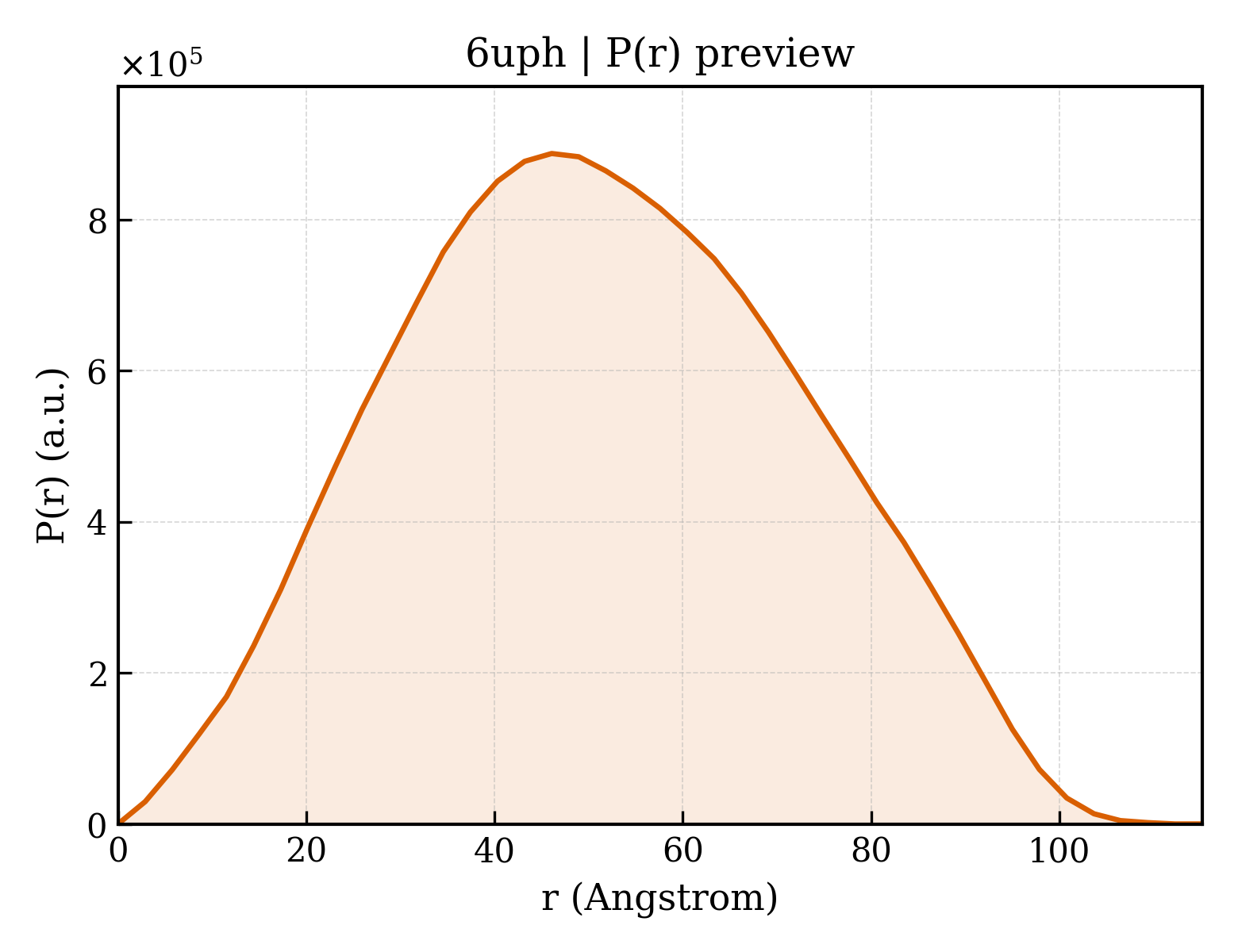

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	115.2 Å
Rg (real space) rg_real	39.06 Å
Rg uncertainty (real space) rg_real_error	0.93 Å
I(0) (real space) i0_real	6.3520e+08
I(0) uncertainty (real space) i0_real_error	1.0350e+07
Rg (reciprocal space) rg_reciprocal	39.23 Å
I(0) (reciprocal space) i0_reciprocal	635300000.0000
Solution quality estimate total_estimate	0.8941
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	46.1 Å
Skewness Skewness skewness	0.089
Kurtosis Kurtosis kurtosis	-0.647
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	37280000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.982; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.695

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone H3-like centromeric protein CSE4
Molecular weight formula_weight	26885.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	10677

MSSKQQWVSSAIQSDSSGRSLSNVNRLAGDQQSINDRALSLLQRTRATKNLFPRREERRRYESSKSDLDIETDYEDQAGNLEIETENEEEAEMETEVPAPVRTHSYALDRYVRQKRREKQRKQSLKRVEKKYTPSELALYEIRKYQRSTDLLISKIPFARLVKEVTDEFTTKDQDLRWQSMAIMALQEASEAYLVGLLEHTNLLALHAKRITIMKKDMQLARRIRGQFI

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	13332.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

HHHHHHENLYFQSNAMSGRGKGGKGLGKGGAKRHRKILRDNIQGITKPAIRRLARRGGVKRISGLIYEEVRNVLKTFLESVIRDAVTYTEHAKRKTVTSLDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Kluyveromyces lactis (strain ATCC 8585 / CBS 2359 / DSM 70799 / NBRC 1267 / NRRL Y-1140 / WM37)
通用名 common_name	Yeast
NCBI Class编号 ncbi_taxonomy_id	284590
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	15739.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

HHHHHHENLYFQSNAMSGKGGKAGSAAKASQSRSAKAGLTFPVGRVHRLLRKGNYAQRIGSGAPVYLTAVLEYLAAEILELAGNAARDNKKTRIIPRHLQLAIRNDDELNKLLGNVTIAQGGVLPNIHQNLLPKKSSKAKASQEL

来源 Source

来源生物 organism	Kluyveromyces lactis (strain ATCC 8585 / CBS 2359 / DSM 70799 / NBRC 1267 / NRRL Y-1140 / WM37)
通用名 common_name	Yeast
NCBI Class编号 ncbi_taxonomy_id	284590
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B.1
Molecular weight formula_weight	16219.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

HHHHHHENLYFQSNAMSAKASKAPASKAPAEKKPAAKKTSSSTDPSKKRTKARKETYSSYIYKVLKQTHPDTGISQKSMSILNSFVNDIFERIATESSKLAAYNKKSTISAREIQTAVRLILPGELAKHAVSEGTRAVTKYSSSTQA

来源 Source

来源生物 organism	Kluyveromyces lactis (strain ATCC 8585 / CBS 2359 / DSM 70799 / NBRC 1267 / NRRL Y-1140 / WM37)
通用名 common_name	Yeast
NCBI Class编号 ncbi_taxonomy_id	284590
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA (119-MER)
Molecular weight formula_weight	45138.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCGAT

来源 Source

来源生物 organism	unidentified
NCBI Class编号 ncbi_taxonomy_id	32644
宿主生物 host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA (119-MER)
Molecular weight formula_weight	45610.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCGAT

来源 Source

来源生物 organism	unidentified
NCBI Class编号 ncbi_taxonomy_id	32644
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d6upha_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6uphb_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6uphc_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6uphd_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6uphe_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6uphf_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6uphg_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6uphh_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

CATH v4.4 (8 domains)

Domain ID domain_id	6uphA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6uphB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6uphC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6uphD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6uphE00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6uphF00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6uphG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6uphH00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	265380

fit	/app/data/saxs_computation/up/6uph/6uph.fit
pddf	/app/data/pr_computation/up/6uph/6uph.pr.out
profile	/app/data/saxs_computation/up/6uph/6uph.dat

Structure of a Yeast Centromeric Nucleosome at 2.7 Angstrom resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3-like centromeric protein CSE4

State in the Current Structure

Other States of the Same Protein in the Database

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

Histone H2A

State in the Current Structure

Other States of the Same Protein in the Database

Histone H2B.1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
