Cryo-EM structure of human Cohesin-NIPBL-DNA complex without STAG1

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural maintenance of chromosomes protein 1A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Double-strand-break repair protein rad21 homolog × 1 （O60216） Nipped-B-like protein × 1 （Q6KC79） DNA (43-MER) × 1 DNA (43-MER) × 1 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1233； UniProt 1–1233

Structural maintenance of chromosomes protein 3

Homo sapiens

UniProt Q9UQE7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Double-strand-break repair protein rad21 homolog × 1 （O60216） Nipped-B-like protein × 1 （Q6KC79） DNA (43-MER) × 1 DNA (43-MER) × 1 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1217； UniProt 1–1217

Double-strand-break repair protein rad21 homolog

Homo sapiens

UniProt O60216

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Nipped-B-like protein × 1 （Q6KC79） DNA (43-MER) × 1 DNA (43-MER) × 1 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD21_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–631； UniProt 1–631

Nipped-B-like protein

Homo sapiens

UniProt Q6KC79

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Double-strand-break repair protein rad21 homolog × 1 （O60216） DNA (43-MER) × 1 DNA (43-MER) × 1 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NIPBL_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–1642； UniProt 1163–2804

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6wge
Deposition date deposition_date	2020-04-05
Structure title title	Cryo-EM structure of human Cohesin-NIPBL-DNA complex without STAG1
Keywords keywords	;Protein-DNA complex, ATPase, DNA-binding protein, Genome organization, Sister chromatid cohesion, Transcription regulation, CELL CYCLE, CELL CYCLE-DNA complex ;; CELL CYCLE/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6wge__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

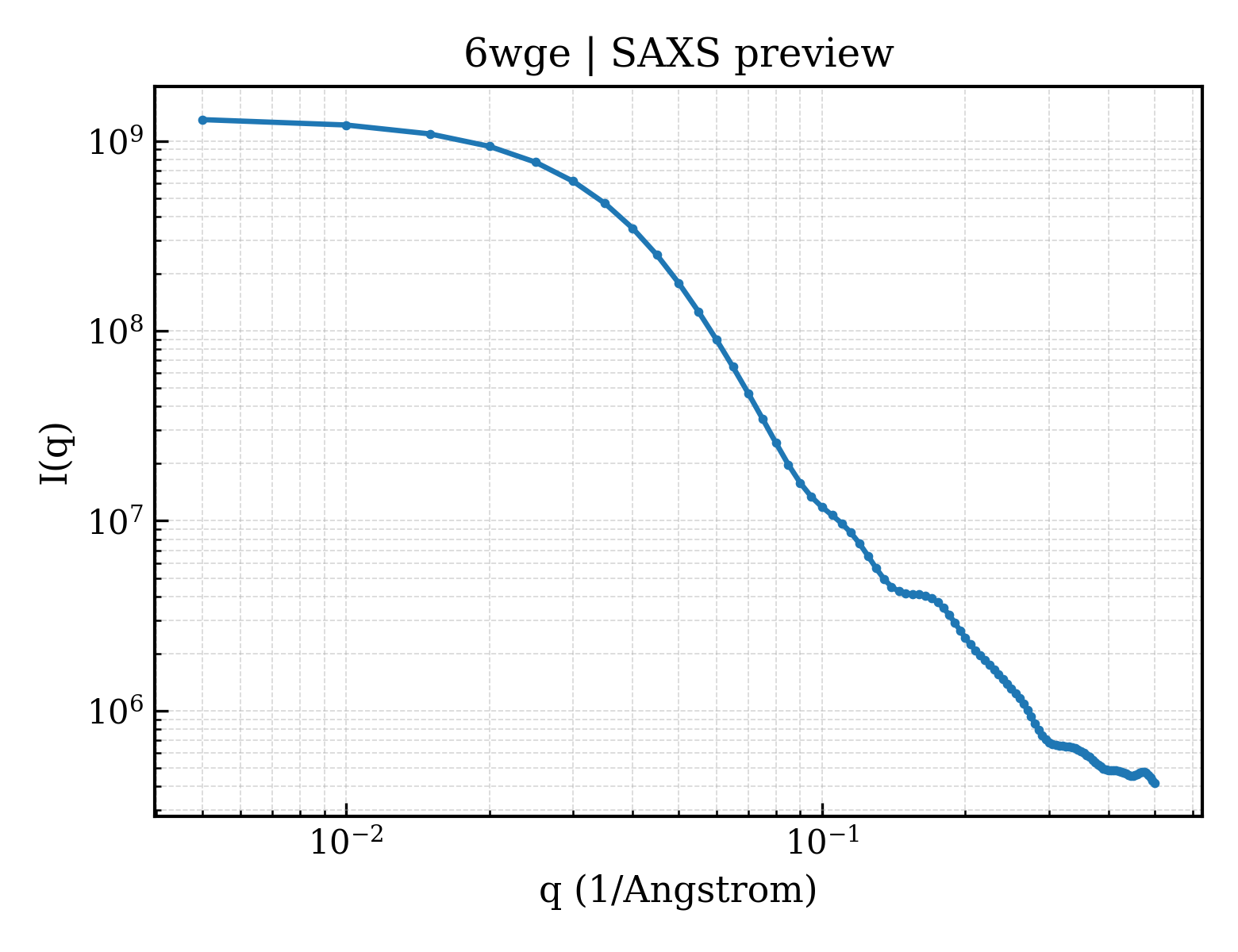

6wge__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

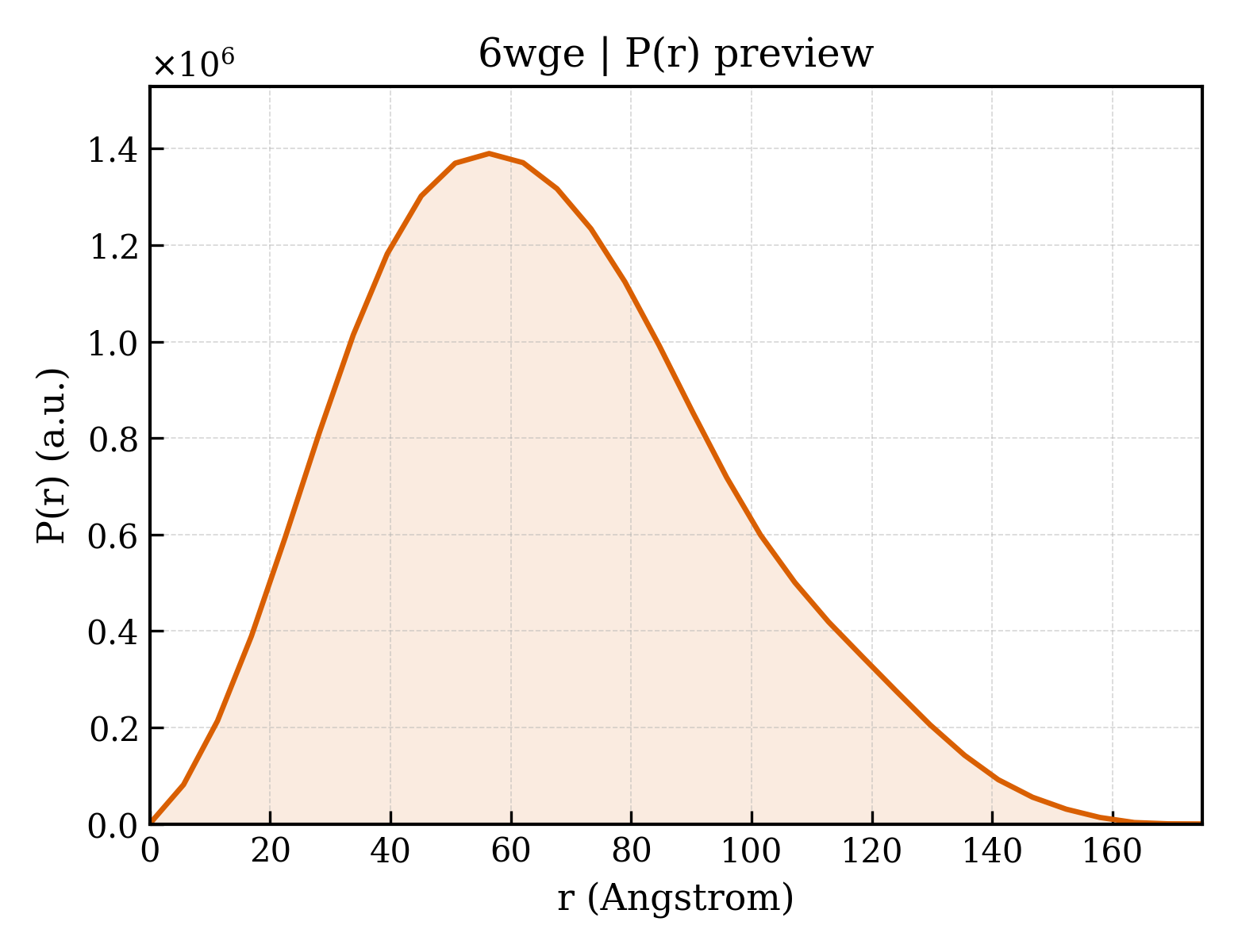

6wge__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.92 Å
Rg (electron density)	51.32 Å
Total Rg	51.41 Å
Atom count	20194
Residues	2366
Excluded volume	356980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6wge__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Structural maintenance of chromosomes protein 1A
Molecular weight formula_weight	143484.1 kDa
Mutation mutation	E1157Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	20194

MGFLKLIEIENFKSYKGRQIIGPFQRFTAIIGPNGSGKSNLMDAISFVLGEKTSNLRVKTLRDLIHGAPVGKPAANRAFVSMVYSEEGAEDRTFARVIVGGSSEYKINNKVVQLHEYSEELEKLGILIKARNFLVFQGAVESIAMKNPKERTALFEEISRSGELAQEYDKRKKEMVKAEEDTQFNYHRKKNIAAERKEAKQEKEEADRYQRLKDEVVRAQVQLQLFKLYHNEVEIEKLNKELASKNKEIEKDKKRMDKVEDELKEKKKELGKMMREQQQIEKEIKEKDSELNQKRPQYIKAKENTSHKIKKLEAAKKSLQNAQKHYKKRKGDMDELEKEMLSVEKARQEFEERMEEESQSQGRDLTLEENQVKKYHRLKEEASKRAATLAQELEKFNRDQKADQDRLDLEERKKVETEAKIKQKLREIEENQKRIEKLEEYITTSKQSLEEQKKLEGELTEEVEMAKRRIDEINKELNQVMEQLGDARIDRQESSRQQRKAEIMESIKRLYPGSVYGRLIDLCQPTQKKYQIAVTKVLGKNMDAIIVDSEKTGRDCIQYIKEQRGEPETFLPLDYLEVKPTDEKLRELKGAKLVIDVIRYEPPHIKKALQYACGNALVCDNVEDARRIAFGGHQRHKTVALDGTLFQKSGVISGGASDLKAKARRWDEKAVDKLKEKKERLTEELKEQMKAKRKEAELRQVQSQAHGLQMRLKYSQSDLEQTKTRHLALNLQEKSKLESELANFGPRINDIKRIIQSREREMKDLKEKMNQVEDEVFEEFCREIGVRNIREFEEEKVKRQNEIAKKRLEFENQKTRLGIQLDFEKNQLKEDQDKVHMWEQTVKKDENEIEKLKKEEQRHMKIIDETMAQLQDLKNQHLAKKSEVNDKNHEMEEIRKKLGGANKEMTHLQKEVTAIETKLEQKRSDRHNLLQACKMQDIKLPLSKGTMDDISQEEGSSQGEDSVSGSQRISSIYAREALIEIDYGDLCEDLKDAQAEEEIKQEMNTLQQKLNEQQSVLQRIAAPNMKAMEKLESVRDKFQETSDEFEAARKRAKKAKQAFEQIKKERFDRFNACFESVATNIDEIYKALSRNSSAQAFLGPENPEEPYLDGINYNCVAPGKRFRPMDNLSGGEKTVAALALLFAIHSYKPAPFFVLDQIDAALDNTNIGKVANYIKEQSTCNFQAIVISLKEEFYTKAESLIGVYPEQGDCVISKVLTFDLTKYPDANPNPNEQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Structural maintenance of chromosomes protein 3
Molecular weight formula_weight	141770.6 kDa
Mutation mutation	E1144Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MYIKQVIIQGFRSYRDQTIVDPFSSKHNVIVGRNGSGKSNFFYAIQFVLSDEFSHLRPEQRLALLHEGTGPRVISAFVEIIFDNSDNRLPIDKEEVSLRRVIGAKKDQYFLDKKMVTKNDVMNLLESAGFSRSNPYYIVKQGKINQMATAPDSQRLKLLREVAGTRVYDERKEESISLMKETEGKREKINELLKYIEERLHTLEEEKEELAQYQKWDKMRRALEYTIYNQELNETRAKLDELSAKRETSGEKSRQLRDAQQDARDKMEDIERQVRELKTKISAMKEEKEQLSAERQEQIKQRTKLELKAKDLQDELAGNSEQRKRLLKERQKLLEKIEEKQKELAETEPKFNSVKEKEERGIARLAQATQERTDLYAKQGRGSQFTSKEERDKWIKKELKSLDQAINDKKRQIAAIHKDLEDTEANKEKNLEQYNKLDQDLNEVKARVEELDRKYYEVKNKKDELQSERNYLWREENAEQQALAAKREDLEKKQQLLRAATGKAILNGIDSINKVLDHFRRKGINQHVQNGYHGIVMNNFECEPAFYTCVEVTAGNRLFYHIVDSDEVSTKILMEFNKMNLPGEVTFLPLNKLDVRDTAYPETNDAIPMISKLRYNPRFDKAFKHVFGKTLICRSMEVSTQLARAFTMDCITLEGDQVSHRGALTGGYYDTRKSRLELQKDVRKAEEELGELEAKLNENLRRNIERINNEIDQLMNQMQQIETQQRKFKASRDSILSEMKMLKEKRQQSEKTFMPKQRSLQSLEASLHAMESTRESLKAELGTDLLSQLSLEDQKRVDALNDEIRQLQQENRQLLNERIKLEGIITRVETYLNENLRKRLDQVEQELNELRETEGGTVLTATTSELEAINKRVKDTMARSEDLDNSIDKTEAGIKELQKSMERWKNMEKEHMDAINHDTKELEKMTNRQGMLLKKKEECMKKIRELGSLPQEAFEKYQTLSLKQLFRKLEQCNTELKKYSHVNKKALDQFVNFSEQKEKLIKRQEELDRGYKSIMELMNVLELRKYEAIQLTFKQVSKNFSEVFQKLVPGGKATLVMKKGDVEGSQSQDEGEGSGESERGSGSQSSVPSVDQFTGVGIRVSFTGKQGEMREMQQLSGGQKSLVALALIFAIQKCDPAPFYLFDQIDQALDAQHRKAVSDMIMELAVHAQFITTTFRPELLESADKFYGVKFRNKVSHIDVITAEMAKDFVEDDTTHG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Double-strand-break repair protein rad21 homolog
Molecular weight formula_weight	71556.1 kDa
Mutation mutation	R172A, D279A, R450A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MFYAHFVLSKRGPLAKIWLAAHWDKKLTKAHVFECNLESSVESIISPKVKMALRTSGHLLLGVVRIYHRKAKYLLADCNEAFIKIKMAFRPGVVDLPEENREAAYNAITLPEEFHDFDQPLPDLDDIDVAQQFSLNQSRVEEITMREEVGNISILQENDFGDFGMDDREIMAEGSAFEDDDMLVSTTTSNLLLESEQSTSNLNEKINHLEYEDQYKDDNFGEGNDGGILDDKLISNNDGGIFDDPPALSEAGVMLPEQPAHDDMDEDDNVSMGGPDSPASVDPVEPMPTMTDQTTLVPNEEEAFALEPIDITVKETKAKRKRKLIVDSVKELDSKTIRAQLSDYSDIVTTLDLAPPTKKLMMWKETGGVEKLFSLPAQPLWNNRLLKLFTRCLTPLVPEDLRKRRKGGEADNLDEFLKEFENPEVPREDQQQQHQQRDVIDEPIIEEPSALQESVMEASRTNIDESAMPPPPPQGVKRKAGQIDPEPVMPPQQVEQMEIPPVELPPEEPPNICQLIPELELLPEKEKEKEKEKEDDEEEEDEDASGGDQDQEERRWNKRTQQMLHGLQRALAKTGAESISLLELCRNTNRKQAAAKFYSFLVLKKQQAIELTQEEPYSDIIATPGPRFHII

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Nipped-B-like protein
Molecular weight formula_weight	186778.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

PSLSEVARKMKKKEKQKKRKAYEPKLTPEEMMDSSTFKRFTASIENILDNLEDMDFTAFGDDDEIPQELLLGKHQLNELGSESAKIKAMGIMDKLSTDKTVKVLNILEKNIQDGSKLSTLLNHNNDTEEEERLWRDLIMERVTKSADACLTTINIMTSPNMPKAVYIEDVIERVIQYTKFHLQNTLYPQYDPVYRLDPHGGGLLSSKAKRAKCSTHKQRVIVMLYNKVCDIVSSLSELLEIQLLTDTTILQVSSMGITPFFVENVSELQLCAIKLVTAVFSRYEKHRQLILEEIFTSLARLPTSKRSLRNFRLNSSDMDGEPMYIQMVTALVLQLIQCVVHLPSSEKDSNAEEDSNKKIDQDVVITNSYETAMRTAQNFLSIFLKKCGSKQGEEDYRPLFENFVQDLLSTVNKPEWPAAELLLSLLGRLLVHQFSNKSTEMALRVASLDYLGTVAARLRKDAVTSKMDQGSIERILKQVSGGEDEIQQLQKALLDYLDENTETDPSLVFSRKFYIAQWFRDTTLETEKAMKSQKDEESSEGTHHAKEIETTGQIMHRAENRKKFLRSIIKTTPSQFSTLKMNSDTVDYDDACLIVRYLASMRPFAQSFDIYLTQILRVLGENAIAVRTKAMKCLSEVVAVDPSILARLDMQRGVHGRLMDNSTSVREAAVELLGRFVLCRPQLAEQYYDMLIERILDTGISVRKRVIKILRDICIEQPTFPKITEMCVKMIRRVNDEEGIKKLVNETFQKLWFTPTPHNDKEAMTRKILNITDVVAACRDTGYDWFEQLLQNLLKSEEDSSYKPVKKACTQLVDNLVEHILKYEESLADSDNKGVNSGRLVACITTLFLFSKIRPQLMVKHAMTMQPYLTTKCSTQNDFMVICNVAKILELVVPLMEHPSETFLATIEEDLMKLIIKYGMTVVQHCVSCLGAVVNKVTQNFKFVWACFNRYYGAISKLKSQHQEDPNNTSLLTNKPALLRSLFTVGALCRHFDFDLEDFKGNSKVNIKDKVLELLMYFTKHSDEEVQTKAIIGLGFAFIQHPSLMFEQEVKNLYNNILSDKNSSVNLKIQVLKNLQTYLQEEDTRMQQADRDWKKVAKQEDLKEMGDVSSGMSSSIMQLYLKQVLEAFFHTQSSVRHFALNVIALTLNQGLIHPVQCVPYLIAMGTDPEPAMRNKADQQLVEIDKKYAGFIHMKAVAGMKMSYQVQQAINTCLKDPVRGFRQDESSSALCSHLYSMIRGNRQHRRAFLISLLNLFDDTAKTDVTMLLYIADNLACFPYQTQEEPLFIMHHIDITLSVSGSNLLQSFKESMVKDKRKERKSSPSKENESSDSEEEVSRPRKSRKRVDSDSDSDSEDDINSVMKCLPENSAPLIEFANVSQGILLLLMLKQHLKNLCGFSDSKIQKYSPSESAKVYDKAINRKTGVHFHPKQTLDFLRSDMANSKITEEVKRSIVKQYLDFKLLMEHLDPDEEEEEGEVSASTNARNKAITSLLGGGSPKNNTAAETEDDESDGEDRGGGTSGSLRRSKRNSDSTELAAQMNESVDVMDVIAICCPKYKDRPQIARVVQKTSSGFSVQWMAGSYSGSWTEAKRRDGRKLVPWVDTIKESDIIYKKIALTSANKLTNKVVQTLRSLYAAKDGTSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	DNA (43-MER)
Molecular weight formula_weight	13422.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

Entity 6 Entity 6 polymer

Description description	DNA (43-MER)
Molecular weight formula_weight	13035.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	G

TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT

Entity 7 Entity 7 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	68161

Cryo-EM structure of human Cohesin-NIPBL-DNA complex without STAG1
