8ro8

Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - Apo closed P-loop conformation

Method: X-RAY DIFFRACTION D_max: 96.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural maintenance of chromosomes protein 1A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–200 Chain A； UniProt 992–1233	Mutation：E1157Q	64-kDa C-terminal product × 1 （O60216）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium malonate dibasic monohydrate; 0.1 M Bis-Tris propane pH 6.5; 20% w/v PEG 3350	Resolution 1.90 Å R-free 0.231

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8RO8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6WG3 Cryo-EM structure of human Cohesin-NIPBL-DNA complex Deposited 2020-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain A 1–1233（1233 aa）	Mutation：E1157Q	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
6WGE Cryo-EM structure of human Cohesin-NIPBL-DNA complex without STAG1 Deposited 2020-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 1–1233（1233 aa）	Mutation：E1157Q	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7W1M Cryo-EM structure of human cohesin-CTCF-DNA complex Deposited 2021-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric	Chain A 1–1233（1233 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 BEF BERYLLIUM TRIFLUORIDE ION × 2 ZN ZINC ION × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
8P0A Human Cohesin ATPase module Deposited 2023-05-10	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–200（200 aa） Chain A 992–1233（242 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8.2 cryo-EM buffer pH 8.2 cryo-EM buffer pH 8.2 cryo-EM vitrification conditions Cryogen ETHANE cryo-EM vitrification conditions Cryogen ETHANE cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.67 Å
8RO9 Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - Open/closed P-loop conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–200（200 aa） Chain A 992–1233（242 aa）	Mutation：E1157Q Mutation：E1157Q	B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide; 0.1 M Bis-Tris propane pH 6.5; 20% w/v PEG 3350	Resolution 1.77 Å R-free 0.218
8RO9 Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - Open/closed P-loop conformation Deposited 2024-01-11	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–200（200 aa） Chain C 992–1233（242 aa）	Mutation：E1157Q Mutation：E1157Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide; 0.1 M Bis-Tris propane pH 6.5; 20% w/v PEG 3350	Resolution 1.77 Å R-free 0.218
8ROA Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - ADP-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–200（200 aa） Chain A 992–1233（242 aa）	Mutation：E1157Q Mutation：E1157Q	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M ammonium formate; 20% w/v PEG 3350	Resolution 2.44 Å R-free 0.250
8ROA Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - ADP-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–200（200 aa） Chain C 992–1233（242 aa）	Mutation：E1157Q Mutation：E1157Q	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M ammonium formate; 20% w/v PEG 3350	Resolution 2.44 Å R-free 0.250
8ROB Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - ATPgS-Mg-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–200（200 aa） Chain A 992–1233（242 aa）	Mutation：E1157Q Mutation：E1157Q	MG MAGNESIUM ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MMT pH 7.0; 25% w/v PEG 1500	Resolution 2.50 Å R-free 0.299
8ROC Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - Apo closed P-loop conformation Deposited 2024-01-11	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–175（175 aa） Chain A 1057–1233（177 aa）	Mutation：E1157Q Mutation：E1157Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M ammonium nitrate pH 6.3; 20% w/v PEG 3350	Resolution 1.85 Å R-free 0.222
8ROD Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - Open/closed P-loop conformation Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–175（175 aa） Chain A 1057–1233（177 aa）	Mutation：E1157Q Mutation：E1157Q	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium sulfate; 20 % w/v PEG 3350	Resolution 1.50 Å R-free 0.232
8ROE Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - ADP-bound conformation Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–175（175 aa） Chain A 1057–1233（177 aa）	Mutation：E1157Q Mutation：E1157Q	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium malonate; 0.1 M Bis Tris propane pH 6.5; 20 % w/v PEG 3350	Resolution 1.36 Å R-free 0.219
8ROF Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - ADP-Mg-bound conformation Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–175（175 aa） Chain A 1057–1233（177 aa）	Mutation：E1157Q Mutation：E1157Q	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M magnesium chloride; 0.1 M MES pH 6.0; 20 % w/v PEG 6000	Resolution 1.65 Å R-free 0.228
8ROG Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - ATPgS-Mg-bound conformation Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–175（175 aa） Chain A 1057–1233（177 aa）	Mutation：E1157Q Mutation：E1157Q	MG MAGNESIUM ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium formate; 0.1 M Bis Tris propane pH 6.5; 20 % w/v PEG 3350	Resolution 1.94 Å R-free 0.253

12 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SMC1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–200； UniProt 1–200 Author chain A； PDBConstruct 215–456； UniProt 992–1233

64-kDa C-terminal product

Homo sapiens

UniProt O60216

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 558–629	Not recorded	Structural maintenance of chromosomes protein 1A × 1 （Q14683）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium malonate dibasic monohydrate; 0.1 M Bis-Tris propane pH 6.5; 20% w/v PEG 3350	Resolution 1.90 Å R-free 0.231

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8RO8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4PJU crystal structure of human Stromal Antigen 2 (SA2) in complex with Sister Chromatid Cohesion protein 1 (Scc1) Deposited 2014-05-12	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 281–420（140 aa） Fragment：UNP residues 281-420	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.12 M Morpheus Divalents Mix, 0.1 M Morpheus Buffer System 1, and 27-30% (v/v) Morpheus EOD_P8K (Molecular Dimensions).	Resolution 3.05 Å R-free 0.238
4PJW crystal structure of human Stromal Antigen 2 (SA2) in complex with Sister Chromatid Cohesion protein 1 (Scc1), with bound MES Deposited 2014-05-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 281–420（140 aa） Fragment：UNP residues 281-420	Non-standard monomer：Yes (specific site not provided by mmCIF)	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.12 M Morpheus Divalents Mix, 0.1 M Morpheus Buffer System 1, and 27-30% (v/v) Morpheus EOD_P8K (Molecular Dimensions).	Resolution 2.85 Å R-free 0.225
4PK7 crystal structure of human Stromal Antigen 2 (SA2) in complex with Sister Chromatid Cohesion protein 1 (Scc1) with bound MES, native proteins Deposited 2014-05-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 281–420（140 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.12 M Morpheus Divalents Mix, 0.1 M Morpheus Buffer System 1, and 27-30% (v/v) Morpheus EOD_P8K (Molecular Dimensions).	Resolution 2.95 Å R-free 0.251
6QNX Structure of the SA2/SCC1/CTCF complex Deposited 2019-02-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 281–420（140 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.06M Morpheus Divalents mix, 0.1M Morpheus buffer system 1, 48% (v/v) Morpheus EOD_P8K	Resolution 2.70 Å
6RRC Crystal structure of the N-terminal region of human cohesin subunit STAG1 in complex with RAD21 peptide Deposited 2019-05-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 321–345（25 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；277 K；2.1 M Ammonium Sulfate, 0.1 M MES pH 6.3	Resolution 2.37 Å R-free 0.248
6RRC Crystal structure of the N-terminal region of human cohesin subunit STAG1 in complex with RAD21 peptide Deposited 2019-05-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 321–345（25 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；277 K；2.1 M Ammonium Sulfate, 0.1 M MES pH 6.3	Resolution 2.37 Å R-free 0.248
6RRK Crystal structure of the central region of human cohesin subunit STAG1 in complex with RAD21 peptide Deposited 2019-05-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 356–395（40 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16 % PEG 3350, 0.2 M DL-Mallic acid	Resolution 3.17 Å R-free 0.278
6RRK Crystal structure of the central region of human cohesin subunit STAG1 in complex with RAD21 peptide Deposited 2019-05-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 356–395（40 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16 % PEG 3350, 0.2 M DL-Mallic acid	Resolution 3.17 Å R-free 0.278
6WG3 Cryo-EM structure of human Cohesin-NIPBL-DNA complex Deposited 2020-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain C 1–631（631 aa）	Mutation：R172A, D279A, R450A	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
6WGE Cryo-EM structure of human Cohesin-NIPBL-DNA complex without STAG1 Deposited 2020-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain C 1–631（631 aa）	Mutation：R172A, D279A, R450A	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7W1M Cryo-EM structure of human cohesin-CTCF-DNA complex Deposited 2021-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric	Chain C 1–631（631 aa）	Mutation：R172A, D279A, R450A	ADP ADENOSINE-5'-DIPHOSPHATE × 2 BEF BERYLLIUM TRIFLUORIDE ION × 2 ZN ZINC ION × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
7ZJS Structural basis of centromeric cohesion protection by SGO1 Deposited 2022-04-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–631（631 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.06 M Morpheus Divalents mix, 0.1 M Morpheus buffer system 2, 48% (v/v) Morpheus EOD_P8K	Resolution 3.24 Å R-free 0.289
7ZJS Structural basis of centromeric cohesion protection by SGO1 Deposited 2022-04-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–631（631 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.06 M Morpheus Divalents mix, 0.1 M Morpheus buffer system 2, 48% (v/v) Morpheus EOD_P8K	Resolution 3.24 Å R-free 0.289
8K4D Structure of the SA2/Scc1/CENP_U complex Deposited 2023-07-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 281–420（140 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.03 M CaCl2,0.03 M MgCl2, 0.1 M MOPS-HEPES, pH7.5, 10% PEG8000, 20% ethylene glycol	Resolution 3.52 Å R-free 0.269
8P0A Human Cohesin ATPase module Deposited 2023-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 558–629（72 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8.2 cryo-EM buffer pH 8.2 cryo-EM buffer pH 8.2 cryo-EM vitrification conditions Cryogen ETHANE cryo-EM vitrification conditions Cryogen ETHANE cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.67 Å
8PQ5 Human Cohesin ATPase module with an open DNA exit gate Deposited 2023-07-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 558–629（72 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8.2 cryo-EM buffer pH 8.2 cryo-EM buffer pH 8.2 cryo-EM vitrification conditions Cryogen ETHANE cryo-EM vitrification conditions Cryogen ETHANE cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
8RO6 Human cohesin SMC1A-HD(longCC)/RAD21-C complex - Apo closed P-loop conformation Deposited 2024-01-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Hepes pH 7.0; 10% w/v PEG 6000	Resolution 2.20 Å R-free 0.244
8RO7 Human cohesin SMC1A-HD(longCC)/RAD21-C complex - Open/closed P-loop conformation Deposited 2024-01-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Hepes pH 7.0; 10% w/v PEG 6000	Resolution 2.09 Å R-free 0.223
8RO9 Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - Open/closed P-loop conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide; 0.1 M Bis-Tris propane pH 6.5; 20% w/v PEG 3350	Resolution 1.77 Å R-free 0.218
8RO9 Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - Open/closed P-loop conformation Deposited 2024-01-11	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 558–629（72 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide; 0.1 M Bis-Tris propane pH 6.5; 20% w/v PEG 3350	Resolution 1.77 Å R-free 0.218
8ROA Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - ADP-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M ammonium formate; 20% w/v PEG 3350	Resolution 2.44 Å R-free 0.250
8ROA Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - ADP-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 558–629（72 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M ammonium formate; 20% w/v PEG 3350	Resolution 2.44 Å R-free 0.250
8ROB Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - ATPgS-Mg-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	MG MAGNESIUM ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MMT pH 7.0; 25% w/v PEG 1500	Resolution 2.50 Å R-free 0.299
8ROC Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - Apo closed P-loop conformation Deposited 2024-01-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M ammonium nitrate pH 6.3; 20% w/v PEG 3350	Resolution 1.85 Å R-free 0.222
8ROD Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - Open/closed P-loop conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium sulfate; 20 % w/v PEG 3350	Resolution 1.50 Å R-free 0.232
8ROE Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - ADP-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium malonate; 0.1 M Bis Tris propane pH 6.5; 20 % w/v PEG 3350	Resolution 1.36 Å R-free 0.219
8ROF Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - ADP-Mg-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M magnesium chloride; 0.1 M MES pH 6.0; 20 % w/v PEG 6000	Resolution 1.65 Å R-free 0.228
8ROG Human cohesin SMC1A-HD(shortCC-EQ)/RAD21-C complex - ATPgS-Mg-bound conformation Deposited 2024-01-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 558–629（72 aa）	Not recorded	MG MAGNESIUM ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium formate; 0.1 M Bis Tris propane pH 6.5; 20 % w/v PEG 3350	Resolution 1.94 Å R-free 0.253
8ROH Human cohesin SMC3-HD(EQ)/RAD21-N complex - Apo conformation Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–102（102 aa）	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.21M NaSO4 ; 0.1M Bis-tris propane pH 7; 16% w/v PEG3350	Resolution 2.60 Å R-free 0.255
8ROI Human cohesin SMC3-HD(EQ)/RAD21-N complex - ADP-bound conformation Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–102（102 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Na/K phosphate pH 7.5; 0.1 M HEPES pH 7.5; 15% v/v PEG Smear High; 10% v/v ethylene glycol	Resolution 2.45 Å R-free 0.239
8ROJ Human cohesin SMC3-HD/RAD21-N complex - ADP-Mg-bound conformation Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–102（102 aa）	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.075 M magnesium chloride; 0.075 M Sodium citrate tribasic dehydrate; 0.1 M Bis-Tris pH 6.0; 18% v/v PEG Smear Broad	Resolution 3.00 Å R-free 0.264
8ROK Human cohesin SMC3-HD(EQ)/RAD21-N complex - ATP-Mg-bound conformation - Form 1 Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–102（102 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.3 M NaCl; 0.05 M L-Arginine; 0.1 M Tris pH7.5; 22.5 % v/v PEG Smear Broad; 0.05 M L-Glutamic acid monosodium salt hydrate	Resolution 2.25 Å R-free 0.253
8ROK Human cohesin SMC3-HD(EQ)/RAD21-N complex - ATP-Mg-bound conformation - Form 1 Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–102（102 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.3 M NaCl; 0.05 M L-Arginine; 0.1 M Tris pH7.5; 22.5 % v/v PEG Smear Broad; 0.05 M L-Glutamic acid monosodium salt hydrate	Resolution 2.25 Å R-free 0.253
8ROL Human cohesin SMC3-HD(EQ)/RAD21-N complex - ATP-Mg-bound conformation - Form 2 Deposited 2024-01-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–102（102 aa）	Not recorded	MG MAGNESIUM ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Sodium chloride; 0.1 M Bicine pH 9.0; 20% w/v PEG 550 MME	Resolution 3.11 Å R-free 0.238
9EP3 Structure of the SA2/SCC1/WAPL complex Deposited 2024-03-16	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 281–420（140 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.06M Morpheus Divalents mix, 0.1M Morpheus buffer system 1, 48% (v/v) Morpheus EOD_P8K	Resolution 3.08 Å R-free 0.268
9HMS Cryo-EM structure of human separase bound to SCC1 (310-550 aa) and SA2 Deposited 2024-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 310–550（241 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9HMV Cryo-EM structure of SA2-SCC1 complex at 2.9 angstrom Deposited 2024-12-09	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 310–550（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9HN0 Cryo-EM structure of human separase bound to SCC1 (310-550 aa) Deposited 2024-12-10	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 310–550（241 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9HN4 Cryo-EM structure of human separase bound to phosphorylated SCC1 (310-550 aa) Deposited 2024-12-10	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 310–550（241 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.93 Å
9HN5 Cryo-EM structure of human separase bound to phosphorylated SCC1 (100-320 aa) Deposited 2024-12-10	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 100–320（221 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å
9HVY Cryo-EM structure of human separase-SCC1 (1-631) fusion protein Deposited 2025-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–631（631 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å

35 other PDB entries and 41 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAD21_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–73； UniProt 558–629

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

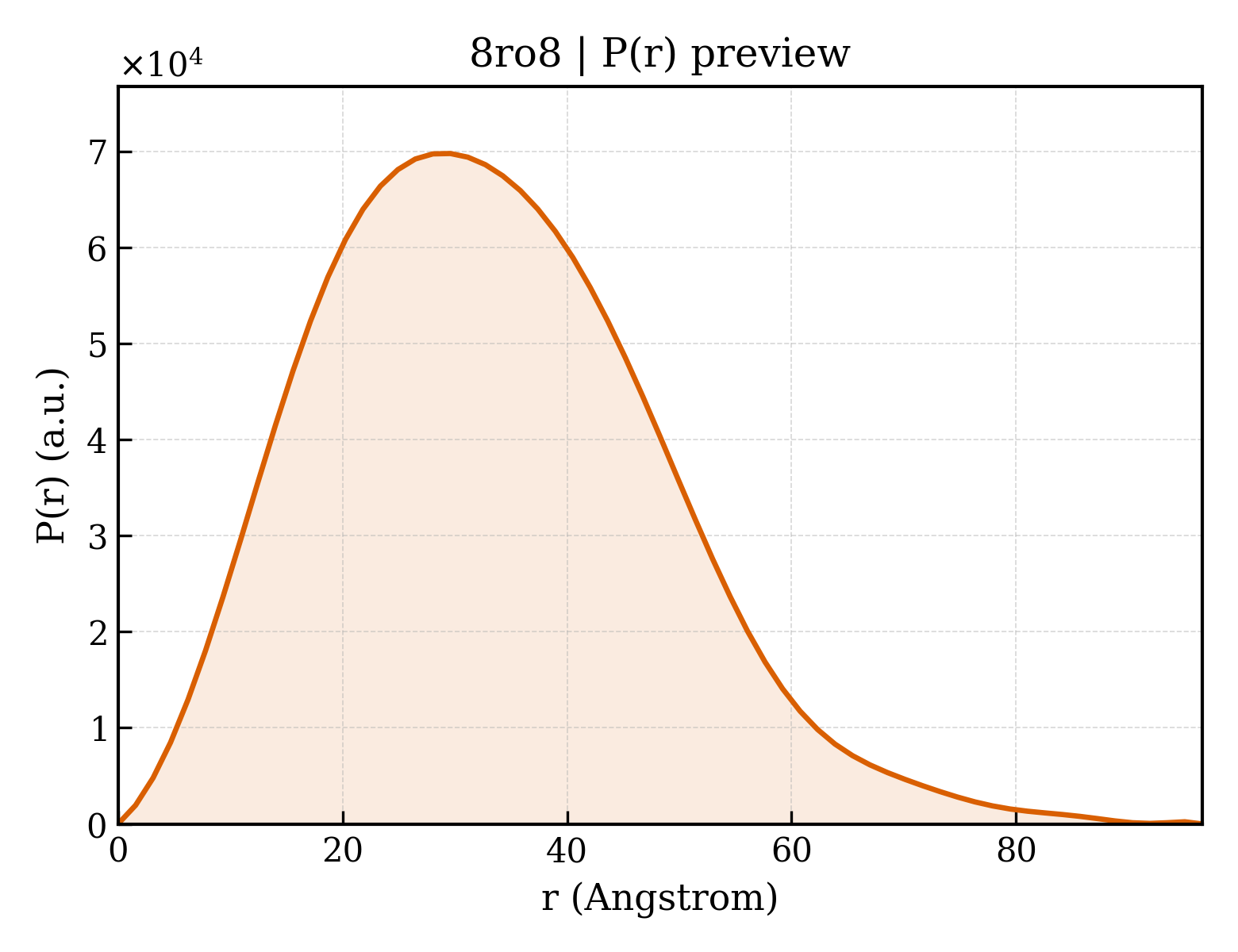

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ro8
Deposition date deposition_date	2024-01-11
Structure title title	Human cohesin SMC1A-HD(longCC-EQ)/RAD21-C complex - Apo closed P-loop conformation
Keywords keywords	3D genome organization, Chromatin, Cohesin, ATPase activity, ATPase cycle, NUCLEAR PROTEIN; NUCLEAR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.51 Å
Radius of gyration Rg (electron density) rg_electron	24.62 Å
Forward intensity I(0) i0	34128800.00
Molecular weight molecular_weight	46199.0 kDa
Excluded volume excluded_volume	58358 Å³
Envelope volume envelope_volume	70822 Å³
Hydration-shell volume shell_volume	25017 Å³
Envelope diameter envelope_diameter	99.9 Å
Shell Rg shell_rg	30.49 Å
Envelope Rg envelope_rg	25.22 Å
Shape Rg shape_rg	24.59 Å
Total Rg total_rg	25.41 Å
Total atoms total_atoms	3258
Residues n_residues	413
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.6 Å
Rg (real space) rg_real	25.57 Å
Rg uncertainty (real space) rg_real_error	0.86 Å
I(0) (real space) i0_real	3.4130e+07
I(0) uncertainty (real space) i0_real_error	5.3170e+05
Rg (reciprocal space) rg_reciprocal	25.55 Å
I(0) (reciprocal space) i0_reciprocal	34130000.0000
Solution quality estimate total_estimate	0.8248
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.6 Å
Skewness Skewness skewness	0.467
Kurtosis Kurtosis kurtosis	0.082
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6602000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.629; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.853; Smooth: 0.980

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Structural maintenance of chromosomes protein 1A
Molecular weight formula_weight	51443.2 kDa
Mutation mutation	E1157Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3420

MGFLKLIEIENFKSYKGRQIIGPFQRFTAIIGPNGSGKSNLMDAISFVLGEKTSNLRVKTLRDLIHGAPVGKPAANRAFVSMVYSEEGAEDRTFARVIVGGSSEYKINNKVVQLHEYSEELEKLGILIKARNFLVFQGAVESIAMKNPKERTALFEEISRSGELAQEYDKRKKEMVKAEEDTQFNYHRKKNIAAERKEAKESSKHPTSLVPRGSDAQAEEEIKQEMNTLQQKLNEQQSVLQRIAAPNMKAMEKLESVRDKFQETSDEFEAARKRAKKAKQAFEQIKKERFDRFNACFESVATNIDEIYKALSRNSSAQAFLGPENPEEPYLDGINYNCVAPGKRFRPMDNLSGGEKTVAALALLFAIHSYKPAPFFVLDQIDAALDNTNIGKVANYIKEQSTCNFQAIVISLKEEFYTKAESLIGVYPEQGDCVISKVLTFDLTKYPDANPNPNEQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	64-kDa C-terminal product
Molecular weight formula_weight	9203.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKRTQQMLHGLQRALAKTGAESISLLELCRNTNRKQAAAKFYSFLVLKKQQAIELTQEEPYSDIIATPGPRFHGSLEVLFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	132

▶

8. Citations (1)

▶

Unit-cell length a length_a	158.550 Å
Unit-cell length b length_b	67.069 Å
Unit-cell length c length_c	51.629 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.32 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.902 Å
Low-resolution limit resolution_low	44.062 Å
R factor r_factor	0.1971
R_work r_work	0.1952
R_free r_free	0.2313

fit	/app/data/saxs_computation/ro/8ro8/8ro8.fit
pddf	/app/data/pr_computation/ro/8ro8/8ro8.pr.out
profile	/app/data/saxs_computation/ro/8ro8/8ro8.dat
