7w1m

Cryo-EM structure of human cohesin-CTCF-DNA complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural maintenance of chromosomes protein 1A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Double-strand-break repair protein rad21 homolog × 1 （O60216） Cohesin subunit SA-1 × 1 （Q8WVM7） Nipped-B-like protein × 1 （Q6KC79） DNA (118-MER) × 1 DNA (118-MER) × 1 Transcriptional repressor CTCF × 1 （P49711） ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 ZINC ION × 11	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1233； UniProt 1–1233

Structural maintenance of chromosomes protein 3

Homo sapiens

UniProt Q9UQE7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Double-strand-break repair protein rad21 homolog × 1 （O60216） Cohesin subunit SA-1 × 1 （Q8WVM7） Nipped-B-like protein × 1 （Q6KC79） DNA (118-MER) × 1 DNA (118-MER) × 1 Transcriptional repressor CTCF × 1 （P49711） ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 ZINC ION × 11	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1217； UniProt 1–1217

Double-strand-break repair protein rad21 homolog

Homo sapiens

UniProt O60216

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Cohesin subunit SA-1 × 1 （Q8WVM7） Nipped-B-like protein × 1 （Q6KC79） DNA (118-MER) × 1 DNA (118-MER) × 1 Transcriptional repressor CTCF × 1 （P49711） ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 ZINC ION × 11	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD21_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–631； UniProt 1–631

Cohesin subunit SA-1

Homo sapiens

UniProt Q8WVM7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Double-strand-break repair protein rad21 homolog × 1 （O60216） Nipped-B-like protein × 1 （Q6KC79） DNA (118-MER) × 1 DNA (118-MER) × 1 Transcriptional repressor CTCF × 1 （P49711） ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 ZINC ION × 11	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STAG1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–1258； UniProt 1–1258

Nipped-B-like protein

Homo sapiens

UniProt Q6KC79

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Double-strand-break repair protein rad21 homolog × 1 （O60216） Cohesin subunit SA-1 × 1 （Q8WVM7） DNA (118-MER) × 1 DNA (118-MER) × 1 Transcriptional repressor CTCF × 1 （P49711） ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 ZINC ION × 11	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NIPBL_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–1467； UniProt 1164–2630

Transcriptional repressor CTCF

Homo sapiens

UniProt P49711

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	Structural maintenance of chromosomes protein 1A × 1 （Q14683） Structural maintenance of chromosomes protein 3 × 1 （Q9UQE7） Double-strand-break repair protein rad21 homolog × 1 （O60216） Cohesin subunit SA-1 × 1 （Q8WVM7） Nipped-B-like protein × 1 （Q6KC79） DNA (118-MER) × 1 DNA (118-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 ZINC ION × 11	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTCF_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain H； PDBConstruct 1–727； UniProt 1–727

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7w1m
Deposition date deposition_date	2021-11-19
Structure title title	Cryo-EM structure of human cohesin-CTCF-DNA complex
Keywords keywords	;Cohesin, NIPBL, CTCF, DNA, chromosome folding, topologically associating domain, chromatin loops, DNA loop extrusion, sister chromatid cohesion, complex, ATPase, HEAT repeat protein, DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA complex ;; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7w1m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

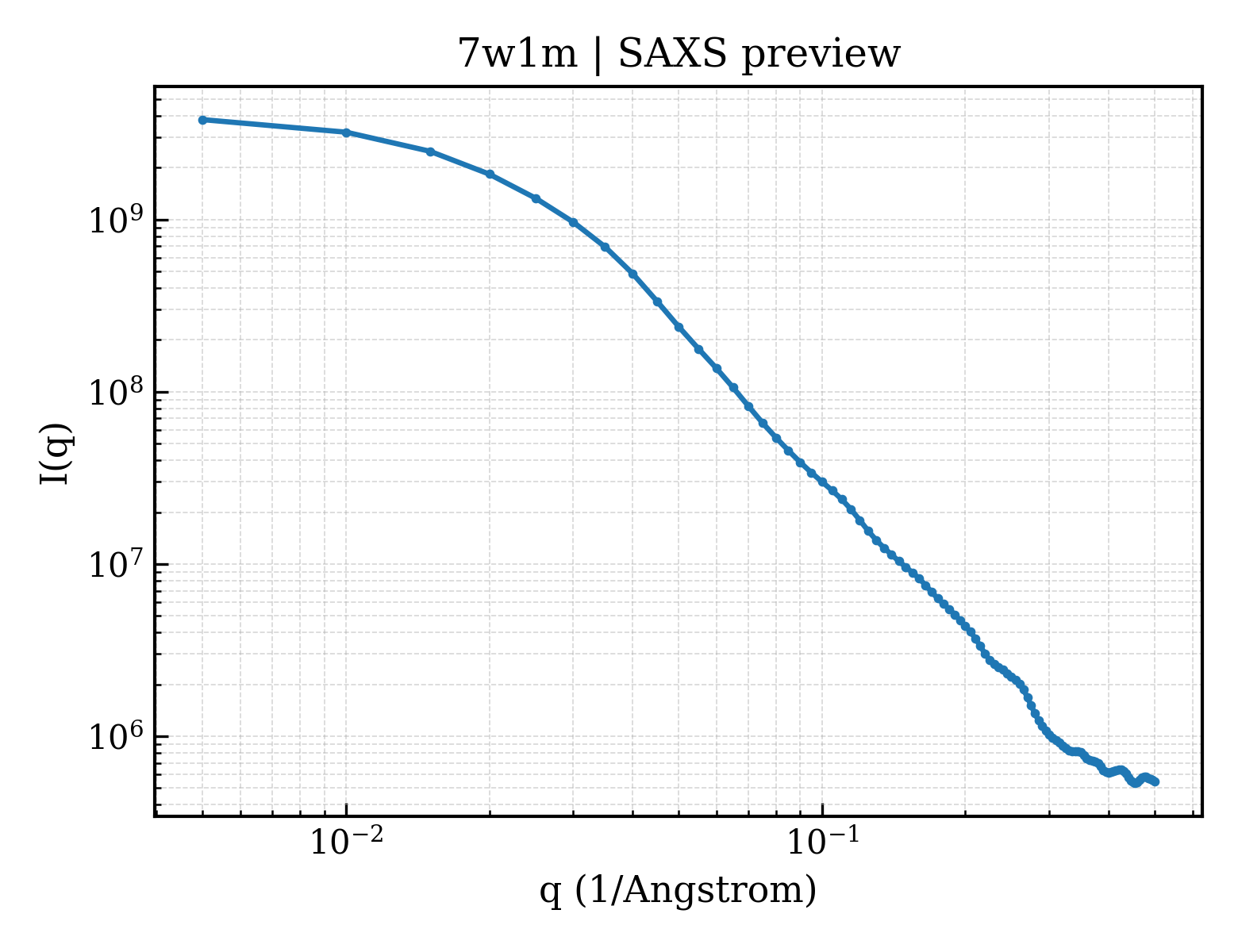

7w1m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

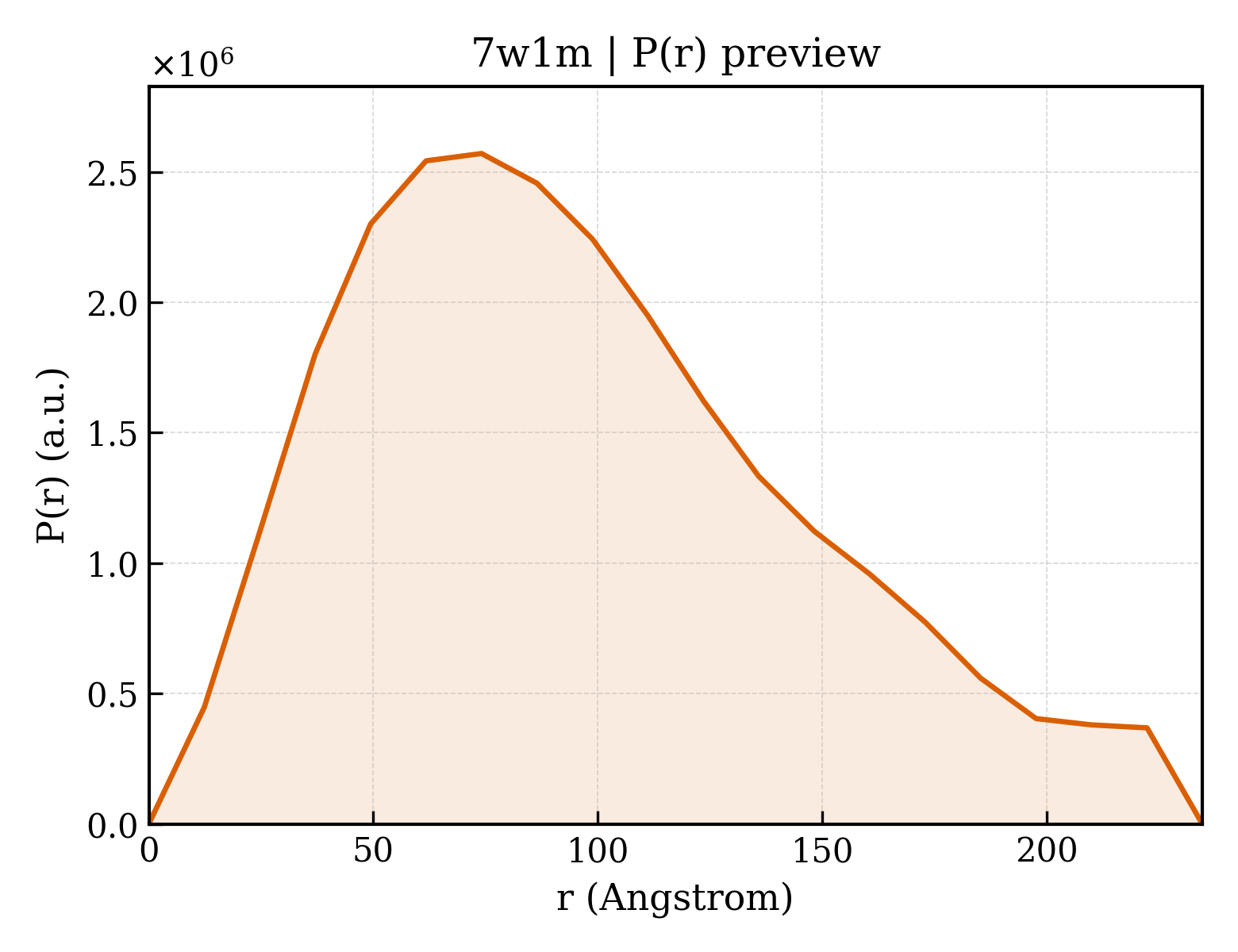

7w1m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	82.29 Å
Rg (electron density)	80.47 Å
Total Rg	81.01 Å
Atom count	34251
Residues	3904
Excluded volume	598230 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7w1m__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Structural maintenance of chromosomes protein 1A
Molecular weight formula_weight	143485.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	34251

MGFLKLIEIENFKSYKGRQIIGPFQRFTAIIGPNGSGKSNLMDAISFVLGEKTSNLRVKTLRDLIHGAPVGKPAANRAFVSMVYSEEGAEDRTFARVIVGGSSEYKINNKVVQLHEYSEELEKLGILIKARNFLVFQGAVESIAMKNPKERTALFEEISRSGELAQEYDKRKKEMVKAEEDTQFNYHRKKNIAAERKEAKQEKEEADRYQRLKDEVVRAQVQLQLFKLYHNEVEIEKLNKELASKNKEIEKDKKRMDKVEDELKEKKKELGKMMREQQQIEKEIKEKDSELNQKRPQYIKAKENTSHKIKKLEAAKKSLQNAQKHYKKRKGDMDELEKEMLSVEKARQEFEERMEEESQSQGRDLTLEENQVKKYHRLKEEASKRAATLAQELEKFNRDQKADQDRLDLEERKKVETEAKIKQKLREIEENQKRIEKLEEYITTSKQSLEEQKKLEGELTEEVEMAKRRIDEINKELNQVMEQLGDARIDRQESSRQQRKAEIMESIKRLYPGSVYGRLIDLCQPTQKKYQIAVTKVLGKNMDAIIVDSEKTGRDCIQYIKEQRGEPETFLPLDYLEVKPTDEKLRELKGAKLVIDVIRYEPPHIKKALQYACGNALVCDNVEDARRIAFGGHQRHKTVALDGTLFQKSGVISGGASDLKAKARRWDEKAVDKLKEKKERLTEELKEQMKAKRKEAELRQVQSQAHGLQMRLKYSQSDLEQTKTRHLALNLQEKSKLESELANFGPRINDIKRIIQSREREMKDLKEKMNQVEDEVFEEFCREIGVRNIREFEEEKVKRQNEIAKKRLEFENQKTRLGIQLDFEKNQLKEDQDKVHMWEQTVKKDENEIEKLKKEEQRHMKIIDETMAQLQDLKNQHLAKKSEVNDKNHEMEEIRKKLGGANKEMTHLQKEVTAIETKLEQKRSDRHNLLQACKMQDIKLPLSKGTMDDISQEEGSSQGEDSVSGSQRISSIYAREALIEIDYGDLCEDLKDAQAEEEIKQEMNTLQQKLNEQQSVLQRIAAPNMKAMEKLESVRDKFQETSDEFEAARKRAKKAKQAFEQIKKERFDRFNACFESVATNIDEIYKALSRNSSAQAFLGPENPEEPYLDGINYNCVAPGKRFRPMDNLSGGEKTVAALALLFAIHSYKPAPFFVLDEIDAALDNTNIGKVANYIKEQSTCNFQAIVISLKEEFYTKAESLIGVYPEQGDCVISKVLTFDLTKYPDANPNPNEQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Structural maintenance of chromosomes protein 3
Molecular weight formula_weight	141771.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MYIKQVIIQGFRSYRDQTIVDPFSSKHNVIVGRNGSGKSNFFYAIQFVLSDEFSHLRPEQRLALLHEGTGPRVISAFVEIIFDNSDNRLPIDKEEVSLRRVIGAKKDQYFLDKKMVTKNDVMNLLESAGFSRSNPYYIVKQGKINQMATAPDSQRLKLLREVAGTRVYDERKEESISLMKETEGKREKINELLKYIEERLHTLEEEKEELAQYQKWDKMRRALEYTIYNQELNETRAKLDELSAKRETSGEKSRQLRDAQQDARDKMEDIERQVRELKTKISAMKEEKEQLSAERQEQIKQRTKLELKAKDLQDELAGNSEQRKRLLKERQKLLEKIEEKQKELAETEPKFNSVKEKEERGIARLAQATQERTDLYAKQGRGSQFTSKEERDKWIKKELKSLDQAINDKKRQIAAIHKDLEDTEANKEKNLEQYNKLDQDLNEVKARVEELDRKYYEVKNKKDELQSERNYLWREENAEQQALAAKREDLEKKQQLLRAATGKAILNGIDSINKVLDHFRRKGINQHVQNGYHGIVMNNFECEPAFYTCVEVTAGNRLFYHIVDSDEVSTKILMEFNKMNLPGEVTFLPLNKLDVRDTAYPETNDAIPMISKLRYNPRFDKAFKHVFGKTLICRSMEVSTQLARAFTMDCITLEGDQVSHRGALTGGYYDTRKSRLELQKDVRKAEEELGELEAKLNENLRRNIERINNEIDQLMNQMQQIETQQRKFKASRDSILSEMKMLKEKRQQSEKTFMPKQRSLQSLEASLHAMESTRESLKAELGTDLLSQLSLEDQKRVDALNDEIRQLQQENRQLLNERIKLEGIITRVETYLNENLRKRLDQVEQELNELRETEGGTVLTATTSELEAINKRVKDTMARSEDLDNSIDKTEAGIKELQKSMERWKNMEKEHMDAINHDTKELEKMTNRQGMLLKKKEECMKKIRELGSLPQEAFEKYQTLSLKQLFRKLEQCNTELKKYSHVNKKALDQFVNFSEQKEKLIKRQEELDRGYKSIMELMNVLELRKYEAIQLTFKQVSKNFSEVFQKLVPGGKATLVMKKGDVEGSQSQDEGEGSGESERGSGSQSSVPSVDQFTGVGIRVSFTGKQGEMREMQQLSGGQKSLVALALIFAIQKCDPAPFYLFDEIDQALDAQHRKAVSDMIMELAVHAQFITTTFRPELLESADKFYGVKFRNKVSHIDVITAEMAKDFVEDDTTHG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Double-strand-break repair protein rad21 homolog
Molecular weight formula_weight	71556.1 kDa
Mutation mutation	R172A, D279A, R450A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MFYAHFVLSKRGPLAKIWLAAHWDKKLTKAHVFECNLESSVESIISPKVKMALRTSGHLLLGVVRIYHRKAKYLLADCNEAFIKIKMAFRPGVVDLPEENREAAYNAITLPEEFHDFDQPLPDLDDIDVAQQFSLNQSRVEEITMREEVGNISILQENDFGDFGMDDREIMAEGSAFEDDDMLVSTTTSNLLLESEQSTSNLNEKINHLEYEDQYKDDNFGEGNDGGILDDKLISNNDGGIFDDPPALSEAGVMLPEQPAHDDMDEDDNVSMGGPDSPASVDPVEPMPTMTDQTTLVPNEEEAFALEPIDITVKETKAKRKRKLIVDSVKELDSKTIRAQLSDYSDIVTTLDLAPPTKKLMMWKETGGVEKLFSLPAQPLWNNRLLKLFTRCLTPLVPEDLRKRRKGGEADNLDEFLKEFENPEVPREDQQQQHQQRDVIDEPIIEEPSALQESVMEASRTNIDESAMPPPPPQGVKRKAGQIDPEPVMPPQQVEQMEIPPVELPPEEPPNICQLIPELELLPEKEKEKEKEKEDDEEEEDEDASGGDQDQEERRWNKRTQQMLHGLQRALAKTGAESISLLELCRNTNRKQAAAKFYSFLVLKKQQAIELTQEEPYSDIIATPGPRFHII

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Cohesin subunit SA-1
Molecular weight formula_weight	144617.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MITSELPVLQDSTNETTAHSDAGSELEETEVKGKRKRGRPGRPPSTNKKPRKSPGEKSRIEAGIRGAGRGRANGHPQQNGEGEPVTLFEVVKLGKSAMQSVVDDWIESYKQDRDIALLDLINFFIQCSGCRGTVRIEMFRNMQNAEIIRKMTEEFDEDSGDYPLTMPGPQWKKFRSNFCEFIGVLIRQCQYSIIYDEYMMDTVISLLTGLSDSQVRAFRHTSTLAAMKLMTALVNVALNLSIHQDNTQRQYEAERNKMIGKRANERLELLLQKRKELQENQDEIENMMNSIFKGIFVHRYRDAIAEIRAICIEEIGVWMKMYSDAFLNDSYLKYVGWTLHDRQGEVRLKCLKALQSLYTNRELFPKLELFTNRFKDRIVSMTLDKEYDVAVEAIRLVTLILHGSEEALSNEDCENVYHLVYSAHRPVAVAAGEFLHKKLFSRHDPQAEEALAKRRGRNSPNGNLIRMLVLFFLESELHEHAAYLVDSLWESSQELLKDWECMTELLLEEPVQGEEAMSDRQESALIELMVCTIRQAAEAHPPVGRGTGKRVLTAKERKTQIDDRNKLTEHFIITLPMLLSKYSADAEKVANLLQIPQYFDLEIYSTGRMEKHLDALLKQIKFVVEKHVESDVLEACSKTYSILCSEEYTIQNRVDIARSQLIDEFVDRFNHSVEDLLQEGEEADDDDIYNVLSTLKRLTSFHNAHDLTKWDLFGNCYRLLKTGIEHGAMPEQIVVQALQCSHYSILWQLVKITDGSPSKEDLLVLRKTVKSFLAVCQQCLSNVNTPVKEQAFMLLCDLLMIFSHQLMTGGREGLQPLVFNPDTGLQSELLSFVMDHVFIDQDEENQSMEGDEEDEANKIEALHKRRNLLAAFSKLIIYDIVDMHAAADIFKHYMKYYNDYGDIIKETLSKTRQIDKIQCAKTLILSLQQLFNELVQEQGPNLDRTSAHVSGIKELARRFALTFGLDQIKTREAVATLHKDGIEFAFKYQNQKGQEYPPPNLAFLEVLSEFSSKLLRQDKKTVHSYLEKFLTEQMMERREDVWLPLISYRNSLVTGGEDDRMSVNSGSSSSKTSSVRNKKGRPPLHKKRVEDESLDNTWLNRTDTMIQTPGPLPAPQLTSTVLRENSRPMGDQIQEPESEHGSEPDFLHNPQMQISWLGQPKLEDLNRKDRTGMNYMKVRTGVRHAVRGLMEEDAEPIFEDVMMSSRSQLEDMNEEFEDTMVIDLPPSRNRRERAELRPDFFDSAAIIEDDSGFGMPMF

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Nipped-B-like protein
Molecular weight formula_weight	167830.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

SLSEVARKMKKKEKQKKRKAYEPKLTPEEMMDSSTFKRFTASIENILDNLEDMDFTAFGDDDEIPQELLLGKHQLNELGSESAKIKAMGIMDKLSTDKTVKVLNILEKNIQDGSKLSTLLNHNNDTEEEERLWRDLIMERVTKSADACLTTINIMTSPNMPKAVYIEDVIERVIQYTKFHLQNTLYPQYDPVYRLDPHGGGLLSSKAKRAKCSTHKQRVIVMLYNKVCDIVSSLSELLEIQLLTDTTILQVSSMGITPFFVENVSELQLCAIKLVTAVFSRYEKHRQLILEEIFTSLARLPTSKRSLRNFRLNSSDMDGEPMYIQMVTALVLQLIQCVVHLPSSEKDSNAEEDSNKKIDQDVVITNSYETAMRTAQNFLSIFLKKCGSKQGEEDYRPLFENFVQDLLSTVNKPEWPAAELLLSLLGRLLVHQFSNKSTEMALRVASLDYLGTVAARLRKDAVTSKMDQGSIERILKQVSGGEDEIQQLQKALLDYLDENTETDPSLVFSRKFYIAQWFRDTTLETEKAMKSQKDEESSEGTHHAKEIETTGQIMHRAENRKKFLRSIIKTTPSQFSTLKMNSDTVDYDDACLIVRYLASMRPFAQSFDIYLTQILRVLGENAIAVRTKAMKCLSEVVAVDPSILARLDMQRGVHGRLMDNSTSVREAAVELLGRFVLCRPQLAEQYYDMLIERILDTGISVRKRVIKILRDICIEQPTFPKITEMCVKMIRRVNDEEGIKKLVNETFQKLWFTPTPHNDKEAMTRKILNITDVVAACRDTGYDWFEQLLQNLLKSEEDSSYKPVKKACTQLVDNLVEHILKYEESLADSDNKGVNSGRLVACITTLFLFSKIRPQLMVKHAMTMQPYLTTKCSTQNDFMVICNVAKILELVVPLMEHPSETFLATIEEDLMKLIIKYGMTVVQHCVSCLGAVVNKVTQNFKFVWACFNRYYGAISKLKSQHQEDPNNTSLLTNKPALLRSLFTVGALCRHFDFDLEDFKGNSKVNIKDKVLELLMYFTKHSDEEVQTKAIIGLGFAFIQHPSLMFEQEVKNLYNNILSDKNSSVNLKIQVLKNLQTYLQEEDTRMQQADRDWKKVAKQEDLKEMGDVSSGMSSSIMQLYLKQVLEAFFHTQSSVRHFALNVIALTLNQGLIHPVQCVPYLIAMGTDPEPAMRNKADQQLVEIDKKYAGFIHMKAVAGMKMSYQVQQAINTCLKDPVRGFRQDESSSALCSHLYSMIRGNRQHRRAFLISLLNLFDDTAKTDVTMLLYIADNLACFPYQTQEEPLFIMHHIDITLSVSGSNLLQSFKESMVKDKRKERKSSPSKENESSDSEEEVSRPRKSRKRVDSDSDSDSEDDINSVMKCLPENSAPLIEFANVSQGILLLLMLKQHLKNLCGFSDSKIQKYSPSESAKVYDKAINRKTGVHFHPKQTLDFLRSDMANSKITEEVKRSIVKQYLDFKLLMEHLDP

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	DNA (118-MER)
Molecular weight formula_weight	36202.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

GATAAATTCTTGTTTTCATATCCTAAAATTAAAGGGAAAATAAACAATACATAACAAAACATATAAAAACCACCTCACTAGCGCCCCCTGCTGGCCTCTGTGGGCACTGCAATCTTGC

Entity 7 Entity 7 polymer

Description description	DNA (118-MER)
Molecular weight formula_weight	36605.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	G

GCAAGATTGCAGTGCCCACAGAGGCCAGCAGGGGGCGCTAGTGAGGTGGTTTTTATATGTTTTGTTATGTATTGTTTATTTTCCCTTTAATTTTAGGATATGAAAACAAGAATTTATC

Entity 8 Entity 8 polymer

Description description	Transcriptional repressor CTCF
Molecular weight formula_weight	82928.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MEGDAVEAIVEESETFIKGKERKTYQRRREGGQEEDACHLPQNQTDGGEVVQDVNSSVQMVMMEQLDPTLLQMKTEVMEGTVAPEAEAAVDDTQIITLQVVNMEEQPINIGELQLVQVPVPVTVPVATTSVEELQGAYENEVSKEGLAESEPMICHTLPLPEGFQVVKVGANGEVETLEQGELPPQEDPSWQKDPDYQPPAKKTKKTKKSKLRYTEEGKDVDVSVYDFEEEQQEGLLSEVNAEKVVGNMKPPKPTKIKKKGVKKTFQCELCSYTCPRRSNLDRHMKSHTDERPHKCHLCGRAFRTVTLLRNHLNTHTGTRPHKCPDCDMAFVTSGELVRHRRYKHTHEKPFKCSMCDYASVEVSKLKRHIRSHTGERPFQCSLCSYASRDTYKLKRHMRTHSGEKPYECYICHARFTQSGTMKMHILQKHTENVAKFHCPHCDTVIARKSDLGVHLRKQHSYIEQGKKCRYCDAVFHERYALIQHQKSHKNEKRFKCDQCDYACRQERHMIMHKRTHTGEKPYACSHCDKTFRQKQLLDMHFKRYHDPNFVPAAFVCSKCGKTFTRRNTMARHADNCAGPDGVEGENGGETKKSKRGRKRKMRSKKEDSSDSENAEPDLDDNEDEEEPAVEIEPEPEPQPVTPAPPPAKKRRGRPPGRTNQPKQNQPTAIIQVEDQNTGAIENIIVEVKKEPDAEPAEGEEEEAQPAATDAPNGDLTPEMILSMMDR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	BERYLLIUM TRIFLUORIDE ION
Molecular weight formula_weight	66.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	11

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	6.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	42704
