SAXSdb — 7czg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RB1-inducible coiled-coil protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1490–1594 Chain C； UniProt 1490–1594	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；289 K；Sodium citrate tribasic dihydrate pH 5.0, Jeffamine ED-2001 pH 7.0	Resolution 1.80 Å R-free 0.230
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1490–1594 Chain D； UniProt 1490–1594	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；289 K；Sodium citrate tribasic dihydrate pH 5.0, Jeffamine ED-2001 pH 7.0	Resolution 1.80 Å R-free 0.230

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7CZG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6DCE X-ray structure of FIP200 claw domain Deposited 2018-05-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1494–1594（101 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.1 M HEPES pH 7.4, 2 M Ammonium sulfate	Resolution 1.56 Å R-free 0.241
6GMA Crystal structure of the FIP200 C-terminal region Deposited 2018-05-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1458–1594（137 aa） Chain B 1458–1594（137 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES pH 6.0, 1.0 M LiCl, 14% PEG 6000	Resolution 3.20 Å R-free 0.295
6GMA Crystal structure of the FIP200 C-terminal region Deposited 2018-05-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1458–1594（137 aa） Chain D 1458–1594（137 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES pH 6.0, 1.0 M LiCl, 14% PEG 6000	Resolution 3.20 Å R-free 0.295
6GMA Crystal structure of the FIP200 C-terminal region Deposited 2018-05-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1458–1594（137 aa） Chain F 1458–1594（137 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES pH 6.0, 1.0 M LiCl, 14% PEG 6000	Resolution 3.20 Å R-free 0.295
7CZM Crystal structure of FIP200 Claw/p-OPtineurin LIR complex Deposited 2020-09-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1490–1594（105 aa） Chain B 1490–1594（105 aa）	Not recorded	GOL GLYCEROL × 2 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Potassium iodide, MES pH 6.5, PEG 4000	Resolution 2.00 Å R-free 0.223
7D0E Crystal structure of FIP200 Claw/p-CCPG1 FIR2 Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1490–1594（105 aa）	Not recorded	GO9 3-(2-hydroxyethyloxy)-2-[2-(2-hydroxyethyloxy)ethoxymethyl]-2-(2-hydroxyethyloxymethyl)propan-1-ol × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；KCl, Pentaerythritol ethoxylate (15/4 EO/OH), MES	Resolution 1.40 Å R-free 0.207
7EA2 crystal structure of NAP1 FIR in complex with RB1CC1 Claw domain Deposited 2021-03-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Chain B 1490–1594（105 aa）	Not recorded	P6G HEXAETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 2 FLC CITRATE ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M phosphate/citrate pH 4.2, 40% PEG300	Resolution 2.14 Å R-free 0.232
7EAA crystal structure of NDP52 SKICH domain in complex with RB1CC1 coiled-coil domain Deposited 2021-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1286–1395（110 aa） Chain D 1286–1395（110 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M MgCl2, 0.1 M MES pH 6.0, 8% PEG6000	Resolution 2.60 Å R-free 0.253
8SOI Structure of human ULK1 complex core (2:1:1 stoichiometry) Deposited 2023-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–600（600 aa） Chain B 1–600（600 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8SQZ Structure of human ULK1 complex core (2:2:2 stoichiometry) in the PI3KC3-C1 mixture Deposited 2023-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–640（640 aa） Chain B 1–640（640 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.85 Å
8SRM Structure of human ULK1 complex core (2:2:2 stoichiometry) of the ATG13(450-517) mutant Deposited 2023-05-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–640（640 aa） Chain B 1–640（640 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.46 Å
8W6B crystal structure of TAX1BP1 SKICH domain in complex with RB1CC1 coiled-coil domain Deposited 2023-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1343–1395（53 aa） Chain D 1343–1395（53 aa） Chain G 1343–1395（53 aa） Chain H 1343–1395（53 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；5% (w/v) PEG 4000, 50 mM Magnesium chloride, 100 mM MES at pH 6.5, 10% 2-propanol	Resolution 2.39 Å R-free 0.234
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1490–1594（105 aa） Fragment：claw domain	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1490–1594（105 aa） Fragment：claw domain	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1490–1594（105 aa） Fragment：claw domain	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFL crystal structure of FIP200 claw/TNIP1_FIR_pS122pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	GOL GLYCEROL × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% w/v PEG 6000, 0.1M MES, 5% v/v MPD, pH 6.5	Resolution 1.50 Å R-free 0.218
8YFL crystal structure of FIP200 claw/TNIP1_FIR_pS122pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1490–1594（105 aa） Fragment：claw domain	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% w/v PEG 6000, 0.1M MES, 5% v/v MPD, pH 6.5	Resolution 1.50 Å R-free 0.218
8YFM Crystal structure of FIP200 claw/TNIP1_FIR_pS122 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；25% v/v PEG smear medium, 0.1M sodium cacodylate, 0.2M ammonium sulfate, pH 5.5	Resolution 1.50 Å R-free 0.209
8YFM Crystal structure of FIP200 claw/TNIP1_FIR_pS122 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1490–1594（105 aa） Fragment：claw domain	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；25% v/v PEG smear medium, 0.1M sodium cacodylate, 0.2M ammonium sulfate, pH 5.5	Resolution 1.50 Å R-free 0.209
8YFN Crystal structure of FIP200 claw in complex with TNIP1_FIR_pS123 peptide with an elongated C terminus Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.2M imidazole malate, pH 5.5, 42% PEG 600	Resolution 2.30 Å R-free 0.236
8YFN Crystal structure of FIP200 claw in complex with TNIP1_FIR_pS123 peptide with an elongated C terminus Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1490–1594（105 aa） Fragment：claw domain	Not recorded	MG MAGNESIUM ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.2M imidazole malate, pH 5.5, 42% PEG 600	Resolution 2.30 Å R-free 0.236
9C82 Structure of human ULK1C:PI3KC3-C1 supercomplex Deposited 2024-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 1–640（640 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；added 0.05% (w/v) octylglucopyranoside as surfactant	Resolution 6.84 Å
9D34 FIP200 C-terminal CLAW domain (resid. 1490-1594) in complex with phosphorylated TNIP1 FIP200 interacting peptide Deposited 2024-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；Morpheus E4 (12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03 M of each ethylene glycol, 0.1 M MES/imidazole pH 6.5)	Resolution 1.42 Å R-free 0.234
9J54 Crystal structure of FIP200 Claw in complex with ATG16L1 Deposited 2024-08-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1490–1594（105 aa） Chain C 1490–1594（105 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；10% v/v 2-Propanol, 0.1 M BICINE (pH 8.5), 30% w/v Polyethylene glycol 1500	Resolution 1.61 Å R-free 0.216

17 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RBCC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–108； UniProt 1490–1594 Author chain B； PDBConstruct 4–108； UniProt 1490–1594 Author chain C； PDBConstruct 4–108； UniProt 1490–1594 Author chain D； PDBConstruct 4–108； UniProt 1490–1594

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7czg
Deposition date deposition_date	2020-09-08
Structure title title	Crystal structure of FIP200 Claw domain apo form
Keywords keywords	autophagy, FIP200, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.72 Å
Radius of gyration Rg (electron density) rg_electron	23.51 Å
Forward intensity I(0) i0	31002600.00
Molecular weight molecular_weight	45363.0 kDa
Excluded volume excluded_volume	57980 Å³
Envelope volume envelope_volume	74639 Å³
Hydration-shell volume shell_volume	26191 Å³
Envelope diameter envelope_diameter	93.5 Å
Shell Rg shell_rg	30.54 Å
Envelope Rg envelope_rg	23.53 Å
Shape Rg shape_rg	23.46 Å
Total Rg total_rg	24.59 Å
Total atoms total_atoms	3209
Residues n_residues	389
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

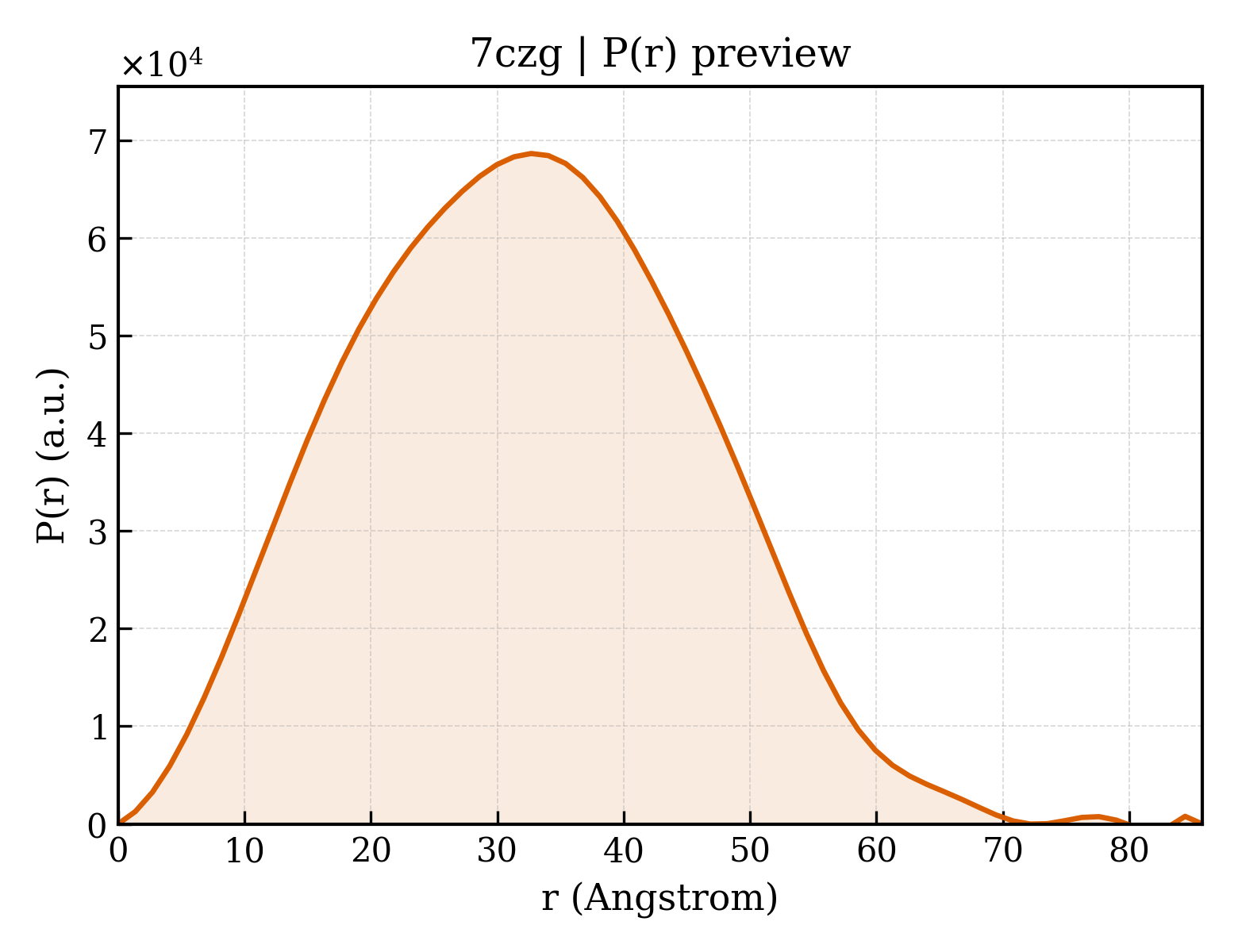

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	85.8 Å
Rg (real space) rg_real	24.57 Å
Rg uncertainty (real space) rg_real_error	0.68 Å
I(0) (real space) i0_real	3.1000e+07
I(0) uncertainty (real space) i0_real_error	4.8750e+05
Rg (reciprocal space) rg_reciprocal	24.61 Å
I(0) (reciprocal space) i0_reciprocal	31000000.0000
Solution quality estimate total_estimate	0.6029
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	32.7 Å
Skewness Skewness skewness	0.135
Kurtosis Kurtosis kurtosis	-0.455
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7223000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.769; Stabil: 0.999; Sysdev: 0.184; Positv: 1.000; Valcen: 0.980; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RB1-inducible coiled-coil protein 1
Molecular weight formula_weight	12387.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3418

AEFSRHSEKIAIRDFQVGDLVLIILDERHDNYVLFTVSPTLYFLHSESLPALDLKPGEGASGASRRPWVLGKVMEKEYCQAKKAQNRFKVPLGTKFYRVKAVSWNKKV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	209

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.544 Å
Unit-cell length b length_b	75.616 Å
Unit-cell length c length_c	99.364 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	39.370 Å
R factor r_factor	0.1912
R_work r_work	0.1892
R_free r_free	0.2295
