8w6b

crystal structure of TAX1BP1 SKICH domain in complex with RB1CC1 coiled-coil domain

Method: X-RAY DIFFRACTION D_max: 128.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tax1-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–121 Chain B； UniProt 1–121 Chain E； UniProt 1–121 Chain F； UniProt 1–121	Not recorded	RB1-inducible coiled-coil protein 1 × 4 （Q8TDY2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；289 K；5% (w/v) PEG 4000, 50 mM Magnesium chloride, 100 mM MES at pH 6.5, 10% 2-propanol	Resolution 2.39 Å R-free 0.234

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8W6B	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2M7Q Solution structure of TAX1BP1 UBZ1+2 Deposited 2013-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 725–789（65 aa） Fragment：UNP residues 725-789	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 0.5-1.0 mM [U-98% 13C; U-98% 15N] UBZ1+2-1, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain K 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4BMJ Structure of the UBZ1and2 tandem of the ubiquitin-binding adaptor protein TAX1BP1 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 725–789（65 aa） Fragment：RESIDUES 725-789	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS PH 8.5, 1 M LISO4	Resolution 2.75 Å R-free 0.255
4NLH SKICH domain of human TAX1BP1 Deposited 2013-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 15–147（133 aa） Chain B 15–147（133 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 3350, MES 7.2, KBr, pH 8.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.90 Å R-free 0.278
4NLH SKICH domain of human TAX1BP1 Deposited 2013-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 15–147（133 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 3350, MES 7.2, KBr, pH 8.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.90 Å R-free 0.278
4NLH SKICH domain of human TAX1BP1 Deposited 2013-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 15–147（133 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 3350, MES 7.2, KBr, pH 8.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.90 Å R-free 0.278
4Z4K Crystal structure of GFP-TAX1BP1 UBZ1+2 domain fusion protein Deposited 2015-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 725–781（57 aa） Fragment：UBZ1 and UBZ2 Chain B 725–781（57 aa） Fragment：UBZ1 and UBZ2	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.2 M Lithium sulfate monohydrate, 0.1 M Tris pH 8.5, 25% w/v PEG 3350.	Resolution 2.80 Å R-free 0.280
4Z4M Crystal structure of GFP-TAX1BP1 UBZ2 domain fusion protein Deposited 2015-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 755–781（27 aa） Fragment：UBZ2 Chain B 755–781（27 aa） Fragment：UBZ2	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.4；293 K；0.2 M Ammonium fluoride, 20% w/v Polyethylene glycol 3,350	Resolution 2.15 Å R-free 0.298
5AAS The selective autophagy receptor TAX1BP1 is required for autophagy- dependent capture of cytosolic Salmonella typhimurium Deposited 2015-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 722–784（63 aa） Fragment：RESIDUES 722-784	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1.0 NMR sample composition 95% WATER/5% D2O	Resolution not provided
5YT6 Crystal structure of TAX1BP1 UBZ2 in complex with mono-ubiquitin Deposited 2017-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 754–787（34 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Ammonium sulfate, BIS TRIS propane	Resolution 1.50 Å R-free 0.225
5YT6 Crystal structure of TAX1BP1 UBZ2 in complex with mono-ubiquitin Deposited 2017-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 754–787（34 aa）	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Ammonium sulfate, BIS TRIS propane	Resolution 1.50 Å R-free 0.225
5YT6 Crystal structure of TAX1BP1 UBZ2 in complex with mono-ubiquitin Deposited 2017-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 754–787（34 aa）	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Ammonium sulfate, BIS TRIS propane	Resolution 1.50 Å R-free 0.225
5YT6 Crystal structure of TAX1BP1 UBZ2 in complex with mono-ubiquitin Deposited 2017-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 754–787（34 aa）	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Ammonium sulfate, BIS TRIS propane	Resolution 1.50 Å R-free 0.225
5Z7G Crystal structure of TAX1BP1 SKICH region in complex with NAP1 Deposited 2018-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–121（121 aa） Chain B 1–121（121 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；PEG 8000, 0.1 M HEPES	Resolution 2.30 Å R-free 0.233
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 123–151（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0	Resolution 1.53 Å R-free 0.187
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 123–151（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0	Resolution 1.53 Å R-free 0.187
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 123–151（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0	Resolution 1.53 Å R-free 0.187
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 123–151（29 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0	Resolution 1.53 Å R-free 0.187

9 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TAXB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–121； UniProt 1–121 Author chain B； PDBConstruct 1–121； UniProt 1–121 Author chain E； PDBConstruct 1–121； UniProt 1–121 Author chain F； PDBConstruct 1–121； UniProt 1–121

RB1-inducible coiled-coil protein 1

Homo sapiens

UniProt Q8TDY2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain C； UniProt 1343–1395 Chain D； UniProt 1343–1395 Chain G； UniProt 1343–1395 Chain H； UniProt 1343–1395	Not recorded	Tax1-binding protein 1 × 4 （Q86VP1）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；289 K；5% (w/v) PEG 4000, 50 mM Magnesium chloride, 100 mM MES at pH 6.5, 10% 2-propanol	Resolution 2.39 Å R-free 0.234

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8W6B	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6DCE X-ray structure of FIP200 claw domain Deposited 2018-05-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1494–1594（101 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.1 M HEPES pH 7.4, 2 M Ammonium sulfate	Resolution 1.56 Å R-free 0.241
6GMA Crystal structure of the FIP200 C-terminal region Deposited 2018-05-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1458–1594（137 aa） Chain B 1458–1594（137 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES pH 6.0, 1.0 M LiCl, 14% PEG 6000	Resolution 3.20 Å R-free 0.295
6GMA Crystal structure of the FIP200 C-terminal region Deposited 2018-05-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1458–1594（137 aa） Chain D 1458–1594（137 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES pH 6.0, 1.0 M LiCl, 14% PEG 6000	Resolution 3.20 Å R-free 0.295
6GMA Crystal structure of the FIP200 C-terminal region Deposited 2018-05-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1458–1594（137 aa） Chain F 1458–1594（137 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES pH 6.0, 1.0 M LiCl, 14% PEG 6000	Resolution 3.20 Å R-free 0.295
7CZG Crystal structure of FIP200 Claw domain apo form Deposited 2020-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Chain C 1490–1594（105 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Sodium citrate tribasic dihydrate pH 5.0, Jeffamine ED-2001 pH 7.0	Resolution 1.80 Å R-free 0.230
7CZG Crystal structure of FIP200 Claw domain apo form Deposited 2020-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1490–1594（105 aa） Chain D 1490–1594（105 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Sodium citrate tribasic dihydrate pH 5.0, Jeffamine ED-2001 pH 7.0	Resolution 1.80 Å R-free 0.230
7CZM Crystal structure of FIP200 Claw/p-OPtineurin LIR complex Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1490–1594（105 aa） Chain B 1490–1594（105 aa）	Not recorded	GOL GLYCEROL × 2 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Potassium iodide, MES pH 6.5, PEG 4000	Resolution 2.00 Å R-free 0.223
7D0E Crystal structure of FIP200 Claw/p-CCPG1 FIR2 Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1490–1594（105 aa）	Not recorded	GO9 3-(2-hydroxyethyloxy)-2-[2-(2-hydroxyethyloxy)ethoxymethyl]-2-(2-hydroxyethyloxymethyl)propan-1-ol × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；KCl, Pentaerythritol ethoxylate (15/4 EO/OH), MES	Resolution 1.40 Å R-free 0.207
7EA2 crystal structure of NAP1 FIR in complex with RB1CC1 Claw domain Deposited 2021-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Chain B 1490–1594（105 aa）	Not recorded	P6G HEXAETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 2 FLC CITRATE ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M phosphate/citrate pH 4.2, 40% PEG300	Resolution 2.14 Å R-free 0.232
7EAA crystal structure of NDP52 SKICH domain in complex with RB1CC1 coiled-coil domain Deposited 2021-03-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1286–1395（110 aa） Chain D 1286–1395（110 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M MgCl2, 0.1 M MES pH 6.0, 8% PEG6000	Resolution 2.60 Å R-free 0.253
8SOI Structure of human ULK1 complex core (2:1:1 stoichiometry) Deposited 2023-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–600（600 aa） Chain B 1–600（600 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8SQZ Structure of human ULK1 complex core (2:2:2 stoichiometry) in the PI3KC3-C1 mixture Deposited 2023-05-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–640（640 aa） Chain B 1–640（640 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.85 Å
8SRM Structure of human ULK1 complex core (2:2:2 stoichiometry) of the ATG13(450-517) mutant Deposited 2023-05-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–640（640 aa） Chain B 1–640（640 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.46 Å
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1490–1594（105 aa） Fragment：claw domain	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1490–1594（105 aa） Fragment：claw domain	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFK Crystal structure of FIP200 claw/TNIP1_FIR_pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1490–1594（105 aa） Fragment：claw domain	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.018M magnesium chloride hexahydrate, 0.018M calcium chloride dehydrate, 0.1M imidazole, 0.1M MES, 0.1M monohydrate, 10% v/v MPD, 10% PEG 1000, 10% v/v PEG 3350, pH 6.5	Resolution 2.00 Å R-free 0.220
8YFL crystal structure of FIP200 claw/TNIP1_FIR_pS122pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	GOL GLYCEROL × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% w/v PEG 6000, 0.1M MES, 5% v/v MPD, pH 6.5	Resolution 1.50 Å R-free 0.218
8YFL crystal structure of FIP200 claw/TNIP1_FIR_pS122pS123 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1490–1594（105 aa） Fragment：claw domain	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% w/v PEG 6000, 0.1M MES, 5% v/v MPD, pH 6.5	Resolution 1.50 Å R-free 0.218
8YFM Crystal structure of FIP200 claw/TNIP1_FIR_pS122 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；25% v/v PEG smear medium, 0.1M sodium cacodylate, 0.2M ammonium sulfate, pH 5.5	Resolution 1.50 Å R-free 0.209
8YFM Crystal structure of FIP200 claw/TNIP1_FIR_pS122 Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1490–1594（105 aa） Fragment：claw domain	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；25% v/v PEG smear medium, 0.1M sodium cacodylate, 0.2M ammonium sulfate, pH 5.5	Resolution 1.50 Å R-free 0.209
8YFN Crystal structure of FIP200 claw in complex with TNIP1_FIR_pS123 peptide with an elongated C terminus Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa） Fragment：claw domain	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.2M imidazole malate, pH 5.5, 42% PEG 600	Resolution 2.30 Å R-free 0.236
8YFN Crystal structure of FIP200 claw in complex with TNIP1_FIR_pS123 peptide with an elongated C terminus Deposited 2024-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1490–1594（105 aa） Fragment：claw domain	Not recorded	MG MAGNESIUM ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.2M imidazole malate, pH 5.5, 42% PEG 600	Resolution 2.30 Å R-free 0.236
9C82 Structure of human ULK1C:PI3KC3-C1 supercomplex Deposited 2024-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 1–640（640 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；added 0.05% (w/v) octylglucopyranoside as surfactant	Resolution 6.84 Å
9D34 FIP200 C-terminal CLAW domain (resid. 1490-1594) in complex with phosphorylated TNIP1 FIP200 interacting peptide Deposited 2024-08-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1490–1594（105 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；Morpheus E4 (12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03 M of each ethylene glycol, 0.1 M MES/imidazole pH 6.5)	Resolution 1.42 Å R-free 0.234
9J54 Crystal structure of FIP200 Claw in complex with ATG16L1 Deposited 2024-08-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1490–1594（105 aa） Chain C 1490–1594（105 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；10% v/v 2-Propanol, 0.1 M BICINE (pH 8.5), 30% w/v Polyethylene glycol 1500	Resolution 1.61 Å R-free 0.216

17 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RBCC1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 5–57； UniProt 1343–1395 Author chain D； PDBConstruct 5–57； UniProt 1343–1395 Author chain G； PDBConstruct 5–57； UniProt 1343–1395 Author chain H； PDBConstruct 5–57； UniProt 1343–1395

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8w6b
Deposition date deposition_date	2023-08-28
最后修订 last_revision	2024-07-10
Structure title title	crystal structure of TAX1BP1 SKICH domain in complex with RB1CC1 coiled-coil domain
Keywords keywords	T6BP, Coiled coil, FIP200, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.77 Å
Radius of gyration Rg (electron density) rg_electron	34.51 Å
Forward intensity I(0) i0	89287100.00
Molecular weight molecular_weight	75486.0 kDa
Excluded volume excluded_volume	94390 Å³
Envelope volume envelope_volume	126330 Å³
Hydration-shell volume shell_volume	32045 Å³
Envelope diameter envelope_diameter	135.9 Å
Shell Rg shell_rg	39.22 Å
Envelope Rg envelope_rg	34.31 Å
Shape Rg shape_rg	34.49 Å
Total Rg total_rg	34.97 Å
Total atoms total_atoms	5339
Residues n_residues	644
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

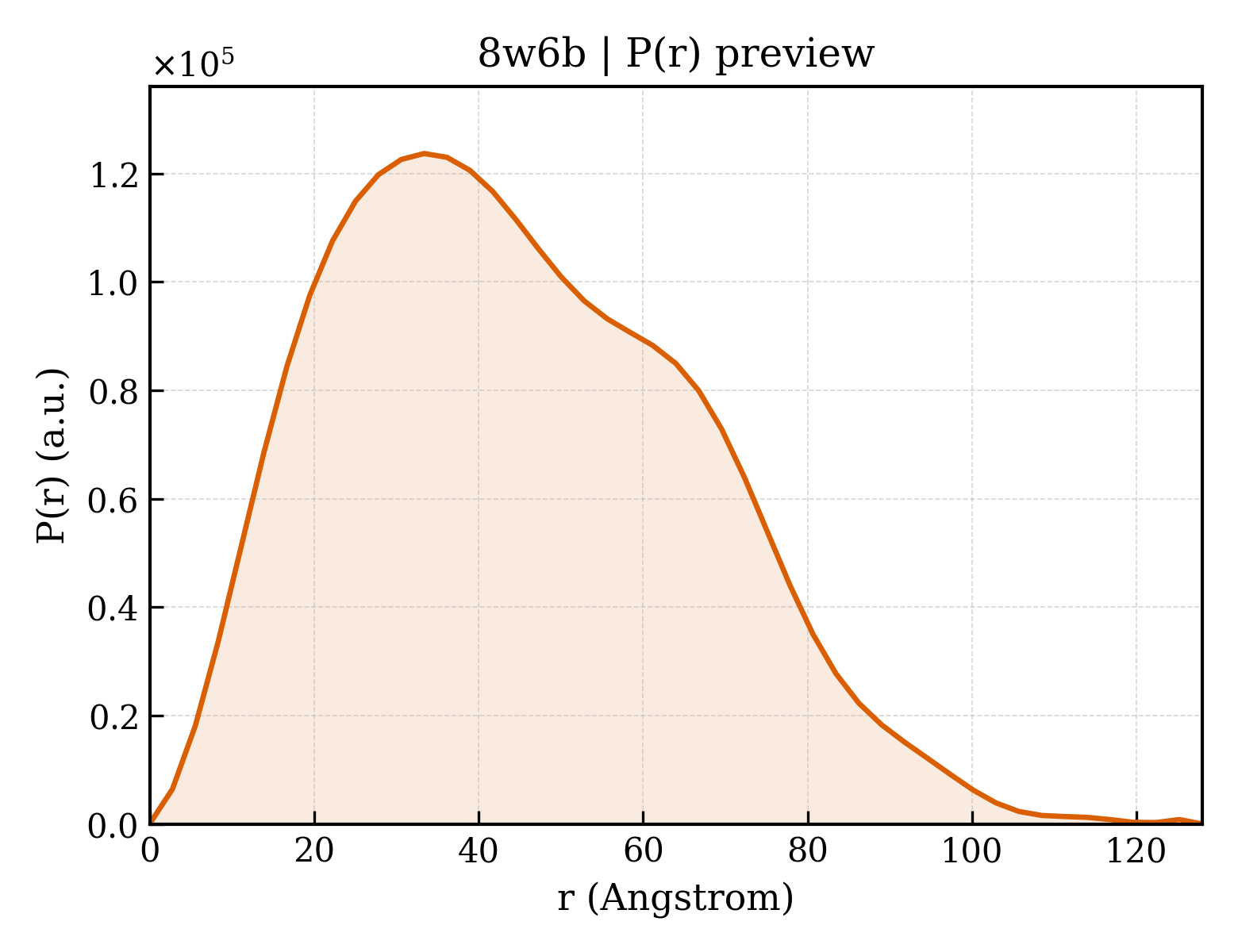

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.0 Å
Rg (real space) rg_real	34.95 Å
Rg uncertainty (real space) rg_real_error	1.50 Å
I(0) (real space) i0_real	8.9290e+07
I(0) uncertainty (real space) i0_real_error	1.6110e+06
Rg (reciprocal space) rg_reciprocal	34.84 Å
I(0) (reciprocal space) i0_reciprocal	89280000.0000
Solution quality estimate total_estimate	0.8249
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.4 Å
Skewness Skewness skewness	0.398
Kurtosis Kurtosis kurtosis	-0.414
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8409000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.690; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.756; Smooth: 0.892

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Tax1-binding protein 1
Molecular weight formula_weight	14137.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,E,F
Atom count atom_count	5499

MTSFQEVPLQTSNFAHVIFQNVAKSYLPNAHLECHYTLTPYIHPHPKDWVGIFKVGWSTARDYYTFLWSPMPEHYVEGSTVNCVLAFQGYYLPNDDGEFYQFCYVTHKGEIRGASTPFQFR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	RB1-inducible coiled-coil protein 1
Molecular weight formula_weight	6707.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D,G,H

GSEFKENIINDLSDKLKSTMQQQERDKDLIESLSEDRARLLEEKKKLEEEVSKLRSS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	160

▶

8. Citations (1)

▶

Unit-cell length a length_a	40.239 Å
Unit-cell length b length_b	86.815 Å
Unit-cell length c length_c	147.860 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.74 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.390 Å
Low-resolution limit resolution_low	42.700 Å
R factor r_factor	0.1952
R_work r_work	0.1931
R_free r_free	0.2342

fit	/app/data/saxs_computation/w6/8w6b/8w6b.fit
pddf	/app/data/pr_computation/w6/8w6b/8w6b.pr.out
profile	/app/data/saxs_computation/w6/8w6b/8w6b.dat
