SAXSdb — 8sqz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RB1-inducible coiled-coil protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Serine/threonine-protein kinase ULK1 × 2 （O75385） Autophagy-related protein 13 × 2 （O75143）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBCC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–640； UniProt 1–640 Author chain B； PDBConstruct 1–640； UniProt 1–640

Serine/threonine-protein kinase ULK1

Homo sapiens

UniProt O75385

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	RB1-inducible coiled-coil protein 1 × 2 （Q8TDY2） Autophagy-related protein 13 × 2 （O75143）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ULK1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–215； UniProt 836–1050 Author chain D； PDBConstruct 1–215； UniProt 836–1050

Autophagy-related protein 13

Homo sapiens

UniProt O75143

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	RB1-inducible coiled-coil protein 1 × 2 （Q8TDY2） Serine/threonine-protein kinase ULK1 × 2 （O75385）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATG13_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–155； UniProt 363–517 Author chain F； PDBConstruct 1–155； UniProt 363–517

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8sqz
Deposition date deposition_date	2023-05-04
Structure title title	Structure of human ULK1 complex core (2:2:2 stoichiometry) in the PI3KC3-C1 mixture
Keywords keywords	Autophagy, Protein kinase, Complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8sqz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

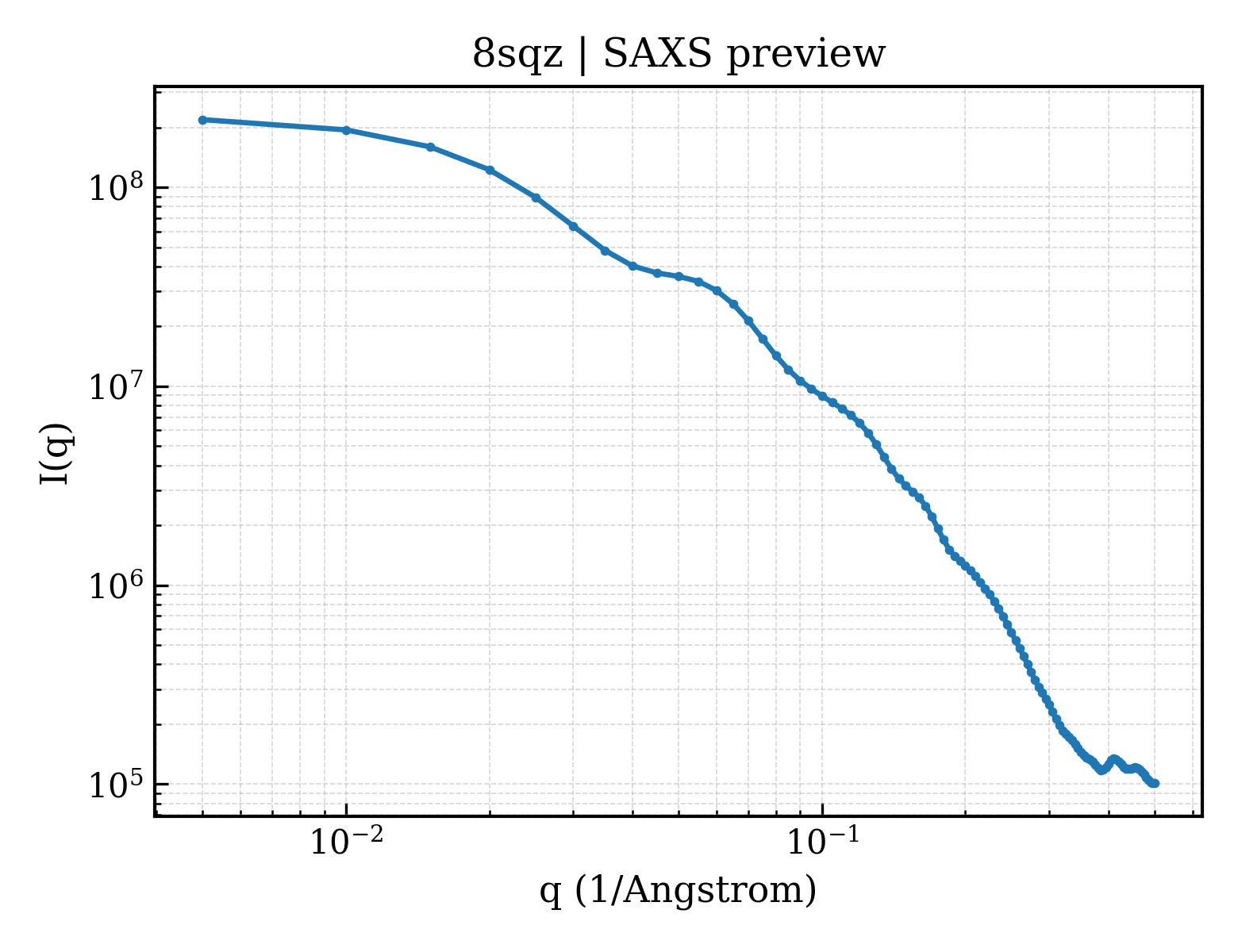

8sqz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

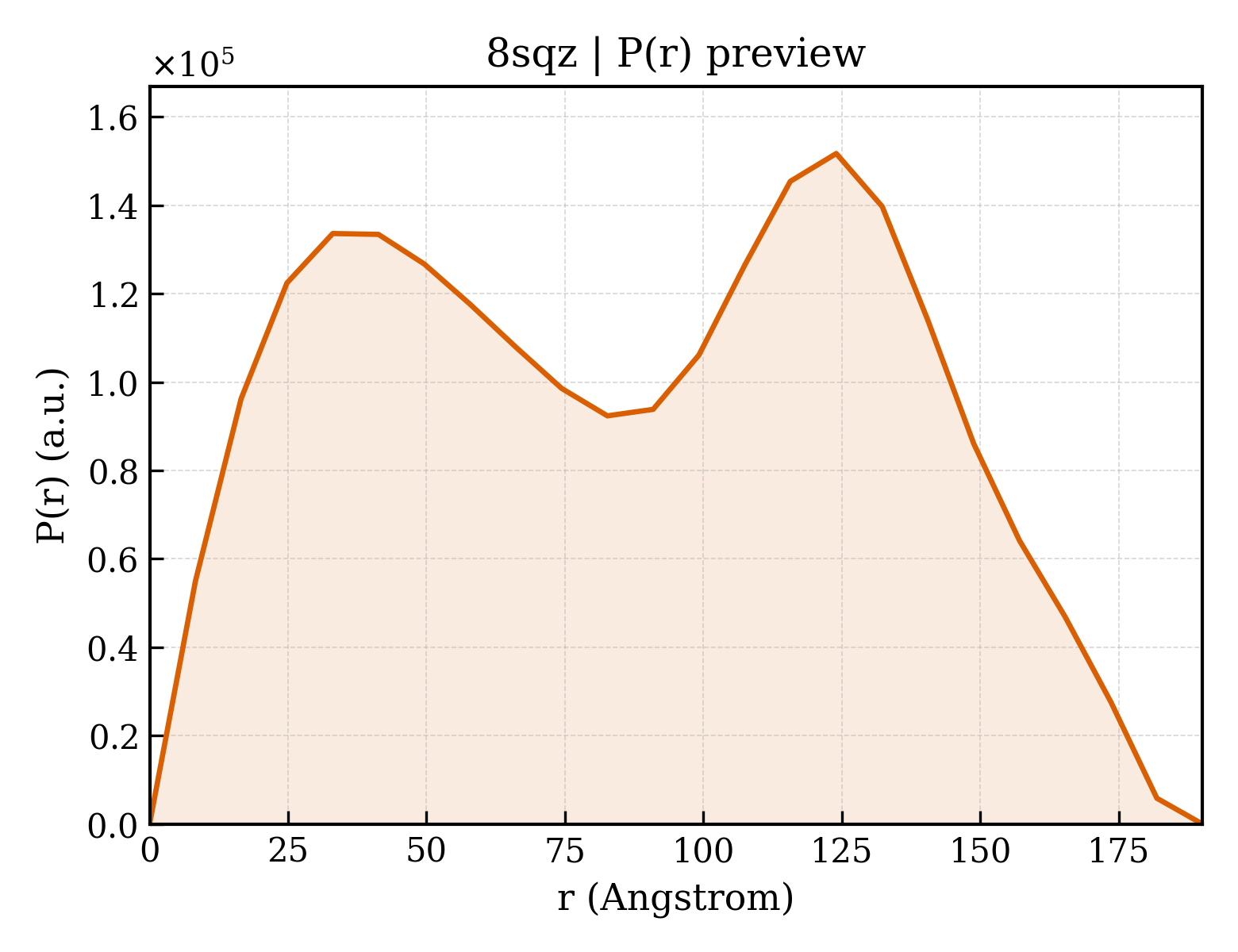

8sqz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	68.91 Å
Rg (electron density)	69.19 Å
Total Rg	69.19 Å
Atom count	7438
Residues	1498
Excluded volume	120340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8sqz__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RB1-inducible coiled-coil protein 1
Molecular weight formula_weight	73325.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7438

MKLYVFLVNTGTTLTFDTELTVQTVADLKHAIQSKYKIAIQHQVLVVNGGECMAADRRVCTYSAGTDTNPIFLFNKEMILCDRPPAIPKTTFSTENDMEIKVEESLMMPAVFHTVASRTQLALEMYEVAKKLCSFCEGLVHDEHLQHQGWAAIMANLEDCSNSYQKLLFKFESIYSNYLQSIEDIKLKLTHLGTAVSVMAKIPLLECLTRHSYRECLGRLDSLPEHEDSEKAEMKRSTELVLSPDMPRTTNESLLTSFPKSVEHVSPDTADAESGKEIRESCQSTVHQQDETTIDTKDGDLPFFNVSLLDWINVQDRPNDVESLVRKCFDSMSRLDPRIIRPFIAECRQTIAKLDNQNMKAIKGLEDRLYALDQMIASCGRLVNEQKELAQGFLANQKRAENLKDASVLPDLCLSHANQLMIMLQNHRKLLDIKQKCTTAKQELANNLHVRLKWCCFVMLHADQDGEKLQALLRLVIELLERVKIVEALSTVPQMYCLAVVEVVRRKMFIKHYREWAGALVKDGKRLYEAEKSKRESFGKLFRKSFLRNRLFRGLDSWPPSFCTQKPRKFDCELPDISLKDLQFLQSFCPSEVQPFLRVPLLCDFEPLHQHVLALHNLVKAAQSLDEMSQTITDLLSEQK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein kinase ULK1
Molecular weight formula_weight	24190.1 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MEQEHTEILRGLRFTLLFVQHVLEIAALKGSASEAAGGPEYQLQESVVADQISLLSREWGFAEQLVLYLKVAELLSSGLQSAIDQIRAGKLCLSSTVKQVVRRLNELYKASVVSCQGLSLRLQRFFLDKQRLLDRIHSITAERLIFSHAVQMVQSAALDEMFQHREGCVPRYHKALLLLEGLQHMLSDQADIENVTKCKLCIERRLSALLTGICA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Autophagy-related protein 13
Molecular weight formula_weight	17097.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

HDVLETIFVRKVGAFVNKPINQVTLTSLDIPFAMFAPKNLELEDTDPMVNPPDSPETESPLQGSLHSDGSSGGSSGNTHDDFVMIDFKPAFSKDDILPMDLGTFYREFQNPPQLSSLSIDIGAQSMAEDLDSLPEKLAVHEKNVREFDAFVETLQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	5.85 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	97987
