SAXSdb — 7jod

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kallikrein 4 (Prostase, enamel matrix, prostate), isoform CRA_a

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Kunitz-type inihibitor × 1 （Q6VEQ7） NONAETHYLENE GLYCOL × 3 CADMIUM ION × 2 CHLORIDE ION × 2 SULFATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0C4DFQ5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–223； UniProt 31–253

Kunitz-type inihibitor

Bauhinia bauhinioides

UniProt Q6VEQ7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Kallikrein 4 (Prostase, enamel matrix, prostate), isoform CRA_a × 1 （A0A0C4DFQ5） NONAETHYLENE GLYCOL × 3 CADMIUM ION × 2 CHLORIDE ION × 2 SULFATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6VEQ7_BAUBA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 2–166； UniProt 19–183

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7jod
Deposition date deposition_date	2020-08-06
Structure title title	Crystal structure of BbKI complexed with Human Kallikrein 4
Keywords keywords	inhibitor, PLANT PROTEIN, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7jod__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

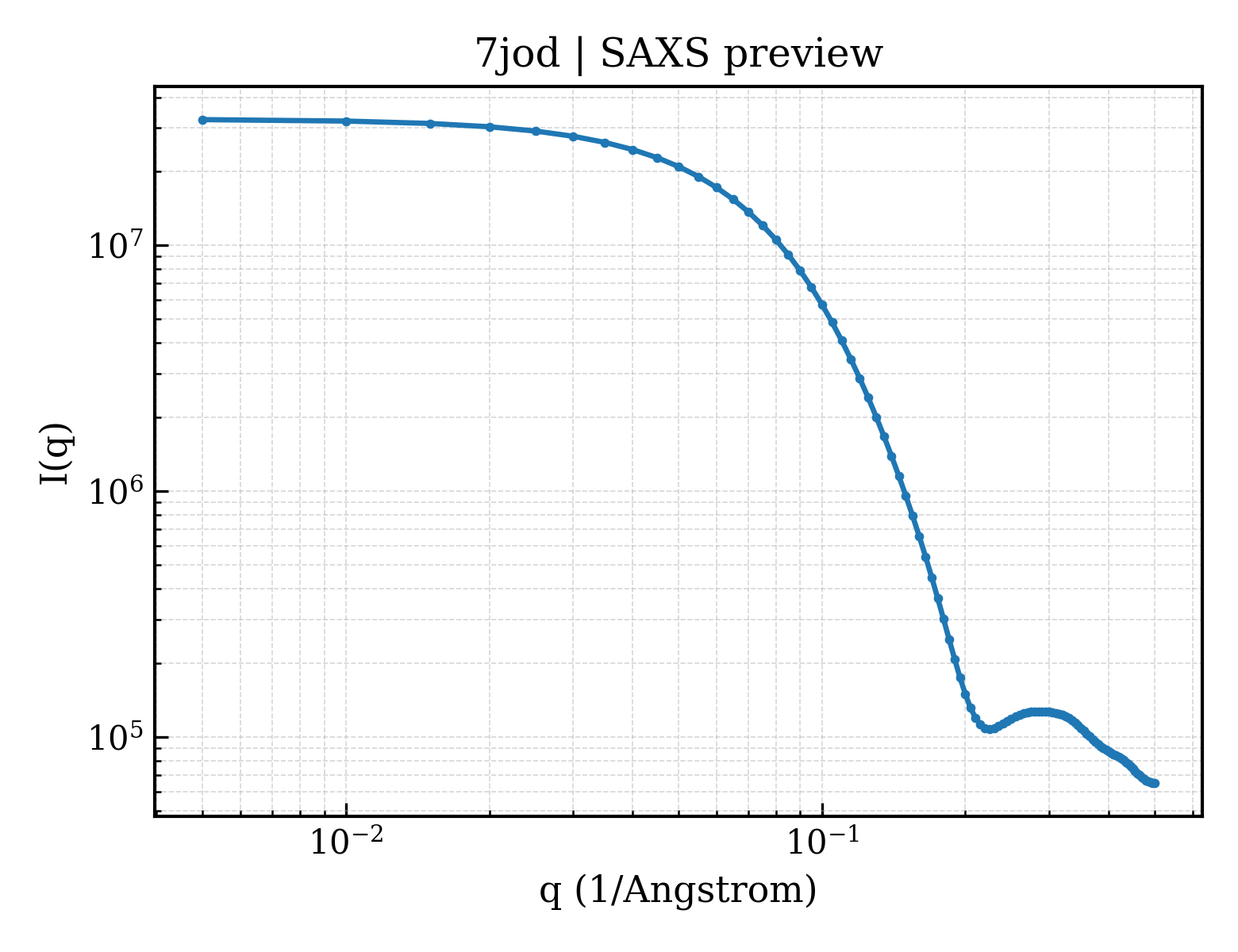

7jod__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7jod__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.10 Å
Rg (electron density)	22.00 Å
Total Rg	22.89 Å
Atom count	2993
Residues	389
Excluded volume	53187 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7jod__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Kallikrein 4 (Prostase, enamel matrix, prostate), isoform CRA_a
Molecular weight formula_weight	23926.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E
Atom count atom_count	3796

IINGEDCSPHSQPWQAALVMENELFCSGVLVHPQWVLSAAHCFQNSYTIGLGLHSLEADQEPGSQMVEASLSVRHPEYNRPLLANDLMLIKLDESVSESDTIRSISIASQCPTAGNSCLVSGWGLLANGRMPTVLQCVNVSVVSEEVCSKLYDPLYHPSMFCAGGGQDQKDSCNGDSGGPLICNGYLQGLVSFGKAPCGQVGVPGVYTNLCKFTEWIEKTVQA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Kunitz-type inihibitor
Molecular weight formula_weight	18140.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

GSSVVVDTNGQPVSNGADAYYLVPVSHGHAGLALAKIGNEAEPRAVVLDPHHRPGLPVRFESPLRINIIKESYFLNIKFGPSSSDSGVWDVIQQDPIGLAVKVTDTKSLLGPFKVEKEGEGYKIVYYPERGQTGLDIGLVHRNDKYYLAVKDGEPCVFKIRKATDE

Source Source

Source organism organism	Bauhinia bauhinioides
NCBI taxonomy ID ncbi_taxonomy_id	166014
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	NONAETHYLENE GLYCOL
Molecular weight formula_weight	414.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	627

▼

6. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d7jode_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.0 — automated matches

▶

Unit-cell length a length_a	104.185 Å
Unit-cell length b length_b	104.185 Å
Unit-cell length c length_c	87.013 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.330 Å
Low-resolution limit resolution_low	39.000 Å
R factor r_factor	0.1140
R_work r_work	0.1138
R_free r_free	0.1325
