7jps

ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core

Method: ELECTRON MICROSCOPY D_max: 150.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Origin recognition complex subunit 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 5 DNA 2 PDB declaration: heptameric（7） Consistent with all polymer counts	Chain A； UniProt 471–861	Not recorded	Origin recognition complex subunit 2 × 1 （Q13416） Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） ;DNA (5'-D(APTPAPTPAPTPAPTPAPTPAPAPT)-3') ; × 1 ;DNA (5'-D(APTPTPAPTPAPTPAPTPAPTPAPT)-3') ; × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7JPS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 471–861（391 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio	Resolution 3.39 Å R-free 0.281
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 471–861（391 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio	Resolution 3.39 Å R-free 0.281
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 471–861（391 aa） Fragment：UNP residues 471-861	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 18.00 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–861（861 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–861（861 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 471–861（391 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 471–861（391 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 471–861（391 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain A 2–861（860 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain A 1–861（861 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S0D H. sapiens MCM bound to double stranded DNA and ORC1-6 Deposited 2024-02-13	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain A 1–861（861 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain A 1–861（861 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain A 1–861（861 aa）	Not recorded	MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

12 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ORC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–392； UniProt 471–861

Origin recognition complex subunit 2

Homo sapiens

UniProt Q13416

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 5 DNA 2 PDB declaration: heptameric（7） Consistent with all polymer counts	Chain B； UniProt 1–577	Not recorded	Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） ;DNA (5'-D(APTPAPTPAPTPAPTPAPTPAPAPT)-3') ; × 1 ;DNA (5'-D(APTPTPAPTPAPTPAPTPAPTPAPT)-3') ; × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.40 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7JPS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5C8H Crystal structure of ORC2 C-terminal domain Deposited 2015-06-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 458–577（120 aa） Fragment：C-terminal domain (UNP residues 458-577)	Not recorded	UNX UNKNOWN LIGAND × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG-3350, 0.2 M magnesium formate	Resolution 2.01 Å R-free 0.257
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 231–577（347 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 231–577（347 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 231–577（347 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 231–577（347 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 231–577（347 aa） Chain H 231–577（347 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 231–577（347 aa） Chain F 231–577（347 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 231–577（347 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–577（577 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–577（577 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–577（577 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–577（577 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–577（577 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–577（577 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–577（577 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain B 1–577（577 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain B 1–577（577 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S0D H. sapiens MCM bound to double stranded DNA and ORC1-6 Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain B 1–577（577 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain B 1–577（577 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain B 1–577（577 aa）	Not recorded	MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

15 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ORC2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–577； UniProt 1–577

Origin recognition complex subunit 3

Homo sapiens

UniProt Q9UBD5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 5 DNA 2 PDB declaration: heptameric（7） Consistent with all polymer counts	Chain C； UniProt 1–712	Not recorded	Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） ;DNA (5'-D(APTPAPTPAPTPAPTPAPTPAPAPT)-3') ; × 1 ;DNA (5'-D(APTPTPAPTPAPTPAPTPAPTPAPT)-3') ; × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.40 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7JPS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–712（712 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–712（712 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–712（712 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–712（712 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–712（712 aa） Chain C 1–712（712 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–712（712 aa） Chain D 1–712（712 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1	Resolution 6.00 Å R-free 0.368
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–712（712 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–711（711 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–711（711 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–711（711 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–712（712 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–712（712 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–712（712 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–712（712 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain C 1–712（712 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain C 1–712（712 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S0D H. sapiens MCM bound to double stranded DNA and ORC1-6 Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain C 1–712（712 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain C 1–711（711 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain C 1–711（711 aa）	Not recorded	MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

14 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ORC3_HUMAN
Isoform	Q9UBD5-2
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–712； UniProt 1–712

Origin recognition complex subunit 4

Homo sapiens

UniProt O43929

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 5 DNA 2 PDB declaration: heptameric（7） Consistent with all polymer counts	Chain D； UniProt 1–436	Not recorded	Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 5 × 1 （O43913） ;DNA (5'-D(APTPAPTPAPTPAPTPAPTPAPAPT)-3') ; × 1 ;DNA (5'-D(APTPTPAPTPAPTPAPTPAPTPAPT)-3') ; × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.40 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7JPS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio	Resolution 3.39 Å R-free 0.281
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio	Resolution 3.39 Å R-free 0.281
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–436（436 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain D 1–436（436 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain D 1–436（436 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S0D H. sapiens MCM bound to double stranded DNA and ORC1-6 Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain D 1–436（436 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain D 1–436（436 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain D 1–436（436 aa）	Not recorded	MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ORC4_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–436； UniProt 1–436

Origin recognition complex subunit 5

Homo sapiens

UniProt O43913

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 5 DNA 2 PDB declaration: heptameric（7） Consistent with all polymer counts	Chain E； UniProt 1–435	Not recorded	Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） ;DNA (5'-D(APTPAPTPAPTPAPTPAPTPAPAPT)-3') ; × 1 ;DNA (5'-D(APTPTPAPTPAPTPAPTPAPTPAPT)-3') ; × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.40 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7JPS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–284（284 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio	Resolution 3.39 Å R-free 0.281
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–284（284 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio	Resolution 3.39 Å R-free 0.281
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–435（435 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain E 1–435（435 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain E 1–435（435 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S0D H. sapiens MCM bound to double stranded DNA and ORC1-6 Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain E 1–435（435 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain E 1–435（435 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain E 1–435（435 aa）	Not recorded	MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ORC5_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–435； UniProt 1–435

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

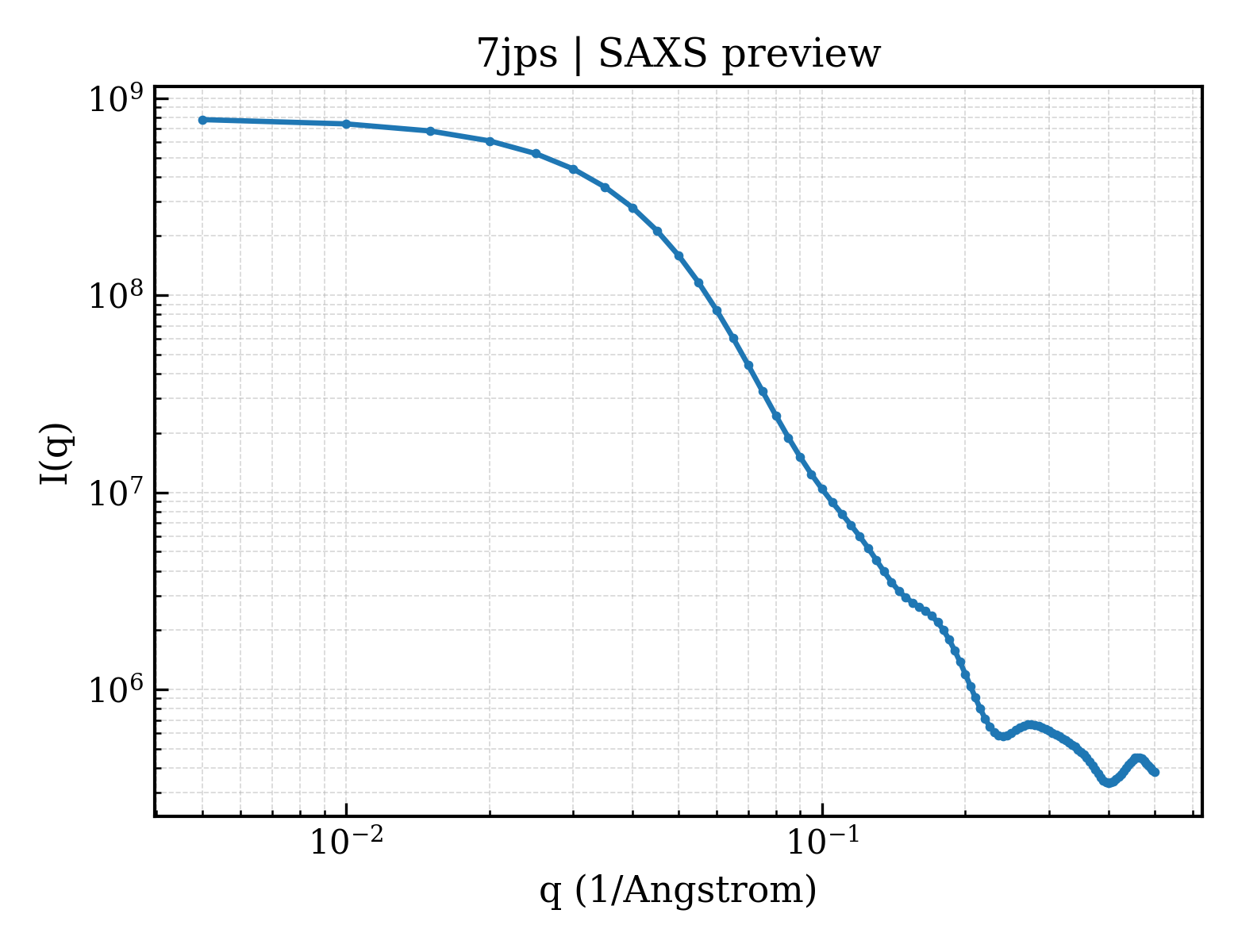

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7jps
Deposition date deposition_date	2020-08-09
Structure title title	ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core
Keywords keywords	replication, AAA+, ORC, DNA-binding, cryoEM, replication-DNA complex; replication/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	44.50 Å
Radius of gyration Rg (electron density) rg_electron	44.51 Å
Forward intensity I(0) i0	791592000.00
Molecular weight molecular_weight	232870.0 kDa
Excluded volume excluded_volume	291850 Å³
Envelope volume envelope_volume	407810 Å³
Hydration-shell volume shell_volume	76314 Å³
Envelope diameter envelope_diameter	158.2 Å
Shell Rg shell_rg	49.25 Å
Envelope Rg envelope_rg	43.90 Å
Shape Rg shape_rg	44.53 Å
Total Rg total_rg	44.67 Å
Total atoms total_atoms	16352
Residues n_residues	1958
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	150.8 Å
Rg (real space) rg_real	44.53 Å
Rg uncertainty (real space) rg_real_error	1.73 Å
I(0) (real space) i0_real	7.9160e+08
I(0) uncertainty (real space) i0_real_error	1.5140e+07
Rg (reciprocal space) rg_reciprocal	44.50 Å
I(0) (reciprocal space) i0_reciprocal	791600000.0000
Solution quality estimate total_estimate	0.8674
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	51.7 Å
Skewness Skewness skewness	0.394
Kurtosis Kurtosis kurtosis	-0.231
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	118900000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.782

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Origin recognition complex subunit 1
Molecular weight formula_weight	44310.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	16352

MAPQIRSRSLAAQEPASVLEEARLRLHVSAVPESLPCREQEFQDIYNFVESKLLDHTGGCMYISGVPGTGKTATVHEVIRCLQQAAQANDVPPFQYIEVNGMKLTEPHQVYVQILQKLTGQKATANHAAELLAKQFCTRGSPQETTVLLVDELDLLWTHKQDIMYNLFDWPTHKEARLVVLAIANTMDLPERIMMNRVSSRLGLTRMCFQPYTYSQLQQILRSRLKHLKAFEDDAIQLVARKVAALSGDARRCLDICRRATEICEFSQQKPDSPGLVTIAHSMEAVDEMFSSSYITAIKNSSVLEQSFLRAILAEFRRSGLEEATFQQIYSQHVALCRMEGLPYPTMSETMAVCSHLGSCRLLLVEPSRNDLLLRVRLNVSQDDVLYALKDE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Origin recognition complex subunit 2
Molecular weight formula_weight	66063.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSKPELKEDKMLEVHFVGDDDVLNHILDREGGAKLKKERAQLLVNPKKIIKKPEYDLEEDDQEVLKDQNYVEIMGRDVQESLKNGSATGGGNKVYSFQNRKHSEKMAKLASELAKTPQKSVSFSLKNDPEITINVPQSSKGHSASDKVQPKNNDKSEFLSTAPRSLRKRLIVPRSHSDSESEYSASNSEDDEGVAQEHEEDTNAVIFSQKIQAQNRVVSAPVGKETPSKRMKRDKTSDLVEEYFEAHSSSKVLTSDRTLQKLKRAKLDQQTLRNLLSKVSPSFSAELKQLNQQYEKLFHKWMLQLHLGFNIVLYGLGSKRDLLERFRTTMLQDSIHVVINGFFPGISVKSVLNSITEEVLDHMGTFRSILDQLDWIVNKFKEDSSLELFLLIHNLDSQMLRGEKSQQIIGQLSSLHNIYLIASIDHLNAPLMWDHAKQSLFNWLWYETTTYSPYTEETSYENSLLVKQSGSLPLSSLTHVLRSLTPNARGIFRLLIKYQLDNQDNPSYIGLSFQDFYQQCREAFLVNSDLTLRAQLTEFRDHKLIRTKKGTDGVEYLLIPVDNGTLTDFLEKEEEEA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Origin recognition complex subunit 3
Molecular weight formula_weight	82436.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MATSSMSKGCFVFKPNSKKRKISLPIEDYFNKGKNEPEDSKLRFETYQLIWQQMKSENERLQEELNKNLFDNLIEFLQKSHSGFQKNSRDLGGQIKLREIPTAALVLGVNVTDHDLTFGSLTEALQNNVTPYVVSLQAKDCPDMKHFLQKLISQLMDCCVDIKSKEEESVHVTQRKTHYSMDSLSSWYMTVTQKTDPKMLSKKRTTSSQWQSPPVVVILKDMESFATKVLQDFIIISSQHLHEFPLILIFGIATSPIIIHRLLPHAVSSLLCIELFQSLSCKEHLTTVLDKLLLTTQFPFKINEKVLQVLTNIFLYHDFSVQNFIKGLQLSLLEHFYSQPLSVLCCNLPEAKRRINFLSNNQCENIRRLPSFRRYVEKQASEKQVALLTNERYLKEETQLLLENLHVYHMNYFLVLRCLHKFTSSLPKYPLGRQIRELYCTCLEKNIWDSEEYASVLQLLRMLAKDELMTILEKCFKVFKSYCENHLGSTAKRIEEFLAQFQSLDAETKEEEDASGSQPKGLQKTDLYHLQKSLLEMKELRRSKKQTKFEVLRENVVNFIDCLVREYLLPPETQPLHEVVYFSAAHALREHLNAAPRIALHTALNNPYYYLKNEALKSEEGCIPNIAPDICIAYKLHLECSRLINLVDWSEAFATVVTAAEKMDANSATSEEMNEIIHARFIRAVSELELLGFIKPTKQKTDHVARLTWGGC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Origin recognition complex subunit 4
Molecular weight formula_weight	50443.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSSRKSKSNSLIHTECLSQVQRILRERFCRQSPHSNLFGVQVQYKHLSELLKRTALHGESNSVLIIGPRGSGKTMLINHALKELMEIEEVSENVLQVHLNGLLQINDKIALKEITRQLNLENVVGDKVFGSFAENLSFLLEALKKGDRTSSCPVIFILDEFDLFAHHKNQTLLYNLFDISQSAQTPIAVIGLTCRLDILELLEKRVKSRFSHRQIHLMNSFGFPQYVKIFKEQLSLPAEFPDKVFAEKWNENVQYLSEDRSVQEVLQKHFNISKNLRSLHMLLMLALNRVTASHPFMTAVDLMEASQLCSMDSKANIVHGLSVLEICLIIAMKHLNDIYEEEPFNFQMVYNEFQKFVQRKAHSVYNFEKPVVMKAFEHLQQLELIKPMERTSGNSQREYQLMKLLLDNTQIMNALQKYPNCPTDVRQWATSSLSWL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Origin recognition complex subunit 5
Molecular weight formula_weight	50349.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MPHLENVVLCRESQVSILQSLFGERHHFSFPSIFIYGHTASGKTYVTQTLLKTLELPHVFVNCVECFTLRLLLEQILNKLNHLSSSEDGCSTEITCETFNDFVRLFKQVTTAENLKDQTVYIVLDKAEYLRDMEANLLPGFLRLQELADRNVTVLFLSEIVWEKFRPNTGCFEPFVLYFPDYSIGNLQKILSHDHPPEYSADFYAAYINILLGVFYTVCRDLKELRHLAVLNFPKYCEPVVKGEASERDTRKLWRNIEPHLKKAMQTVYLREISSSQWEKLQKDDTDPGQLKGLSAHTHVELPYYSKFILIAAYLASYNPARTDKRFFLKHHGKIKKTNFLKKHEKTSNHLLGPKPFPLDRLLAILYSIVDSRVAPTANIFSQITSLVTLQLLTLVGHDDQLDGPKYKCTVSLDFIRAIARTVNFDIIKYLYDFL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 6 Entity 6 polymer

Description description	;DNA (5'-D(APTPAPTPAPTPAPTPAPTPAPAP*T)-3') ;
Molecular weight formula_weight	3972.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

ATATATATATAAT

来源 Source

来源生物 organism	Spodoptera frugiperda
NCBI Class编号 ncbi_taxonomy_id	7108
宿主生物 host_organism	Spodoptera frugiperda

Entity 7 Entity 7 polymer

Description description	;DNA (5'-D(APTPTPAPTPAPTPAPTPAPTPAP*T)-3') ;
Molecular weight formula_weight	3963.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	G

ATTATATATATAT

来源 Source

来源生物 organism	Spodoptera frugiperda
NCBI Class编号 ncbi_taxonomy_id	7108
宿主生物 host_organism	Spodoptera frugiperda

Entity 8 Entity 8 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 9 Entity 9 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 10 Entity 10 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Resolution resolution	4.40 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	37734

fit	/app/data/saxs_computation/jp/7jps/7jps.fit
pddf	/app/data/pr_computation/jp/7jps/7jps.pr.out
profile	/app/data/saxs_computation/jp/7jps/7jps.dat

ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core

1. Protein Identity and Related Structures Protein Identity & Related Structures

Origin recognition complex subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Origin recognition complex subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

Origin recognition complex subunit 3

State in the Current Structure

Other States of the Same Protein in the Database

Origin recognition complex subunit 4

State in the Current Structure

Other States of the Same Protein in the Database

Origin recognition complex subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 polymer

Polymer Polymer

来源 Source

Entity 7 Entity 7 polymer

Polymer Polymer

来源 Source

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 non-polymer

Entity 10 Entity 10 non-polymer

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
