8rwv

Human OCCM DNA licensing intermediate

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA replication licensing factor MCM2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 2； PDBConstruct 44–947； UniProt 1–904

Isoform 2 of DNA replication licensing factor MCM3

Homo sapiens

UniProt P25205

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM3_HUMAN
Isoform	P25205-2
PDB entities	2
Chains and sequence ranges	Author chain 3； PDBConstruct 1–853； UniProt 1–853

DNA replication licensing factor MCM4

Homo sapiens

UniProt P33991

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain 4； PDBConstruct 21–883； UniProt 1–863

DNA replication licensing factor MCM6

Homo sapiens

UniProt Q14566

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM6_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain 6； PDBConstruct 1–821； UniProt 1–821

DNA replication licensing factor MCM7

Homo sapiens

UniProt P33993

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM7_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain 7； PDBConstruct 1–719； UniProt 1–719

Origin recognition complex subunit 1

Homo sapiens

UniProt Q13415

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC1_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain A； PDBConstruct 102–961； UniProt 2–861

Origin recognition complex subunit 2

Homo sapiens

UniProt Q13416

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC2_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain B； PDBConstruct 1–577； UniProt 1–577

Isoform 2 of Origin recognition complex subunit 3

Homo sapiens

UniProt Q9UBD5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC3_HUMAN
Isoform	Q9UBD5-2
PDB entities	8
Chains and sequence ranges	Author chain C； PDBConstruct 1–712； UniProt 1–712

Origin recognition complex subunit 4

Homo sapiens

UniProt O43929

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC4_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain D； PDBConstruct 1–436； UniProt 1–436

Origin recognition complex subunit 5

Homo sapiens

UniProt O43913

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Cell division control protein 6 homolog × 1 （Q99741） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ORC5_HUMAN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain E； PDBConstruct 1–435； UniProt 1–435

Cell division control protein 6 homolog

Homo sapiens

UniProt Q99741

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） DNA replication factor Cdt1 × 1 （Q9H211） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC6_HUMAN
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain F； PDBConstruct 1–560； UniProt 1–560

DNA replication factor Cdt1

Homo sapiens

UniProt Q9H211

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	DNA replication licensing factor MCM2 × 1 （P49736） Isoform 2 of DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） Cell division control protein 6 homolog × 1 （Q99741） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDT1_HUMAN
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain G； PDBConstruct 22–410； UniProt 158–546

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8rwv
Deposition date deposition_date	2024-02-05
Last revision last_revision	2025-02-05
Structure title title	Human OCCM DNA licensing intermediate
Keywords keywords	DNA Replication, MCM2-7, DNA licensing, human, origin, ORC, pre-RC, Cdc6, Cdt1, REPLICATION; REPLICATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8rwv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

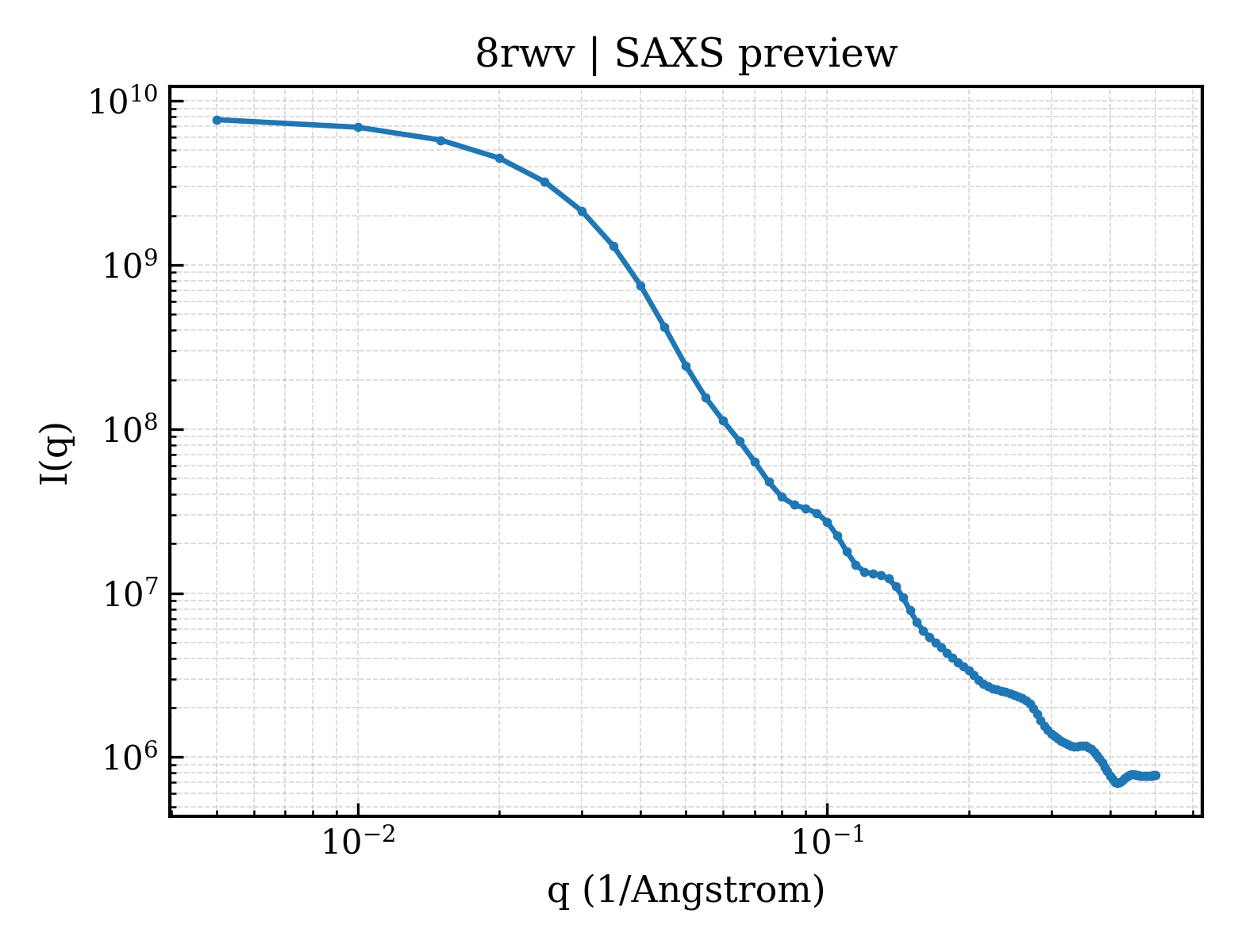

8rwv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8rwv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.48 Å
Rg (electron density)	65.19 Å
Total Rg	65.25 Å
Atom count	51862
Residues	6369
Excluded volume	920380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8rwv__assembly_1__model_1`	14-meric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	DNA replication licensing factor MCM2
Molecular weight formula_weight	106435.8 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	2
Atom count atom_count	51862

MSAWSHPQFEKGGGSGGGSGGSAWSHPQFEKENLYFQGAGSATMAESSESFTMASSPAQRRRGNDPLTSSPGRSSRRTDALTSSPGRDLPPFEDESEGLLGTEGPLEEEEDGEELIGDGMERDYRAIPELDAYEAEGLALDDEDVEELTASQREAAERAMRQRDREAGRGLGRMRRGLLYDSDEEDEERPARKRRQVERATEDGEEDEEMIESIENLEDLKGHSVREWVSMAGPRLEIHHRFKNFLRTHVDSHGHNVFKERISDMCKENRESLVVNYEDLAAREHVLAYFLPEAPAELLQIFDEAALEVVLAMYPKYDRITNHIHVRISHLPLVEELRSLRQLHLNQLIRTSGVVTSCTGVLPQLSMVKYNCNKCNFVLGPFCQSQNQEVKPGSCPECQSAGPFEVNMEETIYQNYQRIRIQESPGKVAAGRLPRSKDAILLADLVDSCKPGDEIELTGIYHNNYDGSLNTANGFPVFATVILANHVAKKDNKVAVGELTDEDVKMITSLSKDQQIGEKIFASIAPSIYGHEDIKRGLALALFGGEPKNPGGKHKVRGDINVLLCGDPGTAKSQFLKYIEKVSSRAIFTTGQGASAVGLTAYVQRHPVSREWTLEAGALVLADRGVCLIDEFDKMNDQDRTSIHEAMEQQSISISKAGIVTSLQARCTVIAAANPIGGRYDPSLTFSENVDLTEPIISRFDILCVVRDTVDPVQDEMLARFVVGSHVRHHPSNKEEEGLANGSAAEPAMPNTYGVEPLPQEVLKKYIIYAKERVHPKLNQMDQDKVAKMYSDLRKESMATGSIPITVRHIESMIRMAEAHARIHLRDYVIEDDVNMAIRVMLESFIDTQKFSVMRSMRKTFARYLSFRRDNNELLLFILKQLVAEQVTYQRNRFGAQQDTIEVPEKDLVDKARQINIHNLSAFYDSELFRMNKFSHDLKRKMILQQF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Isoform 2 of DNA replication licensing factor MCM3
Molecular weight formula_weight	96043.3 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	3

MLPRSPPLPRGNLWWREEFGSFRAGVESSWEPPRDFGGGSSLAAGMAGTVVLDDVELREAQRDYLDFLDDEEDQGIYQSKVRELISDNQYRLIVNVNDLRRKNEKRANRLLNNAFEELVAFQRALKDFVASIDATYAKQYEEFYVGLEGSFGSKHVSPRTLTSCFLSCVVCVEGIVTKCSLVRPKVVRSVHYCPATKKTIERRYSDLTTLVAFPSSSVYPTKDEENNPLETEYGLSVYKDHQTITIQEMPEKAPAGQLPRSVDVILDDDLVDKAKPGDRVQVVGTYRCLPGKKGGYTSGTFRTVLIACNVKQMSKDAQPSFSAEDIAKIKKFSKTRSKDIFDQLAKSLAPSIHGHDYVKKAILCLLLGGVERDLENGSHIRGDINILLIGDPSVAKSQLLRYVLCTAPRAIPTTGRGSSGVGLTAAVTTDQETGERRLEAGAMVLADRGVVCIDEFDKMSDMDRTAIHEVMEQGRVTIAKAGIHARLNARCSVLAAANPVYGRYDQYKTPMENIGLQDSLLSRFDLLFIMLDQMDPEQDREISDHVLRMHRYRAPGEQDGDAMPLGSAVDILATDDPNFSQEDQQDTQIYEKHDNLLHGTKKKKEKMVSAAFMKKYIHVAKIIKPVLTQESATYIAEEYSRLRSQDSMSSDTARTSPVTARTLETLIRLATAHAKARMSKTVDLQDAEEAVELVQYAYFKKVLEKEKKRKKRSEDESETEDEEEKSQEDQEQKRKRRKTRQPDAKDGDSYDPYDFSDTEEEMPQVHTPKTADSQETKESQKVELSESRLKAFKVALLDVFREAHAQSIGMNRLTESINRDSEEPFSSVEIQAALSKMQDDNQVMVSEGIIFLI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	DNA replication licensing factor MCM4
Molecular weight formula_weight	99119.5 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	4

MHHHHHHHHENLYFQGSSATMSSPASTPSRRGSRRGRATPAQTPRSEDARSSPSQRRRGEDSTSTGELQPMPTSPGVDLQSPAAQDVLFSSPPQMHSSAIPLDFDVSSPLTYGTPSSRVEGTPRSGVRGTPVRQRPDLGSAQKGLQVDLQSDGAAAEDIVASEQSLGQKLVIWGTDVNVAACKENFQRFLQRFIDPLAKEEENVGIDITEPLYMQRLGEINVIGEPFLNVNCEHIKSFDKNLYRQLISYPQEVIPTFDMAVNEIFFDRYPDSILEHQIQVRPFNALKTKNMRNLNPEDIDQLITISGMVIRTSQLIPEMQEAFFQCQVCAHTTRVEMDRGRIAEPSVCGRCHTTHSMALIHNRSLFSDKQMIKLQESPEDMPAGQTPHTVILFAHNDLVDKVQPGDRVNVTGIYRAVPIRVNPRVSNVKSVYKTHIDVIHYRKTDAKRLHGLDEEAEQKLFSEKRVELLKELSRKPDIYERLASALAPSIYEHEDIKKGILLQLFGGTRKDFSHTGRGKFRAEINILLCGDPGTSKSQLLQYVYNLVPRGQYTSGKGSSAVGLTAYVMKDPETRQLVLQTGALVLSDNGICCIDEFDKMNESTRSVLHEVMEQQTLSIAKAGIICQLNARTSVLAAANPIESQWNPKKTTIENIQLPHTLLSRFDLIFLLLDPQDEAYDRRLAHHLVALYYQSEEQAEEELLDMAVLKDYIAYAHSTIMPRLSEEASQALIEAYVDMRKIGSSRGMVSAYPRQLESLIRLAEAHAKVRLSNKVEAIDVEEAKRLHREALKQSATDPRTGIVDISILTTGMSATSRKRKEELAEALKKLILSKGKTPALKYQQLFEDIRGQSDIAITKDMFEEALRALADDDFLTVTGKTVRLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	DNA replication licensing factor MCM6
Molecular weight formula_weight	93010.3 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	6

MDLAAAAEPGAGSQHLEVRDEVAEKCQKLFLDFLEEFQSSDGEIKYLQLAEELIRPERNTLVVSFVDLEQFNQQLSTTIQEEFYRVYPYLCRALKTFVKDRKEIPLAKDFYVAFQDLPTRHKIRELTSSRIGLLTRISGQVVRTHPVHPELVSGTFLCLDCQTVIRDVEQQFKYTQPNICRNPVCANRRRFLLDTNKSRFVDFQKVRIQETQAELPRGSIPRSLEVILRAEAVESAQAGDKCDFTGTLIVVPDVSKLSTPGARAETNSRVSGVDGYETEGIRGLRALGVRDLSYRLVFLACCVAPTNPRFGGKELRDEEQTAESIKNQMTVKEWEKVFEMSQDKNLYHNLCTSLFPTIHGNDEVKRGVLLMLFGGVPKTTGEGTSLRGDINVCIVGDPSTAKSQFLKHVEEFSPRAVYTSGKASSAAGLTAAVVRDEESHEFVIEAGALMLADNGVCCIDEFDKMDVRDQVAIHEAMEQQTISITKAGVKATLNARTSILAAANPISGHYDRSKSLKQNINLSAPIMSRFDLFFILVDECNEVTDYAIARRIVDLHSRIEESIDRVYSLDDIRRYLLFARQFKPKISKESEDFIVEQYKHLRQRDGSGVTKSSWRITVRQLESMIRLSEAMARMHCCDEVQPKHVKEAFRLLNKSIIRVETPDVNLDQEEEIQMEVDEGAGGINGHADSPAPVNGINGYNEDINQESAPKASLRLGFSEYCRISNLIVLHLRKVEEEEDESALKRSELVNWYLKEIESEIDSEEELINKKRIIEKVIHRLTHYDHVLIELTQAGLKGSTEGSESYEEDPYLVVNPNYLLED

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	DNA replication licensing factor MCM7
Molecular weight formula_weight	81411.9 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	7

MALKDYALEKEKVKKFLQEFYQDDELGKKQFKYGNQLVRLAHREQVALYVDLDDVAEDDPELVDSICENARRYAKLFADAVQELLPQYKEREVVNKDVLDVYIEHRLMMEQRSRDPGMVRSPQNQYPAELMRRFELYFQGPSSNKPRVIREVRADSVGKLVTVRGIVTRVSEVKPKMVVATYTCDQCGAETYQPIQSPTFMPLIMCPSQECQTNRSGGRLYLQTRGSRFIKFQEMKMQEHSDQVPVGNIPRSITVLVEGENTRIAQPGDHVSVTGIFLPILRTGFRQVVQGLLSETYLEAHRIVKMNKSEDDESGAGELTREELRQIAEEDFYEKLAASIAPEIYGHEDVKKALLLLLVGGVDQSPRGMKIRGNINICLMGDPGVAKSQLLSYIDRLAPRSQYTTGRGSSGVGLTAAVLRDSVSGELTLEGGALVLADQGVCCIDEFDKMAEADRTAIHEVMEQQTISIAKAGILTTLNARCSILAAANPAYGRYNPRRSLEQNIQLPAALLSRFDLLWLIQDRPDRDNDLRLAQHITYVHQHSRQPPSQFEPLDMKLMRRYIAMCREKQPMVPESLADYITAAYVEMRREAWASKDATYTSARTLLAILRLSTALARLRMVDVVEKEDVNEAIRLMEMSKDSLLGDKGQTARTQRPADVIFATVRELVSGGRSVRFSEAEQRCVSRGFTPAQFQAALDEYEELNVWQVNASRTRITFV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	Origin recognition complex subunit 1
Molecular weight formula_weight	108813.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MGSLQDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLTFLYDGIEIQADQAPEDLDMEDNDIIEAHREQIGGAHYPTRLKTRKTYSWVGRPLLDRKLHYQTYREMCVKTEGCSTEIHIQIGQFVLIEGDDDENPYVAKLLELFEDDSDPPPKKRARVQWFVRFCEVPACKRHLLGRKPGAQEIFWYDYPACDSNINAETIIGLVRVIPLAPKDVVPTNLKNEKTLFVKLSWNEKKFRPLSSELFAELNKPQESAAKCQKPVRAKSKSAESPSWTPAEHVAKRIESRHSASKSRQTPTHPLTPRARKRLELGNLGNPQMSQQTSCASLDSPGRIKRKVAFSEITSPSKRSQPDKLQTLSPALKAPEKTRETGLSYTEDDKKASPEHRIILRTRIAASKTIDIREERTLTPISGGQRSSVVPSVILKPENIKKRDAKEAKAQNEATSTPHRIRRKSSVLTMNRIRQQLRFLGNSKSDQEEKEILPAAEISDSSSDEEEASTPPLPRRAPRTVSRNLRSSLKSSLHTLTKVPKKSLKPRTPRCAAPQIRSRSLAAQEPASVLEEARLRLHVSAVPESLPCREQEFQDIYNFVESKLLDHTGGCMYISGVPGTGKTATVHEVIRCLQQAAQANDVPPFQYIEVNGMKLTEPHQVYVQILQKLTGQKATANHAAELLAKQFCTRGSPQETTVLLVDELDLLWTHKQDIMYNLFDWPTHKEARLVVLAIANTMDLPERIMMNRVSSRLGLTRMCFQPYTYSQLQQILRSRLKHLKAFEDDAIQLVARKVAALSGDARRCLDICRRATEICEFSQQKPDSPGLVTIAHSMEAVDEMFSSSYITAIKNSSVLEQSFLRAILAEFRRSGLEEATFQQIYSQHVALCRMEGLPYPTMSETMAVCSHLGSCRLLLVEPSRNDLLLRVRLNVSQDDVLYALKDE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae S288C

Entity 7 Entity 7 polymer

Description description	Origin recognition complex subunit 2
Molecular weight formula_weight	66063.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSKPELKEDKMLEVHFVGDDDVLNHILDREGGAKLKKERAQLLVNPKKIIKKPEYDLEEDDQEVLKDQNYVEIMGRDVQESLKNGSATGGGNKVYSFQNRKHSEKMAKLASELAKTPQKSVSFSLKNDPEITINVPQSSKGHSASDKVQPKNNDKSEFLSTAPRSLRKRLIVPRSHSDSESEYSASNSEDDEGVAQEHEEDTNAVIFSQKIQAQNRVVSAPVGKETPSKRMKRDKTSDLVEEYFEAHSSSKVLTSDRTLQKLKRAKLDQQTLRNLLSKVSPSFSAELKQLNQQYEKLFHKWMLQLHLGFNIVLYGLGSKRDLLERFRTTMLQDSIHVVINGFFPGISVKSVLNSITEEVLDHMGTFRSILDQLDWIVNKFKEDSSLELFLLIHNLDSQMLRGEKSQQIIGQLSSLHNIYLIASIDHLNAPLMWDHAKQSLFNWLWYETTTYSPYTEETSYENSLLVKQSGSLPLSSLTHVLRSLTPNARGIFRLLIKYQLDNQDNPSYIGLSFQDFYQQCREAFLVNSDLTLRAQLTEFRDHKLIRTKKGTDGVEYLLIPVDNGTLTDFLEKEEEEA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae S288C

Entity 8 Entity 8 polymer

Description description	Isoform 2 of Origin recognition complex subunit 3
Molecular weight formula_weight	82436.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MATSSMSKGCFVFKPNSKKRKISLPIEDYFNKGKNEPEDSKLRFETYQLIWQQMKSENERLQEELNKNLFDNLIEFLQKSHSGFQKNSRDLGGQIKLREIPTAALVLGVNVTDHDLTFGSLTEALQNNVTPYVVSLQAKDCPDMKHFLQKLISQLMDCCVDIKSKEEESVHVTQRKTHYSMDSLSSWYMTVTQKTDPKMLSKKRTTSSQWQSPPVVVILKDMESFATKVLQDFIIISSQHLHEFPLILIFGIATSPIIIHRLLPHAVSSLLCIELFQSLSCKEHLTTVLDKLLLTTQFPFKINEKVLQVLTNIFLYHDFSVQNFIKGLQLSLLEHFYSQPLSVLCCNLPEAKRRINFLSNNQCENIRRLPSFRRYVEKQASEKQVALLTNERYLKEETQLLLENLHVYHMNYFLVLRCLHKFTSSLPKYPLGRQIRELYCTCLEKNIWDSEEYASVLQLLRMLAKDELMTILEKCFKVFKSYCENHLGSTAKRIEEFLAQFQSLDAETKEEEDASGSQPKGLQKTDLYHLQKSLLEMKELRRSKKQTKFEVLRENVVNFIDCLVREYLLPPETQPLHEVVYFSAAHALREHLNAAPRIALHTALNNPYYYLKNEALKSEEGCIPNIAPDICIAYKLHLECSRLINLVDWSEAFATVVTAAEKMDANSATSEEMNEIIHARFIRAVSELELLGFIKPTKQKTDHVARLTWGGC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae S288C

Entity 9 Entity 9 polymer

Description description	Origin recognition complex subunit 4
Molecular weight formula_weight	50443.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSSRKSKSNSLIHTECLSQVQRILRERFCRQSPHSNLFGVQVQYKHLSELLKRTALHGESNSVLIIGPRGSGKTMLINHALKELMEIEEVSENVLQVHLNGLLQINDKIALKEITRQLNLENVVGDKVFGSFAENLSFLLEALKKGDRTSSCPVIFILDEFDLFAHHKNQTLLYNLFDISQSAQTPIAVIGLTCRLDILELLEKRVKSRFSHRQIHLMNSFGFPQYVKIFKEQLSLPAEFPDKVFAEKWNENVQYLSEDRSVQEVLQKHFNISKNLRSLHMLLMLALNRVTASHPFMTAVDLMEASQLCSMDSKANIVHGLSVLEICLIIAMKHLNDIYEEEPFNFQMVYNEFQKFVQRKAHSVYNFEKPVVMKAFEHLQQLELIKPMERTSGNSQREYQLMKLLLDNTQIMNALQKYPNCPTDVRQWATSSLSWL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae S288C

Entity 10 Entity 10 polymer

Description description	Origin recognition complex subunit 5
Molecular weight formula_weight	50349.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MPHLENVVLCRESQVSILQSLFGERHHFSFPSIFIYGHTASGKTYVTQTLLKTLELPHVFVNCVECFTLRLLLEQILNKLNHLSSSEDGCSTEITCETFNDFVRLFKQVTTAENLKDQTVYIVLDKAEYLRDMEANLLPGFLRLQELADRNVTVLFLSEIVWEKFRPNTGCFEPFVLYFPDYSIGNLQKILSHDHPPEYSADFYAAYINILLGVFYTVCRDLKELRHLAVLNFPKYCEPVVKGEASERDTRKLWRNIEPHLKKAMQTVYLREISSSQWEKLQKDDTDPGQLKGLSAHTHVELPYYSKFILIAAYLASYNPARTDKRFFLKHHGKIKKTNFLKKHEKTSNHLLGPKPFPLDRLLAILYSIVDSRVAPTANIFSQITSLVTLQLLTLVGHDDQLDGPKYKCTVSLDFIRAIARTVNFDIIKYLYDFL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae S288C

Entity 11 Entity 11 polymer

Description description	Cell division control protein 6 homolog
Molecular weight formula_weight	62834.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MPQTRSQAQATISFPKRKLSRALNKAKNSSDAKLEPTNVQTVTCSPRVKALPLSPRKRLGDDNLCNTPHLPPCSPPKQGKKENGPPHSHTLKGRRLVFDNQLTIKSPSKRELAKVHQNKILSSVRKSQEITTNSEQRCPLKKESACVRLFKQEGTCYQQAKLVLNTAVPDRLPAREREMDVIRNFLREHICGKKAGSLYLSGAPGTGKTACLSRILQDLKKELKGFKTIMLNCMSLRTAQAVFPAIAQEICQEEVSRPAGKDMMRKLEKHMTAEKGPMIVLVLDEMDQLDSKGQDVLYTLFEWPWLSNSHLVLIGIANTLDLTDRILPRLQAREKCKPQLLNFPPYTRNQIVTILQDRLNQVSRDQVLDNAAVQFCARKVSAVSGDVRKALDVCRRAIEIVESDVKSQTILKPLSECKSPSEPLIPKRVGLIHISQVISEIDGNRMTLSQEGAQDSFPLQQKILVCSLMLLIRQLKIKEVTLGKLYEAYSKVCRKQQVAAVDQSECLSLSGLLEARGILGLKRNKETRLTKVFFKIEEKEIEHALKDKALIGNILATGLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 12 Entity 12 polymer

Description description	DNA replication factor Cdt1
Molecular weight formula_weight	46099.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MGSSHHHHHHSSGLEVLFQGPRPEEPCGEKAPAYQRFHALAQPGLPGLVLPYKYQVLAEMFRSMDTIVGMLHNRSETPTFAKVQRGVQDMMRRRFEECNVGQIKTVYPASYRFRQERSVPTFKDGTRRSDYQLTIEPLLEQEADGAAPQLTASRLLQRRQIFSQKLVEHVKEHHKAFLASLSPAMVVPEDQLTRWHPRFNVDEVPDIEPAALPQPPATEKLTTAQEVLARARNLISPRMEKALSQLALRSAAPSSPGSPRPALPATPPATPPAASPSALKGVSQDLLERIRAKEAQKQLAQMTRCPEQEQRLQRLERLPELARVLRSVFVSERKPALSMEVACARMVGSCCTIMSPGEMEKHLLLLSELLPDWLSLHRIRTDTYVKLDKAADLAHITARLAHQTRAEEGL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 13 Entity 13 polymer

Description description	DNA
Molecular weight formula_weight	11933.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	H

ATGACTGGAAACTTTTTTGTACAACACTCCAATAAACAT

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 14 Entity 14 polymer

Description description	DNA
Molecular weight formula_weight	12380.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

AATGTTTATTGGAGTGTTGTACAAAAAAGTTTCCAGTCAT

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	6.68 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	8730

Human OCCM DNA licensing intermediate

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA replication licensing factor MCM2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Isoform 2 of DNA replication licensing factor MCM3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA replication licensing factor MCM4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA replication licensing factor MCM6

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA replication licensing factor MCM7

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Origin recognition complex subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Origin recognition complex subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Isoform 2 of Origin recognition complex subunit 3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Origin recognition complex subunit 4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Origin recognition complex subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
