8s0d

H. sapiens MCM bound to double stranded DNA and ORC1-6

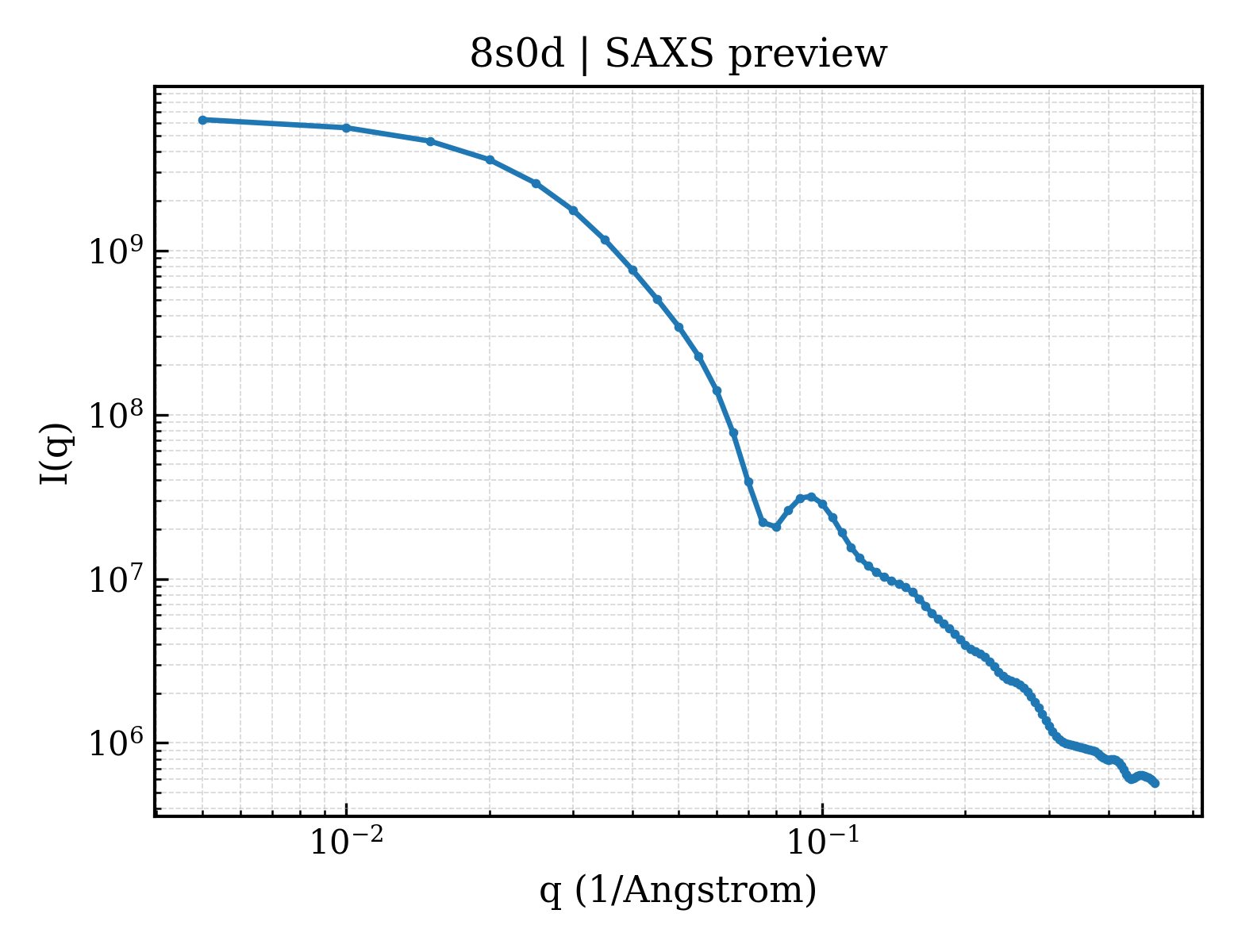

Method: ELECTRON MICROSCOPY Dmax: 237.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Origin recognition complex subunit 6

Homo sapiens

UniProt Q9Y5N6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain F； UniProt 2–252 Not recorded DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3M03 Crystal structure of human Orc6 fragment Deposited 2010-03-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 94–187（94 aa） Fragment：Middle Domain, reisdues 93-187
Not recorded MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；MES, Li2SO4, PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.50 Å R-free 0.266
3M03 Crystal structure of human Orc6 fragment Deposited 2010-03-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 94–187（94 aa） Fragment：Middle Domain, reisdues 93-187
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；MES, Li2SO4, PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.50 Å R-free 0.266
3M03 Crystal structure of human Orc6 fragment Deposited 2010-03-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 94–187（94 aa） Fragment：Middle Domain, reisdues 93-187
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；MES, Li2SO4, PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.50 Å R-free 0.266
6KVG The solution structure of human Orc6 Deposited 2019-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–252（252 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 150；Pressure ambient
NMR sample composition 0.7 mM [U-99% 15N] human Orc6, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.7 mM [U-99% 13C; U-99% 15N] human Orc6, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.7 mM [U-99% 13C] human Orc6, 100% D2O | 100% D2O
Resolution not provided
8S0B H. sapiens MCM bound to double stranded DNA and ORC6 as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain F 2–252（251 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 6 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ORC6_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain F； PDBConstruct 1–251； UniProt 2–252

DNA replication licensing factor MCM2

Homo sapiens

UniProt P49736

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain 2； UniProt 1–902 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
22VT Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD, containing Meier-Gorlin Syndrome mutation (MCM3-Q761L) Deposited 2026-01-26 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 2 1–904（904 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
4UUZ MCM2-histone complex Deposited 2014-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 69–138（70 aa） Fragment：RESIDUES 69-138
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1M HEPES PH7, 21% PEG3000
Resolution 2.90 Å R-free 0.230
5BNV Crystal structure of Human MCM2 HBD chaperoning a histone H3-H4 tetramer Deposited 2015-05-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 61–130（70 aa） Fragment：UNP residues 61-130
Chain F 61–130（70 aa） Fragment：UNP residues 61-130
Not recorded PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；1.5 M sodium/potassium phosphate, pH 8.0
Resolution 2.79 Å R-free 0.220
5BNX Crystal structure of Human MCM2 HBD and ASF1b chaperoning a histone H3.3-H4 dimer Deposited 2015-05-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 61–130（70 aa） Fragment：UNP residues 61-130
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；3.2 M sodium formate, 0.1 M Tris, pH 8.5
Resolution 2.31 Å R-free 0.213
5BO0 Crystal structure of Human MCM2 HBD and ASF1b chaperoning a histone H3.2-H4 dimer Deposited 2015-05-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 61–130（70 aa） Fragment：UNP residues 61-130
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；3.2 M sodium formate, 0.1 M Tris, pH 8.5
Resolution 2.91 Å R-free 0.238
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain L 63–124（62 aa） Fragment：UNP residues 63-154
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 63–124（62 aa） Fragment：UNP residues 63-154
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 63–124（62 aa） Fragment：UNP residues 63-154
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain P 63–124（62 aa） Fragment：UNP residues 63-154
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain T 63–124（62 aa） Fragment：UNP residues 63-154
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain X 63–124（62 aa） Fragment：UNP residues 63-154
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5JA4 Crystal structure of human TONSL and MCM2 HBDs binding to a histone H3-H4 tetramer Deposited 2016-04-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 61–130（70 aa）
Not recorded MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；0.1M MES pH 5.6, 7% isopropanol
Resolution 2.42 Å R-free 0.246
6XTX CryoEM structure of human CMG bound to ATPgammaS and DNA Deposited 2020-01-16 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: dodecameric
Chain 2 1–904（904 aa）
Not recorded ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
6XTY CryoEM structure of human CMG bound to AND-1 (CMGA) Deposited 2020-01-16 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 2 1–904（904 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.77 Å
6YA7 Cdc7-Dbf4 bound to an Mcm2-S40 derived bivalent substrate Deposited 2020-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 33–47（15 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1M PCTP pH7, 18% PEG 1500, 8% MPD
Resolution 1.67 Å R-free 0.185
7CIZ Crystal structure of DNAJC9 HBD helix2 in complex with H3.3-H4 dimer and MCM2 HBD Deposited 2020-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 61–130（70 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Lithium sulfate, 0.05 M Sodium sulfate; 0.05 M Tris, pH 8.5, 30% (v/v) PEG400.
Resolution 1.80 Å R-free 0.214
7CIZ Crystal structure of DNAJC9 HBD helix2 in complex with H3.3-H4 dimer and MCM2 HBD Deposited 2020-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 61–130（70 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Lithium sulfate, 0.05 M Sodium sulfate; 0.05 M Tris, pH 8.5, 30% (v/v) PEG400.
Resolution 1.80 Å R-free 0.214
7CIZ Crystal structure of DNAJC9 HBD helix2 in complex with H3.3-H4 dimer and MCM2 HBD Deposited 2020-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain K 61–130（70 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Lithium sulfate, 0.05 M Sodium sulfate; 0.05 M Tris, pH 8.5, 30% (v/v) PEG400.
Resolution 1.80 Å R-free 0.214
7CJ0 Crystal structure of DNAJC9 HBD in complex with H3.3-H4 dimer and MCM2 HBD Deposited 2020-07-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 61–130（70 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M Sodium acetate, 0.1 M Tris, pH8.5, 25% (v/v) PEG 4000, 20% (v/v) Glycerol
Resolution 2.50 Å R-free 0.295
7CJ0 Crystal structure of DNAJC9 HBD in complex with H3.3-H4 dimer and MCM2 HBD Deposited 2020-07-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 61–130（70 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M Sodium acetate, 0.1 M Tris, pH8.5, 25% (v/v) PEG 4000, 20% (v/v) Glycerol
Resolution 2.50 Å R-free 0.295
7PFO Core human replisome Deposited 2021-08-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain 2 1–904（904 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain 2 1–904（904 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7W1Y Human MCM double hexamer bound to natural DNA duplex (polyAT/polyTA) Deposited 2021-11-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 2 1–904（904 aa）
Chain A 1–904（904 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 12 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh from concentrated to avoid microbial contamination
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.59 Å
7W68 human single hexameric Mcm2-7 complex Deposited 2021-12-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–904（904 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 4.40 Å
8B9D Human replisome bound by Pol Alpha Deposited 2022-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain 2 1–904（904 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 2 1–904（904 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S09 H. sapiens MCM2-7 double hexamer bound to double stranded DNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 2 1–904（904 aa）
Chain A 1–904（904 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8S0A H. sapiens MCM2-7 hexamer bound to double stranded DNA Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 2 1–904（904 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S0B H. sapiens MCM bound to double stranded DNA and ORC6 as part of the MCM-ORC complex Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain 2 1–904（904 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 6 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain 2 1–904（904 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 2 1–904（904 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8W0E Cryo-EM structure of a human MCM2-7 single hexamer on dsDNA Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 2 1–904（904 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8W0F Cryo-EM structure of a human MCM2-7 double hexamer on dsDNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 2 1–904（904 aa）
Chain A 1–904（904 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8W0G Cryo-EM structure of a human MCM2-7 dimer Deposited 2024-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain 2 1–904（904 aa）
Chain A 1–904（904 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8W0I Cryo-EM structure of the human MCM2-7 heterohexamer Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 2 1–904（904 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8YJF Structure of human SPT16 MD-CTD and MCM2 HBD chaperoning a histone H3-H4 tetramer and an H2A-H2B dimer Deposited 2024-03-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 63–154（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M calcium acetate, 0.1 M Sodium cacodylate pH 5.5, 12% (w/v) PEG 8000
Resolution 4.40 Å R-free 0.312
8YJM Structure of human SPT16 MD-CTD and MCM2 HBD chaperoning a histone H3-H4 tetramer and a single chain H2B-H2A chimera Deposited 2024-03-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 63–154（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.2 M sodium acetate, 0.1 M sodium citrate pH 5.5, 5%(w/v) PEG 4000
Resolution 4.15 Å R-free 0.286
9C6G Mcm double hexamer from human Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain 2 1–904（904 aa）
Chain 8 1–904（904 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.26 Å
9CAQ Cryo-EM structure of a human MCM2-7 double hexamer formed from independently loaded MCM2-7 single hexamers Deposited 2024-06-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 2 1–904（904 aa）
Chain A 1–904（904 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9E2Z Cryo-EM structure of human CMG helicase stalled at G4-containing DNA template Deposited 2024-10-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain 2 1–904（904 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 4 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；30 second wait time after sample application; 30 second blot time, blot force 0
Resolution 2.60 Å
9LXD Structure of DNA-free MCM SH at 3.2 Angstroms resolution Deposited 2025-02-18 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain 2 1–904（904 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9LXE Structure of compacted DNA-free MCM DH at 3.9 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 2 1–904（904 aa）
Chain D 1–904（904 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
9LXF Structure of extended DNA-free MCM DH at 3.8 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 2 1–904（904 aa）
Chain D 1–904（904 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
9UQ0 Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD Deposited 2025-04-29 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 2 1–904（904 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9VLN Structure of human MCM2-7 single hexamer without MCM3 CTE, state 1 Deposited 2025-06-25 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 2 1–904（904 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
9VLW Structure of human MCM2-7 single hexamer without MCM3 CTE, state 2 Deposited 2025-06-26 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 2 1–904（904 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å

38 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MCM2_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain 2； PDBConstruct 1–902； UniProt 1–902

DNA replication licensing factor MCM3

Homo sapiens

UniProt P25205

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain 3； UniProt 1–808 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
22VT Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD, containing Meier-Gorlin Syndrome mutation (MCM3-Q761L) Deposited 2026-01-26 Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 3 1–808（808 aa）
Mutation：Q761L ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6XTX CryoEM structure of human CMG bound to ATPgammaS and DNA Deposited 2020-01-16 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: dodecameric
Chain 3 1–853（853 aa）
Not recorded ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
6XTY CryoEM structure of human CMG bound to AND-1 (CMGA) Deposited 2020-01-16 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 3 1–853（853 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.77 Å
7PFO Core human replisome Deposited 2021-08-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain 3 1–808（808 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain 3 1–808（808 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7W1Y Human MCM double hexamer bound to natural DNA duplex (polyAT/polyTA) Deposited 2021-11-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 3 1–853（853 aa）
Chain B 1–853（853 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 12 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh from concentrated to avoid microbial contamination
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.59 Å
7W68 human single hexameric Mcm2-7 complex Deposited 2021-12-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 4.40 Å
8B9D Human replisome bound by Pol Alpha Deposited 2022-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain 3 1–808（808 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 3 1–853（853 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S09 H. sapiens MCM2-7 double hexamer bound to double stranded DNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 3 1–808（808 aa）
Chain B 1–808（808 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8S0A H. sapiens MCM2-7 hexamer bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 3 1–808（808 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S0B H. sapiens MCM bound to double stranded DNA and ORC6 as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain 3 1–808（808 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 6 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain 3 1–808（808 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 3 1–808（808 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8W0E Cryo-EM structure of a human MCM2-7 single hexamer on dsDNA Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 3 2–808（807 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8W0F Cryo-EM structure of a human MCM2-7 double hexamer on dsDNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 3 2–808（807 aa）
Chain B 2–808（807 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8W0G Cryo-EM structure of a human MCM2-7 dimer Deposited 2024-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain 3 2–808（807 aa）
Chain B 2–808（807 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8W0I Cryo-EM structure of the human MCM2-7 heterohexamer Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 3 2–808（807 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9C6G Mcm double hexamer from human Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain 3 1–808（808 aa）
Chain 9 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.26 Å
9CAQ Cryo-EM structure of a human MCM2-7 double hexamer formed from independently loaded MCM2-7 single hexamers Deposited 2024-06-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 3 1–808（808 aa）
Chain B 1–808（808 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9E2Z Cryo-EM structure of human CMG helicase stalled at G4-containing DNA template Deposited 2024-10-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain 3 1–853（853 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 4 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；30 second wait time after sample application; 30 second blot time, blot force 0
Resolution 2.60 Å
9LXD Structure of DNA-free MCM SH at 3.2 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain 3 1–853（853 aa）
Chain B 1–853（853 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9LXE Structure of compacted DNA-free MCM DH at 3.9 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 3 1–853（853 aa）
Chain B 1–853（853 aa）
Chain C 1–853（853 aa）
Chain E 1–853（853 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
9LXF Structure of extended DNA-free MCM DH at 3.8 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 3 1–853（853 aa）
Chain B 1–853（853 aa）
Chain C 1–853（853 aa）
Chain E 1–853（853 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
9UQ0 Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD Deposited 2025-04-29 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 3 1–808（808 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9VLN Structure of human MCM2-7 single hexamer without MCM3 CTE, state 1 Deposited 2025-06-25 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 3 1–670（670 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
9VLW Structure of human MCM2-7 single hexamer without MCM3 CTE, state 2 Deposited 2025-06-26 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 3 1–670（670 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å

27 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MCM3_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain 3； PDBConstruct 3–810； UniProt 1–808

DNA replication licensing factor MCM4

Homo sapiens

UniProt P33991

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain 4； UniProt 1–863 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
22VT Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD, containing Meier-Gorlin Syndrome mutation (MCM3-Q761L) Deposited 2026-01-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 4 1–863（863 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6XTX CryoEM structure of human CMG bound to ATPgammaS and DNA Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: dodecameric
Chain 4 1–863（863 aa）
Not recorded ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
6XTY CryoEM structure of human CMG bound to AND-1 (CMGA) Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 4 1–863（863 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.77 Å
7PFO Core human replisome Deposited 2021-08-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain 4 1–863（863 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain 4 1–863（863 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7W1Y Human MCM double hexamer bound to natural DNA duplex (polyAT/polyTA) Deposited 2021-11-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 4 1–863（863 aa）
Chain C 1–863（863 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 12 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh from concentrated to avoid microbial contamination
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.59 Å
7W68 human single hexameric Mcm2-7 complex Deposited 2021-12-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–863（863 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 4.40 Å
8B9D Human replisome bound by Pol Alpha Deposited 2022-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain 4 1–863（863 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 4 1–863（863 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S09 H. sapiens MCM2-7 double hexamer bound to double stranded DNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 4 1–863（863 aa）
Chain C 1–863（863 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8S0A H. sapiens MCM2-7 hexamer bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 4 1–863（863 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S0B H. sapiens MCM bound to double stranded DNA and ORC6 as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain 4 1–863（863 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 6 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain 4 1–863（863 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 4 1–863（863 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8W0E Cryo-EM structure of a human MCM2-7 single hexamer on dsDNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 4 1–863（863 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8W0F Cryo-EM structure of a human MCM2-7 double hexamer on dsDNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 4 1–863（863 aa）
Chain C 1–863（863 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8W0G Cryo-EM structure of a human MCM2-7 dimer Deposited 2024-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain 4 1–863（863 aa）
Chain C 1–863（863 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8W0I Cryo-EM structure of the human MCM2-7 heterohexamer Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 4 1–863（863 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9C6G Mcm double hexamer from human Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain 0 1–863（863 aa）
Chain 4 1–863（863 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.26 Å
9CAQ Cryo-EM structure of a human MCM2-7 double hexamer formed from independently loaded MCM2-7 single hexamers Deposited 2024-06-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 4 1–863（863 aa）
Chain C 1–863（863 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9E2Z Cryo-EM structure of human CMG helicase stalled at G4-containing DNA template Deposited 2024-10-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain 4 1–863（863 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 4 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；30 second wait time after sample application; 30 second blot time, blot force 0
Resolution 2.60 Å
9LXD Structure of DNA-free MCM SH at 3.2 Angstroms resolution Deposited 2025-02-18 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain 4 1–863（863 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9LXE Structure of compacted DNA-free MCM DH at 3.9 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 4 1–863（863 aa）
Chain F 1–863（863 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
9LXF Structure of extended DNA-free MCM DH at 3.8 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 4 1–863（863 aa）
Chain F 1–863（863 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
9UQ0 Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD Deposited 2025-04-29 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 4 1–863（863 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9VLN Structure of human MCM2-7 single hexamer without MCM3 CTE, state 1 Deposited 2025-06-25 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 4 1–863（863 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
9VLW Structure of human MCM2-7 single hexamer without MCM3 CTE, state 2 Deposited 2025-06-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 4 1–863（863 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å

27 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MCM4_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain 4； PDBConstruct 1–863； UniProt 1–863

DNA replication licensing factor MCM5

Homo sapiens

UniProt P33992

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain 5； UniProt 1–734 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
22VT Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD, containing Meier-Gorlin Syndrome mutation (MCM3-Q761L) Deposited 2026-01-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 5 1–734（734 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6XTX CryoEM structure of human CMG bound to ATPgammaS and DNA Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: dodecameric
Chain 5 1–734（734 aa）
Not recorded ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
6XTY CryoEM structure of human CMG bound to AND-1 (CMGA) Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 5 1–734（734 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.77 Å
7PFO Core human replisome Deposited 2021-08-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain 5 1–734（734 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain 5 1–734（734 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7W1Y Human MCM double hexamer bound to natural DNA duplex (polyAT/polyTA) Deposited 2021-11-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 5 1–734（734 aa）
Chain D 1–734（734 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 12 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh from concentrated to avoid microbial contamination
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.59 Å
7W68 human single hexameric Mcm2-7 complex Deposited 2021-12-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–734（734 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 4.40 Å
8B9D Human replisome bound by Pol Alpha Deposited 2022-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain 5 1–734（734 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8S09 H. sapiens MCM2-7 double hexamer bound to double stranded DNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 5 1–734（734 aa）
Chain D 1–734（734 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8S0A H. sapiens MCM2-7 hexamer bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 5 1–734（734 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S0B H. sapiens MCM bound to double stranded DNA and ORC6 as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain 5 1–734（734 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 6 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain 5 1–734（734 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 5 1–734（734 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8W0E Cryo-EM structure of a human MCM2-7 single hexamer on dsDNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 5 1–734（734 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8W0F Cryo-EM structure of a human MCM2-7 double hexamer on dsDNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 5 1–734（734 aa）
Chain D 1–734（734 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8W0G Cryo-EM structure of a human MCM2-7 dimer Deposited 2024-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain 5 1–734（734 aa）
Chain D 1–734（734 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8W0I Cryo-EM structure of the human MCM2-7 heterohexamer Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 5 1–734（734 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9C6G Mcm double hexamer from human Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain 5 1–734（734 aa）
Chain A 1–734（734 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.26 Å
9CAQ Cryo-EM structure of a human MCM2-7 double hexamer formed from independently loaded MCM2-7 single hexamers Deposited 2024-06-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 5 1–734（734 aa）
Chain D 1–734（734 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9E2Z Cryo-EM structure of human CMG helicase stalled at G4-containing DNA template Deposited 2024-10-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain 5 1–734（734 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 4 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；30 second wait time after sample application; 30 second blot time, blot force 0
Resolution 2.60 Å
9LXD Structure of DNA-free MCM SH at 3.2 Angstroms resolution Deposited 2025-02-18 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain 5 1–734（734 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9LXE Structure of compacted DNA-free MCM DH at 3.9 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 5 1–734（734 aa）
Chain H 1–734（734 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
9LXF Structure of extended DNA-free MCM DH at 3.8 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 5 1–734（734 aa）
Chain H 1–734（734 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
9UQ0 Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD Deposited 2025-04-29 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 5 1–734（734 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9VLN Structure of human MCM2-7 single hexamer without MCM3 CTE, state 1 Deposited 2025-06-25 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 5 1–734（734 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
9VLW Structure of human MCM2-7 single hexamer without MCM3 CTE, state 2 Deposited 2025-06-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 5 1–734（734 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å

26 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MCM5_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain 5； PDBConstruct 1–734； UniProt 1–734

DNA replication licensing factor MCM6

Homo sapiens

UniProt Q14566

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain 6； UniProt 1–821 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
22VT Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD, containing Meier-Gorlin Syndrome mutation (MCM3-Q761L) Deposited 2026-01-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 6 1–821（821 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
2KLQ The solution structure of CBD of human MCM6 Deposited 2009-07-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 708–821（114 aa） Fragment：RESIDUES 708-821
Mutation：C721S No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；310 K；Ionic strength (raw mmCIF value) 0.5；Pressure ambient
NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] CBD,MES,EDTA,Glycerol,NaCl-1, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] CBD,MES,EDTA,Glycerol,NaCl-2, 100% D2O | 100% D2O
NMR sample composition 0.5 mM CBD,MES,EDTA,Glycerol,NaCl-3, 100% D2O | 100% D2O
Resolution not provided
2LE8 The protein complex for DNA replication Deposited 2011-06-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 708–821（114 aa） Fragment：UNP residues 708-821
Mutation：C18S No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；310 K；Ionic strength (raw mmCIF value) 3；Pressure ambient
NMR sample composition 25 mM MES-1, 300 mM sodium chloride-2, 1 % glycerol-3, 0.8 mM [U-100% 13C; U-100% 15N] entity_2-4, 1 mM entity_1-5, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 25 mM [U-100% 15N] MES-6, 300 mM sodium chloride-7, 1 % glycerol-8, 0.8 mM [U-100% 13C; U-100% 15N] entity_1-9, 1.0 mM entity_2-10, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 25 mM MES-11, 300 mM sodium chloride-12, 1 % glycerol-13, 0.8 mM [U-100% 13C; U-100% 15N] entity_1-14, 1.0 mM entity_2-15, 100% D2O | 100% D2O
NMR sample composition 25 mM MES-16, 300 mM sodium chloride-17, 1 % glycerol-18, 0.8 mM [U-100% 13C; U-100% 15N] entity_2-19, 1.0 mM entity_1-20, 100% D2O | 100% D2O
Resolution not provided
6XTX CryoEM structure of human CMG bound to ATPgammaS and DNA Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: dodecameric
Chain 6 1–821（821 aa）
Not recorded ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
6XTY CryoEM structure of human CMG bound to AND-1 (CMGA) Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 6 1–821（821 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.77 Å
7PFO Core human replisome Deposited 2021-08-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain 6 1–821（821 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain 6 1–821（821 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7W1Y Human MCM double hexamer bound to natural DNA duplex (polyAT/polyTA) Deposited 2021-11-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 6 1–821（821 aa）
Chain E 1–821（821 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 12 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh from concentrated to avoid microbial contamination
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.59 Å
7W68 human single hexameric Mcm2-7 complex Deposited 2021-12-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–821（821 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 4.40 Å
8B9D Human replisome bound by Pol Alpha Deposited 2022-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain 6 1–821（821 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 6 1–821（821 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S09 H. sapiens MCM2-7 double hexamer bound to double stranded DNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 6 1–821（821 aa）
Chain E 1–821（821 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8S0A H. sapiens MCM2-7 hexamer bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 6 1–821（821 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S0B H. sapiens MCM bound to double stranded DNA and ORC6 as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain 6 1–821（821 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 6 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain 6 1–821（821 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 6 1–821（821 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8W0E Cryo-EM structure of a human MCM2-7 single hexamer on dsDNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 6 1–821（821 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8W0F Cryo-EM structure of a human MCM2-7 double hexamer on dsDNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 6 1–821（821 aa）
Chain E 1–821（821 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8W0G Cryo-EM structure of a human MCM2-7 dimer Deposited 2024-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain 6 1–821（821 aa）
Chain E 1–821（821 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8W0I Cryo-EM structure of the human MCM2-7 heterohexamer Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 6 1–821（821 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9C6G Mcm double hexamer from human Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain 6 1–821（821 aa）
Chain B 1–821（821 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.26 Å
9CAQ Cryo-EM structure of a human MCM2-7 double hexamer formed from independently loaded MCM2-7 single hexamers Deposited 2024-06-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 6 1–821（821 aa）
Chain E 1–821（821 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9E2Z Cryo-EM structure of human CMG helicase stalled at G4-containing DNA template Deposited 2024-10-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain 6 1–821（821 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 4 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；30 second wait time after sample application; 30 second blot time, blot force 0
Resolution 2.60 Å
9LXD Structure of DNA-free MCM SH at 3.2 Angstroms resolution Deposited 2025-02-18 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain 6 1–821（821 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9LXE Structure of compacted DNA-free MCM DH at 3.9 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 6 1–821（821 aa）
Chain G 1–821（821 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
9LXF Structure of extended DNA-free MCM DH at 3.8 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 6 1–821（821 aa）
Chain G 1–821（821 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
9UQ0 Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD Deposited 2025-04-29 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 6 1–821（821 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9VLN Structure of human MCM2-7 single hexamer without MCM3 CTE, state 1 Deposited 2025-06-25 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 6 1–821（821 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
9VLW Structure of human MCM2-7 single hexamer without MCM3 CTE, state 2 Deposited 2025-06-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 6 1–821（821 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å

29 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MCM6_HUMAN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain 6； PDBConstruct 1–821； UniProt 1–821

DNA replication licensing factor MCM7

Homo sapiens

UniProt P33993

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain 7； UniProt 1–719 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
22VT Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD, containing Meier-Gorlin Syndrome mutation (MCM3-Q761L) Deposited 2026-01-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 7 1–719（719 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6XTX CryoEM structure of human CMG bound to ATPgammaS and DNA Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: dodecameric
Chain 7 1–719（719 aa）
Not recorded ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
6XTY CryoEM structure of human CMG bound to AND-1 (CMGA) Deposited 2020-01-16 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 7 1–719（719 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.77 Å
7PFO Core human replisome Deposited 2021-08-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain 7 1–719（719 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain 7 1–719（719 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7W1Y Human MCM double hexamer bound to natural DNA duplex (polyAT/polyTA) Deposited 2021-11-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 7 1–719（719 aa）
Chain F 1–719（719 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 12 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh from concentrated to avoid microbial contamination
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.59 Å
7W68 human single hexameric Mcm2-7 complex Deposited 2021-12-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 1–719（719 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 4.40 Å
8B9D Human replisome bound by Pol Alpha Deposited 2022-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain 7 1–719（719 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 7 1–719（719 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S09 H. sapiens MCM2-7 double hexamer bound to double stranded DNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain 7 1–719（719 aa）
Chain F 1–719（719 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8S0A H. sapiens MCM2-7 hexamer bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 7 1–719（719 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S0B H. sapiens MCM bound to double stranded DNA and ORC6 as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain 7 1–719（719 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 6 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain 7 1–719（719 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 7 1–719（719 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8W0E Cryo-EM structure of a human MCM2-7 single hexamer on dsDNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain 7 1–719（719 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8W0F Cryo-EM structure of a human MCM2-7 double hexamer on dsDNA Deposited 2024-02-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 7 1–719（719 aa）
Chain F 1–719（719 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8W0G Cryo-EM structure of a human MCM2-7 dimer Deposited 2024-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain 7 1–719（719 aa）
Chain F 1–719（719 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 10 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8W0I Cryo-EM structure of the human MCM2-7 heterohexamer Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 7 1–719（719 aa）
Not recorded ZN ZINC ION × 5 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9C6G Mcm double hexamer from human Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain 7 1–719（719 aa）
Chain C 1–719（719 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.26 Å
9CAQ Cryo-EM structure of a human MCM2-7 double hexamer formed from independently loaded MCM2-7 single hexamers Deposited 2024-06-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain 7 1–719（719 aa）
Chain F 1–719（719 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9E2Z Cryo-EM structure of human CMG helicase stalled at G4-containing DNA template Deposited 2024-10-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain 7 1–719（719 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 4 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；30 second wait time after sample application; 30 second blot time, blot force 0
Resolution 2.60 Å
9LXD Structure of DNA-free MCM SH at 3.2 Angstroms resolution Deposited 2025-02-18 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain 7 1–719（719 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9LXE Structure of compacted DNA-free MCM DH at 3.9 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 7 1–719（719 aa）
Chain A 1–719（719 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
9LXF Structure of extended DNA-free MCM DH at 3.8 Angstroms resolution Deposited 2025-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain 7 1–719（719 aa）
Chain A 1–719（719 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
9UQ0 Structure of human MCM2-7 single hexamer with MCM3-WHD attached to MCM2-CTD Deposited 2025-04-29 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 7 1–719（719 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9VLN Structure of human MCM2-7 single hexamer without MCM3 CTE, state 1 Deposited 2025-06-25 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 7 1–719（719 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
9VLW Structure of human MCM2-7 single hexamer without MCM3 CTE, state 2 Deposited 2025-06-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain 7 1–719（719 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å

27 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MCM7_HUMAN
Isoform —
PDB entities 7
Chains and sequence ranges Author chain 7； PDBConstruct 1–719； UniProt 1–719

Origin recognition complex subunit 1

Homo sapiens

UniProt Q13415

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain A； UniProt 1–861 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 471–861（391 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio
Resolution 3.39 Å R-free 0.281
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 471–861（391 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio
Resolution 3.39 Å R-free 0.281
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 471–861（391 aa） Fragment：UNP residues 471-861
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 18.00 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–861（861 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–861（861 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 471–861（391 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 471–861（391 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 471–861（391 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7JPS ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain A 471–861（391 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 2–861（860 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain A 1–861（861 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain A 1–861（861 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–861（861 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

12 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ORC1_HUMAN
Isoform —
PDB entities 10
Chains and sequence ranges Author chain A； PDBConstruct 1–861； UniProt 1–861

Origin recognition complex subunit 2

Homo sapiens

UniProt Q13416

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain B； UniProt 1–577 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5C8H Crystal structure of ORC2 C-terminal domain Deposited 2015-06-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 458–577（120 aa） Fragment：C-terminal domain (UNP residues 458-577)
Not recorded UNX UNKNOWN LIGAND × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG-3350, 0.2 M magnesium formate
Resolution 2.01 Å R-free 0.257
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 231–577（347 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 231–577（347 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 231–577（347 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 231–577（347 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 231–577（347 aa）
Chain H 231–577（347 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 231–577（347 aa）
Chain F 231–577（347 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 231–577（347 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7JPS ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain B 1–577（577 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain B 1–577（577 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain B 1–577（577 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain B 1–577（577 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain B 1–577（577 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

15 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ORC2_HUMAN
Isoform —
PDB entities 11
Chains and sequence ranges Author chain B； PDBConstruct 1–577； UniProt 1–577

Isoform 2 of Origin recognition complex subunit 3

Homo sapiens

UniProt Q9UBD5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain C； UniProt 1–712 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Origin recognition complex subunit 4 × 1 （O43929） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–712（712 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–712（712 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–712（712 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–712（712 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–712（712 aa）
Chain C 1–712（712 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJ8 Human Origin Recognition Complex subunits 2 and 3 Deposited 2017-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–712（712 aa）
Chain D 1–712（712 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；9.5% PEG20000 50mM tri-Sodium-citrate 60mM Citric Acid 10mg/ml HO23 Ratio 1:1
Resolution 6.00 Å R-free 0.368
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–712（712 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–711（711 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–711（711 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–711（711 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–712（712 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–712（712 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–712（712 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–712（712 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7JPS ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain C 1–712（712 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain C 1–712（712 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain C 1–712（712 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain C 1–711（711 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain C 1–711（711 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

14 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ORC3_HUMAN
Isoform Q9UBD5-2
PDB entities 12
Chains and sequence ranges Author chain C； PDBConstruct 1–712； UniProt 1–712

Origin recognition complex subunit 4

Homo sapiens

UniProt O43929

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain D； UniProt 1–436 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 5 × 1 （O43913） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio
Resolution 3.39 Å R-free 0.281
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio
Resolution 3.39 Å R-free 0.281
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7JPS ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain D 1–436（436 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 1–436（436 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain D 1–436（436 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain D 1–436（436 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 1–436（436 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ORC4_HUMAN
Isoform —
PDB entities 13
Chains and sequence ranges Author chain D； PDBConstruct 1–436； UniProt 1–436

Origin recognition complex subunit 5

Homo sapiens

UniProt O43913

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 12 DNA 2 PDB declaration: tetradecameric（14） Consistent with all polymer counts Chain E； UniProt 1–435 Not recorded Origin recognition complex subunit 6 × 1 （Q9Y5N6） DNA replication licensing factor MCM2 × 1 （P49736） DNA replication licensing factor MCM3 × 1 （P25205） DNA replication licensing factor MCM4 × 1 （P33991） DNA replication licensing factor MCM5 × 1 （P33992） DNA replication licensing factor MCM6 × 1 （Q14566） DNA replication licensing factor MCM7 × 1 （P33993） DNA (58-mer) × 1 DNA (58-mer) × 1 Origin recognition complex subunit 1 × 1 （Q13415） Origin recognition complex subunit 2 × 1 （Q13416） Isoform 2 of Origin recognition complex subunit 3 × 1 （Q9UBD5） Origin recognition complex subunit 4 × 1 （O43929） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 8 ZN ZINC ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8S0D Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–284（284 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio
Resolution 3.39 Å R-free 0.281
5UJ7 Structure of the active form of human Origin Recognition Complex ATPase motor module, complex subunitS 1, 4, 5 Deposited 2017-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–284（284 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；22% Ethylene glycol 8% Propylene glycol 10mg/ml protein 1:1 ratio
Resolution 3.39 Å R-free 0.281
5UJM Structure of the active form of human Origin Recognition Complex and its ATPase motor module Deposited 2017-01-18 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 18.00 Å
7CTE Human Origin Recognition Complex, ORC2-5 Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7CTF Human origin recognition complex 1-5 State II Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7CTG Human Origin Recognition Complex, ORC1-5 State I Deposited 2020-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
7JPO ORC-O1AAA: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC2 WH Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7JPP ORC-O2WH: Human Origin Recognition Complex (ORC) with dynamic/unresolved ORC1 AAA+ domain Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7JPQ ORC-O2-5: Human Origin Recognition Complex (ORC) with subunits 2,3,4,5 Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7JPR ORC-OPEN: Human Origin Recognition Complex (ORC) in an open conformation Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7JPS ORC-DNA: Human Origin Recognition Complex (ORC) with DNA bound in the core Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain E 1–435（435 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8RWV Human OCCM DNA licensing intermediate Deposited 2024-02-05 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain E 1–435（435 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.68 Å
8S0C H. sapiens ORC1-5 bound to double stranded DNA as part of the MCM-ORC complex Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric
Chain E 1–435（435 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8S0E H. sapiens OCCM bound to double stranded DNA Deposited 2024-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain E 1–435（435 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S0F H. sapiens OC1M bound to double stranded DNA Deposited 2024-02-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain E 1–435（435 aa）
Not recorded MG MAGNESIUM ION × 5 ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ORC5_HUMAN
Isoform —
PDB entities 14
Chains and sequence ranges Author chain E； PDBConstruct 1–435； UniProt 1–435

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8s0d

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8s0d
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8s0d
Deposition date deposition_date2024-02-13
Structure title titleH. sapiens MCM bound to double stranded DNA and ORC1-6
Keywords keywordsAAA+ ATPase, DNA helicase, REPLICATION; REPLICATION
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier67.25 Å
Radius of gyration Rg (electron density) rg_electron67.79 Å
Forward intensity I(0) i06496050000.00
Molecular weight molecular_weight658220.0 kDa
Excluded volume excluded_volume814930 ų
Envelope volume envelope_volume1337000 ų
Hydration-shell volume shell_volume163920 ų
Envelope diameter envelope_diameter237.4 Å
Shell Rg shell_rg68.51 Å
Envelope Rg envelope_rg65.82 Å
Shape Rg shape_rg67.85 Å
Total Rg total_rg67.60 Å
Total atoms total_atoms46024
Residues n_residues5539
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax237.0 Å
Rg (real space) rg_real67.28 Å
Rg uncertainty (real space) rg_real_error2.39 Å
I(0) (real space) i0_real6.4960e+09
I(0) uncertainty (real space) i0_real_error1.3420e+08
Rg (reciprocal space) rg_reciprocal67.01 Å
I(0) (reciprocal space) i0_reciprocal6492000000.0000
Solution quality estimate total_estimate0.8476
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary72.1 Å
Skewness Skewness skewness0.365
Kurtosis Kurtosis kurtosis-0.531
Angular range angular_range— – 0.1150 Å−1
Current regularization parameter α current_alpha0.0003
Highest regularization parameter α highest_alpha1276000000.0000
Real-space data points n_real_points24
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.727; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.835
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (18)

▶

8. Citations (3)

▶

9. Files and Curves (10)
